Smart Blood Pressure Wrist Monitor

Smart Blood Pressure Wrist Monitor(BP7S)
USER GUIDE
Table of Contents
EN
INTRODUCTION
PACKAGE CONTENTS
INTENDED USE
CONTRAINDICATION
PARTS AND DISPLAY INDICATORS
SET UP REQUIREMENTS
SET UP PROCEDURES
BODY POSTURE DURING MEASUREMENT
SYNC TIME AND RESULTS VIA BLUETOOTH
SPECIFICATIONS
GENERAL SAFETY AND PRECAUTIONS
BATTERY HANDLING AND USAGE
TROUBLESHOOTING
CARE AND MAINTENANCE
WARRANTY INFORMATION
EXPLANATION OF SYMBOLS
CONTACT AND CUSTOMER SERVICE
IMPORTANT INFORMATION REQUIRED BY THE FCC
OTHER STANDARDS AND COMPLIANCES
1
1
1
2
2
3
3
3
5
6
7
9
10
12
13
13
14
14
15

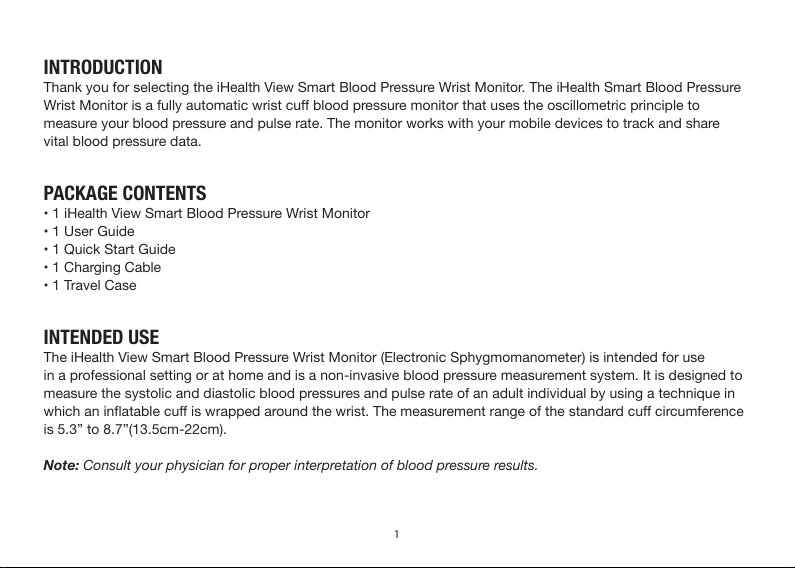

INTRODUCTION
Thank you for selecting the iHealth View Smart Blood Pressure Wrist Monitor. The iHealth Smart Blood Pressure
Wrist Monitor is a fully automatic wrist cuff blood pressure monitor that uses the oscillometric principle to
measure your blood pressure and pulse rate. The monitor works with your mobile devices to track and share
vital blood pressure data.
PACKAGE CONTENTS
• 1 iHealth View Smart Blood Pressure Wrist Monitor
• 1 User Guide
• 1 Quick Start Guide
• 1 Charging Cable
• 1 Travel Case
INTENDED USE
The iHealth View Smart Blood Pressure Wrist Monitor (Electronic Sphygmomanometer) is intended for use
in a professional setting or at home and is a non-invasive blood pressure measurement system. It is designed to
measure the systolic and diastolic blood pressures and pulse rate of an adult individual by using a technique in
which an inflatable cuff is wrapped around the wrist. The measurement range of the standard cuff circumference
is 5.3” to 8.7”(13.5cm-22cm).
Note: Consult your physician for proper interpretation of blood pressure results.
1

!
CONTRAINDICATION
It is not recommended for people with serious arrhythmia to use this Smart Blood Pressure Wrist Monitor.
PARTS AND DISPLAY INDICATORS
START/STOP
START/STOP button
Systolic
Diastolic
Pulse
Battery
Sync indicator
Charging indicator
Position detect indicator
Bluetooth indicator
Pulse indicator
Cuff
Usb adapter
Result indicator
2

SET UP REQUIREMENTS
Compatible with iPhone 4s+, iPod Touch 5, iPad 3+, iPad Mini+, iPad Air+ and select Android phones. Requires
iOS version 7.0+ and Android version 4.0+. For a complete list of compatible devices, visit our support page at
www.ihealthlabs.eu/support.
SET UP PROCEDURES
Download the Free iHealth MyVitals App
Prior to first use, download and install “iHealth MyVitals” from the App Store or Google Play Store. Follow the
on-screen instructions to register and set up your personal account.
Access the iHealth Cloud Account
Your iHealth account also gives you access to the free and secure iHealth cloud service. Go to
www.ihealthlabs.eu and sign in with the same account.
Charge Battery before First Use
Connect the monitor to a USB port using the charging cable provided until the charging indicator light
green and indicator steady.
BODY POSTURE DURING MEASUREMENT
Blood pressure can be affected by the position of the cuff and your physiologic condition. It is very important
that the cuff is positioned at your heart level during blood pressure measurements.
1. Sit comfortably with your feet flat on the floor without crossing your legs. Stay still during measurement. Do
not move your wrist, body, or the monitor.
2. Place your hand palm-side up in front of you and leave 1-2cm between the monitor and the bottom of your
palm. If the monitor is correctly placed, iHealth logo will be facing upright.
3

1/2" (1-2cm)
iHealth
iHealth
START
3. The center of the cuff should be at your heart level.
4. It is advised to place the monitor’s travel case under your arm for support and to keep your arm at optimal
height for measurement.
TAKING YOUR BLOOD PRESSURE READING
1. Apply the cuff or press the START/STOP button, the monitor will activate and begin to detect your wrist position.
2. Adjust the height of your wrist, the monitor will detect your wrist position and the measurement will start
ONLY when the correct position is detected. When the position is correct, press "START/STOP" button again
to start measurement.
4

3. Then the cuff will be slowly inflated. The blood pressure and pulse will be measured during inflation. Inflation
will stop as soon as the blood pressure and pulse rate have been calculated and displayed on the screen. The
result will be automatically stored in the memory, and all results will be uploaded to the App automatically
upon the next successful Bluetooth connection.

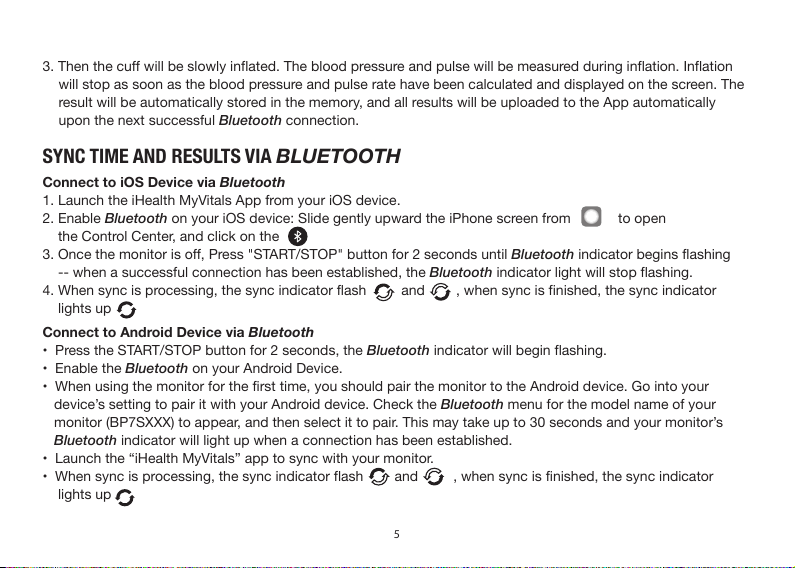

SYNC TIME AND RESULTS VIA BLUETOOTH
Connect to iOS Device via Bluetooth
1. Launch the iHealth MyVitals App from your iOS device.
2. Enable Bluetooth on your iOS device: Slide gently upward the iPhone screen from to open
the Control Center, and click on the
3. Once the monitor is off, Press "START/STOP" button for 2 seconds until Bluetooth indicator begins flashing
-- when a successful connection has been established, the Bluetooth indicator light will stop flashing.
4. When sync is processing, the sync indicator flash and , when sync is finished, the sync indicator
lights up
Connect to Android Device via Bluetooth
• Press the START/STOP button for 2 seconds, the Bluetooth indicator will begin flashing.
• Enable the Bluetooth on your Android Device.
• When using the monitor for the first time, you should pair the monitor to the Android device. Go into your
device’s setting to pair it with your Android device. Check the Bluetooth menu for the model name of your
monitor (BP7SXXX) to appear, and then select it to pair. This may take up to 30 seconds and your monitor’s
Bluetooth indicator will light up when a connection has been established.
• Launch the “iHealth MyVitals” app to sync with your monitor.
• When sync is processing, the sync indicator flash and , when sync is finished, the sync indicator
lights up
5

• Please repeat these steps when you switch to another Android device with the monitor.
Remember to:
1. Make sure your wrist size is within cuff circumference; see the range in “SPECIFICATIONS”
2. Measure on the same wrist each time.
3. Stay still and calm for one to one and half minutes before taking a blood pressure measurement. Prolonged
over-inflation of the bladder may cause bruises of your wrist.
4. Keep the cuff clean. Cleaning the cuff after every 200 times of usage is recommended. If the cuff becomes
dirty, clean it with a moistened cloth. Do not rinse the monitor or cuff with running water.
5. Press the “START/STOP” button at any time to interrupt a measurement.
Note: Physical activity, eating, drinking, smoking, excitement, stress, and many other factors influence blood
pressure results.
SPECIFICATIONS
1. Product name: iHealth View Smart Blood Pressure Wrist Monitor
2. Model: BP7S
3. Classification: Internally powered; Type BF applied part; IP22, No AP or APG; Continuous operation
4. Machine size: approx. 2.8"×2.9"×0.7" (72mm×74mm×17.6mm)
5. Cuff circumference: 5.3"- 8.7" (13.5cm-22cm)
6. Weight: approx. 4.2oz(120g)(including cuff)
7. Power: DC:5.0V 1.0A, Battery: 1*3.7V Li-ion 400mAh
8. Measurement range:
Cuff pressure: 0-300 mmHg
Systolic: 60-260 mmHg
6

Diastolic: 40-199 mmHg
Pulse rate: 40-180 beats/minute
9. Accuracy:
Pressure: ±3 mmHg
Pulse rate: ±5%
10. Environmental temperature for operation: 10°C-40°C(50°F -104°F)
11. Environmental humidity for operation: ≤85%RH
12. Environmental temperature for storage and transport:-20°C-55°C(-4°F-131°F)
13. Environmental humidity for storage and transport: ≤85%RH
14. Environmental pressure: 80kPa-105kPa
15. Battery life: more than 80 measurements on a full charge
16. The blood pressure measurement system includes accessories: pump, valve, cuff, and sensor.
Note: These specifications are subject to change without notice.
GENERAL SAFETY AND PRECAUTIONS
1. Read all of the information in the User Guide and other provided instructions before operating the unit.
2. Consult your physician for any of the following situations:
a) The application of the cuff over a wound or inflamed area.
b) The application of the cuff on any limb with intravascular access or therapy, or an arteriovenous (A-V) shunt.
c) The application of the cuff on the arm on the side of a mastectomy.
d) Simultaneous use with other medical monitoring equipment on the same limb.
e) The blood circulation of the user needs to be checked.
3. Do not use this product in a moving vehicle as this may result in inaccurate measurements.
4. Blood pressure measurements determined by this product are equivalent to those obtained by professional
7

healthcare practitioners using the cuff/stethoscope auscultation method within the limits prescribed by the
American National Standard, Electronic or Automated Sphygmomanometer. This device is also clinically
validated according to the 2010 Protocol of the European Society of Hypertension (ESH 2010).

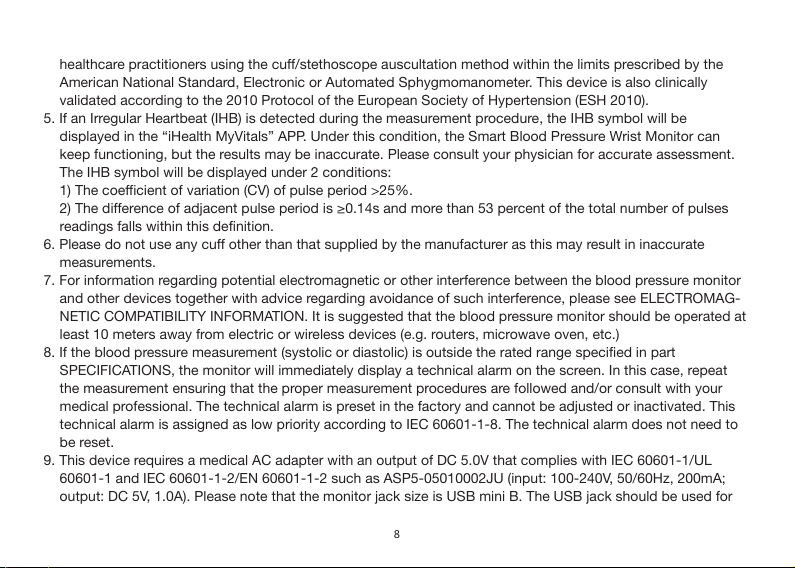

5. If an Irregular Heartbeat (IHB) is detected during the measurement procedure, the IHB symbol will be
displayed in the “iHealth MyVitals” APP. Under this condition, the Smart Blood Pressure Wrist Monitor can
keep functioning, but the results may be inaccurate. Please consult your physician for accurate assessment.
The IHB symbol will be displayed under 2 conditions:
1) The coefficient of variation (CV) of pulse period >25%.
2) The difference of adjacent pulse period is ≥0.14s and more than 53 percent of the total number of pulses
readings falls within this definition.
6. Please do not use any cuff other than that supplied by the manufacturer as this may result in inaccurate
measurements.
7. For information regarding potential electromagnetic or other interference between the blood pressure monitor
and other devices together with advice regarding avoidance of such interference, please see ELECTROMAG-
NETIC COMPATIBILITY INFORMATION. It is suggested that the blood pressure monitor should be operated at
least 10 meters away from electric or wireless devices (e.g. routers, microwave oven, etc.)
8. If the blood pressure measurement (systolic or diastolic) is outside the rated range specified in part
SPECIFICATIONS, the monitor will immediately display a technical alarm on the screen. In this case, repeat
the measurement ensuring that the proper measurement procedures are followed and/or consult with your
medical professional. The technical alarm is preset in the factory and cannot be adjusted or inactivated. This
technical alarm is assigned as low priority according to IEC 60601-1-8. The technical alarm does not need to
be reset.
9. This device requires a medical AC adapter with an output of DC 5.0V that complies with IEC 60601-1/UL
60601-1 and IEC 60601-1-2/EN 60601-1-2 such as ASP5-05010002JU (input: 100-240V, 50/60Hz, 200mA;
output: DC 5V, 1.0A). Please note that the monitor jack size is USB mini B. The USB jack should be used for
8

charging only.
This Monitor is designed for adults and should never be used on infants, young children, pregnant or
pre-eclamptic patients. Consult your physician before use on children.
This product might not meet its performance specifications if stored or used outside the specified
temperature and humidity ranges.
Please do not share the cuff with any infectious person to avoid cross-infection.

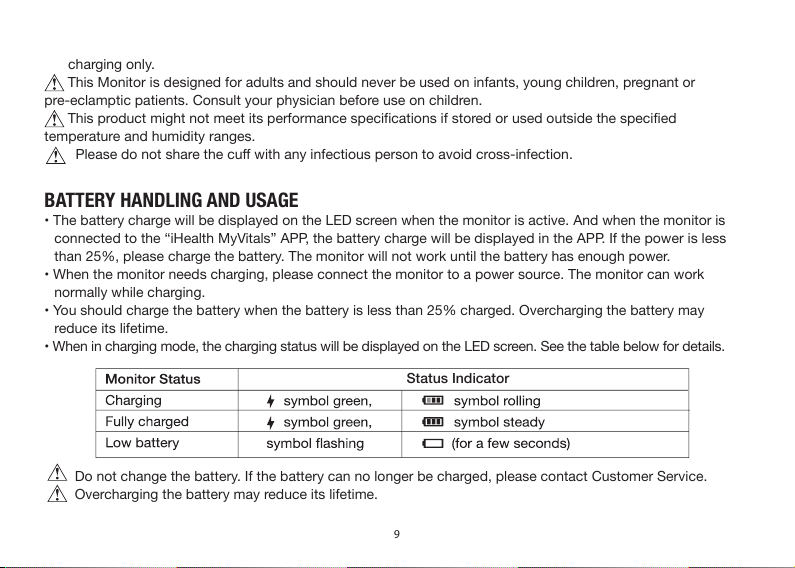

BATTERY HANDLING AND USAGE
• The battery charge will be displayed on the LED screen when the monitor is active. And when the monitor is
connected to the “iHealth MyVitals” APP, the battery charge will be displayed in the APP. If the power is less
than 25%, please charge the battery. The monitor will not work until the battery has enough power.
• When the monitor needs charging, please connect the monitor to a power source. The monitor can work
normally while charging.
• You should charge the battery when the battery is less than 25% charged. Overcharging the battery may
reduce its lifetime.
• When in charging mode, the charging status will be displayed on the LED screen. See the table below for details.
Status Indicator
Do not change the battery. If the battery can no longer be charged, please contact Customer Service.
Overcharging the battery may reduce its lifetime.
9

Lithium battery replacement by inadequately trained personnel could result in a hazard such as a fire or
explosion.
Do not plug or unplug the power cord into the electrical outlet with wet hands. If the AC adapter is abnormal,
please change the adapter.
Do not pull out the adapter when you are using the monitor.
Do not use any other type of AC adapter as it may harm the monitor.
The monitor, cable, battery and cuff must be disposed of according to local regulations at the end of their usage.
Note: Battery life and charge cycles vary by use and settings.
PROBLEM POSSIBLE CAUSE SOLUTION
Battery do not have enough power Charge the batteryLow Battery
Pressure system is unstable before measurement
Fail to detect systolic pressure
Fail to detect diastolic pressure
Pneumatic system blocked or cuff is too
tight during inflation
Pneumatic system leakage or cuff is too
loose during inflation

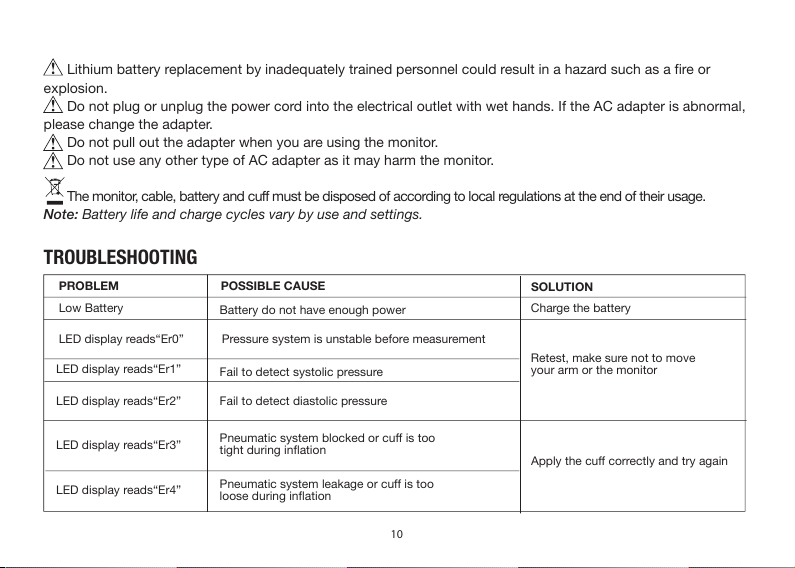

TROUBLESHOOTING
Retest, make sure not to move
your arm or the monitor
Apply the cuff correctly and try again
LED display reads“Er0”
LED display reads“Er1”
LED display reads“Er2”
LED display reads“Er3”
LED display reads“Er4”
10

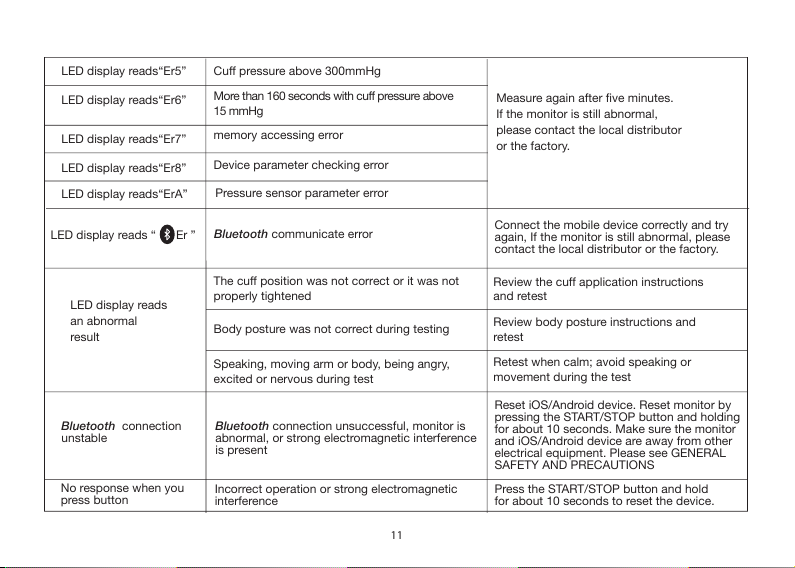

LED display reads“Er5”
LED display reads“Er6”
LED display reads“Er7”
LED display reads“Er8”
LED display reads“ErA”
Cuff pressure above 300mmHg
More than 160 seconds with cuff pressure above
15 mmHg
memory accessing error
Device parameter checking error
Pressure sensor parameter error
Measure again after five minutes.
If the monitor is still abnormal,
please contact the local distributor
or the factory.
LED display reads “ Er ” Bluetooth communicate error Connect the mobile device correctly and try
again, If the monitor is still abnormal, please
contact the local distributor or the factory.
LED display reads
an abnormal
result
The cuff position was not correct or it was not
properly tightened
Body posture was not correct during testing
Speaking, moving arm or body, being angry,
excited or nervous during test
Review the cuff application instructions
and retest
Review body posture instructions and
retest
Retest when calm; avoid speaking or
movement during the test
Bluetooth connection
unstable
No response when you
press button
Bluetooth connection unsuccessful, monitor is
abnormal, or strong electromagnetic interference
is present
Incorrect operation or strong electromagnetic
interference
Reset iOS/Android device. Reset monitor by
pressing the START/STOP button and holding
for about 10 seconds. Make sure the monitor
and iOS/Android device are away from other
electrical equipment. Please see GENERAL
SAFETY AND PRECAUTIONS
Press the START/STOP button and hold
for about 10 seconds to reset the device.
11

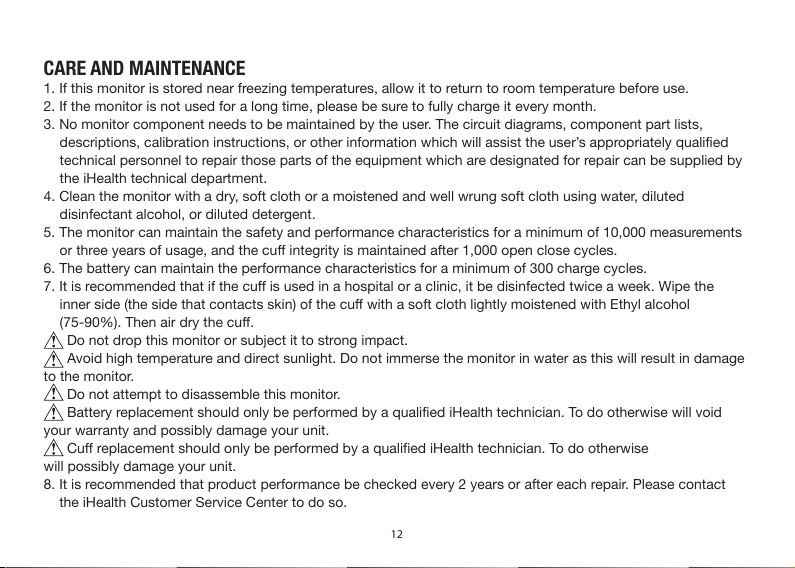

CARE AND MAINTENANCE
1. If this monitor is stored near freezing temperatures, allow it to return to room temperature before use.
2. If the monitor is not used for a long time, please be sure to fully charge it every month.
3. No monitor component needs to be maintained by the user. The circuit diagrams, component part lists,
descriptions, calibration instructions, or other information which will assist the user’s appropriately qualified
technical personnel to repair those parts of the equipment which are designated for repair can be supplied by
the iHealth technical department.
4. Clean the monitor with a dry, soft cloth or a moistened and well wrung soft cloth using water, diluted
disinfectant alcohol, or diluted detergent.
5. The monitor can maintain the safety and performance characteristics for a minimum of 10,000 measurements
or three years of usage, and the cuff integrity is maintained after 1,000 open close cycles.
6. The battery can maintain the performance characteristics for a minimum of 300 charge cycles.
7. It is recommended that if the cuff is used in a hospital or a clinic, it be disinfected twice a week. Wipe the
inner side (the side that contacts skin) of the cuff with a soft cloth lightly moistened with Ethyl alcohol
(75-90%). Then air dry the cuff.
Do not drop this monitor or subject it to strong impact.
Avoid high temperature and direct sunlight. Do not immerse the monitor in water as this will result in damage
to the monitor.
Do not attempt to disassemble this monitor.
Battery replacement should only be performed by a qualified iHealth technician. To do otherwise will void
your warranty and possibly damage your unit.
Cuff replacement should only be performed by a qualified iHealth technician. To do otherwise
will possibly damage your unit.
8. It is recommended that product performance be checked every 2 years or after each repair. Please contact
the iHealth Customer Service Center to do so.
12
