iHome iAV14 User manual

Model: iAVS16
Instruction manual - US English
Size: 102 x 150 mm
Date: June 29, 2017
Mat’l: 100gsm paper (WF)
Color: Black text on white background
Cover
Warranty
Model iAV14
Bluetooth Bedside/Home Oce Stereo Speaker
System with Far Field Voice
QUESTIONS? visit www.ihome.com Contact Us: 1•800• 288 •2792

1
1. iAV14 speaker
WELCOME
Thank you for choosing the iAV14 Stereo Speaker from
iHome.
GETTING STARTED
This unit ships with the following items. Please check to
see that all items are present.
1. iAV14 stereo speaker
2. Universal AC power adapter
2. AC adapter

FEATURES & FUNCTIONS
2
TOP PANEL
Mute Button
Bluetooth Button
Volume Buttons
Smart Button
Alexa Button
- +
Configure your smart button preferences in the iHome AVS app.
If the Smart Button is not configured, press to Play/Pause audio.
Press to mute microphone. The Alexa Light Bar will turn red to
indicate that Alexa is not listening.
The iAV14 features far field voice recognition. Alexa can also be
triggered by tapping the Alexa Button.
Press to enter Bluetooth mode. Press and hold 3 for seconds to
pair devices. Press to answer a call, or press and hold to end
Bluetooth call.
Press to adjust volume levels up or down.
Snooze/Display Dimmer Button
Press to cycle through four display dimmer settings: High, 3,
2, 1, and OFF. When alarm sounds, press to Snooze.

BACK PANEL
3
USB Port
FEATURES & FUNCTIONS
While unit is connected to AC power, connect USB cable
to charge devices.
PM Indicator
Alexa Light Bar

4
CONNECTING THE IAV14
Plug the included AC adapter into the DC jack on the
bottom of the unit and connect the plug to a working
outlet not controlled by a light switch. Use only the
adapter supplied in the box.
RESET
RESET
TEST
TEST
Wi-Fi Connection Tip:
Some routers may feature Protected Management Frames.
Disable this feature if your router has it enabled.

PAIRING
Pairing establishes a unique communication connection
between the unit and your Bluetooth device. Once paired, you
will be able to stream audio wirelessly to the iAV14.
1. Turn on your Bluetooth device and
make it “discoverable” by turning on
Bluetooth mode (check in Options or
Settings).
2. Press the
Bluetooth Button to enter
Bluetooth mode. Press and hold to
enter pairing mode. You will hear a
voice prompt as the unit attempts to
pair with your device. “iHome iAV14”
should appear on your device’s menu.
Select “iHome iAV14” on your device to
begin/complete pairing. If your device
asks for a password, enter 1234 on the
keyboard of your device. You will hear a
voice prompt once your device is
connected.
* If no device is paired within 3 minutes,
the unit will revert to its previous state.
* The unit will automatically link with
the previously paired device as long as
that device is still within range
(about 33 feet).
* T
o clear/reset Bluetooth, press and hold
the Bluetooth button for 10 seconds until
you hear a long beep.
5
iHome iAV14
BLUETOOTH MODE

PLAYING AUDIO VIA BLUETOOTH
1. You can manually play music by using the controls on your
Bluetooth-enabled smartphone.
2. Press and release the –or + Volume Buttons on the iAV14
to adjust speaker volume. You can also adjust the output
volume on your Bluetooth device.
USING THE SPEAKERPHONE
Unit must paired with a Bluetooth-enabled phone to use the
speakerphone feature. When a call is received, current audio is
paused.
* Press and release the Bluetooth Button to answer an
incoming call.
* Press and hold to ignore or end a call.
6
BLUETOOTH MODE

7
1. Download the iHome AVS app and the
Amazon Alexa app from the App Store or
Google Play.
2. Follow app instructions in the AVS app
for account setup and to establish your
speaker’s Wi-Fi connection.
3. Connect your Amazon account to enjoy
the Alexa voice capability of your iAV14.
Explore the app to:
Configure Smart Button
SETTING UP THE APPS
Stream audio (iHeartRadio, Spotify, and more)
Update to the latest firmware

8
STOPPING TONE ALARMS / SNOOZING
ALEXA TONE ALARMS
Note: If you set an alarm without specifying the type (for
example, waking to a Spotify playlist), the unit will
automatically set a tone alarm.
To set a tone alarm:
* Ask Alexa to set an alarm to your desired wake-up time.
* When the alarm sounds, press the Alexa Button on the
iAV14 or say ‘Alexa, stop’ to disable the tone alarm.
* Press the Snooze Button on the iAV14 or say ‘Alexa,
snooze’ to snooze a sounding tone alarm.
ALARMS
ADJUSTING ALARMS
You can use voice commands to ask Alexa to set an alarm to
your desired wake-up time. The alarm icon will appear on
the iAV14 display to confirm that your alarm is set.
There are two ways to adjust your alarm settings:
*Using Alexa voice commands
*Using the Alexa app
ALARM TYPES

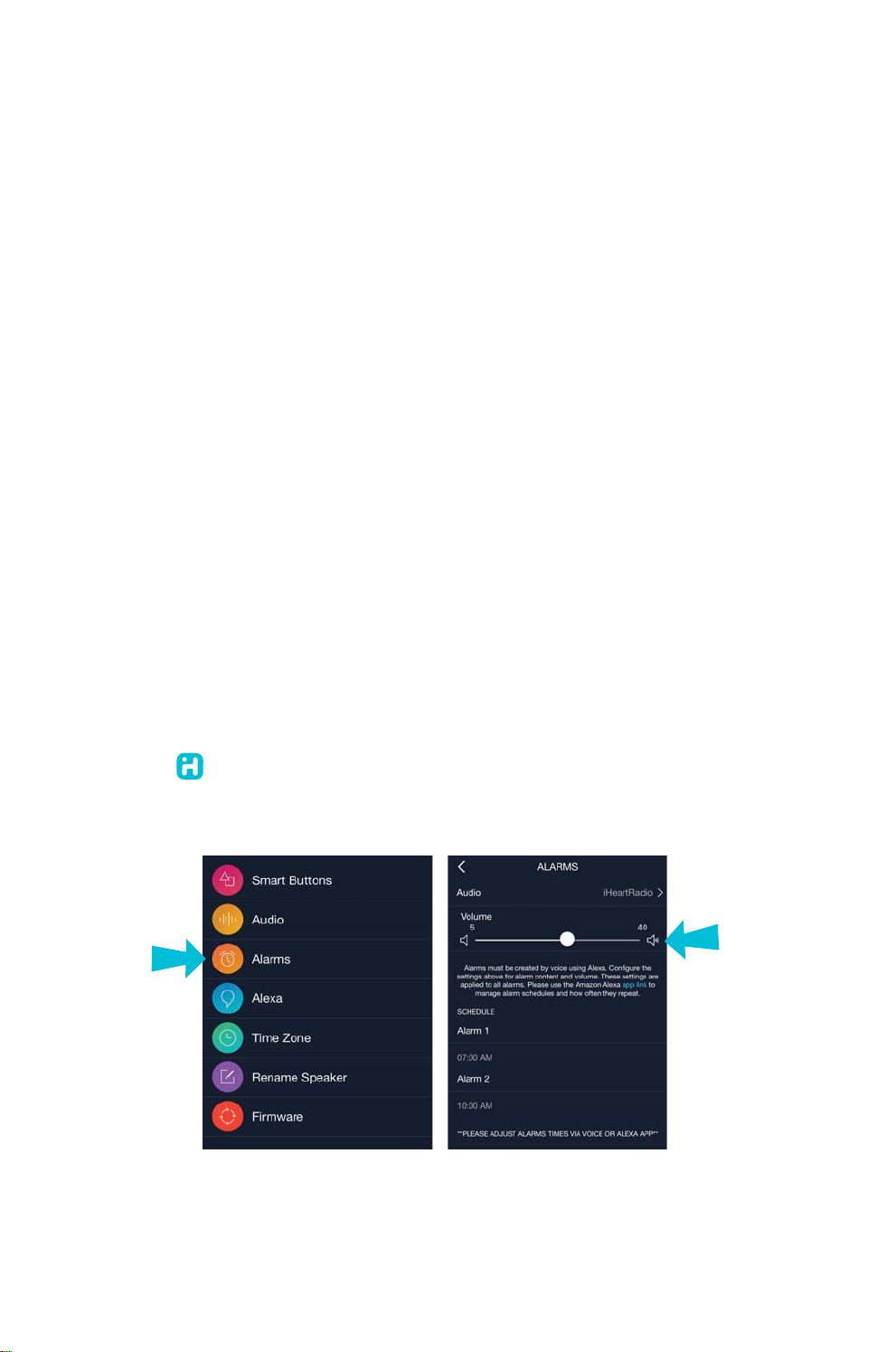

IHOME AVS APP: SET ALARM VOLUME
Use your iHome AVS app to adjust your maximum alarm
volume level. Under the Settings section of the App, go to
Alarms:
ALEXA MUSIC ALARMS
* Ask Alexa to set an alarm to your desired wake-up time
and music streaming service.
For example, say:
‘Alexa, set an alarm for 7:00AM to wake to iHeart Radio.’
‘Alexa, set an alarm for 10AM to wake to my Spotify playlist.’
* Say ‘Alexa, stop’ to disable a sounding alarm.
* Say ‘Alexa, snooze’ to snooze a sounding alarm.
9
Note: Make sure to set the your correct time zone in both
the Alexa app and the iHome AVS app to ensure an
accurate wake time.
ALARM TYPES (CONTINUED)
STOPPING MUSIC ALARMS / SNOOZING

10
The built-in Alexa Light Bar uses visual cues to indicate
the various attention states of the unit while connected to
the iHome AVS app.
Listening
End Listening
Thinking
Responding
Mic Muted
Error
Flashing
Flashing
Blinking
ALEXA LIGHT BAR
Notification
Blinking
Blinking

• Place the unit on a level surface away from sources of direct
sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural
wood and lacquered finish. A cloth or other protective
material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild
soap and water. Stronger cleaning agents such as thinner or
similar materials can damage the surface of the unit.
11
MAINTENANCE
FIRMWARE UPDATES
Periodically, iHome will send firmware updates ‘over the air’ that
will automatically install new features and services to the iAV14.
This process occurs via Wi-Fi and usually takes 3-10 minutes
depending on connection speed and file size.
You will hear a voice prompt from the iAV14 when a firmware
update begins. The Alexa Light Bar will flash red and blue while
the update is in progress, and the unit will automatically reboot
once the update is complete.
DO NOT UNPLUG THE UNIT DURING A FIRMWARE
UPDATE. DOING SO MAY DAMAGE THE UNIT.

TROUBLESHOOTING
SYMPTOM POSSIBLE REASON SOLUTION
Unit won’t turn
on
Device does not
respond to the
unit and/or
device is playing
but no sound
comes out/
unit doesn’t
respond
AC adapter isn't
plugged into a working
wall socket or not
properly connected
Unit is not properly
connected to power
source and/or device is
paused
Plug the AC adapter into a
working wall socket and plug the
AC cable into the DC jack on the
unit. Make sure any associated
wall switch that controls the
outlet is ON.
Try adjusting volume on unit and
audio device.
Make sure unit is properly paired
to your device (check that iHome
iAV14 appears in the Bluetooth
menu).
Erratic
performance
External interference
Turn volume up on unit and/or your
device
Turn volume down on unit and your
device
If the original sound file (MP3) is old
or of poor quality, distortion and
noise are easily noticed with
high-power speakers. Try upgrading
file from a trusted source such as
iTunes.
12
Move unit away from potential
sources of external interference such
as computers, modems, wireless
devices (routers) or fluorescent light.
Volume is too low
Volume is too high
Sound source is
distorted
No sound
Sound distorted
Poor Alexa
response
Unit located
too far from
router
Move the unit closer to your
router

13
FCC INFORMATION
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
• Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
•NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B)
Canada Statement
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of
RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian
information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section
2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir
l'information canadienne sur l'exposition et la conformité de rf.
iAV14
FCC ID:EMOiAV14
IC:986B-iAV14
This device complies with Part 15 of the FCC Rules, operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

IMPORTANT SAFETY TIPS
When used in the directed manner, this unit has been designed and manufactured
to ensure your personal safety. However, improper use can result in potential
electrical shock or fire hazards. Please read all safety and operating instructions
carefully before installation and use, and keep these instructions handy for future
reference. Take special note of all warnings listed in these instructions and on the
unit.
1. Water and Moisture – The unit should not be used near water. For example: near a
bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet
basement.
2. Ventilation – The unit should be situated so that its location or position does not
interfere with its proper ventilation. For example, it should not be situated on a
bed, sofa, rug or similar surface that may block ventilation openings. Also, it
should not be placed in a built-in installation, such as a bookcase or cabinet, which
may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat
registers, stoves or other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance. Only use
the AC adapter that came with the unit.
5. Power-Cable Protection – Power supply cables should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them. It is
always best to have a clear area from where the cable exits the unit to where it is
plugged into an AC socket.
6. Cleaning – The unit should be cleaned only as recommended. See the
Maintenance section of this manual for cleaning instructions.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and
liquids are not spilled into any openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product
manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and
disconnect the antenna or cable system during a lightning storm or when it is left
unattended and unused for long periods of time. This will prevent damage to the
product due to lightning and power-line surges.
10.Overloading – Do not overload wall sockets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service
personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
12. Periods of Non-use – If the unit is to be left unused for an extended period of time,
such as a month or longer, charge the unit fully before storage
13. Servicing – The user should not attempt to service the unit beyond those methods
described in the user’s operating instructions. Service methods not covered in the
operating instructions should be referred to qualified service personnel.
14. Magnetic Interference: This product’s speakers contain powerful magnets which
could cause interference or damage to sensitive equipment such as hard drives,
CRT televisions and monitors, as well as medical, scientific, and navigational
devices. Keep this unit away from these products at all times.
