IHP Comfort Flame Columbus Series Owner's manual

INSTALLATION AND OPERATION
INSTRUCTIONS
Comfort Flame™ Columbus Series
Wood burning Fireplace
MODELS
P/N 900480-00 Rev. A 10/2015 REPORT NO. 10-078
P900480-00
PFS
®
USC
Columbus36RWS Columbus36LWS
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
An IHP hood must be installed when using a vent-free log heater (see Accessories, page 19).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.

Comfortflame.US.com 900480-00A
2
Safety.............................................................................................2
Specifications.................................................................................4
Fireplace Installation ......................................................................5
Venting Installation ........................................................................7
Optional Gas Line Installation ......................................................13
Operation and Maintenance .........................................................14
Replacement Parts.......................................................................15
Technical Service .........................................................................15
Parts ............................................................................................16
Accessories..................................................................................18
Warranty ......................................................................................23
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and of-
fers, please take a few moments to register your product online
at Comfortflame.us.com
Please read and understand these instructions before installing
or operating.
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
property damage or loss of life. Refer to this manual
for assistance or additional information. Consult a
qualified installer or local distributor.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning installation of this fireplace, read these instructions
through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a fire
hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyrespon-
sibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b.Useofanycomponentpartnotmanufacturedorapprovedby
IHPincombinationwithanIHPreplacesystem.
Proper installation is the most important step in ensuring safe and
continuous operation of the fireplace. Consult the local building codes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
fireplace unless the manufacturer's instructions with
the insert specifically state this fireplace has been
tested for use with this insert.
TABLE OF CONTENTS
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING: Use solid wood or processed solid
fuel fire logs only. Do not poke or stir the logs while
they are burning. Use only firelogs that have been
evaluated for the application in fireplace and refer to
firelog warnings and caution markings on packaging
prior to use.
This fireplace is not intended to be used as a sub-
stitute for a furnace to heat an entire home. Use for
supplemental heat only.
Overfiring of a fireplace is a condition where exces-
sive temperatures are reached, beyond the design
capabilitiesoftheappliance.Thedamagethatoccurs
fromoverfiringisnotcoveredunderthemanufacturer’s
limited warranty.

Comfortflame.US.com
900480-00A 3
SAFETY Continued
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALSORCHEMICALLY
TREATEDCOMBUSTIBLES.
Disposal of Ashes
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
be placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending
final disposal. If the ashes are disposed of by burial
in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have
thoroughly cooled.
WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION.
Never use gasoline, gasoline-type lantern fuel, kero-
sene, charcoal lighter fluid, or similar liquids to start
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use.
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash,driftwoodorwoodsthathavebeendippedintar,
pitch, pine tar, creosote, etc. Wood products made
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
WARNING: BURNING IMPROPER FUEL (I.E.
CHARCOAL) CAN RESULT IN CARBON MONOXIDE
POISONING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresemblethefluwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualifiedservicetechnician.Somepeoplearemoreaf-
fectedbycarbonmonoxidethanothers.Theseinclude
pregnant women, people with heart or lung disease
or anemia, those under the influence of alcohol, and
those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
fromtheheatproducedbytheappliance). Ifyourlocal
coderequiresasmokedetectorbeinstalledwithinthe
same room, you must follow the requirements of your
localcode. Checkwithyour localbuildingdepartment
for requirements in your area.
Creosote – Formation and Need for Removal
Whenwood is burnedslowly, itproducestar and other
organicvapors,whichcombinewithexpelledmoisture
to form creosote. The creosote vapors condense in
the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on
the flue lining. When ignited this creosote makes an
extremely hot fire.
The chimney shall be inspected at least twice a
year during the heating season to determine when a
creosote buildup has occurred. When creosote has
accumulated(1/8"[3mm]ormore)itshallberemoved
to reduce the risk of a chimney fire.

Comfortflame.US.com 900480-00A
4
SPECIFICATIONS
0" TO
BOTTOM
OUTSIDE
AIR (LEFT
SIDE ONLY)
3/4"
AIR
SPACE
BACK
AND
SIDES
HEARTH
EXTENSION
51" X 16"
8" EACH
SIDE
NOT LESS
THAN 12" TO
PERPENDICULAR
SIDEWALL
1" AIRSPACE
TO COMBUSTIBLE
MATERIAL
COMBUSTIBLE
WALL BOARD
0" TO
TOP
SPACERS
NO COMBUSTIBLE
MATERIAL ON FACE
GAS LINE
KNOCK
OUTS
AIR KIT
KNOCK OUT
GAS LINE
KNOCK
OUTS
ELECTRICAL
OUTLET
LEFT SIDE
RIGHT SIDE
37"
41"
35"
21"
8"
22"
1"
41"
1"
29"
20 1/2"
91/8"
91/8"
71/8"
31/2"
31/2"
83/4"
83/4"
11 1/4"
14 1/4"
41 1/4"
32 1/2"
11 3/4"
5/8"
11 1/2"
14 1/2"
SQUARE CHASE-TOP
TERMINATION
ROUND TOP TERMINATION

Comfortflame.US.com
900480-00A 5
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine safest and most efficient location for fireplace, you
must take into consideration the following guidelines:
1. Locationmustallowforproperclearances(seeFigures1and2).
2. Consider a location where fireplace will not be affected by drafts,
air conditioning ducts, windows or doors.
3. A location that avoids cutting of joists or roof rafters will make
installation easier.
4. Anoutsideair kitisavailablewith thisreplace(seeOptional
Outside Air Kitonpage7).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimney outer pipe surface 1" minimum
*Notrequiredatnailinganges
** See step 2 of Framing
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.
Minimum/Maximum Chimney Height
Minimum height of chimney, measured from base of fireplace to
uegasoutletoftermination,is14.5feetforstraightueoraue
with one elbow set. Maximum distance between elbows is 6 feet. For
systems with two elbow sets, minimum height is 22 feet. Maximum
height of any system is 50 feet. This measurement includes fireplace,
chimneysectionsandheightofterminationassemblyatlevelofue
gasoutlet(seeFigure20,page12).
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures
1 and 2.
2. If fireplace is to be installed directly on carpeting, tile or any
combustiblematerialotherthanwoodooring,replacemust
be installed upon a metal or wood panel extending full width and
depth of fireplace.
3. Set fireplace directly in front of this opening and slide unit back
untilnailingangestouchsideframing.
4. Check level of fireplace and shim with sheet metal if necessary.
5. Before securing fireplace to prepared framing, ember protector
must be placed between hearth extension (not included) and
under bottom front edge of fireplace to protect against glowing
embers falling through. If fireplace is to be installed on a raised
platform,aZ-typeemberprotector(notincluded)mustbefabri-
catedtotyourrequiredplatformheight.Emberprotectorshould
extend under fireplace a minimum of 1 1/2". Ember protector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimum)
to prevent corrosion.
6. Usingscrewsornails,securereplacetoframingthroughanges
located on sides of fireplace.

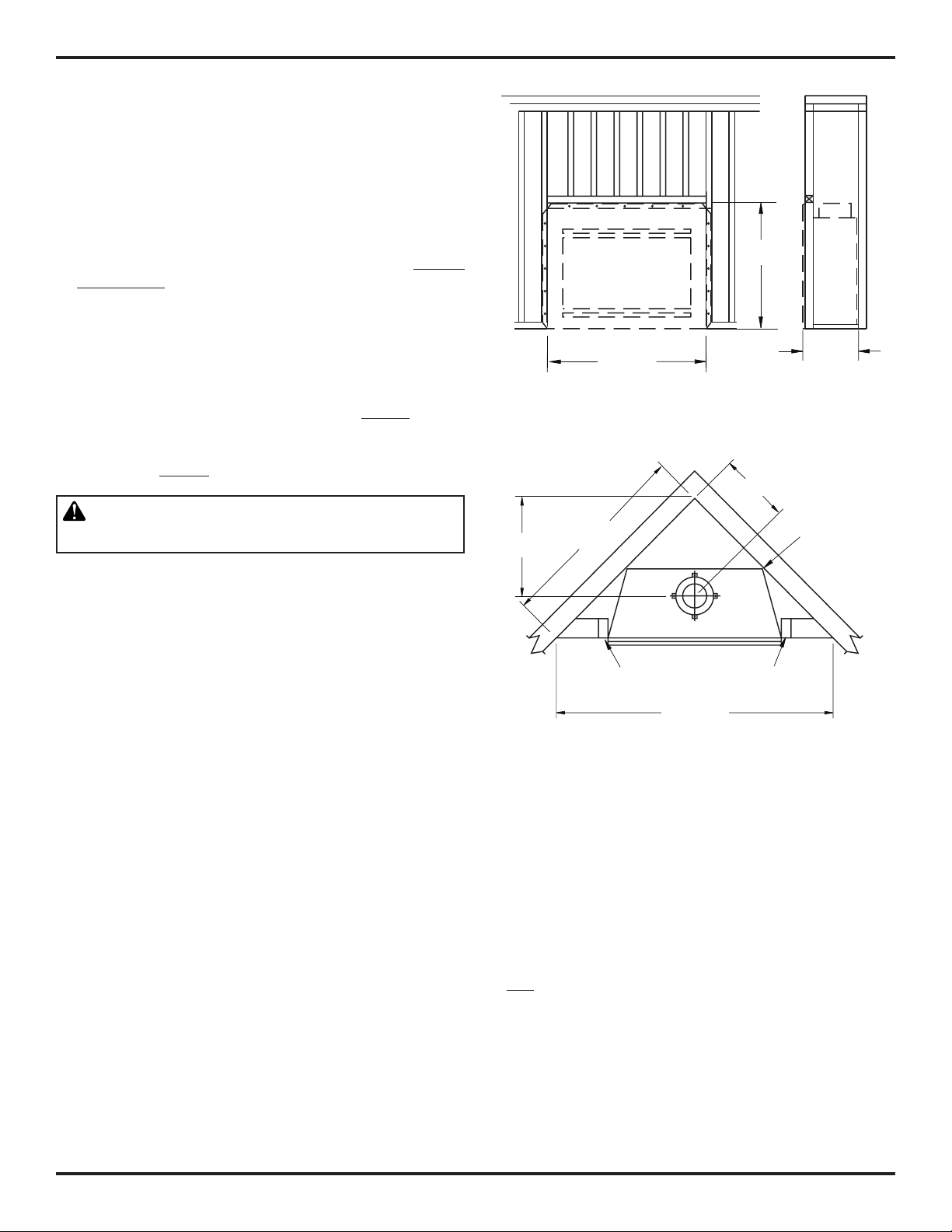

Figure 1 - Framing Dimensions
Figure 2 - Corner Installation
HEARTH EXTENSION
A hearth extension projecting a minimum of 16" in front of and a
minimum of 8" beyond each side of fireplace opening is required to
protectcombustibleoorconstructioninfrontofreplace.Fabri-
cate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having
athermalconductivityofk=.84BTUIN/FT2HR°F(orless)at1"
thick. For example, if material selected has a k factor of 0.25, such
as glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manu-
facturer or supplier of noncombustible material. If hearth extension
is to be covered, use noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Provide a means to
prevent hearth extension from shifting and seal gap between fireplace
frame and hearth extension with a non-combustible material such
assand-cementgrout(seeFigure3,page6).
41 3/4"
41 3/4"21 7/8"
Maintain 3/4"
Clearance at
Sides and
Back of
Fireplace
3/4" Clearance Not
Required at Nailing Flanges
52 1/4"
17 3/8"
73 7/8"
24 1/2"

Comfortflame.US.com 900480-00A
6
FIREPLACE INSTALLATION Continued
Figure 3 - Hearth Extension
Fireplace Front
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Seal Gap
Seal Gap
Seal Gap
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Elevated
Do Not Block Louver
Ember Protector
Ember Protector
Ember Protector
Ember Protector
Hearth
Extension
Hearth
Extension
HearthExtension,CirculatingModes
HearthExtension,NoncirculatingModels
NO
WARNING: Hearth extension is to be installed
only as shown in Figure 3.
MANTELS
Amantelmaybeinstalledifdesired(seeFigures4and5).Woodwork
such as wood trims, mantels or any other combustible material
projecting from front face, must not be placed within 12" of fireplace
opening and within 9" of top louver opening. Combustible materials
above 12" and projecting more than 1 1/2" from fireplace must not
beplacedlessthan12"fromtopopeningofreplace(NFPA211,
Section-ClearancefromCombustibleMaterial).
Mantels or any other combustible material also may come up to side
edge of black metal face of fireplace as long as projections from front
face fall within limit shown in Figure 5a.
12 1/4" Ref.
6"
Ref.
15" Min.
12" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Upper
Section of
Fireplace
Figure 4 - Mantel Clearances to Combustible Material (with
Louver)
Figure 5 - Mantel Clearances to Combustible Material (without
Louver)
12 1/4" Ref.
1 1/2"
Max.
Upper Section
of Circulating
Fireplace
6"
Ref.
9"
Min.
33°
3" Nom.
*Note: Drawing Not To Scale
Safe Zone For
Projection of
Combustible
Materials
Combustible
Material
Non Combustible
Materials Below
Top Spacer
15"
Min.
12"
Min.
Fireplace Opening
Top of
Louvered
Opening
FIREBOX
SAFE ZONE
Figure 5a - Side Mantel Clearance
Top View of Fireplace
Min. 12" from
Perpendicular Side Wall
3"
2" Max.
33°
8"

Comfortflame.US.com
900480-00A 7
FAN/BLOWER KIT ASSEMBLY
Fanorblowerkitisoptionalwiththisreplace(forcirculatingmod-
elsonly). Useofblowers orfansother thanthose manufactured
byIHPvoidswarranty.Blowerisoperatedbyturningcontrolknob
(notshown).
Fan/blower kit electrical connections are made through electrical
cover plate on side of fireplace a shown in Figure 6.
Wiring Instructions
1. Remove electrical cover plate with bushing from fireplace by
removing 2 sheet metal screws as shown in Figure 6.
2. Slide power source wiring through electrical bushing opening
and electrical cover plate and make all necessary connections.
3. Slide all wiring connections in electrical housing as shown in
Figure 6.
4. Secure electrical cover plate with screws previously removed.
Note:Electricalhousingand cover platehavesharpedges.Wear
protective gloves.
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
Installation of outside air kit should be performed during rough fram-
ing of fireplace due to the nature of it's location. Outside combustion
airisaccessedthroughaventedcrawlspace(AK4F)orthrougha
sidewall(AK4).SeeFigure7forinstructionofoperatingairkit.
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3 feet below the flue gas outlet of the termination.
CHIMNEY PIPE
WARNING: Label part number 900599-01 must
be applied by the installer to all chimney pipe
sections but is not required on sections that will
be visible after the installation is complete. Label
must wrap around the circumference of the pipe.
See accessories, page 19 for Kit F2659.
AnIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after fitting
overlapsmustbetakenintoconsideration(linealgain)andaregiven
inlinealgainchart(seeFigure8,page8).
Lineal gain is actual measurable length of a part after two or more
parts are connected.
FIREPLACE INSTALLATION Continued
Electrical
Bushing
Electrical
Cover
Plate
Figure 6 - Fan Switch-Electrical Bushing
Electrical
Housing
Wire Nut (3x)
(Not Supplied)
Outer Wrapper
of Fireplace
Electrical Cover
Plate and
Electrical Bushing
Fireplace Chassis
Ground
To Power
Source
Receptacle
(Supplied)
Power Source Wiring
(Not Supplied)
Prewired Receptacle
and Ground
Sheet
Metal
Screws
Figure 7 - Outside Air Kit
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)

Comfortflame.US.com 900480-00A
8

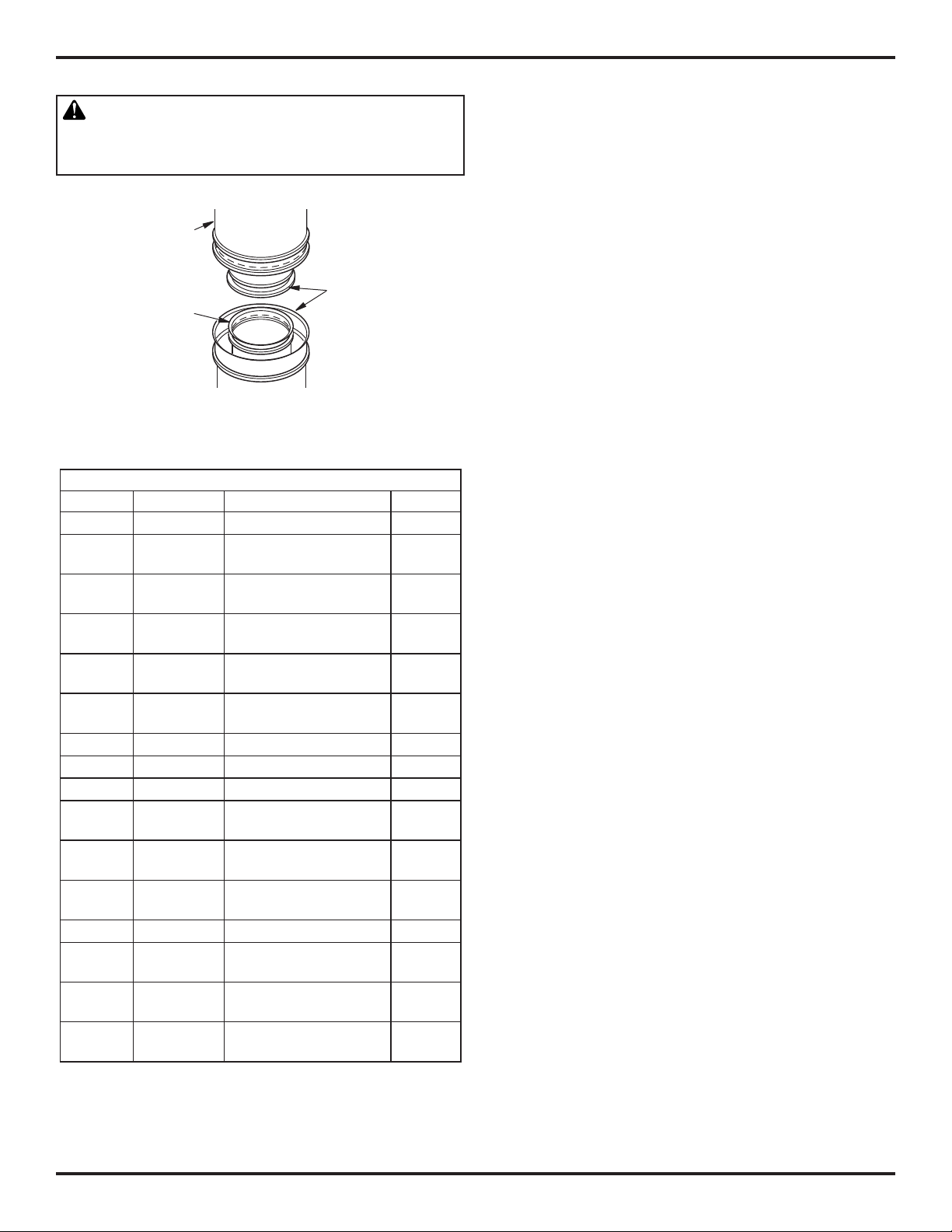

Figure 8 - Lineal Gain
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe
WARNING: The opening in collar around chimney
at top of fireplace must not be obstructed. Never use
blown insulation to fill chimney enclosure.
LINEAL GAIN
CAT. NO. PART NO. DESCRIPTION GAIN
36" Fireplace 37 1/2"
F0895
F0881
12-8DM
12-8HT Pipe Section 10 5/8"
F0896
F0882
18-8DM
18-8HT Pipe Section 16 5/8"
F0897
F0883
24-8DM
24-8HT Pipe Section 23 5/8"
F0898
F0884
36-8DM
36-8HT Pipe Section 34 5/8"
F0899
F0885
48-8DM
48-8HT Pipe Section 46 5/8"
F0916 RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
F0918 RLT-8DM Round Termination 7 1/2"*
F0917 RTT-8DM Round Termination with
Slip Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination with
Slip Section
8 1/2" to
21 1/2"*
F0919 RLTT-8DM Round Termination with
Slip Section
7 1/2" to
21 1/4"*
F0920 ET-8DM Square Chase-Top 12"*
F0922 ETO-8DM Square Chase-Top with
Mesh 12"*
F0921 ETL-8DM Square Chase-Top with
Slip Section 7" to 15"*
F0923 ETLO-8DM Square Chase-Top with
Mesh & Slip Section
12" to
25 1/2"*
* The lineal gain for the terminations is measured to the
ue gas outlet height.
VENTING INSTALLATION Continued
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Eachdouble wall chimney section consistsof agalvanized outer
pipe,astainlesssteelinneruepipeandawirespacer.Pipesections
must be assembled independently as chimney is installed. When
connecting chimney directly to replace, inner ue pipe section
must be installed first with lanced side up. Outer pipe section can
thenbeinstalledoveruepipesectionwithhemmedendup.Press
down on each pipe section until lances securely engage hem on
fireplace starter. Wire will assure proper spacing between inner and
outer pipe sections.
Note:ForCanada,usechimneypartsdesignatedHT.
Continue to assemble chimney sections as outlined, making sure
that both inner and outer pipe sections are locked together. When
installing double wall snap-lock chimney together, it is important to
assure joint between chimney sections is locked. Check by pulling
chimney upward after locking. Chimney will not come apart if properly
locked. It is not necessary to add screws to keep chimney together
(exception-seeFigure11,page10).
The height of a vertical chimney pipe supported ONLY by the fireplace,
must not exceed 20 feet. Chimney heights above 20 feet must be
supported.
USING ELBOW OFFSETS (30E-8DM)
1. To achieve desired offset, you may install combinations of 12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart,
page10,andFigure9,page9).
Note: For systems with 2 elbow sets, minimum height is 22 feet.
Maximum height for any system is 50 feet.
2. Chimney weight above offset rests on return elbow. Straps must
besecurelynailedtoraftersorjoists(seeFigure10,detailsAand
B,page9).
3. Maximumlengthofpipebetweensupports(returnelbowor12S-
8DM)is6'ofanglerun.Maximumoftwo6'anglerunsections
perchimneysystem(seeFigure9,page9).
4. All pipe connections between offset and return must be secured
withtwoscrewsonouterpipeonly(seeFigure11,page10).Do
not penetrate inner stainless.

Comfortflame.US.com
900480-00A 9
Figure 9 - Typical Offset Installation
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow Offset
Elbow
6' Max.
6' Max. 6' Max.
6' Max.
6' Max.
6' Max.
Return
Elbow
Offset
Elbow
Offset
Elbow
Return
Elbow
ABC
Ceiling
Support Pipe
12S-8DM
Return
Elbow
Figure 10 - Ceiling Support Pipe 12S-8DM
2" Min.
Straps Straps
Straps
Straps
Detail A
Return Elbow
Detail B
Angle
Firestop
See Detail A
See Detail B
Ceiling Support
Pipe 12S-8DM
VENTING INSTALLATION Continued

Comfortflame.US.com 900480-00A
10
VENTING INSTALLATION Continued
FIRESTOP SPACERS (3600FS-8DM-1)
Firestop spacers are required at each point where chimney penetrates
aoorspace.Theirpurposeistoestablishandmaintainrequired
clearance between chimney and combustible materials. When pipe
passes through a framed opening into a living space above, firestop
must be placed onto ceiling from below as shown in Figure 12.
Theyalsoprovidecompleteseparationfromoneoorspacetoan-
other or attic space as required by most codes. When double wall
pipe passes through a framed opening into an attic space, firestop
mustbeplacedintoanatticoorasshowninFigure13.
PENETRATING ROOF
To maintain a 1" clearance to pipe on a roof with a pitch, a rectangular
opening must be cut.
1. Determine center point where pipe will penetrate the roof.
2. Determine center point of the roof. Pitch is the distance the roof drops
over a given span, usually 12". A 6/12 pitch means that the roof drops
6" for each 12" measure horizontally down from roof rafters.
3. Useroofopeningchart(Figure14,page11)todeterminecorrect
openinglengthandashingrequired.
4. Remove shingles around opening measured. Cut out this section.
5. Add next sections of pipe until end penetrates roof line. Check to
seethatproperclearancesaremaintained.Extendchimneybyadd-
ing sections of double wall pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination and chimney must extend
a minimum of 36" above highest point where it passes through roof.
Figure 11 - Elbow Offset
Figure 12 - Firestop Spacer with Living Space Above Ceiling
Figure 13 - Firestop Spacer with Attic Space Above Ceiling
If area above is a living space, install firestop
below framed hole.
If area above is an attic or insulated area, install
firestop above framed hole.
B
A
Screws
OFFSET RISE CHIMNEY LENGTH
A B 48" 36" 24" 18" 12"
4 3/8" 16 3/8"ELBOW SET ONLY
9" 25 3/4" 1
11 7/8" 31" 1
15" 37 3/8" 1
16 3/4" 40 1/2" 1 1
20" 47 1/8" 1
22 5/8" 52 1/8" 1 1
25 1/2" 57 7/8" 1
27 5/8" 62" 1 1
30 3/8" 67 1/4" 1 1
33" 72 5/8" 1 1
35 3/4" 78" 2
37 7/8" 82" 1 1 1
41 1/4" 88 5/8" 1 1
43 3/8" 92 3/4" 2 1
46 5/8" 99 3/8" 2
48 3/4" 103 1/2" 1 1 1
51 1/2" 108 7/8" 2 1
54 1/4" 114 1/8" 2 1
57" 119 1/2" 1 2
59" 123 5/8" 2 1 1
61 3/4" 129" 1 2 1
64 1/2" 134 3/8" 1 2 1
67 1/4" 139 5/8" 4
Figure 13a - Firestop Thimble
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop thimble
(38FST or FST30) is required to avoid intrusion by insulation
and recommended to negotiate a joist (see Figure 13a).
Thimble
38FST or
FST30
Firestop

Comfortflame.US.com
900480-00A 11
VENTING INSTALLATION Continued
Pitch Slope Opening
"A"Max.
UsedFlashing
ModelNo.
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12- 12/12 45.0° 20 3/8" V12F-8DM
Figure 14 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)
Determineashingtobeusedwithroofopeningchart.Slideashing
overpipeuntilbaseisatagainstroof.Replaceasmanyshinglesas
neededtocoverexposedareaandashingbase.Secureinposition
bynailingthroughshingles(seeFigure15).DONOTNAILTHROUGH
FLASHINGCONE.
Installing Flashing on a Metal Roof
Wheninstallingashingonametalroof,itisrequiredthatputtytape
beusedbetweenashingandroof.Flashingmustbesecuredtoroof
using #8 x 3/4" screws and then sealed with roof coating to prevent
leakage through screw holes. A roof coating must also be applied
aroundperimeterofashingtoprovideaproperseal.
Nail Only Outer
Perimeter of
Flashing
Storm Collar
Underlap Shingles
at Bottom
Figure 15 - Flashing Installation
Flashing
Cone
Overlap
Shingles Top
and Sides Only
Storm Collar Installation (SC1)
Place storm collar over pipe and slide down until it is snug against
openedgeofashing(seeFigure16).UseSC1forallroundtermina-
tions. Apply waterproof caulk around perimeter of collar to provide
a proper seal.
Figure 16 - Storm Collar
Chimney
Pipe Waterproof
Caulk
Storm
Collar Flashing
Terminations/Spark Arrestor
Fireplace system must be terminated with listed round top or
chase terminations. In any case, refer to installation instructions
supplied with termination. Terminations approved for this fireplace
areRT-8DMandRLT-8DMthatcanbeusedforashingorchase
andET-8DM,ETO-8DM,ETL-8DMandETLO-8DMforchasestyle
termination only. Figure 18, page 12 shows an RLT-8DM round top
termination.
CAUTION: Do not seal openings on the rooftop
flashing.Follow theinstallation instructionsprovided
with the termination being used.
Terminations with 16" slip pipe sections are available. RTT-8DM and
RLTT-8DM are approved for ashing installations. When needed,
these adjustable terminations may be used in combination with pipe
assembly to achieve correct chimney height.
Note: In the rare instance there is a problem with side driven rain or
windor chimneyis notdrafting properly,an ADS-8DM(Anti-Draft
Shield)canbeusedwithroundterminations.
Attach Bracket
Tabs to
Outer Pipe
(3 Places)
Secure with
Screws
RLT-8DM Level of Flue
Gas Outlet
Caulk
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 17 - Termination
Overlap
Shingles Top
and Sides
Flue Pipe
of RLT-8DM
Inside Inner
Pipe of
Chimney
30"
(76.2 cm)
Minimum Measurements
Opening "A"
14 3/8"
(48.3 cm)
1"
(2.54
cm)
1"
(2.54
cm)
1"
(2.54 cm)

Comfortflame.US.com 900480-00A
12
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructions for chase installations are included with chase style ter-
mination chosen. In a multiple chase installation, be sure to provide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure18).
Note: If a decorative shroud is to be installed, contact manufacturer
for specifications.
10 FOOT RULE
Alluegasoutletchimneyterminationsmustextendaminimumof
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
ahorizontaldistanceof10feet(seeFigure19).
FINISHING FIREPLACE
Combustible materials, such as wallboard, sheet rock, drywall, ply-
wood, etc., may make direct contact with sides and top around fire-
place face. It is important that combustible materials do not overlap
face itself. Brick, glass, tile or other noncombustible materials may
overlap front face provided they do not obstruct essential openings
such as louvered slots. When overlapping with a noncombustible
facing material, use only noncombustible mortar or adhesive.
30E-8DM
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
MINIMUM
HEIGHT
14.5 FT.
MINIMUM
UP TO
6FT. MAX.
UP TO
6FT. MAX.
HEIGHT
14.5 FT.
MIN. HEIGHT
OF 22 FT. (WITH
2 ELBOW SETS)
MAX. HEIGHT OF
50 FT.
MAX. HEIGHT
50 FT.
(ANY SYSTEM)
30E-8DM
24" Min.
24" Min.
18"
Min.
Typ.
Figure 18 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 19 - 10 Foot Rule
Figure 20 - Typical Residential Installations

Comfortflame.US.com
900480-00A 13
A gas line or gas log lighter may be installed for the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
for Decorative Gas Appliances for Installation in Vented Fireplaces,
ANSIZ21.60orAmericanGasAssociationdraftrequirementsfor
GasFiredLogLightersforWoodBurningFireplaces,DraftNO.4
dated August, 1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standardforunventedroomheaters,ANSIZ21.11.2aretobeinstalled
in this fireplace.
Gas line hook up should be done by your supplier or a qualified
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Useonlya1/2"blackironpipeandappropriatettings.
1. Remove knockout indentation on refractory or firebrick wall
locatedaboverefractoryhearthoor.Knockoutindentationmust
be firmly tapped with any solid object, such as a 1/2" dowel, until
itis released.Remove fragmentedportions ofrefractory(see
Figure21).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gaslineconduitsleeve(ifusingaraisedplatform,addheight).
Provide sufficient gas line into fireplace chamber for fitting
connection(seeFigure22).
 Note:Secureincominggaslinetowoodframingtoproviderigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercial furnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solutiontoallconnectionsandjoints.Bubblesforming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: AnIHPhoodmustbeinstalledwhenusinganunventedgas
logset(seeAccessoriesonpage19).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.

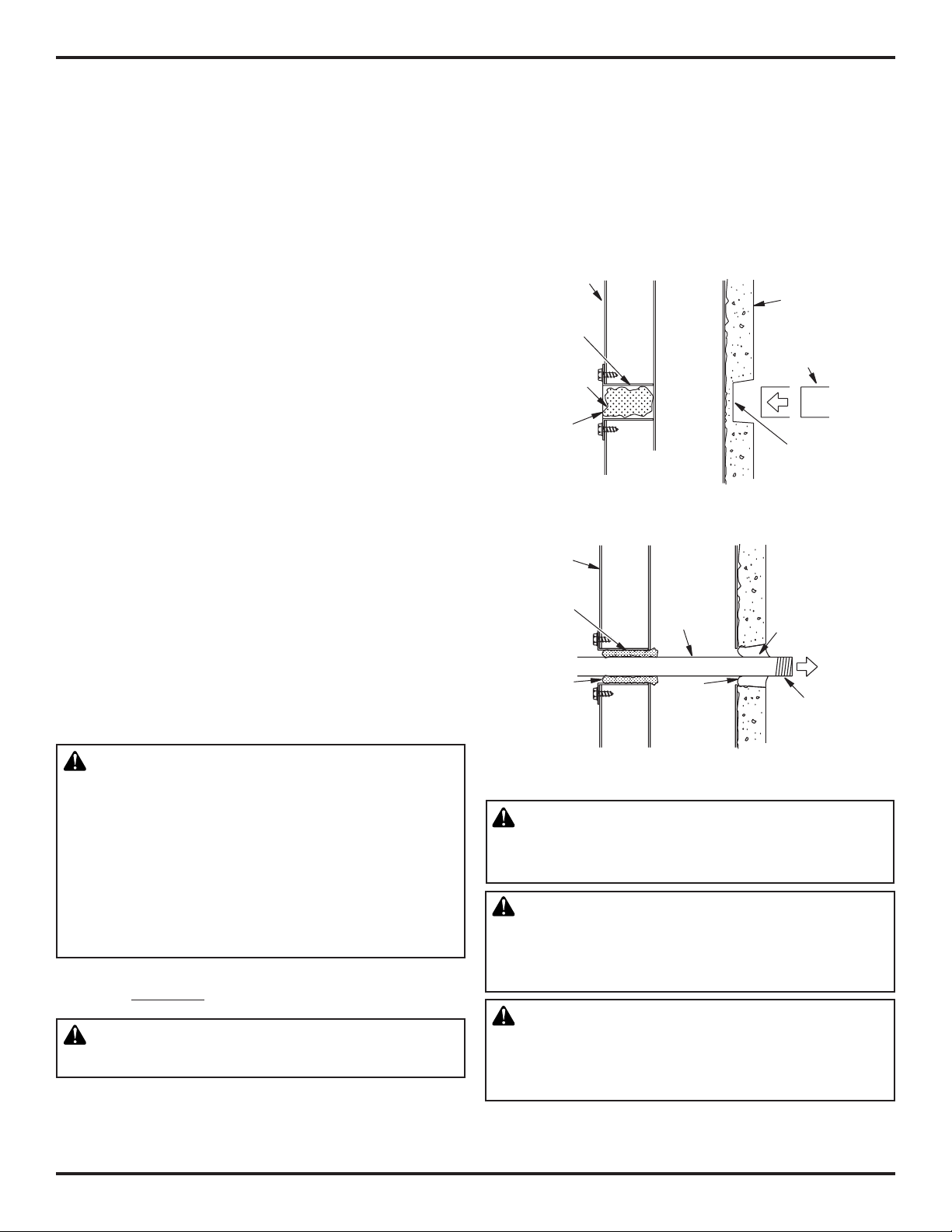

Figure 22 - Gas Line Installation
OPTIONAL GAS LINE INSTALLATION
Figure 21 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded End for
Fitting Connection
Ifyouinstalladecorativegasappliance(ventedgaslog),decorative
gas appliance must comply with the Standard for Decorative Gas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA 2.26 or Z21.84 and shall also be installed in accordance
withANSIZ223.1/NFPA54NationalFuelGasCodes(USA)andCAN/
CGA-B149.1NationalGasAndPropaneInstallationCode(Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning,fireboxandchimneymustbecleanedofsoot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.

Comfortflame.US.com 900480-00A
14

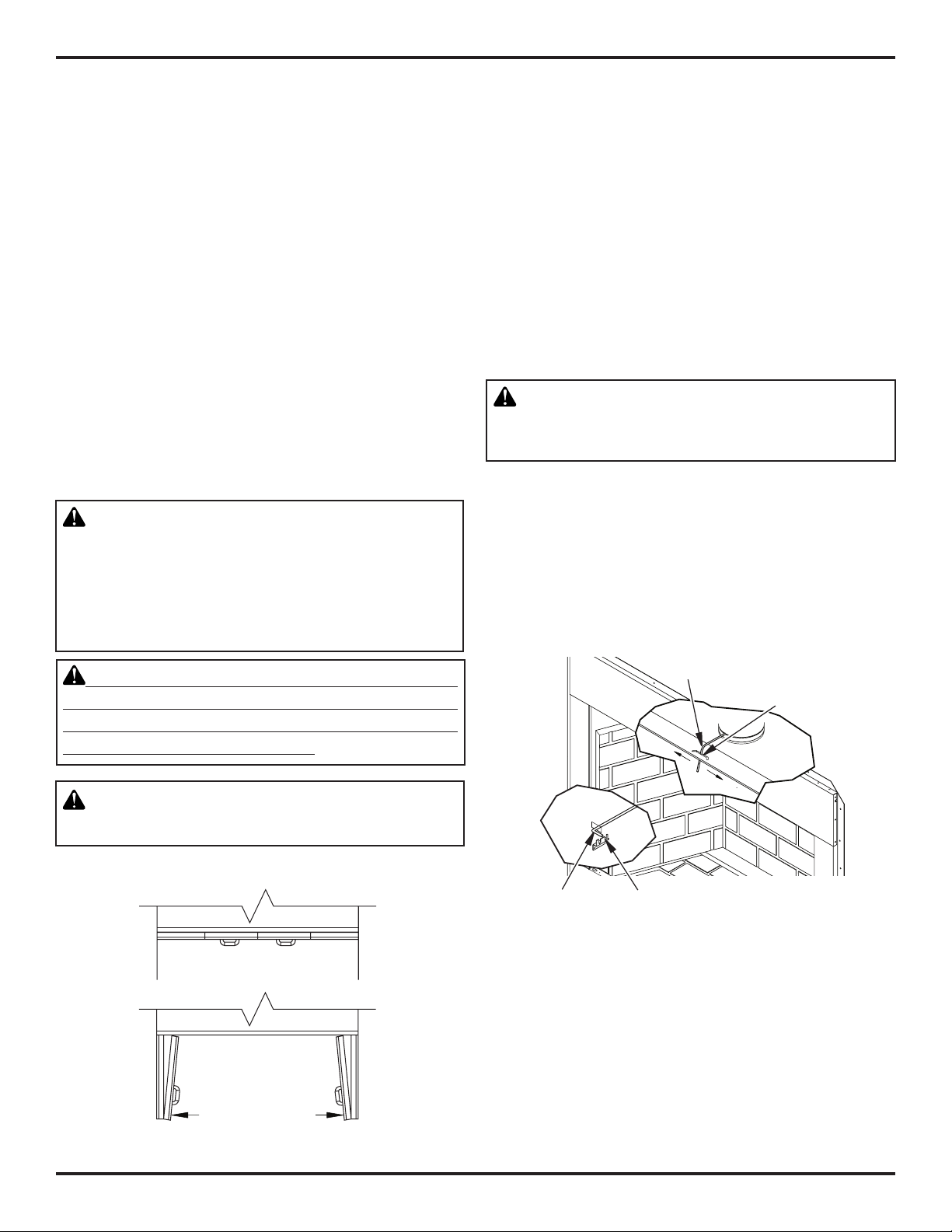

Figure 23 - Glass Doors
Figure 24 - Damper and Air Kit Handle
OPERATION AND MAINTENANCE
Cleaning Glass
Clean glass with any commercial glass cleaner or soap and water.
Do not use any abrasive material to clean the glass. Do not clean
glass with any cool water if glass is still hot from fire and smoke.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in upper front face of fireplace. Pushing handle into the left
of keyway slot will free damper blade to automatically open. Pushing
handleintotherightwilllockdamperbladeclosed.(seeFigure24).
Vent damper must be locked in the full open position before operat-
ing fireplace.
Outsideairkithandleislocatedatlefthandsideofreplace(see
Figure 24). Pulling handle out will free outside air door to open.
Pushing handle in will lock door closed.
WARNING: Risk of fire! Replace grate with IHP
model109910-01only.Thisgratehasbeendesignedto
keeptheoperation of your fireplacesafeandefficient.
Doors Fully Closed
Doors Fully Opened
Fireplace Front
Fireplace Front
GLASS DOORS
Glass doors are optional with this fireplace. When fireplace is in
operation, doors must be fully opened or fully closed position only
orarehazardmaybecreated(seeFigure23).
A fireplace equipped with glass doors operates much differently than
a fireplace with an open front. A fireplace with glass doors has a
limitedamountofairforcombustion.Excessiveheatwithinreplace
can result if too large a fire is built or if combustion air gate is not
completely open.
The following tips should be used to assure that both fireplace and
glassdoorretaintheirbeautyandfunctionproperly.Boththeue
damper and glass doors must be fully opened before starting a
fire. This will provide sufficient combustion air and maintain safe
temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Temperedglasswillwithstandagradualtemperatureriseto550°
F, which is more than a normal fire will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and large amounts
of paper or cardboard boxes can create an excessively hot fire and
should not be burned in this fireplace. Always keep fire back from
doorsandneverallowamestocontactglass.
WARNING:FIREPLACES EQUIPPED WITHDOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPENORDOORSFULLYCLOSED.IFDOORSARELEFT
PARTLY OPEN,GASAND FLAMEMAYBEDRAWNOUT
OF THE FIREPLACE OPENING, CREATING RISKS OF
BOTH FIRE AND SMOKE.
WARNING: Discontinue use of the appliance
immediately if doors are damaged and contact a
qualified installer for repair. Only doors certified
with the appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
OPEN CLOSE
Damper
Handle
Outside Air
Kit Handle
Keyway
Slot
Handle
Retainer

Comfortflame.US.com
900480-00A 15

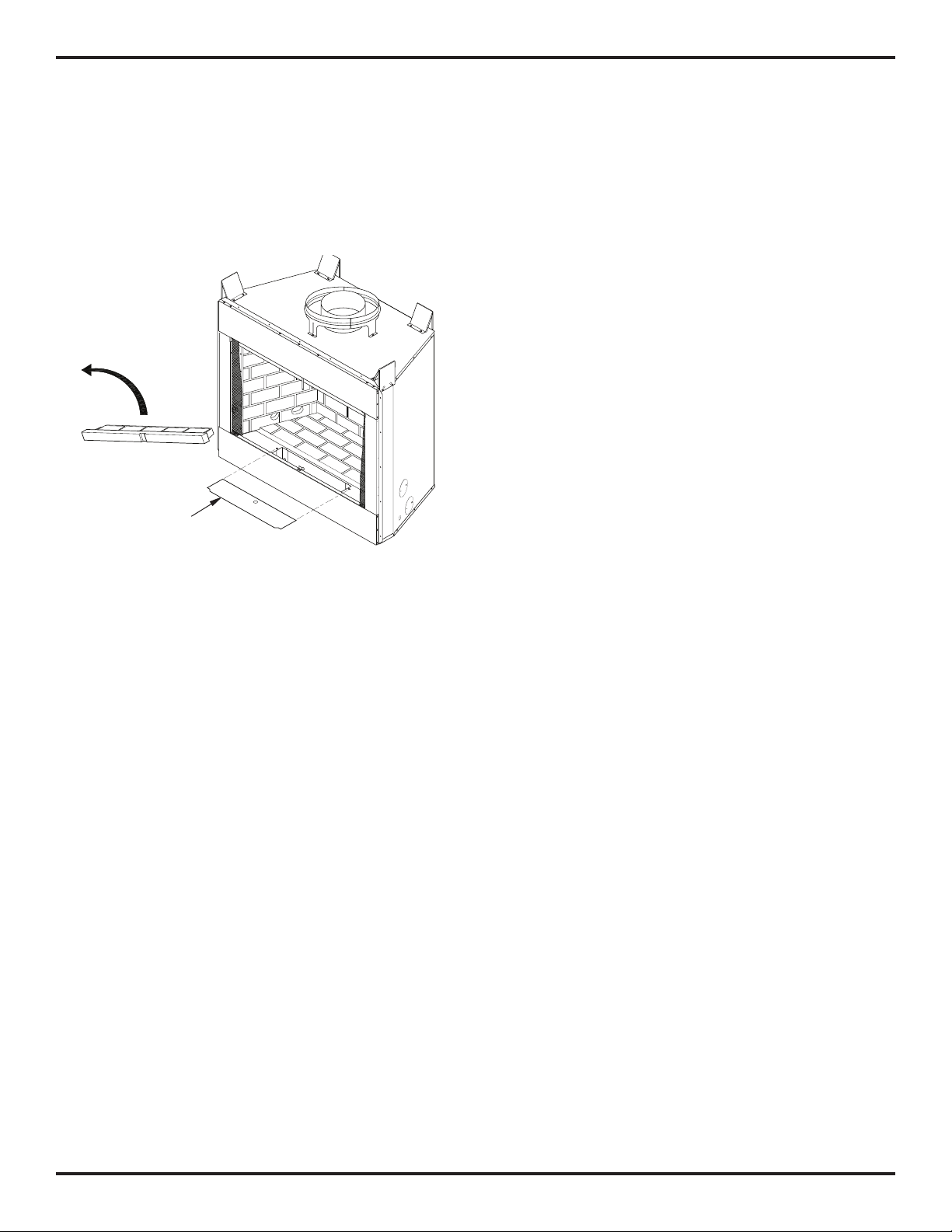

Figure 25 - Locating Access Cover Plate
Access
Panel
LOCATING ACCESS COVER PLATE
Sheet metal cover plates located underneath front hearth refractory may
have shifted or moved out of place while fireplace was in transit. These
cover plates must be kept in the proper location prior to using the fireplace
(SeeFigure25).
For further operating guidelines, instructions and warranty informa-
tion, please refer to your homeowner's guide or contact your dealer.
REPLACEMENT PARTS
SeePages16to17foracompletereplacementpartslist.Useonly
parts supplied from the manufacturer.
Normally,allpartsshouldbeorderedthroughyourIHPdistributor
or dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1. The model number of the fireplace.
2. The serial number of the fireplace.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the fireplace.
If you encounter any problems or have any questions concerning the
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Comfortflame.us.com
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting.PleasecontactyourIHPdealerforanyquestions
or concerns. When contacting your dealer please have your model
and serial numbers of your fireplace ready. You can also visit our
websiteatComfortame.us.com.

Comfortflame.US.com 900480-00A
16
9
4
30
31
19
12
25
20
28
17
8
1
5
21
2
32
18
11
14
3
13
22
10 6
29
7
34/35
33
36
26
27
15
16
16
23
24

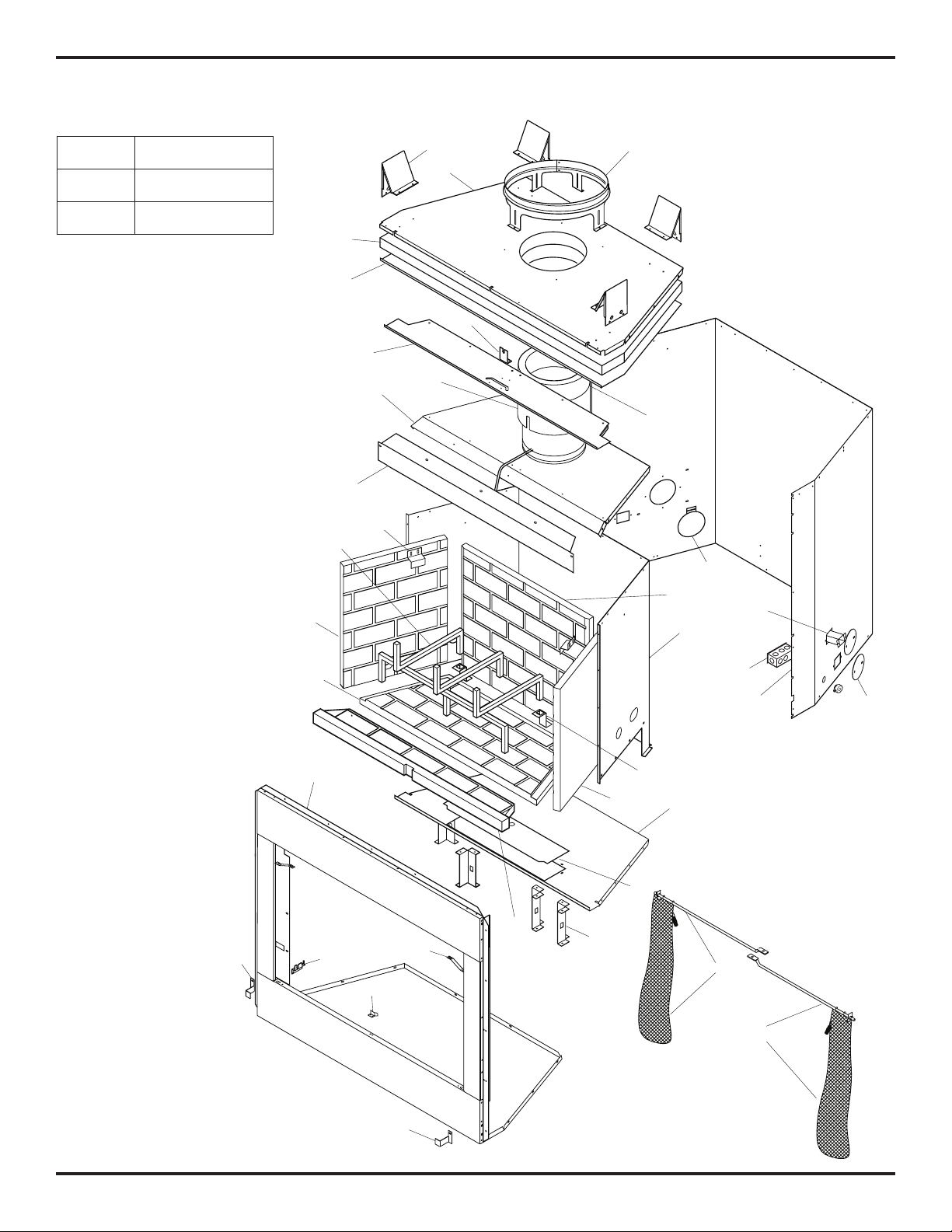

PARTS
WOODBURNINGFIREPLACEMODELS:
CAT NO. MODEL
F2541 Columbus36RWS
F2542 Columbus36LWS

Comfortflame.US.com
900480-00A 17
PARTS
WOODBURNINGFIREPLACEMODELS
This list contains replaceable parts used in your fireplace.
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
KEY
NO.
CATALOG
NO. DESCRIPTION
Columbus36RWS
(F2541)
Columbus36LWS
(F2542) QTY.
1 ** Insulation Pan • • 1
2 ** Fireplace Top • • 1
3 ** Fireplace Surround • • 1
4 J3946 Air Rod Retainer • • 1
5 J3947 Damper Rod Retainer • • 1
6 ** Firebox Bottom • • 1
7 ** Firebox Surround • • 1
8 ** Air Separator • • 1
9J3953 Refractory, Left Stacked White • • 1
10 J3958 Refractory, Right Stacked White • • 1
11 J3963 Refractory, Rear Stacked White • • 1
12 J3968 Refractory, Bottom Rear White • • 1
13 J3970 Refractory, Bottom Front White • • 1
14 ** Firebox Support Leg • • 4
15 ** Damper Can Collar • • 1
16 J8007 Screen Assembly Kit • • 1
17 ** Firebox Top Assembly • • 1
18 ** Air Kit Door Assembly • • 1
19 ** Face Weldment • • 1
20 J3991 SmokeDeector • • 1
21 ** Fireplace Top Insulation • • 1
22 ** Access Panel • • 1
23 J4087 Right Refractory Bracket • • 1
24 J4088 Left Refractory Bracket • • 1
25 J4381 Grate • • 1
26 ** Collar Insulation • • 1
27 J6893 Chimney Starter Collar • • 1
28 J6895 Refractory Retainer • • 2
29 J7003 Grate Retainer • • 2
30 ** Door Stop • • 1
31 J6905 Spring Clip • • 2
32 J6918 Top Standoff • • 4
33 J6934 Conduit Plate Cover • • 4
34 J6951 Gas Conduit • • 2
35 J6952 Gas Conduit • • 2
36 J4387 ElectricalDuctAssembly • • 1
PARTS AVAILABLE - NOT SHOWN
J6868 Rock Switch • • 1
J6906 EmberProtector • • 2
**Notaeldreplaceablepart

Comfortflame.US.com 900480-00A
18

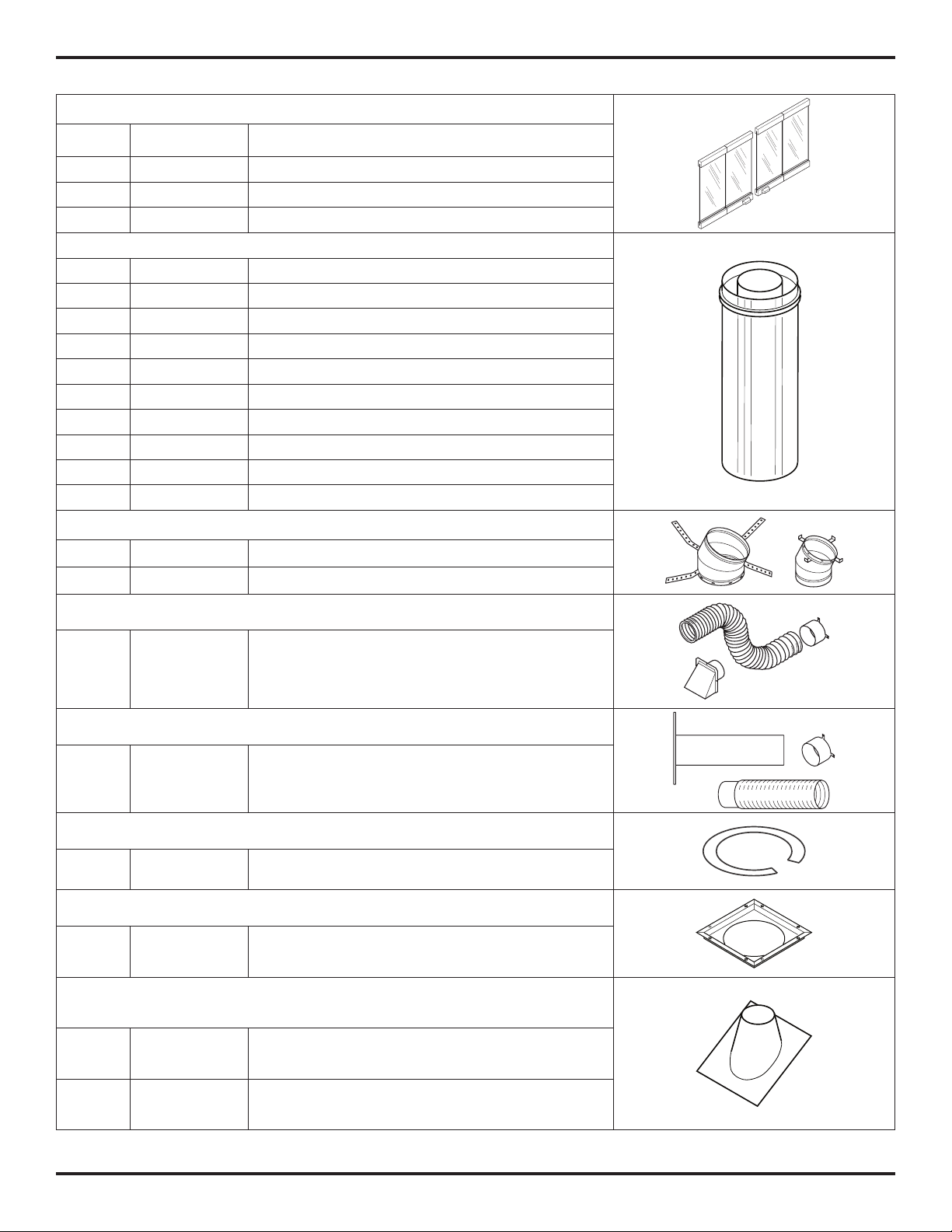

ACCESSORIES
BI-FOLD GLASS DOORS
CAT NO. MODEL DESCRIPTION
F0981 BD36 36" Standard Bi-Fold Glass Door - Black finish
F0982 BD36B 36" Standard Bi-Fold Glass Door - Brushed Brass finish
F0983 BD36P 36" Standard Bi-Fold Glass Door - Platinum finish
DOUBLE WALL PIPE
F0895 12-8DM 12" Section Double Wall Pipe Snap Lock
F0896 18-8DM 18" Section Double Wall Pipe Snap Lock
F0897 24-8DM 24" Section Double Wall Pipe Snap Lock
F0898 36-8DM 36" Section Double Wall Pipe Snap Lock
F0899 48-8DM 48" Section Double Wall Pipe Snap Lock
F0881 12-8HT 12"SectionHi-TempDoubleWallPipeSnapLock
F0882 18-8HT 18"SectionHi-TempDoubleWallPipeSnapLock
F0883 24-8HT 24"SectionHi-TempDoubleWallPipeSnapLock
F0884 36-8HT 36"SectionHi-TempDoubleWallPipeSnapLock
F0885 48-8HT 48"SectionHi-TempDoubleWallPipeSnapLock
30° OFFSET AND RETURN
F0900 30E-8DM 30 Degree Offset and Return
F0886 30E-8HT 30DegreeHi-TempOffsetandReturn
OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION
F1091 AK4 CompleteOutsideAirKitw/CollarsHood&3'Flex
OPTIONAL OUTSIDE AIR KIT FOR SIDEWALL INSTALLATION
F1093 AK4F OutsideAirKitCollar,Hood&3'FlexforFloorVenting
STORM COLLAR
F0946 SC2-1 Storm Collar
FIRESTOP SPACER
F0907 3600FS-8DM-1 1"ClearanceFirestopSpacer(1ea.)
ROOF FLASHING
F0908 V6FS-8DM RoofFlashing0to6/12Pitch(24"Base)
F0909 V6F-8DM RoofFlashing0to6/12Pitch(30"Base)

Comfortflame.US.com
900480-00A 19

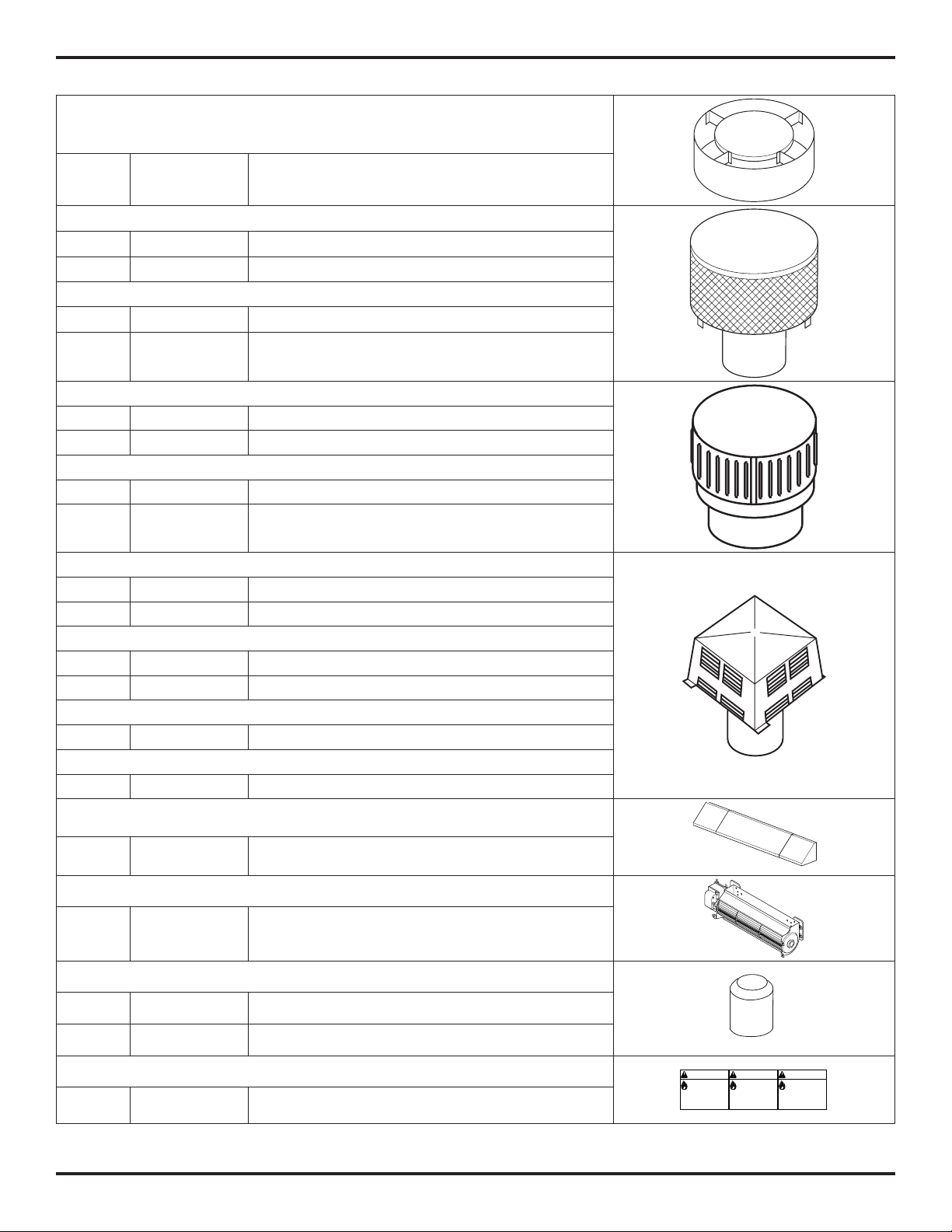

ANTI-DRAFT SHIELD
(Round Top Termination Only)
F0927 ADS-8DM Anti-Draft Shield for Round Top Only
MESH ROUND TOP TERMINATIONS
F0916 RT-8DM Round Top with Mesh Screen
F0888 RT-8HT Hi-TempRoundTopwithMeshScreen
MESH ROUND TOP TERMINATIONS WITH SLIP SECTION
F0917 RTT-8DM Round Top with Slip Section & Mesh
F0889 RTT-8HT Hi-TempRoundTopw/MeshScreenandSlipSection
ROUND TOP TERMINATIONS WITH LOUVERS
F0918 RLT-8DM Round Top with Louvered Screen
F0890 RLT-8HT Hi-TempRoundTopwithLouveredScreen
ROUND TOP TERMINATIONS WITH LOUVERS W/SLIP SECTION
F0919 RLTT-8DM Round Top with Slip Section & Louvers
F0891 RLTT-8HT Hi-TempRoundTopw/Lvrd.ScreenandSlipSection
SQUARE TOP TERMINATION WITH LOUVERS
F0920 ET-8DM Square Top
F0892 ET-8HT Hi-TempPyramidTopwithSlipSection
SQUARE TOP TERMINATION WITH LOUVERS AND SLIP SECTION
F0921 ETL-8DM Square Top with Slip Section
F0893 ETL-8HT Hi-TempLargePyramidTopwithSlipSection
MESH SQUARE TOP TERMINATION
F0922 ETO-8DM Square Top with Mesh
MESH SQUARE TOP TERMINATION WITH SLIP SECTION
F0923 ETLO-8DM Square Top with Mesh and Slip Section
ADJUSTABLE HOOD
Required when installing a vent-free gas log in this fireplace.
F1764 GA6050 BlackFireplaceHood
BLOWER KIT
F1081 BK Manual Fan, Variable Speed all units except Corner
models
FIRESTOP THIMBLE
F0911 38FST FirestopThimble(Usewhenpenetratingajoist)
F0912 FST30 FirestopThimble(Usewhenoffsettingthroughajoist)
LABEL-UL127-50PK WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
900599-01
F2659 LABEL-UL127-
50PK UL127VentingLabel-50PK
ACCESSORIES Continued

Comfortflame.US.com 900480-00A
20
IMPORTANT NOTICE
A manufactured shroud which
has been approved by a na-
tional testing agency for use
with this fireplace may be used
if installed in accordance with
the instructions by its manu-
facturer. A locally fabricated
shroud may be used with IHP
Shroud Leg Spacer Kit (SLK)
in accordance with instructions
provided with the shroud.
CanadiancodeCAN/ULC-S610-M87andotherpertinent
codes require stainless steel chimney for the installation
of this fireplace. A Cold Air Climate Kit is also required
in Canada and is recommended for cooler regions in the
UnitedStates.Below,ndalist ofapprovedstainless
steel parts.
Chimney Parts List for Canada
Catalog
No. Model No. 8" Hi-Temp Wood burning Chimney
F0881 12-8HT 12"SectionHi-TempDouble
Wall Pipe Snap Lock
F0882 18-8HT 18"SectionHi-TempDouble
Wall Pipe Snap Lock
F0883 24-8HT 24"SectionHi-TempDouble
Wall Pipe Snap Lock
F0884 36-8HT 36"SectionHi-TempDouble
Wall Pipe Snap Lock
F0885 48-8HT 48"SectionHi-TempDouble
Wall Pipe Snap Lock
F0886 30E-8HT 30DegreeHi-TempOffset
and Return
F0887 12S-8HT Hi-TempChimneySupport
(ForUseWithChimney
HeightsInExcessof30')
F0888 RT-8HT Hi-TempRoundTopwith
Mesh Screen
F0889 RTT-8HT Hi-TempRoundTopwith
Mesh Screen and Slip Sec-
tion
F0890 RLT-8HT Hi-TempRoundTopwith
Louvered Screen
F0891 RLTT-8HT Hi-TempRoundTopwith
Louvered Screen and Slip
Section
F0892 ET-8HT Hi-TempPyramidTopwith
Slip Section
F0893 ETL-8HT Hi-TempLargePyramidTop
withSlipSection(usewithall
8"systems)
F0894 AP-8HT Hi-TempAnchorPlate/Col-
larAssembly(formasonry
replaces)
F0929 CAK-8 Cold Air Collar Kit - 8"
Chimney
*When ordered alone, this part cannot ship via parcel
delivery services.
NOTICE: The firebox canopy (hood)
must not be modified or replaced with
a canopy that may be provided with
the unvented decorative room heater.
CAUTION: THE STRUCTURAL INTEG-
RITY OF THE MANUFACTURED HOME
FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
WARNING: DO NOT INSTALL
IN SLEEPING ROOM OF MOBILE
HOMES.
