IHP Sentry 45 Installation instructions

45", 55", 60", 72", 84" AND 100" Linear Electric Fireplaces
P/N 901042-00 Rev. C 08/2021
MODELS
45", 55", 60", 72", 84" AND 100"
LINEAR ELECTRIC FIREPLACES
This manual will enable you to obtain a safe, efficient and depend-
able installation and operation of your electric fireplace. Please read
and understand these instructions before beginning your installation.
Do not alter or modify this fireplace or its components under any
circumstances. Any modification or alteration of the fireplace system,
including but not limited to the fireplace and accessories, may void
the warranty, listings and approvals of this system and could result
in an unsafe and potentially dangerous installation.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
EXPOSEDSURFACESOFTHEELECTRONICFIREPLACEADJACENT
TO HEATERS AND BLOWERS MAY BECOME HOT. CARE SHOULD
BE TAKEN TO AVOID CONTACT WITH BLOWER HEAT DISCHARGE
OUTLETS SUCH AS THE ONE ON THE TOP OF THIS FIREPLACE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT CAUS-
ING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
BEFORE STARTING YOUR FIREPLACEINSTALLATION, READTHIS
INSTALLATION AND OPERATION MANUAL VERY CAREFULLY TO
ENSURE YOU UNDERSTAND IT COMPLETELY AND IN ENTIRETY.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A
POSSIBLE ELECTRIC SHOCK, FIRE HAZARD AND/OR INJURY OR
PROPERTY DAMAGE AND WILL VOID THE WARRANTY.
EXTREME CAUTION IS NECESSARY WHEN ANY HEATER IS USED
BY OR NEAR CHILDREN OR INVALIDS AND WHENEVER THE
HEATER IS LEFT OPERATING AND UNATTENDED.
ELECTRIC FIREPLACES INSERTS AND FREE STANDING ELECTRIC
FIREPLACES HEATERS RATED AT 1500W/ 5000 BTU
Report # 2048831
CUS
®
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference
INSTALLATEUR : Laissez cette notice avec l’appareil.
CONSOMMATEUR : Conservez cette notice pour con-
sultation ultérieure.
Installation and Operation Instructions
P901042-00
A French manual is available upon request. Order P/N 901042-02
Ce manuel d’installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 901042-02.
IMPORTANT! TO ASSURE PROPER ALIGNMENT, INSTALL THIS
FIREPLACE IN ASQUARE AND PLUMBCONDITION, USING SHIMS
AS NECESSARY AT SIDES.
IHPelectric fireplaces are designed foruse asa decorative appli-
ance and/or as a supplemental heater. They are not intended
for continuous use as a primary heat source.
Sentry 45
Sentry 55
Plexus 60
Plexus 72
Plexus 84
Plexus 100
ERL2045
ERL2055
ERL3060
ERL3072
ERL3084
ERL3100
MPE-45S
MPE-55S
MPE-60D
MPE-72D
MPE-84D
MPE-100D

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
2
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
IMPORTANT SAFETY AND
WARNING INFORMATION
READTHISMANUALINITSENTIRETY
AND UNDERSTAND THESE RULES
TO FOLLOW FOR SAFETY.
TO PREVENT A POSSIBLE FIRE, DO NOT
BLOCK AIR INTAKES OR EXHAUSTS IN
ANY WAY. DO NOT USE NEAR SOFT
SURFACES, LIKE A PILLOW, WHERE
OPENINGS MAY BECOME BLOCKED.
THIS APPLIANCE MAY BECOME HOT
WHEN IN USE. TO AVOID BURNS, DO NOT
LET BARE SKIN TOUCH HOT SURFACES.
KEEP COMBUSTIBLE MATERIALS, SUCH
AS FURNITURE, PILLOWS, BEDDING,
PAPERS, CLOTHES AND CURTAINS AT
LEAST 3 FEET (1 METER) FROM THE
FRONT OF THIS APPLIANCE.
DO NOT OPERATE ANY HEATER WITH
DAMAGED WIRING OR CONNECTORS,
OR AFTER THE APPLIANCE MALFUNC-
TIONS, OR IF IT HAS BEEN DROPPED OR
DAMAGED IN ANY WAY.
ANY REPAIRS TO THIS FIREPLACE
SHOULD BEPERFORMED BYA QUALIFIED
SERVICE TECHNICIAN.
UNDER NO CIRCUMSTANCES SHOULD
THIS FIREPLACE BE MODIFIED. PARTS
HAVING TO BE REMOVED FOR SERVICING
MUST BE REPLACED PRIOR TO OPERAT-
ING THE FIREPLACE AGAIN.
WARNING
If the information in this manual
is not followed exactly, an elec-
trical shock or fire may result
causing property damage, per-
sonal injury or loss of life.
IMPORTANT
Before starting your fireplace
installation, read this instal-
lation and operation manual
very carefully to ensure you
understand it completely and in
entirety. Failure to follow these
instructions may result in a pos-
sible electric shock, fire hazard
and/or injury or property damage
and will void the warranty.
CAUTION
Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the heater is left oper-
ating and unattended.
WARNING
To prevent contact with sag-
ging or loose insulation, the
appliance must not be installed
againstvapor barriersorexposed
insulation. Localized overheat-
ing could occur and a fire could
result. Insulation and a vapor
barrier should be placed a
minimum of 2 inches from the
appliance.
IMPORTANT
Cold climate installation recom-
mendation: when installing this
fireplace against anon-insulated
exterior wall or chase, it is
mandatory that the outer walls
be insulated to conform to appli-
cable insulation codes.
IMPORTANT
These fireplaces are designed
assupplemental heaters. There-
fore, it is advisable to have an
alternate heat source when
installed in a dwelling.
WARNING
This product can expose you
to chemicals including Carbon
Black, which is known to the
State of California to cause
cancer, and Bisphenol A (BPA),
which is known to the State of
California to cause birth defects
or other reproductive harm. For
more information go to www.
P65Warnings.ca.gov
DO NOT USE THIS APPLIANCE OUT-
DOORS. DO NOT EXPOSE FIREPLACE TO
THE ELEMENTS (SUCH AS RAIN, ETC.).
THIS APPLIANCE IS NOT INTENDED FOR
USE IN BATHROOMS, LAUNDRY AREAS
OR SIMILAR INDOOR LOCATIONS.
NEVER LOCATE THIS APPLIANCE WHERE
IT COULD FALL INTO A BATHTUB OR
OTHER WATER CONTAINER.
DO NOT RUN ELECTRICAL WIRING OR
POWER CORD UNDER CARPETING. OR
COVER WITH THROW RUGS, RUNNERS
OR SIMILAR MATERIALS.
FOR 120 VAC POWER CORD AVOID THE
USE OF AN EXTENSION CORD BECAUSE
THE EXTENSION CORD MAY OVERHEAT
AND CAUSE A RISK OF FIRE. HOWEVER,
IF YOU HAVE TO USE AN EXTENSION
CORD, THE CORD SHALL BE NO. 14
AWG MINIMUM SIZE AND RATED NOT
LESS THAN 1800 WATTS, 15 AMPS. THE
EXTENSION CORD MUST BE A THREE
CONDUCTOR SHEATH CABLE WITH
GROUNDING TYPE PLUG AND CORD
CONNECTION.
THIS APPLIANCE HAS HOT AND ARCING
OR SPARKING PARTS INSIDE. DO NOT
USE IT IN AREAS WHERE GASOLINE,
PAINT OR FLAMMABLE LIQUIDS ARE
USED OR STORED.
THIS FIREPLACE SHOULD NOT BE USED
AS A DRYING RACK FOR CLOTHING, NOR
SHOULD CHRISTMAS STOCKINGS OR
OTHER DECORATIONS BE HUNG NEAR IT.
USE THIS APPLIANCE ONLY AS
DESCRIBED IN THIS MANUAL. ANY
OTHER USE IS NOT RECOMMENDED BY
THE MANUFACTURER AND MAY CAUSE
A FIRE, ELECTRIC SHOCK OR INJURY
TO PERSONS.
IF APPLIANCE IS TO BE DISCONNECTED,
TURN OFF CONTROLS FIRST.
DO NOT INSERT OR ALLOW FOREIGN
OBJECTS TO ENTER ANY VENTILATION
OR EXHAUST OPENING, AS THIS MAY
CAUSE AN ELECTRIC SHOCK, FIRE, OR
DAMAGE TO THE APPLIANCE.
SAVE THESE INSTRUCTIONS.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
3
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
In selecting this Innovative Hearth Products linear electric fireplace, you have chosen
the finest and most dependable fireplace found anywhere. A beautiful and prestigious
addition to the finest homes. Welcome to a Family of hundreds of thousands of satis-
fied IHP Fireplace Owners.
Please read and carefully follow all of the instructions found in this manual. Please
pay special attention to the safety instructions provided in this manual. The instruc-
tions included here will assure that you have many years of dependable and enjoyable
service from your IHP product.
TABLE OF CONTENTS
Important Safety Information........... Page 2
Packaging List.................................. Page 3
Introduction ..................................... Page 3
General Information ......................... Page 3
Tools/Supplies Required .................. Page 3
Locating Fireplace............................ Page 3

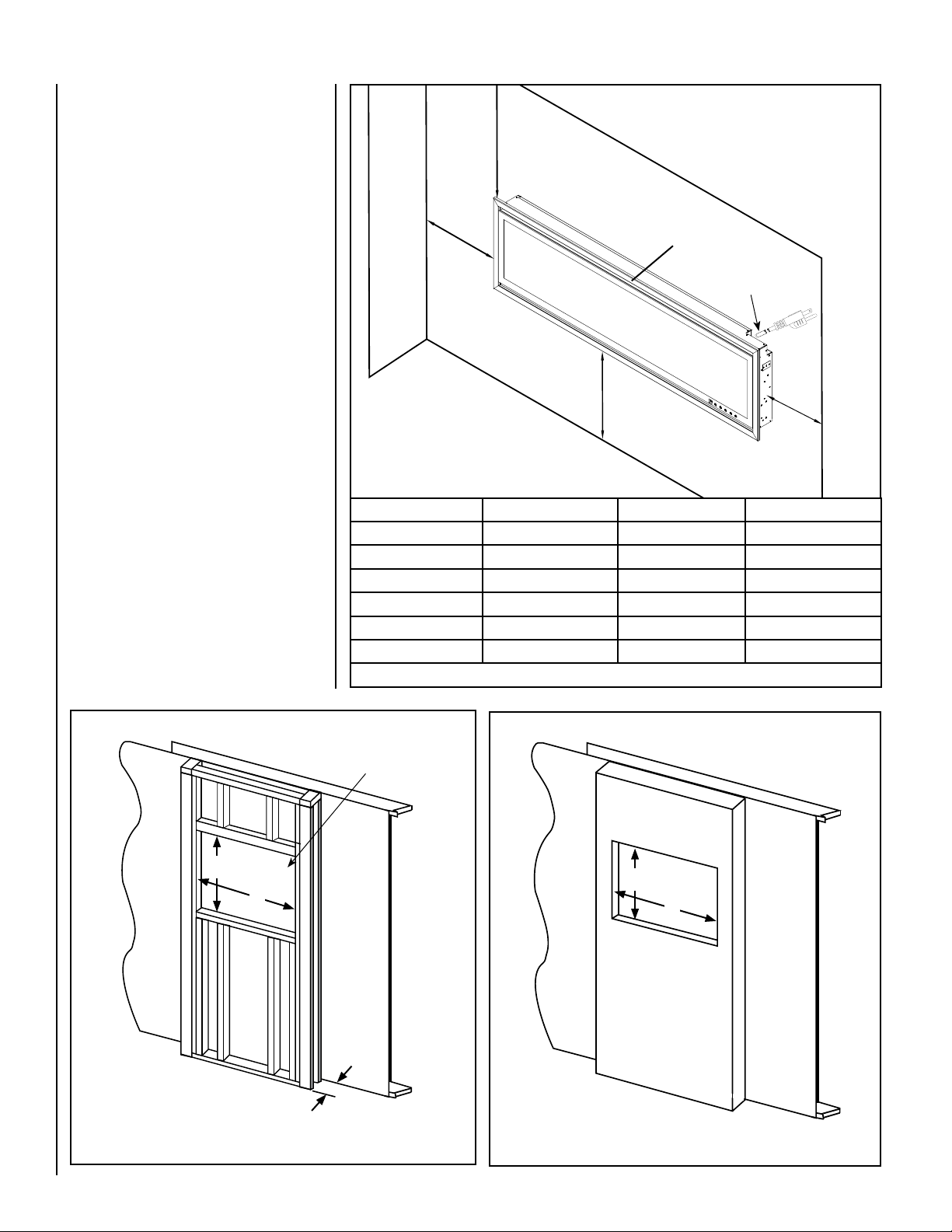

Framing Specifications..................... Page 4

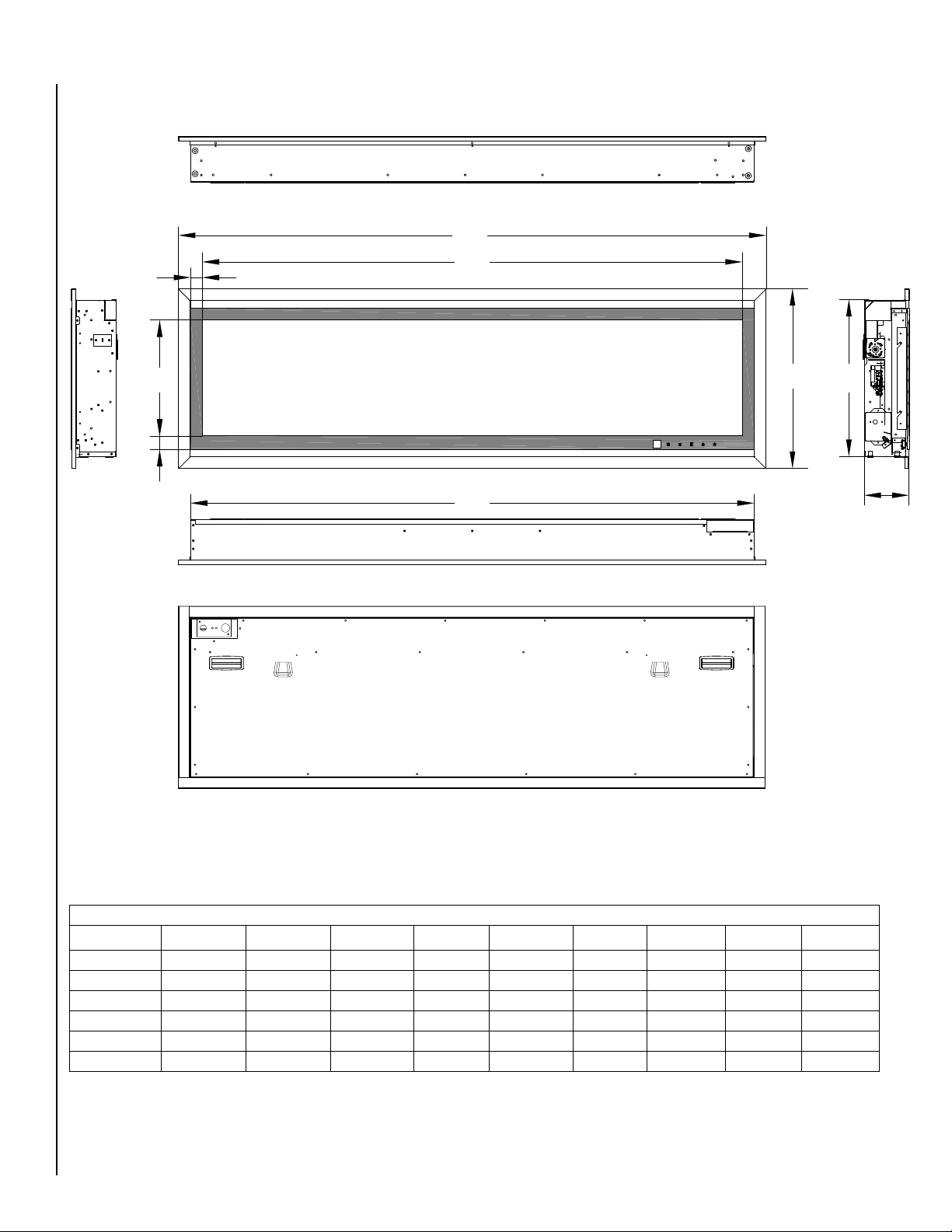

Fireplace Specifications.................... Page 5
Clearances ....................................... Page 7
Pre-installation................................. Page 7
Installation Steps ............................. Page 7
Electrical Connections...................... Page 9
Maintenance..................................... Page 10
Operation ......................................... Page 10
Remote Control Operation ............... Page 11
Troubleshooting ............................... Page 16

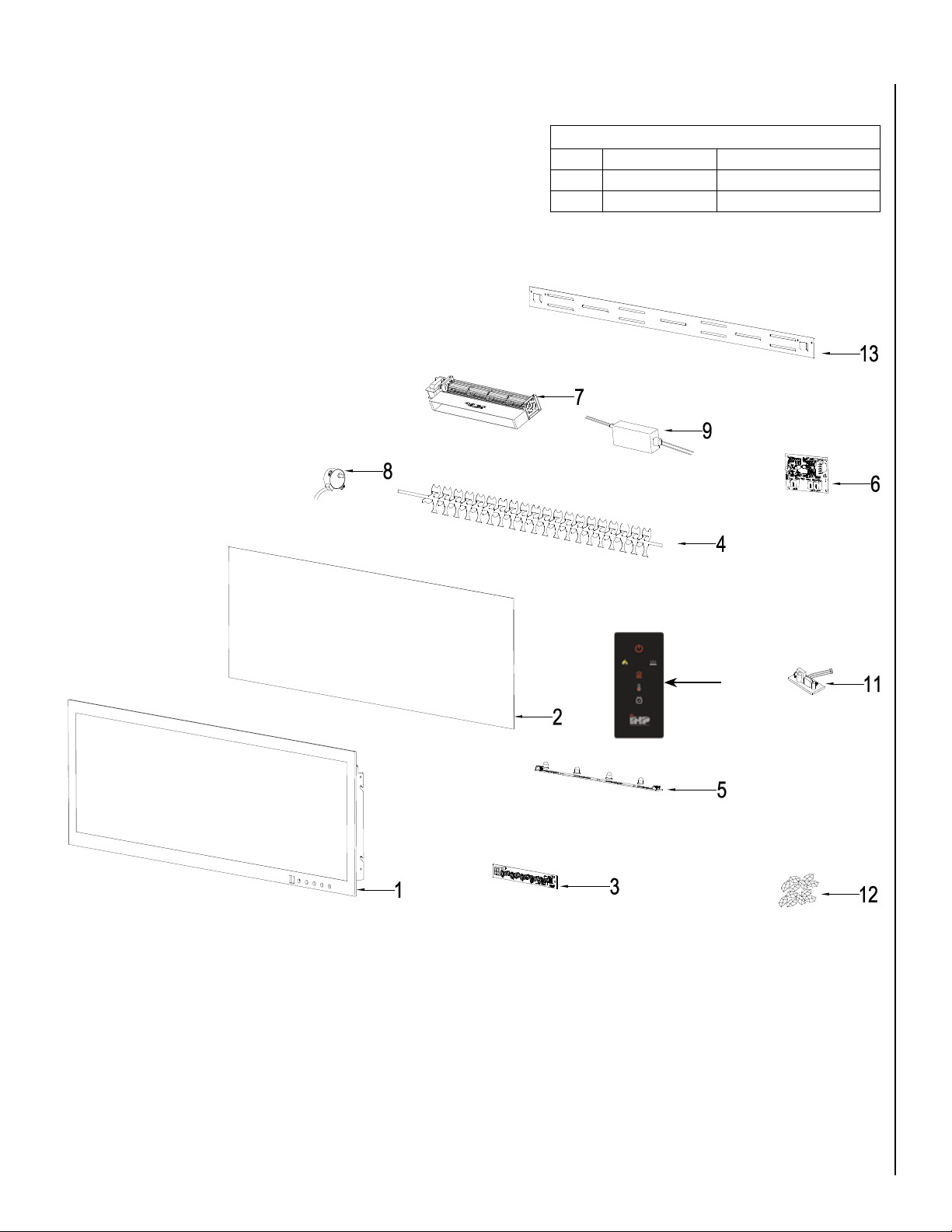

Replacement Parts........................... Page 18
Electrical Diagram............................ Page 20
Warranty .......................................... Page 23
Please read and understand these
instructions before installing,
operating, or servicing this product.
PACKAGING LIST
This assembled Electric Room Heater is
packaged with:
• One accessory package located in the
firebox, containing;
1. One Installation and Operation Manual.
2. One Warranty Certificate (in manual)
3. One Remote Control.

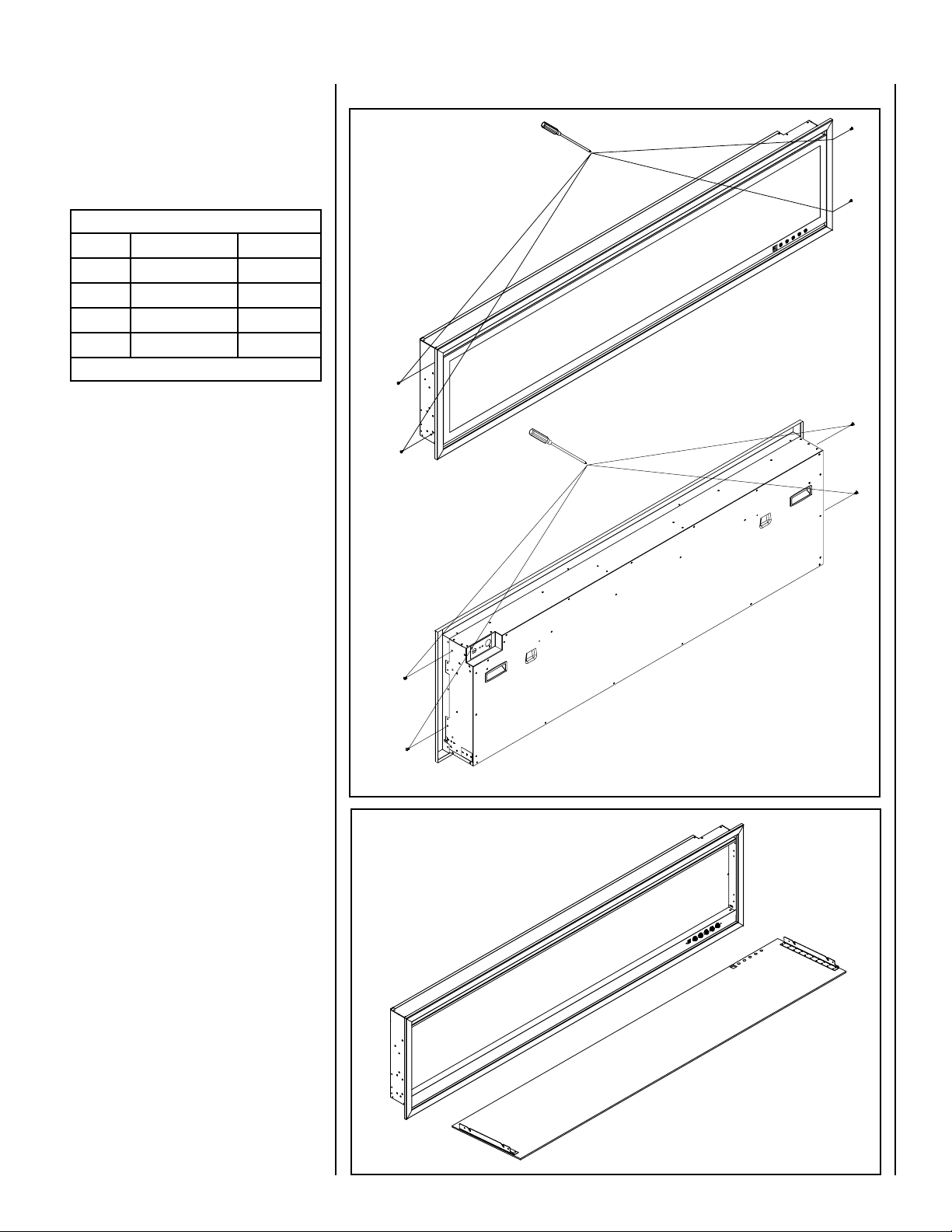

4. Wall Mounting Bracket (attached to rear
of fireplace and seen of Page 17)

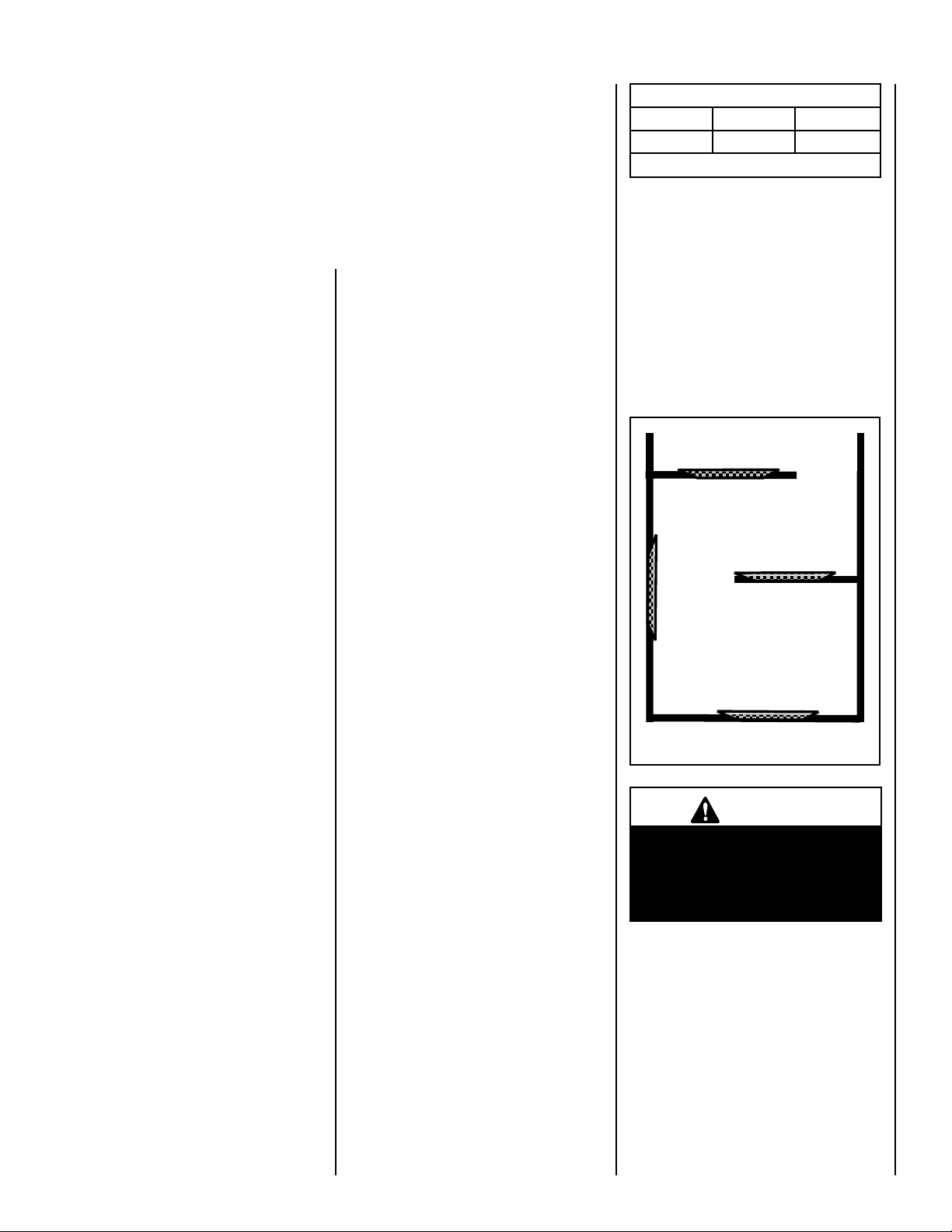

Figure 1
LOCATING YOUR PRO SERIES
ELECTRIC FIREPLACE
Your new fireplace may be installed into a
recessed wall (see Figure 1).
When choosing a location for your new fire-
place, ensure that the general instructions are
followed. Also, for the best effect, install the
fireplace out of direct sunlight and away from
overhead lighting. See Figure 1.
Fireplace shown in gray.
BUILDING SUPPLIES:
Framing Materials
Wall Finishing Materials
Top View Showing Approved
Room Locations of Fireplace
Installation must conform to local codes.
In the absence of local codes, electrical
wiring and grounding must comply with
the National Electrical Code ANSI/ NFPA
70 - latest edition. In Canada, the current
CSA C22-1 Canadian Electrical Code - latest
edition.
INTRODUCTION
This Electric Fireplace is designed for resi-
dential applications to be wall mounted or
framed in as a fireplace.
This appliance has been tested in accor-
dance with UL 2021 and CSA C22.2 No.
46-M198 standards for fixed and location
dedicated electric room heaters.
GENERAL INFORMATION
Power Supply Wire Specifications
120 Volt, 60 Hz, 1500 Watts:
Power is supplied to the fireplace through a
120Volt, 60Hz receptacle located within reach
of the power cord provided with the fireplace.
If the heater option it to be used we suggest
that a separate circuit with breaker be used.
See Table 1.
TOOLS AND BUILDING SUPPLIES
NORMALLY REQUIRED
TOOLS:
Phillips Screwdriver
Hammer
Saw And/or Saber Saw
Level
Measuring Tape
Plumb Line
Electric Drill And Bits
Pliers
Square
Gloves
IMPORTANT NOTE: This fireplace system
is not difficult to install. However, in the
interest of safety, it is recommended that
the installer be a qualified or certified
“tradesman” familiar with commonly
accepted fireplace installation and safety
techniques as well as prevailing local
codes.
Power Supply Wire Gage
Voltage Wire Gage Fuse
120 V 14 GA. 15 AMP
Table 1
WARNING
The minimum recommended
safe distance from the fireplace
to adjacent wallsand furnishings
is 15-3/4" (600mm).
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
4
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
Figure 3 - Recessed Framing Dimensions Figure 4 - Finishing Material
Figure 2
FRAMING SPECIFICATIONS
RECESSED INSTALLATION
The Electric Fireplaces listed in this manual
accept installation as a recessed appliance
for a more finished appearance.
RECESSED FRAMING OPTION
These Electric Fireplaces offer a recessed
installation (see Figure 3 and 4)that
gives the fireplace a more distinguished
appearance.
For secure installation, remove front glass,
there are 4 oblonginstallation holes onboth
sides in the upper and lower corners of the
firebox. Use the wood screws to mount
and secure the firebox to the wood frame.
Recessed framing places the front glass on
the unit nearly flush with the wall. With this
option, the fireplace will be more perma-
nently affixed in its desired position in the
home for a more dramatic presentation.
NOTE: The design of the front trim is to
cover up the dry wall gap after the instal-
lation of the fireplace. The fireplace will be
push in until the front trim reaches the dry
wall surface.
NOTE: Electrical receptacle should be
placed within 3' of fireplaces top right
corner.
MODEL A - Height B - Width C - Depth
45" 16-1/2” 48” 5-1/8”
55" 16-1/2” 58” 5-1/8”
60" 16-1/2” 63” 6-1/2”
72" 16-1/2” 75” 6-1/2”
84" 16-1/2” 87” 6-1/2”
100" 16-1/2” 103” 6-1/2”
Table 2 - Recessed Framing Dimensions (corresponds to Figures 3 and 4)
Blower Heat
Discharge Outlet
Power Cord
Location
Minimum distance from
ceiling 23-5/8” (600mm)
Minimum distance
to walls and floors
7-7/8” (200mm)
A
C
B
A
B
FINISHING MATERIAL
FRAMING
*See Table 2 *See Table 2
Flame Motor
LED4-M23
2018/07/21
FR-4
SHEN GYI
Y
B
Y
E
E2 E3
E1 E4 SO
SI
+12V
R
G
B
SHENGYI
2019/07/31
FR-4
RA8-1M
SD
CL
+
D
E
C
B
FA
.G 2
1
CLK
STB
DIN
-
FLAME
CN2
TEMP
HEAT
TIME
ON/OFF
Receiver
Temp. Sensor
Heater
N
Ground
L
12V 120V
Flame Light
Ember Light
MOTO R1 H2 H1
F-N1
M-N1
P-N1
R-N1
TEMP +-
RF
MOOD1
MOOD2
FLAME EMBER
WIFI
T-IN
F-N2
TRAN.-I
P-L
Adaptor
NOTE: Electrical receptacleshould
be placed within 3' of fireplaces
top right corner inside the wall.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
5
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
FIREPLACE SPECIFICATIONS
45" Models:
Description: 45" Electric Fireplace Insert,
5000 BTU
Shipping Weight: 51 lbs. (23 kgs)
Appliance Weight: 43 lbs (19.5 kgs)
Packaging:
7.9 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
55" Models:
Description: 55" Electric Fireplace Insert,
5000 BTU
Shipping Weight: 62 lbs. (28 kgs)
Appliance Weight: 53 lbs (24 kgs)
Packaging:
9.2 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
84" Models:
Description: 84" Electric Fireplace Insert,
5000 BTU
Shipping Weight: 137 lbs. (62 kgs)
Appliance Weight: 105 lbs (47.5 kgs)
Packaging:
9.7 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
100" Models:
Description: 100" Electric Fireplace
Insert, 5000 BTU
Shipping Weight: 162 lbs. (73.5 kgs)
Appliance Weight: 124 lbs (56 kgs)
Packaging:
11.3 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
60" Models:
Description: 60" Electric Fireplace Insert,
5000 BTU
Shipping Weight: 99 lbs. (45 kgs)
Appliance Weight: 75 lbs (34 kgs)
Packaging:
7.2 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
72" Models:
Description: 72" Electric Fireplace Insert,
5000 BTU
Shipping Weight: 121 lbs. (55 kgs)
Appliance Weight: 90 lbs (41 kgs)
Packaging:
8.5 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
6
C
F1
F2
D
A
BG
E
H
Bottom View
Front View
Right Side
View
Left Side
View
Top View
Back View
inches
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
LINEAR ELECTRIC FIREPLACE DIMENSIONS
PRODUCT DIMENSION
Models A B C D E F1F2G H
45"
49-7/8 18-3/8 4-5/8 45 11-7/8 1-1/4 1-3/8 16 47-1/2
55"
59-7/8 18-3/8 4-5/8 55 11-7/8 1-1/4 1-3/8 16 57-1/2
60"
64-7/8 18-3/8 6 60 11-7/8 1-1/4 1-3/8 16 62-1/2
72"
76-7/8 18-3/8 6 72 11-7/8 1-1/4 1-3/8 16 74-1/2
84"
88-7/8 18-3/8 6 84 11-7/8 1-1/4 1-3/8 16 86-1/2
100"
104-7/8 18-3/8 6 100 11-7/8 1-1/4 1-3/8 16 102-1/2
Figure 5
NOTE: The 55" Model is Shown Above. Proportions for the other models may differ but the dimensions below are accurate.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
FRONT GLASS REMOVAL
7
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
Mantel Clearance: Combustible and Non-
combustible mantels may be installed above
the top of the face of fireplace.
Minimum clearance requirements include any
projections such as shelves, window sills,
mantels, etc. above the fireplace.
PRE-INSTALLATION
Before You Start
Check appliance for any concealed damage.
DETAILED INSTALLATION STEPS
RECESSED WALL INSTALLATION
1. Do not connect the appliance until properly
fixed to the wall and the instruction manual
is read fully.
2. Two people are recommended for instal-
lation of this electric fireplace heater.
3. Peel off theremovable label and theprotective
sheet attached to the front tempered glass.
4. To place the decorative crystals/wood logs
media follow the steps as given below.
NOTE: 45" and 55" models use decorative
crystals only.
a. To place the crystals/wood logs, the front
glass is required to be removed from
the heater panel body. Remove four (4)
screws on both sides (Figure 6a). Lift up
and remove frontglass out from theheater
body, and place it in a secure location
(Figure 6b).
NOTE: This is done at the initial installa-
tion only. Discard the screws removed.
continued on Page 8
MINIMUM CLEARANCES TO COM-
BUSTIBLES
This appliance is an electric fireplace designed
to be framed in with combustible materials (up
to the edge of the appliance).
Figure 6a
Figure 6b
Fireplace Clearances
WALL RECESS
Sides 7-7/8" (200mm) 0" (0mm)
Floor 7-7/8" (200mm) 0" (0mm)
Top 23-5/8" (600mm) 0" (0mm)
Rear 0" (0mm) 0" (0mm)
Table 3
901042-00C 08/2021
Remove front glass and place it
in a secure location
FRONT VIEW
FRONT VIEW
REAR VIEW
Remove four (4)
screws on both sides

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
8
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
Log Quantities Total # of logs
per unit
Models # 1 # 2 # 3 # 4 # 5 # 6 # 6A # 7 # 8 # 8A
60" 1 1 1 2 1 1 7
72" 1 1 1 2 1 1 1 1 9
84" 2 2 1 2 2 1 1 11
100" 2 2 2 2 1 1 1 1 1 13
Table 4a
Log Layout - From Left to Right
60" #4 #3 #2 #1 #5 #4 #6
72" # 8 #4 #3 #2 #1 #5 #4 #6 #7
84" #8 #5 #4 #3 #2 #1 #5 #4 #6 #2 #1
100" #8A #6A #2 #4 #3 #2 #1 #5 #4 #7 #6 #3 #1
Table 4b
6. Place the crystals along the light unit in an even layer bed.
7. Place the logs along the light unit and over the crystals layer bed (see Figure 7 and Tables 4a and 4b).
8.
Place the front glass back; the front glass can be hooked on the hangers (Tables 4a and 4b, Page 7). Make sure the glass is secured before continu-
ing with the installation.
NOTE: Repeat this step every time you replace the crystals/log media.
Figure 7
901042-00C 08/2021
1
2
3
4
5
6
7
6 A
8
8 A
Velcro is provided to help to secure the log set arrangement.
Velcro can be attached to wood logs as per user’s preference
or as per manual suggested layout. The quantity of Velcro is
based on the quantity of wood logs provided with the unit.
The diameter of the Velcro is 2cm and 1cm, user can also
cut the Velcro base to the desired size. Do not use velcro
that is a size less than 1cm, for best application result.
Velcro

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
9
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
ELECTRICAL CONNECTIONS FOR
RECESSED FRAMING
1. Complete the framing opening to the dimen-
sions specified in Figure 3. Ensure that the
fireplace is in the off position (see Figure 9).
2. WIRE A DEDICATED, properly fused circuit
with an Amp rating for the appropriate volt-
age (120 V - 15 Amps). A dedicated circuit
is required to prevent overloading a house
circuit in cases of having multiple appliances
on the same circuit. Use an outlet that is
protected by a ground fault circuit interrupter
where required by electrical code.
3. Prepare the connections to power receptacle:
Figure 8 - Wiring
WARNING
Electrical wiring must comply
with local building codes and
other applicable regulations to
reduce the risk of fire, electrical
shock and injury to individuals.
IMPORTANT
Any electrical re-wiring of this
appliance must be done by a
qualified electrician.
120 Volt Connections - Locate the power
cord on the left side of the unit and connect
it to the outlet installed during the framing.
Verify that the power to the receptacle is off.
Hard wired installation:
Ensure that there is a minimum of 8" of the
service cable for connection to the junction
box on the fireplace.
- Loosen two screws to remove the junction
box cover plate.
- Disconnect and remove the 120 Volt power
cord from the fireplace wires.
- Position the fireplace into the framed-in
opening.
- Attach the wiring to the wire connector.
Please make sure the live wire (Black)goes
into the "L", the neutral wire (White) goes
into the "N" and the ground wire (Green)
goes into the "G". See Figure 8.
- Complete the wiring to the fireplace as
shown on Pages 20-23.
4. Perform a function test. See Remote Control
Operation on Page 11.
RECESSED INSTALLATION (continued)
Use the following detailed instructions for
recessed installation.
Installing the fireplace is a two person job.
1. Prepare the wall recess and electrical recep-
tacle as seen in Figure 3,Page 4.
2. IMPORTANT: Shut off the breaker leading
to the appliance.
3. Follow the wiring details located on Pages
20-23.
4. For secure installation, remove front glass,
there are 4 oblong installation holes on both
sides in the upper and lower corners of the
firebox. Use the wood screws to mount and
secure the firebox to the wood frame.
5. Flip the master power switch to the "ON"
position.
6. Turn the breaker supporting the fireplace
back on.
7. Use the supplied remote control to operate
the fireplace.
NOTE: Ensure thecircuit breakersfor the power
supply are turned on.
This appliance can be activated by using the
touch panel control (see Figure 9)or by using
the remote control when the unit power switch
is already in the "ON" position.
The manual touch panel controls with LED
display are located at the lower right corner of
the fireplace (see Figure 9).
Figure 9
ON/OFF
FLAMETIMER
HEAT EMBER
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
10
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
BREAK-IN PERIOD:
During the first few initial uses of this heater,
there may be a release ofa slight, harmlessodor.
This odor is a normal occurrence caused by the
initial heating of the internal heating elements
and should not reoccur.
MAINTENANCE
This appliance has been designed to provide
many years of trouble-free service. The com-
ponents that will need to be serviced have been
kept to a minimum. Periodic dusting of the
fireplace is all that should be required.
WARNING
An authorized service represen-
tative should perform any other
servicing.
CAUTION
Handle glass very carefully to
prevent accidental breakage.
CAUTION
Do not use abrasive cleaners on
the glass panel. Do not spray
liquids directly onto any surface
of the fireplace.
WARNING
When cleaning the fireplace, the
fireplace must be cool.
CLEANING THE GLASS ENCLOSURE
PANEL
Over time the front glass panel may become
dirty or dusty. Dust can be removed by lightly
rubbing the glass surface with a clean, lint free
cloth or paper towel. To remove fingerprints
or other marks, use a damp cloth with a good
quality household glass cleaner. The front glass
panel should be completely dried with a clean,
lint free cloth or paper towel.
CAUTION
Disconnectpowerbeforeattempt-
ing any maintenance or cleaning
to reduce the risk of fire, electri-
cal shock or personal injury.
OPERATION
NOTE: See operation on Pages 10 to 15.
SAFETY CUT-OFF
• This appliance is fitted with a safety
cut-off which will operate if the heater
overheats (eg. due to blocked air
vents). For safety reasons, the heater
will NOT automatically reset.
• To reset the appliance, disconnect
the appliance from the mains supply
for at least 30 minutes. Reconnect
the supply to the main switch on the
appliance.
WARNING
Do not use this fireplace if any
part of it has been underwater.
Immediately call a qualified
service technician to inspect the
fireplace and replace any part of
the electrical system which has
been under water.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
11
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
REMOTE CONTROL OPERATION:
MODELS 45" AND 55" FIREPLACES
This IHP Electric Fireplace is provided with an
Infrared light Remote Control. All functions
of the fireplace can be controlled through the
remote control.
NOTE: The Effective range of the remote control
is up to approximately 26 feet (6 meters).
CAUTIONS
• Do Not Use Old Batteries With
New Ones.
• Do Not Use Batteries Other
Than The Type Specified (2
Ea. AA).
• Ensure Batteries Are Correctly
Installed In Remote Control.
REMOTE CONTROL MODEL NO. R80
REMOTE CONTROL ICON NO. REMOTE AND TOUCH
PANEL ICON
MAIN FUNCTION OPTIONS
When using the remote control, the power
on/off switch on the lower right side of the
unit must be in the "ON" position.
1
23
4
6
5
1Main Power Power On/ Off
2 Flame adjusting 4 levels of flame brightness include
flame off
3 Ember bed adjusting 9 options with different color setting
operations include ember off
4Heater function 3settingforheateroperation,750W/1500W/
OFF; heater safe lock feature built in
5Temperature setting
Switch from C/F setting, and set for desired
room temperature (temperature showing
on product, 7 levels)
6Timer setting
Choose from 30 min. up to 8 hour setting
for product operation (Timing digits shows
on product)
REMOTE CONTROL OPERATION STEPS:
1. Press the “Power” button to turn on the
yellow flame (y4), ember bed (E3); LEDs
at the brightest level. Indicate “ON” on LED
display. The heater is in OFF status. Press
again to turn offthe fireplace. Indicate “OFF”
on LED display. LED display for 5 seconds,
then goes off.
NOTE: If power is not in OFF condition,
shutdown by the remote control, then next
time turn ON by the remote control, the
existing setting will resume to the previous
shutdown setting. The heater and timer is
OFF. When the flame is ON, the LED display
indicates 5 seconds, then goes blanking.
Press any key, LED display indicates the
previous blanking setting, except the
"Power" key.
2. Press the "Yellow Flame" button multiple
times to cyclethrough 4 different brightness
levels and OFF for the yellow flame LEDs.
Indicate (y4-y3-y2-y1-y0).
Icon Display Flame
y4 The highest flame setting
y3 The 2nd highest flame setting
y3 The medium level flame setting
y1 The lowest level flame setting
y0 Flame off
Table 6
901042-00C 08/2021
Icon Display Main Power
ON
Main power on, initial
setting with highest
flame brightness(y4) and
snow white ember bed
color(E3), heater off (HO)
OFF Main power off, product
turn off
Table 5

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
12
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
3. Press the “Ember Bed” button multiple
times to cycle through the ember bedcolors
of red, pink, snow white, cool blue, dark
blue, green, lake green, all-colors automatic
circulation (EE) in60 seconds and OFF(E0).
Indicate (E1-E2-E3-E4-E5-E6-E7-EE-E0).
1. Press the "Power" button to turn on/off the
fireplace; If turn on (indicate “ON”), the
yellow flame (y4), ember bed (E3) LEDs at
the brightest level. Press again, the heater
is in OFF status indicate “OFF”, goes off
after 5 seconds.
2. Press the “Yellow Flame” button multiple
times to cyclethrough 4different brightness
levels and OFF for all the flames LED(Yellow
and Blue). Indicate (F4-F3-F2-F1-F0).
3. Press the "Heater" button, first press,
one group of heating system turns ON
(indicate H1 - 750W); second press, two
groups of heating system turn ON (indicate
H2 - 1500W); third press, both the heating
system and the blower are OFF (indicate
H0). Repeat circulation.
4. Press the "Ember Bed" button multiple times
to cycle through the ember bed colors of
red, pink, snow white, cool blue, dark blue,
green, lake green, all-colors automatic cir-
culation (EE) in 60 seconds and OFF (E0).
Indicate (E1-E2-E3-E4-E5-E6-E7-EE-E0).
OPERATING WITH TOUCH PANEL (WITH LED
DISPLAY ON FIREPLACE)
5. With the "Temperature" key: set the required
room temperature, theparameters is pre-set
in degrees Celsius 16-19-21-23-25-27-30;
Repeatcirculation.Press"Temperature" key
for 5 seconds, heara “beep” sound once, the
indication will display “F” for 3 seconds and
disappear, (indicate that Celsius degree has
been changed to Fahrenheitdegree). Celsius
degree is switched to associate Fahrenheit
degree; the parameter is set to Fahrenheit
degree of 61-66-70-73-77-80-86. Repeat
circulation. If press the key again for 5
seconds, hear a “beep” sound once, the
indication will display “C” for 3 seconds and
disappear, (indicate that Fahrenheit degree
has been changed back to Celsius degree)
Temperature key only function when the
heater is ON.
Icon Display Color
E1 Red
E2 Pink
E3 Snow white
E4 Cool Blue
E5 Dark blue
E6 Green
E7 Lake green
EE Auto rotation
E0 Off
Table 10
Icon Display Heater Level
Short
Press
H1 750w/low level
H2 1500w/high level
HO Heater off
Long Press
hold for 5 sec.
(heater safe lock
feature)
LO
With Beep sound, the
heater feature lock,
heater remain off status
UL
With “beep” sound,
the heater feature
unlocked, heater back
to work normal
Table 8
Icon Display Temperature
Short
Press
16C/61F
19C/66F
21C/70F
23C/73F
25C/77F
27C/80F
30C/86F
Long press
hold for “5”
seconds.
Temperature
setting from
Celsius to
Fahrenheit)
C/F
With 1 "beep" sound
temperature display
switch from "Celsius"
to "Fahrenheit".
With 1 "beep" sound
temperature display
switch from "Fahren-
heit" to "Celsius".
Table 9
Icon Display Ember Bed Color
E1 Red
E2 Pink
E3 Snow white
E4 Cool blue
E5 Dark blue
E6 Green
E7 Lake green
EE Auto color rotation from
E1 to E7 (60 second)
E0 Ember bed light off
Table 7
4. Heater current setting (H1 or H2) and will
not disappear, until Press the “Heater”
button, heater ON/LOW/HIGH/OFF. Under
120V, press the button, first press, one
group of heating system turns ON (indicate
H1 - 750W); second press, two groups
of heating system turn ON (indicate H2
- 1500W); third press, both the heating
system and the blower are OFF (indicate
“H0”). Repeat circulation. Press button for
5 seconds (heater lock/unlockfunction), the
heater and related keys will lock, indicate
“LO”; press the key again for 5 seconds,
the heater will unlock, indicate “UL”. You
will hear “beep” sound when press the
keys, but can’t turn on and no response; if
heater is in ON position, press “lock”, the
heater will turn off, and related temperature
keys will lock and not response, only hear
“beep” sound whenpress again. After heater
and related keys are locked, the flame and
lighting will remain ON and controllable.
If we press the key again for 5 seconds,
the heater will unlock, and the heater is in
OFF position, until user press any heating
function. If heater is ON,while flamelighting
is OFF, indication will display flame lighting
resumed.
6. Press the "Timer" key: set the timer to shut
down in: 30 min-1H-2H-3H-4H-5H-6H-
7H-8H-OFF timer; LED display indicates
30-1H-2H-3H-4H-5H-6H-7H-8H-00. Repeat
circulation.
5. Press the "Timer" button multiple times
to set operating duration to 30 min., 1H,
2H, 3H, 4H, 5H, 6H, 7H, 8H, or OFF. LED
displayindicates 30-1H-2H-3H-4H-5H-6H-
7H-8H-00. Repeat circulation.
NOTE: The touch panel buttons will glow
when pressed. The light fades in 5 seconds
after pressing.
Figure 10
ON/OFF
FLAME
HEAT EMBER
TIMER
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
13
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
901042-00C 08/2021
1. Press the “Power” remote button to turn
on the yellow flame (y4), ember bed (E3)
and ceiling light (C3) white color; LEDs at
the brightest level. Indicate “ON” on LED
display. The heater is in OFF status. Press
again to turn off the fireplace. Indicate “OF”
on LED display. LED display for 5 seconds,
then goes off.
MULTI-FUNCTIONAL OPERATING WITH REMOTE CONTROL (WITH LED DISPLAY ON FIREPLACE)
MODELS 60", 72", 84" & 100" FIREPLACE
This IHP Electric Fireplace is provided with an
Infrared light Remote Control. All functions
of the fireplace can be controlled through the
remote control. NOTE: The Effective range of
the remote control is up to approximately 26
feet (8 meters).
CAUTIONS
• Do Not Use Old Batteries With
New Ones.
• Do Not Use Batteries Other
Than The Type Specified (2
Ea. AA).
• Ensure Batteries Are Correctly
Installed In Remote Control.
REMOTE CONTROL MODEL NO. R301
REMOTE CONTROL OPERATION STEPS
NOTE: If power is not in OFF condition,
shutdown by the remote control, then next
time turn ON by the remote control, the
existing setting will resume to the previous
shutdown setting. The heater and timer is
OFF. When the flame is ON, the LED display
indicates 5 seconds, then goes blanking.
Press any key, LED display indicates the
previous blanking setting, except the
"Power" key.
REMOTE CONTROL ICON
NO.
REMOTE AND
TOUCH PANEL ICON MAIN FUNCTION OPTIONS
1Main Power
(Power ON/OFF) Power ON/ OFF
2Yellow Flame
(Yellow flame setting)
4 levels of flame brightness and flame off.
y4-y3-y2-y1-y0
3Blue Flame
(Blue flame setting)
4 levels of flame brightness and flame off.
b4-b3-b2-b1-b0
4Flame ON/OFF Button to turn on/off all flame colors, ember
bed, and ceiling light LEDs
5Ceiling Light
(Ceiling light setting)
4 different brightness levels and OFF for
the ceiling light LEDs. Indicate C4-C3-
C2-C1-C0
6
Ember Bed Light
(Ember bed light set-
ting)
Multiple times to cycle through the ember
bed colors of red, pink, snow white, cool
blue, dark blue, green, lake green, all-colors
automatic circulation (EE) in 60 seconds
and OFF (E0). Indicate E1-E2-E3-E4-E5-
E6-E7-EE-E0
7or
Heater Function
(Heater Lock &
unlock)
Heater ON/HIGH/OFF. Heater LOCK/
UNLOCK
1500W@120V
8Low Temperature
Heater Setting 750W@120V
9High Temperature
Heater Setting 1500W@120V
10
Temperature Setting
(Celsius & Fahrenheit
interchange)
Celsius 16-19-21-23-25-27-30
Fahrenheit 61-66-70-73-77-80-86
11 One Button Preset Preset desired flame effect
11
10
1
3
7
8
9
2
4
6
5
When using the remote control, the
power on/off switch on the lower
right side of the unit must be in the
“ON” position.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
14
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
2. Press the "Yellow Flame" button multiple
times to cycle through 4 different bright-
ness levels and OFF for the yellow flame
LEDs. Indicate (y4-y3-y2-y1-y0).
3. Press the "Blue Flame" button multiple
times to cycle through 4 different bright-
ness levels and OFF for the blue flame
LEDs. Indicate (b4-b3-b2-b1-b0).
4. Press the "Flame" button to turn on all
flame colors, ember bed, and ceiling light
LEDs (at brightest level). If press off and on
again, LED setting will resume to previous
setting.
5. Press the "Ceiling Light” button multiple
times to cycle through 4 different bright-
ness levels and OFF for the ceiling light
LEDs. Indicate (C4-C3-C2-C1-C0).
6. Press the "Ember Bed" button multiple
times to cycle through the ember bed
colors of red, pink, snow white, cool blue,
dark blue, green, lake green, all-colors
automatic circulation (EE) in 60 seconds
and OFF (E0). Indicate (E1-E2-E3-E4-E5-
E6-E7-EE-E0).
7. Press the "Heater" button, heater ON/OFF.
First press the heater is ON the heater is
working on ”HIGH” temperature status
two groups of heating system turn ON at
1500W; press again the heater is OFF.
8. Under 120V, when the heater is in the ON
condition, press the “Low Temperature"
button, one group of heating system will
turn ON (indicated by H1 - 750W); press
“High Temperature” button, and two
groups of heating system will turn ON
(indicated by H2 - 1500W);
9. "Temperature”button: set the required
room temperature, the parameters is
pre-set in degrees Celsius 16-19-21-
23-25-27-30; Repeat circulation. Press
"temperature" button for 5 seconds, hear
a “beep” sound once, the indication will
display "F" for 3 seconds and disappear,
(indicate that Celsius degree has been
changed to Fahrenheit degree). Celsius
degree is switched to associate Fahrenheit
degree; the parameter is set to Fahrenheit
degree of 61-66-70-73-77-80-86. Repeat
circulation. If press the button again for 5
seconds, hear a “beep” sound once, the
indication will display “C” for 3 seconds
and disappear, (indicate that Fahrenheit
degree has been changed back to Celsius
degree) Temperature button only function
when heater is ON.
Icon Yellow Flame Setting Display
4 different brightness levels
and OFF
y4
y3
y2
y1
y0
Table 11
Icon Blue Flame Setting Display
4 different brightness levels
and OFF
b4
b3
b2
b1
b0
Table 12
Icon Heater Function Display
Heater ON/HIGH/OFF.
1500W@120V
H2
Heater LOCK/UNLOCK
LO/UL
Table 15
Icon Temperature
Setting
Display
Celsius
16-19-21-23-25-27-30
Fahrenheit
61-66-70-73-77-80-86
Table 17
Icon Ceiling Light Setting Display
4 different brightness levels
and OFF
C4
C3
C2
C1
C0
Table 13
Icon Heater Setting Display
750W@120V
1500W@120V
H1
H2
Table 16
Icon Ember Bed Light Setting Display
Red
E1
Pink
E2
Snow white
E3
Cool blue
E4
Dark blue
E5
Green
E6
Lake green
E7
Auto rotation
EE
Off
E0
Table 14
Press button for 5 seconds (heater lock/
unlock function), the heater and related
keys will lock, indicate “LO”; press the
key again for 5 seconds, the heater will
unlock, indicate “UL”. You will hear “beep”
sound when press the keys, but can’t turn
on and no response; if heater is in ON
position, press “lock”, the heater will turn
off, and related temperature keys will lock
and not respond, only hear “beep” sound
when press again. After heater and related
keys are locked, the flame and lighting will
remain ON and controllable. If we press
the key again for 5 seconds, the heater will
unlock, and the heater is in OFF position,
until user press any heating function. If
heater is ON, while flame lighting is OFF,
indication will display heater current set-
ting (H1 or H2) and will not disappear,
until flame lighting resumed.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
15
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
Operating with Touch Panel (with LED display
on fireplace)
10. "One Button Preset" button: preset the
desired flame effect and one button return
to preset stage. Once you manipulate the
flame effect as your favorite, press the
button for 3 seconds, it memorizes the
flame setting. While you want to return
to preset stage, press the button for 3
seconds. It only memorizes one storage of
flame setting, the new setting will override
the previous setting. Indicate “PS”.
1. Press the "Power" button to turn on/off the
fireplace; If turn on (indicate “ON”), the
yellow flame (y4), ember bed (E3), and
ceiling light (C3) LEDs at the brightest level.
Press again, the heater is in OFF status
indicate “OF”, goes off after 5 seconds.
2. Press the "Heater" button, first press,
one group of heating system turns ON
(indicate H1 - 750W); second press, two
groups of heating system turn ON (indicate
H2 - 1500W); third press, both the heating
system and the blower are OFF (indicate
H0). Repeat circulation.
3. Press the : "Flame" button multiple times to
cycle through 4 different brightness levels
and OFF for all the flames LED (Yellow and
Blue). Indicate (F4-F3-F2-F1-F0). ok.
4. Press the "Ember Bed" button multiple
times to cycle through the ember bed
colors of red, pink, snow white, cool blue,
dark blue, green, lake green, all-colors
automatic circulation (EE) in 60 seconds
and OFF (E0). Indicate (E1-E2-E3-E4-E5-
E6-E7-EE-E0). Ceiling light stays on C2
brightness.
5. Press the "Timer" button multiple times
to set operating duration to 30 min, 1H,
2H, 3H, 4H, 5H, 6H, 7H, 8H, or OFF. LED
displayindicates 30-1H-2H-3H-4H-5H-6H-
7H-8H-00. Repeat circulation.
NOTE: The touch panel buttons will glow
when pressed. The light fades in 5 seconds
after pressing.
Figure 11
ON/OFF
FLAME
HEAT EMBER
901042-00C 08/2021
Icon Timer Setting Display
Duration to 30 min, 1h,
2h, 3h, 4h, 5h, 6h, 7h, 8h 30 OR 1H - 8H
Table 21
Icon Heater Setting Display
750W@120V
1500W@120V
H1
H2
H0
Table 18
Icon Ember Bed & Ceil-
ing Light Setting
Display
Red
E1 + C2
Pink
E2 + C2
Snow white
E3 + C2
Cool blue
E4 + C2
Dark blue
E5 + C2
Green
E6 + C2
Lake green
E7 + C2
Auto rotation
EE + C2
Off
E0 + C2
Table 20
Icon Flame Setting Display
Yellow and Blue
F4
F3
F2
F1
F0
Table 19
TIMER

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
16
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
TROUBLESHOOTING FOR ALL MODELS
Symptom Possible Causes Corrective Action
1. Abnormal Noise From heater assembly (item 13) Blower assembly has defect that cause noise during high speed rotation.
Replace the whole heater assembly
From flame assembly (item 14)
a)Repeating clicking sound during flame
operation
b)Scratching noise during flame operation
Flicker rod curved when hitting/rubbing the flame wall and back wall
during rotation that cause the noise.
If flicker rod is slightly curved, pull out the flame board/flame pattern
(which is thin metal) to adjust the depth between and the flame board.
Noise from flame assembly motor. Lack of lubricant or defect. Replace the motor.
Internal wiring is loose and fall in between
the flicker rod and the back wall that cause
the friction noise.
Re-wire and fix the wiring to prevent the wiring from falling.
2. Heater not blowing. Motor from heater assembly If motor is not working, the blower doesn’t rotate, it will cause the heater
overheated. Turn off and unplug the fireplace. Replace the whole heater
assembly.
3. Flame not rotating
(e.g. Flame is not moving
smoothly or stop moving).
Motor from flame system The flame LED is ON, but not rotating. Replace the motor on the flame.
4. Dim or no flame / Ember
bed / Ceiling light is not
glowing or dimming.
Flame LED’s are burnt out or loose wire Inspect the LED’s and replace them if necessary
Ember bed LED’s are burnt out or loose wire Inspect the LED’s and replace them if necessary
Ceiling Light LED’s are burnt out or loose wire Inspect the LED’s and replace them if necessary
Main circuit board burnt out or loose wire Inspect the Main circuit board and replace if necessary
5. No warm air coming out
of appliance
Room temperature is higher than the appli-
ance setting (if it is set to room temperature)
Reset temperature setting
Heater is locked out Unlock heater. See operation section
Heater is burnt out Inspect the heater assembly and replace it if necessary
6. Appliance turns off and
will not turn on
Appliance has overheated and safety thermal
switch has tripped
Unplug power cord and allow appliance to cool for 15 minutes, then
plug in the power cord and turn the power ON
House circuit breaker has tripped Reset house circuit breaker
7. Appliance will not switch
on when the Power button
is turned ON
Appliance is not plugged into an electrical
outlet or the hard wire connections are not
correct (if applicable)
Check plug and plug it into a 120V outlet. Check the hard wire connec-
tions (if applicable)
Appliance has overheated and safety thermal
switch has tripped
Unplug power cord and allow appliance to cool for 15 minutes, then
plug in the power cord and turn the power ON
Circuit board is burnt out Inspect the circuit board and replace it if necessary
8. Remote control does
not work
Low battery Replace batteries in remote control
9. Heater shuts off auto-
matically
Room is too warm The heater has a built-in thermostat so it will shut off automatically once
the pre-set temperature is reached. It will also turn on automatically if
the room temperature drops below the pre-set temperature.
10. Touch panel/ Remote
Control do not work
The front glass has moved or is not secured
properly
Unplug the appliance, if the appliance is recessed into the wall, shut off
house circuit breaker. Ensure the front glass is in the correct position
and is sitting flat to the appliance touch panel. After 10 seconds, plug
in or turn on the appliance to reset it.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
REPLACEMENT PARTS - 45" AND 55" MODELS
EXPLODED DIAGRAM WITH AVAILABLE REPLACEMENT PARTS
10
Product Reference Information
Cat. # Models Description
F4443 Sentry 45, ERL2045 45" Electric Fireplace, 5000 BTU
F4444 Sentry 55, ERL2055 55" Electric Fireplace, 5000 BTU
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
ITEM
NO. DESCRIPTION 45" QTY 55" QTY
Cat. No. Cat. No.
1 Front Glass, FG45 & FG55 F4555 1 F4556 1
2 PP Mirror Glass, PP45 & PP55 F4567 1 F4568 1
3 Control Circuit Board RA8-1M F4570 1 F4570 1
4 Reflective brush, RB45 & RB55 F4572 1 F4573 1
5 Flame LED circuit board, LED4-M23 F4672 4 F4672 5
6 Circuit Board (Main), DHSJ-LRC29-01-04 F4787 1 F4787 1
7 Blower Fan With Electrical Heater, 1500W, FRT30-306 F4560 1 F4560 1
8 Flame Motor 120v/10/12rpm F4550 1 F4550 1
9 Power Adaptor XY60S-1205000Q-UF F4577 1 F4577 1
10 Remote control R403 F4673 1 F4673 1
11 Remote control Receiver (receiver only) 301506 F4674 1 F4674 1
12 Crystal 1 lb. bag 540g F4552 1 F4552 1
13 Mounting Bracket, 3184021 and 324013 F4676 1 F4677 1
NOTE: If touch-up paint is needed, use Rust-oleum®, Painter’s Touch, Flat Black (part number 1976) available at most stores which sell aerosol touch-up paint.
EXPLODED DIAGRAM KEY AND AVAILABLE REPLACEMENT PARTS - 45" AND 55" MODELS
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
WARNING
Never use substitute materials. Use of non-approved parts can result in poor performance and safety
hazards.
AVERTISSEMENT
Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas
et ou si des pièces autres que celles spécifiquement approuvées avec cet appareil sont utilisées.
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
19
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
REPLACEMENT PARTS - 60", 72", 84" AND 100" MODELS
EXPLODED DIAGRAM WITH AVAILABLE REPLACEMENT PARTS
10
Product Reference Information
Cat. # Models Description
F4445 Plexus 60, ERL3060 60” Electric Fireplace, 5000 BTU
F4446 Plexus 72, ERL3072 72” Electric Fireplace, 5000 BTU
F4447 Plexus 84, ERL3084 84” Electric Fireplace, 5000 BTU
F4448 Plexus 100, ERL3100 100” Electric Fireplace, 5000 BTU
901042-00C 08/2021

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
20
INNOVATIVE HEARTH PRODUCTS • LINEAR ELECTRIC FIREPLACE • INSTALLATION AND OPERATION INSTRUCTIONS
ITEM
NO. DESCRIPTION 60" QTY 72" QTY 84" QTY 100" QTY
Cat. No. Cat. No. Cat. No. Cat. No.
1 Front Glass FG60, FG72, FG84 & FG100 F4557 1 F4558 1 F4559 1 F4554 1
2 Mirror Glass, MG60, MG72, MG84 & MG100 F4564 1 F4565 1 F4566 1 F4563 1
3 Control Circuit Board RA8-1M F4570 1 F4570 1 F4570 1 F4570 1
4 Reflective brush, RB60, RB72, RB84 & RB100 F4574 1 F4575 1 F4576 1 F4571 1
5 Flame LED circuit board F4561 5 F4561 6 F4561 7 F4561 9
6Circuit Board (Main), DHSJ-LRC29-01-05 F4788 1 F4788 1 F4788 1 F4788 1
7 Blower, Heating Element FRT30-306 F4560 1 F4560 1 F4560 1 F4560 1
8 Flame Motor 120v/10/12rpm F4550 1 F4550 1 F4550 1 F4550 1
9 Power Adaptor XY60S-1205000Q-UF F4577 1 F4577 1 F4577 1 F4577 1
10 Remote control R301 F4063 1 F4063 1 F4063 1 F4063 1
11 Remote control Receiver (receiver only), 301506A F4674 1 F4674 1 F4674 1 F4674 1
12 Crystal 1 lb. bag 540g F4552 1 F4552 1 F4552 1 F4552 1
13 Mounting Bracket, 324013 and 328015 F4677 1 F4675 1 F4675 1 F4675 1
See
Page 8 Logset Kit, ALOGIHP (set includes logs 1, 2, 3, 4, 5, 6, 6A, 7, 8, & 8A- see Page 8)F4553 1 F4553 1 F4553 1 F4553 1
NOTE: If touch-up paint is needed, use Rust-oleum®, Painter’s Touch, Flat Black (part number 1976) available at most stores which sell aerosol touch-up paint.
EXPLODED DIAGRAM WITH AVAILABLE REPLACEMENT PARTS - 60", 72", 84" AND 100" MODELS
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
WARNING
Never use substitute materials. Use of non-approved parts can result in poor performance and safety
hazards.
AVERTISSEMENT
Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas
et ou si des pièces autres que celles spécifiquement approuvées avec cet appareil sont utilisées.
ELECTRICAL DIAGRAMS
Hard Wiring
L
N
G
L
N
G
BLACK
WHITE
YELLOW AND GREEN
Figure 12
901042-00C 08/2021
