IKEA TILLREDA 004.970.00 User manual

TILLREDA GB

ENGLISH
The electronic user manual is available at www.ikea.com.
For more information on energy consumption and other technical data of
this product, access the following web link: https://eprel.ec.europa.eu

ENGLISH 4

ENGLISH 4
Contents
Safety information 4
Safety instructions 7
Installation 8
Product description 9
Operation 10
First use 10
Daily use 10
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• This appliance may be used by children between 3 and
8years of age and persons with very extensive and complex
disabilities, if they have been properly instructed.
• Children of less than 3 years of age should be kept away
unless continuously supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Hints and tips 11
Care and cleaning 12
Troubleshooting 13
Technical information 14
Environmental concerns 14
IKEA guarantee 15

ENGLISH 5
• Keep all packaging away from children and dispose of it
appropriately.
General Safety
• This appliance is intended to be used in household and
similar applications such as:
-
other working environments;
- By clients in hotels, motels, bed and breakfast and other
residential type environments;
- Catering and similar non-retail applications.
• This type of refrigerator is widely used in places such as
suitable for refrigerating and preserving foods such as fruits
and beverage. It enjoys the advantages of small size, light
weight, low electric consumption and easy use.
• Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly

ENGLISH 6
• When positioning the appliance, ensure the supply cord is
not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
•
increase of the temperature in the compartments of the
appliance.
• Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
• Clean water tanks if they have not been used for 48 hours;
has not been drawn for 5 days.
•
refrigerator, so that it is not in contact with or drip onto
other food.
• If the refrigerating appliance is left empty for long periods,
prevent mould developing within the appliance.
• This refrigerating appliance is not suitable for freezing
• This refrigerating appliance is not intended to be used as
abuilt-in appliance.
• WARNING: To avoid a hazard due to instability of the

ENGLISH 7
Safety instructions
Installation
Warning!
install this appliance.
• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Make sure the air can circulate around the
appliance.
• Do not tilt the refrigerator for more than 45°
form upright during moving it.
• Wait at least 4 hours before connecting the
appliance to the power supply. This is to
This is needed also when performing door
reversibility and appliance is lying down.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or wine
cellars.
• When you move the appliance, lift it by the
Electrical connection
Warning!
Warning! When positioning the appliance,
ensure the supply cord is not trapped or
damaged.
Warning! Donot use multi-plug adapters
and extension cables.
• The appliance must be earthed.
• All electrical connections should be made by
• Make sure that the parameters on the rating
plate are compatible with the electrical
ratings of the mains power supply. If not,
contact an electrician.
• Always use a correctly installed shockproof
socket.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an electrician
to change the electrical components.
• The mains cable must stay below the level of
the mains plug.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
•
with a 13A mains plug. If it is necessary to
change the mains plug fuse,use only a 13A
ASTA (BS 1362) fuse.
Use
Warning! Risk of injury, burns, electrical
isobutane (R600a), a natural gas with a high
level of environmental compatibility. Be careful
not to cause damage to the refrigerant circuit
containing isobutane.
• The surface of the compressor becomes hot:
The surface of the compressor may become
hot under normal operation. Do not touch it
with hands.
•
appliance.
• Do not put electrical appliances (e.g.ice
cream makers) in the appliance unless they
are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit,
sources of ignition in the room. Ventilate the
room.
• Do not let hot items to touch the plastic
parts of the appliance.
•
appliance.
•
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.

ENGLISH 8
Care and cleaning
Warning! Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in the
the maintenance and the recharging of the
unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If the
drain is blocked, defrosted water collects in
the bottom of the appliance.
Disposal
Warning!
• Disconnect the appliance from the mains
supply.
•• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• gas. Contact your municipal authority for
information on how to discard the appliance
correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat exchanger.
Installation
Warning! Refer to Safety chapters.
Positioning
• Follow the separate Assembly Instructions
to install this appliance.
• Do not install it in high temperature
of humidity. Place so as to avoid being
damaged, dampened and rusted.
• This appliance should be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate class Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
-"SN" indicates that this refrigerating
appliance is intended to be used at ambient
temperatures ranging from 10°C to 32°C.
-"N" indicates that this refrigerating
appliance is intended to be used at ambient
temperatures ranging from 16°C to 32°C.
-"ST" indicates that this refrigerating
appliance is intended to be used at ambient
temperatures ranging from 16°C to 38°C.
-"T" indicates that this refrigerating
appliance is intended to be used at ambient
temperatures ranging from 16°C to 43°C.
Some functional problemsmight occur
for some types of models when operating
outside of that range. The correct operation
temperature range.
If youhave any doubts regarding
installation, please turn to the vendor, to
ourcustomer service or to the nearest
Authorised Service Centre.
Location
• To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.
Caution! In order to guarantee proper
functioning in ambient temperature
above 38°C, it is advised to have a 30cm
separation between the sides of the
appliance and surrounding furniture.
Electrical connection
Caution! DO NOT REMOVE GROUND
PRONG. DO NOT USE AN ADAPTOR.
DONOT USE EXTENSION CORD. Failure
to follow these instructions can result in

ENGLISH 9
Before plugging in, ensure that the voltage and
frequency shown on the rating plate correspond
to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power supply
socket is not earthed, connect the appliance
to a separate earth in compliance with current
The manufacture declines all responsibility if the
above safety precautions are not observed.
This appliance complies with the E.E.C.
Directives.
Product description
1 2
3 4
5678
Intermediate
temperature
zone
Coldest zone
Carefully read the operating instructions before
using the appliance.
1Storage box
2Can holder
3Chill compartment
4Temperature regulator
5Rating plate
6Defrosting tray
7Storage shelf
8Bottle holder

ENGLISH 10
Operation
Switching on
Connect the mains plug to the power socket. Set
the temperature regulator to a medium setting
(Refer to "Temperature regulation").
set the appliance at a colder temperature and
run it without loading any food until it auto
stops at the set temperature. Usually it takes
2or 3hours, then set the temperature regulator
at the desired setting and put food in the
appliance.
regulator to the “OFF” position.
Give the appliance time to cool down completely
before adding food. It is best to wait 24hours
before adding food
Temperature regulation
The temperature is automatically regulated.
To operate the appliance, proceed as follows:
• Turn the temperature regulator toward
lower settings to obtain the minimum
coldness.
• Turn the temperature regulator toward
higher settings to obtain the maximum
coldness.
A medium setting is generallythe most
suitable.
Adjust the temperature setting by keeping in
mind that the temperature inside the appliance
depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance
Important! If the ambient temperature is
high or the appliance is fully loaded, and the
appliance is set to the lowest temperatures, it
may run continuously causing frost to form on
the rear wall. In this case a higher temperature
must be set to allow automatic defrosting and
therefore reduced energy consumption.
First use
Cleaning the interior
time,wash the interior and all internal
accessories with lukewarm water and same
neutral soap so as to remove the typical smell of
a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive
Daily use
Accessories
Defrosting tray

ENGLISH 11

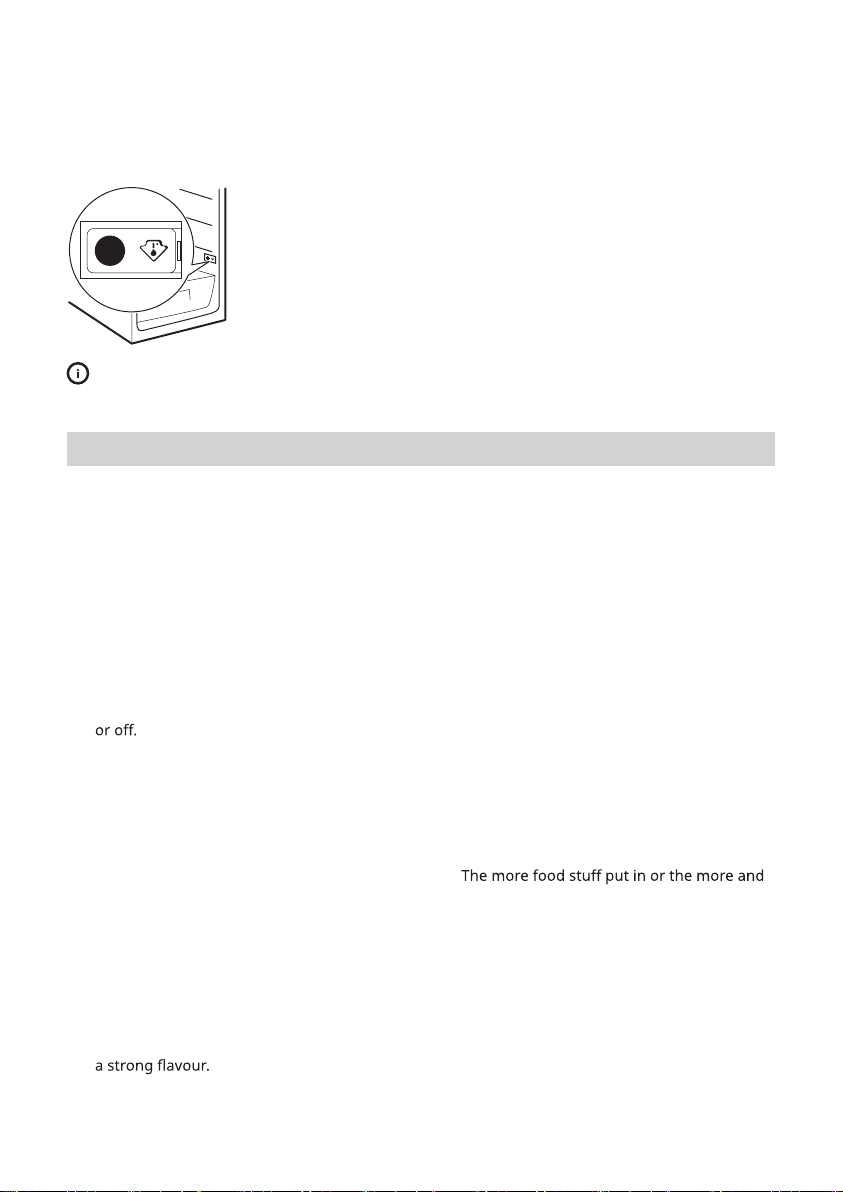

Temperature indicator
This appliance is sold in France. In
accordancewith regulations valid in this
country it must be provided with the lower
compartment of the fridge to indicate the
coldestzoneofit.
Defrost the refrigerator compartment whenever
the layer of frost on the surface of the
evaporator reaches 3 or 4mm. When defrosting
remove all food and set the thermostat at “OFF”
position. Put the drip tray under the evaporator
to collect melted water.
After the frost has melted, discard the melted
water and dry up the interior of refrigerator.The
refrigerator can then be restarted by turning its
thermostat to the desired setting.
Hints and tips
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound from
coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the
compressor when refrigerant is pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor switches on
Hints for energy saving
• Do not open the door frequently or leave it
open longer than absolutely necessary.
• If the ambient temperature is high and very
low internal temperature is set and the
appliance is fully loaded, the compressor
may run continuously, causing frost or ice
on the evaporator. If this happens, set the
internal temperature toward warmer one to
allow automatic defrosting and so a saving
in electricity consumption.
Hints for fresh food refrigeration
• Do not store warm food or evaporating
liquids in the refrigerator.
• Cover or wrap the food, particularly if it has
• Position food so that air can circulate freely
around it.
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable
packaging and place it on the glass shelf
above the vegetable drawer. Store meat for
at most 1-2days.
• Cooked foods, cold dishes: cover and place
on any shelf.
• Fruit and vegetables: clean thoroughly and
place in a special drawer. Bananas, potatoes,
onions and garlic must not be kept in the
refrigerator if not packed.
• Butter and cheese: place in a special airtight
container or wrap in an aluminium foil or
a polythene bag to exclude as much air as
possible.
• Bottles: close with a cap and place on the
door bottle shelf, or (if available) on the
bottle rack.
Cautions for Use
•
the longer for once the door is opened, the
more it needs electric consumption, which
even leads malfunction.
• Re-plug in the power plug at the interval of
over ten minutes.
• Open the door as less as possible during
power-cut.
• When defrosting, never use any sharp or
metallic objects to remove the frost on the
surface of the evaporator as it will damage
the evaporator.

ENGLISH 12
Care and cleaning
Warning! Refer to Safety chapters.
General warnings
Caution! Unplug the appliance before
carrying out any maintenance operation.
This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by
authorized technicians.
The accessories and parts of the appliance
are not suitable for washing in a dishwasher.
Cleaning the interior
interior and all internal accessories should be
washed with lukewarm water and some neutral
soap to remove the typical smell of a brand-new
product, then dried thoroughly.
Caution! Do not use detergents or
abrasive powders, as these will damage
Initial power on
Caution! Before inserting the power
plug in to the outlet and switching on
appliance standing upright for at least
amount of time for the oil to return to the
compressor. Otherwise the compressor
or electronic components may sustain
damage.
Periodic cleaning
Caution! Do not pull,move or damage any
pipes and/or cables inside thecabinet.
Caution! Do not damage the cooling
system.
Caution! When moving the cabinet, lift it
by the front edge to avoid scratching the
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe
clean to ensure they are clean and free from
debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and save
electricity consumption.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from electricity
supply.
2. Remove all food.
3. Defrost (if necessary) and clean the
appliance and all accessories.
4. Clean the appliance and all accessories.
5. Leave the door/doors open to prevent
unpleasant smells.
Caution! If you want to keep the appliance
switched on, ask somebody to check it
once in a while to prevent the food inside
from spoiling in case of a power failure.

ENGLISH 13
Troubleshooting
Warning! Refer to Safety chapters.
What to do if...
Problem Possible Cause Solution
The appliance does not operate.
Switch on the appliance.
The mains plug is not connected to the
mains socket correctly.
Connect the mains plug to the
mains socket correctly.
The appliance has no power. There is no
voltage in the mains socket. appliance to the mains socket.
The appliance is noisy. The appliance is not supported properly. Check if the appliance stands
stable.
The compressor operates
continually.
Temperature is set incorrectly. Refer to “Operation” chapter.
Many food products were inserted at the
same time.
Wait some hours and then check
the temperature again.
The room temperature is too high. Refer to climate class chart on the
rating plate.
Food products placed in the appliance
were too warm.
Allow food products to cool to
room temperature before storing.
The door is not closed correctly. Refer to “Closing the door”.
The temperature in the appliance
is too low/too high.
The temperature is not set correctly. Set a higher/lower temperature.
The door is not closed correctly. Refer to “Closing the door”.
The food products temperature is too
high.
Let the food products temperature
decrease to room temperature
before storage.
Many food products are inserted at the
same time.
Insert less food products at the
same time.
The thickness of the frost is greater than
4-5mm. Defrost the appliance.
The door has been opened often. Open the door only if necessary.
If your appliance still is not working
properly after making the above checks,
contact the nearest IKEA store.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to the
separate Assembly Instructions.

ENGLISH 14
Technical information
Product category
Product type
Installation type
Product dimensions
Height
Width
Depth
Net volume
Fridge
Defrost system
Fridge
Star rating
rising time
Energy consumption
Noise level
Energy class
Voltage
Frequency
Refrigerator
Freestanding
492 mm
472 mm
450 mm
43 L
auto
None
N/A
100 kWh/a
41 dB, C
F
220 - 240 V
50 Hz
The article number and the serial number
are situated in the rating plate on the
internal right side of the appliance.
Environmental concerns
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human health
by recycling waste of electrical and electronic
appliances. Do not dispose of appliances
marked with the symbol with the household
waste. Return the product to your local recycling

ENGLISH 15
IKEA guarantee
Do you need extra help?
For any additional questions not related to After
installation of the IKEA appliance in the dedicated
functions of the IKEA appliances, please contact
your nearest IKEA Customer Support
Centre, the number is available on www.IKEA.com.
We recommend you read the appliance
documentation carefully before contacting us.
Read about our guarantee terms on
www.ikea.com
For quicker service, always refer to the IKEA
article number (8-digit code) and the serial
number (22-digit code) found on the rating
plate of your appliance.
SAVE THE SALES RECEIPT.

© Inter IKEA Systems B.V. 2020 AA-2245195-3
