THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit www.whirlpool.com for additional information. If you still need assistance, call us at 1-866-664-2449.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
TableofContents /[ndice/Tabledes mati6res
REFRIGERATOR SAFETY ............................... 1
INSTALLATION INSTRUCTIONS .................... 2
REFRIGERATOR USE ...................................... 8
REFRIGERATOR CARE ................................... 9
TROUBLESHOOTING .................................... 10
WARRANTY .................................................... 12
SEGURIDAD DEL REFRIGERADOR ............. 13
INSTRUCCIONES DE INSTALACION ........... 14
USO DE SU REFRIGERADOR ....................... 20
CUlDADO DE SU REFRIGERADOR ............. 22
SOLUCION DE PROBLEMAS ....................... 23
GARANT[A ...................................................... 25
SI_CURITI_ DU RI_FRIGI_RATEUR ................ 27
INSTRUCTIONS D'INSTALLATION .............. 28
UTILISATION DU RI=FRIGI=RATEUR ............ 34
ENTRETIEN DU RI_FRIGI_RATEUR .............. 36
DI_PANNAGE .................................................. 37
GARANTI E ...................................................... 39
REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
W10270272

iMPORTANT SAFETY iNSTRUCTiONS
WARNING:To reduce the risk of fire, electric shock, or injuryto persons when using the refrigerator, follow basic precautions,
including the following:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
[] Use nonflammable cleaner.
[] Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
[] Use two or more people to move and install refrigerator.
[] Disconnect power before installing ice maker (on ice maker
kit ready models only).
SAVETHESEINSTRUCTIONS
Proper DisposalofYourOld Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." Ifyou are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
• Takeoff the doors.
• Leave the shelves in place so that children may not easily
climb inside.
\
INSTALLATIONINSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
"walk" the refrigerator when trying to move it, as floor
damage could occur.
Remove the Packaging
Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see "Refrigerator Safety."
• Dispose of/recycle all packaging materials.
Clean Before Using
After you remove all of the packaging materials, clean the inside of
your refrigerator before using it. See the cleaning instructions in
"Refrigerator Care."
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
2

Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for a 1/2"
(1.25 cm) space at the top and behind the refrigerator. If your
refrigerator has an ice maker, allow extra space at the back for the
water line connections. When installing your refrigerator next to a
fixed wall, leave 21/2'' (6.3 cm) minimum on the hinge side (some
models require more) to allow for the door to swing open.
NOTE: It is recommended that you do not install the refrigerator
near an oven, radiator, or other heat source. Do not install the
refrigerator in a location where the temperature will fall below 55°F
(13°C).
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an extension
cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the refrigerator to OFR Depending on
your model, turn the freezer control to the word OFF, or press the
Freezer down arrow touch pad until a dash (-) appears in both the
Freezer and Refrigerator displays as shown. Disconnect the
refrigerator from the electrical source. When you are finished,
reconnect the refrigerator to the electrical source and reset the
temperature controls to the desired setting. See "Using the
Controls."
21/2" (6.3 era) --

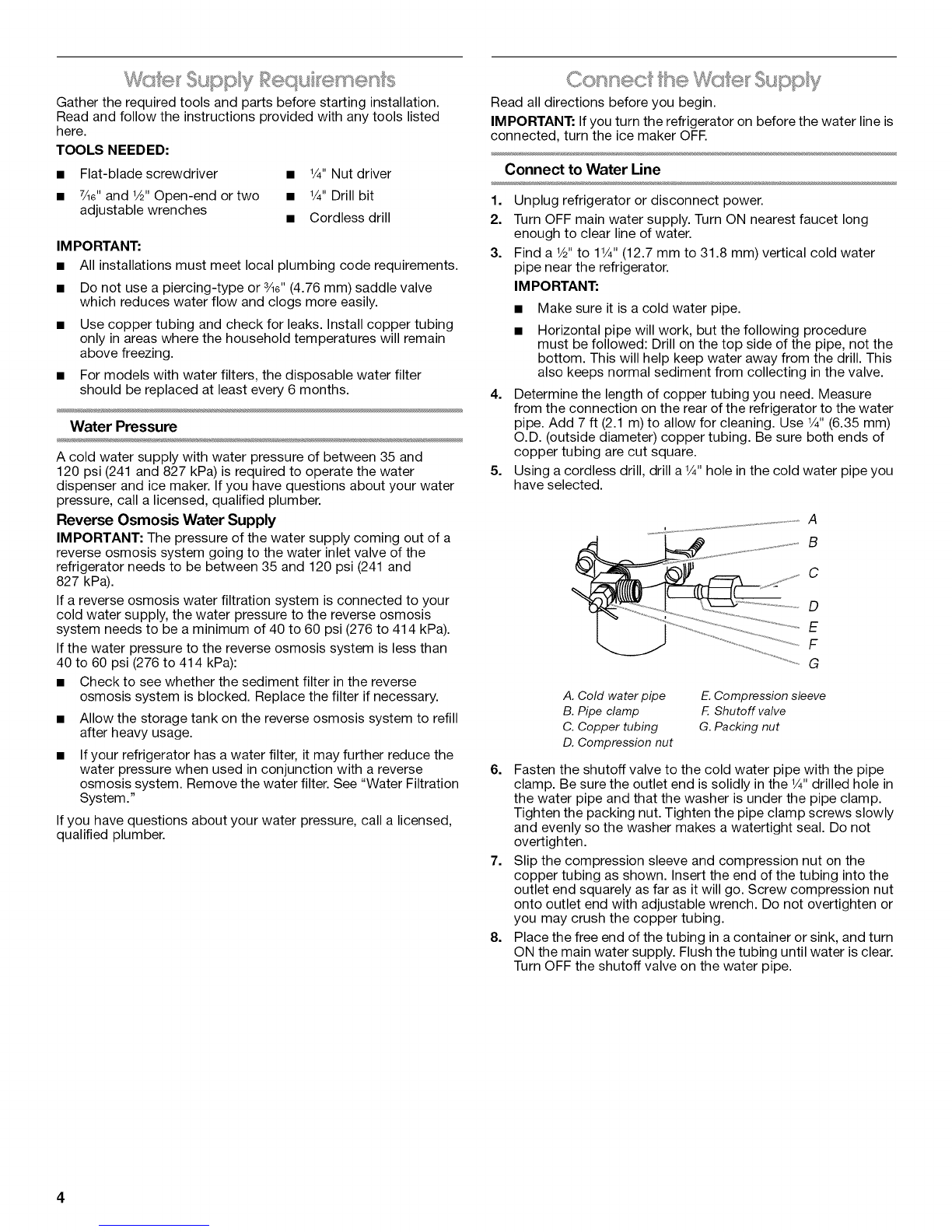

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
TOOLS NEEDED:
• Flat-blade screwdriver • ¼" Nut driver
• 7/le"and 1/2"Open-end or two • ¼" Drill bit
adjustable wrenches • Cordless drill
IM PORTANT:
• All installations must meet local plumbing code requirements.
• Do not use a piercing-type or ¾e" (4.76 mm) saddle valve
which reduces water flow and clogs more easily.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
• For models with water filters, the disposable water filter
should be replaced at least every 6 months.
Water Pressure
A cold water supply with water pressure of between 35 and
120 psi (241 and 827 kPa)is required to operate the water
dispenser and ice maker. Ifyou have questions about your water
pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 35 and 120 psi (241 and
827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter. See "Water Filtration
System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
Read all directions before you begin.
IMPORTANT: Ifyou turn the refrigerator on before the water line is
connected, turn the ice maker OFR
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Find a 1/2"to 11/4'' (12.7 mm to 31.8 mm) vertical cold water
pipe near the refrigerator.
IM PORTANT:
• Make sure it is a cold water pipe.
Horizontal pipe will work, but the following procedure
must be followed: Drill on the top side of the pipe, not the
bottom. This will help keep water away from the drill. This
also keeps normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the rear of the refrigerator to the water
pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"(6.35 mm)
O.D. (outside diameter) copper tubing. Be sure both ends of
copper tubing are cut square.
5. Using a cordless drill, drill a V4"hole in the cold water pipe you
have selected.
A
B
C
D
E
F
G
A. Cold water pipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E.Compression sleeve
F. Shutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"drilled hole in
the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws slowly
and evenly so the washer makes a watertight seal. Do not
overtighten.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten or
you may crush the copper tubing.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.
Turn OFF the shutoff valve on the water pipe.

5=
Connect to Refrigerator
Depending on your model, the water line may come down from
the top or up from the bottom. Follow the connection instructions
for your model.
Style 1
1. Remove plastic cap from water valve inlet port. Attach the
copper tube to the valve inlet using a compression nut and
sleeve as shown. Tighten the compression nut. Do not
overtighten. Confirm copper tubing is secure by pulling on
copper tubing.
2. Create a service loop with the copper tubing. Avoid kinks
when coiling the copper tubing. Secure copper tubing to
refrigerator cabinet with a "P" clamp.
A
C
D
E
@
@
A. Copper tubing D. Compression sleeve
B. "P" clamp E. Water valve inlet port
C. Compression nut
3. Turn on water supply to refrigerator and check for leaks.
Correct any leaks.
Style 2
1. Create a service loop (minimum diameter of 2 ft [61 cm]) with
the copper tubing. Avoid kinks when coiling the copper
tubing.
2. Remove the plastic cap from water valve inlet port. Place a
compression nut and sleeve on the copper tubing.
3. Insert the end of the copper tubing into the water valve inlet
port. Shape tubing slightly so that the tubing feeds straight
into the port to avoid kinks.
4. Slide the compression nut over the sleeve and screw into the
water valve inlet port.
Using an adjustable wrench, hold the nut on the plastic water
line to keep it from moving. Then, with a second wrench turn
the compression nut on the copper tubing counterclockwise
to completely tighten. Do not overtighten.
A. Plastic water line
B. Water valve inlet port
C. Compression nut
D. Copper tubing
E. "P" clamp
6. Check connection by pulling on copper tubing. Attach copper
tubing to refrigerator cabinet with a "P" clamp. Turn on water
supply to refrigerator and check for leaks. Correct any leaks.
Complete the Installation
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to completely
fill the ice container.
1"OO1_5NEEDED: _e", %", ¼" hex-head socket wrench, a
#2 Phillips screwdriver, and a flat-blade screwdriver.
IM PORTANT:
• All graphics referenced in the following instructions are
included later in this section after "Final Steps."
• If you only want to remove and replace the doors, see
"Remove Door(s) and Hinges" and "Replace Door(s) and
Hinges."
• Before you begin, turn the refrigerator control OFF, and
remove food and adjustable door or utility bins from the doors.
A. Plastic water tubing C. Compression nut
B. Sleeve D. Copper tubing

Remove and Replace Refrigerator Door Handles
Using a 3/32"Allen wrench, loosen the two setscrews located
on the side of each handle. Pull the handle straight out from
the door. Make sure you keep the screws for reattaching the
handles. See Metal Handle graphic 1.
• To replace the handles, reverse the directions.
Remove Doors and Hinges
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
1. Unplug refrigerator or disconnect power.
2. Keep the refrigerator doors closed until you are ready to lift
them free from the cabinet.
NOTE: Provide additional support for the refrigerator door
while the hinges are being removed. Do not depend on the
door gasket magnets to hold the door in place while you are
working.
3. Starting with the right-hand side door, remove the parts for the
top hinge as shown in Top Hinge graphic. Lift the refrigerator
door from the bottom hinge pin.
4. Remove the hinge pin cover from the bottom hinge pin and
keep it for later use. See Bottom Hinge graphic.
5. Before removing the left-hand side door, disconnect the wiring
plug located on top of the top hinge by wedging a flat-blade
screwdriver or your fingernail between the two sections. See
Wiring Plug graphic.
NOTE: The green, ground wire remains attached to the hinge.
6. Remove the parts for the left-hand side door top hinge as
shown in the Top Hinge graphic. Lift the door from the bottom
hinge pin.
NOTE: Remove the hinge pin cover from the bottom hinge pin
and keep it for later use. See Bottom Hinge graphic.
Replace Doors and Hinges
1.
2.
Assemble the parts for the top hinges as shown in Top Hinge
graphic. Do not tighten the screws completely.
Replace the parts for the bottom hinges as shown in Bottom
Hinge graphic. Tighten screws. Replace the refrigerator doors.
NOTE: Provide additional support for the refrigerator doors
while the hinges are being moved. Do not depend on the door
gasket magnets to hold the doors in place while you are
working.
3. Align each door so that the bottom of the refrigerator door
aligns evenly with the top of the freezer drawer. Tighten all
screws.
4. Reconnect the wiring plug on top of the left-hand side
refrigerator door.
5. Replace the top hinge covers.
Remove and Replace Freezer Drawer
IM PORTANT:
• Two people may be required to remove and replace the freezer
drawer.
• All graphics are included later in this section after "Final
Steps."
Remove and Replace Drawer Handle
• Using a 3_32"Allen wrench, loosen the two setscrews located
on the side of each handle. Pull the handle straight out from
the drawer. Make sure you keep the screws for reattaching the
handles. See Metal Handle graphic 2.
• To replace the handle, reverse the directions.
Remove Drawer Front
1. Open the freezer drawer to full extension.
2. Loosen the four screws attaching the drawer glides to the
drawer front. See Drawer Front Removal graphic.
NOTE: Loosen screws three to four turns. Keep the screws in
the drawer front.
3. Lift drawer front upward and off the screws. See Drawer Front
Removal graphic.
Replace Drawer Front
1. Slide the drawer glides out of the freezer compartment. Insert
the screws in the top of the drawer front into the slots in the
drawer brackets. See Drawer Front Replacement graphic.
2. Pull the drawer brackets toward you to insert the two screws
in the bottom of the drawer front into the brackets. See
Drawer Front Replacement graphic.
3. Completely tighten the four screws.
Final Steps
1. Check all holes to make sure that hole plugs and screws are in
place. Reinstall top hinge cover as shown in Top Hinge
graphic.
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
2. Plug into a grounded 3 prong outlet.
3. Return all removable door parts to door and food to
refrigerator.
6

Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
Top Hinges
tA
B
....................D
A, Hinge Cover Screw
B, Top Hinge Cover
C, 5/18"Hex Head Hinge Screws
D, Top Hinge
Bottom Hinges
A. Hinge Pin Cover
B. Bottom Hinge
C. Hinge Screws
Wiring Plug
B
C\\ \
\\ \
\\ \
\\
\\ \
Metal Handle
A
A, 3/32"Setscrew
Metal Handle
\
\
A, 3/32"Setscrew
A, Loosen 4 Door Bracket Screws

Ad sf the
Your refrigerator has two adjustable rollers located at the base of
the refrigerator. If your refrigerator seems unsteady or you want
the door to close more easily, use the instructions below.
1. Remove the base grille. Grasp the grille firmly and pull it
toward you.
2, Using a 3/8"hex driver, turn the roller adjustment screw on
each side to raise or lower that side of the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the adjustment screws and
rollers. This makes it easier to turn the screws. It may take
several turns of the roller adjustment screw to adjust the tilt of
the refrigerator.
• To raise, turn the roller adjustment screw to the right.
• To lower, turn the roller adjustment screw to the left.
Turn the brake foot clockwise until it is firmly against the floor
to keep the refrigerator from rolling forward when the freezer
drawer is pulled open.
A
3,
B
A. Front roller adjustment screw
B. Brake foot
Open the door again to make sure that it closes as easily as
you like. If not, tilt the refrigerator slightly more to the rear by
turning both leveling screws clockwise. It may take several
more turns, and you should turn both screws the same
amount.
4. Replace the base grille.
REFRIGERATORUSE
(Fu:_}nchdool modes}
There are two refrigerator compartment doors. The doors can be
opened and closed either separately or together.
There is a vertically-hinged seal on the left refrigerator door.
• When the left side door is opened, the hinged seal
automatically folds inward so that it is out of the way.
• When both doors are closed, the hinged seal automatically
forms a seal between the two doors.
A
A. Hinged seal
The temperature controls are located at the top front of the
refrigerator compartments.
Temperature Controls
For your convenience, the temperature controls are preset at the
factory. When you first install your refrigerator, make sure the
controls are still set to the recommended setting as shown.
Recommended Setting "4"
IM PORTANT:
The recommended setting should be correct for normal
household refrigerator use. The controls are set correctly
when milk or juice is as cold as you like and when ice cream is
firm.
Wait 24 hours for your refrigerator to cool completely before
adding food. If you add food before the refrigerator has cooled
completely, your food may spoil.
NOTE: Adjusting the refrigerator and freezer temperature
controls to a colder than recommended setting will not cool
the compartments any faster.
If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
To Turn Off/On:
Press the freezer down arrow touch pad until a dash (-) appears in
both the refrigerator and freezer displays. Neither compartment
will cool.
Humidity Control (on some models)
The humidity control turns on a heater to help reduce moisture on
the door hinge seal. Use in humid environments or when you
notice moisture on the door hinge seal. The refrigerator uses more
energy when Humidity Control is on.
• Press the control to ON when the environment is warm and
more humid, or if you notice moisture on the door hinge seal.
• Press the control to OFF to save energy when the environment
is less humid.
HumidityControl
On Off
8

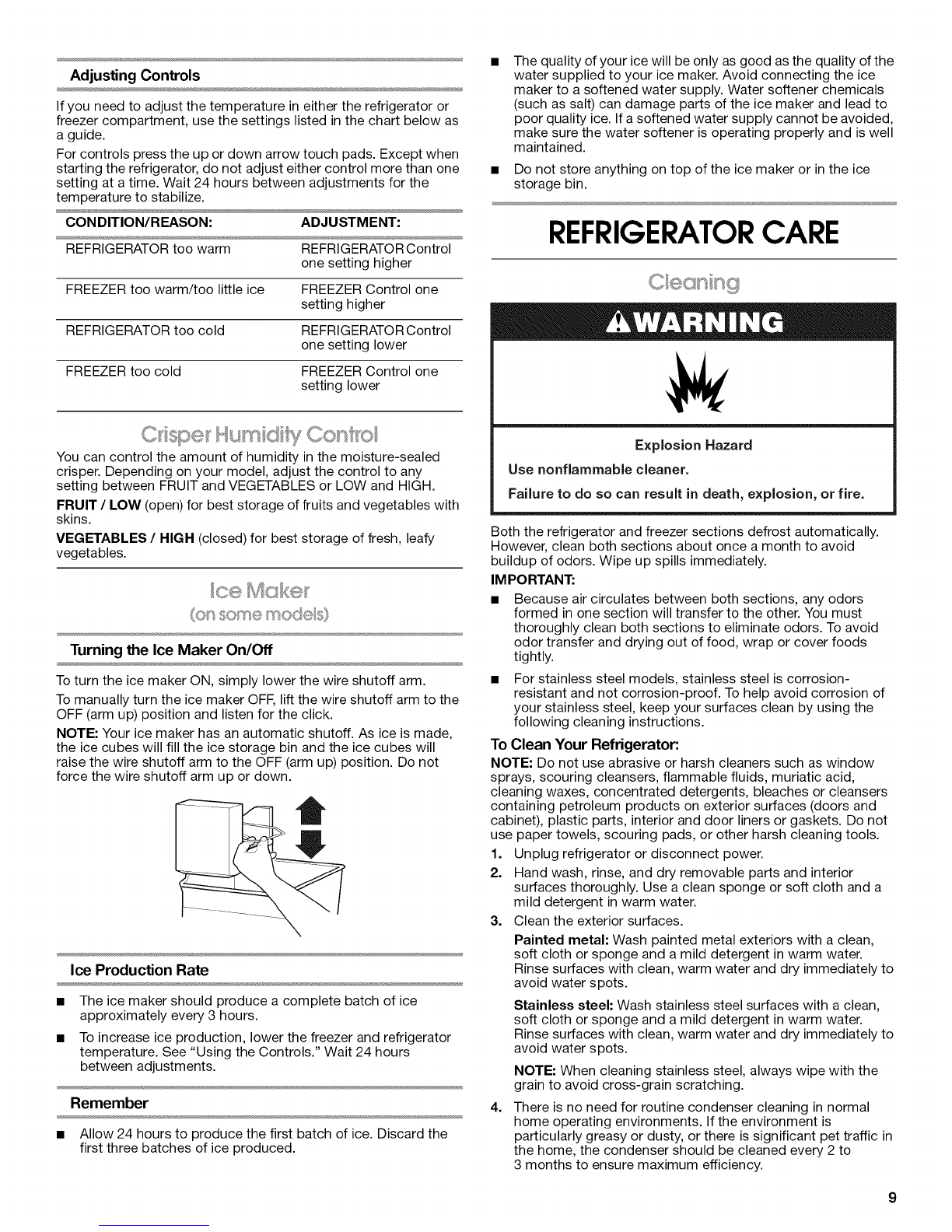

Adjusting Controls
If you need to adjust the temperature in either the refrigerator or
freezer compartment, use the settings listed in the chart below as
a guide.
For controls press the up or down arrow touch pads. Except when
starting the refrigerator, do not adjust either control more than one
setting at a time. Wait 24 hours between adjustments for the
temperature to stabilize.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm REFRIGERATOR Control
one setting higher
FREEZER too warm/too little ice FREEZER Control one
setting higher
REFRIGERATOR too cold REFRIGERATOR Control
one setting lower
FREEZER too cold FREEZER Control one
setting lower
You can control the amount of humidity in the moisture-sealed
crisper. Depending on your model, adjust the control to any
setting between FRUIT and VEGETABLES or LOW and HIGH.
FRUIT /LOW (open) for best storage of fruits and vegetables with
skins.
VEGETABLES /HIGH (closed) for best storage of fresh, leafy
vegetables.
ce
(on _'o_",_',_J_mode sZ;;3 b,#_, '{IS
Turning the Ice Maker On/Off
Toturn the ice maker ON, simply lower the wire shutoff arm.
To manually turn the ice maker OFF, lift the wire shutoff arm to the
OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will fill the ice storage bin and the ice cubes will
raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
Ice Production Rate
• The ice maker should produce a complete batch of ice
approximately every 3 hours.
• To increase ice production, lower the freezer and refrigerator
temperature. See "Using the Controls." Wait 24 hours
between adjustments.
Remember
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not store anything on top of the ice maker or in the ice
storage bin.
REFRIGERATORCARE
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IM PORTANI"."
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid
odor transfer and drying out of food, wrap or cover foods
tightly.
For stainless steel models, stainless steel is corrosion-
resistant and not corrosion-proof. To help avoid corrosion of
your stainless steel, keep your surfaces clean by using the
following cleaning instructions.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, muriatic acid,
cleaning waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on exterior surfaces (doors and
cabinet), plastic parts, interior and door liners or gaskets. Do not
use paper towels, scouring pads, or other harsh cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
3. Clean the exterior surfaces.
Painted metal: Wash painted metal exteriors with a clean,
soft cloth or sponge and a mild detergent in warm water.
Rinse surfaces with clean, warm water and dry immediately to
avoid water spots.
Stainless steel: Wash stainless steel surfaces with a clean,
soft cloth or sponge and a mild detergent in warm water.
Rinse surfaces with clean, warm water and dry immediately to
avoid water spots.
NOTE: When cleaning stainless steel, always wipe with the
grain to avoid cross-grain scratching.
4= There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to
3 months to ensure maximum efficiency.

5.
If you need to clean the condenser:
• Remove the base grille.
• Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
Plug in refrigerator or reconnect power.
Freezer door models
Top of the refrigerator compartment - Slide the shield
toward the back to release it from the light assembly.
Top of freezer compartment - Squeeze and pull rear of
light shield toward you to release the tabs, then pull down.
Ctscssg "sg '@Lght s.s &_ __,_
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with an appliance bulb of the same size, shape,
and wattage (no greater than 40 watts).
1. Unplug the refrigerator or disconnect power.
2. Remove the light shield, if necessary.
Freezer drawer models
Top of the refrigerator compartment - Slide the light shield
toward the back of the compartment to release it from the
light assembly.
Top of freezer compartment - The light shield opens from
the back. Firmly press forward on the notches in the back
of the shield and pull the shield down.
NOTE: You may need to remove the upper freezer shelf or
basket to access the light assembly.
3. Replace the burned-out bulb(s) with an appliance bulb(s) no
greater than 40 watts.
4. Replace the light shield.
Freezer drawer models
Top of the refrigerator compartment - Insert the tabs on
the shield into the liner holes on each side of light
assembly. Slide the shield toward the front until it locks
into place.
NOTE: To avoid damaging the light shield, do not force
the shield beyond the locking point.
Top of the freezer compartment - Insert the front tabs of
the shield into the liner and snap the back portion of the
shield over the light assembly.
Freezer door models
Top of the refrigerator compartment - Insert the tabs on
the shield into the liner holes on each side of the light
assembly. Slide the shield toward the front until it locks.
NOTE: To avoid damaging the light shield, do not force
the shield beyond the locking point.
Top of freezer compartment - Insert front tabs of light
shield into liner and snap the back of the shield over light
assembly.
5. Plug in refrigerator or reconnect power.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
The refrigerator will not operate
Electrical Shock Hazard
Plug into agrounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
•Power cord unplugged? Plug into a grounded 3 prong outlet.
10
Is outlet working? Plug in a lamp to see if the outlet is
working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues,
call an electrician.
Are controls on? Make sure the refrigerator controls are on.
See "Using the Control(s)."
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting
will not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its
high-efficiency compressor and fans. The unit may run even
longer if the room is warm, a large food load is added, doors are
opened often, or if the doors have been left open.
The refrigerator seems noisy
Refrigerator noise has been reduced over the years. Due to this
reduction, you may hear intermittent noises from your new
refrigerator that you did not notice from your old model. Below are
listed some normal sounds with explanations.

Buzzing-heardwhenthewatervalveopenstofilltheice
maker
Pulsating-fans/compressoradjustingtooptimize
performance
Hissing/Rattling-flowofrefrigerant,movementofwater
lines,orfromitemsplacedontopoftherefrigerator
Sizzling/Gurgling-waterdrippingontheheaterduring
defrostcycle
Popping-contraction/expansionofinsidewalls,especially
duringinitialcool-down
Waterrunning-maybeheardwhenicemeltsduringthe
defrostcycleandwaterrunsintothedrainpan
Creaking/Cracking-occursasiceisbeingejectedfromthe
icemakermold.
The doors will not close completely
•Door blocked open? Move food packages away from door.
• Bin or shelf in the way? Push bin or shelf back in the correct
position.
The doors are difficult to open
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
•Gaskets dirty or sticky? Clean gaskets and contact surfaces
with mild soap and warm water. Rinse and dry with soft cloth.
_ n_ _°'q "_ G_ _ _ "_'_"/"
Temperature is too warm
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in
24 hours. See "Using the Control(s)."
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
•Humid room? Contributes to moisture buildup.
•Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully
closed.
The ice maker is not producing ice or not enough ice
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water
supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice
production.
Freezer door closed completely? Firmly close the freezer
compartment door. If the freezer compartment door will not
close all the way, see "The doors will not close completely,"
earlier in this section.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.
Water filter installed on the refrigerator? Remove filter and
operate ice maker. If ice volume improves, then the filter may
be clogged or incorrectly installed. Replace filter or reinstall it
correctly.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
• Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Water filter installed on the refrigerator? Remove filter and
operate ice maker. If ice quality improves, then the filter may
be clogged or incorrectly installed. Replace filter or reinstall it
correctly.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure.
See "Water Supply Requirements."
Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Water filter installed on the refrigerator? Gray or dark
discoloration in ice indicates that the water filtration system
needs additional flushing. Flush the water system before using
a new water filter. Replace water filter when indicated. See
"Water Filtration System."
11

IKEAMAJOR APPLIANCE WARRANTY
How long is the IKEA limited warranty valid?
This limited warranty is valid for five years from the date of purchase, when this major appliance is operated and maintained according to
instructions attached to or furnished with the product, unless the appliance is named LAGAN in which case this limited warranty is valid for one
year from the date of purchase. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is
used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.
Which appliances are not covered by the IKEA five (5) year limited warranty?
For major appliances named "LAGAN," this limited warranty is valid for one year from the date of purchase.
Who will execute the service?
This limited warranty is provided by Whirlpool Corporation or Whirlpool Canada LP (hereafter "Whirlpool"). Service must be provided by a
Whirlpool designated service company.
What does this limited warranty cover?
The limited warranty will pay for factory specified parts and repair labor to correct defects in materials or workmanship that existed when the
major appliance was purchased. The exceptions are specified under the headline "What is not covered under this limited warranty?".
What will be done to correct the problem?
The designated service company will examine the product and decide, at its sole discretion, if it is covered under this limited warranty. If
considered covered, the designated service company will then repair the defect. Your sole and exclusive remedy under this limited warranty shall
be product repair as provided herein.
What is not covered under this limited warranty?
• Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house
fuses, or to correct house wiring or plumbing.
• Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
• Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a
manner that is inconsistent to published user or operator instructions and/or installation instructions.
• Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with
electrical or plumbing codes, or use of consumables or cleaning products not approved for use.
• Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from
defects in materials or workmanship and is reported within 30 days from the date of purchase.
• Any food loss or medicine loss due to refrigerator or freezer product failures.
• Pick up and delivery. This major appliance is intended to be repaired in your home.
• Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
• Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized
servicer is not available.
• The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
• Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be
easily determined.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
Disclaimer of Implied Warranties
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS (ONE YEAR FOR MAJOR APPLIANCES NAMED "LAGAN") OR THE SHORTEST
PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or
fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from
state to state or province to province.
Limitation of Remedies; Exclusion of Incidental and Consequential Damages
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the
exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you also may have other rights that vary from state to state or province to province.
How to reach us if you need our service
If outside the 50 United States and Canada, contact your authorized IKEA retailer to determine if another warranty applies.
If you need service, please read the Installation Instructions and/or the "Troubleshooting" section of the Use & Care Guide before contacting us.
If you need additional help, do not hesitate to contact us in the U.S.A. and Canada at 1-866-664-2449. 2/09
For additional product information, visit www.whirlpool.com.
If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may
contact Whirlpool at the number below.
Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of the
refrigerator compartment.
For assistance or service, call 1-866-664-2449.
If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below:
In the U.S.A.: In Canada:
Whirlpool Brand Home Appliances Whirlpool Brand Home Appliances
Customer eXperience Center Customer eXperience Centre
553 Benson Road 1901 Minnesota Court
Benton Harbor, MI 49022-2692 Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your correspondence.
Please keep these User Instructions and the model number information for future reference.
12

LEAGRADECEMOSlacompradeesteproductodealtacalidad.Siustedexperimentaunproblemaquenosehayacubiertoen
SOLUClONDEPROBLEMAS,visitewww.whirlpool.comparaobtenerinformaci6nadicional.SiconsideraqueaQnnecesita
ayuda,Ilamenosal1-866-664-2449.
NecesitarateneramanosunQmerodemodeloydeserieubicadosenlaparedinteriordelcompartimientodelrefrigerador.
SEGURIDAD DELREFRIGERADOR
Su seguridad y la seguridad de los demos es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el simbolo de advertencia de seguridad.
Este simbolo le llama la atenci6n sobre peligros potenciales que pueden ocasionar la muerte o una lesi6n a
usted y a los demas.
Todos los mensajes de seguridad iran a continuaci6n del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesibn grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesibn grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran c6mo reducir las posibilidades de sufrir una lesi6n y Io que
puede suceder si no se siguen las instrucciones.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
ADVERTENC_A: Para reducir el riesgo de incendio, choque electrico, o lesiones personales al usar su refrigerador siga
estas precauciones basicas, incluidas las siguientes:
[] Conecte a un contacto de pared de conexidn a tierra de
3 terminales.
[] No quite la terminal de conexidn a tierra.
[] No use un adaptador.
[] No use un cable electrico de extensidn.
[] Desconecte el suministro de energia antes de darle servicio.
[] Vuelva a colocar todos los componentes y paneles antes de
hacerlo funcionar.
[] Remueva las puertas de su refrigerador viejo.
[] Use un limpiador no inflamable.
[] Mantenga los materiales y vapores inflamables, tales como
gasolina, alejados del refrigerador.
[] Use dos o mas personas para mover e instalar el
refrigerador.
[] Desconecte el suministro de energia antes de instalar la
fabrica de hielo (en aquellos modelos que incluyen el juego
de instalacidn de la fabrica de hielo).
CONSERVAR ESTAS INSTRUCCIONES
13

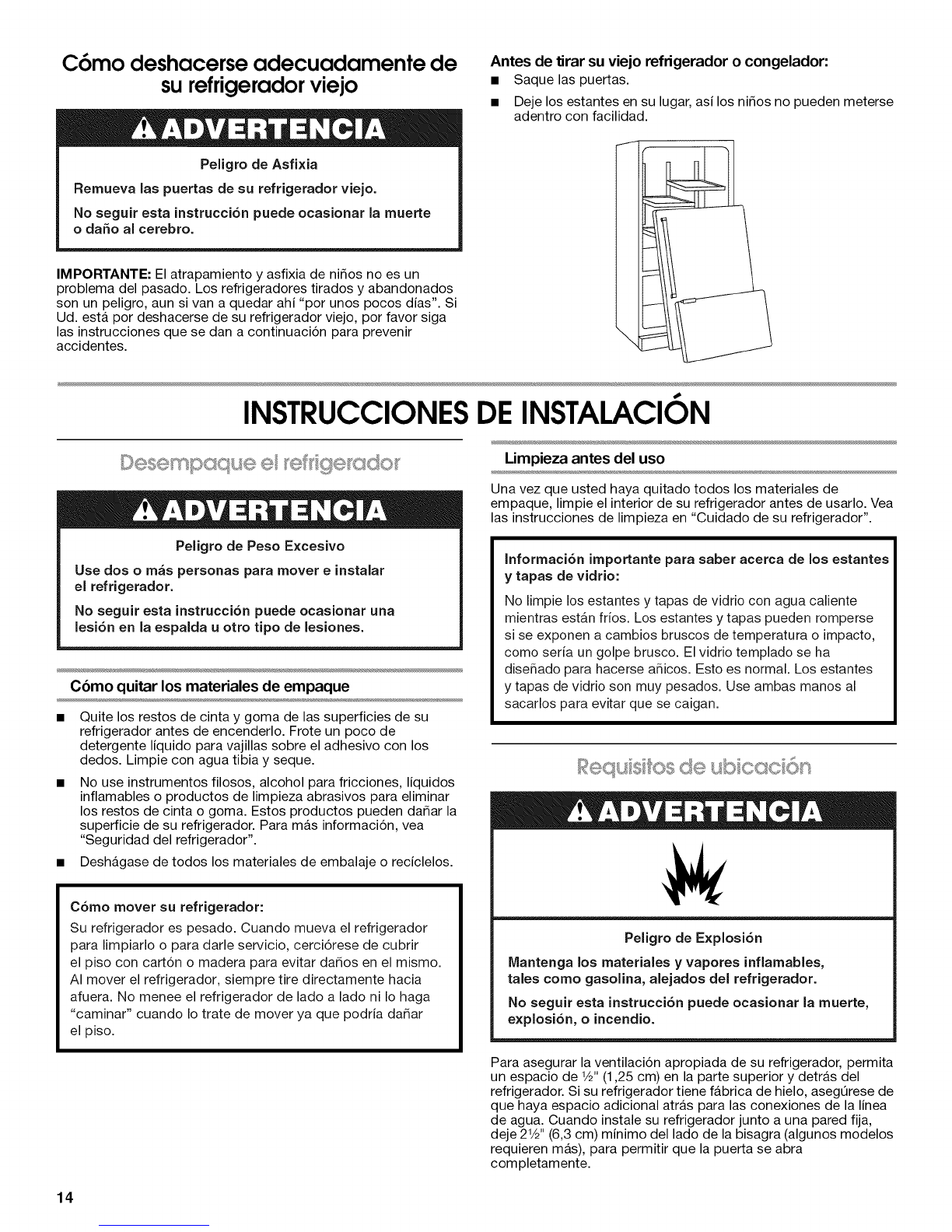

C6mo deshacerse adecuadamente de
su refrigeradorviejo
Peligro de Asfi×ia
Remueva las puertas de su refrigerador viejo.
No seguir esta instrucci6n puede ocasionar la muerte
oda_o al cerebro.
Antes de tirar su viejo refrigerador o congelador:
• Saque las puertas.
• Deje los estantes en su lugar, asi los ni_os no pueden meterse
adentro con facilidad.
IMPORTANTE: El atrapamiento y asfixia de ni_os no es un
problema del pasado. Los refrigeradores tirados y abandonados
son un peligro, aun si van a quedar ahi "por unos pocos dias". Si
Ud. esta por deshacerse de su refrigerador viejo, por favor siga
las instrucciones que se dan a continuacion para prevenir
accidentes. \
INSTRUCCIONESDE INSTALACION
Peligro de Peso Excesivo
Use dos o m_s personas para mover e instaiar
el refrigerador.
No seguir esta instrucci6n puede ocasionar una
lesi6n en la espalda u otto tipo de lesiones.
Cbmo quitar los materiales de empaque
• Quite los restos de cinta y goma de las superficies de su
refrigerador antes de encenderlo. Frote un poco de
detergente liquido para vajillas sobre el adhesivo con los
dedos. Limpie con agua tibia y seque.
No use instrumentos filosos, alcohol para fricciones, liquidos
inflamables o productos de limpieza abrasivos para eliminar
los restos de cinta o goma. Estos productos pueden da_ar la
superficie de su refrigerador. Para m_s informacion, vea
"Seguridad del refrigerador".
• Deshagase de todos los materiales de embalaje o reciclelos.
C6mo mover su refrigerador:
Su refrigerador es pesado. Cuando mueva el refrigerador
para limpiarlo o para darle servicio, cerci6rese de cubrir
el piso con cart6n o madera para evitar dados en el mismo.
AI mover el refrigerador, siempre tire directamente hacia
afuera. No menee el refrigerador de lado a lado ni Io haga
"caminar" cuando Io trate de mover ya que podria dadar
el piso.
Limpieza antes del uso
Una vez que usted haya quitado todos los materiales de
empaque, limpie el interior de su refrigerador antes de usarlo. Vea
las instrucciones de limpieza en "Cuidado de su refrigerador".
Informaci6n importante para saber acerca de los estantes
y tapas de vidrio:
No limpie los estantes y tapas de vidrio con agua caliente
mientras est&n frios. Los estantes y tapas pueden romperse
si se exponen a cambios bruscos de temperatura o impacto,
como seria un golpe brusco. El vidrio templado se ha
diseSado para hacerse aSicos. Esto es normal. Los estantes
y tapas de vidrio son muy pesados. Use ambas manos al
sacarlos para evitar que se caigan.
s tos ........
Peligro de Explosi6n
Mantenga los materiales y vapores inflamables,
tales como gasolina, aiejados del refrigerador.
No seguir esta instrucci6n puede ocasionar la muerte,
explosi6n, o incendio.
Para asegurar la ventilacion apropiada de su refrigerador, permita
un espacio de 1/2"(1,25 cm) en la parte superior y detras del
refrigerador. Si su refrigerador tiene fabrica de hielo, asegQrese de
que haya espacio adicional atras para las conexiones de la linea
de agua. Cuando instale su refrigerador junto a una pared fija,
deje 21/2'' (6,3 cm) minimo del lado de la bisagra (algunos modelos
requieren mas), para permitir que la puerta se abra
completamente.
14

NOTA: No se recomienda instalar el refrigerador cerca de un
horno, radiador u otra fuente de calor. No instale el refrigerador en
un lugar donde la temperatura sea menor de 55°F (13°C).
/
1/2"(1,25cm)
JL
Peligro de Choque EI6ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choque el6ctrico.
Antes de mover el refrigerador a su ubicacion final, es importante
asegurarse que tiene la conexion electrica adecuada.
M_todo de conexi6n a tierra recomendado
Se requiere una fuente de energia electrica de 115 Voltios, 60 Hz.,
CA solamente y con fusibles de 15 6 20 amperios, conectada a
tierra. Se recomienda que use un circuito separado solo para su
refrigerador. Use un tomacorriente que no se pueda apagar con
un interruptor. No use un cable electrico de extension.
NOTA: Antes de realizar cualquier tipo de instalacion, limpieza o
de quitar un foco de luz, ponga el refrigerador en OFF (Apagado).
Dependiendo del modelo, gire el control del congelador hacia la
palabra OFF o presione el boton con la flecha hacia abajo del
congelador hasta que aparezca un guion (-) en la pantalla del
congelador y la del refrigerador, como se muestra. Desconecte el
refrigerador de la fuente de suministro electrico. Cuando haya
terminado, reconecte el refrigerador a la fuente de energia
electrica y vuelva a poner los controles de temperatura en la
posicion deseada. Vea "Uso de los controles".
aumidityCo_t,ol
Reina las herramientas y piezas necesarias antes de comenzar la
instalaci6n. Lea y siga las instrucciones provistas con cualquiera
de las herramientas enlistadas aqui.
HERRAMIENTAS NEOESARIAS:
• Destornillador de hoja plana • Llave de tuercas de V4"
• Llaves de boca de 7Ae"y W' 0 • Broca de _A"
dos Ilaves ajustables • Taladro inalambrico
IM PORTANTE:
• Todas las instalaciones deben hacerse de acuerdo a los
requisitos locales de plomeria.
• No use una valvula perforadora o una valvula de montura de
3/_e"(4,76 mm), la cual reduce el flujo de agua y se obstruye
con mas facilidad.
Use tuberia de cobre y revise si hay fugas. Instale la tuberia de
cobre solo en Areas donde la temperatura vaya a permanecer
por encima del punto de congelacion.
Para modelos con filtros de agua, el filtro de agua desechable
debera reemplazarse por Io menos cada 6 meses.
Presi6n del agua
Se necesita un suministro de agua fria con presion de agua entre
35 y 120 Ibs/pulg 2(241 y 827 kPa) para hacer funcionar el
despachador de agua y la fabrica de hielo. Si tiene preguntas
acerca de la presion del agua, Ilame a un plomero competente
autorizado.
Suministro de agua por 6smosis inversa
IMPORTANTE: La presion del suministro de agua que sale de un
sistema de osmosis inversa y va a la valvula de entrada de agua
del refrigerador necesitarA ser entre 35 y 120 Ibs/pulg 2(241 y
827 kPa).
Si se conecta un sistema de filtracion de agua de osmosis inversa
al suministro de agua fria, la presion de agua al sistema de
osmosis inversa necesitarA ser de un minimo de 40 a 60 Ibs/pulg 2
(276 a 414 kPa).
Si la presion de agua hacia el sistema de osmosis inversa es
menor de 40 a 60 Ibs/pulg 2(276 a 414 kPa):
• Verifique si el filtro de sedimentos en el sistema de osmosis
inversa esta bloqueado. Reemplacelo si fuera necesario.
• Deje que se vuelva a Ilenar el tanque de almacenaje del
sistema de osmosis inversa despu_s del uso intenso.
Si su refrigerador tiene un filtro de agua, se podra reducir la
presion aOnmas si se usa en conjunto con un sistema de
osmosis inversa. Saque el filtro de agua. Vea "Sistema de
filtracion de agua".
Si tiene preguntas acerca de la presion del agua, Ilame a un
plomero competente autorizado.
15

C,onecEe,, e mnst s ,se.......eguG
Lea todas las instrucciones antes de comenzar.
IMPORTANTE" Si enciende el refrigerador antes de conectar la Oonexi6n al refrigerador
tuberia de agua, APAGUE la fabrica de hielo. Dependiendo de su modelo, la linea de agua puede bajar de la
parte superior o subir de la parte inferior. Siga las instrucciones de
Conexi6n a la linea de agua conexion para su modelo.
1. Desenchufe el refrigerador o desconecte el suministro de
energia.
2. CIERRE el suministro principal de agua. ABRA la Ilave de agua
mas cercana el tiempo suficiente para que la tuberia de agua
se vacie.
3.
4.
5.
Localice una tuberia de agua fria vertical de 1/2"a 1V4"
(12,7 mm a 31,8 mm) cerca del refrigerador.
IM PORTANTE:
• AsegOrese de que sea una tuberia de agua fria.
Una tuberia horizontal funcionara, pero debe seguirse el
procedimiento indicado a continuacion: taladre por el lado
de arriba de la tuberia, no por debajo. Esto ayudara a
mantener el agua alejada del taladro. Esto tambien evita
que se acumule el sedimento normal en la valvula.
Determine la Iongitud de la tuberia de cobre que necesite.
Mida desde la conexion de la parte trasera del refrigerador
hasta la tuberia de agua. Agregue 7 pies (2,1 m) para poder
mover el refrigerador para limpiarlo. Use tuberia de cobre de
1/4"(6,35 mm) de diametro externo. AsegQrese que ambos
extremos de la tuberia de cobre estan cortados a escuadra.
Usando un taladro inalambrico, taladre un orificio de 1/4"en la
tuberia de agua fria que ha seleccionado.
C
D
E
F
G
A. Tuberfa de agua frfa
B. Abrazadera para tuberfa
C. Tuberfa de cobre
D. Tuerca de compresi6n
E.Manga de
compresi6n
F. V41vula de cierre
G. Tuerca de presi6n
6. Afiance la valvula de cierre a la tuberia de agua fria con la
abrazadera para tuberia. AsegQrese de que el extremo de
salida se encuentre sujeto firmemente en el orificio taladrado
de 1/4"en la tuberia de agua y que la arandela esta bajo la
abrazadera de la tuberia. Apriete la tuerca de presion. Apriete
los tornillos de la abrazadera para tuberia lentamente yen
forma pareja de manera que la arandela provea un cierre
hermetico. No apriete demasiado.
7. Deslice la manga de compresion y la tuerca de compresion
sobre la tuberia de cobre como se muestra. Inserte el extremo
de la tuberia en el extremo de salida en forma pareja hasta
donde sea posible. Atornille la tuerca de compresion en el
extremo de salida usando la Ilave de tuercas ajustable. No
apriete demasiado porque se puede quebrar la tuberia de
cobre.
Estilo 1
1. Quite la tapa de plastico del puerto de entrada de la valvula de
agua. Fije el tubo de cobre a la entrada de la valvula usando
una tuerca de compresion y manga de compresion como se
muestra. Ajuste la tuerca de compresion. No apriete
demasiado. Verifique que la tuberia de cobre este segura,
jalandola.
2. Haga un lazo de servicio con la tuberia de cobre. Evite
torceduras al enrollar la tuberia de cobre. Asegure la tuberia
de cobre a la carcasa del refrigerador con una abrazadera
en "P".
A
g
C
D
E
@
@
e
A. Tuberfa de cobre
B.Abrazadera en "P"
C. Tuerca de compresi6n
D. Manga de compresi6n
E. Puerto de entrada de
la v4lvula de agua
3. Abra el suministro de agua al refrigerador y revise si hay fugas
de agua. Tape cualquier fuga que encuentre.
Estilo 2
1. Haga un lazo de servicio (diametro minimo de 2 pies [61 cm])
con la tuberia de cobre. Evite torceduras al enrollar la tuberia
de cobre.
2. Quite la tapa de plastico del puerto de entrada de la valvula de
agua. Coloque una manga y tuerca de compresion en la
tuberia de cobre.
3. Introduzca el extremo de la tuberia de cobre al puerto de
entrada de la valvula de agua. Moldee ligeramente la tuberia
de tal forma que la tuberia entre de forma recta al puerto para
evitar torceduras.
8. Coloque el extremo libre de la tuberia en un recipiente o
fregadero y ABRA el suministro principal de agua. Enjuague la
tuberia hasta que el agua salga limpia. CIERRE la valvula de
cierre de la tuberia de agua.
16

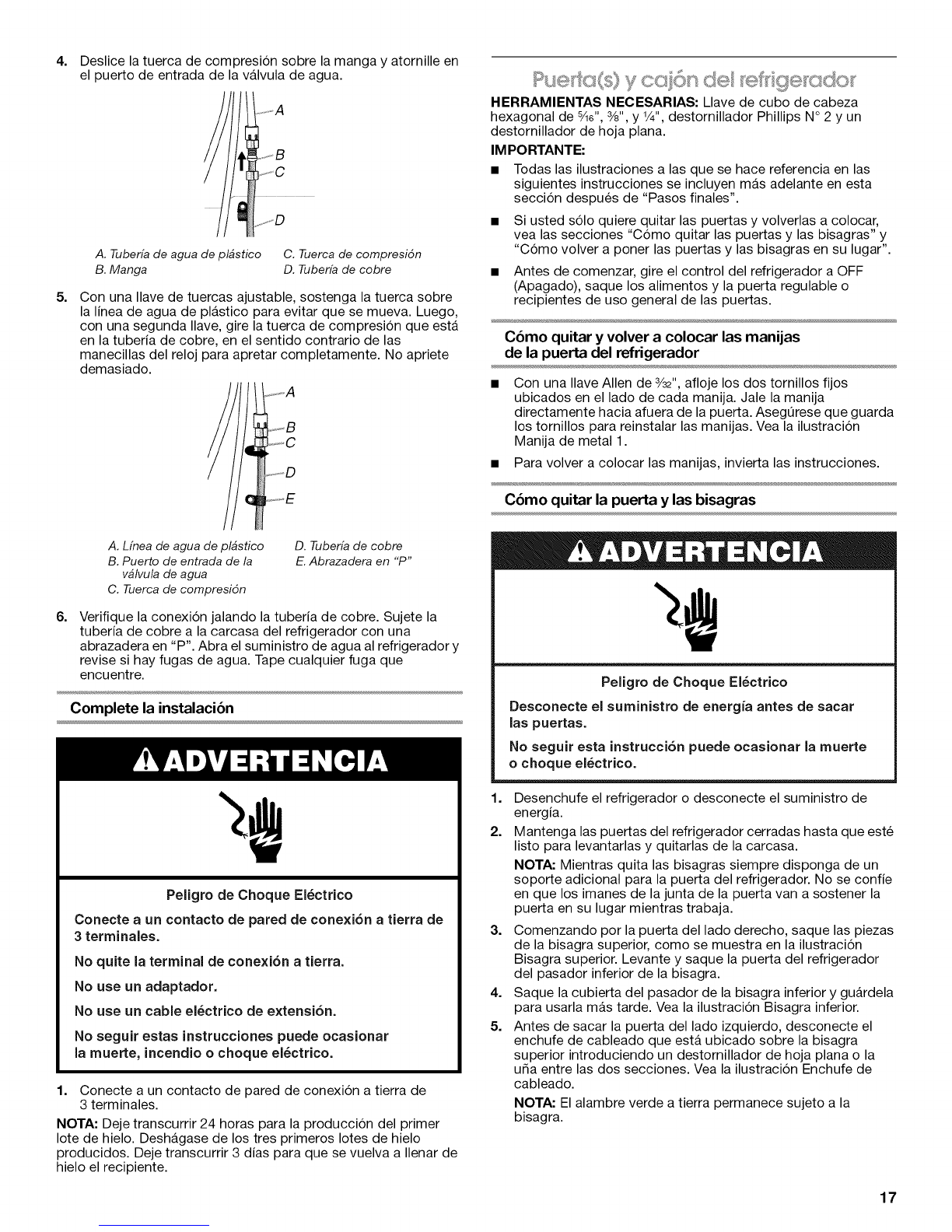

4=
5=
Deslice latuerca de compresion sobre la manga y atornille en
el puerto de entrada de la valvula de agua.
A. Tuberfa de agua de pl4stico C. Tuerca de compresi6n
B. Manga D. Tuberfa de cobre
Con una Ilave de tuercas ajustable, sostenga la tuerca sobre
la linea de agua de plastico para evitar que se mueva. Luego,
con una segunda Ilave, gire la tuerca de compresion que esta
en la tuberia de cobre, en el sentido contrario de las
manecillas del reloj para apretar completamente. No apriete
demasiado.
HERRAMIENTAS NEOESARIAS: Llave de cubo de cabeza
hexagonal de s4d', sA", y V4",destornillador Phillips N° 2 y un
destornillador de hoja plana.
IM PORTANTE:
•Todas las ilustraciones alas que se hace referencia en las
siguientes instrucciones se incluyen m_s adelante en esta
secci6n despu6s de "Pasos finales".
Si usted solo quiere quitar las puertas y volverlas a colocar,
vea las secciones "Como quitar las puertas y las bisagras" y
"Como volver a poner las puertas y las bisagras en su lugar".
Antes de comenzar, gire el control del refrigerador a OFF
(Apagado), saque los alimentos y la puerta regulable o
recipientes de uso general de las puertas.
Cbmo quitar y volver acolocar las manijas
de la puerta del refrigerador
Con una Ilave Allen de 3_32", afloje los dos tornillos fijos
ubicados en el lado de cada manija. Jale la manija
directamente hacia afuera de la puerta. AsegOrese que guarda
los tornillos para reinstalar las manijas. Vea la ilustracion
Manija de metal 1.
• Para volver a colocar las manijas, invierta las instrucciones.
Cbmo quitar la puerta y las bisagras
6=
A. Lfnea de agua de pl4stico
B. Puerto de entrada de la
v_lvula de agua
C. Tuerca de compresi6n
D. Tuberfa de cobre
E.Abrazadera en "P"
Verifique la conexi6n jalando la tuberia de cobre. Sujete la
tuberia de cobre a la carcasa del refrigerador con una
abrazadera en "P". Abra el suministro de agua al refrigerador y
revise si hay fugas de agua. Tape cualquier fuga que
encuentre.
Complete la instalaci6n
Peligro de Choque El_ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador,
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choque el_ctrico.
1. Conecte a un contacto de pared de conexion a tierra de
3 terminales.
NOTA: Deje transcurrir 24 horas para la produccion del primer
Iote de hielo. Deshagase de los tres primeros Iotes de hielo
producidos. Deje transcurrir 3 dias para que se vuelva a Ilenar de
hielo el recipiente.
1=
2.
Peligro de Choque EI6ctrico
Desconecte el suministro de energia antes de sacar
las puertas.
No seguir esta instrucci6n puede ocasionar la muerte
o choque el6ctrico.
Desenchufe el refrigerador o desconecte el suministro de
energia.
Mantenga las puertas del refrigerador cerradas hasta que este
listo para levantarlas y quitarlas de la carcasa.
NOTA: Mientras quita las bisagras siempre disponga de un
soporte adicional para la puerta del refrigerador. No se confie
en que los imanes de la junta de la puerta van a sostener la
puerta en su lugar mientras trabaja.
3. Comenzando por la puerta del lado derecho, saque las piezas
de la bisagra superior, como se muestra en la ilustracion
Bisagra superior. Levante y saque la puerta del refrigerador
del pasador inferior de la bisagra.
4. Saque la cubierta del pasador de la bisagra inferior y guardela
para usarla mas tarde. Vea la ilustracion Bisagra inferior.
5. Antes de sacar la puerta del lado izquierdo, desconecte el
enchufe de cableado que esta ubicado sobre la bisagra
superior introduciendo un destornillador de hoja plana o la
ufia entre las dos secciones. Vea la ilustracion Enchufe de
cableado.
NOTA: El alambre verde a tierra permanece sujeto a la
bisagra.
17

6. Saque los componentes de la bisagra superior de la puerta
del lado izquierdo, como se muestra en la ilustracion Bisagra
superior. Levante y saque la puerta del pasador inferior de la
bisagra.
NOTA" Saque la cubierta del pasador de la bisagra inferior y
guardela para usarla m_s tarde. Vea la ilustracion Bisagra
inferior.
C6mo volver a poner la puerta y las bisagras en su lugar
1=
2.
Ensamble los componentes de las bisagras superiores, como
se muestra en la ilustracion Bisagra superior. No atornille
completamente los tornillos.
Vuelva a colocar los componentes de las bisagras inferiores,
como se muestra en la ilustracion Bisagra inferior. Apriete los
tornillos. Vuelva a poner en su lugar las puertas del
refrigerador.
NOTA" Mientras quita las bisagras siempre disponga de un
soporte adicional para las puertas del refrigerador. No se
confie en que los imanes de la junta de las puertas van a
sostener las puertas en su lugar mientras trabaja.
3. Alinee cada puerta de modo que la base de la puerta del
refrigerador este alineada en forma pareja con la parte
superior del cajon del congelador. Apriete todos los tornillos.
4. Vuelva a conectar el enchufe de cableado en la parte superior
de la puerta del lado izquierdo del refrigerador.
5. Vuelva a colocar las cubiertas de la bisagra superior.
C6mo quitar y volver a colocar el caj6n del congelador
IM PORTANTE:
• Tal vez se necesiten dos personas para quitar y volver a
colocar el cajon del congelador.
• Todas las ilustraciones se incluyen en esta seccion, m_s
adelante, despu6s de "Pasos finales".
C6mo quitar y volver a colocar la manija del cajbn
• Con una Ilave Allen de 3/32",afloje los dos tornillos fijos
ubicados en el lado de cada manija. Jale la manija
directamente hacia afuera del cajon. AsegQrese de guardar
los tornillos para reinstalar las manijas. Vea la ilustracion
Manija de metal 2.
• Para volver a colocar la manija, invierta las instrucciones.
Para quitar el frente del caj6n
1. Abra el cajon del congelador en toda su extension.
2. Afloje los cuatro tornillos que sujetan las guias del cajon al
frente del cajon. Vea la ilustracion Remocion del frente del
cajon.
NOTA: Afloje los tornillos girAndolos tres o cuatro veces.
Mantenga los tornillos en el frente del cajon.
3. Levante el frente del cajon hacia arriba y fuera de los tornillos.
Vea la ilustracion Como quitar el frente del cajon.
Para volver a colocar el frente del caj6n
1. Deslice las guias fuera del compartimiento del congelador.
Inserte los tornillos en la parte superior del frente del cajon,
dentro de las ranuras que estan en los soportes del cajon. Vea
la ilustracion Como volver a colocar el frente del cajon.
2. Jale los soportes del cajon hacia usted para colocar los dos
tornillos en la base del frente del cajon, dentro de los
soportes. Vea la ilustracion Como volver a colocar el frente del
cajon.
3. Apriete por completo los cuatro tornillos.
Pasos finales
1= Revise todos los orificios para cerciorarse que los tapones de
los orificios y los tornillos esten en su lugar. Vuelva a colocar la
cubierta de la bisagra superior, como se muestra en la
ilustracion Bisagra superior.
Peligro de Choque EI6ctrico
Conecte a un contacto de pared de conexi6n a tierra de
3 terminales.
No quite la terminal de conexi6n a tierra.
No use un adaptador.
No use un cable el_ctrico de extensi6n.
No seguir estas instrucciones puede ocasionar
la muerte, incendio o choque el6ctrico.
2.
3.
Conecte a un contacto de pared de conexion a tierra de 3
terminales.
Regrese todas las partes removibles a la puerta y lacomida al
refrigerador.
18

Peligro de Choque El_ctrico
Desconecte el suministro de energia antes de sacar las puertas.
No seguir esta instrucci6n puede ocasionar la muerte o choque el_ctrico.
Bisagras superiores
t
B
A. Tomillo para la cubierta de
la bisagra
B, Cubierta de la bisagra superior
C, Tornillos de cabeza hexagonal
para bisagra de _6"
D. Bisagra superior
Bisagras inferiores
A. Cubierta del pasador de la bisagra
B, Bisagra inferior
C. Tomillos para bisagra
Enchufe de cableado
\\
\\ \
\\
\\
\\\
\\ \
Manija met_lica
A. Tomillo de ajuste de 3/32"
Manija metalica
A
A, Tornillo de ajuste de ½2"
A, Aflc ie los 4 tomillos de
soporte de la puerta
19

Su refrigerador tiene dos rodillos regulables ubicados en la base
del refrigerador. Si su refrigerador parece poco firme o si usted
desea que la puerta se cierre con mas facilidad, siga las
instrucciones a continuacion.
1. Quite la rejilla de la base. Tome la rejilla con firmeza y jalela
hacia usted.
2, Con un destornillador hexagonal de 3/8",gire el tornillo
regulador del rodillo que esta a cada lado, para levantar 0
bajar ese lado del refrigerador.
NOTA: Haga que alguien empuje la parte superior del
refrigerador, I0 cual quita el peso de los tornillos reguladores y
los rodillos. Esto facilita el giro de los tornillos. Puede precisar
darle varias vueltas al tornillo regulador para ajustar la
inclinacion del refrigerador.
• Para levantarlo, gire el tornillo regulador del rodillo hacia la
derecha.
• Para bajarlo, gire el tornillo regulador del rodillo hacia la
izquierda.
Gire el pie del freno hacia la derecha hasta que quede
firmemente contra el piso, para evitar que el refrigerador
ruede hacia adelante cuando se abra el cajon del congelador.
A
3,
B
A. Tornillo regulador del rodillo delantero
B. Pie de freno
Abra la puerta nuevamente para verificar que se cierra con la
facilidad que usted desea. De Io contrario, incline el
refrigerador ligeramente mas hacia la parte posterior, girando
ambos tornillos niveladores hacia la derecha. Puede tomar
varias vueltas mas, y usted deberA girar ambos tornillos la
misma cantidad de veces.
4. Vuelva a colocar la rejilla de la base.
USO DESUREFRIGERADOR
,_i_l-l,ql::)cII$'eisfo'ioO
El compartimiento del refrigerador tiene dos puertas. Las puertas
pueden abrirse y cerrarse ya sea en forma separada o juntas.
Hay una junta con bisagras verticales en la puerta izquierda del
refrigerador.
• Cuando se abre la puerta izquierda, la junta con bisagras se
pliega hacia adentro autom_ticamente, para quedar fuera del
camino.
• Cuando ambas puertas estan cerradas, la junta con bisagras
forma autom_ticamente un sello entre las dos puertas.
A
A. Junta con bisagra
Los controles de temperatura estan ubicados en la parte frontal
superior de los compartimientos del refrigerador.
Controles de temperatura
Para su conveniencia, los controles de temperatura vienen
prefijados de fabrica. Cuando instale el refrigerador por primera
vez, asegQrese de que los controles esten todavia fijados en los
ajustes recomendados, como se muestra.
Ajuste recomendado "4"
IMPORTANTE:
El ajuste recomendado debe ser el correcto para un uso
domestico normal del refrigerador. Los controles estan
ajustados correctamente cuando la leche o los jugos estan
tan frios como Ud. desea y cuando el helado tiene
consistencia firme.
Espere 24 horas para que el refrigerador se enfrie
completamente antes de agregar alimentos. Si agrega
alimentos antes de que el refrigerador se haya enfriado por
completo, sus alimentos podrian echarse a perder.
NOTA: Poner los controles de temperatura del refrigerador y
del congelador en un ajuste mas frio que el recomendado no
enfriarA m_s rapido los compartimientos.
20
