IKEA UNDERVERK User manual

$8
UNDERVERK

ENGLISH 4
2
1345
Please refer to the last
page of this manual for the
full list of IKEA appointed
Authorized Service Centre
and relative national phone
number

4 ENGLISH
Contents
Safety information 4
Product description 8
Care and cleaning 9
What to do if... 11
Technical data 12
Energy efficiency 13
Environment concerns 14
IKEA GUARANTEE 14
Safety information
For your safety and correct operation of the appliance, read
this manual carefully before installation and use. Always
keep these instructions with the appliance even if you move or
sell it. Users must fully know the operation and safety features
of the appliance.
The wire connection has to be done by specialized
technician.
• This appliance is intended to be used in household and
similar applications such as:
• Farm houses.
• By clients in serviced apartments, holiday apartments and
other residential type environments.
• The manufacturer will not be held liable for any damages
resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and
the extractor hood is: for electrical hob 500mm and for gas
hob 650mm.
• If the instructions for installation for the gas hob specify a
greater distance, this must be respected.

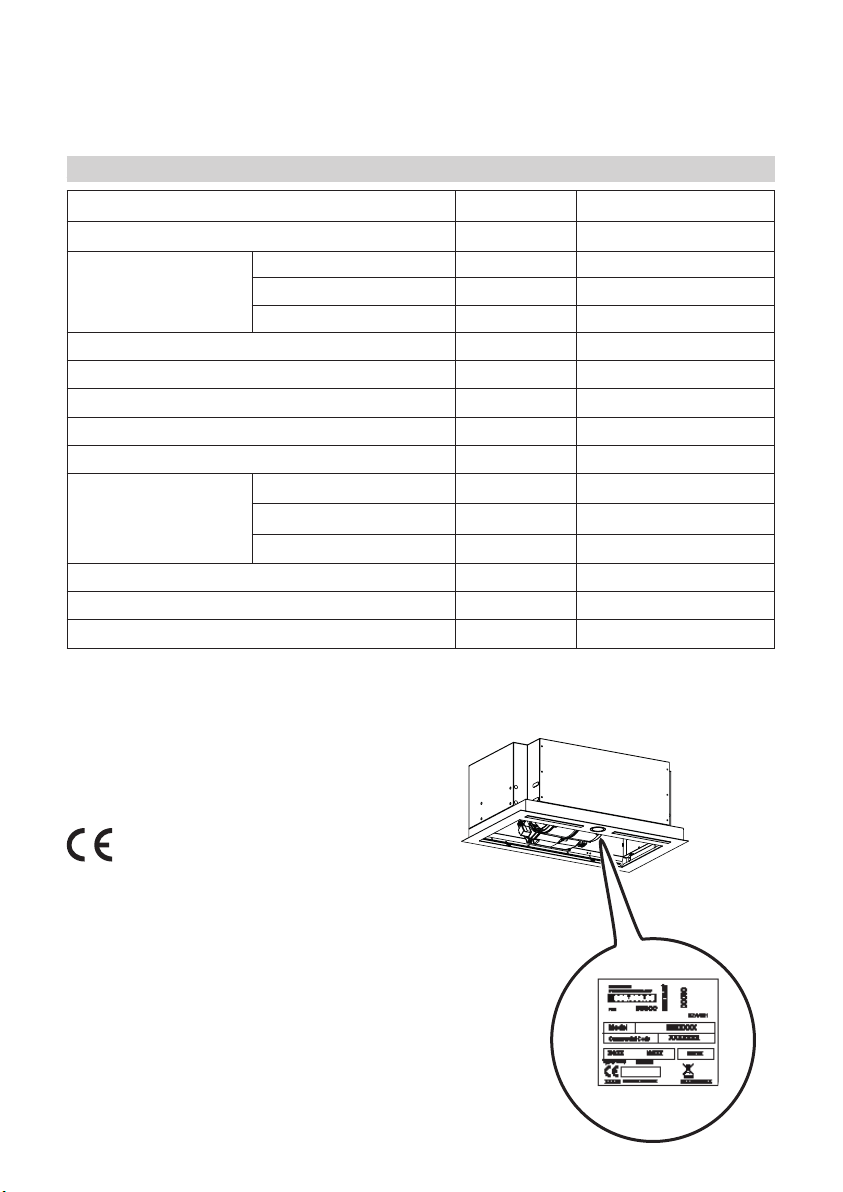

• Check that the mains voltage corresponds to that indicated
on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of
minimum diameter 120 mm. The route of the flue must be

5 ENGLISH
as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient degree
of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. When the cooker hood
is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
• If the supply cord is damaged, it must be replaced from the
manufacturer or its service agent.
• Connect the plug to a socket complying with current
regulations, located in an accessible place.
• With regards to the technical and safety measures to be
adopted for fume discharging it is importat to closely follow
the regulations provided by the local authorities.
WARNING: Before installing the Hood, remove the
protective films.
• Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
• Connect the hood to the power net by using a bipolar switch
having a contact gap of at least 3 mm.
• Do not look directly at the light through optical devices
(binoculars, magnifying glasses…).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years

6 ENGLISH
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not
play with the appliance.
• The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
Accessible parts may become hot when used with cooking
appliances.
• Clean and/or replace the Filters after the specified time
period (Fire hazard).
• There shall be adequate ventilation of the room when the
range hood is used at the same time as appliances burning
gas or other fuels (not applicable to appliances that only
discharge the air back into the room).

7 ENGLISH
Use
• Switch off or unplug the appliance
from the mains supply before
carrying out any maintenance work.
• The top of the hood must not to be used
as a shelf.
• The extractor hood has been
designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked flames under
the hood when it is in operation.
• Adjust the flame intensity to direct
it onto the bottom of the pan only,
making sure that it does not engulf
the sides.
Deep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
Installation modes
The hood has been designed to be installed
and used either as a “Exhaust mode”, or as
a “Recirculation mode”.
Exhaust mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in
installation booklet)
Cooking steam is sucked and
channelled outside the house through
a discharge duct (not supplied), fitted to
the hood steam outlet.
Ensure that the discharge duct is
correctly fitted to the air outlet, unit
using an appropriate connection
system.
Recirculation mode (see symbol
9
min 471 mm
max 861 mm
min 569 mm
max 861 mm
min 471 mm
max 861 mm
min 569 mm
max 861 mm
in installation booklet)
The air is filtered through one or more
the charcoal filters, and then resent into
room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied
without charcoal filters and installed on
recirculation mode, these must be fitted
before the hood can be used. Filters are
available in shops.
The hood should be installed away from
particularly dirty areas, windows, doors
and heat sources.
The accessories for wall fixing are not
included because wall made of different
materials require different types of
fixing accessories. Use fixing systems
suitable for the walls of your home and
the weight of the appliance. For more
details, contact a specialized dealer.
Keep this booklet for future
consultation.

8 ENGLISH
Product description

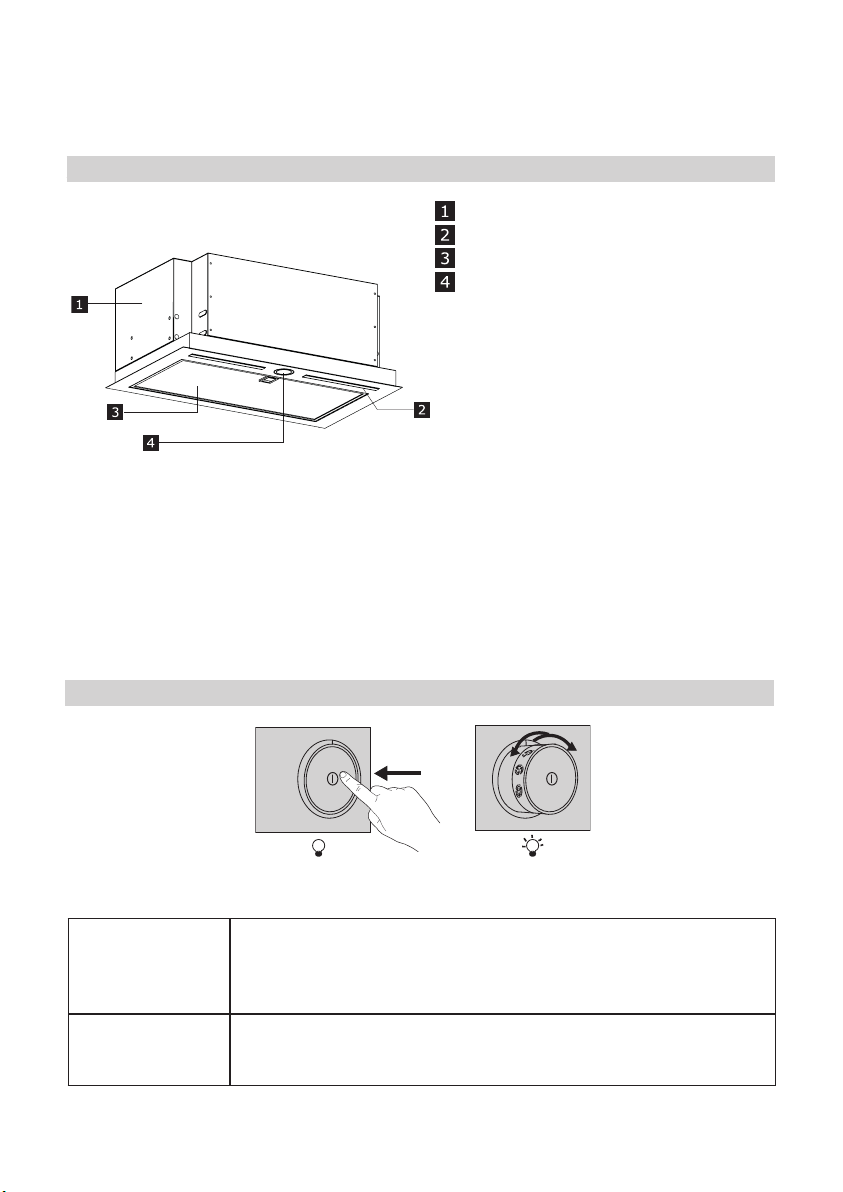

Hood body
LED Lighting
Grease filter
Control panel
Control Panel
Lights
To turn the lights on, press the dial and release it so that it pops
out of its housing.
To turn the lights o, push the dial back inwards, returning it to
the o position.
Motor
Speed
Adjustment
Press the dial and release it so that it pops out of its housing, then
turn the dial to select one of the available suction speeds.

9 ENGLISH
Care and cleaning
Switch off or unplug the appliance
from the mains supply before carrying out
any maintenance work.
IMPORTANT Clean the hood using a damp
cloth and a neutral liquid detergent.
Long Life Charcoal Filter (Green)
The anti-odour filter can be washed and
regenerated every 3-4 months (or more
frequently if the hood is subject to inten-
sive use), up to a Max. of 8 regeneration
cycles (in case of particularly intensive use
it is recommended that you do not exceed
5 cycles).
Regeneration procedure:
• Wash in the dishwasher at a MAX
temperature of 70° or hand wash in hot
water without using abrasive sponges
(do not use detergents!).
• Dry in the oven at a MAX temperature
of 70° for 2 hours (it is recommended to
read carefully the user manual and the
assembly instruction of the oven of your
own).
• Switch ON the hood at minimum speed when you start cooking and keep it running for
few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost
speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction ef-
ficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize
efficiency and minimize noise.
General hints

10 ENGLISH
Grease Filters
Clean or replace the filters continuously ac-
cording to below time intervals, to maintain
good performance of the hood and to
prevent a potential fire hazard, caused by
excessive grease build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently
for particularly heavy usage, and can be
washed in a dishwasher.
Replacing the lamps
For Replacement please contact an Author-
ized Service Center.
