Ikelite 2101 Vega User manual

Vega Video + Photo Light
nstruction Manual
2101 Vega + US Charger
2102 Vega + Euro Charger
2103 Vega + UK Charger
2104 Vega + Aus Charger
Thank you for your purchase of kelite equipment. Please read this
instruction manual completely before attempting to operate or dive
with this product. Please refer to the back page of this manual to
register your kelite product.

Introduction ..................................................................P. 3
Vega Light with Lanyard ............................................P. 3
Specifications ..............................................................P. 4
sage ............................................................................P. 4
Parts of the Vega............................................................P. 5
Power Dial Positions ......................................................P. 6
Charging the Vega ........................................................P. 7
Charger nformation ......................................................P. 8
WARN NGS....................................................................P. 8
Vega Mounts & Accessories ......................................P. 9
Troubleshooting ..........................................................P. 9
Safety Information ......................................................P. 9
Maintenance ................................................................P. 9
Storage Information ....................................................P. 10
Airline Travel and Transport Information ..................P. 10
Customer Support ......................................................P. 10
Limited Warranty ........................................................P. 11
Returning Products for Service ................................P. 11
Product Registration ..................................................P. 12
Table of Contents
2

Like every kelite product, the Vega is designed, built and tested in the USA.
We use locally sourced, top-grade materials. Our lights are built by hand
and individually tested for function and waterproof integrity. The average
assembly technician is a certified scuba diver and has over 16 years of
experience building kelite products. We back our products with over 50
years of experience and service within the dive industry.
The Vega packs a lot of power into a compact and travel-friendly package.
Switch quickly between full, half and quarter powers for video, focusing,
macro photography, or to use as a backup dive light. Power level is
controlled by a large, easy to turn dial on the rear of the light. A premium,
high-capacity built-in rechargeable battery provides up to 3 hours run time
on a single charge.
Each Vega is completely factory sealed and water pressure tested for
care-free maintenance. The clever rear dial over-rotates to a secondary "off"
position with a lock to prevent the light from accidentally turning on when
not in use. Two gold-plated, independently waterproofed charger ports are
deliberately hidden when the switch is in the safety lock position to eliminate
the possibility of inadvertently shorting the light during travel.
The Vega features a ring of 6 LED indicators directly on the back of the
light. Three Blue LEDs give you power level information and three Red
LEDs show remaining battery power at a quick glance.
Introduction
- Vega LED Light with Lanyard attached
- Charger
- nstruction Manual
Vega Light with Lanyard
3

4
ntensity ..................2000 Lumens maximum power
Power Settings........Full (2000), 1/2 (1000), 1/4 (500)
Run Time ................45 min high power / 180 min low power
Beam Angle ............65 degrees
Coverage Angle ......52 degrees
Color Temperature ..5700K
Depth Rating ..........300 ft (90 m)
Dimensions ............1.95 in dia. x 5.6 in length (50 mm x 142 mm)
Weight ....................11.2 oz (318 g)
Batteries..................Non-removable 7.4V Rechargeable Li-ion
Front Thread ..........46mm
Buoyancy ................Negative
Specifications
sage - see diagrams on pages 5 and 6
- When you are ready to turn on or charge the Vega, slide the Locking
Switch toward the center of the Power Dial. Rotate the Power Dial
clockwise to the OFF/CHARGE position. nsert Charger Plug or continue
rotating to turn on.
- Fully charge the Vega before each use (see Charging he Vega, page 7).
- Always keep the Vega Power Dial in the LOCKED position, page 6,
when not in use or charging.
- CAUT ON: The Vega is designed for UNDERWATER use only and
has cooling channels which allow water to constantly cool the light. DO
NOT leave the Vega on for long periods of time above water. This may
cause the Vega to overheat and shut off. f this happens, turn the Power
Dial to the OFF/CHARGE position. A built-in safety feature will not allow
the light to turn on until a safe operating temperature is again achieved.
Keep the Vega out of direct sunlight for extended periods.

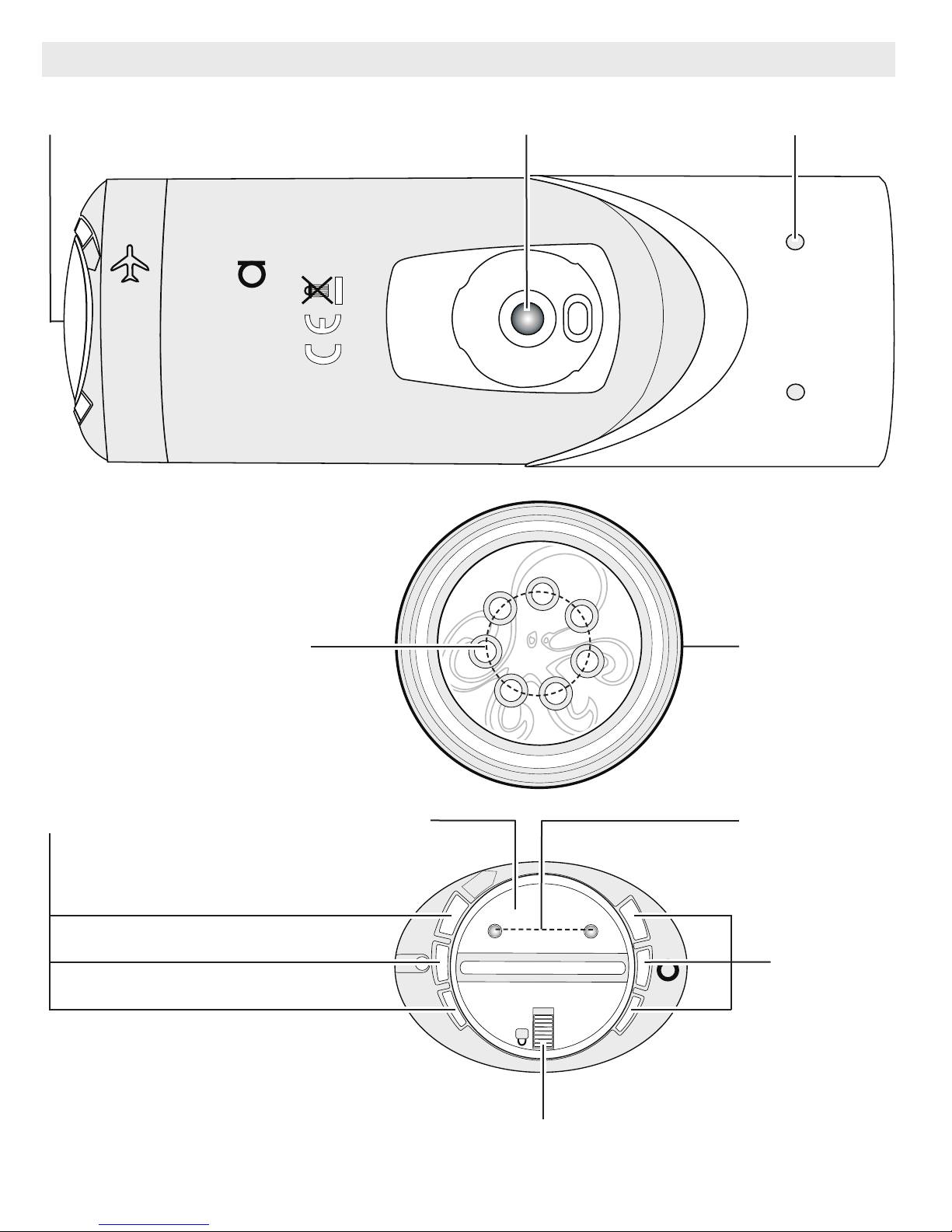

Parts of the Vega
Made in USA
Veg
LOCK FOR TRAVEL
Power Dial Cooling Channel
1/4-20” Threaded
Mounting Hole
5
Front LEDs
Power Dial
Locking Switch (in he LOCKED posi ion)
Remaining Battery
Power (Blue LEDs)
Power
Setting
ndicators
(Red LEDs)
46mm Threads
3 LEDs = up to 100%
2 LEDs = up to 60%
1 LED = up to 30%
1 LED Blinking = less than 15%
Charging Ports

Power Dial Positions
Power Dial and Locking Switch
(in he OFF/CHARGE posi ion)
Power Dial in Full Power Setting
Power Dial in 1/2 Power Setting
Power Dial in 1/4 Power Setting
6
Rotate the Knob counterclockwise and 180° past the OFF/CHARGE
position to engage the Locking Switch, and LOCK the Power Dial
when not in use.
Ro a e o
engage LOCK.
Power Dial and Locking Switch in the
LOCKED or TRAVEL position. Push
Switch down to LOCK.
LOCKED

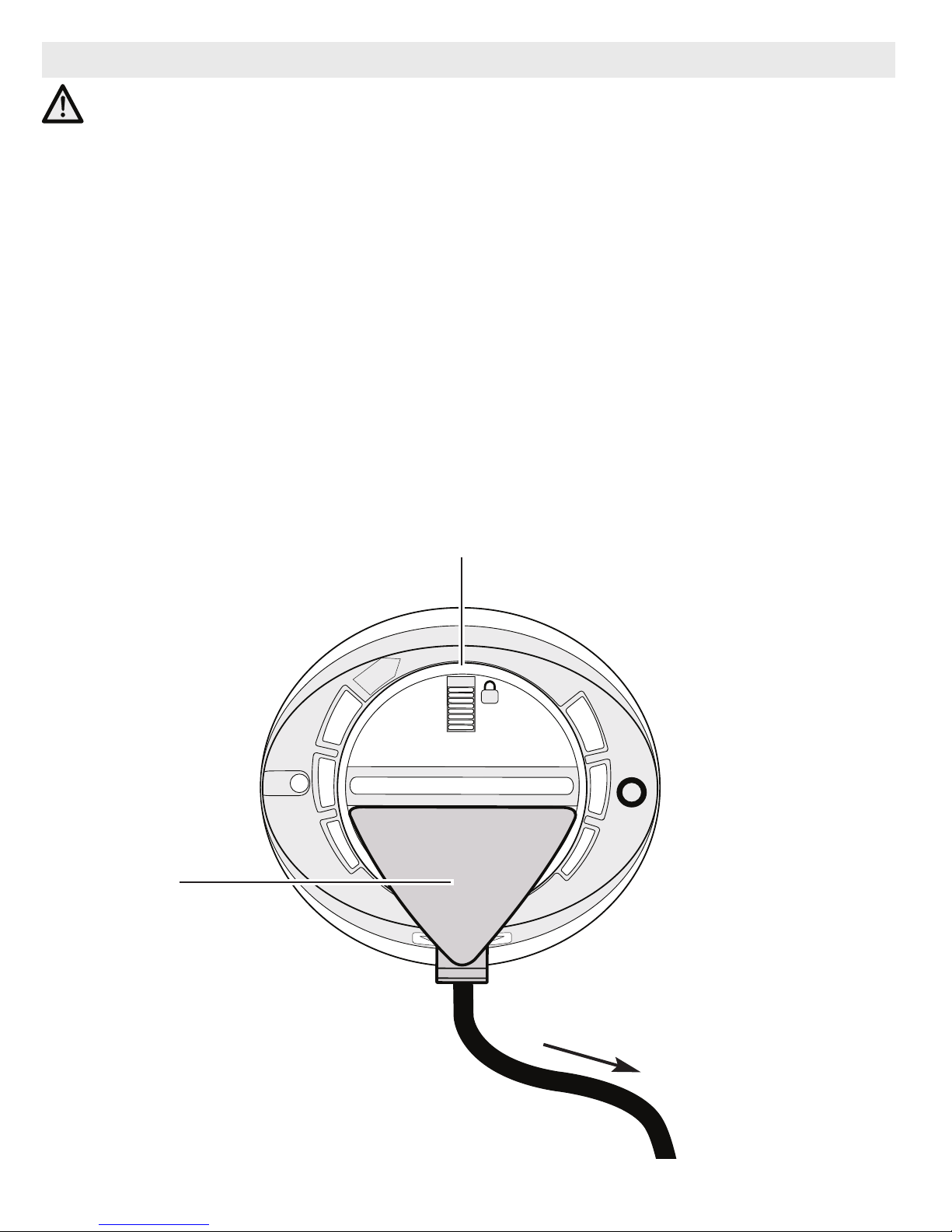

Charging the Vega
CAUT ON: Make sure the Vega is completely dry before charging.
1. Turn the Power Dial to the OFF/CHARGE position.
2. Push the Charger Plug into the Charging Ports until it is flush against the
Power Dial, Diagram A.
3. Plug the Charger into a wall or compatible electrical socket and charge
until the red charger LED turns green. A completely discharged Vega will
require approximately three hours to fully recharge.
4. Remove Charger Plug from Vega and return the Power Dial to its
LOCKED position until ready for use.
5. Remove Charger from wall or compatible electrical socket and store in a
safe place. Do not leave Charger plugged in when not in use.
Power Dial in the OFF/CHARGE Position
Charger Plug
Correctly Attached
To Charger
Diagram A
7

Compatibility ..........................Vega LED Video / Photo Light
nput ........................................100-240 Volts AC, 50-60 Hertz, 1.0 Amps
Output ....................................8.4 Volts, 1.0A
Operating Temperature ..........32°F - 104°F (0°C - 40°C)
Storage Temperature ..............-40°F - 158°F (-40°C - 70°C)
Compliance ............................CE, RoHS, UL
Charger Information
- t is safe to leave the charger connected to the battery pack when
charging is complete and the charger LED is lit “Green.” To conserve
energy, unplug the unit when not in use.
- Operation of the charger with battery packs other than the Vega is
dangerous and could result in damage to the battery or charger.
- Model numbers and ratings are shown on the front label of the charger.
- This charger is for indoor use only.
- Use only in dry locations.
- The Vega contains no user-serviceable parts. Do not attempt to open this
product; send to the kelite Service Department if damaged or inoperable.
- Keep the charger away from fire and other sources of heat.
- DO NOT attempt to charge or connect a Vega that has flooded or leaked.
Electrical shock, injury or fire could occur. Make sure the Vega is
completely dry before charging.
WARNINGS
LED Charger ndicator Light
Red LED = Vega is not fully charged
Green LED = Vega is fully charged
8

9
Please visit www.ikelite.com for optional Vega Mounts and Accessories.
Vega Mounts & Accessories (sold separately)
Maintenance
Always rinse the Vega in freshwater after each dive. Any trapped
saltwater in the Charging Ports may dry and cause salt crystals to form
which could interfere with charging.
Troubleshooting
Light is dim or does
not work.
Problem Solution
- Recharge light.
- Check Power Setting.
- Vega is designed for UNDERWATER use due to
its high intensity. f the light is used for extended
periods of time above water, a safety switch will
turn the light off. f this happens, turn Power Dial
to the OFF/CHARGE position and allow the
light to cool down to operating temperature before
attempting further use.
Fuse switches and heat management circuitry are built into the Vega
to prevent accidental overheating, short-circuits, overcharge, or
over-discharge.
DO NOT subject the Vega to temperatures in excess of 70°C (158°F).
Such abuse can result in loss of seal, battery leakage, and/or battery
cell explosion.
Product Safety Data Sheets (PSDS) can be obtained through an kelite
dealer or by contacting [email protected].
Safety Information

10
Rinse and dry the Vega before storing. Store in a cool ventilated area,
away from moisture and sources of heat or open flame. Temperature
above 70°C (158°F) can result in loss of seal, battery leakage, and/or
battery cell explosion.
Charge the battery pack to at least half to maintain healthy condition of
the cells. Always rotate the Power Dial into the LOCKED position when
not in use.
Storage Information
Customer Support
Please read the troubleshooting section of this instruction manual before
contacting kelite Customer Support.
kelite Underwater Systems
Service Department
50 West 33rd St.
ndianapolis, N 46208 USA
Email: [email protected]
Phone: [phone]
Airline Travel and Transport Information
The Vega Power Dial should be in the LOCKED position, and the
Locking Switch should be locked to prevent accidental activation during
transport. DO NOT attempt to open the Vega.
n case of accidental activation during shipment or transport, the
aluminum front of the Vega should avoid direct contact with plastic or
neoprene within your luggage or package, as this will prevent cosmetic
heat related damage to those materials. Securely pack the Vega with
cotton, polyester, or fleece material in your luggage for safe transport.
The Vega integrated Li-ion battery is less than 100 Whr and complies
with all applicable airline safety regulations for rechargeable Li-ion
batteries contained in equipment.
Check with your airline regarding regulations on transporting Li-ion
batteries in carry-on or checked baggage.

kelite is most interested in performing any service to ensure that all
products perform as intended. Evidence of purchase date must be
provided to obtain warranty service.
No prior authorization is required. You may return directly to us or
through your dealer. Please include a brief description of the problem,
any relevant email correspondence, and/or instructions on what you
want us to do. Always include name, shipping address, email address,
and phone number inside of the package. Send postage paid to:
Ikelite nderwater Systems
Attention: Service Department
50 West 33 Street
Indianapolis, IN 46208 SA
No reimbursements for postage paid will be issued.
You may also want to insure the package.
Returning Products For Service
Returning Products for Service (outside the nited States)
For the separate international customs documentation form that you
complete to accompany the shipment, please state or designate that the
enclosed products were originally manufactured in the USA and are
being returned to the manufacturer for repair service. Value of the
equipment listed for customs purposes should be zero.
11
This kelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to kelite postage paid. kelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
kelite product.
Limited Warranty

12
Ikelite nderwater Systems
50 West 33rd Street
Indianapolis, IN 46208 SA
www.ikelite.com
Product Registration
Please go to www.ikelite.com to register your kelite housing within 15
days of purchase.
2101(US)_2102(Euro)_2103(UK)_2104(Aus)_VEGA_Light_02-0414
© 2014 kelite Underwater Systems
