Ikelite 71301 User manual

Product Registration
Please register your product within 15 days of purchase. Our product
registration database is the quickest way for us to contact you in the
event of a product update.
To register, send a photo of the above registration label to us via
[email protected] along with your name, address, and phone
number.
200DL Underwater Housing for Panasonic Lumix
DC-S1, DC-S1R
Product # 71301

2
Introduction
Thank you for your purchase of Ikelite products.
Our primary focus is to provide quality, professional grade products
for use in and under water. Our products are designed, manufactured,
and distributed from our sole facility in Indianapolis, USA where we
started in 1962.
We are available if you have any questions or want photo advice.
Send us an email 24 hours a day to [email protected]. We strive to
reply within 1 business day.
An electronic version of this instruction manual is available for
download via the product page on our website:
https://www.ikelite.com
In the Box
• Housing
• Main O-ring # 0132.61 (installed)
• Port O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 0072.42 (installed)
• Body Cap # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle (installed)
• Hardware Set for Base with Handle # 9523.23 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• .050” Hex Key # 0945.11
• 1/16” Hex Key # 0945.16
• Silicone Lubricant

3
Important Notices
»This housing requires a compatible DL lens port for waterproof
operation (sold separately). The housing is not waterproof
without a DL lens port attached.
»A bulkhead cap or sync cord must be attached to the housing
bulkhead for waterproof operation. Never submerge the
housing in water without either a sync cord or bulkhead cap
attached.
»Do not pull the shutter trigger without a camera installed. You
may accidentally detach or damage the control spring.
»Never leave a housing in a rinse tank, even if it is the only
system in the tank. Accidental damage may occur when the
user walks away from a housing while it is in the rinse tank.
»Do not use alcohol, cleaning agents, spray lubricants, Rain-X,
or other solvents on the housing or lens port. Use of an
incompatible chemical compound can damage the plastic and
o-rings, and may result in leaking.
»If you will be using the system in strong surf it is
recommended to draw a vacuum on the housing using the
optional vacuum pump (sold separately).

4
Contents
Product Registration 1
Introduction 2
In the Box 2
Important Notices 3
Getting to Know Your Housing 6
Base with Quick Release Handle 9
Accessory Port 9
Top Accessory Mount 10
Vacuum Valve 10
Trigger Extensions 10
Setting Up Your Camera 11
Pre-Installation Checklist 11
Camera Settings 11
Camera Settings Display 11
Exposure Settings 12
Back Button Focus 12
Setting Up Your Housing 13
Removing the Port Hole Cover 13
Installing a Zoom or Focus Gear 14
Opening the Housing 15
Installing the Camera 16
Attaching the Hotshoe 17
Closing the Housing 17

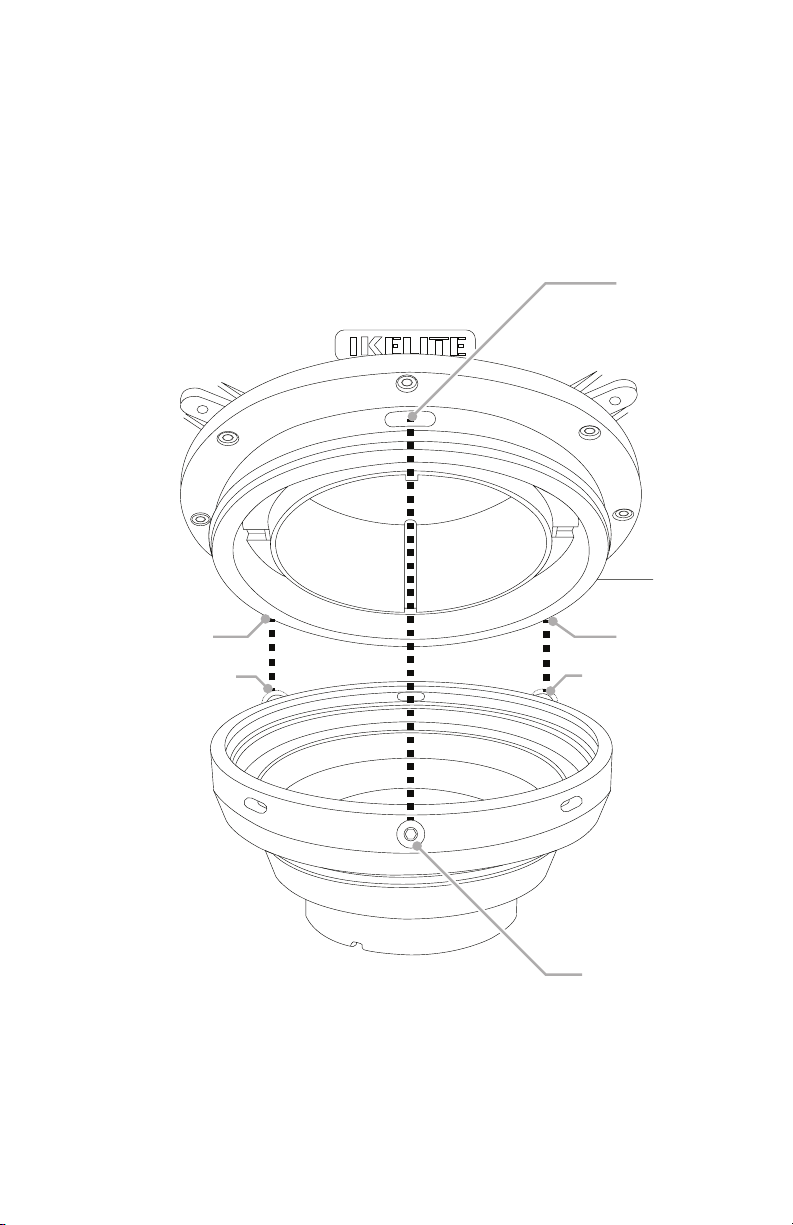

Attaching a Lens Port 18
Installing the Lens and Port 18
Setting Up An External Strobe 20
About Sync Cords 21
Attaching a Sync Cord or TTL Converter 21
Getting in the Water 22

5
Final Check 22
Entering the Water 23
Shooting Underwater 23
Learning about Underwater Photography 24
Maintaining Your Housing 24
Post-Dive 24
Lens Port 25
Storage 25
Servicing Recommendations 26
Lubricating Controls 26
Lubricating Push Buttons 27
Lubricating Control Shafts 28
Troubleshooting 29
Spare Parts 31
Limited Warranty 32
Service and Repairs 32
Contact Us 33

6
Getting to Know Your Housing
Shutter
Bulkhead
with cap
Port hole cover
Tray mounts
Vacuum valve
Lens
release
for MC21
Adapter
Zoom /
Focus
Zoom gear
retainer
Lens
release

7
PANASONIC S1 S1R / 200 FT
MADE IN USA
Q
DISP.
Playback
AF mode
Function /
joystick center
Viewnder Rear dial
AF-ON
O-ring
PANASONIC S1 S1R / 200 FT
MADE IN USA
Q
DISP.
Up
Right
MENU / SET
Left
Down
Display
Control
dial
Video rec
Q
Cancel
Delete

8
Accessory
port
Top mount
White balancePort mount
recess
Port mount
Lid snap hook
Lid snap
Front o-ring
LVF
Bulkhead
without cap
ISO
sensitivity
Exposure
compensation
On/off
Mode dial

9
Base with Quick Release Handle
The hard anodized aluminum base plate attaches to your housing with
the two 1/4” nylon washers and 1/4-20 x 3/8” screws.
It is recommended to remove your base with quick release handle and
thoroughly rinse the tray, housing, and hardware periodically.
A central 1/4-20 threaded hole allows attachment of the base plate to
a standard tripod.
The base features additional mounting locations for attachment to a
variety of Ikelite housings (hardware not included).
Accessory Port
This housing features one spare accessory port which may be used
for the attachment of optional third party accessories. This port
accepts ttings designed for a metric M16 threaded hole.
»Do not remove or loosen the accessory port plug unless you
are installing a compatible accessory.
Tripod mount

10
Top Accessory Mount
The housing features a 1/4-20 threaded top mount. Ball and ex type
mounts are available for the attachment of a GoPro camera, focus
light, or other lightweight accessories.

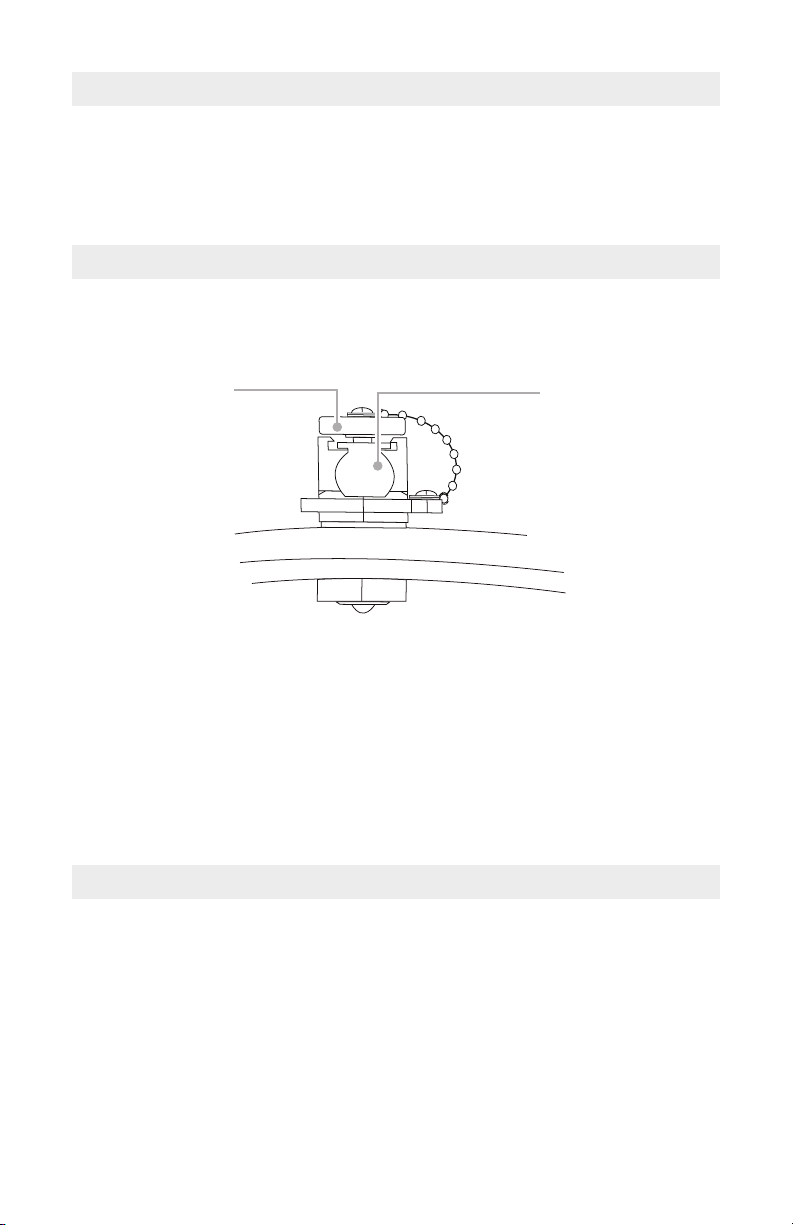

Vacuum Valve
Your housing features a valve to check for leaks before entering the
water. Use of the vacuum valve requires a pump, sold separately.
Valve lock
Plug
»DO NOT remove vacuum valve plug unless you are plugging in
a vacuum pump.
»DO NOT submerge the housing without the plug installed. The
housing will not be waterproof without the plug installed.
Trigger Extensions
The shutter and AF-ON levers may be extended to be closer to your
hands when using the optional Right-Hand Quick Release Handle
# 4077.02. This requires the Trigger Extension # 4077.93 (one per
control).
Trigger extensions and right-hand quick release handle are sold
separately.

11
Setting Up Your Camera
Pre-Installation Checklist
1. Insert a fully charged camera battery.
2. Insert a properly formatted memory card.
3. Remove lens cap and any attached lanyard or neck strap.
Camera Settings
• Set Eye Sensor Menu > LVF/Monitor Switch to “MON.”
• Set AF Assist Light to “OFF.”
• Set Flash Mode to “Forced Flash On” without red-eye reduction
when using an external strobe.
• Set Flash Synchro to “1st curtain synchro” (default) when using an
external strobe. “2nd curtain synchro” may be used with compatible
TTL converters. When an external ash is used, the fastest shutter
speed that can be selected is 1/250.
• Set HDR to “OFF” when using an external strobe.
• Flash cannot be used when an image effect in Filter Effect is
selected.
Camera Settings Display
Some camera information can be toggled on and off using the DISP.
button.
For a larger display of camera settings, use the Q.MENU button to
display the Quick Menu. Use the rear dial and control dial to change
settings.

12
Exposure Settings
Refer to the Cheat Sheets in the Photo School section of our website
for recommendations on exposure settings for a wide variety of
shooting situations:
https://www.ikelite.com/blogs/cheat-sheets
Back Button Focus
Back button focus takes some adjustment to get used to but can be
very valuable in a variety of shooting scenarios.
Use the camera’s custom settings menu to set Focus / Release
Shutter > Shutter AF to “OFF.”
The AF-ON button is conveniently accessed by a thumb lever on the
side of the housing. Instead of half-pressing the shutter to obtain focus
and lock focus, press the AF-ON button.
For super macro photography, you can use this technique instead
of a manual focus gear. Press AF-ON to lock focus at the minimum
focusing distance of your lens. Then move slightly in or out until the
subject is in focus.

13
Setting Up Your Housing

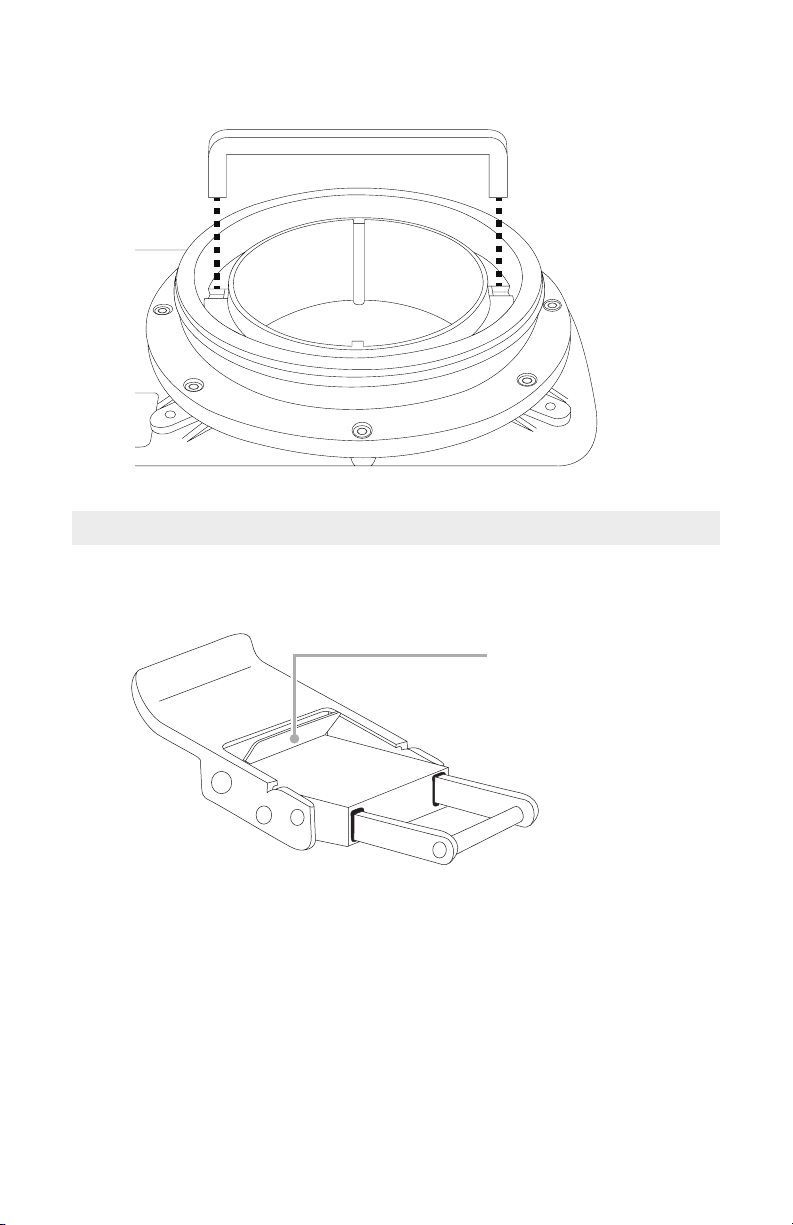

Removing the Port Hole Cover
1. Align the zoom gear retainer tool with the notches in the zoom
gear retainer.
Tool
Retainer
Port mount
Port hole
cover
2. Rotate the removal tool counter-clockwise until the retainer is free
from the lens port mount.
3. Remove the port hole cover from the housing.

14
Installing a Zoom or Focus Gear
1. Place the zoom or focus gear (sold separately) into the lens port
mount opening with the gear teeth toward the inside of the
housing.
Zoom or
focus gear
Retainer
2. Place the gear retainer into the opening around the gear.

15
3. Tighten the retainer by turning clockwise with the tool until snug.
Do not overtighten.
Opening the Housing
1. Push the lid snap lock forward and lift the curved end away from
the housing.
Lock
2. Lid snaps are designed to provide enough force to compress the
o-ring for a proper seal. Keep rm pressure against the lid snap
while lifting it away.
3. Repeat with remaining lid snaps.
4. Remove the housing back.

16
Installing the Camera
1. Remove any lanyard or neck strap which may be attached to the
camera.
2. Check to see whether the camera’s lens will t through the port
opening of the housing. If not, the lens will need to be removed
from the camera body and re-attached after the camera body is
installed in the housing.
3. Remove the camera mount plate from the housing.
4. Line the mount screw up with the camera’s tripod socket. Use a at
screwdriver to tighten the mount plate to the camera.
LENS
Mount screw
1/4-20 tripod
mount
Camera
tripod socket
5. Pull out on the housing control knobs to move the controls out of
the way.
6. Insert the mount plate into the slot on the inside bottom of the
housing. Push the camera all of the way forward until it stops.
7. Push housing control knobs in and check orientation with the
camera.
»The camera may be attached to a tripod using the 1/4-20
threaded mounting hole on the bottom of the mount plate.

17
Attaching the Hotshoe
1. Orient the hotshoe with the arrow on top pointing towards the front
of the camera.
2. Slide the housing hotshoe into camera’s hotshoe mount until it
stops.
»The hotshoe must be all the way forward in the camera mount
for proper ash operation.
Closing the Housing
1. Make sure the o-ring is clean and in its proper location on the back
of the housing. The rear housing o-ring does not require lubricant
to make a seal.
2. Place the back onto the housing front.
3. Make sure no controls or wires are interfering with the o-ring or the
back of the housing.
4. Place each lid snap into the corresponding hook on the housing
back.
Housing
hotshoe
Camera
hotshoe
mount

18
5. Push the lid snaps towards the housing until they are at against
the housing and the lock has engaged. Close opposing lid snaps at
the same time.
6. Check the o-ring seal. The o-ring should form a uniform, solid line
visible through the back of the housing.
7. Check control functions.
8. Attach a lens to the camera body. If using a zoom gear with clamp,
refer to the zoom gear instructions for information on interfacing
the clamp with the zoom gear.
Attaching a Lens Port
Refer to the appropriate lens port chart to nd compatible lens ports
for a wide variety of popular wide angle, zoom, and macro lenses.
Choose a dome port for wide angle and zoom lenses. Larger diameter
domes are better for split shots (half-in, half-out of the water) and
provide sharper images.
Choose a at port for macro lenses. Flat ports magnify the subject
underwater. Flat ports are not recommended for wide angle or zoom
lenses due to their limited eld of view and risk of vignetting (dark
shadows around the edges of the image).
»This housing requires a compatible DL lens port for waterproof
operation (sold separately). The housing is not waterproof
without a DL lens port attached.
Installing the Lens and Port
1. Attach the lens to the camera. If using a zoom/focus gear set that
requires a clamp, make sure the clamp slots are aligned with the
gear tabs. Test the function before attaching the port.
2. Check that the port sealing surface is clean and free of debris.

19
3. Apply a very thin, even layer of lubricant to the exposed portion of
the front o-ring and to the lens port sealing surface. Avoid dry spots
or uneven build-up of lubricant.
4. Align the port thumbscrews with the recesses in the housing’s port
mount.
Recess
Thumbscrew
RecessRecess
Thumbscrew
Thumbscrew

20
5. Press the port rmly towards the housing until the base of the
port is ush with the housing’s port mount. If there is resistance,
remove the port and re-check that the thumbscrews are loosened
and the o-ring is properly lubricated.

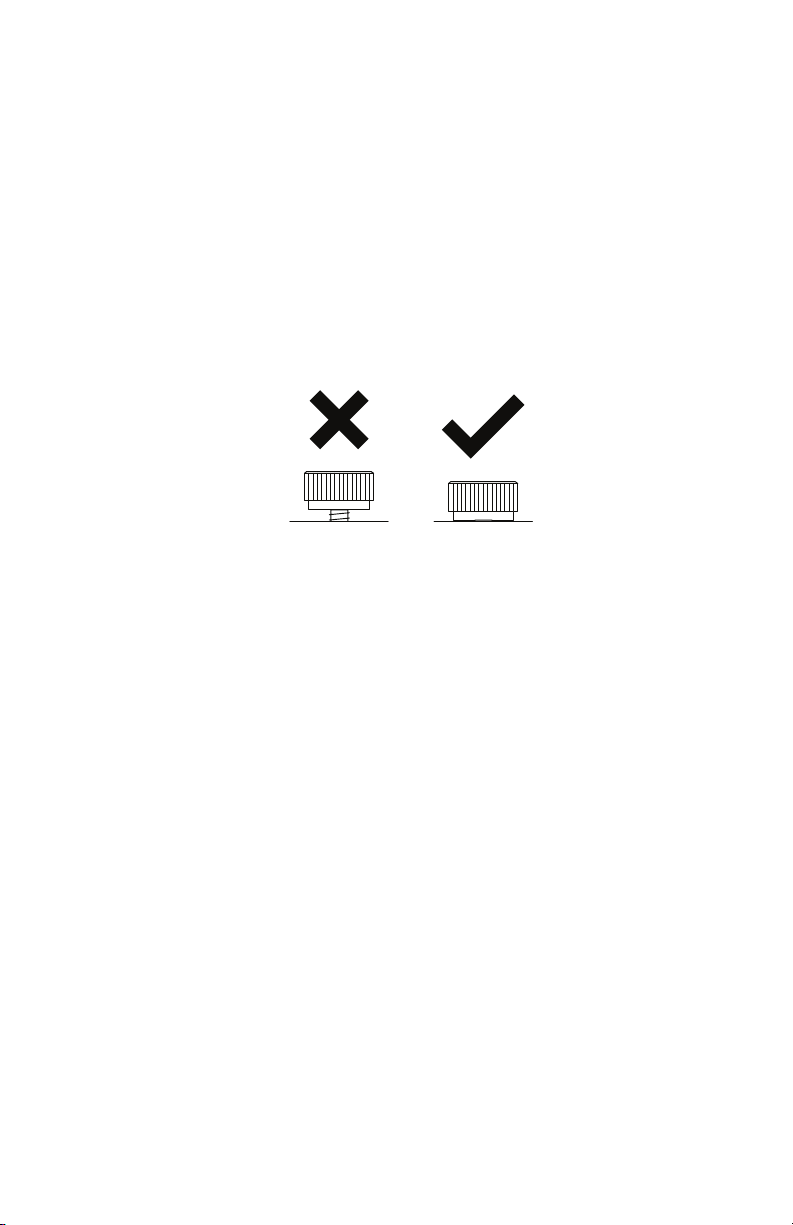

6. Tighten all three thumbscrews while holding the port rmly towards
the housing. The thumbscrews should thread in completely until
the head touches the port or extension body. If the screws are
difcult to turn and/or they bottom out before their heads are ush,
it is an indication that the port is not properly aligned.
»Proper alignment is critical to waterproof operation. Check
that your lens port is oriented correctly and fully seated before
entering the water.
»Zoom/focus gear parts and installation vary depending on the
lens you are using. Refer to the instructions included with the
zoom or focus gear for detailed installation information.
Setting Up An External Strobe
We recommend attaching an external strobe for the optimal color and
clarity in a wide variety of photographic situations, including daylight
photography.
This housing provides a direct electrical connection to the camera’s
external ash hotshoe via a manual ash hotshoe. An external strobe
may be triggered via electrical sync cord.
