Ilumiline 36 IP Optic RGB
Quick Reference Guide

Ilumiline 36 IP Optic RGB QRG
2
About this
Guide
The Ilumiline 36 IP Optic RGB Quick Reference Guide (QRG) only
contains the product’s connection, and mounting information, as well as the
menu options and the DMX values.
Disclaimer
Refer to this product’s User Manual for detailed information and
instructions. You can download the User Manual from the ILUMINARC
website: www.iluminarc.com.
Read ALL the disclaimers and Safety Notes in this document, as well as
those in the product’s User Manual before installing, operating, and
maintaining this product.
Safety Notes
•DO NOT open the product unless instructed. It contains no user
serviceable parts.
•DO NOT look at the light source when the product is on.
•DO NOT touch the product when operating because it may be hot.
•DO NOT leave any flammable material within 50 cm from the product
while operating or connected to the power outlet to minimize the risk of
fire.
•DO NOT mount the product overhead without using a safety cable.
•DO NOT submerge this product (IP66). Regular outdoor operation is
fine.
•DO NOT operate the product if you see damage on the housing, lenses,
or cables. Have an authorized technician replace the damaged parts.
•DO NOT connect the product to a dimmer or rheostat.
•ONLY connect the product to a grounded and protected circuit.
What Is
Included
•One Ilumiline 36 IP Optic RGB
•One Power Input Cable (bare-ended)
•One Data Input/Output Cable (bare-ended)
•One Warranty Card
•
One Quick Reference Guide
•The RDM2go, which includes a built in ilumicode addresser along
with many other useful features is now available.
•The Ilumicoode addresser is required for product configuration
(sold separately).

Ilumiline 36 IP Optic RGB QRG
3
Features
•1, 3, 4, 6, or 7-channel DMX RGB LED wash fixture
•Operating modes:
1-channel: Dimmer
3-channel: RGB control
4-channel: Dimmer, RGB control
6-channel: RGB control per module (two modules)
7-channel: Dimmer, RGB, color macros, strobe, dimmer speed
•Dimmer speed control
•Static color control without DMX controller
•High-power, 1 W (350 mA) LEDs (12 red, 12 green, and 12 blue)
•Cast aluminum, IP66, gray housing
•Impact resistant glass lens cover
•
Adjustable brackets
Options
•Ilumicode controller (for fixture configuration)
•Ilumicon controller (for operation without DMX controller)
•Installed (non-changeable) optical system:
60X10 lenses Order Number: 12036005

Ilumiline 36 IP Optic RGB QRG
4
Mounting
Before mounting this product, read the safety notes at the beginning of the
Ilumiline 36 IP Optic RGB User Manual and follow the mounting
procedures.
This product comes with two adjustable brackets to mount on any firm,
non-flammable surface, whether horizontally or vertically, on the floor or
hanging from a truss.

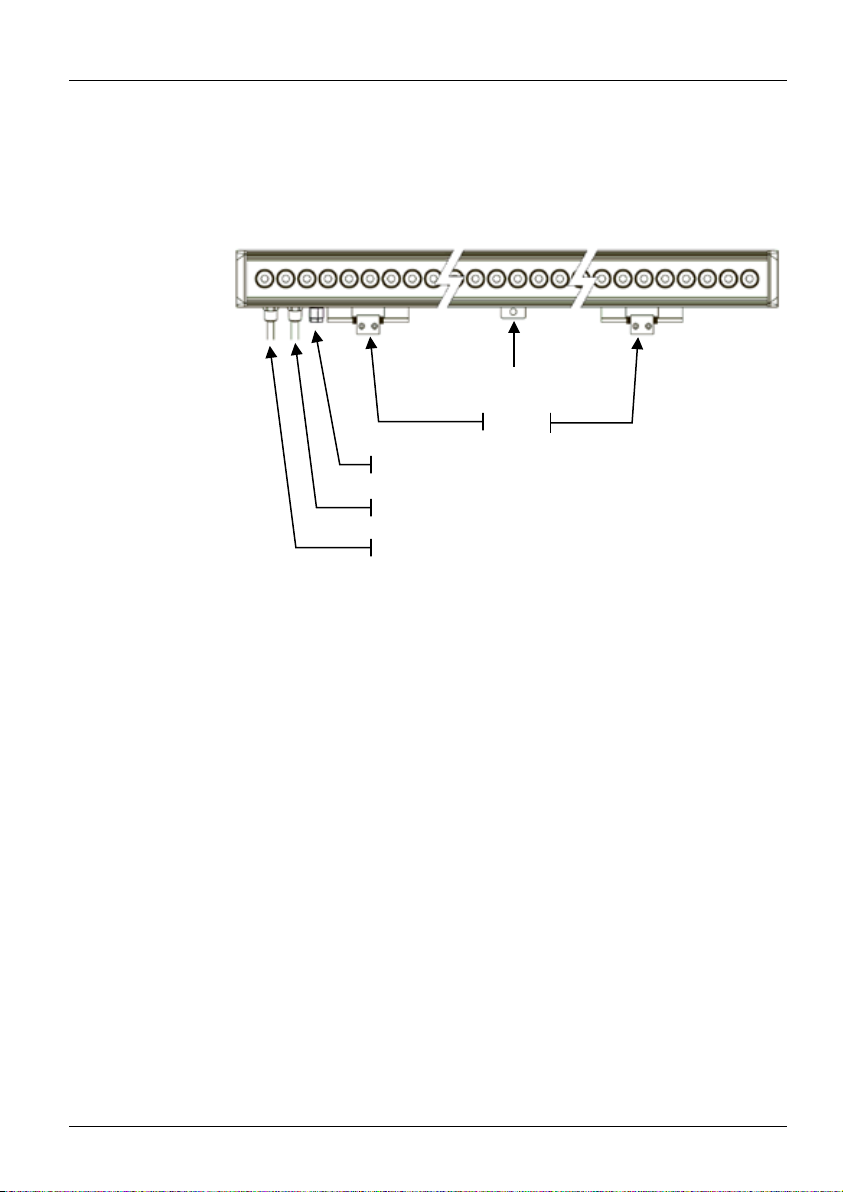

Mounting Diagram
Power In
Signal In/Out
Gore™ Valve
Brackets
Safety Loop

Ilumiline 36 IP Optic RGB QRG
5
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power
Wiring
You can connect the bare-ended IP66 rated power cable from the product
to an IP66 rated power connector or use an IP66 rated junction box. If
using an IP66 rated junction box, make sure to use IP66 rated conduit.
Power Cable
Table
Connection Wire (US) Wire (Europe) IP66 Pin
AC Live
Black
Brown
1
AC Neutral
White
Blue
2
AC Ground
Green/Yellow
Green/Yellow
3

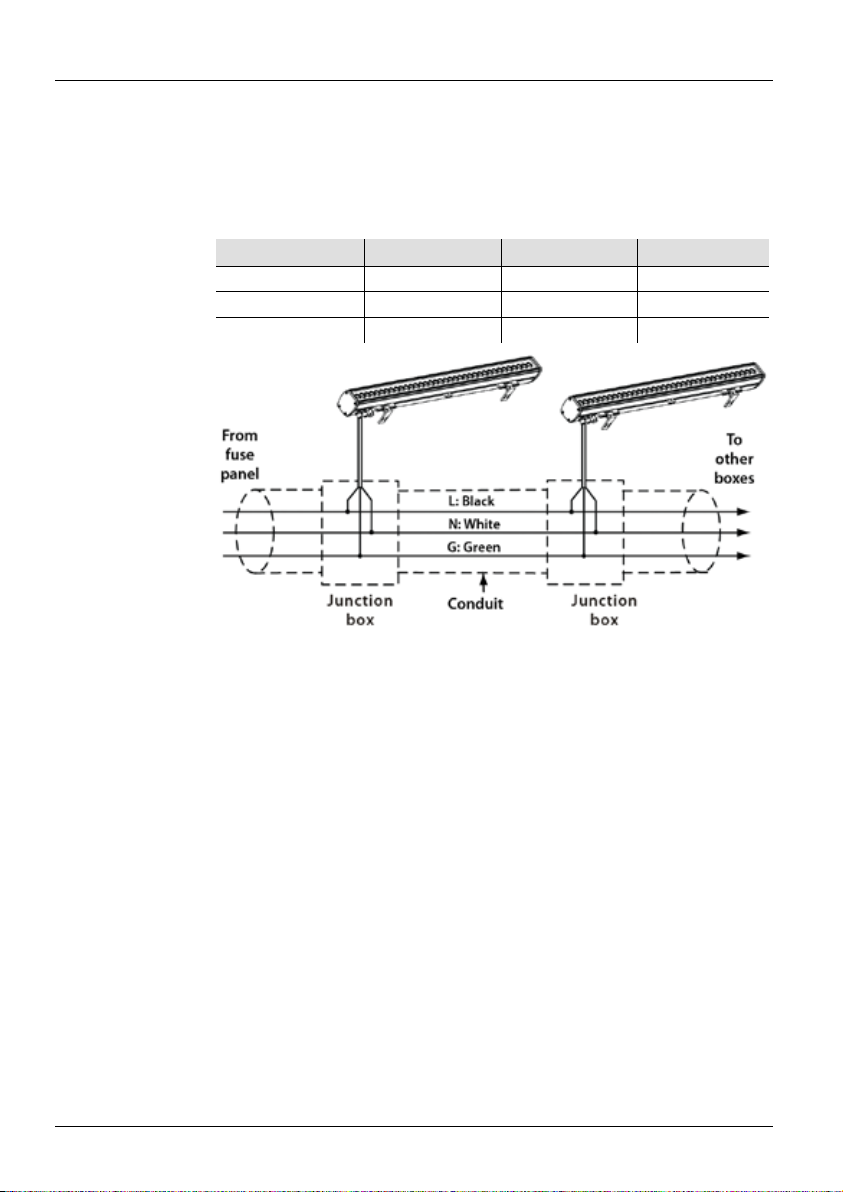

AC Power
Junction Box
Wiring

Ilumiline 36 IP Optic RGB QRG
6
DMX
Connection
You can connect the bare-ended IP66 rated signal cable from the product to
two IP66 rated signal connectors (DMX in and DMX Out) or use an IP66
rated junction box. If using an IP66 rated junction box, make sure to use
IP66 rated conduit.
Signal Wiring
To provide a signal for this product, you can connect the bare-ended IP66
rated signal cable from the product to two IP66 rated signal connectors
(DMX in and DMX out) or use an IP66 rated junction box. In this case,
make sure to use IP66 rates conduit.
The signal cable must match or exceed the electrical characteristics of
the Belden 9841 cable for EIA RS-485 applications. You can also use
CAT 5, CAT 5e, or CAT 6.

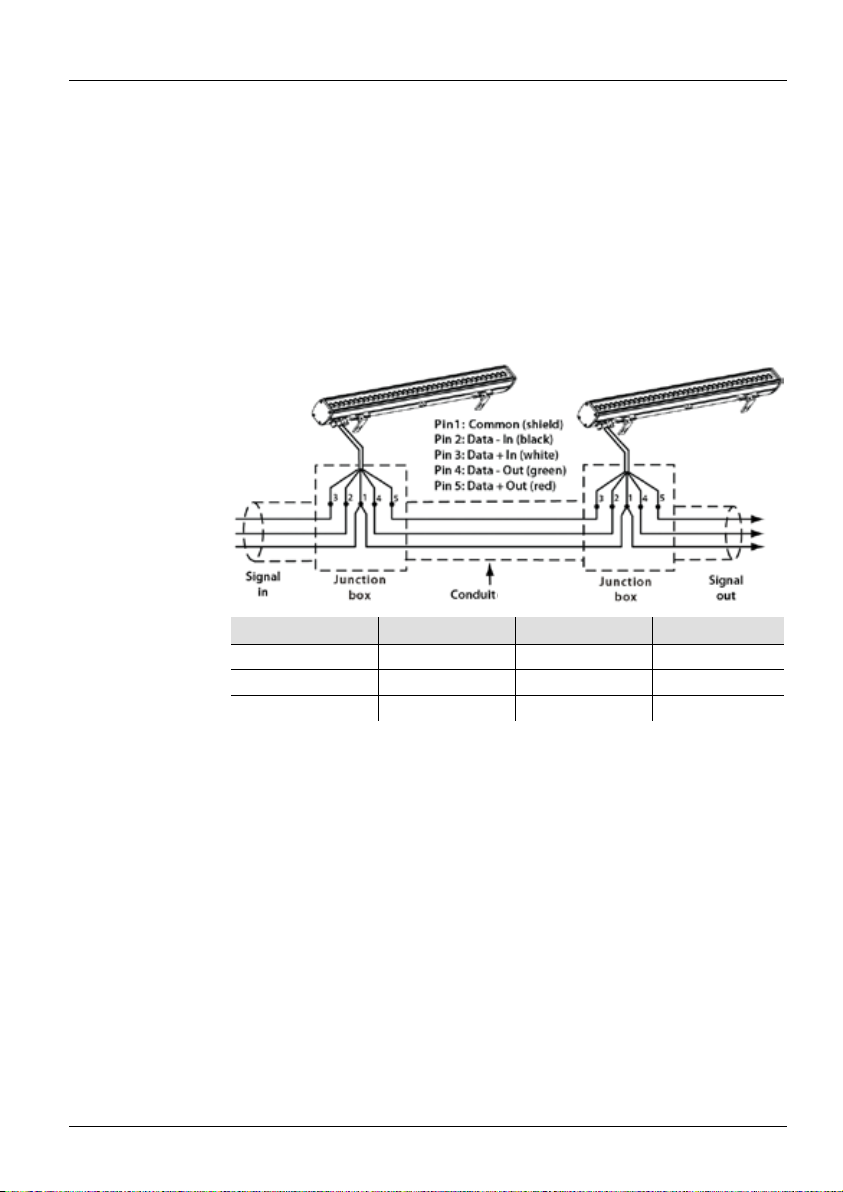

DMX Junction Box
Wiring
DMX Cable Table
Connection DMX In DMX Out IP66 Pin
Ground
Shield
Shield
1
Data -
Black
Green
2
Data +
White
Red
3

Ilumiline 36 IP Optic RGB QRG
7
Ilumicon
and DMX
Controllers
The Ilumiline 36 IP Optic RGB can operate with either an Ilumicon or a
DMX controller. Use the standard DMX connection, as shown on the
previous section (DMX Junction Box Wiring) to connect this product to
any of those controllers.
For more information, please refer to the Ilumiline 36 IP Optic Series User
Manual.
Settings
To configure the Ilumiline 36 IP Optic RGB, use the Ilumicode.
Ilumicode
Connections
The diagram below shows how to connect the Ilumicode to this product.
Note that this connection will control multiple fixtures at the same time,
all having the same DMX address. To assign individual DMX addresses to
each fixture, you must connect the Ilumicode unit to each fixture,
individually. This means that you will also have to disconnect the DMX
output of the fixture under configuration if there are other fixtures
connected to it.

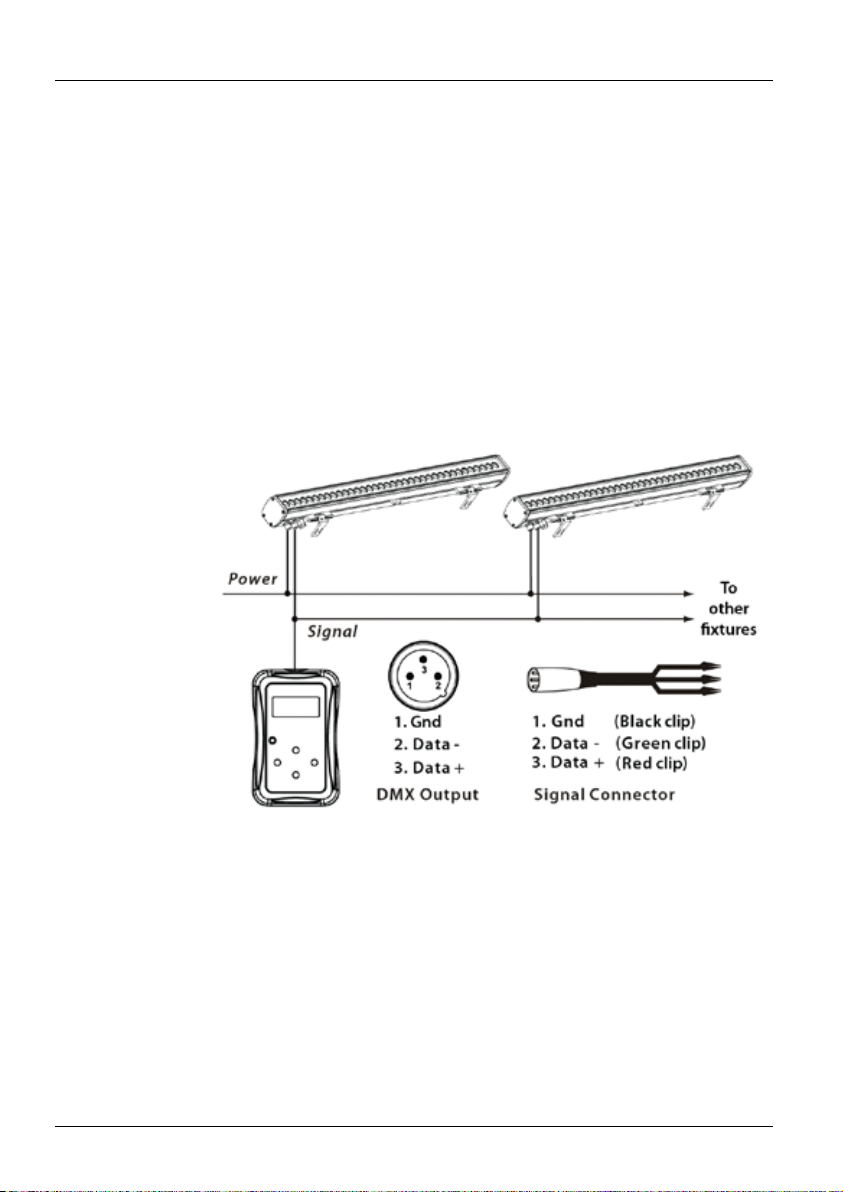

Ilumicode
Connection
Diagram
ILUMINARC suggests you to connect no more than 20 fixtures in this
mode, while keeping the total distance to less than 60 m (197 ft).
Otherwise, you might need to use an optically isolated signal amplifier.
Ilumicode
Addresser

Ilumiline 36 IP Optic RGB QRG
8
Control
Panel
Description
Button Function
<POWER>
Turns the Ilumicode unit on
<MENU>
Scrolls through the main level or exits from the current
menu or function (NOTE: Press and hold it to turn the unit
off)
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu options and increases
the numeric value when in a function
<DOWN>
Navigates downwards through the menu options and
decreases the numeric value when in a function
Start Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX addresses are as follows:
Mode
Address
Mode
Address
Mode
Address
SOLID
512
AR1.D
509
SPECIAL 1
507
ARC1
510
ARC FULL
506

Ilumiline 36 IP Optic RGB QRG
9
Menu
Options
Main Level
2nd Level
3rd Level
Instructions
DMX 001~512 N/A Sets the DMX starting address
PERSON
ARC 1
N/A
3-channel: RGB control
ARC 1 + D
4-channel: RGB control +
dimmer
ARC FULL
7-channel: RGB control +
dimmer
REMOTE
Allows using the ILUMICON
unit
SOLID
1-channel: dimmer
SPECIAL 1
6-channel RGB per module
CALIB
WHITE (1~11) RED (0~255)
GREEN (0~255)
BLUE (0~255)
Determines the white balance
for the color macros
RGB
Determines the white balance
when RGBTOW is active
DIMMER
OFF
N/A
Dimmer work in linear mode
DIM 1
Dimmer works in non-linear
mode, from fast to slow.
DIM 2
DIM 3
DIM 4
STATIC
RED
(0~255) Configures the static color
and effect
GREN
BLUE
STRB
SETTINGS
COLOR
OFF
Maximum output, unbalanced
white
RGBTOW
White output is as per CALIB
> RGB settings
UC
Output matches that of
fixture’s previous versions
RESET
NO/YES

Ilumiline 36 IP Optic RGB QRG
10
DMX Channel Values
ARC FULL
Channel
Function
Value
Percent/Setting
1
RGB Dimmer
000 ó255
0~100%
2
Red
000 ó255
0~100%
3
Green
000 ó255
0~100%
4
Blue
000 ó255
0~100%
5 Color Macros
000
ó
010
011 ó035
036 ó060
061 ó085
086 ó110
111 ó135
136 ó160
161 ó185
186 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No function
Red: 100% Green: Up Blue: 0%
Red: Down Green: 100% Blue: 0%
Red: 0% Green: 100% Blue: Up
Red: 0% Green: Down Blue: 100%
Red: Up Green: 0% Blue: 100%
Red: 100% Green: 0% Blue: Down
Red: 100% Green: Up Blue: Up
Red: Down Green: Down Blue: 100%
White 1: 3,200 K
White 2: 3,400 K
White 3: 4,200 K
White 4: 4,900 K
White 5: 5,600 K
White 6: 5,900 K
White 7: 6,500 K
White 8: 7,200 K
White 9: 8,000 K
6 Strobe
000 ó005
006 ó255
No function
Slow~Fast
7 Dimmer Speed
000 ó009
010 ó069
070 ó129
130 ó189
190 ó255
Off
Speed 1 (Fastest)
Speed 2
Speed 3
Speed 4 (Slowest)

Ilumiline 36 IP Optic RGB QRG
11
ARC 1
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0~100%
2
Green
000 ó255
0~100%
3
Blue
000 ó255
0~100%
ARC 1 + D
Channel
Function
Value
Percent/Setting
1
RGB Dimmer
000 ó255
0~100%
2
Red
000 ó255
0~100%
3
Green
000 ó255
0~100%
4
Blue
000 ó255
0~100%
SOLID
Channel
Function
Value
Percent/Setting
1
RGB Dimmer
000 ó255
0~100%
SPECIAL 1
Channel
Function
Value
Percent/Setting
1
Module 1 Red
000 ó255
0~100%
2
Module 1 Green
000 ó255
0~100%
3
Module 1 Blue
000 ó255
0~100%
4
Module 2 Red
000 ó255
0~100%
5
Module 2 Green
000 ó255
0~100%
6
Module 2 Blue
000 ó255
0~100%

Ilumiline 36 IP Optic RGB QRG
12
Contact Us
General Information
Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Toll free: [phone]
Voice: [phone]
Email: [e-mail]
Website:
www.iluminarc.com
Chauvet Europe Ltd
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.co.uk
Chauvet Europe BVBA
Address: Stokstraat 18
9770 Kruishoutem
Belgium
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet Germany
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Germany
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvetlighting.eu
Chauvet Mexico
Address: Av. de las Partidas 34-3B
(Entrance by Calle 2)
Zona Industrial Lerma
Lerma, Mexico C.P. 52000
Voice: [phone]
Email:
[e-mail]
Website:
www.chauvet.com.mx
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact
the dealer of record. Follow the instructions to request support or to return a
product. Visit our website for contact details
Ilumiline 36 IP Optic RGB QRG – Rev. 06
© Copyright 2018 ILUMINARC
All rights reserved.
Printed in the P. R. C.
