Ilumipod 48 IP Optic RGBW
Quick Reference Guide

Ilumipod 48 IP Optic RGBW QRG
2
About This
Guide
The Ilumipod 48 IP Optic RGBW Quick Reference Guide (QRG) contains
the product’s connection and mounting information, as well as the menu
options and DMX values.
Disclaimer
Refer to this product’s User Manual for detailed information and
instructions. You can download the User Manual from the ILUMINARC®
website: www.iluminarc.com.
Read ALL the disclaimers and Safety Notes in this document, as well as
those in the product’s User Manual before installing, operating, or
maintaining this product.
Safety Notes
•DO NOT open this product unless instructed. It contains no user
serviceable parts.
•DO NOT look at the light source when this product is on.
•DO NOT touch the product when it is operating because it may be hot.
•DO NOT leave any flammable material within 50 cm from this product
while operating or connected to the power outlet to minimize the risk of
fire.
•DO NOT mount this product overhead without using a safety cable.
•DO NOT submerge this product below 1 m for more than 30 minutes
(IP67). Regular outdoor operation is fine.
•
DO NOT operate this product if you see damage on the housing, lenses,
or cables. Have an authorized technician replace the damaged parts.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
What Is
Included
•One Ilumipod 48 IP Optic RGBW
•One Power Input Cable (bare-ended)
•One Data Input/Output Cable (bare-ended)
•One Safety Cable
•One Warranty Card
•
One Quick Reference Guide

Ilumipod 48 IP Optic RGBW QRG
3
Features
•3, 4, 5, 6, or 11-channel DMX LED wash light (with ID addressing)
•Operating modes:
3-channel: RGB control
3-channel: HSV control (hue, saturation and value)
4-channel: RGBW control
4-channel: RGB, dimmer
5-channel: RGBW, dimmer
6-channel: RGBW, dimmer, strobe
11-channel: RGBW, ID, dimmer, strobe, macro, auto, auto speed,
custom, dimmer speed
•RGBW color mixing with or without DMX controller
•Color temperature presets (3,200~10,000 K)
•Built-in automated programs via DMX
•
Recall custom programs via DMX
Options
•Ilumicon controller (for operation without DMX controller)
•High-power, 2~3 W (750~1000 mA) LEDs
•Ingress Protection: IP67
•LED display with lock-out feature

Ilumipod 48 IP Optic RGBW QRG
4
AC Power
This product has an auto-ranging power supply that works with an input
voltage range of 100~240 VAC, 50/60 Hz.
Power Wiring
You can connect the bare-ended IP67 rated power cable from the product to
an IP67 rated power connector or use an IP67 rated junction box. If using an
IP67 rated junction box, make sure to use IP67 rated conduit.
Power Cable
Table
Connection Wire (US) Wire (Europe) IP67 Pin
AC Live
Black
Brown
1
AC Neutral
White
Blue
2
AC Ground
Green/Yellow
Green/Yellow
3
AC Power
Junction
Box Wiring

Ilumipod 48 IP Optic RGBW QRG
5
DMX
Connection
You can connect the bare-ended IP67 rated signal cable from this product to
two IP67 rated signal connectors (DMX in and DMX Out) or use an IP67
rated junction box. If using an IP67 rated junction box, make sure to use
IP67 rated conduit.
Signal Wiring
To provide a signal for this product, you can connect the bare-ended IP67
rated signal cable fr
om the product to two IP67 rated signal connectors
(DMX in and DMX out) or use an IP67 rated junction box.
If using an IP67
rated junction box, make sure to use IP67 rates.
The signal cable must match or exceed the electrical characteristics of
the Belden® 9841 cable for EIA RS
-485 applications. You can also use
CAT 5, CAT 5e, or CAT 6.

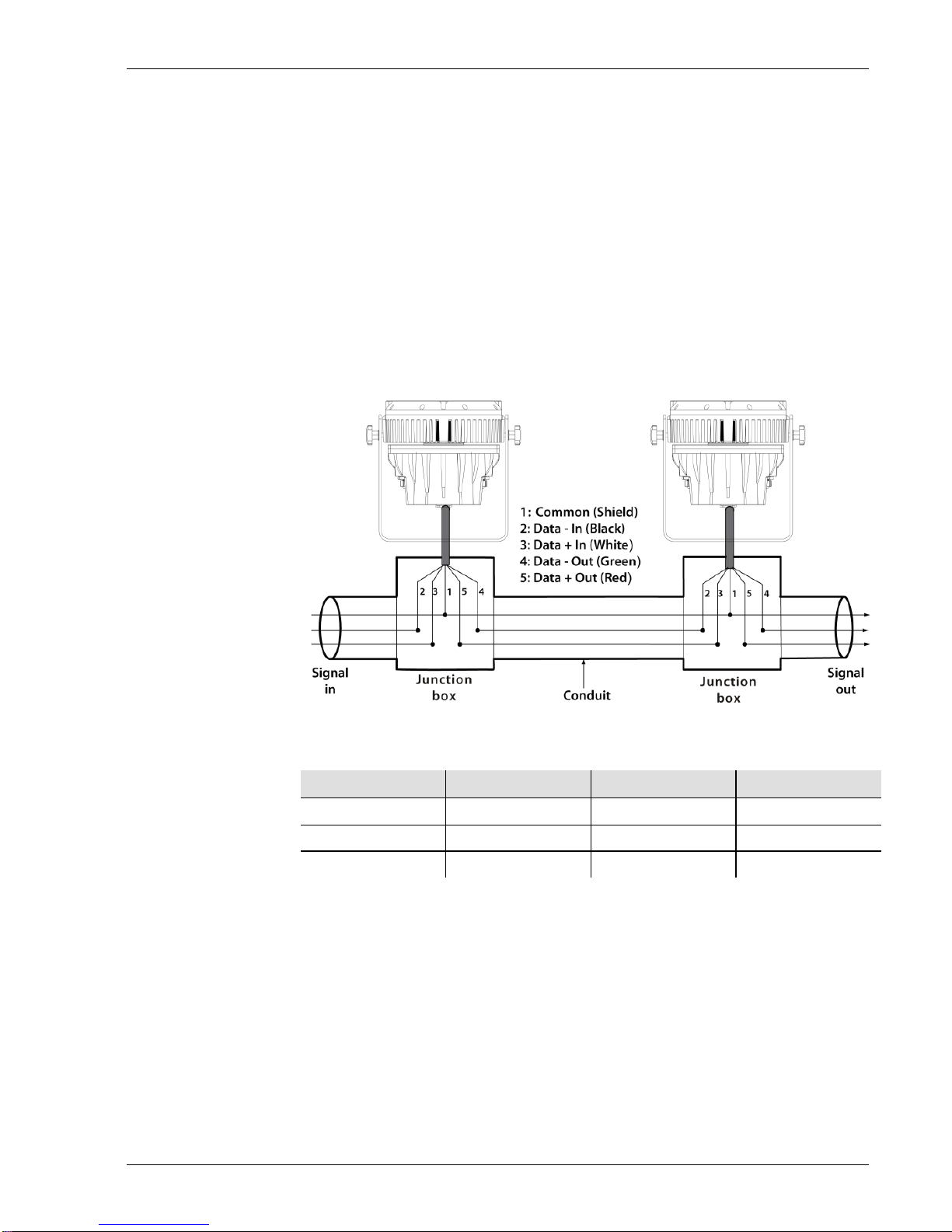

DMX
Junction Box
Wiring
DMX Cable
Table
Connection DMX In DMX Out IP67 Pin
Ground
Shield
Shield
1
Data -
Black
Green
2
Data +
White
Red
3
Ilumicon and
DMX
Controllers
The Ilumipod 48 IP Optic RGBW can operate with either an Ilumicon or a
DMX controller. Use the standard DMX connection, as shown on page 4
(DMX Junction Box Wiring) to connect this product to any of those
controllers. For more information, please refer to the Ilumipod 48 IP Optic
RGBW User Manual.

Ilumipod 48 IP Optic RGBW QRG
6
Installation
Before installing this product, read the Safety Notes at the beginning of the
Ilumipod 48 IP Optic RGBW User Manual and follow the installation
procedures.
This product comes with ONE (1) adjustable bracket to mount it on any
firm, non-flammable surface, w
hether horizontally or vertically, on the floor
or hanging from a truss.

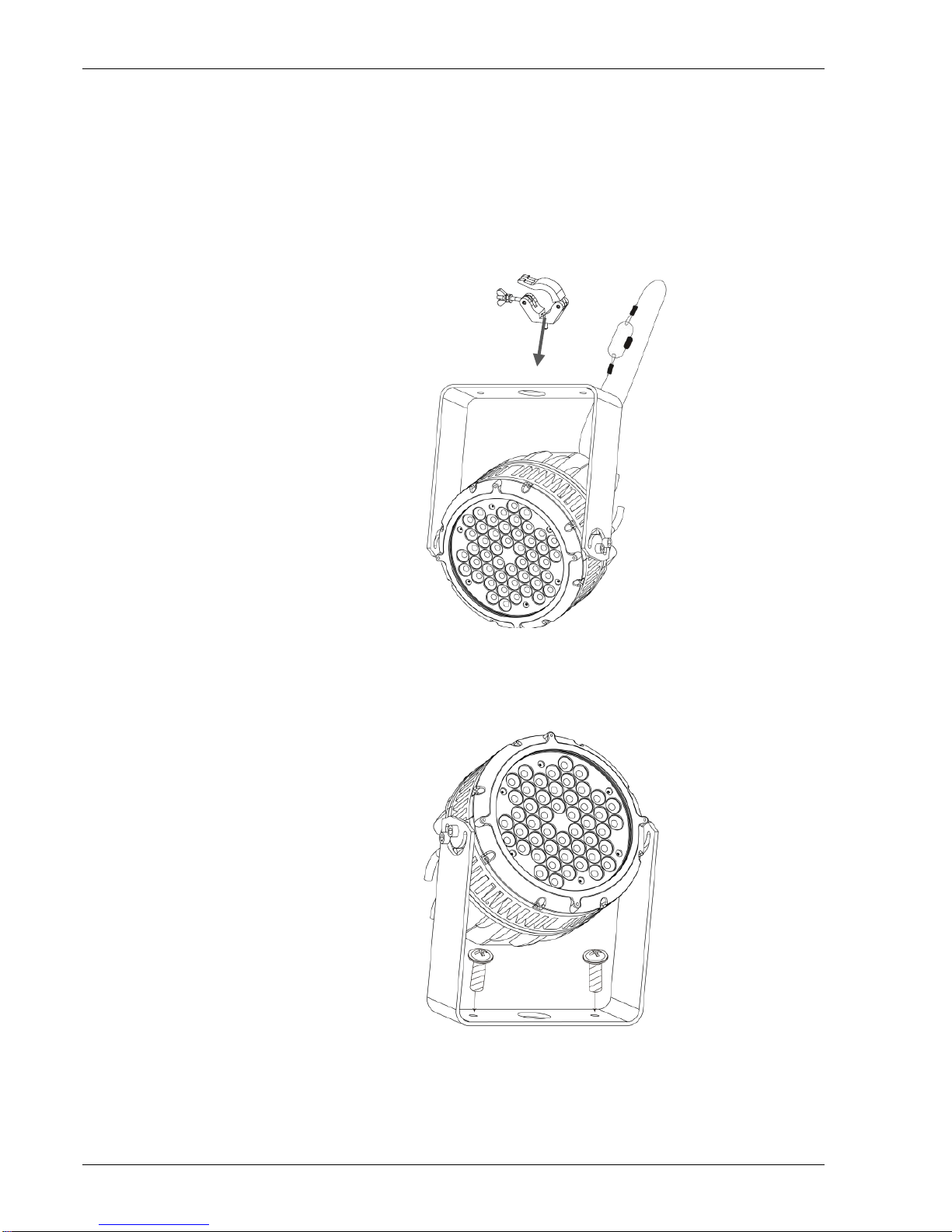

Mounting Diagram
Floor Mounting
Overhead Mounting

Ilumipod 48 IP Optic RGBW QRG
7
Control Panel
Description
Button Function
<MENU>
Scrolls through the main level or exits from the current menu
or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function.
<UP>
Navigates upwards through the menu options and increases the
numeric value when in a function.
<DOWN>
Navigates downwards through the menu options and decreases
the numeric value when in a function.
Password
After being prompted to enter the password, press:
<UP>, <DOWN>, <UP>, <DOWN>, and <ENTER>.
Start Address
To ensure full access to all channels in each DMX mode, the highest
recommended DMX addresses are as follows:
Mode Address Mode Address Mode Address
STAG
502
AR1.D
509
HSV
510
ARC1
510
AR2.S
508
AR2D
507

Ilumipod 48 IP Optic RGBW QRG
8
Menu Options
1
st
Level
Programming Levels Description
STAT
R (red)
000~255 Combines red, green, blue, and white to form a
custom color
G (green)
b (blue)
w (white)
ST (strobe)
00~20
Strobe frequency (0~20 Hz)
AUTO
AT.1~10
Selects any of the 10 auto programs
PR.1~10
Selects any of the 10 custom (editable) programs
RUN
dMX
Operates with a DMX controller
SLAV
Operates with a master fixture
dMX
d.001~512
Sets the DMX starting address
PERS
STAG
11 channels (RGBW, D, S, CM, A, AS, DS, ID)
ARC.1
3 channels (RGB)
AR1.D
4 channels (RGB, D)
ARC.2
4 channels (RGBW)
AR2.d
5 channels (RGBW, D)
AR2.S
6 channels (RGBW, D, S)
HSV
3 channels (hue, saturation, value)
Id
Id.01~66
Assigns an ID address to the fixture
EdIT
PR.
01~10 SC. 01~30
R (red)
000~255 Combines red, green, blue, and white to form a
custom color
G (green)
b (blue)
w (white)
Sb (strobe)
00~20
Strobe frequency (0~20 Hz)
T (time)
000~255
Step duration
F (fade)
Fade duration
SET
Pow (upload)
NORM
Disables HyperColor™ mode
HIGH
Enables HyperColor™ mode
UPLd (upload)
<Password>
Uploads custom programs to another fixture
REST (reset)
Resets the fixture to factory settings
Id (ID addressing)
ON/OFF
Turns ID addressing on or off
RGbw
(color calibration)
OFF
Max output when RGBW faders are at 255
RGbw (RGB to white)
Pre-set output when RGBW faders are at 255
UC (Universal Color)
Output matches that of older fixtures
dIM
(dimmer speed)
OFF
Makes dimmer curve linear
dIM1~4
Changes the dimmer curve (fast slow)
CAL1
wT.01~11
(White temperature)
R (red)
000~255 Modifies the white temperature used in the
macros channel (TOUR, channel 6)
G (green)
b (blue)
w (white)
CAL2
RGbw
(RGB to white)
R (red)
000~255 Modifies the white color used when SET >
COLOR > RGbw is active
G (green)
b (blue)
KEY
ON/OFF
Turns the password on or off

Ilumipod 48 IP Optic RGBW QRG
9
DMX Values
STAG
Channel
Function
Value
Setting
1
Dimmer
000 255
0~100%
2
Red
000 255
0~100%
3
Green
000 255
0~100%
4
Blue
000 255
0~100%
5
White
000 255
0~100%
6 Color Macro + White
Balance
000

005
006 020
021 030
031 050
051 070
071 080
081 090
091 110
111 130
131 150
151 170
171 190
191 200
201 205
206 210
211 215
216 220
221 225
226 230
231 235
236 240
241 245
246 250
251 255
No Function
HyperColor™ Mode (only in Normal power mode)
No Function
R: 100% G: 0~100% B: 0%
R: 100~0% G: 100% B: 0%
R: 0% G: 100% B: 0~100%
R: 100% G: 0% B: 100~0%
R: 0% G: 100~0% B: 100%
R: 0~100% G: 0% B: 100%
R: 100% G: 0% B: 100~0%
R: 100% G: 0~100% B: 0~100%
R: 100~0% G: 100~0% B: 100%
R: 100% G: 100% B: 100% W: 100%
White 1: 3200 K
White 2: 3400 K
White 3: 4200 K
White 4: 4900 K
White 5: 5600 K
White 6: 5900 K
White 7: 6500 K
White 8: 7200 K
White 9: 8000 K
White 10: 8500 K
White 11: 10000 K
7 Strobe
000 010
011 255
No Function
0~20 Hz
8 Auto + Custom
Programs
000 020
021 030
031 040
041 050
051 060
061 070
071 080
081 090
091 100
101

110
No Function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Auto 6
Auto 7
Auto 8
Auto 9

Ilumipod 48 IP Optic RGBW QRG
10
STAG (cont.)
Channel
Function
Value
Setting
8 Auto + Custom
Programs
111 120
121 130
131 140
141 150
151 160
161 170
171 180
181 190
191 200
201 210
211 255
Auto 10
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Custom 6
Custom 7
Custom 8
Custom 9
Custom 10
9
Auto Speed
000 255
0~100% (Only when Auto 01~10 active)
10 Dimmer Speed
000

009
010 069
070 129
130 189
190 255
Linear dimming curve
Nonlinear dimming curve 1 (fastest)
Nonlinear dimming curve 2
Nonlinear dimming curve 3
Nonlinear dimming curve 4 (slowest)
11 ID Addressing
000

009
010 019
020 029
030 039
040 049
050 059
060 069
070 079
080 089
090 099
100 109
110 119
120 129
130 139
140 149
150 159
160 169
170 179
180 189
190 199
200 209
210
211
All IDs
ID 1
ID 2
ID 3
ID 4
ID 5
ID 6
ID 7
ID 8
ID 9
ID 10
ID 11
ID 12
ID 13
ID 14
ID 15
ID 16
ID 17
ID 18
ID 19
ID 20
ID 21
ID 22
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
ID 23
ID 24
ID 25
ID 26
ID 27
ID 28
ID 29
ID 30
ID 31
ID 32
ID 33
ID 34
ID 35
ID 36
ID 37
ID 38
ID 39
ID 40
ID 41
ID 42
ID 43
ID 44
ID 45
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
ID 46
ID 47
ID 48
ID 49
ID 50
ID 51
ID 52
ID 53
ID 54
ID 55
ID 56
ID 57
ID 58
ID 59
ID 60
ID 61
ID 62
ID 63
ID 64
ID 65
ID 66

Ilumipod 48 IP Optic RGBW QRG
11
ARC 1
Channel
Function
Value
Percent/Setting
1
Red
000 255
0~100%
2
Green
000 255
0~100%
3
Blue
000 255
0~100%
ARC 1 + D
Channel
Function
Value
Percent/Setting
1
Dimmer
000 255
0~100%
2
Red
000 255
0~100%
3
Green
000 255
0~100%
4
Blue
000 255
0~100%
ARC 2
Channel
Function
Value
Percent/Setting
1
Red
000 255
0~100%
2
Green
000 255
0~100%
3
Blue
000 255
0~100%
4
White
000 255
0~100%
ARC 2 + D
Channel
Function
Value
Percent/Setting
1
Dimmer
000 255
0~100%
2
Red
000 255
0~100%
3
Green
000 255
0~100%
4
Blue
000 255
0~100%
5
White
000 255
0~100%
ARC 2 + S
Channel
Function
Value
Percent/Setting
1
Dimmer
000 255
0~100%
2
Red
000 255
0~100%
3
Green
000 255
0~100%
4
Blue
000 255
0~100%
5
White
000 255
0~100%
6 Strobe
000 004
005 255
No Function
0~20 Hz

Ilumipod 48 IP Optic RGBW QRG
12
Contact Us
General Information ILUMINARC®
5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Fax: [phone]
(ATTN: ILUMINARC®)
World Wide Web www.iluminarc.com/
Ilumipod 48 IP Optic RGBW QRG – Rev. 03
© Copyright 2011 ILUMINARC®
All rights reserved.
Printed in the P. R. C.
