Iluminarc LOGIC MR16 User manual

English EN
Español ES
Français FR
Deutsch DE
Nederlands NL
Quick Reference Guide
Model ID: LOGICMR16DNS

1
EN
QUICK REFERENCE GUIDE
LΩGIC MR16 Downlight S QRG Rev. 5
About This Guide
The LΩGIC MR16 Downlight S Quick Reference Guide (QRG) has product information such as mounting, menu options,
and DMX values. Download the User Manual for the LΩGIC Drive 2X from www.iluminarc.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.www.iluminarc.com/warranty-registration-architectural-lighting.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.www.iluminarc.com/warranty-registration-architectural-lighting.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.3 ft (1m)
is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced with a special cable or cord
exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer, its service agent, or a
similarly qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid
ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product’s housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 11.8 in (30 cm) of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect
it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to IEEE 802.3bt POE power source equipment (PSE).
• In the event of a serious operating problem, stop using immediately.
• The startup temperature range is -4 °F to 113 °F (-20 °C to 45 °C). Do not start the product outside this range.
• The operating temperature range is -40 °F to 113 °F (-40 °C to 45 °C). Do not operate the product outside this
range.
• The storage temperature range is -40 °F to 167 °F (-40 °C to 75 °C). Do not store the product outside this range.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operations is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.

EN
2
LΩGIC MR16 Downlight S QRG Rev. 5
QUICK REFERENCE GUIDE
What is Included
DC Power
This product is powered by the LΩGIC Drive 2X via the LΩGIC POE X with a CAT6 connection of 52 VDC. Download the
User Manual for the LΩGIC Drive 2X and the Quick Reference Guide for the LΩGIC POE X from www.iluminarc.com for
more details.
Power Linking
It is possible to link up to 8 LΩGIC MR16 Downlight S products from each output of the LΩGIC POE X. A POE injector
must be used to power products connected to the THRU port of the LΩGIC POE X.
Filters
The LΩGIC MR16 Downlight S has 2 filter slots.
• The inner filter slot fits the medium filter (pre-installed) or the wide filter (included).
• The outer filter slot fits the LΩGIC MR16 HF (Honeycomb Filter, sold separately by Iluminarc).
• To remove the installed filter, turn it until the keys on the edge line up with the openings in the slot.
• To install a filter in an empty slot, line up the keys on the edge with the openings in the slot and insert. Turn the
filter so the keys are secure.
Signal Linking
The LΩGIC MR16 Downlight S will receive a control signal (DMX, RDM, Art-Net™, or sACN) from the LΩGIC Drive 2X
via the LΩGIC POE X with a CAT6 connection.
Connecting and Cabling
The LΩGIC MR16 Downlight S has an IN port and an OUT port which require a CAT6 ethernet connection.
•LΩGIC MR16 Downlight S
• Medium and wide filters
• Hanging pendant bracket
• Quick Reference Guide
Turn the filter no more than 60° or it may not be secure.
Key (x3)
Medium or wide filter (inner slot) LΩGIC MR16 HF (outer slot)
Key (x3)
IN OUT
LΩGIC Drive 2X
LΩGIC MR16 Downlight S
LΩGIC POE X

3
EN
QUICK REFERENCE GUIDE
LΩGIC MR16 Downlight S QRG Rev. 5
Between LΩGIC Drive 2X and LΩGIC POE X:
Short cables may use a smaller gauge, but any cable longer than 50 ft (15 m) must be 23 AWG and shielded, or the
products may not receive enough power.
Cable requirements: Max/Min gauge of 23/28 AWG CAT6 4 twisted pair.
• For distances less than 50 ft (15 m): 23-28 AWG (shielded or unshielded)
• For distances from 50-328 ft (15-100 m): 23 AWG (shielded)
OUTPUT Port
The OUTPUT port of the LΩGIC POE X allows up to 75 ft (23 m) of total cabling between the LΩGIC POE X and the final
LΩGIC MR16 Downlight S in the chain. These cables can be 23-28 AWG (shielded or unshielded).
THRU Port
The THRU port of the LΩGIC POE X only passes the control signal from the LΩGIC Drive 2X, no power. A POE injector
must be used BEFORE the first LΩGIC product in the chain to power it and further products connected to this port.

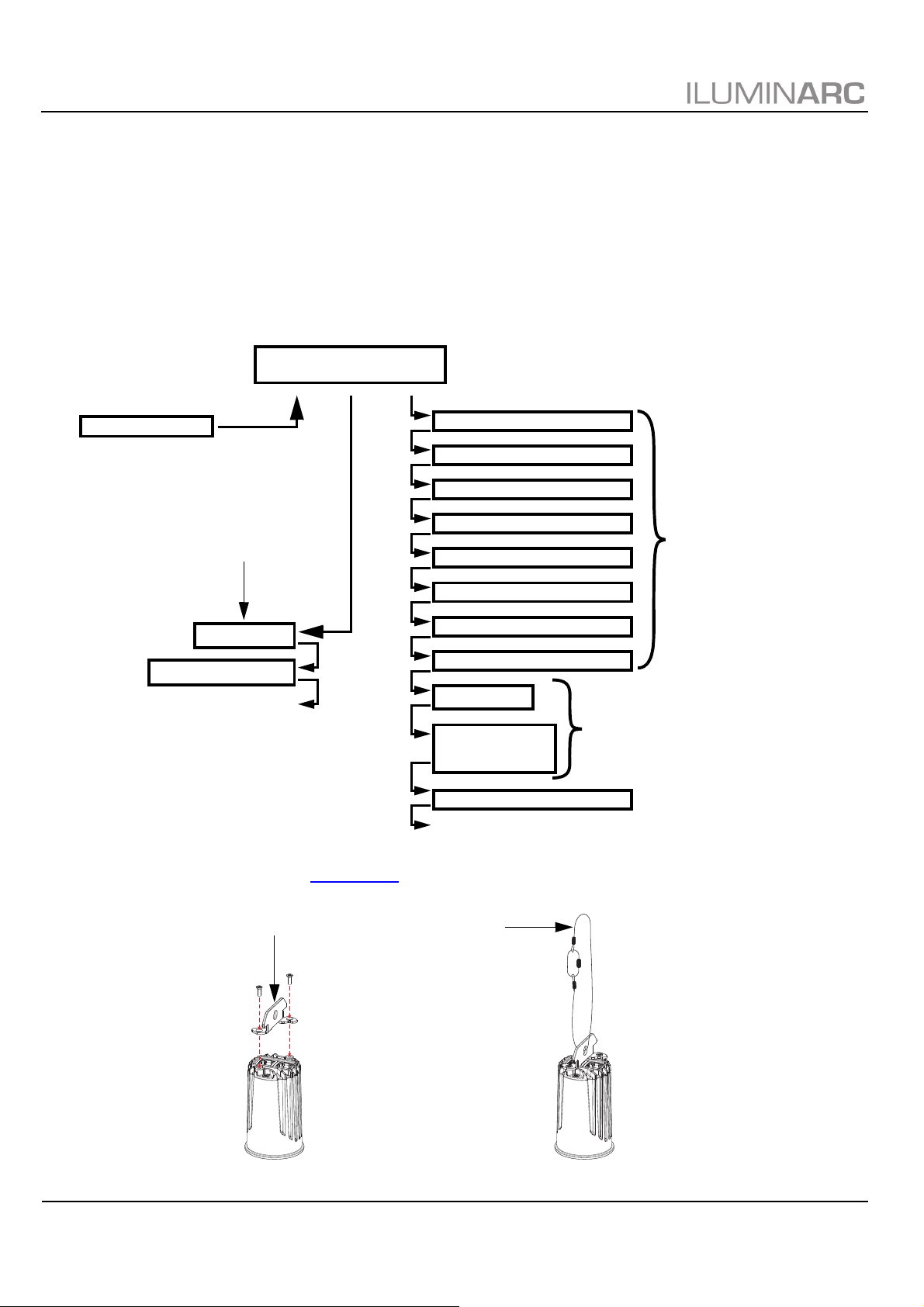

Mounting
Before mounting this product, read the Safety Notes.
Pendant Mounting
LΩGIC DRIVE 2X
POE injector
LΩGIC product
LΩGIC MR16 Downlight S
A POE injector must be
used between the THRU
port of the LΩGIC POE X
and the first connected
LΩGIC product
POE injector A POE injector AND an
additional LΩGIC POE X
must be used after every 8th
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
To further LΩGIC products
INPUT LΩGIC
POE X
THRU
OUTPUT
LΩGIC MR16 Downlight S
To further LΩGIC MR16 Downlight S products
Up to 75 ft (23 m) of total
cabling between the
OUTPUT port of the
LΩGIC POE X and the final
LΩGIC MR16 Downlight S
in the chain
LΩGIC POE X
OUTPUTTHRUINPUT
Safety cableHanging pendant bracket

EN
4
LΩGIC MR16 Downlight S QRG Rev. 5
QUICK REFERENCE GUIDE
LΩGIC MR16 TRIM Installation
The LΩGIC MR16 TRIM (sold separately by Iluminarc) can be used to mount the LΩGIC MR16 Downlight S flush to a
ceiling or overhead surface. To attach the LΩGIC MR16 TRIM to the LΩGIC MR16 Downlight S, insert the
LΩGIC MR16 Downlight S into the top opening of the LΩGIC MR16 TRIM until it snaps into place.
To remove the LΩGIC MR16 TRIM from the LΩGIC MR16 Downlight S, push the clip tab on the LΩGIC MR16 TRIM
down and out while tilting the LΩGIC MR16 Downlight S in the opposite direction until it comes free.
LΩGIC MR16 TRIM Mounting
Before mounting this product with the LΩGIC MR16 TRIM, read the Safety Notes.
To mount the LΩGIC MR16 Downlight S with the LΩGIC MR16 TRIM attached, do the following:
1. Cut a 2.83 in (71.83 mm) hole in the ceiling or overhead surface to be used.
2. Route all cables necessary to that hole and plug into the LΩGIC MR16 Downlight S before mounting.
3. Push and hold the spring arms on the LΩGIC MR16 TRIM up and in.
4. Insert the LΩGIC MR16 Downlight S into the hole until the spring arms are through.
5. Release the spring arms and push the product the rest up the way up. The tension of the spring arms will hold the
product flush to the ceiling or overhead surface until it is intentionally removed.
• The maximum ceiling thickness which the LΩGIC MR16 TRIM can support is 0.866 in (22 mm).
•TheLΩGIC MR16 TRIM fits into a hole with a diameter of 2.83 in (71.83 mm).
Rotate and tilt as desired
Spring arm (x2)Clip tab
2.83 in
71.83 mm
0.866 in
22 mm
!

5
EN
QUICK REFERENCE GUIDE
LΩGIC MR16 Downlight S QRG Rev. 5
Menu Map
Access the LΩGIC MR16 Downlight S menu through the LΩGIC Drive 2X Linked Fixtures menu.
Refer to the LΩGIC MR16 Downlight S and LΩGIC Drive 2X product pages on www.iluminarc.com for the latest menu
maps.
Main Level Programming Levels Description
Dmx Address 001–512 Selects DMX address
Personality
RED 1-channel: dimmer (red only)
GREEN 1-channel: dimmer (green only)
BLUE 1-channel: dimmer (blue only)
WHITE 1-channel: dimmer (white only)
TW 2-channel, Tunable White: dimmer, color
temperature
RGB 3-channel: RGB control
RGBW 4-channel: RGBW control
RGBW+D 5-channel: dimmer, RGBW control
FULL 10-channel: dimmer, RGBW, color macros, strobe,
auto programs and speed, dimmer speed
Network
Net Switch 2.X.X.X Selects the first value of the IP address
10.X.X.X
Universe 000–255 / 001–256
Selects universe
(Art-Net™) (sACN)
Local Info
Version V _._ _ Shows current firmware version
IP Address _ _ _._ _ _._ _ _._ _ _ Shows the IP address
Fixture Hours _ hours Shows length of time product has been on
Label _ _ _ _ _ _ _ _ _ _ Shows product label
Device UID _ _ _ _ _ _-_ _ _ _ _ _ _ _ Shows device UID
MAC Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ Shows the MAC address
Temperature _ _._ °C Shows the current temperature in °C
Factory Reset No Resets to factory default settings
Yes

EN
6
LΩGIC MR16 Downlight S QRG Rev. 5
QUICK REFERENCE GUIDE
RDM Chart
Refer to the LΩGIC MR16 Downlight S product page on www.iluminarc.com for the latest RDM Chart.
GET SET
Category RDM Parameter IDs (Slot 21-22) Value
Required
Detail
Network
Management
DISC_UNIQUE_BRANCH 0x0001
DISC_MUTE 0x0002
DISC_UN_MUTE 0x0003
RDM
Information
QUEUED_MESSAGE 0x0020
SUPPORTED_PARAMETERS 0x0050
IDENTIFY_DEVICE, DEVICE_INFO,
SOFTWARE_VERSION_LABEL,
SUPPORTED_PARAMETERS,
DMX_START_ADDRESS,
DEVICE_MODEL_DESCRIPTION,
MANUFACTURER_LABEL,
DEVICE_LABEL, DMX_PERSONALITY,
PERSONALITY_DESCRIPTION,
SENSOR_DEFINITION, SENSOR_VALUE
PARAMETER_DESCRIPTION 0x0051
Product
Information
DEVICE_INFO 0x0060
1, RDM Protocol Version: V1.0;
2, Device_Mode_ID: 0x1735;
3, Product Category Defines:
PRODUCT_CATEGORY_FIXTURE_FIXED;
4, Software Version ID;
5, DMX512 Footprint;
6, DMX512 Personality;
7, DMX512 Start Address;
8, Sensor Count;
PRODUCT_DETAIL_ID_LIST 0x0070
DEVICE_MODEL_DESCRIPTION 0x0080 LOGICMR16DNS
MANUFACTURER_LABEL 0x0081 ILUMINARC
DEVICE_LABEL 0x0082 LOGICMR16DNS
SOFTWARE_VERSION_LABEL 0x00C0 V_._
FACTORY_DEFAULTS FACTORY_DEFAULTS : yes
DMX Setup
DMX_PERSONALITY 0x00E0 9pcs persons
DMX_PERSONALITY_DESCRIPTION
0x00E1 RED/1CH, GREEN/1CH, BLUE/1CH,
WHITE/1CH, TW/2CH, RGB/3CH, RGBW/
4CH, RGBW+D/5CH, FULL/10CH
DMX_START_ADDRESS 0x00F0 1-503
Sensors SENSOR_DEFINITION 0x0200 0.) Product Temperature _ _ °C
SENSOR_VALUE 0x0201 —20° —100°
Control IDENTIFY_DEVICE 0x1000 Identify State: Off

7
EN
QUICK REFERENCE GUIDE
LΩGIC MR16 Downlight S QRG Rev. 5
DMX Values
FULL (10 Channels)
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
2Red 000 255 0–100%
3Green 000 255 0–100%
4Blue 000 255 0–100%
5White 000 255 0–100%
6 Color temperature
000 010 No function
011 020 1800K
021 030 2200K
031 040 2700K
041 050 3000K
051 060 3200K
061 070 4000K
071 080 4500K
081 090 5000K
091 100 5600K
101 110 6000K
111 120 6500K
121 130 7000K
131 140 8000K
141 150 10000K
151 255 No function
7Strobe
000 009 No function
010 099 Strobe, 0–25 Hz
100 109 No function
110 179 Lightning strobe, slow to fast
180 189 No function
190 255 Random strobe, slow to fast
8 Auto programs
000 040 No function
041 050 Automatic program 1
051 060 Automatic program 2
061 070 Automatic program 3
071 080 Automatic program 4
081 090 Automatic program 5
091 100 Automatic program 6
101 110 Automatic program 7
111 120 Automatic program 8
121 130 Automatic program 9
131 140 Automatic program 10
141 255 No function
9 Auto program speed 000 255 Automatic program speed, slow to fast
10 Dimmer speed
000 009 No function
010 129 Dimmer curve on
130 255 Dimmer curve off

EN
8
LΩGIC MR16 Downlight S QRG Rev. 5
QUICK REFERENCE GUIDE
RGBW+D (5 Channels)
RGBW (4 Channels)
RGB (3 Channels)
TW (Tunable White: 2 Channels)
WHITE (1 Channel)
BLUE (1 Channel)
GREEN (1 Channel)
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
2Red 000 255 0–100%
3Green 000 255 0–100%
4Blue 000 255 0–100%
5White 000 255 0–100%
Channel Function Value Percent/Setting
1Red 000 255 0–100%
2Green 000 255 0–100%
3Blue 000 255 0–100%
4White 000 255 0–100%
Channel Function Value Percent/Setting
1Red 000 255 0–100%
2Green 000 255 0–100%
3Blue 000 255 0–100%
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
2 Color temperature
000 010 No function
011 020 1800K
021 030 2200K
031 040 2700K
041 050 3000K
051 060 3200K
061 070 4000K
071 080 4500K
081 090 5000K
091 100 5600K
101 110 6000K
111 120 6500K
121 130 7000K
131 140 8000K
141 150 10000K
151 255 No function
Channel Function Value Percent/Setting
1 Dimmer 000 255 White only, 0–100%
Channel Function Value Percent/Setting
1 Dimmer 000 255 Blue only, 0–100%
Channel Function Value Percent/Setting
1 Dimmer 000 255 Green only, 0–100%

9
EN
QUICK REFERENCE GUIDE
LΩGIC MR16 Downlight S QRG Rev. 5
RED (1 Channel)
Technical Specifications
Dimensions and Weight
Note: Dimensions in inches are rounded.
Power
Light Source
Photometrics
Cabling
Thermal
Ordering
Channel Function Value Percent/Setting
1 Dimmer 000 255 Red only, 0–100%
Product Length Width Height Weight
LΩGIC MR16 Downlight S 1.96 in (50 mm) 1.96 in (50 mm) 4.59 in (116.80 mm) 0.39 lb (0.18 kg)
LΩGIC MR16 TRIM 2.83 in (71.83 mm) 2.83 in (71.83 mm) 1.3 in (33 mm) 2.8 oz (79.83 g)
LΩGIC MR16 HF 1.68 in (42.7 mm) 1.68 in (42.7 mm) 0.61 in (15.5 mm) 0.6 oz (17 g)
Power Source Input Voltage Voltage Selection
Power Over Ethernet 48-52 VDC Fixed
Single Fixture Power Total Linking Power per Port/POEI Power Linking
8.3 W via POE 66.4 W via POE 8 products per port/POE injector
Power I/O U.S./Worldwide UK/Europe
Power input connector Ethernet RJ45 Ethernet RJ45
Power output connector Ethernet RJ45 Ethernet RJ45
Cable type (required) CAT6 CAT6
Type Color Quantity Power Current Lifespan
LED RGBW 1 10 W 4.375 A 50,000 hours
Filter Beam Angle Field Angle Cutoff Angle Illuminance @ 5 m
Open optics 30.9° 59.7° 82.8° 29 lux
Medium (pre-installed) 40.4° 81.7° 148.9° 11 lux
Medium w/HF 33.6° 63.9° 84.7° 9 lux
Wide (included) 41.8° 105.5° 154.3° 8 lux
Wide w/HF 34.2° 64.3° 90° 8 lux
Total Max Cable Length
(Fixture to Fixture) Cable Diameter Range
Less than 50 ft (15 m) Cable Diameter Range
50-328 ft (15-100 m)
328 ft (100 m) 23-24 AWG (shielded or unshielded) 23 AWG (shielded)
Ambient Temperature Range Cooling
-4 °F to 113 °F (-20 °C to 45 °C) Convection
Product Name Item Name Item Code UPC Number
LΩGIC MR16 Downlight S LOGICMR16DNS 1541735 781462220839
LΩGIC MR16 TRIM LOGICMR16TRIM 1541818 781462221669
LΩGIC MR16 HF LOGICMR16HF 1651832 781462221805

ES
10
LΩGIC MR16 Downlight S GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
Acerca de Esta Guía
La Guía de Referencia Rápida (GRR) del LΩGIC MR16 Downlight S contiene información sobre el producto, como montaje, opciones de
menú y valores DMX. Descargue el Manual de Usuario del LΩGIC Drive 2X de www.iluminarc.com para información más detallada.
Exención de Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a cambio sin previo aviso.
GARANTÍA LIMITADA
PARA VER EL REGISTRO DE GARANTÍA Y LOS TÉRMINOS Y CONDICIONES COMPLETOS, VISITE NUESTRO
SITIO WEB.
Para clientes en los Estados Unidos y México: www.www.iluminarc.com/warranty-registration-architectural-lighting.
Para clientes en Reino Unido, República de Irlanda, Bélgica, Países Bajos, Luxemburgo, Francia y Alemania:
www.www.iluminarc.com/warranty-registration-architectural-lighting.
Chauvet garantiza que este producto estará libre de defectos de material y mano de obra en condiciones de uso normales, durante el
periodo especificado, sujeto siempre a las exclusiones y limitaciones establecidas en la garantía limitada completa de nuestro sitio web.
Esta garantía se concede únicamente al comprador original del producto y no es transferible. Para ejercer los derechos que otorga esta
garantía, usted debe proporcionar una prueba de compra en forma de un recibo de compra original, expedido por un distribuidor
autorizado, donde figure el nombre del producto y la fecha de compra. NO EXISTEN OTRAS GARANTÍAS EXPRESAS NI IMPLÍCITAS.
Esta garantía le otorga derechos legales específicos. Es posible que a usted le asistan otros derechos, que variarán dependiendo del
estado o del país. Esta garantía solamente es válida en los Estados Unidos, Reino Unido, República de Irlanda, Bélgica, Países Bajos,
Luxemburgo, Francia, Alemania y México. Para conocer los términos de garantía en otros países, consulte a su distribuidor local.
Notas de Seguridad
• La luminaria debe colocarse de forma que no sea previsible que se mire fijamente hacia ella a una distancia menor de 3,3’ (1 m).
• Si se daña el cable externo flexible de esta luminaria, se sustituirá con un cable especial o con un cable disponible
exclusivamente a través del fabricante o de su agente de servicio técnico.
• Solo el fabricante, su agente de servicio o un técnico de similar cualificación podrán reemplazar la fuente de luz
contenida en esta luminaria.
• La luminaria está destinada exclusivamente a un uso profesional.
• NO abra este producto. No contiene piezas reparables por el usuario.
• NO mire a la fuente de luz cuando el producto esté encendido.
• Cuidado: cuando transfiera el producto desde ambientes con temperatura extrema (p. ej., del remolque frío de un camión a
una sala de baile con calor y humedad), puede formarse condensación en la electrónica interna del producto. Para evitar
que se produzca una avería, deje que el producto se aclimate completamente al ambiente antes de conectar la alimentación.
• CUIDADO: La carcasa de este producto está caliente cuando las luces están en funcionamiento.
• Monte este producto en una ubicación con ventilación adecuada, al menos a 20'' (50 cm) de superficies adyacentes.
• NO deje ningún material inflamable a menos de 11.8'' (30 cm) de este producto mientras esté funcionando o
conectado a la alimentación.
• USE un cable de seguridad cuando monte este producto en lo alto.
• NO ponga en funcionamiento este producto en el exterior o en cualquier ubicación en la que el polvo, calor
excesivo, agua o humedad puedan afectarlo. (IP20)
• NO ponga en funcionamiento este producto si sospecha que la carcasa, lentes o cables están dañados.
• NO conecte este producto a un atenuador o reostato.
• Conecte este producto a un equipo con fuente de alimentación (PSE) PoE IEEE 802.3bt.
• En caso de un problema grave de funcionamiento, deje de usarlo inmediatamente.
• El rango de temperatura de inicio es de -4 °F a 113 °F (-20 °C a 45 °C). No inicie el producto fuera de este rango.
• El rango de temperatura de funcionamiento es de -40 °F a 113 °F (-40 °C a 45 °C). No utilice el producto fuera de
este rango.
• El rango de temperatura de almacenamiento es de -40 °F a 167 °F (-40 °C a 75 °C). No almacene el producto
fuera de este rango.
Cumplimiento de la FCC
Este dispositivo cumple la parte 15, parte B de las normas FCC. El funcionamiento está supeditado al cumplimiento de
estas dos condiciones:
1. Este dispositivo no puede causar interferencias perjudiciales; y
2. Este dispositivo debe aceptar cualquier interferencia recibida, incluyendo las interferencias que puedan causar
un funcionamiento no deseado.
Cualquier cambio o modificación que no haya sido expresamente autorizado por la parte responsable de conformidad
puede anular la potestad del usuario para hacer funcionar el equipo.
Contacto
Fuera de EE. UU., Reino Unido, Irlanda, Benelux, Francia, Alemania o México póngase en contacto con su distribuidor
para solicitar asistencia o devolver un producto. Consulte Contact Us al final de este GRR para información de contacto.

11
ES
GUÍA DE REFERENCIA RÁPIDA
LΩGIC MR16 Downlight S GRR Rev. 5
Qué va Incluido
Alimentación CC
Este producto recibe la alimentación del LΩGIC Drive 2X a través de LΩGIC POE X con una conexión CAT6 de 52 V CC.
Descargue el manual de usuario del LΩGIC Drive 2X y la Guía de Referencia Rápida para el LΩGIC POE X de
www.iluminarc.com para más detalles.
Alimentación en cadena
Puede enlazar hasta 8 productos LΩGIC MR16 Downlight S de cada salida del LΩGIC POE X. Se debe utilizar un
inyector PoE para alimentar productos conectados al puerto THRU del LΩGIC POE X.
Filtros
El LΩGIC MR16 Downlight S dispone de 2 ranuras de filtro.
• La ranura de filtro interior sirve para el filtro de medio (preinstalado) o para el filtro de ancho (incluido).
• La ranura de filtro exterior sirve para el LΩGIC MR16 HF (filtro apanalado, vendido por separado por Iluminarc).
• Para quitar el filtro instalado, gírelo hasta que las llaves del borde estén alineadas con las aberturas de la ranura.
• Para instalar un filtro en una ranura vacía, alinee las llaves del borde con las aberturas de la ranura, e inserte.
Gire el filtro para que las llaves se fijen.
Enlace de señal
El LΩGIC MR16 Downlight S recibirá una señal de control (DMX, RDM, Art-Net™ o sACN) del LΩGIC Drive 2X a través
de una conexión CAT6.
Conexión y cableado
El LΩGIC MR16 Downlight S tiene un puerto IN (entrada) y un puerto OUT (salida) que necesita conexiones Ethernet
CAT6.
•LΩGIC MR16 Downlight S
• Filtros medio y ancho
• Soporte en suspensión para colgar
• Guía de Referencia Rápida
No gire el filtro más de 60°; si no, es posible que no quede bien sujeto.
LΩGIC MR16 HF (ranura exterior)
Llave (x3) Llave (x3)
Filtro medio o ancho (ranura interior)
IN OUT
LΩGIC Drive 2X
LΩGIC MR16 Downlight S
LΩGIC POE X

ES
12
LΩGIC MR16 Downlight S GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
Entre el LΩGIC Drive 2X y el LΩGIC POE X:
Los cables cortos pueden utilizar un calibre más pequeño, pero cualquier cable más largo de 50’ (15 m) debe ser 23
AWG y apantallado; si no, es posible que los productos no reciban alimentación suficiente.
Requisitos del cable: Calibre máx./mín. de 4 pares trenzados 23/28 AWG CAT6.
• Para distancias menores de 50’ (15 m): 23-28 AWG (apantallado o no apantallado)
• Para distancias de 50-328’ (15-100 m): 23 AWG (apantallado)
Puerto OUTPUT
El puerto de OUTPUT del LΩGIC POE X permite hasta 75’ (23 m) de cableado total entre el LΩGIC POE X y el
LΩGIC MR16 Downlight S final en la cadena. Estos cables pueden ser 23-28 AWG (apantallados o no apantallados).
Puerto THRU
El puerto THRU del LΩGIC POE X solo pasa la señal de control del LΩGIC Drive 2X, no la alimentación. Se debe utilizar
un inyector PoE ANTES del primer producto LΩGIC de la cadena para alimentarlo y alimentar también a los demás
productos conectados a este puerto.
Montaje
Antes de montar este producto, lea las Notas de Seguridad.
Montaje en suspensión
LΩGIC DRIVE 2X
inyector PoE
Producto LΩGIC
LΩGIC MR16 Downlight S
inyector PoE Se deben utilizar un inyector PoE
Y un LΩGIC POE X después de
cada 8 LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
LΩGIC MR16 Downlight S
A otros productos LΩGIC
INPUT LΩGIC
POE X
THRU
OUTPUT
LΩGIC MR16 Downlight S
A otros productos LΩGIC MR16 Downlight S
LΩGIC POE X
OUTPUTTHRUINPUT
Hasta 75’ (23 m) de
cableado total entre el
puerto OUTPUT del
LΩGIC POE X y el
LΩGIC MR16 Downlight S
final de la cadena
Se debe utilizar un inyector
PoE entre el puerto THRU
del LΩGIC POE X y el primer
producto LΩGIC conectado
Soporte en suspensión
para colgar Cable de
seguridad

13
ES
GUÍA DE REFERENCIA RÁPIDA
LΩGIC MR16 Downlight S GRR Rev. 5
Instalación del LΩGIC MR16 TRIM
El LΩGIC MR16 TRIM (vendido por separado por Iluminarc) puede utilizarse para montar el LΩGIC MR16 Downlight S a
ras de techo o de una superficie en altura. Para acoplar el LΩGIC MR16 TRIM al LΩGIC MR16 Downlight S, inserte el
LΩGIC MR16 Downlight S en la abertura superior del LΩGIC MR16 TRIM hasta que encaje en su sitio.
Para retirar el LΩGIC MR16 TRIM del LΩGIC MR16 Downlight S, apriete hacia abajo y hacia afuera la pestaña del clip
del LΩGIC MR16 TRIM mientras inclina el LΩGIC MR16 Downlight S en dirección contraria hasta que se suelte.
Montaje con LΩGIC MR16 TRIM
Antes de montar este producto con el LΩGIC MR16 TRIM, lea las Notas de Seguridad.
Para montar el LΩGIC MR16 Downlight S con el LΩGIC MR16 TRIM acoplado, haga lo siguiente:
1. Corte un agujero de 71,83 mm (2,83”) en el techo o superficie en altura que vaya a utilizar.
2. Pase todos los cables necesarios por ese agujero y conecte el LΩGIC MR16 Downlight S antes de montarlo.
3. Mantenga presionados los brazos con resorte hacia arriba y hacia adentro del LΩGIC MR16 TRIM.
4. Inserte el LΩGIC MR16 Downlight S en el orificio hasta que pasen los brazos con resorte.
5. Libere los brazos con resorte y empuje el producto hacia arriba el resto del recorrido. La tensión de los brazos
con resorte mantendrá el producto a ras de suelo o de la superficie en altura hasta que se quiera retirarlo.
• El máximo grosor de techo que admite el LΩGIC MR16 TRIM es de 22 mm (0,866”).
•ElLΩGIC MR16 TRIM cabe en un orificio con un diámetro de 71,83 mm (2,83”).
Girar e inclinar según se necesite
Pestaña
del clip
Brazo con
resorte (x2)
2,83”
71,83 mm
0,866”
22 mm
!

ES
14
LΩGIC MR16 Downlight S GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
Mapa de Menú
Acceda al menú del LΩGIC MR16 Downlight S a través del menú Linked Fixtures del LΩGIC Drive 2X.
Consulte la páginas del productos LΩGIC MR16 Downlight S y LΩGIC Drive 2Xen www.iluminarc.com para ver el último
mapa de menú.
Nivel Principal
Niveles de Programación Descripción
Dmx Address 001–512 Selecciona la dirección DMX
Personality
RED 1 canal: atenuador (solo roja)
GREEN 1 canal: atenuador (solo verde)
BLUE 1 canal: atenuador (solo azul)
WHITE 1 canal: atenuador (solo blanco)
TW 2 canales, blanco ajustable: atenuador,
temperatura de color
RGB 3 canales: control RGB
RGBW 4 canales: control RGBW
RGBW+D 5 canales: atenuador, control RGBW
FULL 10 canales: atenuador, control RGBW,
temperatura de color, estroboscopio, programas
automáticos y velocidad, velocidad de atenuador
Network
Net Switch 2.X.X.X Selecciona el primer valor de la dirección IP
10.X.X.X
Universe 000–255 / 001–256 Selecciona el universo
(Art-Net™) (sACN)
Local Info
Version V _._ _ Muestra instalada la versión de firmware
IP Address _ _ _._ _ _._ _ _._ _ _ Muestra la dirección IP
Fixture Hours _ hours Muestra el nombre total de las horas del producto
Label _ _ _ _ _ _ _ _ _ _ Muestra la etiqueta del producto
Device UID _ _ _ _ _ _-_ _ _ _ _ _ _ _ Muestra la UID del producto
MAC Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ Muestra la dirección MAC
Temperature _ _._ °C Muestra la temperatura actual en °C
Factory Reset No Restablece a la configuración predeterminada de
fábrica
Yes

15
ES
GUÍA DE REFERENCIA RÁPIDA
LΩGIC MR16 Downlight S GRR Rev. 5
Gráfico RDM
Consulte la página del producto LΩGIC MR16 Downlight S en www.iluminarc.com para ver el último gráfico RDM.
GET SET
Categoría
ID de parámetros RDM (Ranura 21-22)
Valor
Requerido
Detalle
Network
Management
DISC_UNIQUE_BRANCH 0x0001
DISC_MUTE 0x0002
DISC_UN_MUTE 0x0003
RDM
Information
QUEUED_MESSAGE 0x0020
SUPPORTED_PARAMETERS 0x0050
IDENTIFY_DEVICE, DEVICE_INFO,
SOFTWARE_VERSION_LABEL,
SUPPORTED_PARAMETERS,
DMX_START_ADDRESS,
DEVICE_MODEL_DESCRIPTION,
MANUFACTURER_LABEL,
DEVICE_LABEL, DMX_PERSONALITY,
PERSONALITY_DESCRIPTION,
SENSOR_DEFINITION, SENSOR_VALUE
PARAMETER_DESCRIPTION 0x0051
Product
Information
DEVICE_INFO 0x0060
1, RDM Protocol Version: V1.0;
2, Device_Mode_ID: 0x1735;
3, Product Category Defines:
PRODUCT_CATEGORY_FIXTURE_FIXED;
4, Software Version ID;
5, DMX512 Footprint;
6, DMX512 Personality;
7, DMX512 Start Address;
8, Sensor Count;
PRODUCT_DETAIL_ID_LIST 0x0070
DEVICE_MODEL_DESCRIPTION 0x0080 LOGICMR16DNS
MANUFACTURER_LABEL 0x0081 ILUMINARC
DEVICE_LABEL 0x0082 LOGICMR16DNS
SOFTWARE_VERSION_LABEL 0x00C0 V_._
FACTORY_DEFAULTS FACTORY_DEFAULTS : yes
DMX Setup
DMX_PERSONALITY 0x00E0 9pcs persons
DMX_PERSONALITY_DESCRIPTION
0x00E1 RED/1CH, GREEN/1CH, BLUE/1CH,
WHITE/1CH, TW/2CH, RGB/3CH, RGBW/
4CH, RGBW+D/5CH, FULL/10CH
DMX_START_ADDRESS 0x00F0 1-503
Sensors SENSOR_DEFINITION 0x0200 0.) Product Temperature _ _ °C
SENSOR_VALUE 0x0201 —20° —100°
Control IDENTIFY_DEVICE 0x1000 Identify State: Off

ES
16
LΩGIC MR16 Downlight S GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
Valores DMX
FULL (10 canales)
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 0–100%
2Rojo 000 255 0–100%
3Verde 000 255 0–100%
4Azul 000 255 0–100%
5Blanco 000 255 0–100%
6 Temperatura de color
000 010 Sin función
011 020 1800K
021 030 2200K
031 040 2700K
041 050 3000K
051 060 3200K
061 070 4000K
071 080 4500K
081 090 5000K
091 100 5600K
101 110 6000K
111 120 6500K
121 130 7000K
131 140 8000K
141 150 10000K
151 255 Sin función
7 Estroboscopio
000 009 Sin función
010 099 Estroboscopio, 0–25 Hz
100 109 Sin función
110 179 Estroboscopio relámpago, lento a rápido
180 189 Sin función
190 255 Estroboscopio aleatorio, lento a rápido
8 Programas automáticos
000 040 Sin función
041 050 Programa automático 1
051 060 Programa automático 2
061 070 Programa automático 3
071 080 Programa automático 4
081 090 Programa automático 5
091 100 Programa automático 6
101 110 Programa automático 7
111 120 Programa automático 8
121 130 Programa automático 9
131 140 Programa automático 10
141 255 Sin función
9 Velocidad de programa 000 255 Velocidad de programa automático, lento a rápido
10 Velocidad de atenuador
000 009 Sin función
010 129 Activación de la curva del atenuador
130 255 Desactivación de la curva del atenuador

17
ES
GUÍA DE REFERENCIA RÁPIDA
LΩGIC MR16 Downlight S GRR Rev. 5
RGBW+D (5 canales)
RGBW (4 canales)
RGB (3 canales)
TW (Blanco ajustable: 2 canales)
WHITE (Blanco, 1 canal)
BLUE (Azul, 1 canal)
GREEN (Verde, 1 canal)
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 0–100%
2Rojo 000 255 0–100%
3Verde 000 255 0–100%
4 Azul 000 255 0–100%
5Blanco 000 255 0–100%
Canal Función Valor Porcentaje/Configuración
1Rojo 000 255 0–100%
2Verde 000 255 0–100%
3 Azul 000 255 0–100%
4Blanco 000 255 0–100%
Canal Función Valor Porcentaje/Configuración
1Rojo 000 255 0–100%
2Verde 000 255 0–100%
3 Azul 000 255 0–100%
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 0–100%
2 Temperatura de color
000 010 Sin función
011 020 1800K
021 030 2200K
031 040 2700K
041 050 3000K
051 060 3200K
061 070 4000K
071 080 4500K
081 090 5000K
091 100 5600K
101 110 6000K
111 120 6500K
121 130 7000K
131 140 8000K
141 150 10000K
151 255 Sin función
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 Solo blanco, 0–100%
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 Solo azul, 0–100%
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 Solo verde, 0–100%

ES
18
LΩGIC MR16 Downlight S GRR Rev. 5
GUÍA DE REFERENCIA RÁPIDA
RED (Rojo, 1 canal)
Especificaciones Técnicas
Dimensiones y Peso
Nota: las dimensiones en pulgadas están redondeadas.
Alimentación
Fuente de luz
Photometrics
Cableado
Térmico
Pedidos
Canal Función Valor Porcentaje/Configuración
1 Atenuador 000 255 Solo rojo, 0–100%
Producto Longitud Anchura Altura Peso
LΩGIC MR16 Downlight S 50 mm (1,96”) 50 mm (1,96”) 116,80 mm (4,59”) 0,18 kg (0,39 lb)
LΩGIC MR16 TRIM 71,83 mm (2,83”) 71,83 mm (2,83”) 33 mm (1,3”) 79,83 g (2,8 oz)
LΩGIC MR16 HF 42,7 mm (1,68”) 42,7 mm (1,68”) 15,5 mm (0,61”) 17 g (0,6 oz)
Fuente de Alimentación Tensión de entrada Selección de Tensión
Alimentación a través de Ethernet 52-56 VCC Fije
Alimentación de un solo dispositivo Potencia de enlace total por puerto Alimentación en cadena
8,3 W a través de POE 66,4 W a través de POE 8 productos por puerto/inyector POE
E/S alimentación US/Mundial UK/Europa
Conector de entrada de alimentación Ethernet RJ45 Ethernet RJ45
Conector de salida de alimentación Ethernet RJ45 Ethernet RJ45
Tipo de cable (requerido) CAT6 CAT6
Tipo Color Cantidad Potencia Corriente Vida útil
LED RGBW 1 10 W 4,375 A 50.000 horas
Filtro Ángulo de haz Ángulo de campo Ángulo de corte Iluminancia a 5 m
Ópticos abiertos 30,9° 59,7° 82,8° 29 lux
Medio (pre instalado) 40,4° 81,7° 148,9° 11 lux
Medio con HF 33,6° 63,9° 84,7° 9 lux
Ancho (incluido) 41,8° 105,5° 154,3° 8 lux
Ancho con HF 34,2° 64,3° 90° 8 lux
Longitud del cable máxima total
(Aparato a aparato) Rango de diámetro del cable
Menos de 50’ (15 m) Rango de diámetro del cable
50-328’ (15-100 m)
100 m (328’) 23-24 AWG
(apantallado o no apantallado)
23 AWG (apantallado)
Rango de temperatura ambiente Refrigeración
-20 °C a 45 °C (-4 °F a 113 °F) Convección
Descripción del Producto Nombre del Producto Código de Artículo Número UPC
LΩGIC MR16 Downlight S LOGICMR16DNS 1541735 781462220839
LΩGIC MR16 TRIM LOGICMR16TRIM 1541818 781462221669
LΩGIC MR16 HF LOGICMR16HF 1651832 781462221805

19
FR
MANUEL DE RÉFÉRENCE
LΩGIC MR16 Downlight S MdR Rev. 5
À Propos de ce Manuel
Le Manuel de Référence du LΩGIC MR16 Downlight S (MdR) reprend des informations sur cet appareil notamment en
matière de montage, options de menu et valeurs DMX. Télécharger le Manuel d'Utilisation du LΩGIC Drive 2X sur
www.iluminarc.com pour de plus amples informations.
Clause de Non-Responsabilité
Les informations et caractéristiques contenues dans ce manuel sont sujettes à changement sans préavis.
GARANTIE LIMITÉE
VEUILLEZ VISITER NOTRE SITE INTERNET POUR CONSULTER LES MODALITÉES D'ENREGISTREMENT DE LA
GARANTIE ET LES CONDITIONS GÉNÉRALES COMPLÈTES.
Pour les clients aux États-Unis et au Mexique: www.www.iluminarc.com/warranty-registration-architectural-lighting.
Pour les clients du Royaume-Uni, de la République d'Irlande, de la Belgique, des Pays-Bas, du Luxembourg, de
la France et de l'Allemagne: www.www.iluminarc.com/warranty-registration-architectural-lighting.
Chauvet garantit que cet appareil est exempt de défauts de matériaux et de fabrication dans des conditions normales d'utilisation, pendant
la période spécifiée dans la garantie limitée complète consultable sur notre site Internet et sous réserve des exclusions et limitations qui y
sont énoncées. Cette garantie ne s'applique qu'à l'acheteur initial du produit et n'est pas transférable. Pour exercer les droits prévus par
cette garantie, vous devez fournir une preuve d'achat sous la forme d'un reçu de vente original d'un revendeur autorisé qui indique le nom
du produit et la date d'achat. IL N'EXISTE AUCUNE AUTRE GARANTIE EXPRESSE OU IMPLICITE. Cette garantie vous confère
des droits légaux spécifique. Vous pouvez également bénéficier d'autres droits qui varient selon les états et les pays. Cette garantie
n'est valable qu'aux États-Unis, au Royaume-Uni, en République d'Irlande, en Belgique, aux Pays-Bas, au Luxembourg, en France,
en Allemagne et au Mexique. Pour connaître les conditions de garantie dans d'autres pays, veuillez consulter votre revendeur local.
Consignes de Sécurité
• Le luminaire doit être placé de manière à ce qu'il ne soit pas possible de le regarder de manière fixe à une distance
inférieure à 3,3 pi (1 m).
• Si le câble ou le cordon flexible externe de ce luminaire est endommagé, il doit être remplacé par un câble ou
cordon spécial disponible exclusivement auprès du fabricant ou de son prestataire de service.
• La source lumineuse contenue dans ce luminaire ne peut être remplacée que par le fabricant ou son prestataire
de service ou une personne suffisamment qualifiée.
• Ce luminaire est uniquement réservé à un usage professionnel.
• N’ouvrez PAS cet appareil. Il ne contient aucun composant susceptible d’être réparé par l’utilisateur.
• Ne regardez PAS la source lumineuse lorsque l’appareil fonctionne.
• Attention : Lorsque l'appareil est transféré d'un environnement à température extrême à un autre (par exemple d'un camion froid
vers une salle de bal chaude et humide), de la condensation peut se former sur les composants électriques internes. Pour éviter
de causer des dommages, laissez l'appareil s'acclimater entièrement au milieu environnant avant de le mettre sous tension.
• ATTENTION : le boîtier de cet appareil est brûlant lors du fonctionnement.
• Montez toujours cet appareil dans en endroit bien ventilé, à au moins, 20 po (50 cm) des surfaces adjacentes.
• Ne laissez AUCUNE source inflammable dans un rayon de 11,8 po (30 cm) de l’appareil lorsque celui-ci fonctionne.
• Utilisez TOUJOURS un câble de sécurité lorsque vous montez cet appareil en hauteur.
• N’utilisez PAS cet appareil en extérieur ou tout autre endroit où de la poussière, une chaleur excessive, de l'eau
ou de l'humidité pourrait en affecter le fonctionnement. (IP20)
• N’utilisez PAS cet appareil si le boîtier, les lentilles ou les câbles vous semblent endommagés.
• Ne connectez PAS cet appareil ni à un gradateur ni à un rhéostat.
• Cet appareil doit UNIQUEMENT être branché sur une source d’alimentation (PSE) IEEE 802.3bt POE.
• En cas de sérieux problèmes de fonctionnement, arrêtez le système immédiatement.
• La plage de température de démarrage est de -4 °F à 113 °F (-20 °C à 45 °C). Ne démarrez pas le produit en
dehors de cette plage.
• La plage de température de fonctionnement est de -40 °F à 113 °F (-40 °C à 45 °C). N'utilisez pas le produit en
dehors de cette plage.
• La plage de température de stockage est de -40 °F à 167 °F (-40 °C à 75 °C). Ne stockez pas le produit en dehors de cette plage.
Conformité FCC
Cet appareil est conforme à la partie 15, sous-partie B du règlement de la FCC. L’utilisation est soumise aux deux conditions suivantes :
1. Cet appareil ne doit pas causer d'interférences nuisibles, et
2. Cet appareil doit accepter toutes les interférences reçues, y compris celles pouvant entraîner un fonctionnement indésirable.
Tout changement ou modification non expressément approuvé par l'autorité responsable de la conformité pourrait
annuler le droit de l'utilisateur à utiliser l'équipement.
Contact
En dehors des États-Unis, du Royaume-Uni, de l'Irlande, du Benelux, de la France, de l’Allemagne, ou du Mexique,
contactez votre fournisseur si vous avez besoin d'assistance ou pour retourner un appareil. Référez-vous à Contact Us à
la fin de ce MdR pour obtenir des informations pour nous contacter.
This manual suits for next models
1
Table of contents
Languages:
Other Iluminarc Dj Equipment manuals

Iluminarc
Iluminarc LOGIC CVS User manual

Iluminarc
Iluminarc Ilumiline Logic 24 Optic RGB User manual

Iluminarc
Iluminarc Ilumipod 48 IP Optic RGBW User manual

Iluminarc
Iluminarc LOGIC Wall Panel 16-Port User manual

Iluminarc
Iluminarc Ilumiline 36 IP Optic RGB User manual

Iluminarc
Iluminarc Ilumipod 42 IP Series User manual

Iluminarc
Iluminarc ILUMIPOD SL User manual

Iluminarc
Iluminarc Colorist Panel 36Qa User manual

Iluminarc
Iluminarc LOGIC AR111 Downlight S User manual

Iluminarc
Iluminarc ILUMIPOD SL User manual
