ILVE ROMA 06 User manual

RANGECOOKER
INSTALLATION MANUAL
ROMA - MILANO - TORINO
MAJESTIC ROMA - MAJESTIC MILANO
06 - 07 - 08 - 09 - 10 - 12 - 15
INSTALLATION AND MAINTENANCE
EN
cod. EI33960170000EN
04/2021
ZONA PER TARGHET TA

2

3
INFORMATION - Important notes
INSTALLATION
Installation of the cooker
Room ventilation
Installation of the cooker
How to install the xing bracket
ELECTRICAL CONNECTIONS
Groups of cooking
Induction cookers
GAS INSTALLATION
GAS CONNECTIONS
By the Qualied installer
LPG CONVERSION
Replacement of the injectors for all models
ADJUSTMENT
Adjustments minimun GAS ow
Replacement of the injectors (oven H3)
KITCHEN TABLE
ROMA - MILANO - MAJESTIC ROMA MAJESTIC MILANO
Kitchen table TORINO

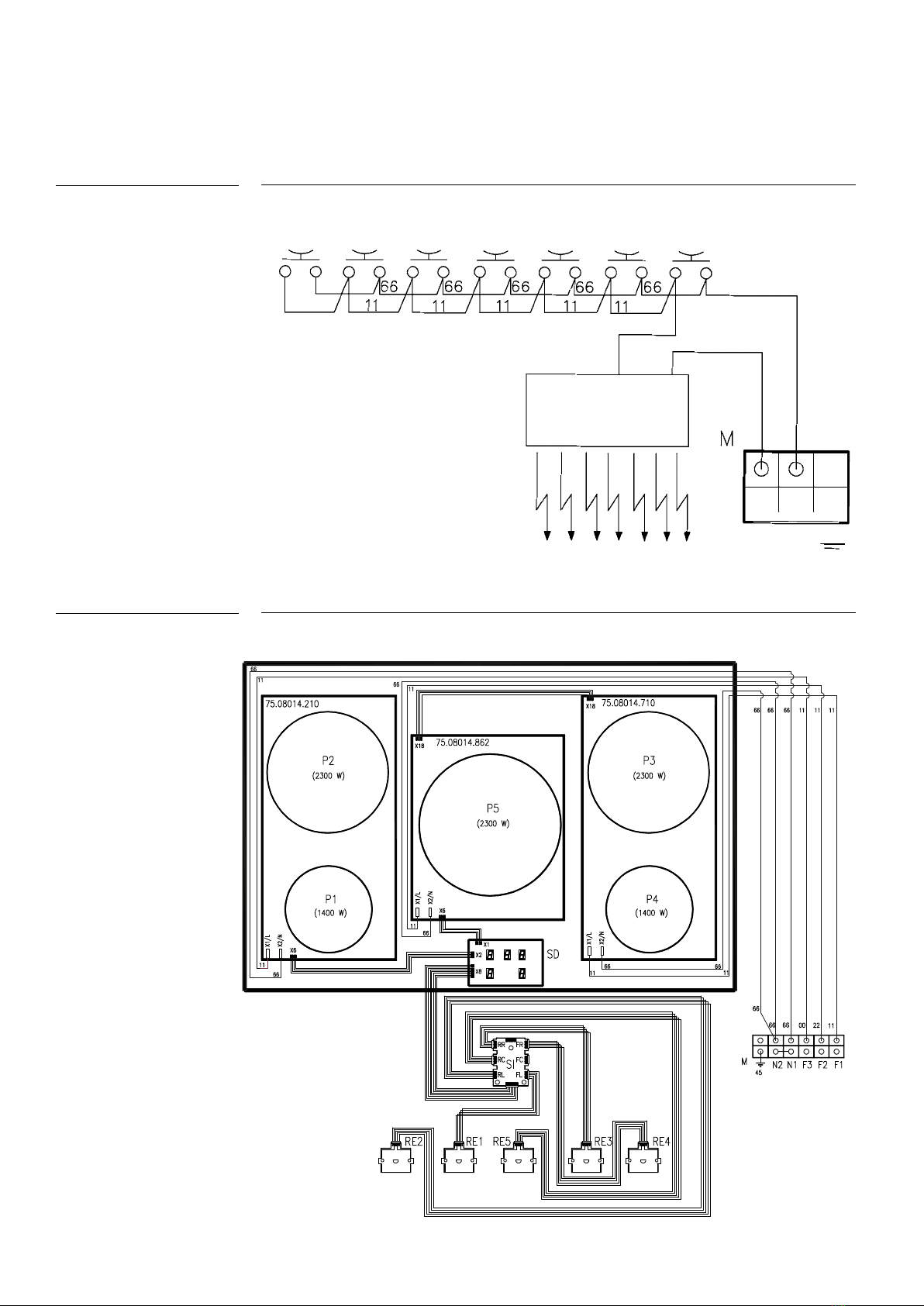

WIRING DIAGRAM
Key
INDEX
4
5
5
5
6
7
8
8
9
10
11
11
12
12
13
13
14
14
14
17
17

4
INFORMATION
Important notes
ATTENTION
LEAKING GAS
THE INSTALLER MUST GIVE THE FOLLOWING INFORMATION TO THE USER
• Verify the integrity of the appliance and the presence of all the product documen-
tation.
• Verify that the appliance has all the expected accessories.
• Verify the correct utilization of the appliance (use of the oven, thermostat and igni-
tion of the burners).
• Suggest to note the serial number and warranty information
• Request that a periodic maintenance service has to be carried out at least every
two years to maintain a fully functioning appliance.
In the case of leaking gas, close the main gas tap and disconnect the product
from the mains. Call the ILVE service team immediately.

5
ATTENTION
Measures to be
respected
Directives/regulations
Room ventilation
The appliance weighs more than 60 kg, therefore it must be moved using appropriate
lifting equipment
Do not drag the cooker as this will bend the supporting feet. Lift the appliance into posi-
tion with correct lifting equipment.
- This appliance is in compliance with the applicable CE standards.
- Installation must only be carried out by qualied persons in compliance with the
regulations and standards in force
This is a type “A” appliance which does not need to be joined to an exhaust system for
combustion waste however ILVE strongly recommend that it is installed under a range
hood or other smoke extraction system in compliance with the gas safe regulations. The
knowledge and consultation of the standards are a key factor for a qualied technician.
Indicatively the amount of air necessary for burner combustion is 2 m3/h for each KW of
nominal power installed (see plate).
Should the appliance be subjected to intensive and prolonged use, supplementary ven-
tilation may be necessary; in such cases open a window or increase the extractor fan’s
power.
INSTALLATION
Installation of the cooker
a
a (mm) models
600 P06... L06...
700 P07... M07...
800 P08...
900 P09... L09...
PD09... LD09...
911 M09...
a (mm) models
1000 PD10... M10...
LD10
1200 P12... L12
1211 M12...
1500 P15...
1511 M15...

6
- The appliance can be installed singularly: class 1.
- The appliance can be installed between two pieces of furniture: class 2/1.
- The cooker is protected against excessive overheating, so it may be installed next to
furniture with a height no higher than that of the worktop. The wall in contact with the
back of the cooker must be made of re-resistant material. To install the cooker correct-
ly, take the following precautions.
A. Any furniture in the vicinity of the cooker with a height higher than that of the worktop
must be at least 50mm from the edge of the cook top;
B. The extractor hood must be installed in the way indicated in its instructions booklet,
and always at a minimum distance of 650 mm from the top of the hob;
C. If the cooker is installed under a wall unit, the minimum distance between this unit
and the worktop must be 700 mm.
INSTALLATION
Installation of the cooker
Positioning of the
appliance between
furniture
Min.
50 mm
Min.
650 mm
Min.
700 mm

7
Model: 60, 70, 80, 90 cm.
ATTENTION

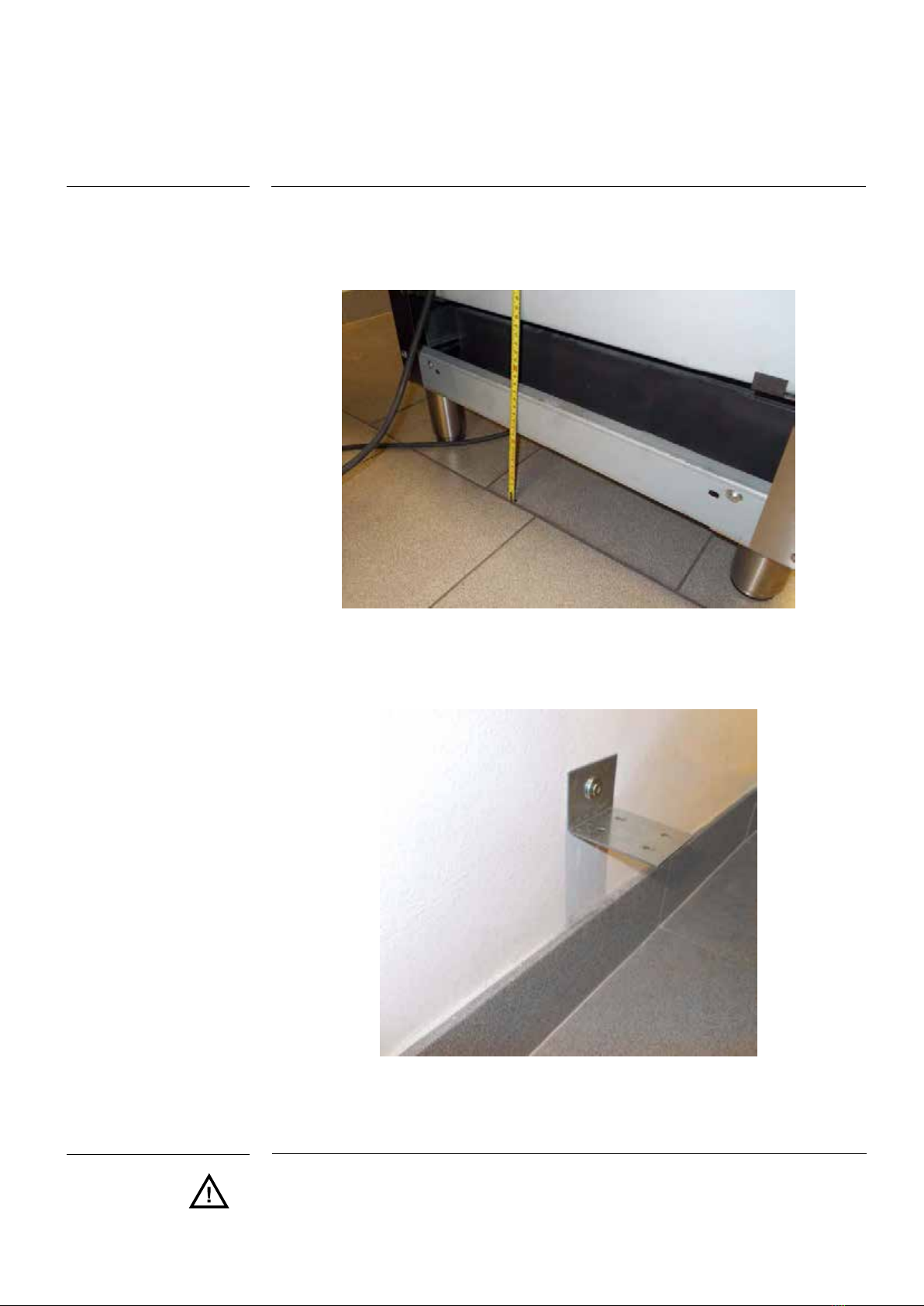

- Unpack the cooker and mount the feet by adjusting the height.
- Measure the height from the oor to the top edge of the back-cross bar (picture 5) and
add 15mm.
- Fix the supporting bracket in the centre of the cooker aperture on the supporting wall.
- Check that the cooker is tight against the back wall to avoid tipping.
The anti-turnover system is assured only if the cooker is installed with the back
tight against the back wall.
INSTALLATION
How to install the xing bracket

8
ATTENTION
Rules for installation
ATTENTION
The instructions below are intended for the skilled technician who will install the cooker,
regulate it and perform technical maintenance and who will ensure that these operations
are carried out in the most correct way possible, in compliance with the regulations in
force.
Important: the cooker must be disconnected from the electric supply before per-
forming all regulating or maintenance operations.
• Installation must be carried out by a competent technician, fully complying with the legi-
slation in force regarding electrical installations. Otherwise, the manufacturer disclaims
any responsibility. You will nd your appliance’s wiring diagram in this booklet.
• The appliances are prepared for connection to the voltage shown on the data plate.
• Before connecting the appliance to the mains check that:
-the main cooker switch is able to support the appliance’s load(see dataplate);
-the power supply should be earthed as per the current regulations.

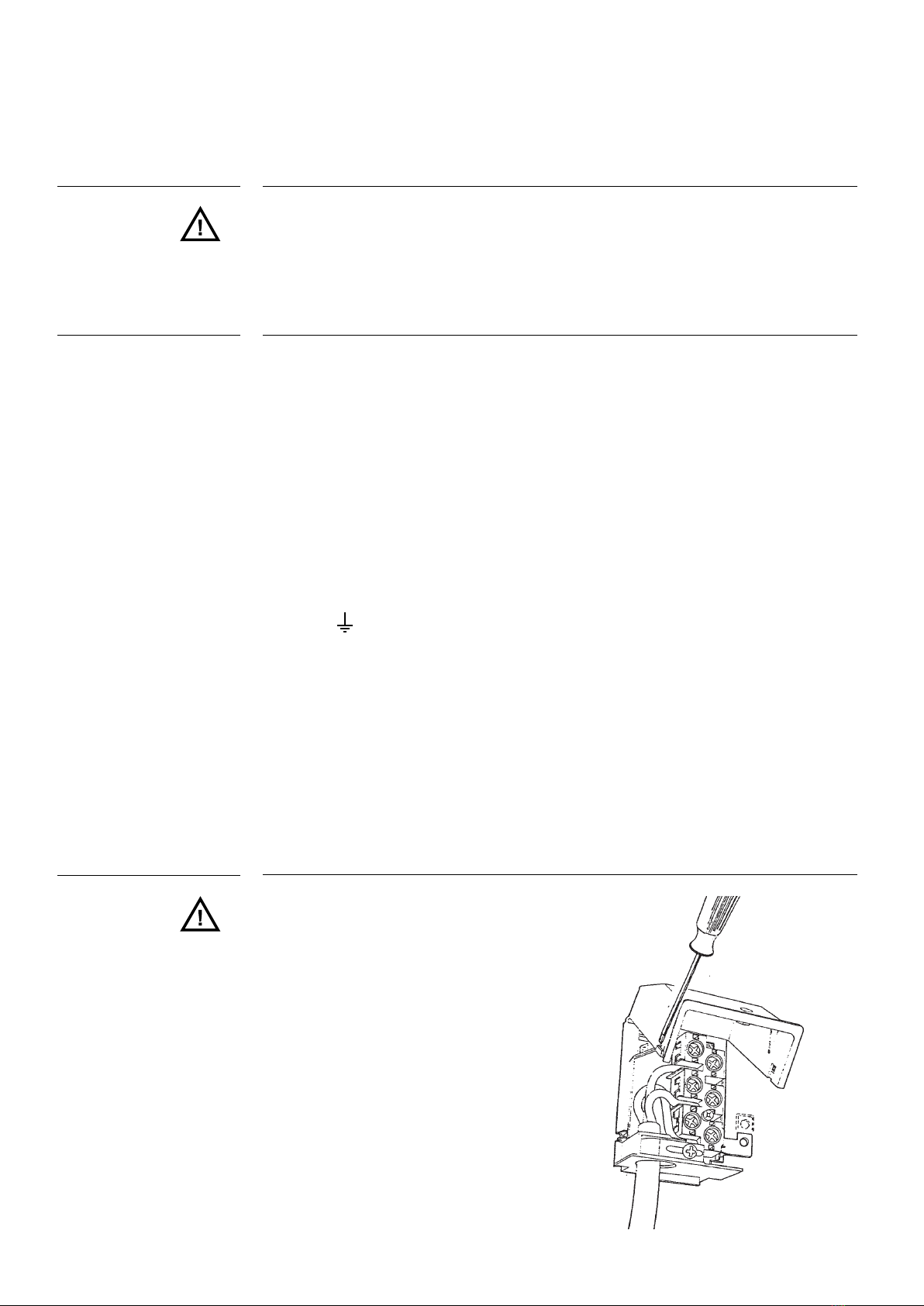

The appliance is supplied with a cable - This cable must be used for installation. The
connection must be made taking into account that the green-yellow cable is the earth
conductor and it must never be interrupted
It is necessary that:
- the installation can support the equipments load. (see data plate)
- the power supply system must have an efcient earth.
- the cooker switch must have a minimum 3 mm, double pole contact opening and must
be easily reachable once the appliance has been installed.
- means for disconnection must be incorporated in the xed wiring in accordance with
current regulations.
The yellow-green earth wire must never
be interrupted even by the switch.
The power cable should be positioned
so that it does not come into contact with
surfaces that have a temperature of 50 °C
higher than the environment. In case repla-
cement of the power cable is necessary,
contact the support service.
ELECTRICAL CONNECTIONS
Groups of cooking

9
The power supply cable should not reach a 50°C temperature above the ambient temperature.
ATTENTION
Data concerning the
power cable
ELECTRICAL CONNECTIONS
Induction cookers
POWER SUPPLY CONNECTION CABLE SECTION CABLE TYPE
Mod. P..I06 230V a.c. 1P+N
50/60 Hz 1 phase + N 3x4 H05RR
Mod. P..I09..
M..I09..LBI09..
230V a.c. 1P+N
50/60 Hz 1 phase + N 3x6 H07RN
Mod. PDI09..
LDBI09..
230V a.c. 1P+N
50/60 Hz 1 phase + N 3x6 H07RN
Mod. MDI10.. 230V a.c. 1P+N
50/60 Hz 1 phase + N 3x10 H07RN
Mod. PDI10.. 230V a.c. 1P+N
50/60 Hz 1 phase + N 3x10 H07RN

10
1st Installation Option
2nd Installation Option
Due to conned space available at the rearof the cooker, there are two options for gas
installation.
As Viewed from Front
• Height of PIC – 750mm A.F.F.L (Above Fixed Floor Level)
• PIC needs to point down if bayonet tting, 110mm from left of the cooker
• Straight bayonet tting or micropoint tting can be used as long at the micropoint is
tted to current regulations
• 900mm gas hose is recommended. 1250mm can be used to engineer’s discretion
• PIC can be tted between 180mm – 250mm A.F.F.L
• Gas hose must not be under any strain or tension
• The gas hose must not touch the oor
This will allow the cookers to be tted with the gas hose running along the base of the
cooker. This will also mean that the PIC can be connected and disconnected by remo-
ving the storage drawer and accessing from the front of cooker.
Installation conrmed by Gas Safe 22.07.19
GAS INSTALLATION
Gas Cooker Installation
750mm A.F.F.L
UNIT
UNIT
170mm
110mm
We recommend no
pipes to be tted
here if ush
UNIT
180mm –
250mm A.F.F.L
UNIT
170mm
We recommend no
pipes to be tted
here if ush.

11
Instructions
(UNI 7129/7131)
LPG conversion
ATTENTION
GAS CONNECTIONS
By the qualied installer
a) CLASS (Subclass 2/1 cooker recessed between furniture)
The apparatus must be connected to the gas mains by means of PIC exible metal
hose (maximum length 2 metres) suitable for gas appliances.
The connection pipes and their maximum lengths must conform to the applicable stan-
dards. The cooker hose must be suitable for rst, second and third family gas and ma-
nufactured to BS669 Part 1 or EN14800 in the UK. The gas hose must replaced before
expiry (if indicated on the tube) or after 10 years of use.
Gas ttings must be installed by a Gas Safe registered installer, tted in accordance with
BS6172, in a position free from excessive heat and potential abrasion from surround
items, attached to a socket that is rmly xed to a gas installation pipe and positioned so
that the hose hangs freely downwards. Never use excessive force to connect or discon-
nect. The hose must be a auto-shut-off gas hose connected to a PIC.
b) CLASS (for LPG installation)
The cooker must be installed according to LPG gas safe regulations. The LPG conver-
sion must be carried out by a competent technician as per the instructions manual.
The appliance is delivered to operate as indicated on the label on the appliance: CAT.
II2H3 + = GAS G20 mbar; GAS G30/31 = 30/37 mbar.
For LPG conversion, see page 11
Any maintenance operation, etc. It must be carried out by an authorized technician after
disconnecting the appliance from the mains and closing the gas supply.

12
Procedure:
SR - R - P
Procedure:
DCC

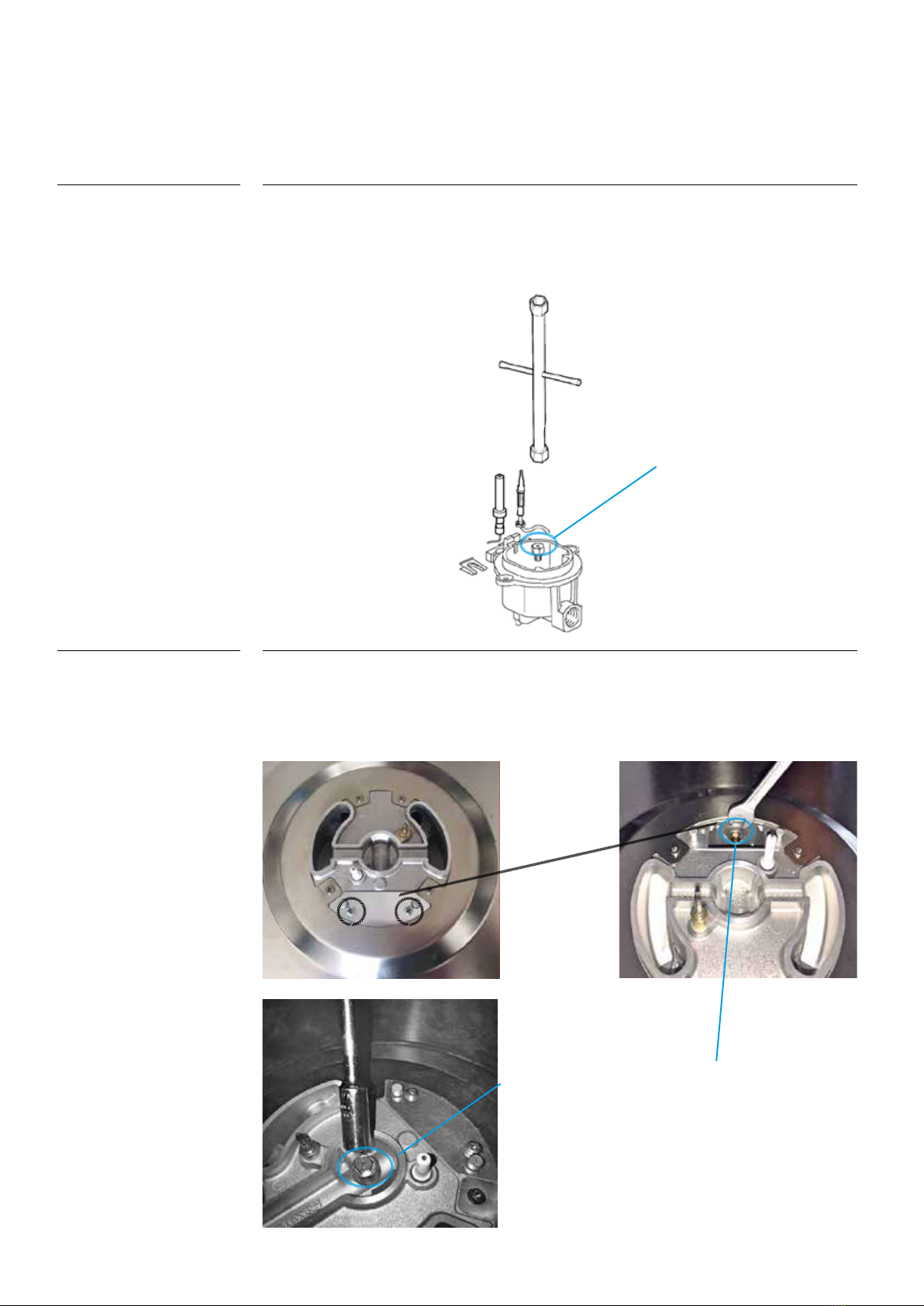

Burners SR – R – P:
• unscrew injectors “U” using a 7mm spanner (g. 1) and replace them with those for
the new gas according to table number 2 on page 20.
DCC – Dual burners
• unscrew the 2 screws “P” and remove cover “C” g.2.
• unscrew injectors “U” using a 7 mm spanner (g.3, g.4) and replace them with
those for the new gas according to table number 1 below 13.
LPG CONVERSION
Replacement of the injectors for all models
2
1
3
4
U
UU

13
Adjustments
Burners on the hob
Burners in the gas oven
When installing the cooker, you must check that the minimum gas ow of the burners on
the hob and in the oven is correctly regulated.
If the type of gas is changed, the low ame jet will require adjustment. The adjustment
procedure is as follows:
1. Light one burner at a time and turn the ame
up to maximum.
2. Remove the knob of the corresponding gas
tap and insert a screwdriver in the end part of
the tap or in the screw (g. A1,A2).
3. Turn the tap to minimum position.
4. Unscrew, turning to the left, to increase the
ame, or screw to the right to decrease it.
5. If a liquid gas is used (Butane - Propane), the
regulating screw must be fully screwed in.
1. Remove the bottom shelf of the oven.
2. Light the burner and leave it at maximum for
about 10minutes with the oven door closed.
3. Turn the knob to minimum and, still with the-
door closed, check whether the ames have
lowered but are still burning steadily (about 3-4
mm).
4. Remove the knob of the thermostat. Insert
a screwdriver on the proper screw (g. B):
turn anti-clockwise to increase the minimum,
clockwise to decrease it. The ame must be
steady and homogeneous.
5. If the ames are not well adjusted at minimum
level,repeat the procedure described above.
6. If a liquid gas is used (Butane - Propane), the
regulating screw must be fully screwed in.
ADJUSTMENTS
Adjustments minimun GAS ow
Fig. C2

14
Replacing the injectors 1. Remove the bottom of the oven by unscrewing the 4 screws.
2. Remove the burner by removing the screw that secures it.
3. Using a 7 mm hose wrench, unscrew the injector and replace it with the suitable gas
adapter.supplied with the appliance. See the table below.
4. Ret the burner and then the bottom of the oven.
ADJUSTMENTS
- Replacement of the injectors (oven H3)

15
P09
P07
P08
P09
PD09
PD10
P12
P15
M07
M09
MD10
M12
M19
N. 1
TABELLA CUCINE PROFESSIONAL
SR R P DCC 06 H3/G3 08/09 H3/G3
Qmax kW 1,80 3,00
3,10 / 3,00
(6)
4,30 / 4,20
(3)(4) 2,70 3,70
Qmax g/h 131 218 225
313
196 269
Qmin kW
0,40 / 0,53(1) / 0,45(2) 0,60 / 0,75(1) / 0,65(2) 1,10 / 1,20(1) / 1,10(2)
1,80 / 2,32
(1)
/ 2,00
(2)
Qmin g/h 29 / 39
(1)
/ 33
(2)
44 / 55(1) / 47(2) 80 / 87(1) / 80(2)
131 / 169
(1)
/ 145
(2)
G30/G31 28..30/37 mbar 0,68/0222 0,85/0222 0,87/0222
1,05/0222
0,44/0222 1,04/0222 0,80/0222 0,92/0222
G30/G31 50 mbar 0,58/0264 0,75/0265 0,75/0222
0,80/0315
0,43/0102 0,83/0315 0,68/0222 0,80/0222
G30 37 mbar 0,62/0222 0,82/0222 0,82/0222 0,95/0222 0,41/0222 1,00/0222 0,74/0222 0,86/0222
G20 20 mbar 0,97/0211 1,30/0103 1,30/0222 1,50/1048 0,70/0101 1,52/1048 1,17/0222 1,32/0332
G20 25 mbar 0,91/0211 1,10/0210 1,23/0222 1,50/0103 0,65/0101 1,50/0103 1,10/0222 1,24/0332
G25 20 mbar 1,05/0210 1,37/0332 1,42/0222 1,57/0332 0,72/0306 1,64/0332 1,30/0222 1,48/0332
G25 25 mbar 0,98/0210 1,26/0332 1,35/0222 1,50/0332 0,75/0306 1,50/0332 1,25/0222 1,40/0332
G2.350 13 mbar 1,26/0210 1,64/0332 1,64/0332 2,10/1048 0,91/210 2,10/1048 1,70/0222 1,90/0332
G25.1 25 mbar 0,98/0210 1,25/0309 1,28/0332 1,52/0332 0,71/0306 1,52/0332 1,25/0222 1,43/0332
G25.3 25 mbar 0,94/0210 1,26/0332 1,28/0332 1,48/0332 0,75/0306 1,48/0332 1,20/0222 1,37/0332
G110 8 mbar 1,90/0224-2
2,60/0224-3
2,70/0224-6 3,50/00003 1,45/00004 3,50/00003 2,80/0222
2,80
(5)
/0222
G150.1 8 mbar 1,80/0224-2
2,60/0224-3
3,20
(5)
/0222
G30/G31 0,32 0,40 0,52 0,75 0,27 0,60
G20 REG REG REG REG REG REG
G25 REG REG REG REG REG REG
G2.350 13 mbar REG REG REG REG REG REG
G110/G120 REG REG REG REG REG REG
(1)=G30/G31 50 mbar
(6)=G2.350 13 mbar
(2)=G30 37 mbar (3)=G110/G120 8 mbar
((44))==GG115500..1188mmbbaarr
((55))==vvaallvvee ""AA""
by-pass Ø mm
DUAL
5,00 / 4,20
(3)(4)
364
0,30 / 0,36
(1)
/ 0,31
(2)
22 / 26
(1)
/ 23
(2)
Ø mm
ADJUSTMENT
Kitchen table
ROMA - MILANO - MAJESTIC ROMA - MAJESTIC MILANO

16
L06
L09
LD09
LD10
L12
ADJUSTMENT
Kitchen table
TORINO
TABELLA CUCINE PROLINE
SR R P DCC 06 H3/G3 08/09 H3/G3
Qmax kW 1,80 3,00 2,90
4,30 / 4,20(3)/ 3,8(4) 2,70 3,70
Qmax g/h 131 218 211 313 196 269
Qmin kW
0,40 / 0,53(1) / 0,45(2) 0,60 / 0,75(1) / 0,65(2) 1,10 / 1,20(1) / 1,10(2) 1,80 / 2,32(1) / 2,00(2)
Qmin g/h 29 / 39(1) / 33(2) 44 / 55(1) / 47(2) 80 / 87(1) / 80(2) 131 / 169(1) / 145(2)
G30/G31 28..30/37 mbar 0,68/0222 0,85/0222 0,82/0222 1,05/0222 0,44/0222 1,00/0222 0,80/0222 0,92/0222
G30/G31 50 mbar 0,58/0264 0,75/0265 0,75/0222 0,80/0315 0,43/0102 0,75/0315 0,68/0222 0,80/0222 G30 37 mbar 0,62/0222 0,82/0222 0,80/0222 0,95/0222 0,41/0222 0,95/0222 0,74/0222 0,86/0222 G20 20 mbar 0,97/0211 1,30/0103 1,23/0222 1,50/1048 0,70/0101 1,42/1048 1,17/0222 1,37/0332 G20 25 mbar 0,91/0211 1,10/0210 1,20/0222 1,50/0103 0,65/0101 1,40/0103 1,10/0222 1,24/0332 G25 20 mbar 1,05/0210 1,37/0332 1,42/0222 1,57/0332 0,72/0306 1,48/0309 1,30/0222 1,48/0332 G25 25 mbar 0,98/0210 1,26/0332 1,26/0332 1,50/0332 0,75/0306 1,40/0332 1,25/0222 1,40/0332 G2.350 13 mbar 1,26/0210 1,64/0332 1,64/0332 2,10/1048 0,91/210 1,98/1048 1,70/0222 1,90/0332 G25.1 25 mbar 0,98/0210 1,25/0309 1,28/0332 1,52/0332 0,71/0306 1,50/0332 1,25/0222 1,43/0332 G25.3 25 mbar 0,94/0210 1,26/0332 1,24/0332 1,48/0332 0,75/0306 1,40/0332 1,20/0222 1,37/0332 G110 8 mbar 1,90/0224-2 2,60/0224-3 2,70/0224-6 3,50/00003 1,45/00004 3,50/00003 2,80/0222
2,80(5)/0222
G150.1 8 mbar 1,90/0224-2 2,60/0224-3 2,60/0224-6 3,50/00003 1,45/00004 3,50/00003
G30/G31 0,32 0,40 0,52 0,75 0,27 0,60 G20 REG REG REG REG REG REG G25 REG REG REG REG REG REG G2.350 13 mbar REG REG REG REG REG REG
G110/G120 REG REG REG REG REG REG
(1)=G30/G31 50 mbar (2)=G30 37 mbar (3)=G110/G120 8 mbar
(4)=G150.1 8 mbar (5)= Brahma valve
by-pass Ø mm
ACTEK VALVE
DUAL
4,50 / 4,20(3)(4)
327
0,30 / 0,36(1) / 0,31(2)
22 / 26(1) / 23(2)
Ø mm

17
WIRING DIAGRAM
Key
00 Black
11 Brown
22 Red
33 White
44 Yellow
45 Yellow-green
55 Grey
66 Blue
AA Electrical ignition transformer
C Switch
CP Probe connection
DU Wax motor
EF Encoder functions
ET Encoder temperature
F Phase
K1 Earth wire for terminal board
K2 ” ” lower resistance
K3 ” ” for oven fan
K4 ” ” circular resistance
K5 ” ” upper resistance
K6 ” ” oven lamp 1
K7 ” ” oven lamp 2
K8 ” ” rotisserie
K9 ” ” cooling fan
K10 ” ” selector
K11 ” ” oven thermostat
K12 ” ” programmer/timer
K13 ” ” grill
K14 ” ” el. hotplate
K15 ” ” frame
K16 ” ” barbecue
K17 ” ” fryer
L1 oven lamp
L2 oven lamp
MTerminal board
MA Electrical ignition microswitch
MD Grill microswitch
MG Rotisserie
MP Door microswitch
N Neutral
NTC
Temperature probe
PTimer/Programmer
P
Timer/Clock
P1...6 Induction hotplate
PE Electric hotplate
PT1000
Temperature probe
R1 Upper heating element
R2 Lower heating element
R3 Grill heating element
R4 Circular heating element
R5 Barbecue heating element
R6 Fryer heating element
RE Energy regulator
S1 Oven warning light
S2 Mains power warning light
S3 Grill warning light
S4 Cooling fun warning
S5 Barbecue warning light
S6 El. hotplate warning light
S7 Turnsplit warning light
S8 Residual heat warning light
S9 Fryer warning light
SD
Display card
SI
Interface card
SPL Sparking plug
SP
Power board
SS
Probe card
T Grill thermostat
TF Oven thermostat
TR Fryer thermostat
TS Safety thermostat
TT Cooling fan thermostat
V Oven fan
VT Cooling fan
e-


  
 

 
  
     
  
 I  J
 K
E M
H p
 2 O
QUICK START

18
HOB GAS
BASIC INDUCTION HOB
AREA 5
WIRING DIAGRAM
MA MA MA MA MA MA MA

AA
SPL
66

11 66
o
o o o
F N 

19
WIRING DIAGRAM
P09I...E3
INDUCTION HOB AREA 4
P38
P9 P8 P19 P14 P28 P27 P7 P34 P33 P13 P5 P10 P26
P18
P12
P15
P16
P_DISPPOT_1_2POT_3_4
P17
N F
M
66 11
K2K1 K4K3 K6
45
K5 K15
M
V
66 66
66
66
66
11
11
M
L1 VT
R4 R3 R2
TS
R1
1111111111
66
33
33
44
44
11
11
00
00
22
55
22
55
55
00
00
00
00
00
00
11
11
11
11
11
33
33
66
11 11 11
11
SP
NTC
LEGENDA
SW1
L2
33
M
MG
22
22
ET
EF
S2
S1
P1 P2
66
33
00
SD
B
C
A
66
45
11
CP
SS
FLC
MP
P23
DU
11
11
11
33
X13
X14
X10
X9
X15
X3
X4
X2
X1
X5
X6
P1
P2
X1
X2
X200
X201
X1
X2
X200
X201
RE1RE2
X6 X7
X8
X4 X3 X2
X5
X1.4
X8
X7
11
SP
SI SD
66
66
66
66
66
1111
11
11
11 66
11
45
45
11
11
66
TT

20
WIRING DIAGRAM
INDUCTION HOB AREA 5
INDUCTION HOB AREA 6
