iM3 SP6 Ultrasonic Scaler &
Micromotor
INSTRUCTIONS FOR USE AND
TECHNICAL MANUAL
iM3 SP6 Ultrasonic Scaler &
Micromotor
ENGLISH FRANCAIS DEUTSCH ESPAÑOL

ART-SP6 Scaler /Polisher Combo Unit
Instruction Manual
Bonart Co., Ltd.
4F-11, No.3 Wuquan 1st Rd., Xinzhuang
Dist., New Taipei City 24892, Taiwan, R.O.C.
Tel: [phone]
Fax:[phone]
Email: [e-mail]
0434
COPYRIGHT© 2014 BONART CO., LTD.

- 1 -
BONART Co., Ltd. (BONART) owns all rights to this publication. This publication shall be used
solely as a reference for operation, maintenance, and repair on BONART equipment. This document
may not be reproduced or disseminated in any form, by any means, for any other purpose.
In the event of inadvertent or deliberate publication, BONART intends to enforce its rights to this
manual under the copyright law. Copying materials presented in this manual is strictly prohibited
without written permission by BONART Co., Ltd.
Product specifications and information presented in this manual are subject to change without prior
notice.
PROPERTY OF BONART CO., LTD.
ALLRIGHTS RESERVED
ART is a registered trademark of BONART Co., Ltd. & its affiliates.
Document No. RD-02-14-06 Rev.1.0 (04/14)
Printed in Taiwan, R.O.C.

- 2 -
Operator Safety
Please read the entire manual prior to operating the unit.
The ART-SP6 Scaler/Polisher Combo Unit should be operated, maintained and repaired by qualified
and properly trained personnel.
NOTE, CAUTION, AND WARNING STATEMENTS
NOTE
：
Provides tips and advice
CAUTION：Provides correct operating or maintenance procedures
WARNING：Alerts users of danger that may cause severe injury when proper procedures are
not followed

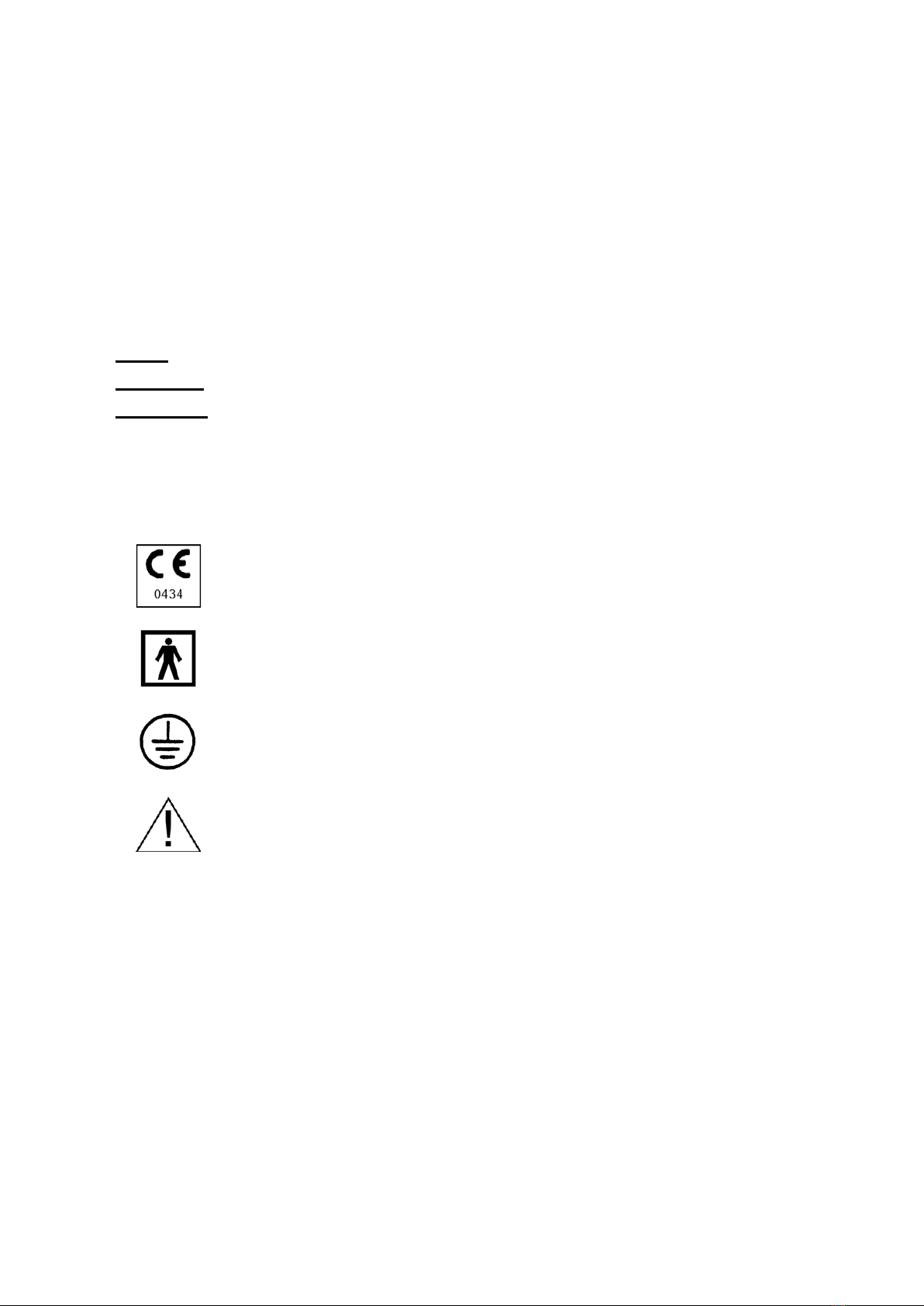

SYMBOLS
Complies with MDD 93/42/EEC
BF equipment
Grounding terminal
Attention! Please read instructions

- 3 -
Warnings
Important!
Only trained and qualified doctors, dentists, and hygienists should operate the
ART-SP6
Patients with pacemakers cannot be treated with the ART-SP6
Do not immerse the ART-SP6 in water!
If the patient or operator is pregnant, consult a physician prior to performing
dental scaling for safety purposes.
The ART-SP6 requires a shielded AC power cord.
Plug the power cord into a well-grounded outlet.
Attention to users with cardiac pacemakers!
Patients with pacemakers should avoid treatment with the ART-SP6. Electronic appliances
including razors, hair dryers, microwave ovens, TV receptors, and other medical equipment,
such as the ART-SP6, may interfere with the performance of pacemakers.
For more information on this subject, please refer to the following articles:
"Advances in Cardiac Pacemaker", The New York Academy of Sciences, Vol. 167, Article
2, pp. 515-1075
"Electromagnetic Radiation Interference with Cardiac Pacemaker", U. S. Department of
Health, Education and Welfare
"The Individual with a Pacemaker in the Dental Environment", Journal of the American
Dental Association, Vol. 91, No. 6, pp. 1224-1229

- 4 -
Please Read Before Operating:
Make sure the device is connected to a grounded outlet. Failure to
meet this requirement may severely damage the user and device.
Place the device on a flat and stable surface. Placing the device
on a tilted or unstable surface may degrade performance and
also cause damage to the device.
Do not modify the device. Modifications to the device will
invalidate the safety codes and warranty while endangering the
patient and operator.
Do not place heavy objects on top of the power cord and keep the
power cord away from intense heat.
Unplug the device and call your local dealer or BONART for service
and instructions if you observe any abnormalities while operating the
device.

- 5 -
Preface
About the ART-SP6 Scaler/Polisher Combo Unit
The ART-SP6 is CE 0434 certified in compliance with the applicable requirements of the Council
Directive 93/42/EEC. The reviewing council also classifies the ART-SP6 in accordance with
EN60601-1 and EN60601-1-2 safety requirements.
The ART-SP6 utilizes piezoelectric ultrasonic waves generated by 4 ceramic piezoelectric plates
located in the hand piece. These plates, subject to high frequency current begin to vibrate. The
ART-SP6 contains a highly efficient transducer that provides an operating frequency of 29 KHz
with minimal noise at a lower temperature, thus reducing the amount of cooling water needed
during operation. The vibrations from the hand piece in combination with lower cooling water
requirements produce the perfect device for removing tough calculus and tartar with ease.
TECHNICAL SUPPORT
For technical support and mail-in repairs in the U.S., please contact our U.S. division, Magpie
Tech. Corp. at 1-[phone], Monday through Friday, 9:00AM to 5:00PM (Pacific). For non
US territories, please contact your local BONART representative.
REPLACEMENT PARTS
To order replacement parts, please contact an authorized dealer listed on our website,
www.bonartmed.com

- 6 -
Table of Contents
Copyrights ……………………………... 1
Operator Safety ..........………………………. 2
Warnings ......…………………………. 3
Preface ……..………………………. 5
Contents ..……………………………. 6
Section I. Indications for Use ..……………………………. 7
Section II. Contraindications and Warnings …………………….. 7
Section III. Precautions .…………………………….. 7
Section IV. Infection Control ……………………………... 9
Section V. Installation …..…………………………………………. 12
Section VI. General Descriptions and Information of Parts……………. 18
Section VII. Techniques ………………………………. 22
Section VIII. System Maintenance …………………………..… 24
Section IX. Troubleshooting ………………………………. 25
Section X. Specifications ………………………………. 26
Section XI. Disposal ..…………………………….. 26

- 7 -
SECTION I
：
INDICATIONS FOR USE
Ultrasonic procedures:
Removal of calculus and plaque during dental prophylaxis.
General supra and sub-gingival scaling applications.
Periodontal debridement for all types of periodontal diseases.
Endodontic procedures.
Polishing procedures:
Removal of calculus and plaque during dental polishing.
General supra and sub-gingival polishing applications.
Periodontal debridement for all types of periodontal diseases.
Endodontic procedures with optional bur tools.
Section II
：
Contraindications and Warnings
Do not use the ART-SP6 for restorative dental procedures involving amalgam condensation.
Do not use the ART-SP6 if the patient or operator has a pacemaker.
Do not immerse the ART-SP6 in liquid. If the unit has fallen into liquid, do not reach into
the liquid.
Do not modify the ART-SP6. Modifications may violate safety codes and endanger the
operator or subject, as well as void the warranty terms and conditions.
Section III
：
Precautions
Precautions for the ART-SP6 and all Ultrasonic Scaling systems
Operation of the ART-SP6 must be performed by qualified veterinarians, technicians, and
other trained personnel.
nsure that an adequate amount of water is provided during operation to cool and prevent the
hand piece and piezo tip from overheating.
Turn off the water source to the ART-SP6 when the scaler is not in use.
Use caution to prevent transmission of contagious diseases as all ultrasonic scalers produce
aerosols.
Keep away from heat sources. Excessive heat may damage the electronic components.
Seek advice from a physician prior to operating the ART-SP6 if the operator is pregnant.

- 8 -
Precautions for Ultrasonic Prophylaxis Procedures
Discard and replace piezo tips as needed. Scaling tips wear out with use and should be
replaced after 2mm of wear (approximately 3 to 4 months) to maintain optimal performance
Discard and replace piezo tips that are bent, damaged, or reshaped. Do not reuse deformed tips
BONART piezo tips are made of stainless steel. Avoid direct contact with teeth to prevent
damage to the enamel. We strongly advise practicing on models and aluminum plates prior to
operating on a live subject with the ART-SP6.
Avoid direct contact of piezo tips with the subject’s lips, cheeks, and tongue.
Wipe accretions from the tooth using the long axis of the scaler tip. DO NOT gouge the tooth.
Precautions for hand-piece
Do Not Twist and Pull Cable
Do Not Bend
Do Not Twist
Do Not Bundle
Pull To Disconnect

- 9 -
SECTION IV
：
INFECTION CONTROL
Infection Control:
Always use standard personal protective equipment such as facemasks, eyewear, face shields,
gloves, and protective gowns.
In addition to using protective equipment, ensure that your water supply system conforms to
applicable Centers for Disease Control and Prevention (CDC) andAmerican Dental Association
(ADA) standards, and that all required flushing, chemical flushing, and general infection control
procedures are followed.
To further protect against infection, using distilled or purified water is recommended.
Cleaning and Sterilization:
All sterilization procedures must be followed in accordance to the EN ISO17664 standards.
In order to avoid bacterial or viral infections, always clean and sterilize the following components
after each treatment:
1. Hand piece
2. Tips
3. Metal Wrenches
4. Micro-motor
5. Straight hand piece (Straight nose cone)
6. Prophy head
The hand piece and tips, wrench, straight handpiece and prophy head can be autoclaved and can
withstand a maximum temperature of 135℃or (275℉) for a maximum of 3 minutes. After
completing the sterilization cycle, air-dry for about 20-30 minutes before reusing.
WARNING: Do not use any other method of sterilization (dry heat, radiation, ethylene oxide, gas,
low-temperature plasma, etc.)
NOTE
：
The Sterilization Assurance Level (SAL) of steam autoclave should be 10-6 (According
to ISO 13683:Sterilization of health Care products)
NOTE: Prior to cleaning and sterilizing your ART-SP6 unit, always remember to turn off the
device by using the power switch and to disconnect the power plug from the outlet.

- 10 -
Cleaning theART-SP6 unit
Remove the hand piece from the cable, and the tip from the hand piece.
Clean and disinfect the surface of the outer casing, cords and connectors with a cloth and a
gentle disinfectant.
Cleaning and sterilizing the hand piece
Remove the hand piece from the hand piece cable and the tip from the hand piece.
Take special care not to break the threading pin of the hand piece. The threading pin is where
the tip attaches to the hand piece.
Disinfect the hand piece with a cloth and mild disinfectant containing a neutral pH.
Dry the electric contacts by blowing air onto them with the syringe.
Seal the hand piece in a sterilization pouch (without any tips). If you are short on sterilization
pouches, you may use the surgical tray in place of the sterilization pouch.
Autoclave the hand piece.
WARNING
：
Do not immerse the hand piece cable in sterilizing fluid. The ART-SP6 can be
severely damaged if sterilization fluid gets inside the unit.
Cleaning Piezo Tip or Wrench
Clean the tip or wrench preferably in an ultrasonic tank and rinse in distilled water.
Dry the tip or wrench.
Disinfect the tip with a cloth and mild disinfectant containing a neutral pH.
Seal the tip or wrench inside a sterilization pouch. If you are autoclaving more than 1 tip, place
each tip or wrench in an individual bag. You may also use the tip holder that comes with the
ART-SP6 in place of the sterilization pouch.
Autoclave the tip or wrench .
WARNING
：
Before starting the sterilization cycle, make sure that the inside of the tip orwrench
is completely dry by blowing air through the internal hole with the syringe. This will prevent
stains and patches from appearing on the surface of the tip or wrench.

- 11 -
Cleaning the micro-motor (optional accessory)
Remove all attachments to the micro-motor prior to cleaning. The outer surface of the micro-
motor should be cleaned with an antiseptic solution. Never oil the micro-motor. Ensure that
no moisture gets inside the micro-motor.
WARNING: Do not dip the micro-motor and cord directly into sterilization fluids. The
chemicals will interfere with normal operations if it reaches the inside of the system.
WARNING:Do not leave disinfectants on parts longer than recommended by the
manufacturer of the disinfectant to avoid damaging materials.
NOTE: The micro-motor should be cleaned after each use between patients.

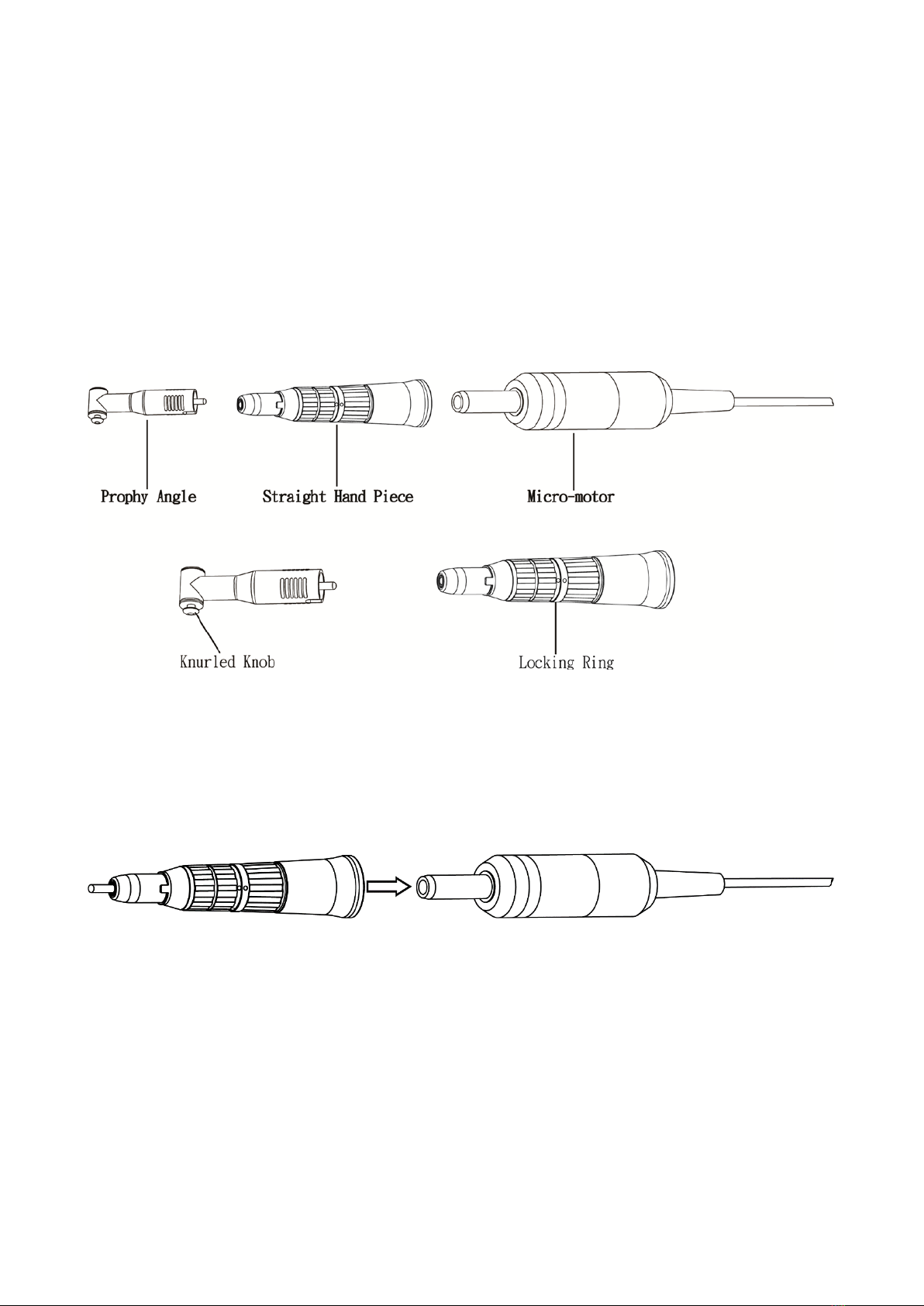

Cleaning the straight hand piece (straight nose cone) attachment (optional accessory)
Clean the straight hand piece preferably in an ultrasonic tank and rinse in distilled water.
Dry the straight hand piece.
Disinfect the straight hand piece with a cloth and mild disinfectant containing a neutral pH.
Seal the straight hand piece inside a sterilization pouch. If you are autoclaving more than 1
tip, place each straight hand piece in an individual bag. You may also use the tip holder that
comes with the KRUUSE-SP2 in place of the sterilization pouch.
Autoclave the straight hand piece .
Cleaning the Prophy Head (unless disposable) (optional accessory)
The prophy head should be cleaned to remove hair and debris approximately after every 10 dental
polishing.
1. Remove prophy angle from handpiece and rubber cup.
2. Remove head gears by turning knurled knob clockwise ( threads are reversed) turn to your right.
3. Clean with fine brush and lubricate head gears with mineral oil, Vaseline or any non-toxic
lubricant.
4. Place head gears back and tighten by turning Left or counterclockwise.
5. Normal polishing speeds are around 2,000 to 3,000 RPM, exceeding this may damage your
prophy angle.

- 12 -
SECTION V
：
INSTALLATION
General Information
If the installation of your ART-SP6 system is performed by non-Bonart dealer personnel, check to
see that the requirements below are followed.
Water Line Requirements
Incoming water supply line pressure to the Scaler must be 25 psi (172 kPa minimum) to 60
psi (414Kpa maximum). If your dental water supply line pressure is above 60 psi, install a
water regulator on the water supply line to your ART-SP6 unit.
After installing the water supply system, flush the water thoroughly prior to connecting to
the scaler.
Manually shut off the water valve of your dental water supply system pior to leaving the
office unoccupied and unattended.
Electrical Requirements
Refer to Section X: Specifications

- 13 -
Unpacking the Unit
Carefully unpack your ART-SP6 unit and verify that all components and accessories are included:
(Figure 1) All components and accessories
Item Quantity Item Quantity
(1) Main Unit 1 (2) Foot Control / Foot Switch 1
(3) AC Power Cord Set. 1 (4) PU Water Tubing 1
(5) User Manual & Literature
Packet
1 (6) Straight Hand piece. 1
(7) Metal Torque-Limited
Wrench
1
(8)
ART-BS1 Universal Pointed Tip
ART-BS2 Chisel Head Flat Tip
ART-BS3 Round Flat Tip
2
1
1
(9) Micro-motor Optional
(10) Micro-motor seat Optional
(11) Straight Hand Piece Optional
NOTE
: Other piezo tips are available and can be purchased separately through dealers.
Included items are subject to change depending on location.
NOTE：
While unpacking, check yourART-SP6 unit forany damages. If any damages are
found
, please contact your dealer immediately. Enter the unit serial number
on your
warranty card
and mail it within 14 days from the date of purchase.

- 14 -
Power Cord / Power Connection
Always make sure that the power switch is set to the OFF position before performing the
following tasks:
oPlugging and unplugging theAC cord into the back of the unit.
oPlugging and unplugging the 3-prong plug into a grounded electrical outlet.
Safety Instructions
A. Grounding:
Verify that the main unit is connected to a grounded outlet prior to connecting other parts to
the main unit.
B. Main voltage range and fuse:
Check the voltage of the ART-SP6 for compatibility with your local voltage before plugging the
power cord into the outlet.
Foot Control Cable Assembly Connection
Align the pins of the foot control plug with the receptacle on the back of the device and push firmly
until seated.
Water Supply Line Connection
Push the blue water tube (hose) over the stainless steel receptacle on the back of the unit. Then
tighten the screw over it.
Connect the quick connector to the water supply line. The ART-SP6 standard package comes with a
male quick connector. If a female quick connector is necessary, please contact a BONART
authorized dealer to purchase it.
Inspect all connections for leaks
To remove the water line from the ART-SP6, turn off the water supply or disconnect the water
supply line from the water tube. Then loosen the screw on the water tube from the receptacle of
the unit and gently pull the water tube off.

- 15 -
Hand piece CableAssembly Connection
The hand piece is the housing for the piezo tips. It is the part that you hold during operation. The
hand piece must be attached to the hand piece cable prior to using. To attach, connect the free end
of the cable to the matching receptacle on the back end of the hand piece. Do not twist or turn.
To detach, pull the cable from the hand piece in a straight motion. Do not twist, turn, or yank the
hand piece from the cable.
Polishing Hand PieceAssembly and Start Up.
(Figure 2)
To assemble the polishing hand piece, connect the Prophy Angle, Straight Hand Piece, and Micro-
motor by following the steps below:
1. Connect the straight hand piece and the micro-motor by pushing the straight hand piece over the
rod of the micro-motor. It should snap into place.
(Figure 3)

- 16 -
2. Attach the prophy angle to the straight hand piece by following the steps below:
A) Unlock the prophy angle from the straight hand piece by turning the locking ring clockwise.
This should open the lock. Note: When you first unpack the straight hand piece, there
may be a metal rod at the top that serves as a placeholder. Remove the rod after you open
the lock.
(Figure 4)
B) Match the groove at the base of the prophy head with the top of the straight hand piece and
connect them together.
(Figure 5)
C) Close the lock by turning the locking ring counter-clockwise. The prophy head should now
be locked onto the straight hand piece and should not fall off during operation.
(Figure 6)
D) If you wish to remove the prophy head, follow stepA to release the lock on the prophy head.

- 17 -
WARNING
：
The prophy head should be cleaned and lubricated on a regular basis.
To polish, follow the steps below:
1. Place a rubber cup on the prophy head and put paste in the cup to begin polishing.
2. Press the Micro-motor (mode) button to switch from scaling to polishing mode
3. Adjust the Oscillating dial to a low speed, 2,000 rpm.
4. Press on the foot switch to engage the polishing hand piece and begin polishing.
5. Add paste as needed.
Assembling the Scaler Unit
a. Ensure that the power switch is set to off. If plugged in, the power indicator light should not
be lit.
b. Plug the power cord of the main unit into a groundedAC power outlet.
c. Insert the tip into the hand piece and lock it into place by using the enclosed plastic wrench.
Be careful not to overturn the tip as it may cause the tip and hand piece to break.
d. Ensure that the water tube connection to the water supply source and main unit is secure.

- 18 -
SECTION VI
：
GENERAL DESCRIPTION AND INFORMATION OF PARTS
1. Main unit
5. LCD display
9. Power cord socket
2. Hand piece
6. Water control knob
10. Power button
3. Mode / Power control knob
7. Water hose input
11. Forward/Reverse switch
4. Micro-motor socket
8. Foot switch socket
Figure 7. ART-SP6 diagram
1. Main Unit
The main unit generates power and produces a signal that is passed to the hand piece. The
hand piece is then powered up and vibrates the installed tip.
2. Hand piece
The hand piece is the housing for the piezo tip. It consists of four piezoelectric plates that
vibrate. The plates are driven by the electrical signal from the Main unit. The ART-SP6 unit
is compatible with Bonart BS-type piezo tips and other brands of piezo tips with a comparable
thread. Do not use Bonart BE-type piezo tips with theART-SP6.
3. Mode/Power control knob
The Mode/Power Control Knob is use to switch between polishing and scaling mode and
control the power in scalingand/or polishing mode.
Do not press the foot switch while turning on the ART-SP6
4. Micro-motor Socket
The micro-motor socket is where you connect the micro-motor to the main unit. It is located
in the front of the main unit at the bottom left.
