iMettos B10 User manual

Planetary Mixer
Instruction Manual
Model B10/B20/B30/B40/B60
Please read this instruction manual carefully before operating this equipment

1
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not
remove any components on this product.
• Always stand BEHIND the safety guard when operating the appliance.
• DO NOT place hands near the rotating attachments when in use. This can result in severe injury.
• DO NOT remove food from the appliance until the mixing attachments have come to a complete
stop.
• DO NOT immerse the appliance in water.
• DO NOT attempt to mix items that this machine is not designed for. This can damage the mixing
attachments.
• DO NOT use with a damaged mixing attachment.
• DO NOT bypass the safety interlocks.
• Always switch off and disconnect the power supply to the appliance when not in use.
• NEVER leave the appliance unattended when in use.
• The appliance is heavy. Take care when moving.
• This appliance must only be used in accordance with these instructions and by persons
competent to do so.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations
of local authorities.
• If the power cord is damaged, it must be replaced by an iMettos agent or a recommended
qualified technician in order to avoid a hazard.
• Never use accessories which are not recommended by the manufacturer. They could pose a
safety risk to the user and might damage the appliance. Only use original parts and accessories.
• Clean the surface of stainless steel periodically with appropriate method to prevent any damage
!
THE PLANETARY MIXER IS A DANGEROUS APPLIANCE AND
MUST ONLY BE USED BY TRAINED PERSONNEL IN
ACCORDANCE WITH THESE INSTRUCTIONS.

2
brought by oxidization or any other chemical interference.
iMettos Product Description
B10 - 10 Liter Planetary Mixer
B20 - 20 Liter Planetary Mixer
B30 - 30 Liter Planetary Mixer
Please take a few moments to carefully read through this manual. Correct maintenance and
operation of this machine will provide the best possible performance from your product.
B Series Food Mixer
1. DESCRIPTION
The B series food mixers are designed and made for high performance, by us. The agitators use a planetary
motion in the bowl to ensure that the food has been fully blended. They can be used for a range of
different functions, such as flour mixing, mixing pieces, powdered and liquid food etc. These machines are
also equipped with several levels of protection, so that they can work smoothly and reliably. Additionally,
there are several working speeds and different agitators which all serve a different purpose, whether it be
for flour mixing, stuffing mixing and egg beating etc. All the machine parts that come into contact with the
food whilst in operation are made from stainless steel, or their surfaces are specially treated in conformity
with the Chinese hygiene standards.
Overall, the machine is food looking, easily operable and very efficient, suitable for food preparation in
hotels, restaurants, food processing factories and for material preparation in medicine making factories,
chemical working facilities etc.
2. FORWARD
We reserves the right to alter the design of their products without prior notice. Whilst every effort is made
to ensure this publication reflects the latest design, the company cannot guarantee full compliance.
Technical specifications
Model
Bowl volume
(L)
Voltage
(V)
Frequency
(Hz)
Power
(kw)
R.P.M
(r/min)
Max Kneading
Capacity(kg)
Net weight
(Kg)
Dimension
(mm)
B10
10
220V-240V
50
0.37
67/189/362
2
65
450X370X660
B20
20
220V-240V
50
0.75
113/168/386
6
98
570X440X780
B30
30
220V-240V
50
1.5
65/102/296
10
203
680x540x1100
B40
40
220V-240V
50
1.8
65/102/296
12
210
680x540x1150

3
3.GENERAL INFORMATION
The following information and instructions within this manual may not cover all details or variations in the
equipment, nor cover every problem that one may have during installation or use. If additional information
is required please contact us
4. SAFETY INFORMATION
The following procedures and instructions should always be carried out in order to prevent any injuries.
If the machinery is not used as recommended, the operator will be responsible for his/her own safety and
for the safety of the other persons who may be involved.
The information in this manual aims to assist the operator to understand, maintain, and operate the
mixer correctly. In order to prevent accidents, please ensure to read, understand and follow all the
precautions and warnings contained in this manual before installation or operating. To gain a clear under
straining of your mixer, it is imperative that one must study this manual carefully.
Rotating machinery and Electricity are dangerous and may cause injury if sufficient precautions are not
taken prior to operating or servicing the mixer. Ensure that the power supply is not connected to mixer and
is isolated before starting work to clean or service the machine. In certain troubleshooting situations it may
be necessary to operate the mixer; in which case extreme caution must be used. Only suitably qualified
personnel must service the mixer.
4.1 SAFETY GUIDELINES
Ensure sufficient precautions are observed during manually handling of the mixer, particularly when
moving the mixed into position on installation. Ensure to adhere to the manual handling regulations.
This appliance is only for commercial and not for domestic use.
The B series mixer is not intended for use by children.
Whilst the machine is in operation, do not remove any covers or loosen any fittings.
When mixing products that develop dust, extreme care must be taken. Mix the ingredients in speed 1
until the dust is eliminated.
Exposure to dust (including flour) may be harmful to health causing rhinitis (running nose), watering
eyes and possibly occupational asthma.
If dust is a hazard, ensure appropriate PPE (personal protective equipment) is used by operators, i.e., a
mask.
All operators must be trained in the safe operation of the mixer and attachments.
This appliance is not to be used by anyone who with a lack of knowledge. Ensure all operators have
been appropriately trained.
This appliance is not intended to be used by those sensory, physical or mental capabilities prevent
them from being able to operate it safely.
Ensure the electrical supply has been isolated and the power cord disconnected before attempting to
move or service the mixer.
Be aware of the start capacitor situated behind the rear motor cover. In normal circumstances this
should discharge when the mixer is switched off. If in doubt discharge the capacitor following adequate
safety precautions.
When accessing the electrical components inside the mixer, be cautious of exposed conductors that
could be 'live'.
Always have your mixer and attachments regularly serviced; at least twice a year, depending on
frequency of use.
Ensure this manual is kept in an easily accessible place for future reference near the mixer.

4
ATTENTION!DO NOT hose or pressure clean this appliance. It is vital to follow the cleaning procedures
detailed later in section 7 of this manual
4.2. SAFETY INSTRUCTIONS
A FULLY TRAINED AND COMPETENT PERSON MUST ONLY USE THE ATTACHMENT AND/OR MIXER.
When manoeuvring or lifting a bowl and contents with a total weight in excess of 500kg a bowl truck must be used.
Avoid tasks concerned with manual handling that involves a risk to health as far as reasonably possible. This
equipment should only be stored in or transported through an environment with an ambient temperature above 5°C
and less than 55°C.
Note: The mixer must only be used for the purpose it was design and inline with the supplied operating instructions.
When mixing ingredients care must be taken to avoid the inhalation of dust particles e.g. flour. Reference should be made
to product supplier's data sheets to ensure adequate precautions and protections are taken
The following instructions must be observed when operating the mixer
4.3. NEVER
Never Change speed whilst the mixer is operating.
Never Wear loose clothing that may become caught in the mixer whilst it is in operation.
Never Attempt to reach into the bowl whilst it is mixing.
Never Leave the gear lever in mid position.
Never Use the bowl lift handle to stop machine.
Never Use the gear lever to stop the machine.
Never Access rotating parts.
Never Use excessive force when operating which could affect the stability of the mixer.
Never Operate the mixer if parts are disassembled.
Never Fit the agitator to the mixer without a bowl in place.
Never Leave the agitator on the machine without the bowl being fitted.
Never Operate the mixer with both attachment and agitator fitted.
Never Override the safety switches fitted to the mixer.
Never Open the guard to stop machine.
Never Use the mixer in an unsafe condition.
Never Operate the mixer or attachment if a fault develops or the mixer is unsafe.
Never Attempt to repair the appliance. A qualified technician must service the machine.
Never Clean the mixer with scouring powder or a scouring pad.
Never Clean aluminium agitators in a dishwasher.
Never Inhale mixing ingredient dust particles.
4.4. ALWAYS
Use the mixer as intended and inline with the operating instructions.
Use the mixer in a well-lit area.
Ensure the bowl, agitator, attachment and guard are correctly fitted to the mixer.
Remove the agitator before using any attachments.
Stop the mixer before adding more ingredients.
Use the stop button to stop machine.
Disconnect the mains electricity supply before cleaning the mixer.
Clean the bowl, agitators and attachments after use.
Clean the mixer using mild soap and water.
Clean the mixer daily.
Inspect the power cable and appliance regularly. If a fault is found do not operate.
Disconnect the mains electricity supply before cleaning the mixer.

5
4.5. LIABILITY
Installations and repairs which are not carried out by Authorised technicians or the use of other then original spare parts,
and any technical alterations to the machine, may affect the warranty set out in the standard conditions of sale
ATTENTION!DO NOT hose or pressure clean this appliance. It is vital to follow the cleaning procedures detailed later in
section 7 of this manual.
5. MIXER AGITATORS
Spiral Agitator: This agitator is suitable for mixing dough and sticky solid food. When using, the capacity of flour
must correspond to the mark and the capacity of the water is 45% to 50% of the flour’s. Should only be used at
low speed.
Beater: This agitator is suitable for thin pieces, powdered and mushy food, such as stuffing. Suited for use at
medium speed.
Wire whip: This agitator is suited for mixing liquid food, such as cream and egg beating. Suited for use at high
speed.
6.OPERATION&MAINTENACE&USE
6.1. OPERATION AND NOTES
1.Before use, check whether power supply corresponds to that required by the machine, check whether the external earth
wire is reliably connected.
2.The machine with 3-phase motor must be checked whether the machine rotates in the direction indicated by the
rotation mark. If the rotation direction is wrong, exchange the two of the three livewires each other. Note: For test of
machine, mixing tools should never be installed, otherwise they would fall out in case of wrong rotation direction and
cause damage to machine parts.
3.For every power educe line which has not attach plug, should be connected to the switch of at least 3mm touch-point
distance which installed by user. Rated current of the switch must be not lower than 35A.
Note: after the shutdown speed, prohibit the use of medium-speed or high-speed mixing
4.Select speed and agitator:
a) Spiral agitator: It is suitable for mixing dough and sticky solid food, the capacity of flour must refer to the mark, the
capacity of water is 47%∽50% of the flour’s, and the machine is available for low speed.
b) Beater: It is suitable for thin pieces, powdered and mushy food, such as stuffing, and available for medium speed.
c) Wire whip: It is suitable for mixing liquid food, such as cream and eggs beating, and available for high speed.
Caution: Before changing speed, you must stop the machine first, do not mix dough at medium or high speed.
CAUTION: BEFORE CHANGING SPEED, YOU MUST STOP THE MACHINE
FIRST. ALSO, DO NOT MIX DOUGH AT MEDIUM OR HIGH SPEED

6
Note: When installing blender, Stir-axis gear must be good size with the Stirrer Crossing in place to prevent falling.
5.Bowl lift:
a) When mixing, rotate the hand wheel to raise the bowl until it reaches the stop position, so that the food can be mixed
thoroughly.
b) Exchanging agitators and after mixing, rotate the hand wheel to lower the bowl so that the bowl and agitators can be
removed.
Note: When assembling an agitator, slip the agitator up on the shaft and turn it until the driving pin in the shaft reaches
the L-shaped slot in the agitator shank in order to avoid the agitator to fall down in running.
6.2. MAINTENANCE
1. After use each time, clean carefully the bowl, agitators etc., and make sure to keep the machine clean.
2. Lubricate the bowl slide ways regularly.
3. The transmission gearbox is packed with special grease that will be sufficient for six months. To add or replace grease, it
is necessary only to remove the upper cover and the bearing cover
6.3 USING THE MIXER FOR THE FIRST TIME

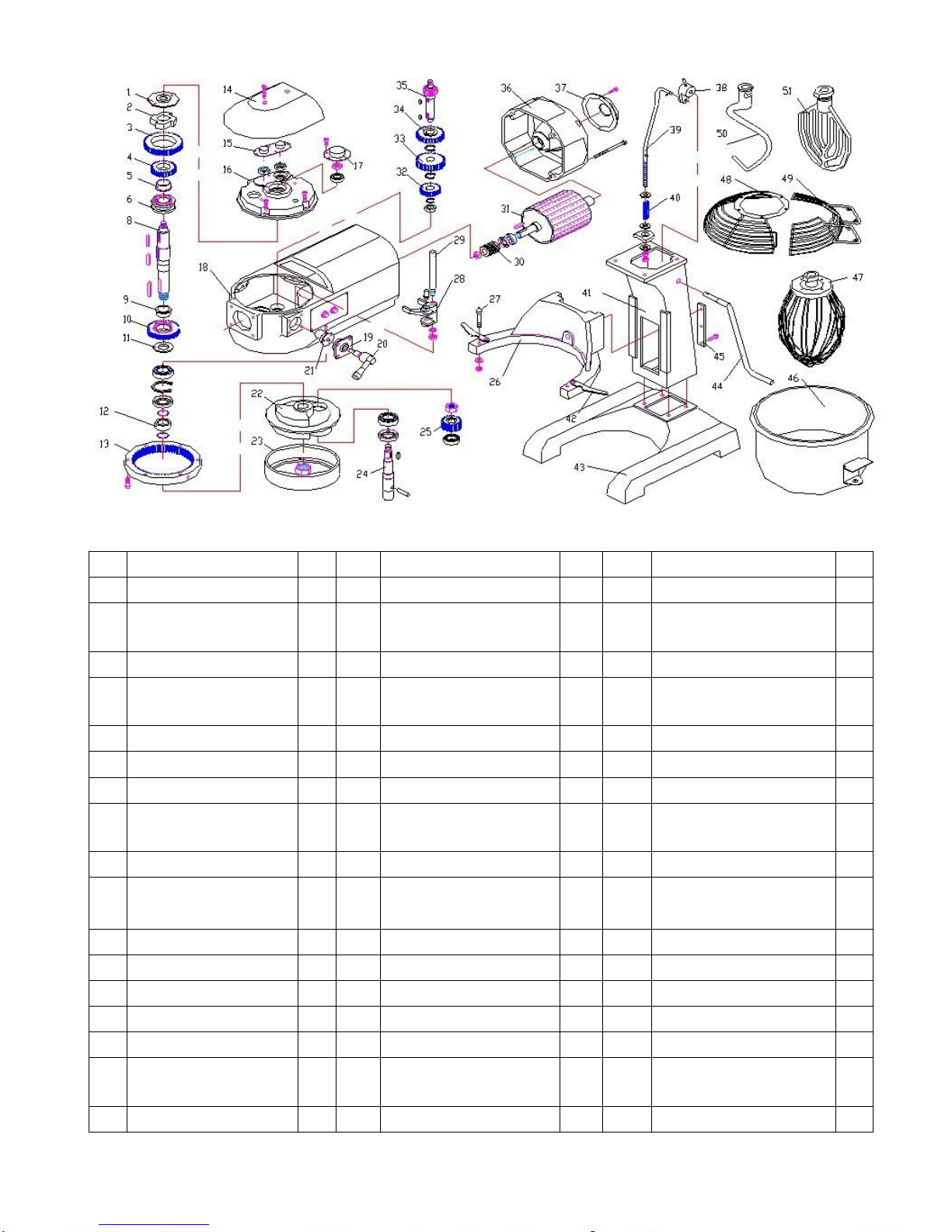

Refer to figure 1 for mixer component identification.
Before using for the first time, thoroughly clean the bowl and agitator, as described in section 7 of this manual.
Ensure that the mixer is firstly switched off (1)
Ensure the cover (11) is fitted to the hub (where applicable) if an attachment is not in use.
Always remove any attachments before using the agitator.
Lower the bowl support by rotating the bowl handle downwards (3)
Rotate the front guard cage assembly (10) to the open position
Place the required agitator (9) into the bowl (7) and lift bowl onto the bowl support (5)
Ensure that the rear bowl location (4) and side bowl pins (6) are correctly engaged
Slide the agitator onto the shaft, turning clockwise to engage the drive pin in the “L” slot of the agitator shank.
Add the ingredients into the bowl and raise the bowl using the handle (3)
Rotate the front guard cage (10) into the operating position.
Select the desired speed (12).
Start the machine by pressing the 'green' start button (1)
When mixing is complete stop the machine using the 'red' stop button (1)
Lower the bowl support, open the guard cage and remove the agitator from the shaft
Remove the bowl and agitator from the mixer for emptying and cleaning.
Speed setting 1 (LOW) is for heavy mixtures such as dough, heavy batters and mashed potatoes.
Speed setting 2 (MEDIUM-LOW) is for mixing cake batters, mashing potatoes and for developing dough.
Speed number 3 (MEDIUM-HIGH) is for mixing maximum 3 amount of air into light batches. The wire whip is used for
whipping cream, beating egg whites, mixing light icings, meringues and whipping.
Item
Number
Description
Item
Number
Description
1
Stop/start switches
7
Bowl

7
2
Splash shield
8
Agitator
3
Bowl lift handle
9
Beater Shaft
4
Rear bowl location pin
10
Guard
5
Bowl Support
11
Attachment hub cover
6
Side bowl pin
IMPORTANT NOTES
1. Before use, check whether the power supply corresponds to that required by the machine and check whether the
external earthing wire is reliably connected.
2. The direction of rotation of a machine with a 3-phase motor must firstly be checked. If the direction of rotation is
opposite of that indicated by the rotation mark, then two of the three livewires should be switched with each other.
Please note, mixing tools should not be installed during this test, otherwise they will fall out in the case of the wrong
direction of rotation and cause damage to the machine parts.
3. For every power educe line which has not attach plug, should be connected to the switch of at least 3mm touch-point
distance which installed by user. Rated current of the switch must not be lower than 35A
When installing the blender, stir-axis gear must be a good size with the stirrer crossing in place to prevent falling
Trouble shooting
Trouble
Probable cause
Remedy
The mixing shaft do not rotate
after switch on
Electric connectors are loose
Check the electric circuit, tighten those
loose connectors
Oil leakage
Oil seals are worn out
Replace those oil seals
The raising handle is too tight
Guide ways are corroded
Clean and oil the guide ways
The lead screw, bevel gear and hand wheel
shaft etc. is dry
Oil them
Temperature rise of motor is too
high, below speed
Lack of voltage
Check the supply voltage
Over load
Less load
The working speed selected is too high or
agitator is not suitable
Select a suitable speed and agitator
7. INSTALLATION
A qualified person must install this machine in accordance with current regulations
7.1. UNPACKING AND HANDLING
Wherever possible, the mixer should be transported to the installation position in the packaging provided to avoid any
damage. Do not use a sharp knife to open the box to prevent damaging the machine. On first inspection, check for any
possible shipping damages. If any damage has been found, save the packaging material and contact us.
Caution: The mixer is a heavy object and must be correctly handled and lifted to avoid any and all personal injuries.
With the machine in the vicinity of its final position remove from the transportation pallet. The machine is affixed to the
pallet by four retaining bolts through the pallet into the threaded feet of the base. Care must be taken during this
operation to ensure:

8
•All required safety measures are taken to ensure correct lifting and handling to avoid risk of injury, which may be
through dropping, falling or tilting.
•No damage is made to the machine which could impair the normal operation.
7.2. LOCATION
The mixer is not suitable for outdoor installation and must not be installed where a water jet could be used for cleaning.
The mixer must only be operated by trained staff and must be installed in an area where the use and maintenance is
restricted to trained personnel.
Ensure that the mixer is at a height with the bowl handles approximately between the knuckle and elbow height. This will
reduce the need to bend at the waist.
Select a suitable flat level surface that can support the weight of the mixer and bowl contents when full. It is
recommended the mixer is secured in position. Ensure the table, stand or work surface is firmly fixed to the floor. The
appliance must be restrained to prevent any movement during use.
Ensure that there is sufficient space around the mixer to allow for the safe operation. Servicing may also become an issue if
there is a greatly reduced clearance, so ensure that the service accesses to the top, side and rear of the mixer are clear
7.3. ELECTRICAL INSTALLATION.
The electrical installation of the mixer must conform to the local or national electricity board regulations.
A competent person must carry out the electrical installation. Ensure that the electrical supply agrees with the machine
specification, prior to connection.
The mixer is 'class l' appliances where the protection against electric shock does not rely solely on basic insulation. An
external electrical isolator and MCB/fuses (both items supplied by others) must be fitted to the incoming electrical supply
to the mixer. In addition a 35mA residual current device is strongly recommended to provide extra protection
“This appliance should be connected to the point of the supply with the impedance value Zsys less than (0.05+j0.03)Ω.
If the supply cord is damaged , it must be replaced by a special cord or assembly available from the manufacture or its
service agent.”

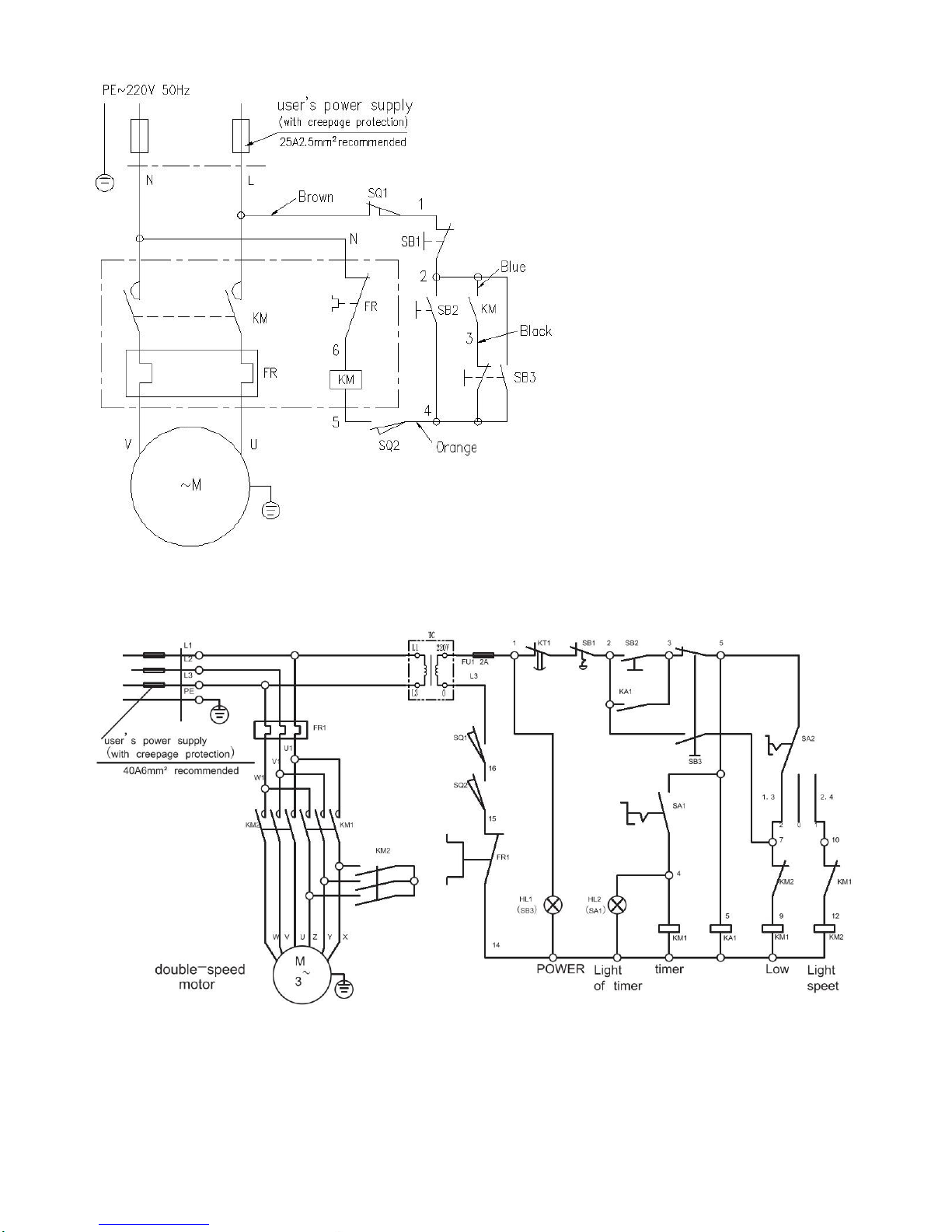

B10,B20,

9
B30,B40
B60

10
8. CLEANING
Ensure that the machine is disconnected from the main electrical power supply prior to cleaning.
It is important that correct and detailed cleaning procedures are made for all surfaces that come into contact with food.
The cleaning frequency should be clearly defined for the mixer (i.e., daily, after production runs, or more often if necessary)
and also the type of cleaning required must also be identified. The objective of cleaning and disinfecting food contact
surfaces is to remove food debris (that bacteria require to grow), and to kill bacteria that are present. It is important the
cleaned surfaces are stored dry to prevent bacteria growth. Cleaning equipment (brushes, etc.) used must also be stored in
a clean and sanitary manner. The correct procedure for cleaning of the splash zone and the food-contact surfaces are as
follows:
1. Pre-clean - remove excess food waste by sweeping, wiping or pre-rinsing.
2. Main clean - loosen surface waste and grease using a detergent.
3. Rinse - remove loose food waste, grease and detergent.
4. Disinfection - kill the bacteria.
5. Final rinse - remove the disinfectant.
6. Drying - remove all moisture.
•Note with light contamination the pre-clean and main clean can be combined.
•Some surfaces do not need to be disinfected after every wash.
•Disinfect any items which come either into direct contact with food or with the hands of operators.
•The best method of drying surfaces is to let them air-dry, but if this is not possible, use paper towels or a clean dry
cloth.
•It is important the disinfecting chemicals are approved for food contact surface application.
8.1. CLEANING BEFORE INITIAL USE
Before using the mixer for the first time, ensure to wash the mixer bowls, agitators and attachments in hot water and a
mild detergent solution. This procedure should be followed for bowls and agitators before use for egg whites or whole
eggs.
8.2. CLEANING AFTER USE
After use, clean the mixing bowl, agitators and attachments with hot water and a suitable non-abraisive detergent and soft
bristle brush. Rinsing the bowl with hot water immediately after use will also speed up the cleaning of the bowl
afterwards.
Note: Do not clean the Aluminium agitators in a dishwasher. Wash immediately after use in a bowl of warm soapy
water.
Ensure to wipe down the mixer with a hot damp cloth, thoroughly wiping the bowl support, pedestal, base and all exterior
surfaces. All food debris must be removed. The guard should be cleaned in hot soapy water.

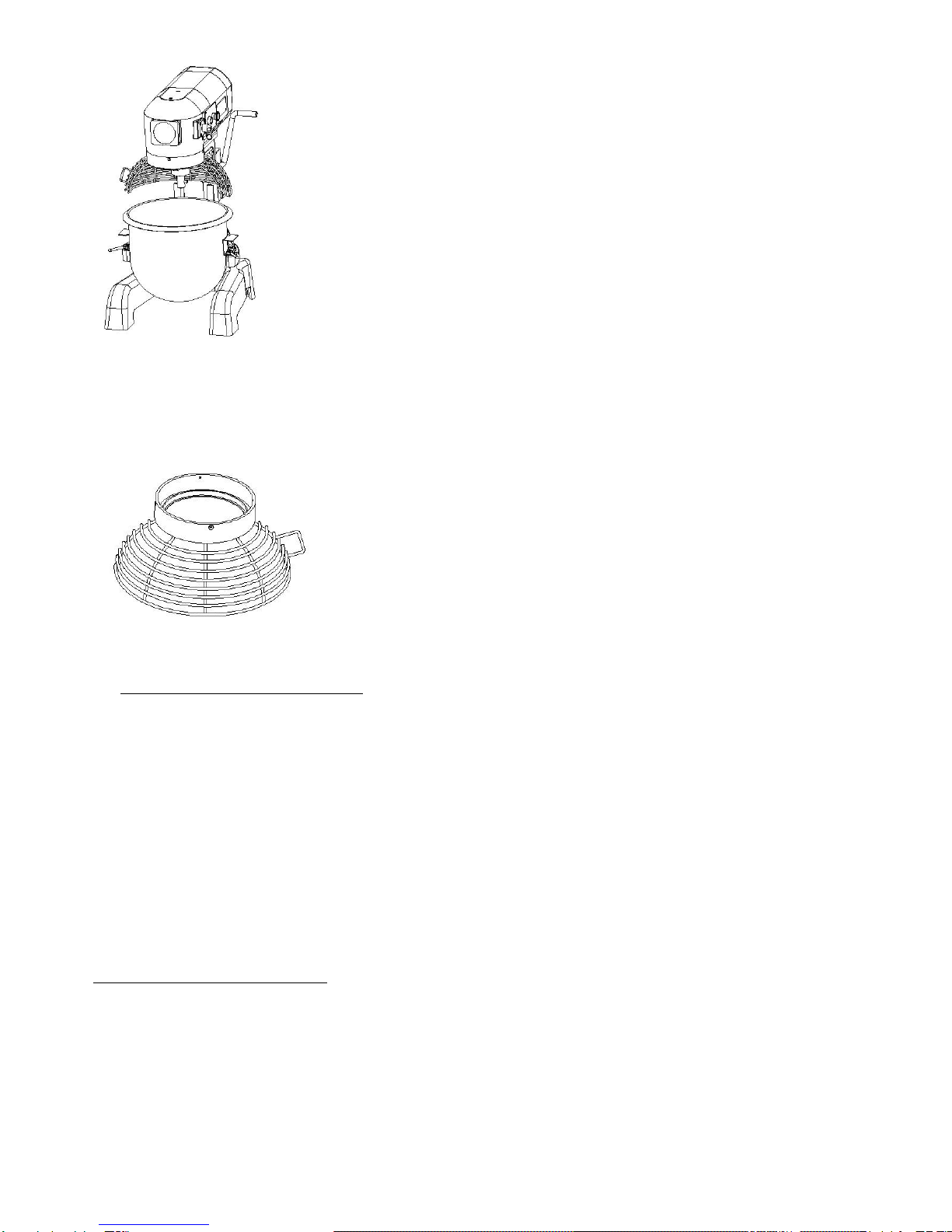

8.3. GUARD REMOVAL AND CLEANING
The guard assembly has been designed to be easily removed for cleaning.
8.3.1. TO REMOVE THE CAGE ASSEMBLY
•Ensure that the bowl support is in the lowered position (photograph 1) ,.Remove the agitator and bowl first.
•
ATTENTION
DO NOT BE CLEANED BY WATER DIRECTLY
DO NOT HOSE OR PRESSURE CLEAN THIS MIXER.
DO NOT USE ANY ABRASIVE CLEANERS

11
Note: When the cage assembly is in the closed position, a stop will prevent it from rotating in an anticlockwise
direction.
•Loose the screw. Once done, you can then remove the cage.
8.4. TO REMOVE THE REAR SPLASH SHIELD
The rear splash shield should by regularly inspected and cleaned when neccessary. This should be performed by a suitably
trained supervisor or maintenance department at least once a month. The splash shield can be either cleaned in either a
bowl of hot soapy water or a dishwasher.
•Ensure that the bowl is in the down position. Remove the bowl, guard cage and agitator as described previously in
section 8.3.1.
•Using a suitable bladed screwdriver, remove the 3 retaining screws securing the drip cup to the mixer. NOTE: ensure
that you have a firm grip on the shield whilst removing the screws.
•The drip cup can be carefully lowered away from the machine. Take care not to damage the paintwork of the mixer.
•Wipe any signs of grease from the drip cup first before washing.
•Refit the rear splash shield in reverse order once done, ensuring the screws are securely tightened.

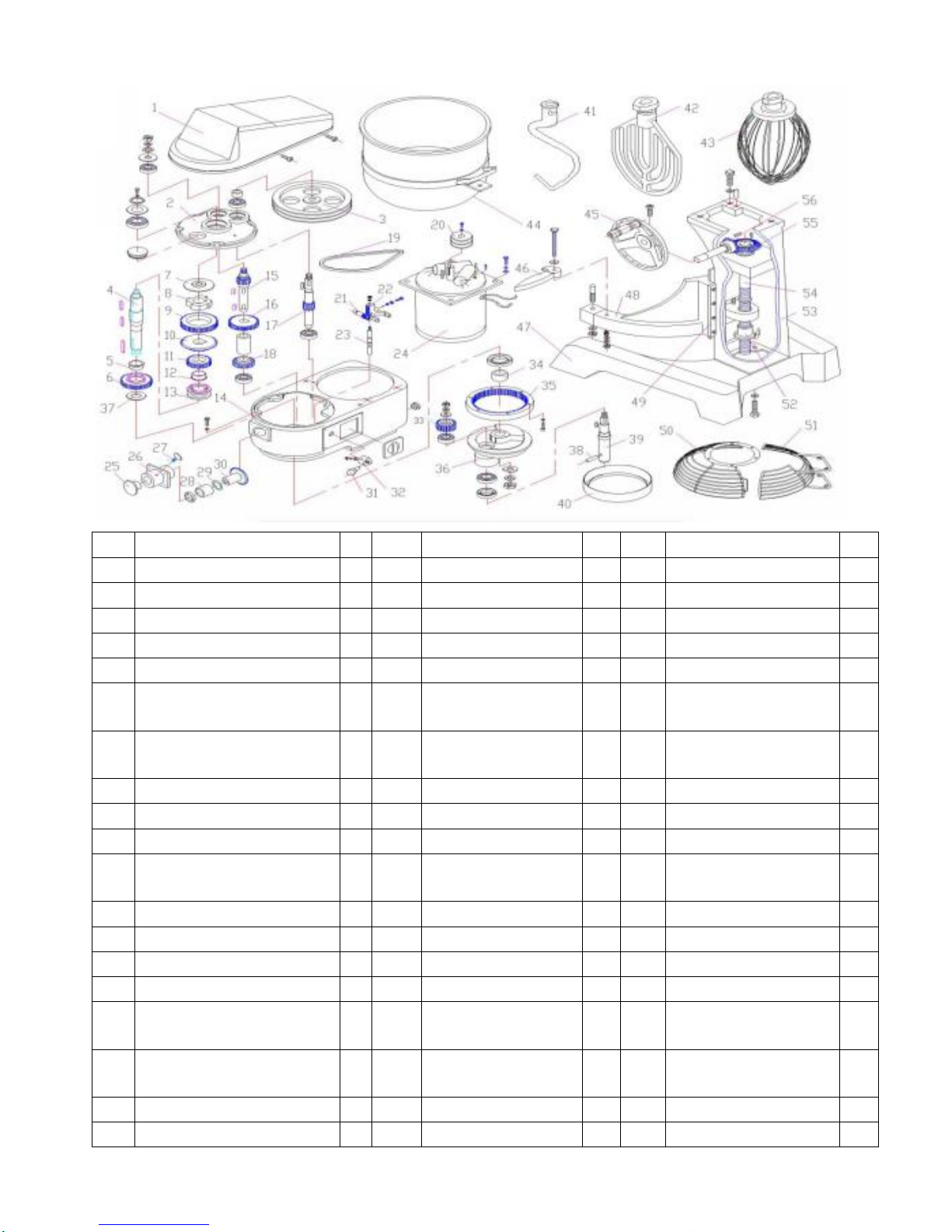

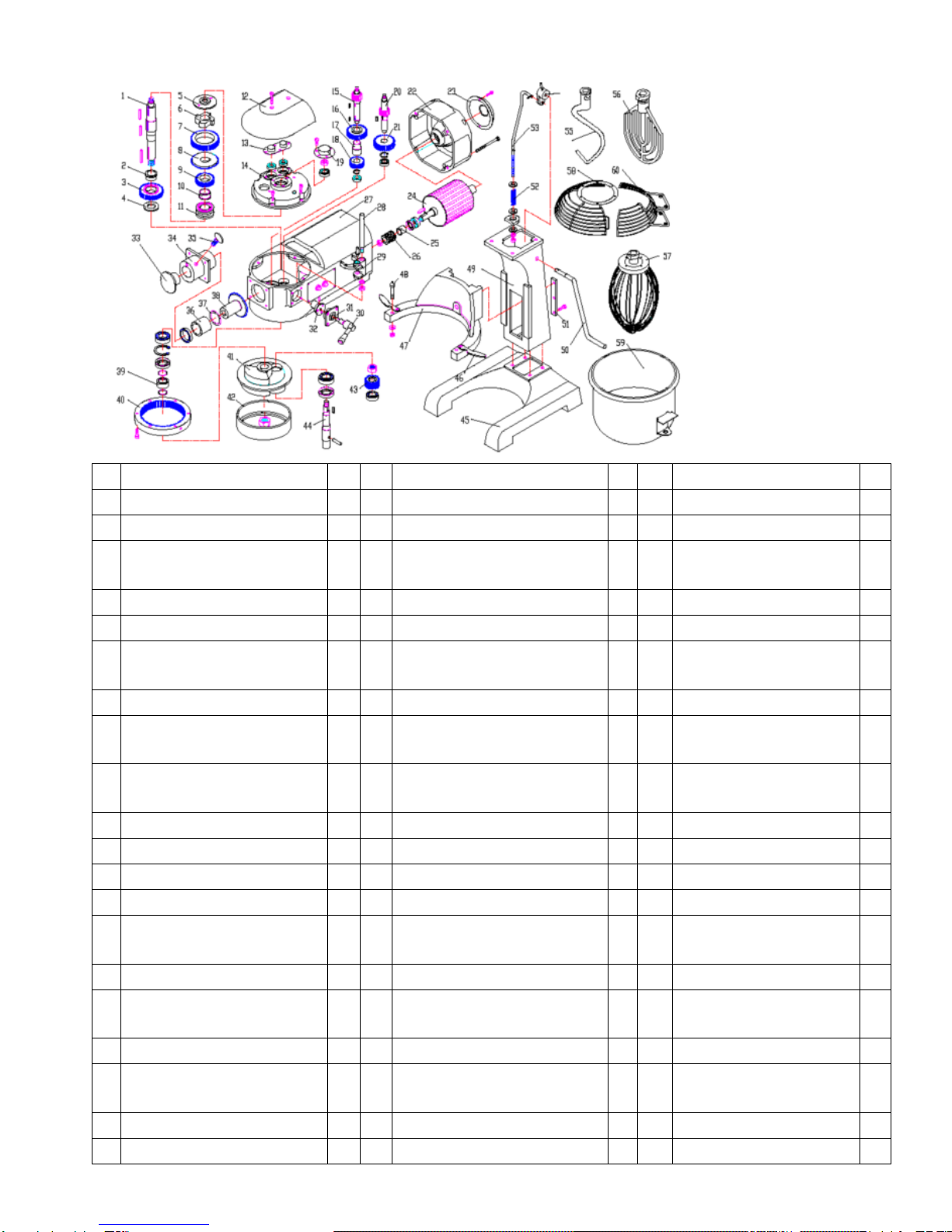

9. MACHINE ILLUSTRATION:
If you want to replace parts, you can give us your requirement referring to the parts list below

12
Model：B10
No.
Name
Qty.
No.
Name
Qty.
No.
Name
Qty.
1
Gear pusher(press cover)
1
18
body(box body) HT150
1
35
Reduction shaft
1
2
Planetary cluster
gear(clutch)
1
19
Shift handle base(handle
seat)
1
36
Back cover base(back cover)
1
3
Meshing gear(joint gear)
1
20
Shift handle
1
37
Back cover(back cover plate)
1
4
Pinion mesh gear(small
joint gear)
1
21
Electric sleeve( Electricity
cover)
1
38
Link block(link haulm)
1
5
Axel sleeve(axis cover)
1
22
Mixing base(whip seat)
1
39
Link bar(connection haulm)
1
6
jointer(Zygosperm)
1
23
Oil leaking pan(oil receiver)
1
40
Link bar spring(spring)
1
7
Main shaft(principle axis)
1
24
Mixing shaft(whip shaft)
1
41
pole(exist pole)
1
8
Adjusting washer(adjust
gasket)
1
25
espicyclic gear(planet gear )
1
42
Bowl pusher(bowl press
plank)
1
9
jointer(Zygosperm)
1
26
Bowl support(slide rack)
1
43
base
1
10
Meshing gear(joint gear)
1
27
Bowl fix level(bowl standing
pin)
2
44
Hand wheel(handle)
1
11
Main shaft washer(gasket)
1
28
fork(dial fork)
1
45
Link bar spring(spring)
1
12
Seal hose(airproof cover)
1
29
Dial fork axil
1
46
bowl
1
13
Ring gear(annular gear )
1
30
Worm shaft(worm)
1
47
Egg beater
1
14
Top cover
1
31
Motor rotor(rotor module)
1
48
Flexible casing
1
15
Gear pusher(cover)
1
32
Reduction shaft lower gear
1
49
Fixed casing
1
16
Case cover(bearing seat
cover)
1
33
Worm gear(worm wheel )
1
50
Mixing hook
1
17
Main shaft pusher(cover)
1
34
Reduction shaft upper gear
1
51
Mixing whip
1

13
Model：B20
No.
Name
Qty.
No.
Name
Qty.
No.
Name
Qty.
1
Main shaft(principle axis)
1
21
Worm gear(worm wheel Z=29)
1
41
Mixing base(whip seat)
1
2
Shaft hose(axis cover)
1
22
Back cover base(back cover)
1
42
Oil leaking pan(oil receiver)
1
3
Meshing gear(joint gearZ=38)
1
23
Back cover(back cover plate)
1
43
epicyclic gear(planet gear
Z=19)
1
4
Main shaft washer(gasket)
1
24
Motor rotor(rotor module)
1
44
Mixing shaft(whip shaft)
1
5
Gear pusher(press cover)
1
25
Worm shaft bushing(worm bush)
1
45
base
1
6
Planetary cluster gear(clutch)
1
26
Worm shaft(worm)
1
46
Bowl pusher(bowl press
plank)
2
7
Upper main shaft gear(gearZ47)
1
27
body(box body)
1
47
Bowl support(slide rack)
1
8
Bevel gear(big cone gearZ=46)
1
28
Dial fork axil
1
48
Bowl fix level(bowl standing
pin)
2
9
Pinion mesh gear(small joint
gear)
1
29
fork(dial fork)
1
49
pole(exist pole)
1
10
Axel sleeve(axis cover)
1
30
Shift handle
1
50
Hand wheel(handle)
1
11
jointer(Zygosperm)
1
31
Shift handle base(handle seat)
1
51
pedestal(press plank)
2
12
Top cover
1
32
Electric sleeve( Electricity cover)
1
52
Link bar spring(spring)
1
13
Gear pusher(cover)
1
33
Front cover
1
53
Link bar(connection haulm)
1
14
Case cover(bearing seat cover)
1
34
Grinder Head bracket(twist tie-in
seat)
1
54
Link block(link haulm)
1
15
Reduction shaft(gear shaftZ=15)
1
35
Lock pin(lock bolt)
1
55
Mixing hook
1
16
Reduction shaft upper gear(gear
Z=33)
1
36
Ball bearing(roll pin bearing)
1
56
Mixing whip
1
17
Axel sleeve(bush)
1
37
Adjusting washer(adjust gasket)
1
57
Egg beater
1
18
Reduction shaft lower
gear(gearZ=23)
1
38
Pinion level(small cone gear Z=36)
1
58
Flexible casing
1
19
Main shaft pusher(cover)
1
39
Seal hose(airproof cover)
1
59
bowl
1
20
Main shaft(gear shaft Z=17)
1
40
Ring gear(annular gear Z=67)
1
60
Fixed casing
2

14
Model：B30/B40
No.
Name
Qty.
No.
Name
Qty.
No.
Name
Qty.
1
Topcover ABS
1
20
Small belt pulley HT150
1
39
Mixing shaft 40Cr
1
2
Case cover HT200
1
21
Pinion gear 40Cr
1
40
Oil leaking pan Alum. Alloy
1
3
Big pulley Big belt pulley HT200
1
22
fork QT60-2
1
41
Mixing hook s/s
1
4
Main shaft
1
23
Dial fork axil 40Cr
1
42
whip s/s
1
5
Shaft hose (axis cover)
1
24
motor
1
43
Egg better s/s sets
1
6
lower meshing gear(small joint
gear)
1
25
Front cover ABS
1
44
s/s bowl
1
7
Gear pusher (press cover)
1
26
Grinder Head bracket
HT150
1
45
Hand wheel sets
1
8
Planetary cluster(clutch)
1
27
Lock nut s/s
1
46
Bowl fix level Z201
2
9
Upper main shaft gear(gearZ47)
1
28
Ball bearing GCr15
1
47
base HT150
1
10
Bevel gear(big cone gearZ=46)
1
29
washer 65Mn
1
48
Bawl support HT150
1
11
Upper meshing gear (joint
gearZ=38)
1
30
Pinion gear 40Cr
1
49
pedestal 45
2
12
Axel sleeve (axis cover)
1
31
Shift handle 45
1
50
Flexible casing
1
13
jointer 45 (Zygosperm)
1
32
Shift handle base 45
1
51
Fixed casing
1
14
body(box body) HT150
1
33
epicyclic gear 40Cr
1
52
Drive sleeve
1
15
Reduction shaft(gear shaftZ=17)
1
34
Control sleeve 45
1
53
Pole
1
16
Reduction shaft mid- (gear
Z=33)
1
35
Ring gear 40Cr
1
54
Screw
1
17
Reduction Shaft Lower
Gear(gearZ=23)
1
36
Mixing base HT150
1
55
Lift bevel gear
1
18
Reduction shaft
1
37
Adjusting washer 45
1
56
Lift pinion bevel gear
1
19
Delta belt rubber
2
38
pin 45
1

15
10.Mixer Capacity Chart
Product
B10
B20
B30
B40
Capactty Of Bowl (Liters Liquid)
10 liters
20 liters
30 liters
40 liters
Egg Whites
0.6 liters
1.0 liters
1.4 liters
1.7 liters
Mashed Potatoes
5 kg
7 kg
11 kg
14 kg
Mayonnaise (Liters of Oil)
4.3 liters
9.5 liters
11.4 liters
12.3 liters
Merinque (Qty. of Water)
0.4 liters
0.7 liters
1.0 liters
1.5 liters
Waffle or Hot Cake Batter
5 kg
7 kg
12 kg
15 kg
Whipped Cream
3 kg
4 kg
6 kg
9 kg
Cake, Angel Food (8-10 oz. cake)
2 kg
4 kg
6 kg
9 kg
Cake, Box or Slab
6 kg
9 kg
14 kg
18 kg
Cake, Cup
6 kg
9 kg
14 kg
21 kg
Cake, Layer
6 kg
9 kg
14 kg
21 kg
Cake, Pound
6 kg
10 kg
14 kg
18 kg
Cake, Short (Sponge)
3 kg
7 kg
11 kg
11 kg
Cake, Sponge
4 kg
6 kg
8 kg
19 kg
Cookies, Sugar
5 kg
7 kg
11 kg
14 kg
Dough, Bread or Roll § (Lt.-Med.) 60% AR
6 kg
11 kg
21 kg
21 kg
Dough, Heavy Bread § 55% AR
4 kg
7 kg
14 kg
16 kg
Dough, Pie
5 kg
8 kg
12 kg
16 kg
Dough, Thin Pizza 40% AR (max. mix time 5
min.) §
2 kg
4 kg
6 kg
11 kg
Dough, Med. Pizza 50% AR §
2 kg
5 kg
9 kg
15 kg
Dough, Thick Pizza 60% AR §
5 kg
9 kg
18 kg
21 kg
Dough, Raised Donut 65% AR
2 kg
4 kg
7 kg
11 kg
Dough, Whole Wheat 70% AR
5 kg
9 kg
18 kg
21 kg
Eggs & Sugar for Sponge Cake
2 kg
4 kg
6 kg
8 kg
Icing, Fondant
3 kg
6 kg
8 kg
11 kg
Icing, Marshmallow
1 kg
1 kg
2 kg
2 kg
Shortening & Sugar, Creamed
4 kg
7 kg
11 kg
16 kg
Pasta, Basic Egg Noodle (max. mix time 5
min.)
—
2 kg
4kg
7kg

16
11. ONE YEAR PARTS WARRANTY
iMettos warrants to the original purchaser of every new iMettos product, under normal and proper use and maintenance
service as specified by iMettos and upon proper installation and start-up in accordance with the instruction packet
supplied with each iMettos unit. iMettos’obligation under this warranty is limited to a period of one (2) year from the date
of original installation.
WARRANTY CLAIMS
All claims for parts must be made directly through iMettos. All claims should include:
Personal Details: Products Details:
Your Name: Model number:
Your Company: Serial number of the product:
Address: Date of purchase:
Email: Proof of Purchase :
Phone:
Pertinent information supporting the existence of the alleged defect.(Such as picture etc.)
Please send the above information to [e-mail]
Our warranty departments will according to the actual situation and reply you within 24hours.
What is not conected by this Warranty
iMettos ’sole obligation under this warranty is limited to replacement of parts, Subject to the additional limitations
below.
This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this
warranty. This warranty is limited to replacement of parts, and the shipment charge is not included.
No consequential damages. iMettos is not responsible for Economic loss; or special, indirect, or consequential damages,
including without limitation, losses or damages arising from food or product spoilage claims whether or not account of
refrigeration failure.
Warranty is not transferable. This warranty is not assignable and applies only in favor the original purchaser/user to whom
delivered. Any such assignment or transfer shall avoid the warranties herein made and shall avoid all warranties, express or
implied, including any warranty of merchantability or fitness for a particular purpose.
Improperusage. iMettos assumes no liability for parts or labor coverage for component failure or other damages resulting
from improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet
provided with the unit.
Residential applications: iMettos assumes no liability for parts or labor coverage for component failure or other damages
resulting from installation in non-commercial or residential applications.
Alteration, neglect, abuse, issue, accident, damage during transit or installation, fire, flood, acts of god. iMettos is not
responsible for the repair or replacement of any parts that iMettos determines have been subjected after the date of
manufacture to alteration, neglect, abuse, accident, damage during transit or installation, fire, flood, or act of god.
Improper electrical connections. iMettos is not responsible for the repair or replacement of failed or damaged components
resulting from electrical power failure, the use of extension cords, low voltage, or voltage drops to the unit.
No implied warranty of merchantability or fitness for a particular purpose: there are no other warranties, expressed,
implied or statutory, except the one (2) year parts warranty as described above. These warranties are exclusive and in lieu
of all other warranties, including implied warranty and merchantability or fitness for a particular purpose. These are no
warranty which extend beyond the description on the face hereof.

17
iMettos Limited
www.imettos.co.uk
