MORTAR MIXER
6 CU. FT. - 8 HP BRIGGS &
STRATTON®ENGINE
Model 95906
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
Distributed exclusively by Harbor Freight Tools®
IMPORTANT!
Your Warranty is
voided if:
You do not put Engine
oil in the Engine’s
crankcase prior to its
rst use. Never run the
Engine with low or no
Engine oil. Running
the Engine with low or
no oil will permanently
damage the Engine.

Page 2SKU 95906 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Drum Capacity 6 Cubic Feet
Batch Capacity 1-1/2 to 2 Bags of cement
Wheel to Wheel Measurement 37-5/8” Long (Extendable axle from 36” to 46”)
Tires Qty. 2 / 60 PSI (Cold) / 4.80/400-12 / Maximum Load: 1,000 Lb. Each
Drive & Clutch V-Belt to Gears / Front Post Hand Clutch
Drum Speed 2-Speed Operation (20 & 36 RPM)
Drum Opening 24-1/8”L x 23-3/4”W
Drum Lock Spring Loaded Handle

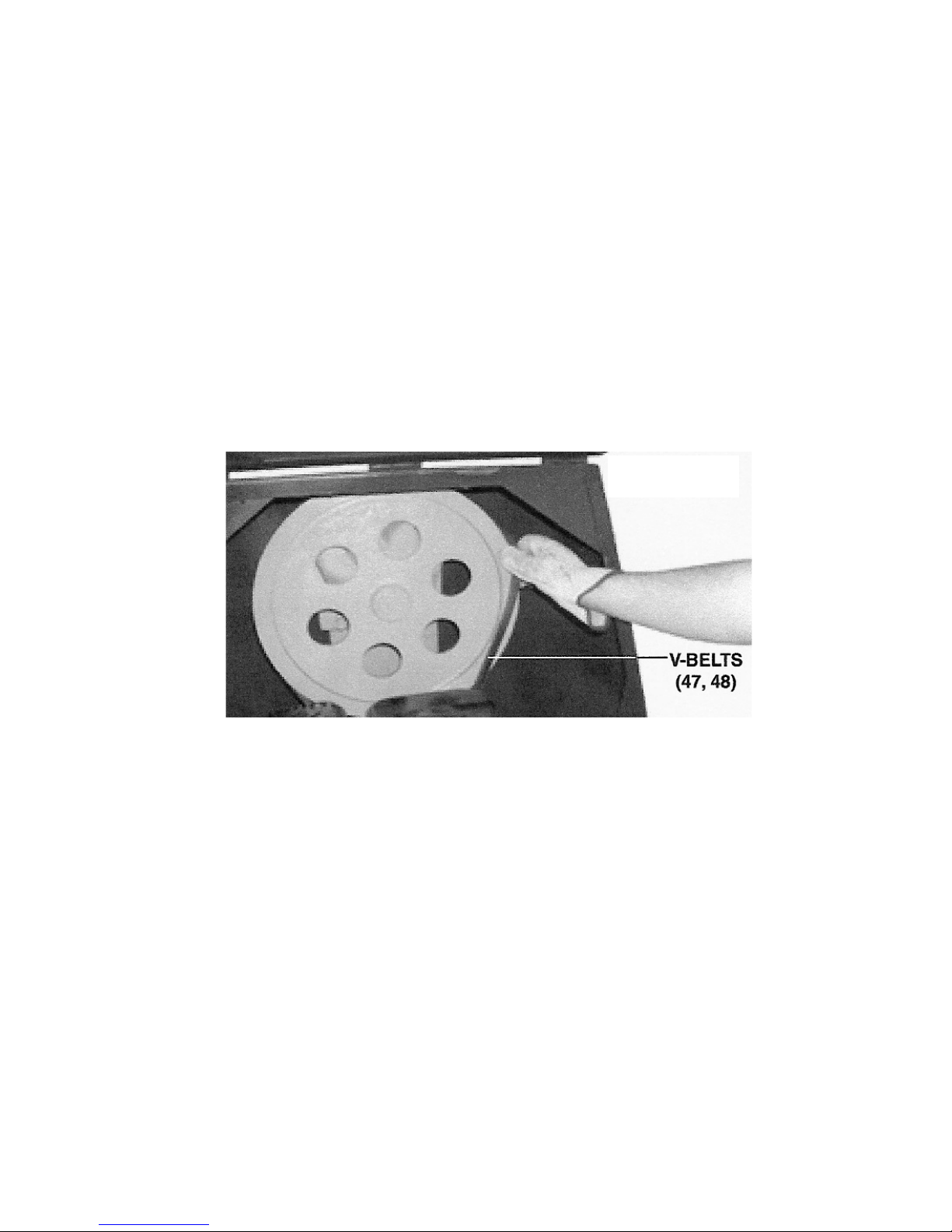

V-Belts A889 (Qty. 2) / A950 (Qty. 2)
Road/Speed Limitations Not for Highway Use / 55 MPH Maximum Speed
Engine
8.0 HP B & S®/ Air Cooled / Recoil Start / Unleaded Gasoline Powered
Fuel Tank Capacity: 4 Quarts / Engine Oil Capacity: 28 Ounces
Family: 6BSXS.3422HT 276306 / Model 202432 / Type 0036E1
Engine Approvals*: 2006 California EVH & EVP Emissions
2006 E.P.A. Phase II
Operating Weight 560 Lb. (Empty)
IMPORTANT!
This product requires oil and fuel to be added before starting. Attempting to start the Engine
without oil WILL ruin the Engine and void the warranty.
NOTE:
The Engine’s carburetor may need to be adjusted by a qualified mechanic for efficient
high-altitude use.
* The emission control system for this Mortar Mixer’s Engine is warranted for standards set by the
U.S. Environmental Protection Agency and by the California Air Resources Board (also know as
CARB). For warranty information, refer to the last pages of this manual.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly dia-
gram, or write month and year of purchase if product has no number. Keep this manual
and invoice in a safe and dry place for future reference.
REV 07f
07h

Page 3SKU 95906 For technical questions, please call 1-800-444-3353.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered and dark areas invite acci-
dents.
Do not operate power tools in explosive atmospheres, such as in the pres-
ence of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed. Children
should never be allowed in the work area.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense when operat-
ing a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, nonskid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions. Al-
ways wear ANSI-approved safety goggles and a dust mask/respirator when using
or performing maintenance on this tool.
1.
2.
3.
1.
2.
3.
4.
5.

Page 4SKU 95906 For technical questions, please call 1-800-444-3353.
TOOL USE AND CARE
Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed. Do not force
the tool and do not use the tool for a purpose for which it is not intended.
Do not use the power tool if the Engine’s Ignition Switch does not turn it on
or off. Any tool that cannot be controlled with the Ignition Switch is dangerous and
must be replaced.
Disconnect the Spark Plug Wire from the Engine before making any adjust-
ments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally. Always disconnect the
Spark Plug Wire before performing any inspection, maintenance, or cleaning
procedures.
Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
Maintain tools with care. Keep the Mortar Mixer clean. Properly maintained
tools are less likely to malfunction and are easier to control. Do not use a damaged
tool. Tag damaged tools “Do not use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of injury.
SPECIFIC SAFETY RULES
IMPORTANT! Your Warranty is voided if:
You do not put engine oil in the Engine’s crankcase prior to its first use. Before
each use, check the oil level. Never run the Engine with low or no engine oil. Run-
ning the Engine with low or no Engine oil will permanently damage the Engine.
1.
2.
3.
4.
5.
6.
7.
1.
2.
1.

Page 5SKU 95906 For technical questions, please call 1-800-444-3353.
Maintain labels and nameplates on the Mortar Mixer. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replace-
ment.
Maintain a safe working environment. Make sure there is adequate surrounding
workspace.
Avoid unintentional starting. Make sure you are prepared to begin work before
turning on the Mortar Mixer.
People with pacemakers should consult their physician(s) before use. Elec-
tromagnetic fields in close proximity to a heart pacemaker could cause pacemaker
interference or pacemaker failure. Caution is necessary when near the Engine’s
magneto or recoil starter.
Never leave the Mortar Mixer unattended when it is running. Turn off the Engine
of the Mortar Mixer before leaving the work area.
Always use the Mortar Mixer on a flat, level, dry ground surface and chock
both wheels to prevent accidental movement of the unit.
Make sure to keep hands and fingers away from all moving parts of the Mortar
Mixer.
This Mortar Mixer is not designed for highway use. Do not exceed 45 miles
per hour when towing the Mortar Mixer. Excess speed is a major cause of vehicle/
Mortar Mixer accidents.
Prior to towing the Mortar Mixer make sure to read and understand all instruc-
tions and safety precautions as outlined in the owner’s manual for the towing
vehicle. Make sure the towing vehicle is capable of towing the Mortar Mixer (weight
approximately 600 pounds empty). Make sure the hitch on the towing vehicle is
capable of towing the Mortar Mixer. The towing capacity of the hitch is typically
stamped on the hitch drawbar.
Make sure the Tow Chains are properly connected to the towing vehicle. Do
not allow the Chains to drag the ground surface when towing.
The Engine Protection Cover (38) of the Mortar Mixer must always be closed
when the Engine is running. Do not cover the Engine Protection Cover with can-
vas/plastic tarps, boards, tools, etc. when the Engine is running.
Prior to using the Mortar Mixer, make sure to read and understand all instruc-
tions and safety precautions as outlined by the concrete supplier.
Keep all safety guards of the Mortar Mixer in place and in proper working
order.
Care must be taken when backing up the Mortar Mixer. Only back up the Mixer
on a straight path. If the Mixer is allowed to turn off the straight path while backing
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.

Page 6SKU 95906 For technical questions, please call 1-800-444-3353.
up, the Mixer could jackknife, causing severe damage to the Mixer and the towing
vehicle.
Before each use, always examine the Mortar Mixer for proper Wheel (8) air
pressure (60 PSI cold).
Prior to using the Mortar Mixer, make sure you read and understand this in-
struction manual and the Engine manufacturer’s instruction manual.
Keep a safe clearance around the Mortar Mixer. Keep all people (except the
operator) a minimum of six feet from the Mixer during operation.
Do not overload the Mortar Mixer (maximum two bags cement mix per batch).
An overload may damage the unit.
Do not attempt to move the Mortar Mixer when it is full or in operation.
WARNING! Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities, contains chemicals known [to the State of Califor-
nia] to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks and cement or other masonry products
Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area,
and work with approved safety equipment, such as those dust masks that are spe-
cially designed to filter out microscopic particles. (California Health & Safety Code
§ 25249.5, et seq.)
TOXIC FUMES, FIRE, AND EXPLOSION PRECAUTIONS
This Mortar Mixer is designed for outdoor use only. Do not operate the Mixer
in a closed area or in a poorly ventilated area. When running, the Engine of
this unit produces carbon monoxide, a colorless, odorless, toxic gas that, when
inhaled, can cause serious personal injury or death. Whenever possible, use
a carbon monoxide detector (not included) to detect excessive carbon monoxide
fumes in the work area and in the surrounding area.
Gasoline fuel and fumes are flammable, and potentially explosive. Use proper
fuel storage and handling procedures. Always have multiple ABC class fire extin-
guishers nearby.
Keep the Mortar Mixer, its Engine, and surrounding areas clean at all times.
16.
17.
18.
19.
20.
21.
1.
2.
3.

Page 7SKU 95906 For technical questions, please call 1-800-444-3353.
When spills of fuel or oil occur, they must be cleaned up immediately. Dispose
of fluids and cleaning materials as per any local, state, or federal codes and regula-
tions. Store oil rags in a covered metal container.
Never store fuel or other flammable materials near the Mortar Mixer.
Do not smoke, or allow sparks, flames, or other sources of ignition around
the Mortar Mixer.
Keep grounded conductive objects, such as tools, away from exposed, live
electrical parts and connections to avoid sparking or arcing. These events
could ignite fumes or vapors.
Do not refill the Fuel Tank while the Engine is running or hot.
Do not operate the Mortar Mixer with known leaks in the Engine’s fuel sys-
tem.
Use only Engine manufacturer recommended oil and fuel.
MECHANICAL PRECAUTIONS
Prior to performing service, maintenance, or cleaning procedures, always make
sure the Engine’s Ignition Switch is in its “OFF” position. Allow the Engine to
completely cool. Then, remove the Spark Plug Wire from the Spark Plug.
Do not alter or adjust any part of the Mortar Mixer or its Engine that is as-
sembled and supplied by the manufacturer or distributor.
Always follow and complete scheduled Engine maintenance.
CHEMICAL PRECAUTIONS
Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.
Avoid body contact with fuels, oils, and lubricants used in the Engine. If swal-
lowed, seek immediate medical treatment. Do not induce vomiting if fuel is swal-
lowed. For skin contact, immediately wash with soap and water. For eye contact,
immediately flush eyes with clean water.
NOISE PRECAUTION
Prolonged exposure to high noise levels is hazardous to hearing. Always wear
ANSI-approved hearing protection when operating or working around the Mortar
Mixer when it is running.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
1.
2.
1.

Page 8SKU 95906 For technical questions, please call 1-800-444-3353.
MISC. PRECAUTION
WARNING! The warnings and precautions discussed in this manual cannot
cover all possible conditions and situations that may occur. It must be understood
by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
UNPACKING
When unpacking, check to make sure all of the parts shown on the Parts List
in this manual are included. If any parts are missing or broken, please call Harbor
Freight Tools at the number shown on the cover (and at the bottom of each page)
of this manual as soon as possible.
With additional manpower, and a proper lifting device, set the packaged Mortar
Mixer on a flat, level, clean, dry ground surface capable of supporting the weight of
the Mortar Mixer, its packaging, and any additional tools and equipment.
Remove the protective plastic shipping tarp from the Mortar Mixer.
Unscrew and remove the twelve Bolts and Nuts at the top portion of the metal ship-
ping frame. Then lift off the top of the frame and set it aside.
Use a metal saw to cut off the rear portion of the metal shipping frame, just behind
both Wheels (78) of the Cement Mixer. Then set the rear portion of the metal ship-
ping frame aside. (See Figure A.)
1.
1.
2.
3.
4.
5.
TO TRANSPORT THE MORTAR MIXER
To prevent tripping over the Tow Shaft (16) when the Mortar Mixer is in storage and
during operation, always keep the Tow Shaft attached to the Mixer as shown in the
following illustration. (See Figure B, next page.)
When transporting the Mortar Mixer, insert the Tow Shaft (16) through the front/lower
portion of the Frame Assembly (18). Then secure the Tow Shaft in place using the
Hex Bolt (14) and Hex Nut (15) as shown in the following illustration.
(See Figure C, next page.)
1.
2.

Page 9SKU 95906 For technical questions, please call 1-800-444-3353.
When towing, always make sure the Tow Chains (17) are properly attached to the
towing vehicle. Make sure Tow Shaft (16) is secured tightly into place. Refer to
the vehicle manufacturer’s instruction manual for proper towing instructions. (See
Figure C.)
OPERATING INSTRUCTIONS
Make sure the Engine of the Mortar Mixer is filled with the proper amount of
oil and unleaded gasoline recommended by the Engine manufacturer before
attempting to start the Engine. Failure to do so WILL damage the Engine and
void the warranty. (See Engine manufacturer’s instruction manual.)
First, after making sure clutch is disengaged, place the Mortar Mixer on a solid, flat,
level, dry ground surface.
Start the Engine, and allow it to reach the appropriate operating temperature as
instructed in the Engine manufacturer’s instruction manual.
NOTE: Filling and emptying the Drum (55) of the Mortar Mixer is best done with
the Drum rotating. To rotate the Drum, turn the Clutch Lever (19) to the right. Do
not turn off the Mortar Mixer while full of cement. (See Figure D.)
3.
1.
2.
3.
4.
TOW SHAFT (16)
FIGURE B HEX BOLT (14)
HEX NUT (15)
TOW SHAFT (16)
TOW CHAIN (17)
FIGURE C
DUMP HANDLE (60)
DRUM LATCH (20)
CLUTCH LEVER (19)
FIGURE D
DRUM LOCK (72)
07h

Page 10SKU 95906 For technical questions, please call 1-800-444-3353.
With the Drum (55) operating between 20 to 36 RPM, the Mortar Mixer is now ready
for the addition of the concrete mix.
To determine the proper amount of water, gravel, cement, and sand, refer to the
following Table. (See Figure E.)
For best results, proceed as follows:
Pour the required amount of water into the Drum (55).
Add the required amount of gravel into the Drum (55).
Add the required amount of cement into the Drum (55).
Add the required amount of sand into the Drum (55).
(See Figure E.)
Allow adequate time for the water, gravel, cement, and sand to thoroughly mix.
To discharge the cement mix, release the Drum Lock (72). Raise the Drum Latch
(20) up, and pull the Dump Handle (60) down. (See Figure D.)
After discharging the cement mix, raise the Dump Handle (60) to return the Drum
(55) to its original position. Lower the Drum Latch (20). Reset the Drum Lock (72).
Then turn the Clutch Lever (19) to the left to stop the Drum (55) from rotating.
(See Figure D.)
When finished, turn off the Engine of the Mortar Mixer and allow the unit to com-
pletely cool. Then, make sure to thoroughly clean the inside of the Drum (55) and
exterior of the Mortar Mixer (see cleaning instructions on next page.)
Always store the Mortar Mixer in a clean, dry, safe location out of reach of children
and other unauthorized people.
INSPECTION, MAINTENANCE, AND CLEANING
WARNING! Never perform any services or maintenance on the Mortar Mixer
while it is running. Before performing any inspection, maintenance, and cleaning,
turn off the Engine and disconnect the Spark Plug Wire from the Spark Plug to
prevent accidental starting. Then, allow the Engine to completely cool.
5.
6.
7.
•
•
•
•
8.
9.
10.
11.
12.
1.
FIGURE E

Page 11SKU 95906 For technical questions, please call 1-800-444-3353.
Before each use, inspect the general condition of the Mortar Mixer. Check for loose
bolts and nuts, misalignment, binding of moving parts, loose or broken parts, Engine
problems, and any other condition that may affect the safe operation of the Mortar
Mixer. If abnormal noise or vibration occurs, turn off the Mortar Mixer immediately
and have the problem corrected before further use.
Do not use damaged equipment.
To change the V-Belts (47, 48), loosen the four Hex Bolts located at the base of
the Engine. Slide the Engine to the left to loosen the V-Belts. Then, remove the V-
Belts as shown in the following illustration. Replace the old V-Belts with new V-Belts
(types A890 and A950). Then slide the Engine to the right to tighten the V-Belts to
the proper tension. Correct tension is obtained when there is approximately 1/4”
deflection of the V-Belts at the center span of the Pulleys (40, 41 and 49, 50). Do
not over-tension. Then, retighten the four Hex Bolts located at the base of the En-
gine. (See Figure F.)
2.
3.
Thoroughly clean the Cement Mixer at the end of each day’s operation. The Drum
(55) may be scoured for approximately two minutes, using a gravel and water mixture.
Then discharge the gravel/water mixture and hose down the Drum inside and out.
Dried cement mix should be scraped out of the Drum (55). Do not beat on the
Drum with a shovel or other tools to break up accumulations of dried cement mix,
as damage to the Cement Mixer may result.
Do not pour water over the Engine (34). Refer to the Engine manufacturer’s instruc-
tion manual for all inspection, maintenance, and cleaning procedures.
Periodically, lubricate all moving parts of the Cement Mixer.
IMPORTANT: Whenever a Hub (7) is disassembled for maintenance the following
procedure MUST be followed: NOTE: A bearing packer (not included) must be
used for this procedure.
Using a suitable solvent, thoroughly clean the Bearing (7), Oil Seal (10), Castle
Nut (12), Cotter Pin (13), and the rest of the parts of the Hub assembly of all old
4.
5.
6.
7.
8.
a.
FIGURE F
07h

Page 12SKU 95906 For technical questions, please call 1-800-444-3353.
grease, dirt, metal shavings, and any other foreign materials. The parts must
be cleaned, even if they are new or appear clean.
Allow the parts to dry completely.
Make sure your hands are clean and the bearing packer (not included) is also
clean.
Place fresh grease in the bearing packer.
With the grease-filled bearing packer in one hand and the Bearing (11) in the
other, press the Bearing into the grease, forcing the grease inside the slots in
the Bearing. Continue doing this until every slot in the Bearing is completely
full of grease.
To reassemble, carefully slide the Hubs (7) over each end of the Wheel Shaft
(2). Insert the Bearings (11) and Oil Seals (10) on the ends of the Wheel Shaft.
Screw a Castle Nut (12) tightly on the ends of the Wheel Shaft. Then back the
Castle Nuts off slightly so that the Hubs (7) can just move freely.
(See Figure G.)
Place a Wheel (8) on each Hub (7). Secure the Wheels to the Hubs, using four
Lug Nuts (9) per Wheel. NOTE: Make sure to tighten (torque) the Lug Nuts to
at least 90 Ft.-Lb. (See Figure G.)
Insert a Cotter Pin (13) through the hole at each end of the Wheel Shaft (2) and
spread the Cotter Pins. (See Figure G.)
Fill the Dust Caps (91) with bearing grease. Then, press each Dust Cap onto
the Hubs (7). (See Figure G.)
CAUTION! All maintenance, service, and repairs not mentioned in this
manual must only be performed by a qualified service technician.
b.
c.
d.
e.
f.
g.
h.
i.
9.
WHEEL SHAFT (2)
GREASE FITTING
(LUBRICATE EVERY 90 DAYS)
WHEEL (8)
LUG NUT (9)
BEARING (11)
OIL SEAL (10)
CASTLE NUT (12)
DUST CAP (91)
FIGURE G
HUB (7)
COTTER PIN (13)

Page 13SKU 95906 For technical questions, please call 1-800-444-3353.
Clutch Lever not engaged. Engage Clutch Lever.
PARTS LIST
Part Description Q’ty
1 Wheel Frame 1
2 Wheel Shaft 1
3 Hex Bolt (M12x30) 10
4 Flat Washer Ø 12 40
5 Hex Self-Locking Nut (M12) 22
6 Hex Bolt (M12x40) 8
7 Wheel Hub 2
8 Wheel 2
9 Lug Nut 8
10 Oil Seal (25x52x7) 2
11 Bearing (32205) 4
12 Castle Nut (M20x1.5) 2
13 Cotter Pin Ø 4 x 35 2
14 Hex Bolt (M12x110) 1
15 Hex Self-Locking Nut (M12) 12
16 Tow Shaft 1
17 Tow Chain 1
18 Frame Assembly 1
19 Clutch Lever 1
20 Drum Latch 1
21 Bolt (M12x150) 1
22 Small Handle Sleeve 1
Part Description Q’ty
23 Bushing (I) 2
24 Rubber Buckle 3
25 Spring 1
26 Motor Fixing Plate 1
27 Fixing Hook 2
28 Iron Pin Ø 6 x 35 1
29 Hex Bolt (M12x30) 8
30 Lever Frame 1
31 Supporting Wheel 1
32 Supporting Shaft 1
33 Bushing (II) 1
34 Engine 1
35 Hex Bolt (M8x45) 4
36 Flat Washer Ø 8 8
37 Hex Self-Locking Nut (M8) 4
38 Engine Protection Cover 1
39 Flat Key (6.3x50) 1
40 Engine Pulley 1
41 Middle Large Pulley 1
42 Middle Shaft 1
43 Flat Key (8x115) 1
44 Hex Bolt (M12x35) 8
REV 07f

Page 14SKU 95906 For technical questions, please call 1-800-444-3353.
PARTS LIST - CONTINUED
Part Description Q’ty
45 Bearing (UELP.205) 4
46 Propping Screw (M8 x 10) 3
47 V-Belt (A890) 2
48 V-Belt (A950) 2
49 Small Pulley 1
50 Large Pulley 1
51 Small Gear 1
52 Grease Fitting (M8x1) 6
53 Flat Key (6x60) 1
54 Small Gear Shaft 1
55 Drum Assembly 1
56 Grease Fitting (M10x1) 2
57 Hex Bolt (M10x30) 4
58 Bolt (M10x35) 4
59 Hex Self-Locking Nut (M10) 4
60 Dump Handle 1
61 Large Handle Sleeve 1
62 Spring Washer Ø 10 6
63 Flat Washer 2
64 Short Separate Sheath 1
65 Bearing Base 2
66 Ball Bearing (6208-2RS) 2
67 Flat Washer 6
Part Description Q’ty
68 Spring Washer 2
69 Seal Ring (III) 2
70 Seal Ring (II) 2
71 Seal Ring (I) 2
72 Drum Lock 1
73 Mixing Spindle 1
74 Fixing Clip 3
75 Hex Bolt (M12 x 45) 6
76 End Mixing Plate 2
77 End Scraping Plate 2
78 Bolt (M10x30) 22
79 Hex Self-Locking Nut (M10) 22
80 Right Mixing Blade 1
81 Radial Scraping Plate 4
82 Radial Pressing Plate 4
83 Middle Mixing Blade (I) 1
84 Middle Mixing Blade (II) 1
85 Left Mixing Blade 1
86 Hex Bolt (M10x35) 4
87 Flat Washer Ø 10 34
88 Long Separate Sheath 1
89 Large Gear 1
90 Protection Net 1
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEM-
BLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR
SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
REV 07f

Page 15SKU 95906 For technical questions, please call 1-800-444-3353.

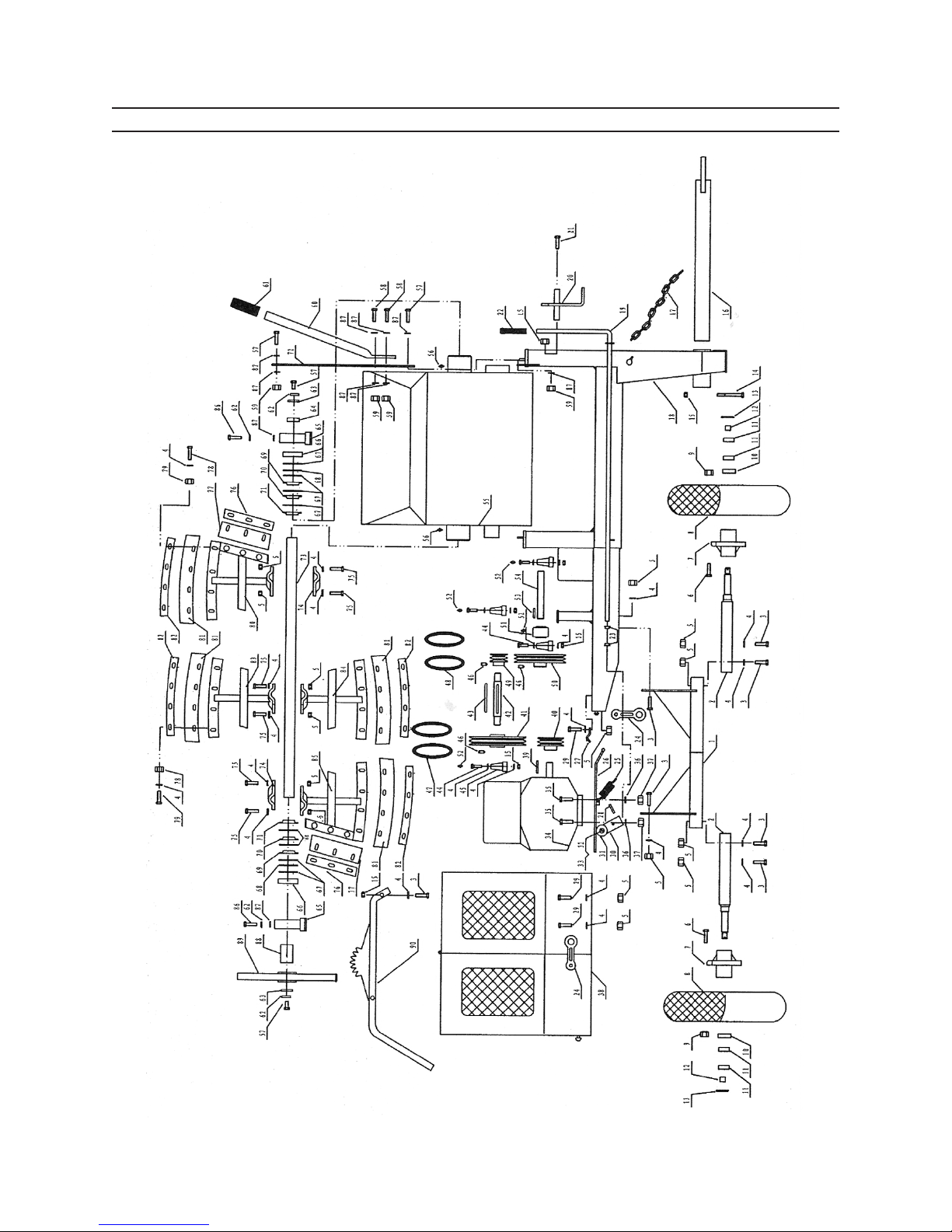

ASSEMBLY DIAGRAM
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

Page 16SKU 95906 For technical questions, please call 1-800-444-3353.
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that for a period of
ninety days from date of purchase that the engine/motor, the belts (if so equipped), and the
blades (if so equipped) are free of defects in materials and workmanship. Harbor Freight
Tools also warrants to the original purchaser, for a period of one year from date of purchase,
that all other parts and components of the product are free from defects in materials and
workmanship. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, normal wear and
tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons
or property, or for incidental, contingent, special or consequential damages arising from
the use of our product. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection verifies the defect, we will either
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
07h
