Quick Start Manual
i88R/G
ROTARY LASER LEVEL
QUICK START INSTRUCTION MANUAL

Page | 1
Introduction
Purchase Congratulations on your purchase of a quality Imex Rotary Laser.
These lasers have been designed for the professional and
incorporate the latest laser technology with a robust and
simple construction for years of trouble-free use.
This manual contains important safety directions as well as
instructions for setting up the product and operating it. Read
carefully through the User Manual before you switch on the
product.
Product
Identification
The serial number of your Imex Laser is indicated on the
product. Please keep these recorded in your manual and
always refer to this information should you need to contact
your Imex distributor.
Serial
number:…………………………………………………………………
Validity
of this
manual
This manual applies to the Imex i88R and i88G rotary laser
levels and contains instructions required to operate these
laser at a basic level.
For more information: www.imexlasers.com
Table of contents
Chapter Page
1. Instrument Overview
1.1 I66R Laser Unit 2
1.2 Control Panel 2
1.3 Detector 3
2. Directions of Use
2.1 Set Up 4
2.2 Turning On/Off 4
2.3 Tilt Warning System 4
2.4 Manual/Grade Slope 5
2.5 Wind Mode 5
2.6 RPM Mode 6
2.7 Scan Mode 6
2.8 Vertical Mode 7
Chapter Page
3. Detector 7
4. Batteries 7
5. Accuracy 8
5.1 Checking Accuracy 8
6. Care & Maintenance 9
7. Laser Specifications 10

Page | 2
Instrument Overview
i88G Laser Unit
Rotary laser aperture Protective Lighthouse
Control Panel Handle
USB-C Port
Control Panel
a
b
c
d
e
f
g
c
h
d
i
j
k
a. X/Y Grade slope indicator
b. Grade slope mode
c. Grade slope adjustment arrows
d. Left & Right scan direction
e. Wind mode
f. On/Off
g. On/Off Indicator
h. Scan mode
i. Tilt Warning System (TWS)
j. Laser head rotation speed
k.
Battery level indicator

Page | 3

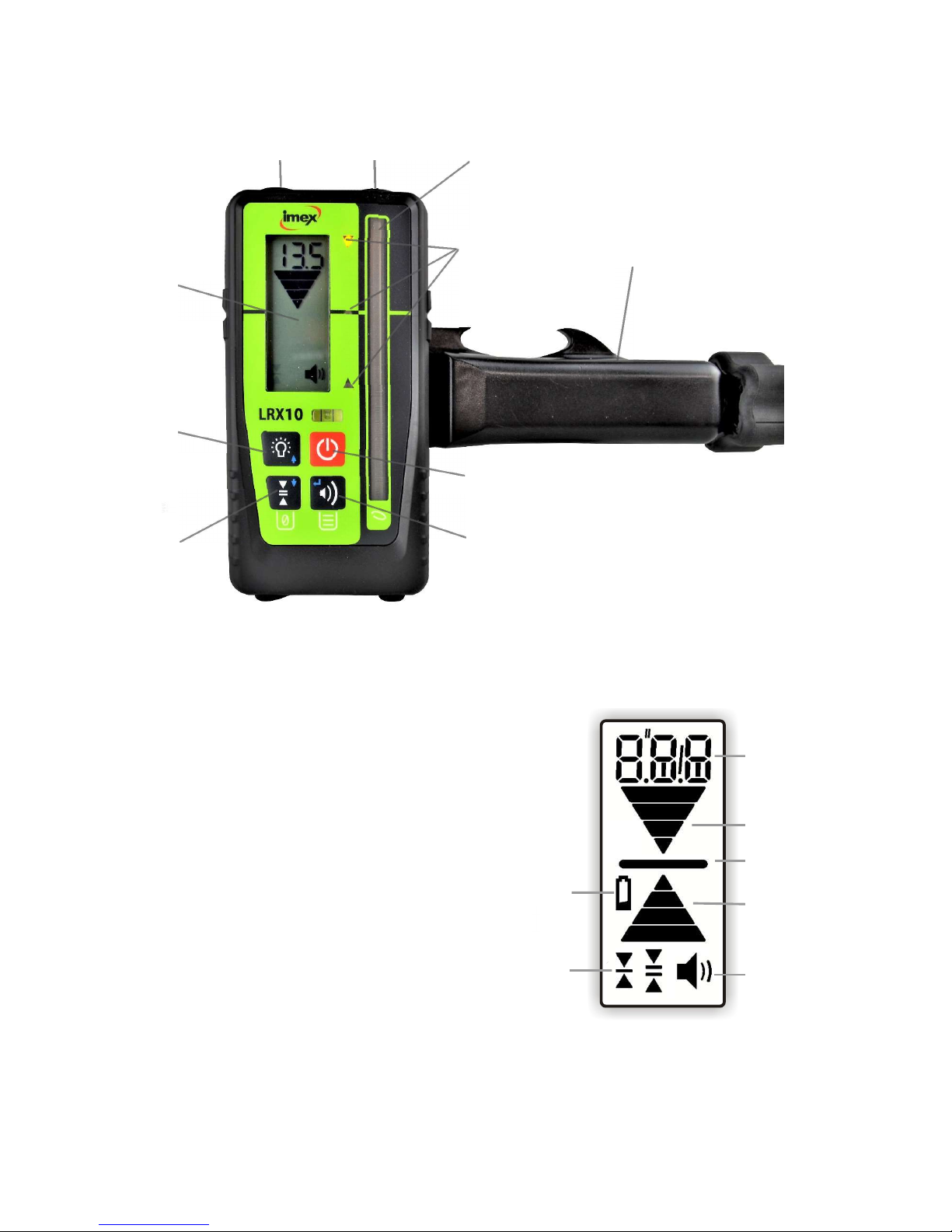

LRX10 Laser Detector
f
g
c
i
h
a a b
d e
j
k
l
k
m
o
n
LCD Display
LRX10 Detector
a. Magnet
b. Laser Sensor Window
c. LCD Display
d. LED Grade Indicators
e. Detector Clamp
f. On/Off
g. Volume
h. Accuracy (dead
bands)/Alternate RL
i. Grade LEDs
Display
j. Numeric Digit Display
k. Grade Indication Arrows
l. On Grade Indicator
m. Beeper Volume Indicator
n. Accuracy Display
o. Battery Indicator

Page | 4
2. Directions of Use
2.1 Set Up
Location  Keep the location clear of possible obstructions that could
block or reflect the laser beam.
 Place the i88R/G on stable ground. Ground vibration and
extremely windy conditions can affect the operation.
 When working in a very dusty environment place the laser
up-wind so the dirt is blown away from the laser.
Setting up on a
Tripod
 Attach the i88R/G securely to a tripod or mount on a
stable level surface.
 If a tripod has chains, they should be slightly loose to
allow for thermal expansion during the day.
 Secure the tripod on extremely windy days.
2.2 Turning On/Off
Turning on and
off
Press the power button (f) to turn on/off the i88R/G
After turning on:
 If set within the 5° self-levelling range, the i88R/G will
self-level, once the unit has self-levelled the laser head
will start to spin emit a rotating laser beam.
 If the unit is bumped or senses interference the laser head
will stop spinning and re-level. Once unit has re-levelled
the laser head will begin to spin again, emitting a level line
 Warning - If the unit has been bumped or moved and the
laser recommences spinning the instrument may not be at
the original level position. Please recheck your RL/datum
point.
2.3 Tilt Warning System (TWS)
Description
of (TWS)
Mode
To prevent the possibility of the i88R/G giving a different reading
than is expected due to a knock or the laser being moved by a
third party the TWS function can be used and will prevent the unit
re-levelling and spinning in the event of a knock or movement.

Page | 5
Using TWS
Mode
Press the TWS button (i) (TWS on/off) to turn on the TWS.
When activated the LED (d) will light.
When the TWS is activated on the i88R/G, if the unit is
knocked or interfered with, the laser will stop spinning and the
TWS indicator light will flash. The laser will then need to be
reset by the operator before the laser will begin to spin again.
To reactivate TWS, press the TWS button again, and the
laser will re-level and begin to spin again. It is advised to
check RL/Datum point when unit re-levels.
2.4 Manual / Grade Slope Mode
Description of
Manual/Grade
Slope Mode
The Imex i88R/G has an incorporated grade slope function to
manually set grades/slope up to 9% on the X and Y axis
The grade function works on the X and Y axis
In Manual / Grade mode the self-levelling will be
deactivated. After turning off the Manual mode the i88R/G will
return to automatic self-levelling mode.
Using
Manual/Grade
Slope Mode

Turn the i88R/G on and allow self-level.
 Once laser is level and spinning press the Grade slope button
(i) to activate manual mode. This will enter ‘X’ axis adjustment
mode and the ‘X’ axis indicator light (a) will and the self-
levelling function of the level will deactivate.
 Using the arrows you can now adjust the slope of the laser
beam along the ‘X’ axis to your desired slope.
 To enter a slope on the ‘Y’ axis, press the Grade Slope button
(i) again and the ‘Y’ Axis indicator light (a) will also light.
 Using the arrows you can now adjust the slope of the laser
beam along the ‘Y’ axis to your desired slope.
 To return to level mode, press the Grade slope button again,
the grade slope light will turn off and laser will self-level to level
position.
2.5 Wind Mode
Description of
Wind Mode
The Imex i88R/G has an incorporated Wind Mode function to
assist with levelling in high wind environments.
When Wind mode is activated the laser will continue to self-level
without cutting out, when interrupted by high wind, vibration or
human interference.

Page | 6
Using Wind
Mode

To activate wind mode, turn laser on and allow to self-level
 Once laser is level and spinning, press Wind mode button (e),
and wind mode indicator light will light and wind mode is
activated.
 To turn Wind mode off press Wind mode button (e) wind mode
light will turn off and laser will return to self-levelling mode
Note, Wind mode and TWS mode cannot be used
simultaneously as they have opposite operation function
2.
6
RPM (
Variable Rotation Speed
)
mode
RPM Mode If a slower speed is required i.e. for visibility; press the RPM
button (j). Speed will revert to 0 RPM, press button again for
60rpm, again for 120rpm and again for 300rpm and again for
800rpm
2.7 Scan Mode
Description of
Scan Mode
The Scan mode allows the laser beam to emit only in a restricted
radius, instead of a full rotation the laser scan from left – right to
for a horizontal line between 10˚-180˚
Using Scan
Mode

Turn the i88R/G on and allow self-level.
 Press the Scan button (h) to activate scan mode. Scan mode
will activate and revert to 0˚ scan.
 To adjust scan width, press the scan button again and scan wil
widen to 10˚, press button again to increase scan to 45˚, 90˚
and 180˚
 To move laser scan line from left to right, press the left and
right scan direction arrows (d)
 To exist Scan mode press the RPM button (j) and laser will
begin to rotate again.

Page | 7
2.8 Vertical Mode
Description of
Vertical Mode
The Vertical mode allows the laser to be laid on it’s back so the
laser can produce a vertical plumb laser plane, which can be
used to for vertical alignment of form work, pipe lines, stud walls
etc.
Vertical mode
Ste-up

Place the i88R/G on its back on a floor or board, or mount
alternatively on a tripod on the rear laser mount point.
 Turn the i88R/G on and allow the laser to self-level
 Once laser has self-levelled, all functions that can be carried
out in horizontal mode can be carried out in vertical mode
3. Detector
3.1 LRX10 Detector – Refer to page 5, LRX10 Manual and www.imexlasers.com.au
4. Battery
General The i77R is supplied with a 9Ah 3.7 v Li-ion battery with USB-
C fast charge capability, a full battery has approximately 40
hours run time. The battery can be charged in the unit by
plugging the charger chord into the USB-C port on the front to
the laser or out the unit, by plugging the charging chord directly
into the USB-C port on the battery.
Charging Please charge the battery prior to use. Full battery charge time is
approx. 3.5 hours
The charging temperature range is between 0°C and +40°C
The battery may feel warm whilst charging.
Please only charge with the Imex chargers supplied with the unit.
When battery is charging, red battery charging indicator light will
light, when battery is fully charged green indicator light will light.
Battery Placement When putting battery into the laser unit, please ensure
correct polarity of terminals. If battery is incorrectly inserted into
the laser level the battery will lock to prevent damage to the
laser and battery.
To unlock/re-set battery, insert battery into the laser with
correct polarity and charge for 5 minutes, the battery will then
re-set and return to previous charge level.

Page | 8
5. Laser Accuracy
General The Imex i77R is calibrated at point of manufacture and
re checked prior to despatch to ±1.5mm/ 30m.
It is the responsibility of the user to follow operating instructions
and to periodically check the accuracy of the laser. If your i77R
requires adjustment then please contact your nearest dealer
5.1 Checking the accuracy
Accuracy check
steps
The i77R is within accuracy if the four marks are within 1.5mm
from the centre (3mm max extreme edges) at 30m
Step Description
1.
30m
Place the i77R on a flat, level surface or
tripod approximately 30m from a wall.
2. Align the first axis so that it is square to the wall. Allow the i77R to
self- level completely and it will begin to rotate.
3. Mark the position of the beam on the wall. (centre of the point)
4. Very carefully rotate the laser on the tripod 180° and allow it to
rotate and self-level.
5. Mark the position of the beam on the wall. (centre of the point) if
different from the original mark.
6. Align the second axis so it is flat to the wall by carefully rotating the
laser on the tripod by 90°. Allow the i77R to self-level completely.
7. Mark the position of the beam on the wall. (centre of the point) if
different from the previous marks.
8. Very carefully rotate the laser on the tripod 180° and allow it to
rotate and self level.
9. Mark the position of the beam on the wall. (centre of the point) if
different from the previous marks.

Page | 9
6 . Care and Maintenance
Transport When transporting the i77R always ensure that it is carried in
the original foam lined carry case.
Never transport the unit loose in your vehicle as the shock and
vibration will affect the accuracy and could knock it out of
calibration.
If the unit is to be transported overseas by sea or air it is
the operator’s responsibility to ensure the correct
procedures are adhered to for transporting batteries.
Storage Ensure the unit is stored within the recommended
temperatures of -10°C to +50°C After long periods of storage
check the charge of the batteries
Always clean the unit before storing. Even if the unit is in regular
use.
If the unit has been used in damp weather ensure it is dried
prior to placing it back in its carry case. It is important to keep
the carry case dry to prevent any ingress of moisture.

Page | 10
7 . Laser Specification
Specification
Operating Range 600m with detector
Accuracy
±
1.5mm/30m
Self –levelling
range
± 5°
Rotation Speed 0, 60, 120, 300, 800 rpm
Laser 635nm Class 2
IP Rating IP66
Power 9Ah 3.7v Li-ion Battery
Working time Approx 40 hours
Battery charger 240v AC, 5v USB-C Car Charger
Working
temperature
-20°C - +50°C (-40°C - +70°C
storage)
Unit weight 2.2kgs

Page | 11
www.imexlasers.com
© Copyright Imex Group International 2018
