IMG STAGE LINE Leuchtkraft PARC-100E/RGB User manual

ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS
COB LED Spotlight
PARC-100E/RGB
Order No. 38.8080
INSTRUCTION MANUAL

Section 1. Getting Started
Unpacking
Safety Instructions
Unpacking
•1pc fixture (lamp installed)
•1pc User Manual
Thanks for using our PARC-100E/RGB. Carefully unpack the box and check the contents to
ensure that all parts are present and in good conditions. If anything damaged during transit,
notify the shipper immediately and keep the packing material for inspection.
Again, please save the carton and all packing materials. If the fixture must be returned to
manufacturer, it is important that the fixture be returned in the original manufacturer box and
packing.
12
Contents
Section 1. Getting Started
Unpacking
Safety Instructions
Section 2. Set Up
Installation
Controlling Board
Machine Connection
Section 3. Troubleshooting
Troubleshooting
Section 4. Reference
DMX Protocol
Specifications

Caution!
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. If exceptional problem happen, please contact related after-sale department
or manufacturer.
Any damage that cased by violating this manual is out of insurance, our company will not take
the responsibility.
Section 2. Set Up
Installation
Controlling Board
Machine connection
Installation
 This machine should be mounted through the screw holes of truss. Safety wire is a must
to fix fixture well. Make sure truss and safety wire have strong load capacity to bear 3 times
weight than fixture at least.
 This machine should be installed by qualified technician.
34
Safety Instructions
Please conserve this manual as operation guidance. If you sell this product to other user,
please make sure that they also receive this user manual.
Always make sure that you are connecting to the proper voltage and the line voltage not
higher than stated on the decal or rear panel of the fixture.
This lighting is intended to indoor use only. To prevent risk of fire or shock, do not expose
fixture to rain or moisture. Make sure there are no flammable, explosive or corrosive
materials surrounded in 0.5meters while operating.
The unit must be installed in a location with adequate ventilation, at least 1m away from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Fixture may carry high heat, do not aim at objective exceeding 2 minutes.
Safe wire should be used to install machine. Bearing of safe wire should be 3 times of the
machine weight.
Always disconnect from the power source before servicing or replacing fuse/lamp and be
sure to replace with same fuse/lamp size and type. Cut off power before moving, repairing
and cleaning the machine.
To avoid electric shock, all fixtures must be connected to circuits with a suitable ground.
Always secure fixture using a safety chain and carrying handles. Never carry the fixture by
its cord.
Do not operate at ambient temperatures higher than 40°C (104°F).
In case of failure or misfunction occurred, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Buy the
same spare parts/components from manufacturer directly.
Make sure the power cord is never crimped or damaged.
Avoid direct eye exposure to the light source while it is on.
Do not power on and power off the fixture in a short time.
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source.
For your safe，please read this user manual carefully before turn on
the fixture. This machine should be operated by qualified engineer！

Machine Connection
Cables must have a male XLR connector on one end and a female XLR connector on the
other end.
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal errors, and therefore best
practices include use of a terninator in all circumstances. If you are experiencing problems
with erratic fixture behavior, especially over long signal cable runs, a terminator may help
improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt
resistor, and wire it between pins 2&3 of the last fixture. They are also readily available from
specialty retailers.
Complimentary signal cable can transmits signals to 20 unit
fixtures at most. Signal amplifier is a must to connect more fixtures
and must weld a 120-ohm, 1/4-watt resistor, and wire it between
pins 2&3 of the last fixture
5 6
Controlling Board
The display is blackout automatically if there is no any operation within 30 seconds;
Press Enter and hold for 5 seconds to show light current operating temperature;
Press MENU and hold for 5 seconds to lock KEY; Press MENU and hold for 5 seconds to
unlock KEY.
Button
Menu
Switch menu level / to return the higher
menu level
UP Scroll upwards
DOWN Scroll downwards
ENTER Confirm and save a setting

7 8
Section 4. Reference
Control Menu
DMX protocol
Specifications

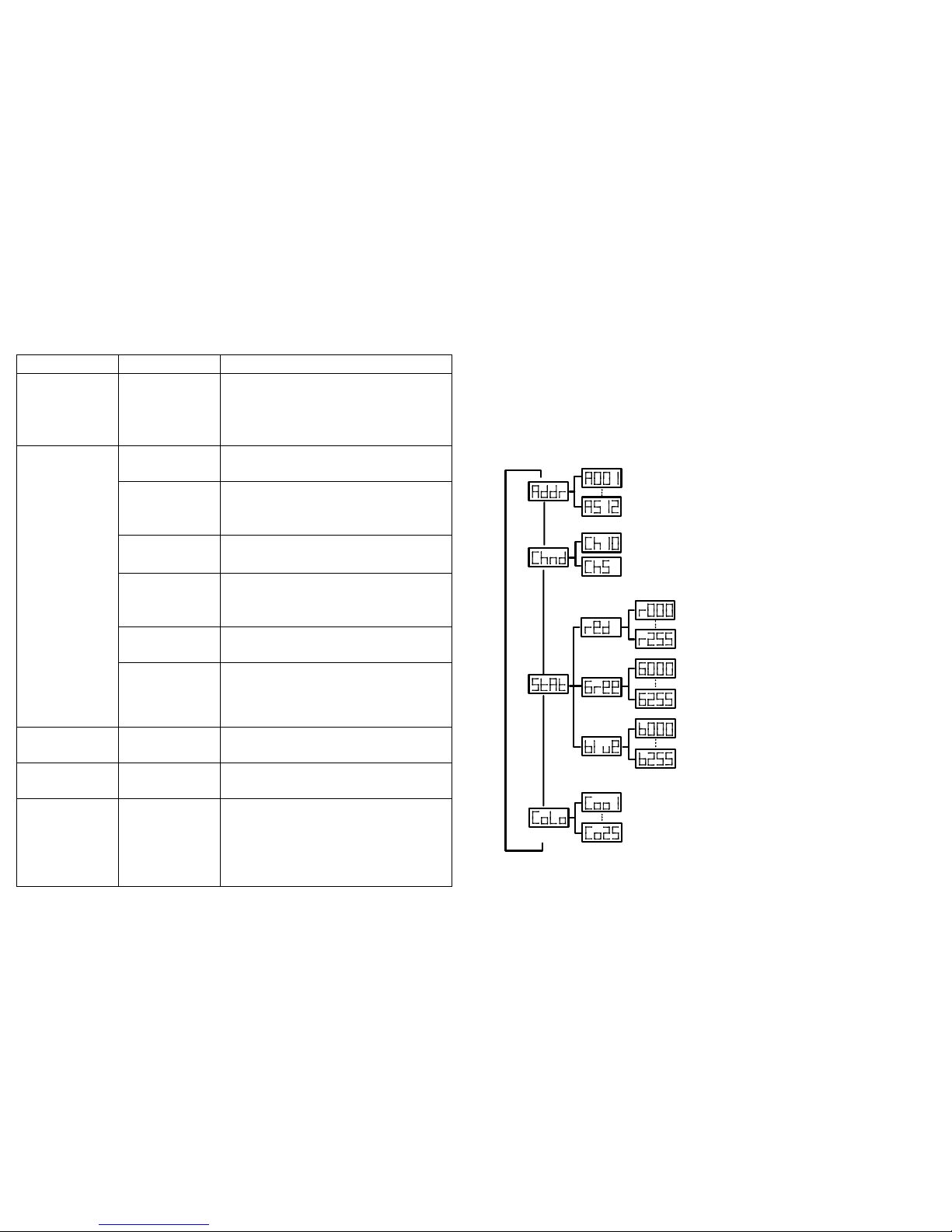

Control Menu
addr：DMX
chnd：DMX
red：
gree：
colo：
address value
channel model
Red dimmer
Green dimmer
blue：
Blue dimmer
25 preset colors
Section 3. Troubleshooting
Troubleshooting
Problem Probable cause(s) Remedy
No response from
fixture when power
is applies
No power to fixture Check power cables
Fixture resets but
does not respond
correctly to
controller(DMX
mode operation)
Controller not
connected Connect controller
Incorrect
addressing of the
fixtures
Check address setting on fixture and controller
Bad data link
connection
Inspect cables and correct poor connections
and/or broken cables.
Conflict between
tracking and vector
control
Eliminate scene cross-fade on controller
Data link not
terminated Insert termination plug in output of last fixture
Defective fixture or
2 devices
transmitting on link
Bypass fixtures one at a time until normal
operation is regained:unplug both connectors
and connect them directly together
Colors cannot be
mixed
Random color
mixing is on Turn off random color mixing
Fixture does not
reset correctly
Electronic or
mechanical failure Contact service technician

910
Comment 1: when LED lamp temperature is over 58℃,the detective fan starts working; when
LED lamp temperature decrease to 45℃again , the detective fan stop working.
Comment 2: Power limiter system is independent with detective fan working system.
DMX Protocol: 10CH
Channel Function Effect
1 Dimmer 0-255: RGBW linear dimmer, from dark to light
2 R dimmer 0-255: Red linear dimmer, from dark to light
3 G dimmer 0-255: Green linear dimmer, from dark to light
4 B dimmer 0-255: Blue linear dimmer, from dark to light
5 Strobe
0-1: No applicable;
2-255: strobe speed, from slow to fast
6 Color Mixing
0-1: No applicable
2-43: Red from dark to light
44-85: Red from light to dark, Green from dark to light,
86-127: Green from light to dark, Blue from dark to light;
128-169: Red from dark to light, Blue fully light on
170-211: Red fully light on, Green from dark to light,
Blue fully light on;
212-255: Red, Green, Blue all light on fully
7 Preset color
0-5:N/A
6-15: Red 16-25: Green 26-35: Blue
36-45:lemon-green 46-55:olivine 56-65:yellow
66-75:congo-red 76-85:light-orange 86-95:rose-red
96-105:pink 106-115:soft-lilac 116-125:light-purple
126-135:powder-blue 136-145:light-blue
146-155:skyblue 156-165:light-cerulean
166-175:cyan 176-185:aqua-green
216-225:white3
186-195:light-green 196-205:white1 206-215:white2
226-235:white4 236-245:white5
fade：
temp：on
off
flas：
flash, 01-99 speed ajusting
color fade, 01-99 speed adjusting
snap：
color skip, 01-99 speed adjusting
soun：
sound active, 01-99 speed adjusting
power limitation on
power limitation off
dim：
5 dimmer curve modes
defa：
ffactory default reset
Comment:
1, Display will black out if without any operation within 30 seconds,
2, Press “ENTER” and keep it for 5 seconds, display will show temperature
3, Press “ENTER” and keep it for 5 seconds to lock keypads.
Press “ENTER” again and keep it for 5 seconds to unlock keypads.

11 12

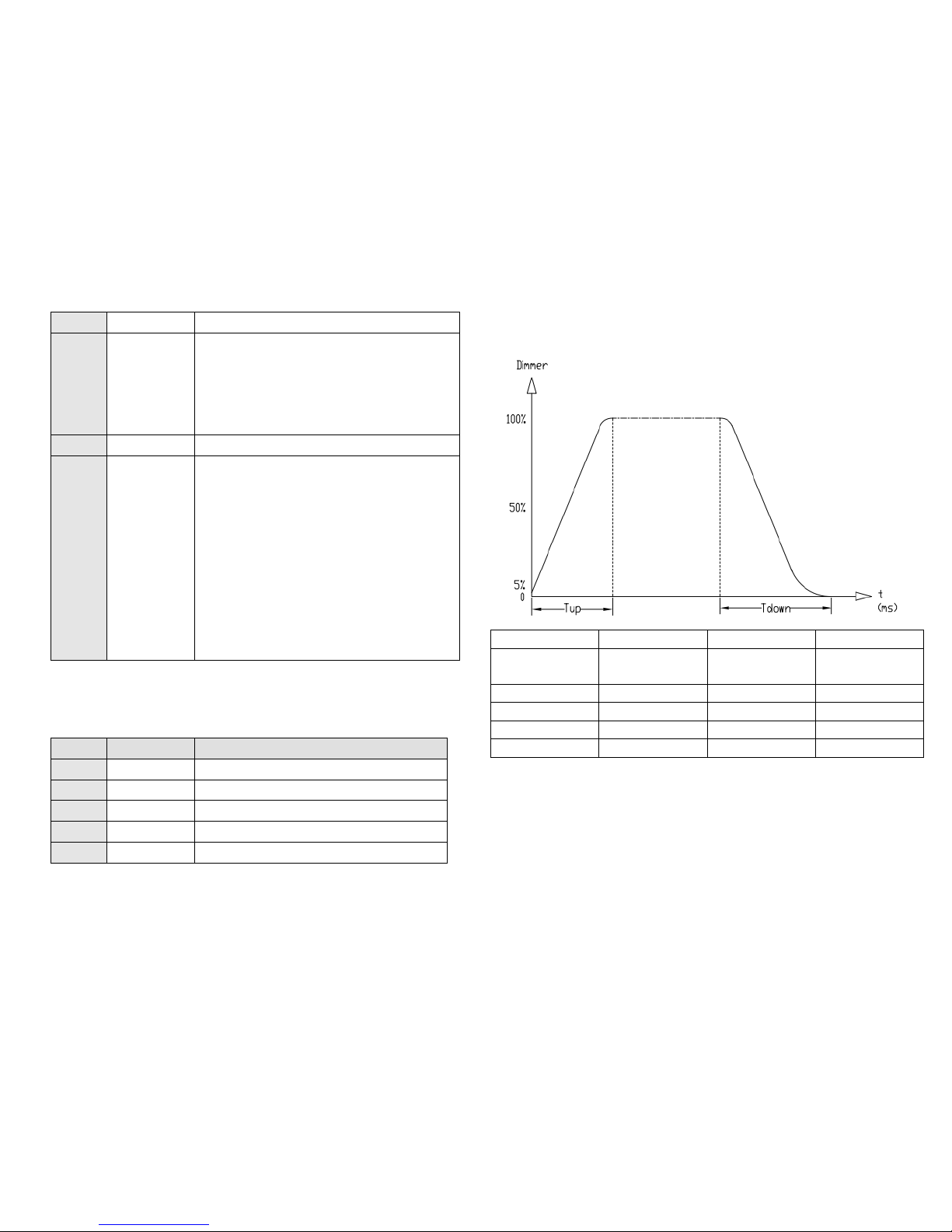

Dimmer Curve：
5 dimmer curves are available to call up.
Ramp Effect Menu Tup(ms) Tdown(ms)
Standard Dimmer
Curve
dr-0 0 0
Dimmer Curve 1 dr-1 980 1010
Dimmer Curve 2 dr-2 1210 1320
Dimmer Curve 3 dr-3 1600 1710
Dimmer Curve 4 dr-4 1850 1980
Master and slave: Set up one fixture as Master fixture (triggering), other fixtures as slave
fixtures (receiving trigger signals), when connect the signal cable, the slave fixtures will run
and keep function synchronism as master fixtures.
Control more machines: Set up all fixtures d10-- or d.5—Menu, set all fixtures same
addresses value or subject to DMX console performance (Attention: all fixtures use the same
DMX channel 10 or 5CH).
246-255:white 6
8
Auto/
Sound
0-10:N/A;11-40: Color fade; 41-70: red, green, blue fade
1; 71-100: yellow, cyan, purple fade 2; 101-130: color
jump; 131-160: red, green, blue jump; 161-190: yellow,
cyan, purple jump; 191-220: sound color strobe;
221-255: sound color jump
9 Auto speed 0-255: auto speed adjust, from slow to fast
10
Dimmer Curve/
Power Limiter
0-20: standard dimm er curve
21-40: dimmer curve 1
41-60: dimmer curve 2
61-80: dimmer curve 3
81-100: dimmer curve 4
101-149: N/A
150-155: (3 second interval) power limiter off;
156-199: N/A
200-205: (3 second interval) power limiter on
206-255: N/A
Comment: When LED lamp temperature increase to 80°C, the Max. power consumption
will be 50%;When LED lamp temperature decrease to 58°C, the Max. power consumption
will be 100% ;
DMX Protocol: 5CH
Channel Function Effect
1 Dimmer 0-255: RGBW linear dimmer, from dark to light
2 Red dimmer 0-255: Red linear dimmer, from dark to light
3 Green dimmer 0-255: Green linear dimmer, from dark to light
4 Blue dimmer 0-255: Blue linear dimmer, from dark to light
5 Strobe 1-255: color strobe speed, from slow to fast
Comment:
Under 5CH DMX protocol, dimmer curve is subject to Menu “dr---“, Power limiter is subject to
Menu “T---“.

Falsch 36 • 28307 Bremen • Germany
01.27.04.2017
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
www.monacor.com 01.15.05.2017
13
Specifications
Power supply:
Operating voltage:
Power consumption, operation:
Wattage:
Light source:
Strobe:
Dimmer:
Cooling:
Admiss. ambient temp.:
Beam angle
Control mode
Channels
Net weight:
Dimensions:
Connections:
~230 V/50 Hz/160 VA
~230 V
160 VA
100 W
1x 100 W RGB COB LED
0 ~ 20 Hz
5 different dimmer curves
1x temperature-controlled fan
0 - 40 °C
60° ( can be adjusted by barn door)
DMX512/Manual
10 or 5 DMX channels（switchable）
1.5kg
W150*H220*D245mm (excluding bracket)
3-pole XLR (DMX in),
3-pole XLR (DMX out)
