Immergas VICTRIX PRO 35 1 I User guide

Cascade and zones regulator
Zone manager
ermoregulation system
for boilers
INSTRUCTION FOR
TECHNICIAN AND
INSTALLER

INDICE
General safety devices. ................................................................................................................................................................................................... 4
Regulators electrical connection. ...................................................................................................................................................................................................4
Recommended diametres and lenghts for the cables. .................................................................................................................................................................5
Zones manager................................................................................................................................................................................................................ 6
Installation place...............................................................................................................................................................................................................................6
Installation.........................................................................................................................................................................................................................................6
Electrical connection. ......................................................................................................................................................................................................................7
BUS address setting..........................................................................................................................................................................................................................7
Cascade and zones regulator.......................................................................................................................................................................................... 9
Cascade and zones regulator installation......................................................................................................................................................................................9
Electrical installation. ......................................................................................................................................................................................................................9
Cascade regulator electrical connection......................................................................................................................................................................................10
Zones and cascade regulator start up...............................................................................................................................................................................................11
Code entering for parameters modication. ..............................................................................................................................................................................11
AUTO-SET function......................................................................................................................................................................................................................12
Anomalies signalling.................................................................................................................................................................................................... 13
Anomalies register..........................................................................................................................................................................................................................14
Example of conguration for the connection in cascade. ........................................................................................................................................... 15
Use of the cascade and zones regulator for installations in cascade........................................................................................................................................15
Use of the cascade and zones regulator with a single boiler for the management of dierent heating circuits.................................................................19

Summary of parameters setting levels......................................................................................................................................................................... 21
Hydraulic level. ...............................................................................................................................................................................................................................24
System parameters level.................................................................................................................................................................................................................27
Domestic hot water level. ..............................................................................................................................................................................................................29
Conguration level for direct / mixed 1 / mixed 2 heating circuits.........................................................................................................................................31
Boiler conguration level. .............................................................................................................................................................................................................33
Cascade conguration level. .........................................................................................................................................................................................................34
BUS data conguration level.........................................................................................................................................................................................................34
Solar conguration level (..VV..) ..................................................................................................................................................................................................35
BUFFER conguration level (..VV..)............................................................................................................................................................................................37
Technical data........................................................................................................................................................................................................ 38
Cascade and zones regulator. ........................................................................................................................................................................................................38
Zone manager..................................................................................................................................................................................................................................39
Sensors resistance values depending on the temperature.........................................................................................................................................................40

Page 4
GENERAL SAFETY DEVICES.
All electrical connections must be executed by a
professionally qualied and authorized techni-
cian in compliance with current standards and
all applicable laws and regulations.
Regulators electrical connection.
To reduce any trouble deriving from electroma-
gnetic compatibility, please pay attention to the
following rules:
- Electrical supply wires and bus data cables
must be layed separately using a minimum
distance of 2 cm.
- For cascade and zones regulators directly con-
nected to the electricity network, the electric
wires and the bus data cables must be layed
separately.
Picture 1: minimum distance for electric insstallation
- Toinstalllthe zonesmanagersaminimumdistan-To installl the zones managers a minimum distan-
ce of 40 cm must be kept from other electrical
appliances with electromagnetic emissions such
as timers (relays), engines, transformers, light
regulators, microwave appliances, tv, speakers,
computers, mobile phones, etc.
Picture 2: Minimum distance from other electric ap-
pliances
- A minimum distance of 40 cm must be kept
between cascade regulator and zones manager.
More cascade and zones regulators connected
through the bus data can be installed one next
to the other.

Page 5
Recommended diametres and lenghts for the
cables.
- Screened cables are recommended for the bus
data network.
Recommended types: J-Y(St)Y 2 x 2 x 0.6
Max. lenght: 50 meters.
- e earth connection of the cable screening
must be done once only . It is not allowed to
ground the same cable in more than one point
(see picture 3-4).
- Electric supply cables Ø = 1,5 mm2.
- Low voltage cables (for example sensors) Ø =
0,5 mm2 max lenght 100 meters.

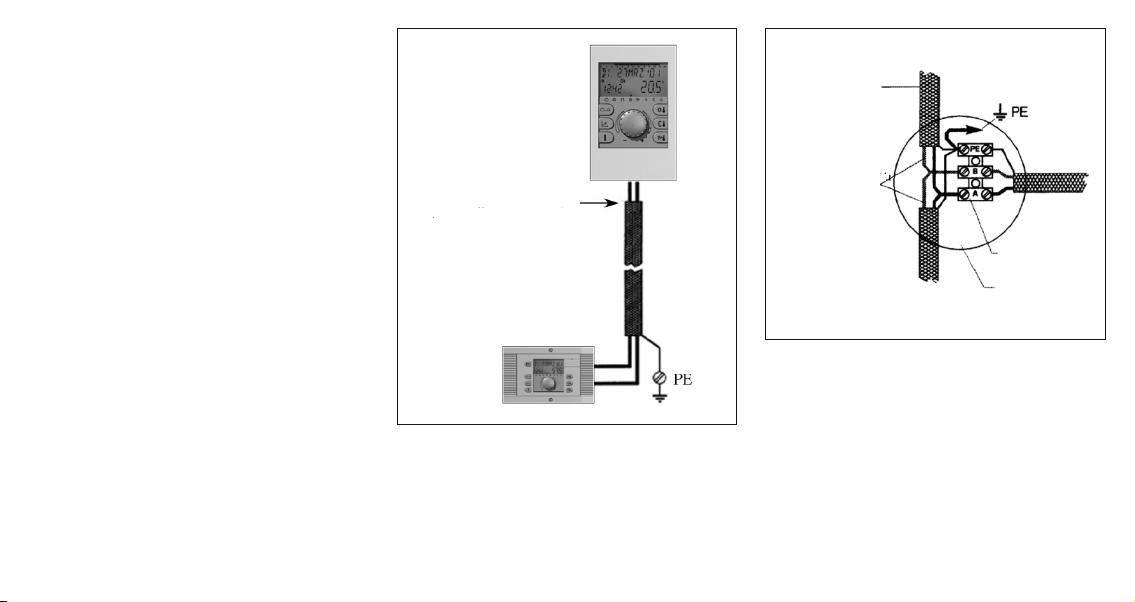

Picture 3: earth connection of the cable screening only
in one point.
A double earth connection cannot be eected in
case of star network of bus data.
Picture 4: Star network of bus data.
e earth connection must be eected on one
side of the star!
Do not earth connect!
cascade regulator
cable screening
data bus conductor
2 wires
shunt
clamp
connector
block

Page 6
ZONES MANAGER.
Installation place.
a - Use without ambient probe.
If the ambient probe is not activated, the
appliance can be installed everywhere.
b - Use with ambient probe.
If the room thermostat is activated, the
appliance must be located at a height of
1,20-1,50 m and in a suitable position for
correctly measuring the temperature. For
this purpose an intermediate wall of the
coldest zone can be chosen.
e appliance must not be installed:
- in places directly exposed to sunlight.
- in the vicinity of appliances that produce he-
ath such as TV sets, refrigerators, wall lamps,
radiators, etc.
- on walls behind which there are heating pipes
or ues.
- on not insulated external walls.
- in corners or recesses, on shelves, or behind
the curtains.
- near entrance doors of not heated rooms.
Installation.
Aer opening the upper part, the wall support
can be xed in the required place with the screws
and plugs supplied.
e data bus cable must pass through the lower
opening.
Recommended connection cable: J-Y(ST)Y 2
x 0.6
Max lenght: 50 m.
Pic. 5
Pic. 6

Page 7
Electrical connection.
e two wired data bus cable must be connected
to A and B terminals .
e connection must be executed respecting the
polarity. e display does not show anything
whenever polarity is not respected. Aer con-
necting electrically the zone manager, ret the
front cover till the clamping.
BUS address setting.
e connection between zones managers and
cascade regulator must be obtained through a
data bus cable with two wires. Since the zone
managers are connected in parallel to the data
bus cable, the data transmission requires a bus
address.
BUS address (zone manager).
e bus address classication between cascade
regulators and zone managers is dened by a
rigid scheme set by the producer as explained
in the following scheme:
Cascade regulator Relative zone manager
Function
BUS
Address
Heating
circuit
BUS
Address
Main cascade
regulator 10
direct circuit
mixed circuit 1
mixed circuit 2
11
12
13
II°
cascade
regulator
20
direct circuit
mixed circuit 1
mixed circuit 2
21
22
23
III°
cascade
regulator
30
direct circuit
mixed circuit 1
mixed circuit 2
31
32
33
IV°
cascade
regulator
40
direct circuit
mixed circuit 1
mixed circuit 2
41
42
43
V°
cascade
regulator
50
direct circuit
mixed circuit 1
mixed circuit 2
51
52
53
Attention: respect the polarity when con-
necting the data bus cable (A-B).
Wall support (without upper part)
Pic. 7

Page 8
00:00:0
000000000000
00:00
V 1.0
11:02
THETR RS
6 6 6 6 66 6 6
- 1 1
BUS address
BUS address entry in the zone manager.
- First start-up.
Aer completing the installation and starting up
the system, all available segments are visualized
on the zone manager display.
Segment test
Soon aer the instrument identication and the
bus address are visualized.
Instrument identication
Type of instrument
Soware date
Soware version
Address input
see scheme above
Aer the bus address input and conrmation,
pressing the knob, automatically the associated
heating circuit is visualized:
Data bus address
Direct circuit
Main regulator
Attention:
Double assignments of the same data bus address
cause errors during the data transmission and
faults of system adjustments.
- Bus address change.
To change a bus address, it’s necessary to follow
the procedures below :
1 - to cut o the bus data cable from the zone
Manager
2 - to x again the zone Manager pressing the
turnable knob till the bus address is visua-
lized.
3 - to insert the new bus address and conrm.
ac --1
cd
bus dati

Page 9
CASCADE AND ZONES REGU
LATOR.
Cascade and zones regulator installation.
The cascade regulator is designed for flush-
mounted installation.
e xing is done turning clockwise the two
lateral screws (1).
Turn anti-clockwise for disassembling.

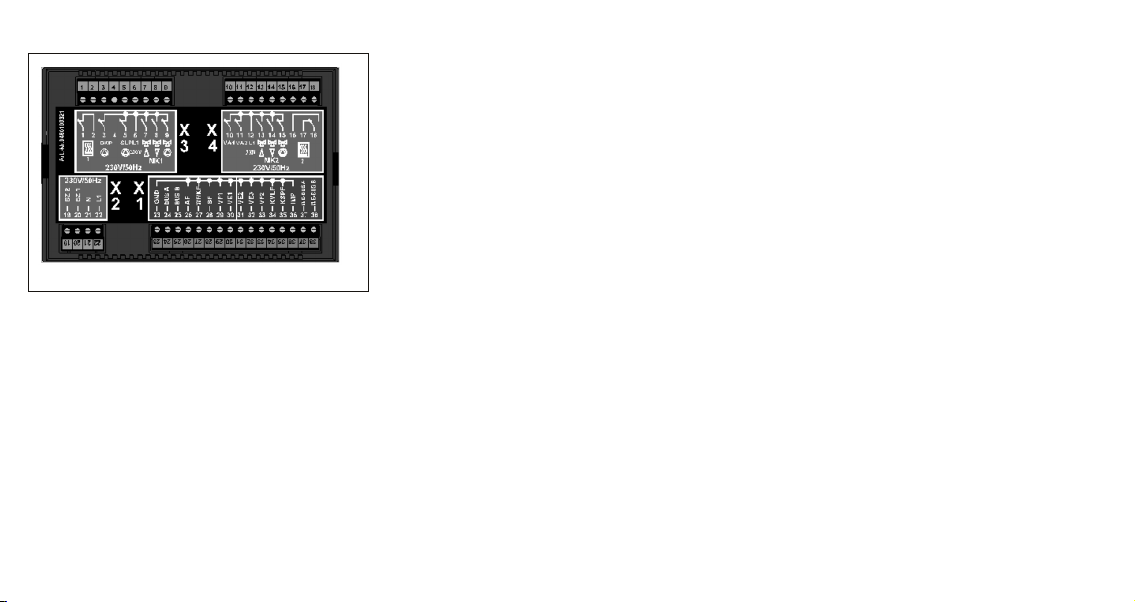

Electrical installation.
e electrical connection and wiring must be
done in the back side of the appliance as reported
in the following page scheme.
All the connection terminals inside the blue
area (X1) work with safety low voltage and they
have not to connect to the main supply voltage.
If this happens the appliance will destroy and
you will lose the warranty!
e connection terminals inside the red area (X2….
X4) work with the main supply voltage.
Warning:
- For the wiring of the appliance the bus data
and sensors cables must be layed separately
from electric wires. Sensor and bus data cables
cannot be layed together with electrical supply
wires of other electrical appliances.
- For the connection it is necessary to use the
special screwing connector (X1÷X4) provi-
ded.
Pic. 9
Pic. 8
!230 V ~

Page 10
Cascade regulator electrical connection.
Main supply connection.
1 - Relay output (not used)
2 - Relay input (not used)
3 - Direct circuit pump (HC)
4 - N.C.
5 - Domestic hot water circuit pump
6 - L 1/ 230 V (main supply)
7 - Mixed circuit valve (MC 1) OPEN
8 - Mixed circuit valve (MC 1) CLOSED
9 - Mixed circuit 1 pump
10 - Variable output relay 1
11 - Variable output relay 2
12 - L 1 230/V
13 - Mixed circuit valve (MC 2) OPEN
14 - Mixed circuit valve (MC 2) CLOSED
15 - Mixed circuit 2 pump
16 - N.C.
17 - Relay output (not used)
18 - Relay input (not used)
19 - (not used)
20 - (not used)
21 - N/230V
22 - L1 /230V
Low tension connections.
23 - GND common
24 - Data bus connection - signal A (zone controls and
room thermostats)
25 - Data bus connection - signal B (zone controls and
room thermostats)
26 - External sensor (not to use, connect to the boiler)
27 - (not to use)
28 - Domestic hot water sensor
29 - Temperature sensor zone 1
30 - Variable input 1
31 - Variable input 2
32 - Variable input 3
33 - Temperature sensor zone 2
34 - Solar panel sensor
35 - Solar storage tank sensor
36 - Impulses input
37 - Boiler data bus A
38 - Boiler data bus B

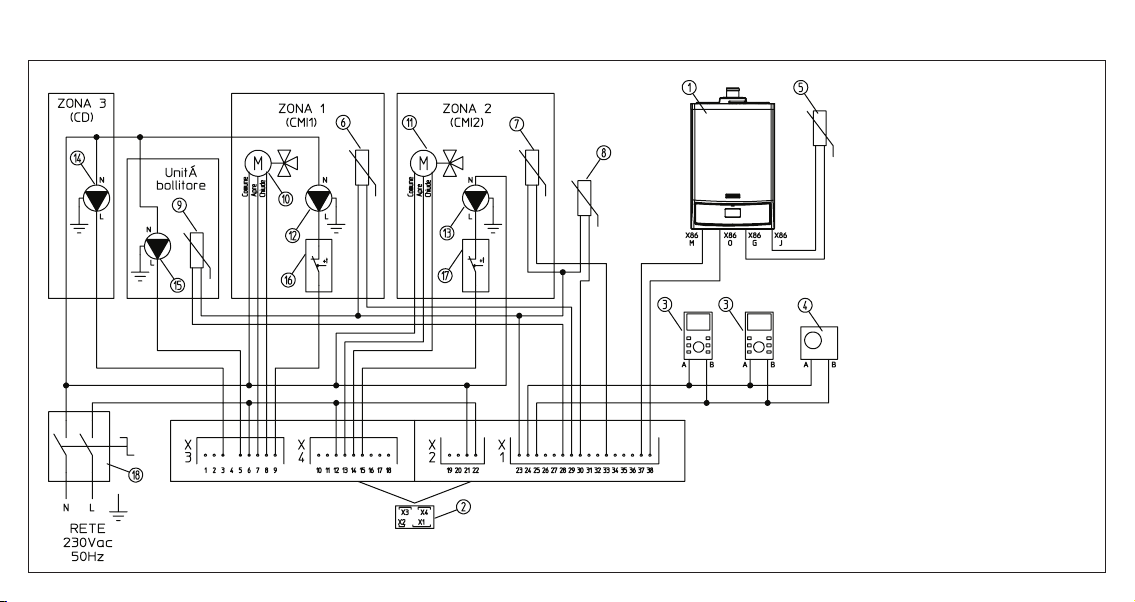

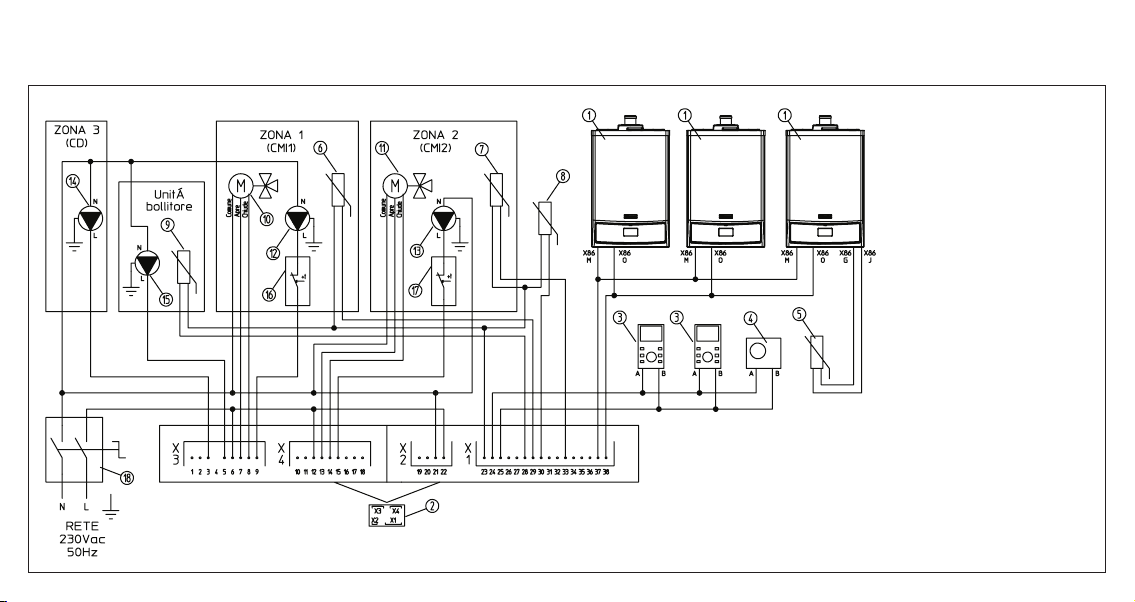

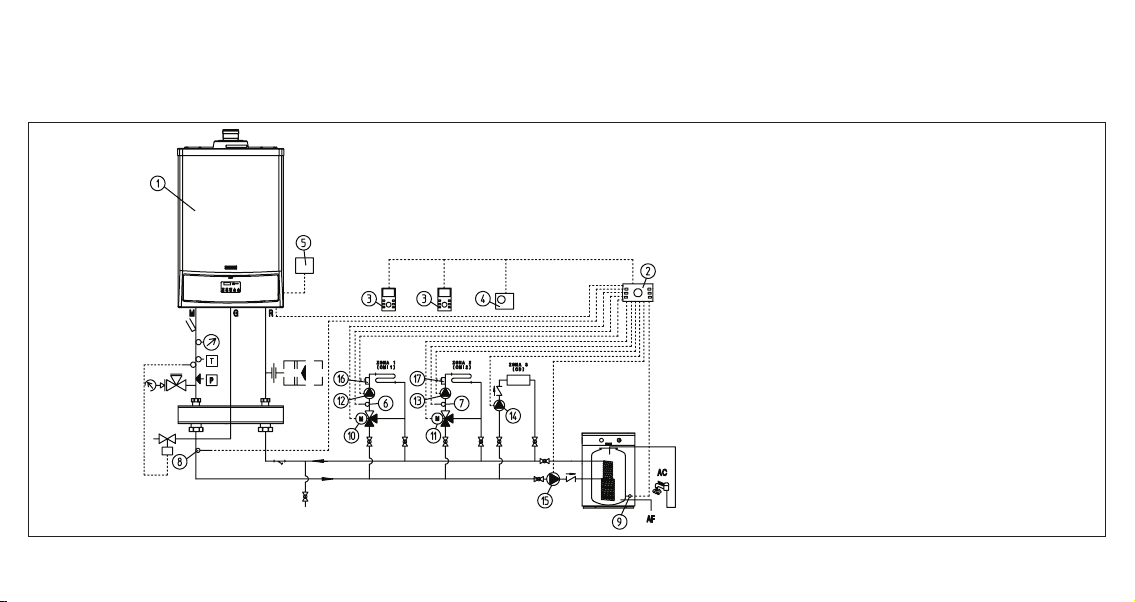

NOTE: For the connection to the hydraulic circuit
components see the schemes at pages 15-19.
Bus address (Cascade regulator).
In case that only one cascade regulator is in-
stalled, the bus address is always 10. With more
regulators connected (at least ve) the regulator
directly connected to the boiler must have the bus
address 10. For the other regulators, the addresses
must follow numbers 20, 30, 40 e 50.
Pic. 10

Page 11
Zones and cascade regulator start up.
Segment test and instrument identication.
At the rst appliance start up or when power
supply is restored all the display segments are
visualized:
Segment test
e instrument model with its type code and
soware version is then displayed.
Type of instrument
soware version
type code
If no errors are signalled, the standard display
appears indicating date, time and current boiler
temperature.
Standard display
Wednesday 21 August 2001
time 16:32 Temperature 63,5°C
e active summer switching-o appears on the
standard display with a sunshade symbol ( ).
Summer switching-o
active
e active anti-freeze function appears on the stan-
dard display with a snow crystal symbol ( ).
Anti-freeze protection
active
Code entering for parameters modication.
Technician code.
Aer entering the code, the parameters reserved
for the technician are activated: these ones can
be modied according to the characteristics of
the system.
Code entering.
For entering the technician code it’s necessary
to press at the same time the buttons and
for approx. 3 seconds until the word “code”
appears on the display.
Turn the knob to set the code number in the
ashing area, and press the knob for storing the
code entered.
000000000000
00:00
6 6 6 6 66 6 6
00:00:0
V 1.0
15
U 223BVV
63.5°
16:32
wE 21.Aug. ‘01
6
63.5°
16:32
wE 21.Aug. ‘01
6
63.5°
16:32
wE 21.Aug. ‘01
6
+
0 0 0 0
C O D E

Page 12
NOTE: e code is supplied on request by the
IMMERGAS technical service.
If the code is correct the words “INSTALLER
OK” appear on the display. In case of error the
write “CODE ERROR” is visualized.
Attention: if any operation is executed for ten
minutes the code must be re-
entered.
Aer the code is entered, all the parameters
reported in the tables from page 24 to page 35
can be modied.
e following menus are available in addition
to the ones listed in the “user” section of this
manual:
- HYDRAULIC: for the settings related to the
system realized;
- HEAT GENERATOR: to set the kind of boi-
ler;
- SOLAR: to regulate the settings of a possible-
solar panel;
- CASCADE: to regulate the settings for the
cascade functioning;
- BUFFER: to regulate the settings of a possible
storage buer;
- BUS: to set the BUS address;
- RELAY TEST: to activate the relays of the
regulator manually;
- ALARM: to visualize the anomalies of the
functioning;
- SENSOR ADJUSTMENT: to modify the
temperatures values of the sensors.
AUTO-SET function.
anks to this function, it is possible to set auto-
matically the presence of heating and domestic
hot water circuits wich sensors are connected to
the regulator.
e AUTO - SET is activated aer the switch on
of the appliance and it works for the following
24 hours.
If during the rst start-up, a conguration is re-
gistered, its change is possible only if the AUTO
- SET function is activated. is activation can
carry out cutting o the power supply and to
restore it pressing the knob.
OK
INSTALLEr CODE ERRor

Page 13
ANOMALIES SIGNALLING.
e cascade and zones regulator displays and sto-
res every time all the anomalies that happen.
ere are four dierent types of anomalie:
1 - Sensor anomalies signalling.
e values of the sensors resistance that are
out of range are considered as fault. Accor-
ding to the specic function the faults are
indicated by code 10…20; according to the
type of fault, code 0 indicates the short circuit
and code 1 signals the cuto.
2 - Control errors signalling.
ese errors codes estimate the result of the
regulations. ese anomalies are indicated
through codes 50….60 and index 0, 1 or 2.
3 - Bus errors signalling.
ese codes signal possible address errors
such as a double address or the non-reco-
gnition of a bus address. ese anomalies
are indicated through code 70 and index
0 or 1.
4 - Boiler electronic card errors signalling.
ese error codes are related to the boiler
electronic card and they are divided in two
types: operational anomalies with manual
reset with code En-XX (see instruction ma-
nual) and operating anomalies with electric
reset (automatic reset) with code Bn-XX (see
instruction manual).
Errors management:
- anomalies are visualized on the regulator display.
- systemanomaliesarevisualizedintheinformation
level with the related value.
- if necessary the errors are saved in the error
register (see description below).
- settingtheparametersproperly,theerrorsactivate
anerrorsignalling outputfortheconnection to an
optical or acoustic signal.
Anomalies signalling tables:
Sensors and variable inputs:
Description Fault type Code
External sensor Cuto 10-0
External sensor Short circuit 10-1
Boiler sensor Cuto 11-0
Boiler sensor Short circuit 11-1
Delivery sensor MC 1 Cuto 12-0
Delivery sensor MC 1 Short circuit 12-1
Domestic hot water
sensor
Cuto 13-0
Domestic hot water
sensor
Short circuit 13-1
Variable input VI2 Cuto 14-0
Variable input VI2 Short circuit 14-1
Variable input VI2 Anomalies signal 14-7
Variable input VI3 Cuto 15-0
Variable input VI3 Short circuit 15-1
Variable input VI3 Anomalies signal 15-7

Page 14
C om mo n d el iv er y
sensor
Cuto 16-0
C om mo n d el iv er y
sensor
Short circuit 16-1
Solar boiler sensor Cuto 17-0
Solar boiler sensor Short circuit 17-1
Delivery sensor MC 2 Cuto 18-0
Delivery sensor MC 2 Short circuit 18-1
Solar panel sensor Cuto 19-0
Solar panel sensor Short circuit 19-1
Temperatures:
Boiler delivery tempera-
ture
not reached 50-4
Boiler delivery tempera-
ture
exceeded 50-5
D.h.w. circuit delivery
temp.
not reached 51-4
Delivery temperature MC
1
not reached 52-4
Delivery temperature MC
2
not reached 53-4
Room temperature DC not reached 54-4
Room temperature MC 1 not reached 55-4
Room temperature MC 2 not reached 56-4
BUS data:
Address addresses conict 70-0
Activity no signal 70-1
Activity communication with
boiler missed
70-6
EEPROM 71-0
EEPROM faulty 71-1
Boiler errors:
Error block* (manual
reset)
En-XX
Error block* (electrical
reset)
Bn-XX
* see the boiler instruction manual
Anomalies register.
The standard regulator is provided with an
anomalies register where up to ve errors can
be stored. ese fault signals are visualized in
the menu “alarm” together with date, time and
type of the error. Entering this menu protected
by code; the most recent fault is visualized, then
turning the knob it is possible to display all the 5
fault reports.

Page 15
EXAMPLE OF CONFIGURATION FOR THE CONNECTION IN CASCADE.
Use of the cascade and zones regulator for installations in cascade.
With VICTRIX boiler and cascade regulator it is possible to connect in cascade up to three boilers as shown in the hydraulic scheme below:
Key:
1 - VICTRIX 50 generator
2 - Cascade and zones regulator
3 - Zone manager
4 - Modulating room thermostat
5 - External sensor
6 - Temperature sensor zone 1 (MC 1)
7 - Temperature sensor zone 2 (MC 2)
8 - Common delivery sensor
9 - Storage tank temperature sensor
10 - Mixer valve zone 1 (MC 1)
11 - Mixer valve zone 2 (MC 2)
12 - Heating circuit pump zone 1 (MC 1)
13 - Heating circuit pump zone 2 (MC 2)
14 - Direct circuit pump zone 3 (HC)
15 - Storage tank supply pump
16* - Safety thermostat zone 1 (MC
1)
17* - Safety thermostat zone 2 (MC
2)
(*) to be used in case of low tempe-
rature circuit
NOTE: for other connection diagrams, to consult the boiler instructions manual.
Pic. 11

Page 16
Concerning the electrical connection of the components to the cascade regulator, see the following scheme:
Key:
1 - VICTRIX 50 generator
2 - Cascade and zones regulator
3 - Zone manager
4 - Modulating room thermostat
5 - External sensor
6 - Temperature sensor zone 1 (MC 1)
7 - Temperature sensor zone 2 (MC 2)
8 - Common delivery sensor
9 - Storage tank temperature sensor
10 - Mixer valve zone 1 (MC 1)
11 - Mixer valve zone 2 (MC 2)
12 - Heating circuit pump zone 1 (MC 1)
13 - Heating circuit pump zone 2 (MC
2)
14 - Direct circuit pump zone 3 (HC)
15 - Storage tank supply pump
16* - Safety thermostat zone 1 (MC 1)
17* - Safety thermostat zone 2 (MC 2)
18 - External double-pole switch
(*) to be used in case of low temperature
circuit
Pic. 12

Page 17

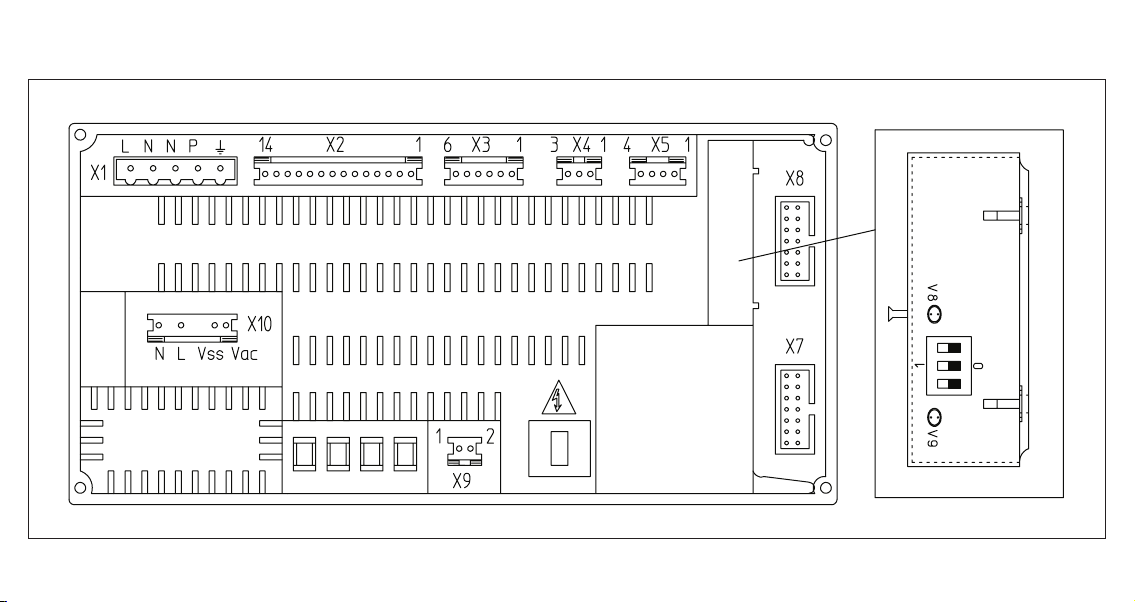

Once the scheme of picture 12 is realized, it is necessary to set the bus address on the electronic card of each single boiler as explained in the picture
below:
Pic. 13

Page 18
e parameters for the functioning in cascade are already set into the “cascade” menu of the regulator.

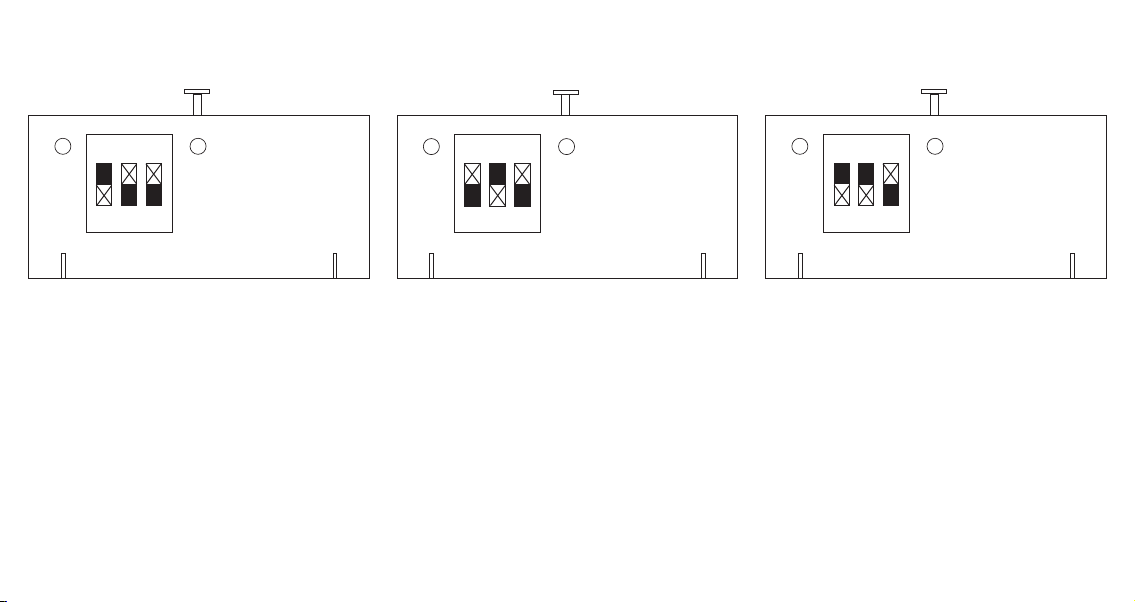

Address 1 (1st boiler) Address 2 (2nd boiler) Address 3 (3rd boiler)
A M P
ON
0
1
M P
ON
0
1
1
2 3
A M P
ON
0
1
1
2
3
A
12
3

Page 19
Use of the cascade and zones regulator with a single boiler for the management of dierent heating circuits.
e cascade and zones regulator can be used even with one single VICTRIX boiler to manage up to three heating zones. In this case, it is possible to
realize the following hydraulic scheme as explained in picture 14; the respective electrical connections are shown in picture 15.
Key:
1 - VICTRIX 50 generator
2 - Cascade and zones regulator
3 - Zone manager
4 - Modulating room thermostat
5 - External sensor
6 - Temperature sensor zone 1 (MC 1)
7 - Temperature sensor zone 2 (MC 2)
8 - Common delivery sensor
9 - Storage tank temperature sensor
10 - Mixer valve zone 1 (MC 1)
11 - Mixer valve zone 2 (MC 2)
12 - Heating circuit pump zone 1 (MC 1)
13 - Heating circuit pump zone 2 (MC 2)
14 - Direct circuit pump zone 3 (HC)
15 - Storage tank supply pump
16* - Safety thermostat zone 1 (MC 1)
17* - Safety thermostat zone 2 (MC 2)
(*) to be used in case of low temperature circuit
Pic. 14
NOTE: for other connection diagrams, to consult the boiler instructions manual.

Page 20
Pic. 15
Key:
1 - VICTRIX 50 generator
2 - Cascade and zones regulator
3 - Zone manager
4 - Modulating room thermostat
5 - External sensor
6 - Temperature sensor zone 1 (MC 1)
7 - STemperature sensor zone 2 (MC 2)
8 - Common delivery sensor
9 - Storage tank temperature sensor
10 - Mixer valve zone 1 (MC 1)
11 - Mixer valve zone 2 (MC 2)
12 - Heating circuit pump zone 1 (MC 1)
13 - Heating circuit pump zone 2 (MC 2)
14 - Direct circuit pump zone 3 (HC)
15 - Storage tank supply pump
16* - Safety thermostat zone 1 (MC 1)
17* - Safety thermostat zone 2 (MC 2)
18 - External double-pole switch
(*) to be used in case of low temperature circuit
