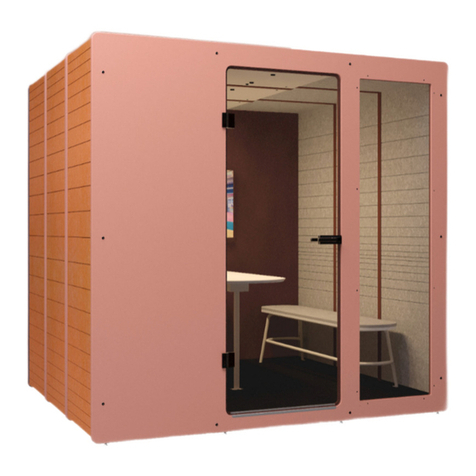

Impact Acoustics chatpod 185 User manual

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland) 01.03.2022
20min
Assembly instructions
Chatpod 185

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)2Chatpod 185
1x2x 1x
Always carry the front panel in a way that the hinges are always on top, otherwise the door could
accidentally open and break.
Attention
Is required in addition to the scope of delivery:

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)3Chatpod 185
1
4
step 1
Place the honeycomb cardboard blocks under the cardboard supports of the base. Make sure that
the bottom sits stably on the blocks and that the blocks protrude a few centimenter to the sides.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)4Chatpod 185
1
1
4
4
2
2
3
3
step 2
Place the two sides on the honeycomb blocks and tuck them into the bottom. This should go easily,
if not, make sure the sides and bottom are aligned. Hold the sides until the top is assembled. Pin
the top together with the sides, pull the cable through the top from the right side.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)5Chatpod 185
step 3
Insert the six connecting rods.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)6Chatpod 185
M6 x 40mm
step 4
Join the back wall with the sides, the bottom and the top. Secure the back panel by screwing the
six screws a few turns into the connecting rods. Do the same with the front. Now tighten all the
screws, which must be countered on the opposite side.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)7Chatpod 185
step 5
Assemble the door handle in the following order: lock, metal washer, plastic washer, door handle.
Press the two halves of the door handle together while tightening the stud screw with the 3 mm
hex key. Make sure that the handle is mounted with the pre-mounted square pin in the inside of the
chatpod.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)8Chatpod 185
6.3 x 70mm
step 6
Now screw the table to the side with the five screws.

Impact Acoustic AG, Bodenhof 4, 6014 Luzern (Switzerland)9Chatpod 185
click
Well
done!
step 7
Remove the four honeycomb cardboard blocks. Align the chatpod using the four leveling feets.
Insert the plug as shown. Place the two outer panels on the cover. Plug the power cord into the
socket.
