impact BMS-1K User manual

BMS-1K
Bike Mounting Kit
INSTRUCTIONS

2
Introduction
Thank you for choosing Impact.

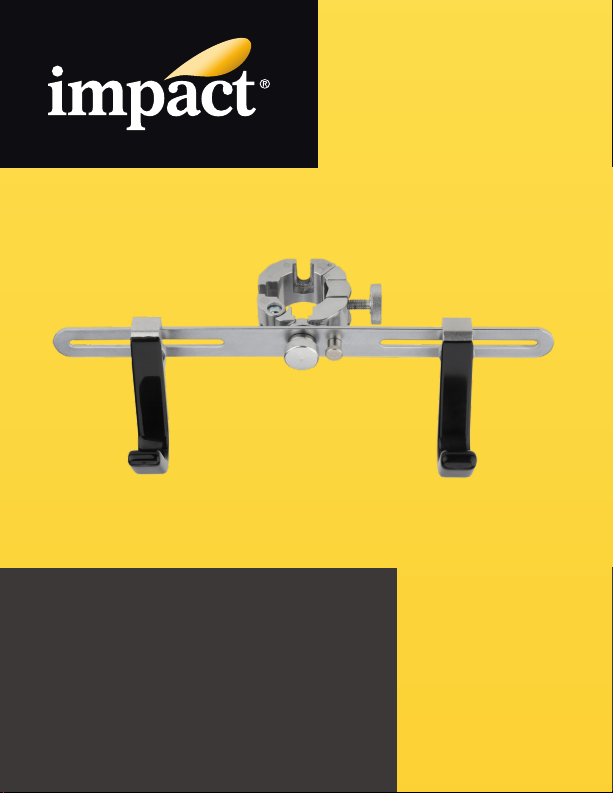

The Impact Bike Mounting Kit allows you to securely store
bicycles weighing up to 33 pounds and hang them off the ground
to create more space in your apartment, home, ofce, or garage.
Use the Bike Mounting Kit with Impact’s Deluxe Varipole Support
System (sold separately) or any support stand with a tubing
diameter measuring 40 to 45 mm. This adapter cradles your
bike’s top tube with vinyl-coated hooks that minimize scratches
or dents, and enable you to angle your bike ±30°.

3
Precautions ⚠
• Please read and follow the
instructions, and keep this manual
in a safe place.
• This device is to be installed on
support tubing with a diameter
measuring 40 to 45 mm.
• Do not exceed the recommended
load limit of 33 pounds (15 kg).
• Keep the coupler away from
water, oil, grease, or any element
that may cause it to move or slide
along the support tubing.
• Make sure to properly balance
your bicycle on the Impact
Bike Mounting Kit. Improperly
balancing a bicycle can cause
serious injury to your person and
damage to your personal property.
• Make sure this product is intact
and that there are no missing
parts.
• Clean this product with only a soft,
dry cloth.
• All images are for illustrative
purposes only.

4
Overview
1. Hang bar (BMS-BH)
2. Tension knob
3. Spring pin
4. Hook slots
5. Angle bracket
6. Tension bolt
7. Frame hook (×2)
8. Hook tension wheel
9. Locking handle
10. 3-way multi-hang coupler
11. Coupler tension knob
12. Hang-bar slots (1, 2, 3)
13. Latch
Warning! When loosening parts, be careful not to drop or lose any components.
2
5
3
6
4
1Front
Back

5
9
10
11
13
8
12
7

6
Setup
Assembling the Hang Bar
1. Unscrew the frame hook’s tension wheel and
remove the locking handle.
2. Slide the frame hook onto the hang bar with
the tension knob and the hook facing the same
direction. Make sure the spring pin is to the right of
the knob.
3. Reinstall the locking handle into the frame hook as
shown.
1
2
3

7
4. Rotate the hook’s tension wheel so there’s enough
tension to press down the locking handle until
secure.
5. Install the second hook in the other hook slot.
Important: Mount one hook per slot on each side.
Do not position both hooks in the same slot.
If you need to adjust the hooks to t your bike frame,
loosen the hooks and slide them along the hang bar’s
slots. Make sure to tighten the hook’s tension wheel
and locking handle until secure.
4

8
2. Wrap the coupler around the support tubing, and
close the coupler until the latch locks and clicks.
Make sure the hang bar slots are facing up.
3. Tighten the tension knob until secure.
Important: The coupler should not be able to slide up or
down on the support tubing. Make sure the coupler’s
tension knob is tightened and secure.
Mounting the Multi-Hang Coupler
1. Press the coupler’s latch to open the coupler, and
loosen the coupler’s tension knob to its maximum.
2
3
1

9
Mounting the Hang Bar
1. Loosen the hang bar’s tension knob but do not
loosen fully.
2. Slide the tension bolt into one of the coupler’s three
slots as shown.
3. Tighten the tension knob until secure.
2
1
3

10
Mounting a Bicycle
Place your bicycle into the frame
hooks. Make sure the load is balanced.
Adjustments
Hang Bar ±30° Tilt Frame Hook Spacing
Note: You can install two hang bars attached on
opposite sides of the coupler.

11
Support tube diameter 40 to 45 mm
Max weight capacity 33 lb. (15 kg)
Frame hook width Max: 16.25 in. (41.3 cm)
Min: 6.6 in. (16.7 cm)
Compatible frame diameter Max: 2.1 in. (53.4 mm)
Min: 0.7 in. (17.8 mm)
Weight 2.8 lb. (1.3 kg)
Specications

One-Year Limited Warranty
This Impact product is warranted to the original purchaser to be free from defects in materials
and workmanship under normal consumer use for a period of one (1) year from the original
purchase date or thirty (30) days after replacement, whichever occurs later. The warranty
provider’s responsibility with respect to this limited warranty shall be limited solely to repair
or replacement, at the provider’s discretion, of any product that fails during normal use of this
product in its intended manner and in its intended environment. Inoperability of the product
or part(s) shall be determined by the warranty provider. If the product has been discontinued,
the warranty provider reserves the right to replace it with a model of equivalent quality and
function.
This warranty does not cover damage or defect caused by misuse, neglect, accident,
alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN,
THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you
with specic legal rights, and you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Impact Customer Service Department to obtain
a return merchandise authorization (“RMA”) number, and return the defective product to
Impact along with the RMA number and proof of purchase. Shipment of the defective product
is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.impactstudiolighting.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
Impact is a registered trademark of the Gradus Group.
© 2021 Gradus Group LLC. All Rights Reserved.
GG1
