Impecca IPAC12-KR2 User manual

Model: IPAC12-KR2
Dual-Hose Portable Air Conditioner
User Manual

Read This Manual
Inside you will find many helpful hints on how to use and maintain your air
conditioner properly. Just a little preventive care on your part can save you
a great deal of time and money over the life of your air conditioner. You'll
find many answers to common problems in the chart of troubleshooting tips.
If you review our chart of Troubleshooting Tips first, you may not need to
call for service at all.
CAUTION
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazardous situation.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry
room.
• Contact an authorized service technician for repair or maintenance of this unit.
Contact an authorized installer for installation of this unit.
!

CONTENTS
The rating data indicated on the energy label is based
on the testing condition of installing the un-extended
air exhaust duct without adaptor A & B (The duct and
the adaptor A & B are listed in the accessories chart
of the Instruction Manual).
NOTE
1
SAFETY PRECAUTIONS
Safety rules ......................................................................................................................................2
Operating conditions........................................................................................................................2
Electrical information ........................................................................................................................3
Accessories .......................................................................................................................................3
Names of parts...................................................................................................................................4
Electronic control operating instructions ...........................................................................................5
Operating instructions .......................................................................................................................6
Location ............................................................................................................................................8
Window kit installation ......................................................................................................................8
Exhaust hose installation ................................................................................................................11
Water drainage ................................................................................................................................12
Care and maintenance ....................................................................................................................13
Troubleshooting ...............................................................................................................................14
AIR CONDITIONER FEATURES
CARE AND MAINTENANCE
TROUBLESHOOTING TIPS
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
IDENTIFICATION OF PARTS

2
Safety rules
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring instructions may cause harm or damage.
Your air conditioner should be used in such a way
that it is protected from moisture:e.g. condensation,
splashed water, etc. Do not place or store your air
conditioner where it can fall or be pulled into water or
any other liquid. Unplug immediately if exposed.
Always transport your air conditioner in a vertical
position and stand on a stable, level surface during
use.
Turn off the product when not in use.
Always contact a qualified person to carry out
repairs. If the supply cord is damaged it must be
repaired by a qualified technician.
Keep an air path of at least 30cm all around the unit
from walls, furniture and curtains.
If the air conditioner is knocked over during use,
turn off the unit and unplug from the main
power supply immediately.
SAFETY PRECAUTIONS
!
Always do this Never do this
Save Energy
Use the unit in the recommended room size.
Locate the unit where furniture cannot obstruct the air flow.
Keep blinds/curtains closed during the sunniest part of the day.
Keep the filters clean.
Keep doors and windows closed to keep cool air in and warm air out.
The air conditioner must be operated within the temperature range indicated below:
Operating conditions
Suggested tools for window kit installation
1. Screwdriver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw (In the event that the window kit needs to be cut down in size because
the window is too narrow for direct installation)
MODE ROOM TEMPERATURE
COOL
DRY
•Do not operate your air conditioner in a wet
room such as a bathroom or laundry room.
• Do not touch the unit with wet or damp
hands or when barefoot.
• Do not press the buttons on the control panel
with anything other than your fingers.
• Do not remove any fixed covers. Never use
this appliance if it is not working properly, or if it has
been dropped or damaged.
• Never use the plug to start and stop the unit.
Always use the switch on the control panel.
• Do not cover or obstruct the inlet or outlet
grilles. Do not use hazardous chemicals to clean or
come into contact with the unit. Do not use the unit
in the presence of flammable substances or vapor
such as alcohol, insecticides, gasoline, etc.
• Do not allow children to operate the unit
unsupervised.
• Do not use this product for functions other
than those described in this instruction manual.
62°F (17°C) - 95°F (35°C)
55°F (13°C) - 95°F (35°C)

3
Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
WARNING For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
WARNING Electrical Information
IDENTIFICATION OF PARTS

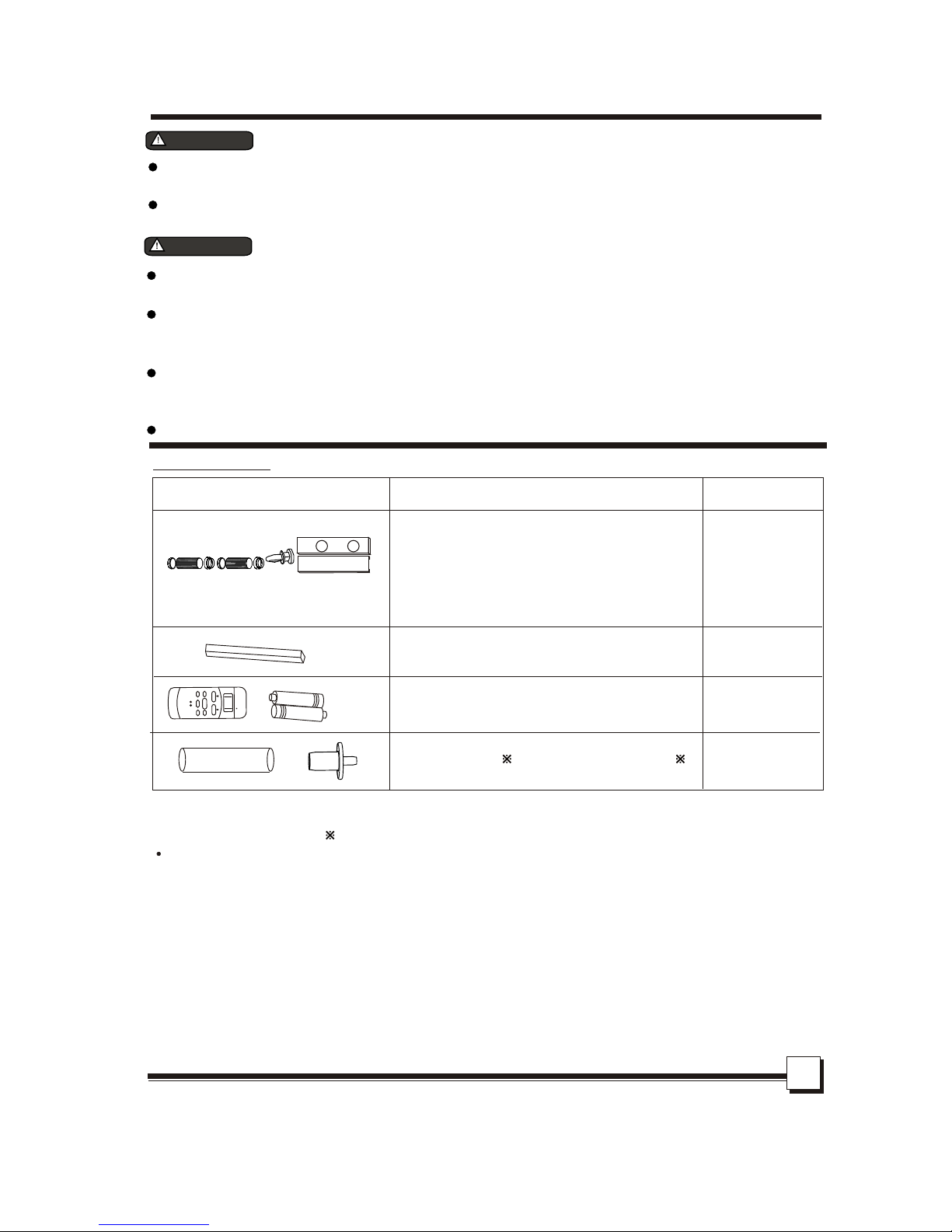

Accessories
Check that all the accessories are included in the package and please refer to the installation
instructions for their usage.
PARTS:
PART NAMES:QUANTITY:
1 set
Exhaust hose and Adaptor I and Adaptor B
Window Slider Kit and bolt
(diagram not to scale)
Foam seal and adhesive foam seal
2 pcs.
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
ECONOMY
ON/OFF
TIMER OFF
RESET LOCK
SET TEMPERATURE(
F
)
LED
DISPLAY
Remote Controller and
Batteries (2x AAA)
1 pc.
Drain hose( ) and drain hose adaptor( )
1 pc.
All the illustrations in this manual are for explanation purpose only. Your air
conditioner's actual shape may be slightly different.
NOTE:
NOTE: Optional parts( ), some models without.

IDENTIFICATION OF PARTS
4
PARTS NAMES
Front
Rear
Operation panel
Horizontal louver blade
(swingsautomatically)
Caster
Carrying handle
(both sides)
3
1
2
3
4
6
7
9
10
11
Air intake
12
Fig.1
13
1
2
4
Fig.2
5Air filter
(Behind the grille)
Air outlet
Power cord outlet
Power cord buckle (Used
only when storingthe unit)
Bottom tray drain outlet
Power plug socket(Use
only when storingthe unit)
Vent control
16
5
7
6
9
10
11 12
13
15
14
15
Air filter
Air inlet
14
16
Drain outlet
CLOSE
OPEN

5
Selects the appropriate operating mode.
Each time you press the button, a mode is
selected in a sequence that goes from
AUTO -> COOL -> DRY -> FAN. The mode
indicator light illuminates for the
corresponding mode.
FAN button
Control the fan speed. Press to
select the fan speed in four steps –
LOW, MED, HI and AUTO. The
fan speed indicator light illuminates
under each fan setting except for
“AUTO.” When AUTO is selected,
none of the fan indicators will be lit.
FAN

6
OPERATING INSTRUCTIONS
Operating Instructions
- Press the "MODE" button until the "COOL"
indicator light comes on.
- Press the ADJUST buttons "+" or " - " to
select your desired room temperature. The
temperature can be set within a range of
- Press the "FAN SPEED" button to choose
the fan speed
COOL operation
- Press the "MODE" button until the
"FAN " indicator light comes on.
- Press the "FAN SPEED" button to
choose the fan speed. The temperature
cannot be adjusted.
- Do not put the duct to window.
FAN operation
TIMER operation
Error codes and protection code:
E1- Room temperature sensor error –
Unplug the unit and plug it back in.
If errorrepeats, call for service.
E2- Evaporator temperature sensor error –
Unplug the unit and plug it back in.
If error repeats, call for service.
E3- Condenser temperature sensor error –
Unplug the unit and plug it back in. If error
repeats, call for service.
E4- Display panel communication error –
Unplug the unit and plug it back in.
If error repeats, call for service.
P1- Bottom tray is full –Connect the
drain hose and drain the collected
water away. If protection repeats, call
for service.
62°F - 88°F/17°C - 30°C
- Press the "MODE" button until the "DRY"
indicator light comes on.
- Under this mode, you cannot select a fan
speed or adjust the temperature. The fan
motor operates at LOW speed.
- Keep windows and doors closed for the
best dehumidifying effect.
- Do not attach the duct to window.
A UTO operation
- When you set the air conditioner in
AUTO mode, it will automatically select
cooling or fan only operation depending on
what temperature you have selected and
the room temperature.
- The air conditioner will control room
temperature automatically around the
temperature point set by you.
- Under AUTO mode, you cannot
select the fan speed.
- When the unit is on, pressing the TIMER
button will initiate the Auto-off stop program. The
TIMER OFF Indicator light will illuminate. Press
the UP or DOWN button to deselect the desired
time (in hours) until the unit will turn off. Press the
TIMER button again within 5 seconds and the
TIMER ON indicator light will illuminate. Press or
hold the UP or DOWN button to select the desired
time from now you want the unit to turn on again.
- When the unit is off, press the TIMER
button to initiate the Auto-on start program. Press
it again within 5 seconds to set the time for the
Auto-off stop program. Use the UP and DOWN
buttons to change the time accordingly (in hours).
- The display will automatically revert to the
previous temperature setting if there are no
modifications within a five second period.
- Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel the
Auto Start/Stop timer program.
- Malfunction error codes (E1, E2, E3 or
E4) will also cancel any Auto-Start/Stop programs.
- Note that the time function starts out in
half-hour increments (.5, 1, 1.5) until it reaches 10
hours.
- The timer begins from the present
moment, so if it is presently midnight and you set
the OFF time for 6 hours and the on time for 12, it
will go off at 6 AM and on again at 12 PM.
DRY operation (dehumidifier)

7
OPERATING INSTRUCTIONS
Fig.4
Other features
After the unit has stopped, it cannot be restarted
for the first 3 minutes. This is to protect the unit.
Operation will automatically start after 3
minutes.
Wait 3 minutes before resuming operation
SLEEP operation
Upon pressing this button, the selected
temperature will increase by 2°F (1°C) in 30
minutes. The temperature will then increase
by another 2°F (1°C) after an additional 30
minutes. This new temperature will be
maintained for 7 hours before it returns to
the originally selected temperature. This ends
the Sleep mode and the unit will continue to
operate as originally programmed.
NOTE: This feature is unavailable under
FAN or DRY mode.
If the unit turns off unexpectedly due to a
power cut, it will restart with the previous
function setting automatically when the
power resumes.
Auto-Restart
Air flow direction adjustment
The louver can be adjusted automatically.
Automatic swing
•Air flow direction is adjusted
automatically (Fig.4):
• When the Power is ON, the louver
opens fully. Press the SWING button on the
panel or remote control to initiate the auto-
swing feature.
• The louver will swing up and down
automatically.
• Please do not adjust the louver
manually.
Note on sleep mode:
The idea behind this mode is to save
energy during the night when one is
sleeping. Generally one may not need the
room to be as cool while they are sleeping,
so the unit will gradually warm up the room
a bit to save energy and then revert back to
the originally set temperature later.

Minimum: 26.5" (67.5cm.)
Maximum: 48" (126cm.)
8
INSTALLATION INSTRUCTIONS (optional)
Note: If the window opening is less than the
mentioned minimum length of the window slider kit,
shorten the piece containing both holes in order to
fit the window opening. Never cut up to the hole
itself.
Minimum: 26.5" (67.5cm.)
Maximum: 48" (126cm.)
A:30cm-100cm B: 30cm
Fig.5
B
A

26.5"~48"

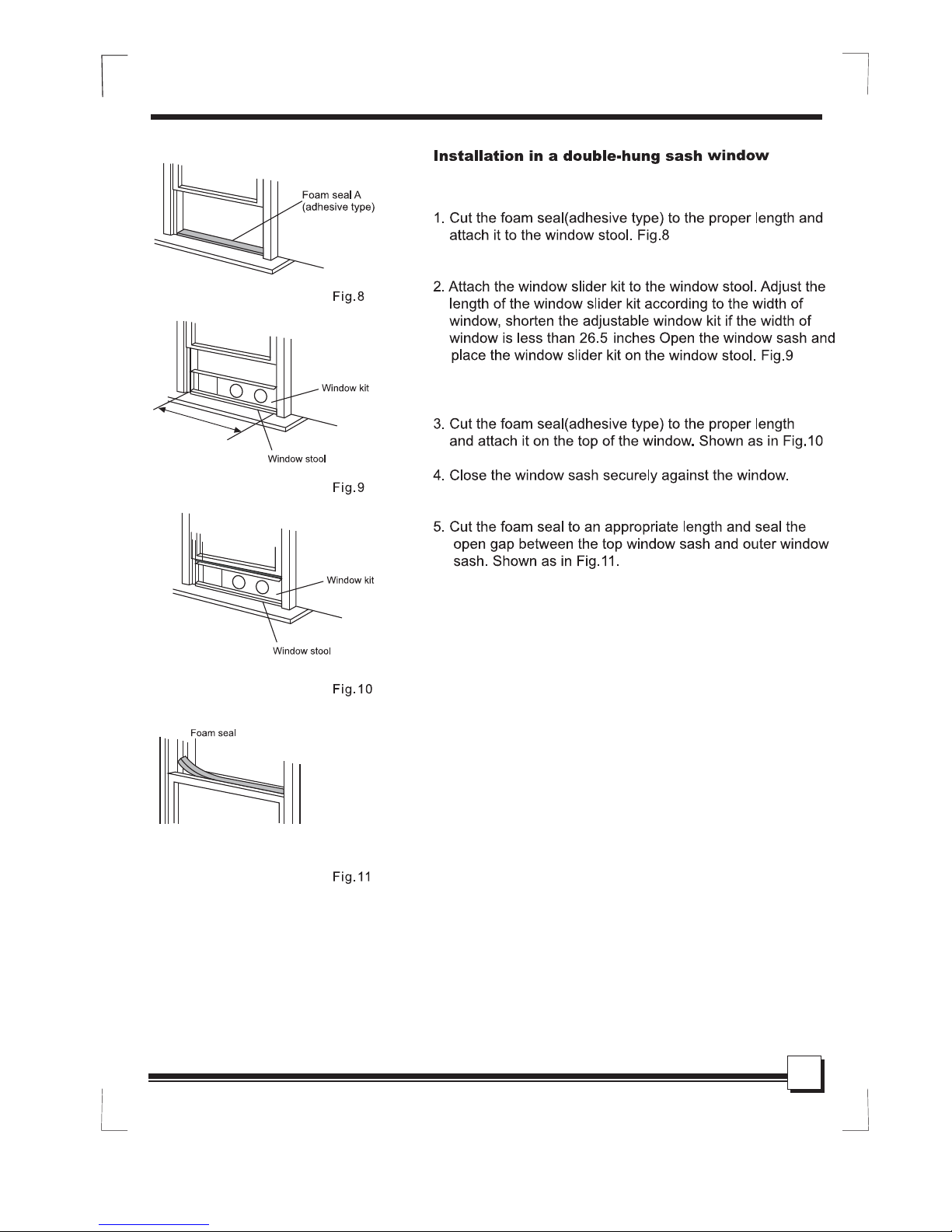

9
INSTALLATION INSTRUCTIONS (optional)

26.5"~48"

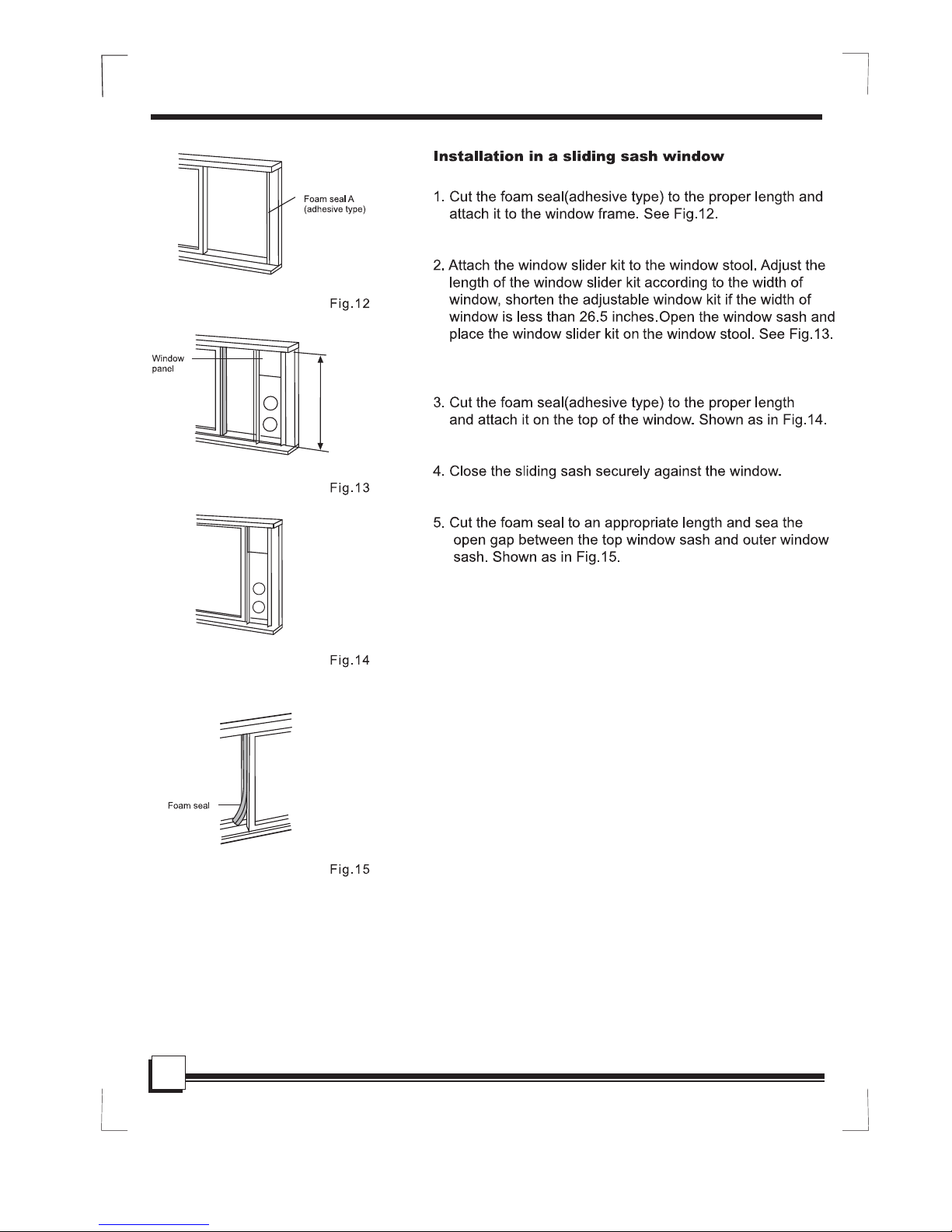

10
INSTALLATION INSTRUCTIONS (optional)
Note: All the illustrations in this manual are for descriptive
purposes only. Your unit may be slightly different in
actuality.

INSTALLATION INSTRUCTIONS
Exhaust hose installation:
The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.
1. Install the adaptor B and adaptor I onto the exhaust hose as
shown in Fig.16a or Fig.16b. Refer to the previous pages for
window kit installation.
2. Install the flexible Exhaust hose as depicted in Fig.17a&b.
Then push the hook of the Exhaust hose into the hole seat
of the unit in Fig.18.
11
Fig.16a
Fig.17a
COOL or AUTO mode
FAN, (DRY) DEHUMIDIFY mode
Install
Remove
CAUTION:
Make sure that there are no obstacles around the air
outlet of the ex haust hose (in the range of 500mm) to
ensure the exhaust sy stem functions properly.
Fig.17b
Hole seat
Hook
Hook
Hook
Hole seat
Fig.18
Push Push
CLOSE
OPEN
VENT CONTROL feature
The Vent Control is located at the back of the air conditioner.
The OPEN position removes stale air from the room and
exhausts it to the outside. Fresh air is drawn in through normal
passages in the home.
When you do not need to circulate the room air, set Vent
Control to CLOSE position.
Fig.19

INSTALLATION INSTRUCTIONS
Water drainage:
- During dehumidifying modes, remove the upper
drain plug from the back of the unit, install the drain
connector (5/8” universal female mender) with ¾”
hose (locally purchased). For the models without
drain connector, just attach the drain hose to the
hole. Place the open end of the hose directly over
the drain area in your basement floor. Please refer
to Fig.20.
Remove the
upper drain plug
Continuous
drain hose
Fig.20
12
- When the water level of the bottom tray
reaches a predetermined level, the unit beeps 8
times and the display shows "P1." At this time
the dehumidification process (or A/C, if
applicable) will immediately stop. The fan motor
will continue to operate, however. Carefully
move the unit to a drain location, remove the
bottom drain plug and let the water drain away.
Reinstall the bottom drain plug and restart the
machine until the "P1" symbol disappears. If
the error repeats, call for service.
Note: Be sure to reinstall the bottom drain
plug before using the unit. (See Fig 21)
Fig. 21

CARE AND MAINTENANCE
CARE AND MAINTENANCE
1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean
the unit.
3) Do not wash the unit directly under a tap or using a hose.
It may cause electrical danger.
4)
If the power cord is damaged, it should be repaired by
the manufactureror its agency.
IMPORTANT:
1. Air filter
2. Unit enclosure
- Use a lint-free cloth soaked with neutral detergent to clean
the unit enclosure. Finished by a dry clean cloth.
Fig.22
3. Unit idle for a long time
13
- Remove the rubber plug at the back of the unit and attach
a hose to drain outlet. Place the open end of the hose
directly over the drain area in your basement floor
(See Fig.20).
- Remove the plug from the bottom drain outlet, all the water
in the bottom tray would drain out (See Fig.21).
- Keep the appliance running on FAN mode for half a day in
a warm room to dry the appliance inside and prevent mold
forming.
- Stop the appliance and unplug it, wrapped the cord and
bundle it with the tape (Fig.24). Remove the batteries
from the remote controller.
- Clean the air filter and reinstall it.
Fig.23
Fig.24
Buckle
Power
cord
Air filter
(take out)
Air filter
(install)
- Clean the air filter at least once every two weeks to prevent
inferior fan operation because of dust.
- Removal
This unit has two filters. Take the air filters out
as shown in Fig. 22.
- Cleaning
Wash the air filter by immersing it gently in warm water
(about 104°F (40°C) with a neutral detergent. Rinse the
filter and dry it in a shady place.
- Mounting
Install the air filters after cleaning as shown in Fig.23..
Power plug
socket
Power plug
Air filter
(take out)
Air filter
(install)

TROUBLESHOOTING TIPS
TROUBLE SHOOTING
1.
Unit does not Start
when Pressing on/off
Button
- P1 appears in the display window
Drain the water in the bottom tray.
TROUBLES
POSSIBLE CAUSES
SUGGEST REMEDIES
Reset the temperature.
Make sure all the windows and
doors are closed.
Remove the heat sources if possible.
Connect the duct and make
sure it can function properly.
Decrease the set temperature.
Clean the air filter.
- Room temperature is lower than
the set temperature.(Cooling mode)
- The windows or doors in the room
are not closed.
- There are heat sources inside the
room.
- Exhaust air duct is not connected or
blocked.
- Temperature setting is too high.
- Air filter is blocked by dust.
2. Not cool enough
Place the unit on a flat, level
ground if possible.
It is normal.
- The ground is not level or not flat
enough.
- The sound comes from the flowing
of the refrigerant inside the
air-conditioner.
4. Noisy or vibration
5. Gurgling sound
14
Technical support
For questions not answered in this manual, or for warranty service, please contact
Impecca Technical Support:
By phone: [phone] (9:00 AM to 6:00 PM Eastern Time)
By e-mail: [email protected]
Online: www.impecca.com
© 2015 Impecca
