BEFORE YOU BEGIN
Thank you for selecting the MARCY®DIAMOND MD-8870 by IMPEX®INC. For
your safety and benefit, read this manual carefully before using the machine.
As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged
parts, we guarantee you complete satisfaction through direct assistance from
our factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide immediate
assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual before
you assemble or operate your machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum user’s weight: 300 lbs.
5. Maximum weights on the Weight Bar: 300 lbs.
6. Maximum weights on Leg Developer: 100 lbs.
7. Maximum weights on Lat Pull: 100 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

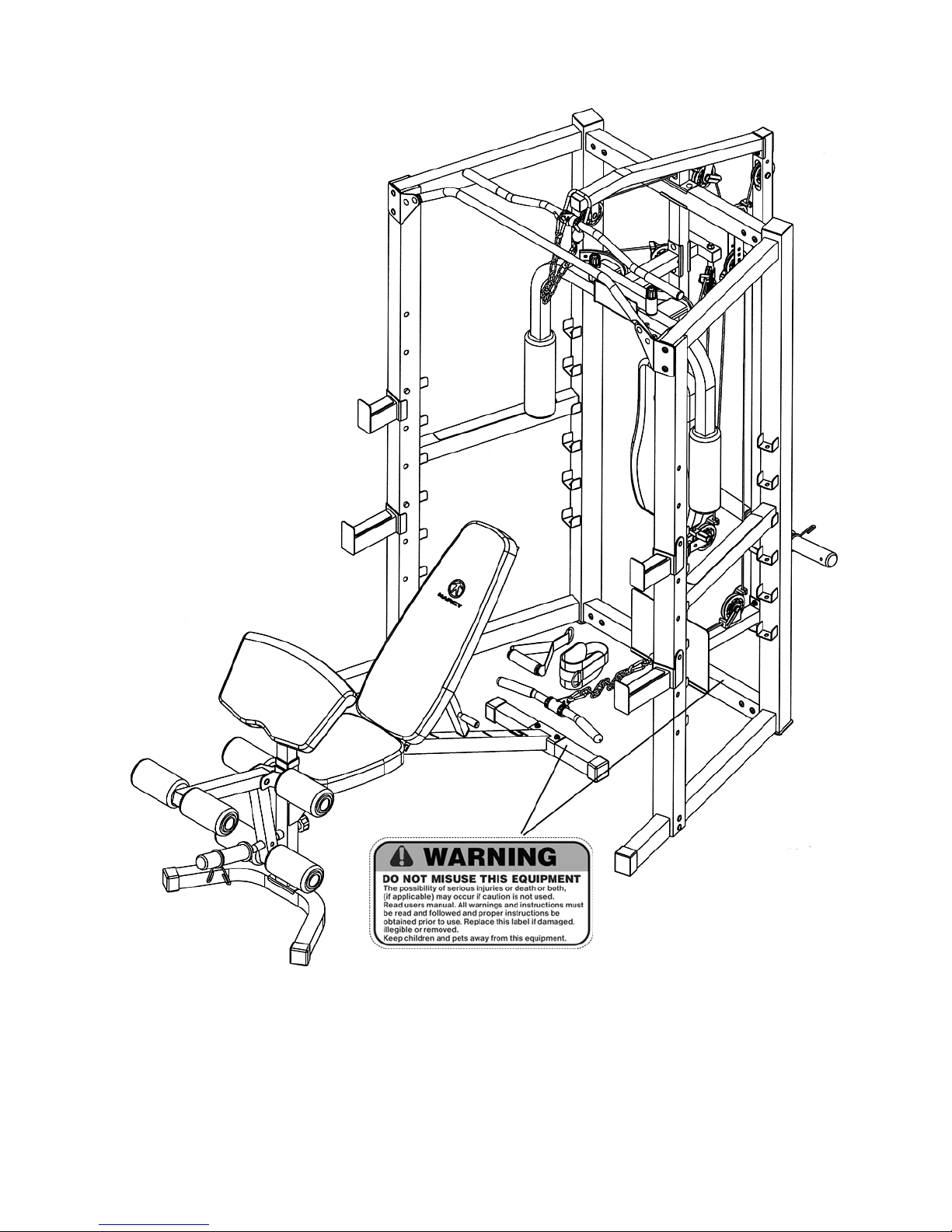

WARNING LABEL PLACEMENT
The warning labels shown here have been placed on the Rear Base, and Bench Rear Stabilizer. If the
labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply
the labels in the location shown.
3

CAGE HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
4

CAGE HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
5

CAGE HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
6

CAGE HARDWARE PACK
7

CAGE ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

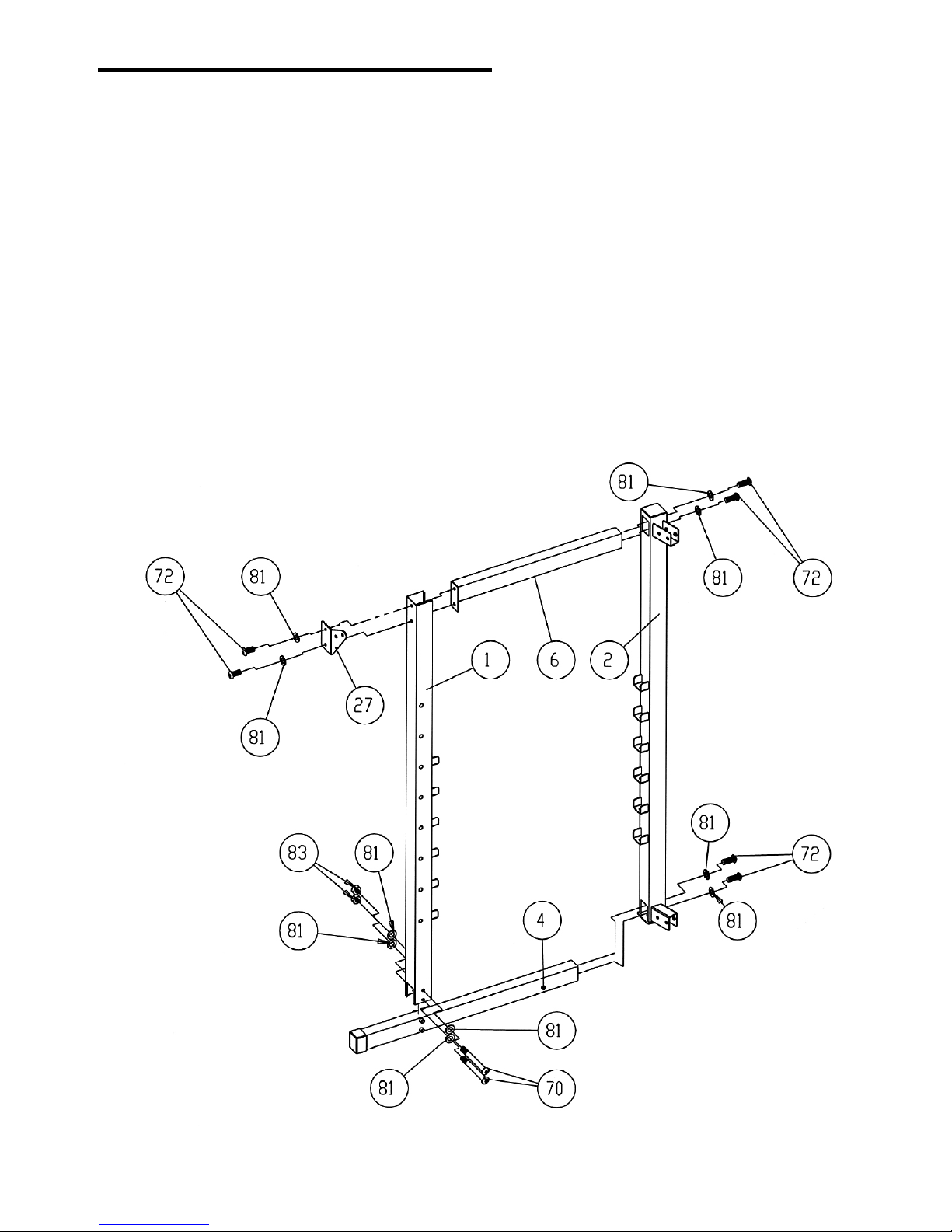

STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Insert a Side Base Frame (#4) into the Rear Right Vertical Frame (#2). Secure it with two
M10 x ¾” Allen Bolts (#72) and two Ø ¾” Washers (#81).
C.) Attach a Front Vertical Frame (#1) onto the Side Base Frame. Secure it with two M10 x 3
1/8” Allen Bolts (#70), four Ø ¾” Washers (#81), and two M10 Aircraft Nut (#83).
D.) Attach the front of Side Upper Frame (#6) to Front Vertical Frame. Secure it with two M10
x ¾” Allen Bolts (#72), one Right Chin-up Bracket (#27), and two Ø ¾” Washers (#81).
E.) Attach the rear of Side Upper Frame to the Rear Right Vertical Frame. Secure it with two
M10 x ¾” Allen Bolts (#72) and two Ø ¾” Washers (#81).

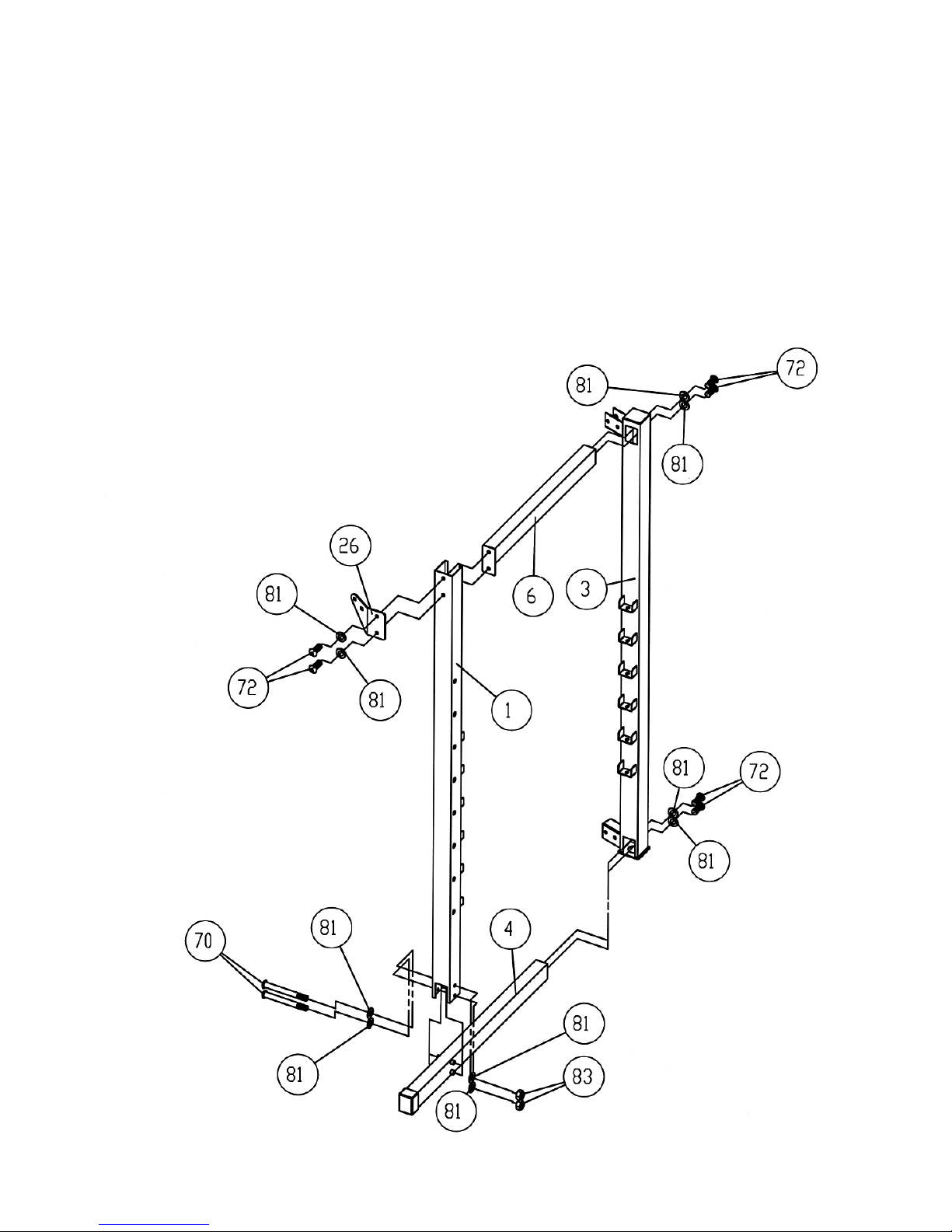

DIAGRAM 1
8

STEP 2 (See Diagram 2)
A.) Do not tighten the Nuts and Bolts until instructed to do so.
B.) Insert a Side Base Frame (#4) into the Rear Left Vertical Frame (#3). Secure it with two
M10 X ¾” Allen Bolts (#72) and two Ø ¾” Washers (#81).
C.)Attach a Front Vertical Frame (#1) onto the Side Base Frame. Secure it with two M10 x 3
1/8” Allen Bolts (#70), four Ø ¾” Washers (#81), and two M10 Aircraft Nuts (#83).
D.)Attach the front of a Side Upper Frame (#6) to the Front Vertical Frame. Secure it with two
M10 x ¾” Allen Bolts (#72), one Left Chin-up Bracket (#26), and two Ø ¾” Washers (#81).
E.) Attach the rear of the Side Upper Frame to the Rear Left Vertical Frame. Secure it with
two M10 x ¾” Allen Bolts (#72) and two Ø ¾” Washers (#81). DIAGRAM 2
9

STEP 3 (See Diagram 3)
A.) Do not tighten all Nuts and Bolts until instructed to so.
B.) Attach the Rear Base Frame (#7) to the Rear Right & Left Vertical Frame (#2 & #3).
C.)Secure each end with four M10 x ¾” Allen Bolts (#72) and four Ø ¾” Washers (#81).
D.)Attach the Middle Vertical Frame (#8) onto the Rear Base Frame. Attach the Foot Plate
(#35) to front Middle Vertical Frame. Attach the Lower Pulley Frame (#15) to the Middle
Vertical Frame from rear. Secure them together with two M10 x 3 1/8” Carriage Bolts
(#69), two Ø ¾” Washers (#81), and two M10 Aircraft Nuts (#83).
E.) Attach the Rear Upper Frame (#5) to the Middle Vertical Frame; Rear Left Vertical Frame,
and Rear Right Vertical Frame.
F.) Repeat C to secure the Rear Upper Frame to Rear Left and Right Vertical Frame.
G.)Attach the Lat Bar Frame (#17) onto the Rear Upper Frame. Secure the Lat Bar Frame;
Rear Upper Frame, and the Middle Vertical Frame together with two M10 x 3 ½” Carriage
Bolts (#68), two Ø ¾” Washers (#81), and two M10 Aircraft Nuts (#83).
H.)Attach the Chin-up Bar (#25) to the Left & Right Chin-up Bracket (#26 & #27). Secure
each end with two M10 x 1 5/8” Carriage Bolts (#66), two Ø ¾” Washers (#81), and two
M10 Aircraft Nuts (#83).
10

DIAGRAM 3
11

STEP 4 (See Diagram 4)
A.) Slide the Sliding Weight Post (#22) onto the Weight Glide Post (#16). The triangular
bracket on Sliding Weight Post needs to be behind the Weight Glide Post and facing
upward.
B.) Attach the Weight Glide Post to the Lat Bar Frame (#17). Attach one 3 1/8” x 1 ¾” Bracket
(#29) to the Weight Glide Post. Secure the upper hole with one M10 x 2 ½” Allen Bolt (#88)
and one Ø ¾” Washer (#81). Secure the lower hole with one M10 x 2 ½” Carriage Bolt
(#67), one Ø ¾” Washer (#81), and one M10 Aircraft Nut (#83).
C.)Attach the Weight Glide Post to the Lower Pulley Frame (#15). Attach one 3 1/8” x 1 ¾”
Bracket (#29) to the Weight Glide Post. Secure the upper hole with one M10 x 2 ½”
Carriage Bolt (#67), one Ø ¾” Washer (#81), and one M10 Aircraft Nut (#83). Secure the
lower hole with one M10 x 2 ½” Allen Bolt (#88) and one Ø ¾” Washer (#81).
D.)Securely tighten all Nuts and Bolts installed in Step-1, Step-2, Step-3, and Step-4.
E.) Attach the Butterfly Base (#10) to front Middle Vertical Frame. Attach the Butterfly Pulley
Bracket (#13) to the Middle Vertical Frame from rear. Secure them together with two M10 x
2 ½” Carriage Bolts (#67), two Ø ¾” Washers (#81), and two M10 Aircraft Nuts (#83).
F.) Attach the Butterfly Stopper (#60) to Butterfly Base. Secure it with two M6 x 3/8” Allen Bolts
(#78).
G.)Attach two Swivel Pulley Brackets (#14) to the Butterfly Pulley Bracket. Secure each with
one M12 x 4 7/8” Hex Bolt (#79), one Ø 1” Washer (#82), and one M12 Aircraft Nut (#84).
H.)Insert the pivot one Left Butterfly (#11) to the Butterfly Base from bottom. Secure it with one
M10 x 5/8” Allen Bolt (#71) one Ø ¾” Washer (#81), and one Lock Ring (#28). Push a
Butterfly Foam Roll (#40) to Left Butterfly.
I.) Repeat H to install the Right Butterfly (#12).
J.)Attach the Backrest Board (#34) to Middle Vertical Frame. Secure it with two M8 x 2 3/8”
Allen Bolts (#77) and two Ø 5/8” Washers (#80).
K.) Attach two Olympic Sleeves (#49) to the Sliding Weight Post. Attach a Spring Clip (#50) to
each Olympic Sleeve.
12

DIAGRAM 4
13

CABLE LOOP DIAGRAM
14

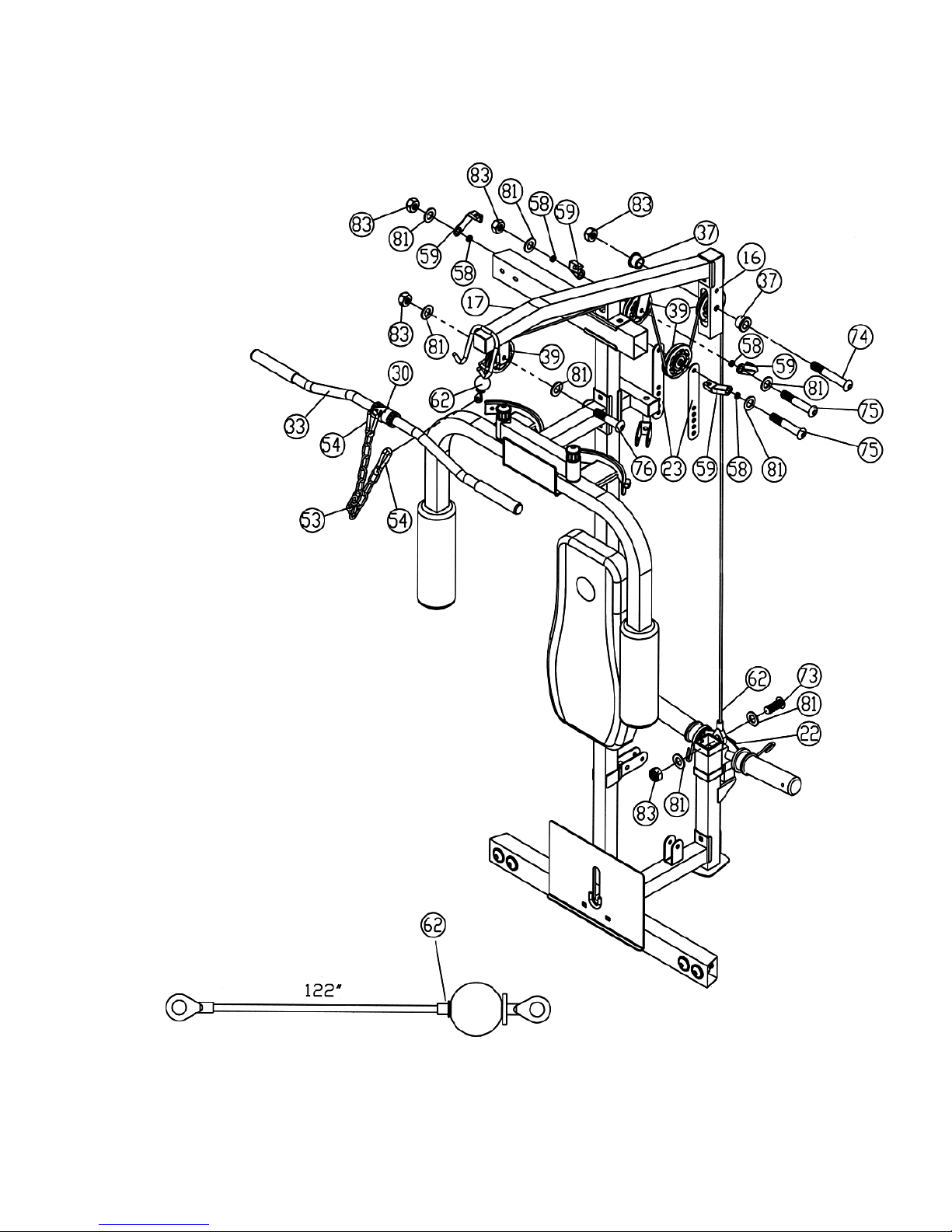

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach the 122” Cable (#62) to the bracket under the Lat Bar Frame (#17). Attach a Pulley (#39) to
the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#76), two Ø ¾” Washers (#81), and one
M10 Aircraft Nut (#83). Make sure the ball stopper one Cable needs to be under the bracket.
B.) Draw the Cable over the Pulley to the open bracket under the Lat Bar Frame.
C.)Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#75), two Ø ¾” Washers
(#81), two Cable Retainers (#59), and one M10 Aircraft Nut (#83).
D.)Draw the Cable over the Pulley and downward. Attach a Pulley to the top hole on the two Double
Floating Pulley Brackets (#23). Repeat C to install the Pulley. Draw the Cable around the Pulley
and upward to the opening on the Weight Glide Post (#16). Let the Brackets hanging for now.
E.) Attach a Pulley to the opening on the Weight Slide Post (#16). Secure it with one M10 x 2 3/8”
Allen Bolt (#74), two Ø 1” x ½” Pulley Bushings (#37), and one M10 Aircraft Nut (#83).
F.) Draw the Cable around the Pulley and downward to triangular bracket on the Sliding Weight Post
(#22). Secure the end of Cable to the bracket with one M10 x 1” Allen Bolt (#73), two Ø ¾”
Washers (#81), and one M10 Aircraft Nut (#83).
G.)Connect the Lat Bar (#33) to the Cable with two Hooks (#54) and one 10-link Chain (#53).
15

DIAGRAM 5
16

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of 79” Butterfly Cable (#63) to the clip on Left Butterfly (#11). Draw the Cable to
the left Swivel Pulley Bracket (#14).
B.) Attach a Pulley (#39) to the Bracket. Secure it with one M10 x 2” Allen Bolt (#75), two Ø ¾”
Washers (#81), two Cable Retainers (#59), and one M10 Aircraft Nut (#83).
C.)Draw the Cable around the Pulley then downward. Attach a Single Floating Pulley Bracket (#24) to
the Cable. Repeat Procedure B above to install a Pulley.
D.)Draw the Cable around the Pulley then upward to the right Swivel Pulley Bracket. Let the Bracket
hanging for now.
E.) Repeat Procedure B above to install a Pulley.
F.) Draw the Cable around the Pulley then clip to the Right Butterfly (#12).
17

DIAGRAM 6
18

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Draw the 122” Cable (#62) through the opening on Foot Plate (#35) to the opening on
bottom of Middle Vertical Frame (#8).
B.) Attach a Pulley (#39) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt (#74), two Ø
1” x ½” Pulley Bushings (#37), and one M10 Aircraft Nut (#83).
C.)Draw the Cable under the Pulley and then to the open bracket on Lower Pulley Frame (#15).
D.)Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#75), two Ø ¾”
Washers (#81), two Cable Retainers (#59), and one M10 Aircraft Nut (#83).
E.) Draw the Cable around the Pulley and then upward to the Double Floating Pulley Brackets
(#23) previously installed in Step-5.
F.) Repeat D to install a Pulley to the selected holes on Double Floating Pulley Brackets.
G.)Draw the Cable around the Pulley then downward to the open bracket on Middle Vertical
Frame. Repeat D to install a Pulley.
H.)Draw the Cable around the Pulley then upward to the Single Floating Pulley Bracket (#24)
installed in Step-6. Secure the end of Cable to the Bracket with one M10 x 1” Allen Bolt
(#73), two Ø ¾” Washers (#81), and one M10 Aircraft Nut (#83).
I.) Move the lower Pulley position on the Double Floating Pulley Brackets will adjust the tension
of the whole Cable system. Move up the Pulley will increase the tension. Move down the
Pulley will loosen the tension.
J.) Attach the Shiver Bar (#31) to the Cable with one 15-link Chain (#52) and two Hooks (#54).
Replace the Shiver Bar with Ankle Strap (#56) or Single Handle (#65) for various exercises.
19
