Impex MARCY PRO MWM-7454 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Important Assembly
Information
Care and Maintenance
Parts List
Warranty
Ordering Parts
Model
MWM-7454
Retain This
Manual for
Reference
220325
OWNER'S
MANUAL
MARCY PRO HOME GYM
MWM-7454
IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone]
www.marcypro.com
[e-mail]

©IMPEX INC. www.marcypro.com
1
TABLE OF CONTENTS
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
EXERCISE GUIDELINES
3
WARNING LABEL PLACEMENT
5
IMPORTANT ASSEMBLY INFORMATION
7
CARE AND MAINTENANCE
9
PARTS LIST
11

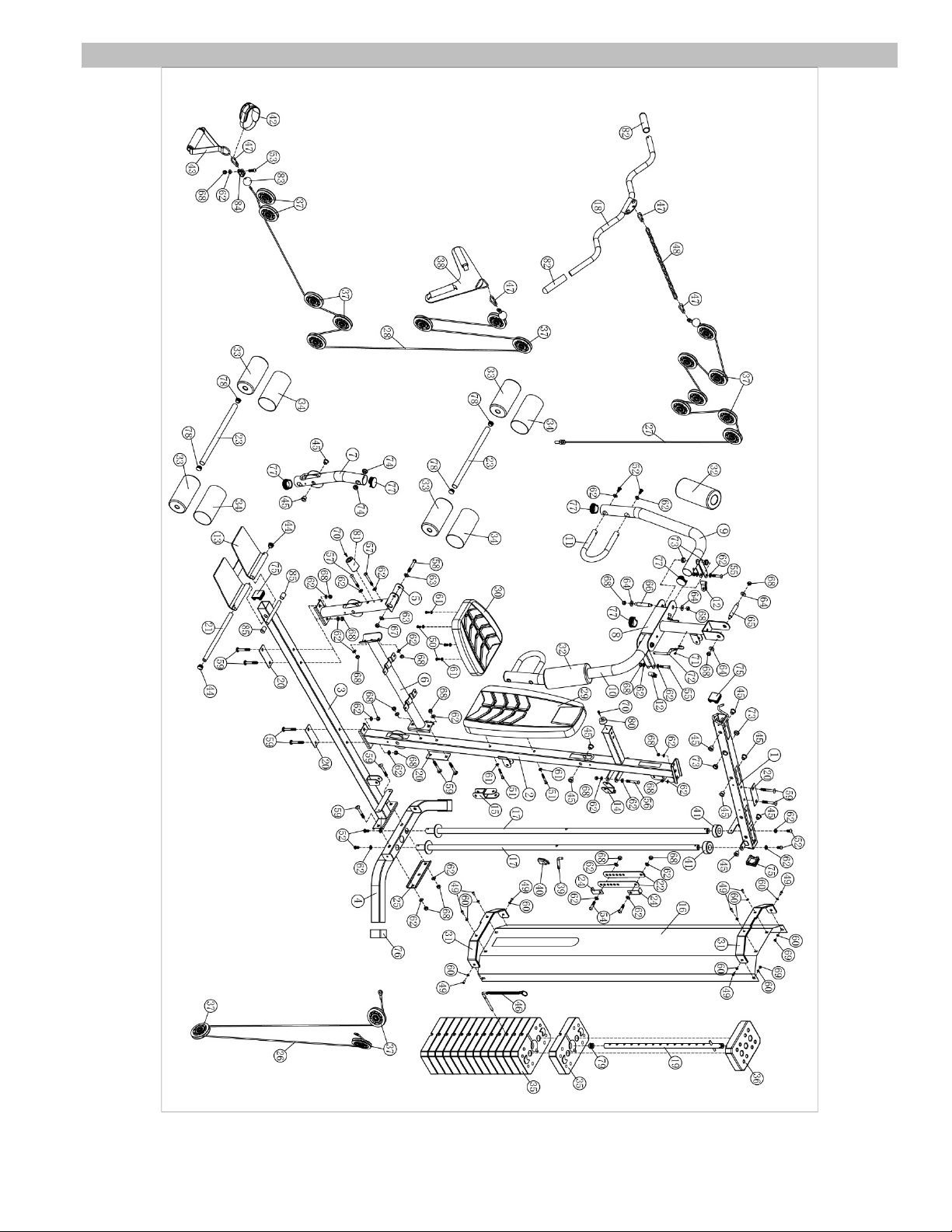

EXPLODED DIAGRAM
14

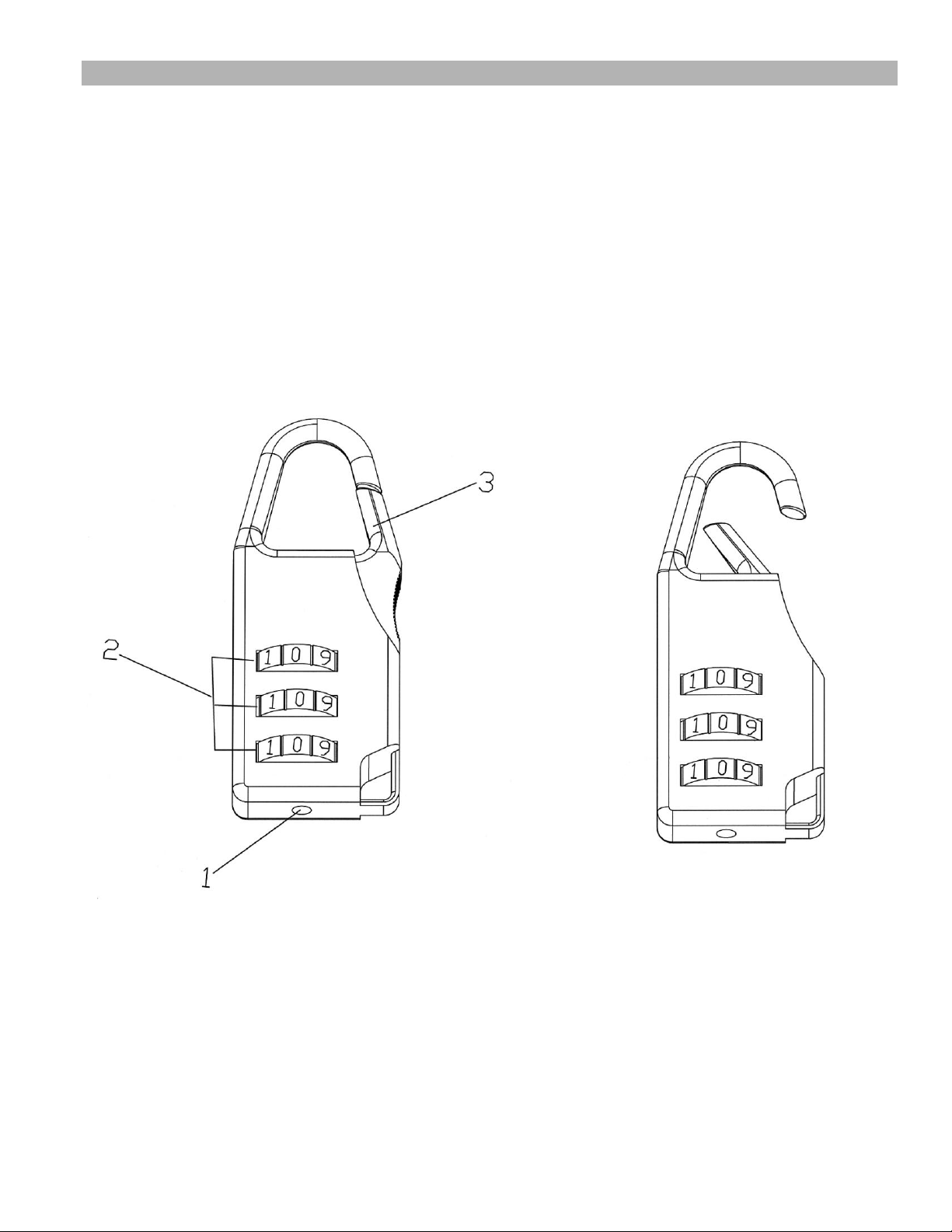

COMBINATION LOCK SETUP INSTRUCTION
15
WEIGHT RESISTANCE CHART
16
WARRANTY
17
ORDERING PARTS
17
BEFORE YOU BEGIN
Thank you for selecting the MARCY PRO HOME GYM MWM-7454 by IMPEX®
INC. For your safety and benefit, read this manual carefully before using the
equipment. As a manufacturer, we are committed to provide you complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.marcypro.com
[e-mail]

©IMPEX INC. www.marcypro.com
2
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your equipment. In particular, note the following safety
precautions:
1. Keep children and pets away from the equipment at all times. DO NOT
leave children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the equipment on a clear, leveled surface. DO NOT use the equipment
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the equipment. Running
or aerobic shoes are also required when using the equipment.
7. Use the equipment only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the equipment.
9. Disabled person should not use the equipment.
10. Before using the equipment to exercise, always do stretching exercises to
properly warm up.
11. Never operate the equipment if the equipment is not functioning properly.
12. A spotter is recommended during exercise.
13. This equipment is designed and intended for home and consumer use only, not for
commercial use.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.marcypro.com
3
EXERCISE GUIDELINES
Building Muscle and Gaining Weight
Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on
strength training. A gradual weight gain can occur while building the size and strength of muscles.
While developing muscle mass, your body adapts to the stress placed upon it. You can modify your
diet to include foods such as meat, fish and vegetables. These foods help muscles recover and
replenish important nutrients after a strenuous workout.
Muscle Strength and Endurance
To achieve the greatest benefit from exercise, it is important to develop an exercise program that
allows you to work all of the major muscle groups equally.
To increase muscles strength; follow this principle:
Increasing resistance and maintaining the number of repetitions of an exercise results in increased
muscle strength.
To tone your body, follow the principle: Decreasing resistance plus increasing the number of
repetitions of an exercise results in increased body tone.
Once you feel comfortable with an exercise, you can change the resistance, the number of
repetitions, or the speed at which you do the exercise. It is not necessary to change all three
variables. For example, let’s say that you are training at 50 lbs and performing the exercise 10 times
in 3 minutes. When this becomes too easy, you may decide to move up lifting 60 lbs for the same
number of repetitions in the same amount of time. Lifting more weights fewer times most often
develops muscle strength. To gain both muscle strength and endurance, it is recommended that you
perform each exercise 15 to 20 reps per set.
Training Intensity
How hard you begin to train depends on your overall level of fitness. The soreness you experienced
can be lessened by decreasing the load you place on your muscles and by performing fewer sets. To
avoid injury, you should gradually work into an exercise program and set the load to your individual
fitness level. The load should increase as your fitness level increases.
Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a
long time, it may be time to change your program. Eventually, your muscle system will become
accustomed to the stress and strain placed on it.

©IMPEX INC. www.marcypro.com
4
Beginning a Strength Building Program
Warming Up
To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes.
This helps prepare the body for more strenuous exercise by increasing circulation, raising your body
temperature and developing more oxygen to your muscles.
Workout
Each workout to keep in mind that muscle soreness that lasts for a long period in not desirable and
may mean that injury has occurred.
Cool Down
At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each
stretch only going as far as you can. This stage allows your muscles wind down after training.
To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is
performed in addition to the strength training.
Drinking Water
For the body to function properly, it must be properly hydrated. If you are exercising, you should
increase your fluid intake. The reason for this is that the water you take in will leave your system
through the sweating mechanism that cools your body during exercise. The water you lose through
exercise must be replaced so that the muscles can recover properly.
Rest Day
Although you may not feel like doing it, taking a rest day at least once a week is important because it
gives you body a chance to heal it self. Continuously working your muscle will result in over training
which will not benefit in the long run.

©IMPEX INC. www.marcypro.com
5
WARNING LABEL PLACEMENT
The warning labels shown here have been placed on the Rear Stabilizer and Upper Frame. If the labels are
missing or illegible, please call customer service at 1-800-999-8899 for replacements. Apply the labels in the
location shown.

©IMPEX INC. www.marcypro.com
6

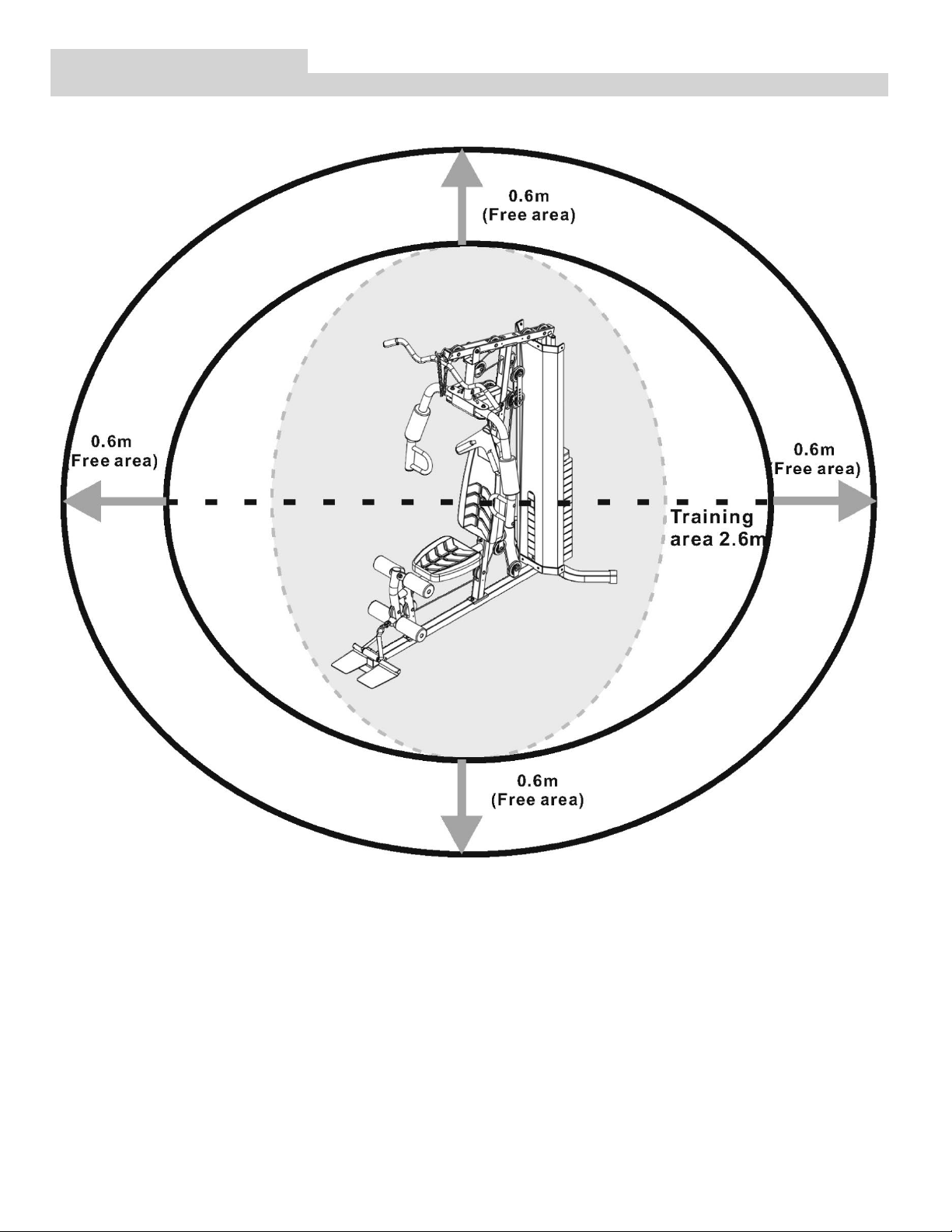

FREE &TRAINING AREA

©IMPEX INC. www.marcypro.com
7
IMPORTANT ASSEMBLY INFORMATION

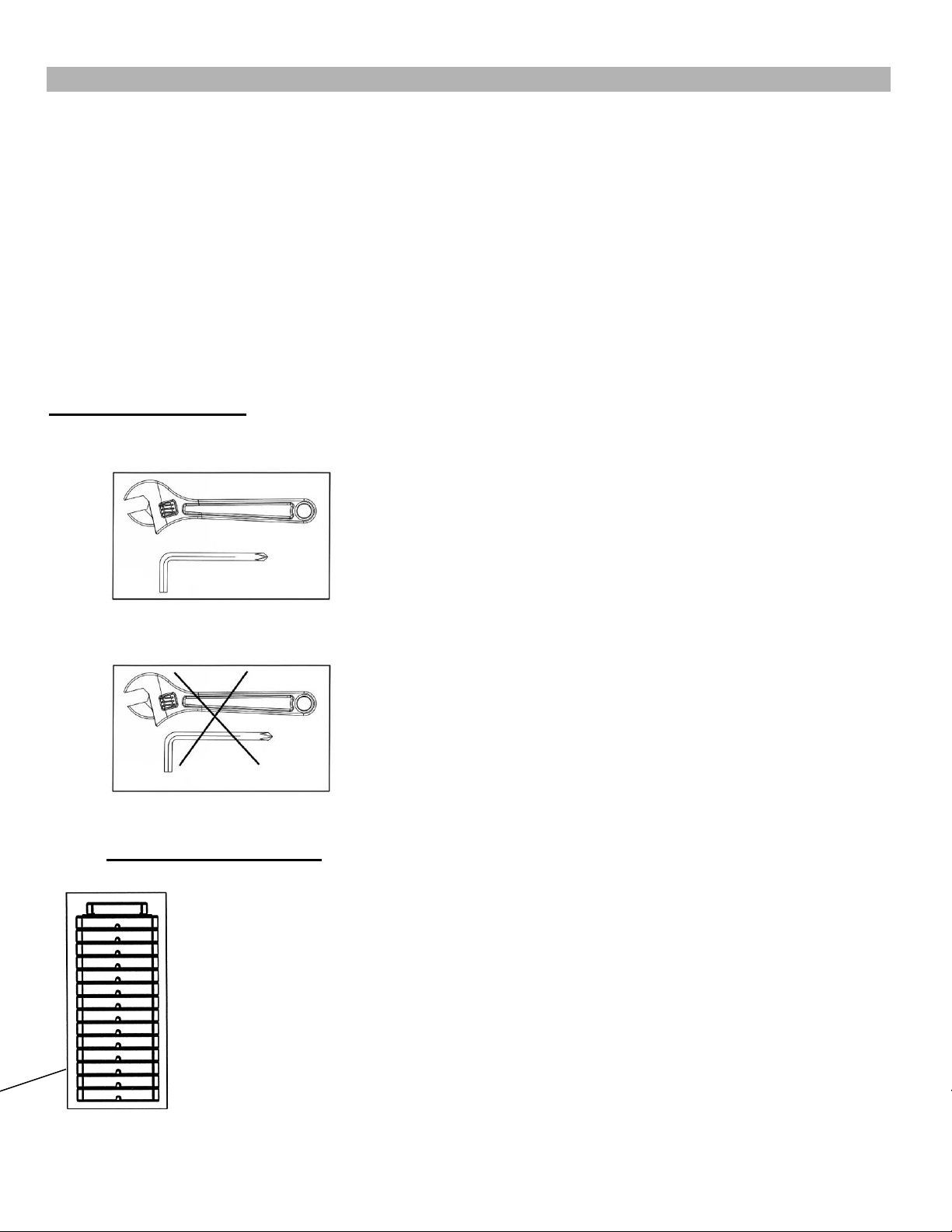

Tools Required for Assembling the Bench: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that this equipment is assembled by two or more
people to avoid possible injury.
Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to
be assembled. Attach washer only to end of the Carriage Bolt.
Use Allen Bolts or Hex Bolts inserted through the ROUND hole on components that need to
be assembled.
Always wait until all bolts are assembled onto the bench before tightening the bolts. Do not
tighten each bolt right after it is installed
Fasten Nuts and Bolts
Securely tighten all Nuts and Bolts after all
components have been assembled in current and
previous steps.
NOTE: Do not over tighten any component with
pivoting function.
Make sure all pivoting components are able to move
freely.
Do not tighten all Nuts and Bolts in this step.
Weight Plate Installation
Slide weight plates onto Guide Rod from top to bottom.
The deep groove on each weight plate needs to face front and
downwards.
Deep Groove

©IMPEX INC. www.marcypro.com
8
OPERATION NOTES
Weight Plate Selection
1. Use the Weight Selector Pin to select the number of weight plates to exercise.
2. Do not insert weight selector pin while the weight stack or top plate is in elevated position.
3. Be certain the weight Selector Pin is completely inserted.
4. Each Weight Plate weights approximately 10lbs.
5. Please refer to Weight Resistance Chart page.
6. Never use dumbbells or other means to increase the weight resistance. Use only weight plates
provided by manufacturer.
7. For safety purpose while the equipment is not in use. Insert the Lock Pin into the hole
on Guide Rod, and use Combination Lock to lock the Pin to prevent the movement of
Weight Plates. Please refer to the Combination Lock set up.
Cable Tension Adjustment
Adjust the tension of the Cable System by moving the position of lower Pulley on the
two Double Floating Pulley Brackets.
If the tension is too loose, move the lower pulley up by one hole.
If the tension is too tight, move the lower pulley down by one hole.
Lower Pulley
Front Press and Butterfly Exercises
1. Insert the Butterfly Lock Pin through the holes on Front Press Base
and Butterfly to lock the Butterfly in position when doing Front Press
exercises.
2. Pull out the Butterfly Lock Pin when doing Butterfly exercises.

©IMPEX INC. www.marcypro.com
9

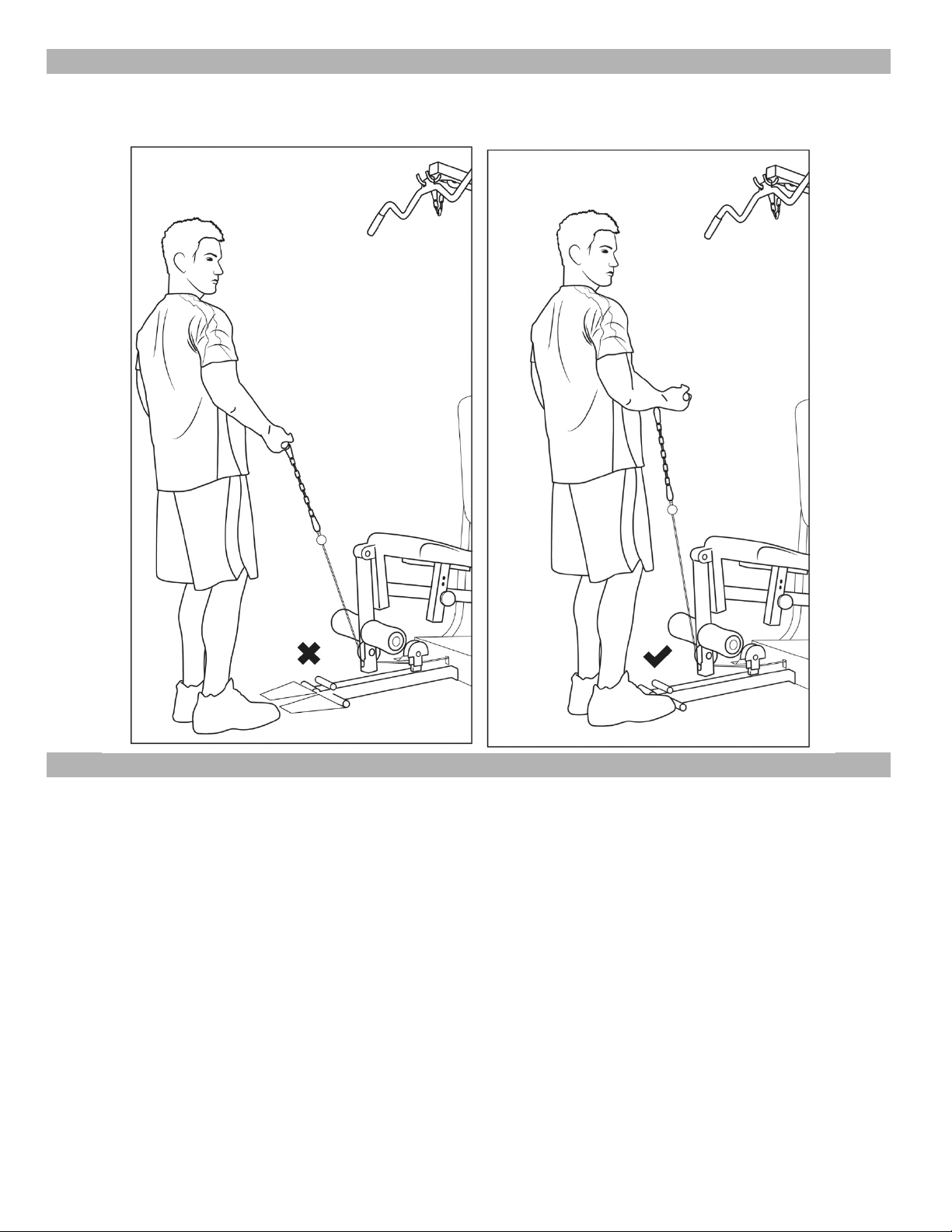

WARNING
Please ensure to step with both feet on the included foot- plate while performing lower pulley
exercises to avoid any unwanted movement of the exercise machine.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the equipment.
3. The equipment can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Examine the equipment regularly for signs of damage or wear.
5. Replace any defective components immediately and/or keep the equipment out of use until
repair.
6. Failure to examine regularly may affect the safety level of the equipment.

©IMPEX INC. www.marcypro.com
10
WEIGHT CAPACITY AND DIMENSION
1. Maximum user weight: 135 kg (300 lb.)
2. Assembled dimensions: 72”x38”x78” (L x W x H)

©IMPEX INC. www.marcypro.com
11
MWM-7454 PARTS LIST
PART NO DESCRIPTION SIZE Qty
1
Upper Frame
1
2
Vertical Frame
1
3
Base Frame
1
4
Rear Stabilizer
1
5
Leg Developer Holder
1
6
Seat Support
1
7
Leg Developer
1
8
Front Press Base
1
9
Right Butterfly
1
10
Left Butterfly
1
11
Front Press Handle
2
12
Butterfly Cable Bracket
2
13
Foot Plate
1
14
Swivel Pulley Bracket
2
15
Angled Double Floating Pulley Bracket
1
16
Weight Stack Cover
1
17
Guide Rod
2
18
Lat Bar
1
19
Selector Rod
1
20
Bracket
1 ¾” x 4 ¾”
4
21
Foot Plate Tube
1
22
Double Floating Pulley Bracket
2
23
Foam Tube
2
24
Cable Retainer
2
25
U-shaped Bracket
1
26
Butterfly Cable
100"
1
27
Upper Cable
114"
1
28
Lower Cable
157”
1
29
Backrest Board
1
30
Seat Pad
1
31
Weight Stack Cover Bracket
2
32
Large Foam Roll
2
33
Foam Roll
4
34
Foam Roll Cover
4

©IMPEX INC. www.marcypro.com
12
PART NO DESCRIPTION SIZE Qty
35
Weight Plate
14
36
Selector Stem
1
37
Pulley
18
38
Abdominal strap
1
39
Lock Pin
1
40
Combination Lock
1
41
Weight Plate Rubber Bumper
2
42
Ankle Strap
1
43
Single Handle
1
44
End Cap
2
45
Pulley Bushing
16
46
Weight Selector Pin
1
47
clip hook
4
48
Chain
1
49
Allen Bolt
M6 x ⅝”
8
50
Allen Bolt
M8 x ⅝”
4
51
Allen Bolt
M8 x 2¾”
2
52
Allen Bolt
M10 x ¾”
10
53
Allen Bolt
M10 x 1⅜”
1
54
Allen Bolt
M10 x 1¾”
10
55
Allen Bolt
M10 x 2”
2
56
Allen Bolt
M10 x 2½”
10
57
Allen Bolt
M10 x 2¾”
2
58
Allen Bolt
M12 x 3⅛”
1
59
Carriage Bolt
M10 x 2¾”
10
60
Washer
Ø1/2"
10
61
Washer
Ø ⅝”
6
62
Washer
Ø3/4"
52
63
Washer
Ø1"
2
64
Spacer
Ø1"×Ø3/8"
6
65
Front Press Axle
1
66
Butterfly Axle
2
67
Aircraft Nut
M12
1
68
Aircraft Nut
M10
43
69
Aircraft Nut
M6
2
70
Philips Screw
M6 x ⅝”
2

©IMPEX INC. www.marcypro.com
13
PART NO
DESCRIPTION
SIZE
Qty
71
Self Tapping Screw
ST4.8 x ⅜”
2
72
Butterfly Lock Pin
2
73
Bushing
Ø1" x Ø⅝”
6
74
Bushing
Ø1" x Ø ½”
2
75
End Cap
2" x 2"
3
76
Rear Stabilizer End Cap
2" x 2"
2
77
End Cap
Ø2"
7
78
End Cap
Ø1" x 1.2
4
79
Cone-shaped End Cap
Ø1"
1
80
Rubber Bumper
Ø1⅞” x 2½”
1
81
Rubber Bumper
Ø1½” x ⅝”
1
82
Handle Grip
2
83
Ball stopper
1
84
U-shaped Buckle
1
85
End Cap
⅝”
2

©IMPEX INC. www.marcypro.com
14
EXPLODED DIAGRAM

©IMPEX INC. www.marcypro.com
15
Combination Lock Set Up Instruction
The Lock is set at the manufacturer to the open at 0-0-0 (all zeros are positioned in the middle).
It is recommended to change the combination to ensure safety.
Please follow the below steps to change the combination:
1. Push and hold the combination adjustment button (#1) as indicated below, while holding
down the adjustment button, turn the numerical dial (#2) to set the desired combination in
the middle. Release the button (#1). Set the two other numerical dials the same way. This
only needs to be done once.
2. To lock, turn the dials so the Lock shows random numbers.
3. To unlock, turn the dials to the combination setup in step one, press the shackle (#3) to
open.

©IMPEX INC. www.marcypro.com
16
MWM-7454 WEIGHT RESISTANCE CHART
Weight Plate
Front Press
Butterfly
Lat Pull
Low Pulley
1
31
15
30
30
2
44
20
40
40
3
57
25
50
50
4
70
30
60
60
5
83
35
70
70
6
96
40
80
80
7
109
45
90
90
8
122
50
100
100
9
135
55
110
110
10
148
60
120
120
11
161
65
130
130
12
174
70
140
140
13
187
75
150
150
14
200
80
160
160
Note: Each plate weights 10 lbs.
Numbers are approximate. Actual weights may vary.
Values for Butterfly are for each arm.

©IMPEX INC. www.marcypro.com
17
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.marcypro.com
IMPEX®INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
