Impresind UVL100 Reference manual

Air Sanitizer and Mixer
Manual for
Installation, Use and Maintenance

2
IST STP101.147 GB-23-12-20
EN
Index
ELITURBO UV-LIGHT
®
- Product Introduction .................................................................................
1 - General Information ................................................................................................................ 4
1.1 eceiving the equipment .............................................................................................................. 6
1.2 Storing ........................................................................................................................................... 6
1.3 Unpaking ....................................................................................................................................... 6
1.4 Handling and Transport ................................................................................................................ 6
2 - Product Specifications ............................................................................................................. 7
2.1 Technical specifications ................................................................................................................ 7
2.2 Intended use ................................................................................................................................. 7
2.3 Improper use ................................................................................................................................ 7
- Installation .............................................................................................................................. 8
3.1 General instructions for the installation....................................................................................... 8
3.2 Positioning of the appliance ......................................................................................................... 8
3.3 Connection to power supply network .......................................................................................... 9
3.4 Operation checks ........................................................................................................................ 10
4 - Residual risks......................................................................................................................... 11
5 – Emergency situations ............................................................................................................ 11
6 - Use ........................................................................................................................................ 12
6.1 Switching on / Switching off ....................................................................................................... 12
6.2 ecommendations to users ........................................................................................................ 12
6.3 Putting the appliance “at rest” ................................................................................................... 12
7 - Maintenance ......................................................................................................................... 1
8 - Disposal ................................................................................................................................ 14
8.1 Decommissioning ........................................................................................................................ 14
Information for the End User
This instruction manual is part of the product and has to be easily accessible by the end user and
maintenance qualified and trained personnel.
The end user and maintenance qualified and trained personnel must be familiar with all the
contents of this instruction manual before the product is put into service.
In case of loss or damage of the instruction manual, request a copy to the Manufacturer.
IMPRESIND SRL
Production site: Via Primo Maggio 24, Gorgonzola (Milan) - ITALY
℡ [phone]
 [phone]
 [email protected]
 www.imprsind.com

3
IST STP101.147 GB-23-12-20
EN
ELITURBO UV-LIGHT
®
- Product Introduction
ELITURBO UV-LIGHT
®
is designed to perform the double function of air sanitizer and air mixer.
The sanitization process involves a germicidal activity for the reduction of bacterial and viral loads in
the air. Sanitization takes place in a special chamber where ultraviolet light (UV-C) lamps are housed
and where the contaminated air taken from the environment goes through. The air is irradiated by
UV-C rays that damage the nucleic acid of viruses and bacteria by deactivating their DNA.
The sanitization chamber is equipped with UV-C shielding appliances.
Air sanitization using UV-C ultraviolet rays is an economical and efficient method.
ELITURBO UV-LIGHT
®
also acts as an air mixer, further improving the environmental conditions and
the healthiness of the microclimate of the room where it is installed. This function is made possible
by the particular design of the lateral circular deflectors that distribute the sanitized air at 360° around
the appliance. The incoming and outgoing air flow is managed by a compact and silent fan unit.
This Product is compliant with the following European Directives:
- EMC Directive 2014/ 0/UE
- Machinery Directive 2006/42/CE
- Low Voltage Directive 2014/ 5/UE
- RoHS Directive 2011/65/UE
SANITIZED
AIR
SANITIZED
AIR

4
IST STP101.147 GB-23-12-20
EN
1 - General Information
1.1 SAFETY WARNING – ARTIFICIAL OPTICAL RADIATION -R.O.A.
Before proceeding with the installation of Eliturbo UV-Light® , carefully read the following report issued by
the laboratory that carried out the .O.A.
SUMMARY OF THE TECHNICAL REPORT FOR MEASURING OPTICAL RADIATIONS
(by UNI EN-12198-1)
This report shows the results of the measurements of Artificial Optical adiation carried out in specific
locations during the investigation phase on Eliturbo UV-LIGHT produced by Impresind s.r.l.
The measurements were performed at the Impresind by the F IEST company with the certified
instrumentation JETI GMBH & Delta Ohm, of their mobile laboratory, standardized with the USL legislation.
Target
This survey aims to carry out technical measurements in specific definied locations, around the devices taken
into consideration, to determine the amount of non-ionizing electromagnetic radiation emitted by them in
order to categorize the machines according to the following fundamental steps:
1. Definition of the category of assignment to device under consideration according to the Italian Standard
UNI EN 12198-1. Assigned category: 2
2. Direct measurement of irradiance and (spectral) radiance, at the points of possible maximum exposure of
the operator due to the (expected or unexpected) leakage of optical radiation. ( Legislative Decree 81/08)
. Comparison with the exposure limit values set by current regulations. (Legislative Decree 81/08)
The device (Eliturbo UV-Light) was posizioned at 2,5 m. height from the floor as indicated by the installation
instructions supplied with the appliance it self .
Three positions were identified, considered critical for exposure, in which it is assumed that the operator
may be in normal operating situations:
1) under the appliance;
2) sideways to the device in an upright position at a distance of about 1,5 m;
3) sideways to the device in an upright position at a distance of about 3,0 m.
VALUES MEASURED IN ACCORDANCE WITH Legislative Decree 81/08 maximum exposure times for
the UV range – Limit “a” Annex XXXVII Tab. 1.1 – Operator eyes height : 1.7 m).
Position
operator
Distance
Operator
Irradiance
Weighted
J/m2
Dt
Applied
Max Time
Esposure
Limits
Apply (L.D. 81/08, All.
XXXVII Tab. 1.1)
Curve Limite
Value
J/m2
1 Under
Appliance 80 cm. 4.277E+0
8 hours
> 8 hours
Point “a”
Sl
30
2 Sideways
Device 150 cm. 6.563E+0 > 8 hours
3 Sideway
Device 300 cm. 5.757E+0 > 8 hours

5
IST STP101.147 GB-23-12-20
EN
WARNING:

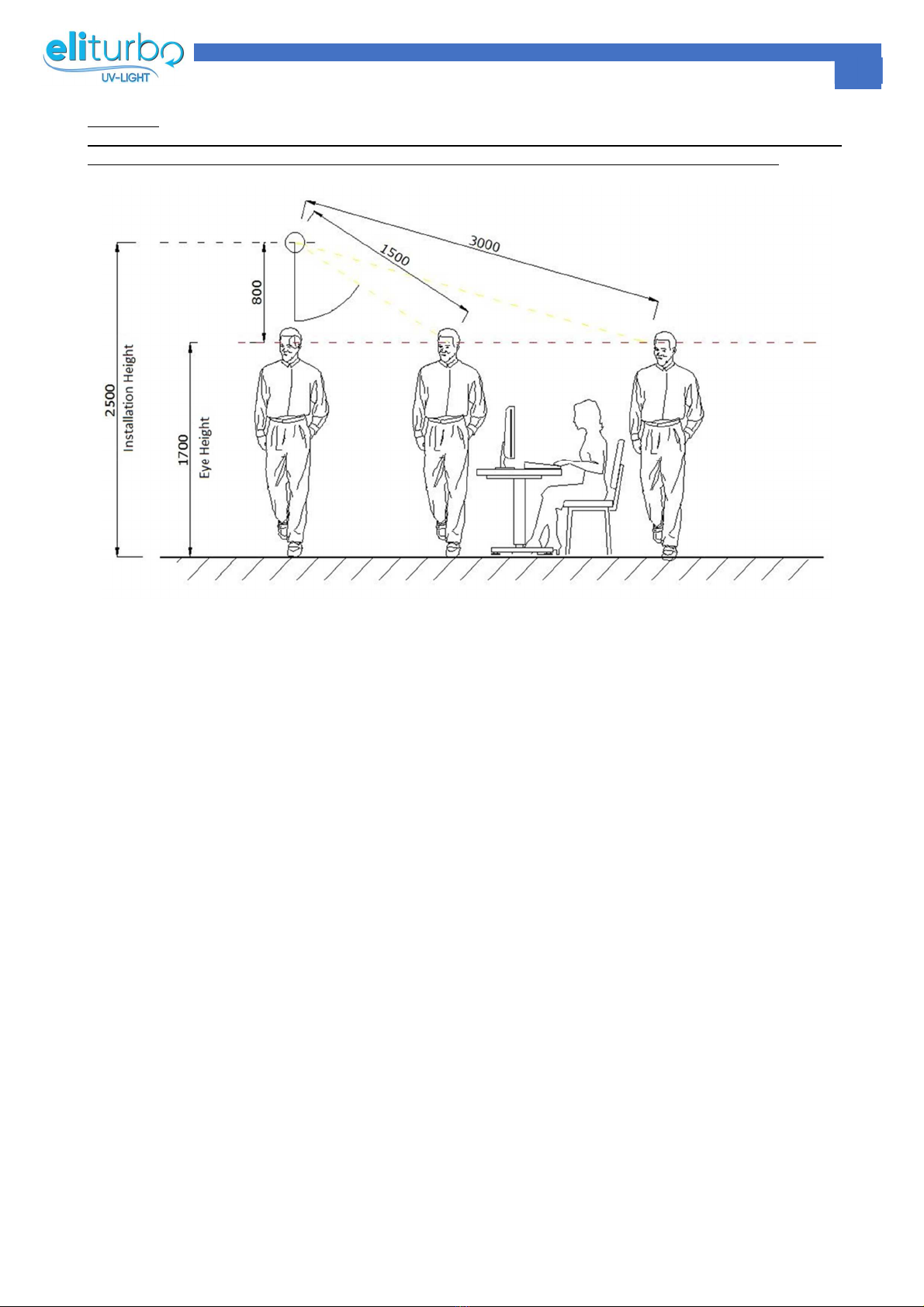

The installation position of the Eliturbo UV-LIGHT must ensure that the distance from the people staying in the room
are respected as indicated in the image below, in any case at height of not less than 2,5 m from the ground.
SAFETY WA NING:
•The appliance contains UV-C lamps.
•DO NOT turn-on the UV lamps with the appliance open or when they are removed from the
appliance.
•The appliance must be used only for the purpose for which it was designed. Any other use is
considered non-compliant and therefore dangerous.
•UV-C radiation can cause eye and skin damages, even if absorbed in small doses.
•The personnel assigned to installation and maintenance operations must be equipped with
individual protection appliances such as goggles with a minimum protection index 2C-1.2.
•ead the maintenance instructions before opening the appliance.
•The appliance must be turned-off and disconnected from the power supply before carrying out
any operation on it.
•The appliance, if damaged, must not be used.
•In case of breakdown or malfunction, the appliance must not be tampered with. Contact
specialized technical personnel for maintenance / repair operations.
•The appliance must not be used outdoors; it must only be used indoors.
•Keep children away from the appliance; children cannot play with the appliance.

6
IST STP101.147 GB-23-12-20
EN
1.2 Receiving the equipment
When receiving the package check the integrity of the packaging and the contents inside.
The appliance, if damaged, must not be used.
Check the package and its content. In case of damage due to the transport,
claim the damage on the transport document countersigned signed by the
carrier and send a scanned copy of it to the manufacturing company by
email to [email protected].
1. Storing
- During transport and storage the temperature must be between -10°C and +50°C.
- If the appliance needs to be stored, the relative humidity in the warehouse must not exceed 90%
1.4 Unpaking
- Take the appliance to the installation site.
- Make the appliance free of its packaging materials and collect them in order to prevent dangers for
people and/or animals.
1.5 Handling and Transport
-Pay attention when handling the appliance during unloading from the means of transport, handling
and positioning, in order to avoid damaging of the product and its internal components.
-Handle the appliance with care, avoiding to interfere with the circular deflectors and avoiding any
action that could damage the internal components.

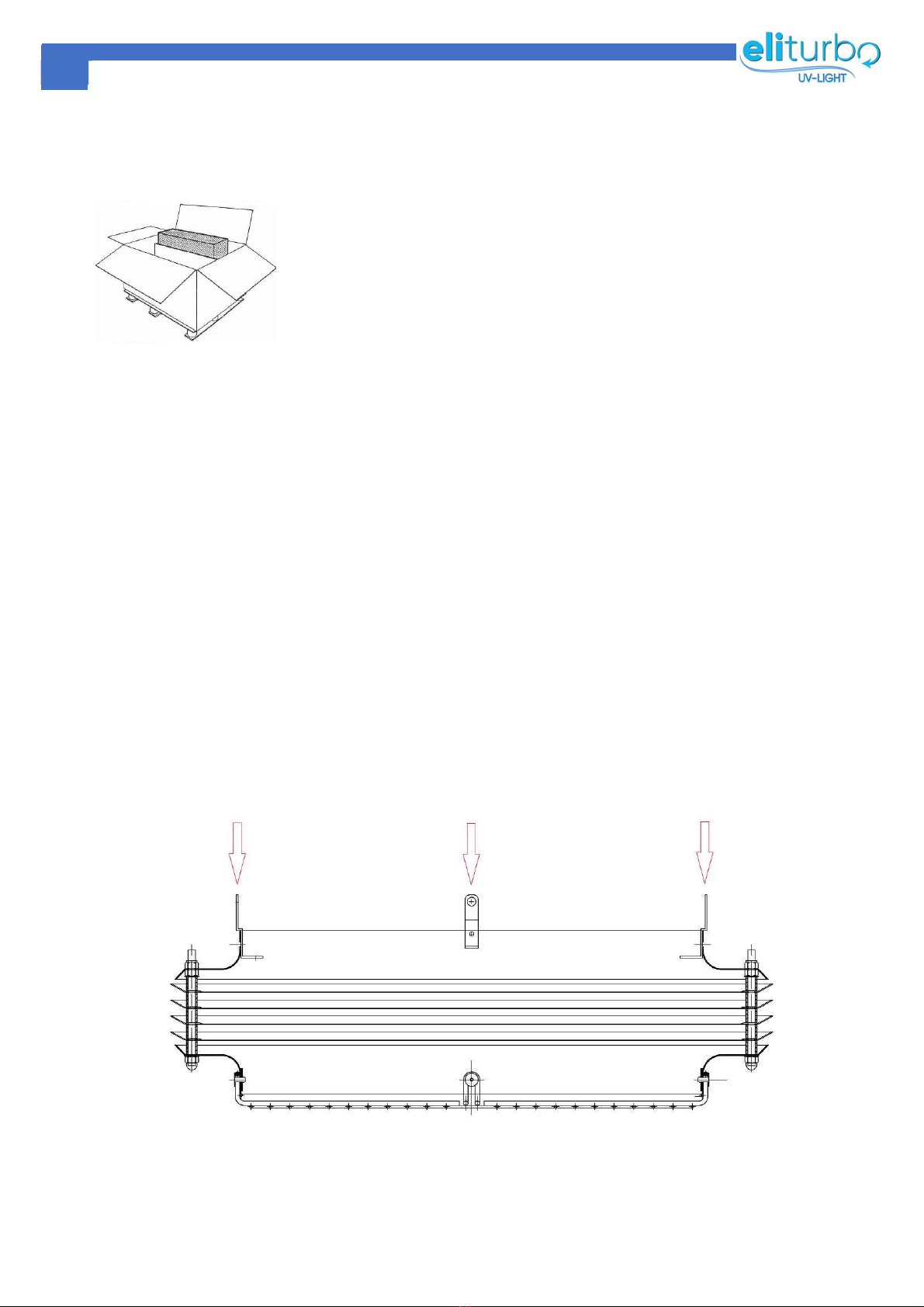

-Lift the appliance using the dedicated supports (see picture below) avoiding to touch and stress the
circular deflectors.
-Do not handle the appliance by grabbing the upper inspection cover.

7
IST STP101.147 GB-23-12-20
EN
2 - Product Specifications
2.1 Technical specifications
MODEL CODE UVL100
Technical data
Absorbed power W 90
Power supply V 220-240
Frequency Hz 50 / 60
Fan type axial
Airflow m
3
/h 100
Sound Level (Lp) db(A) 35
Ingress Protection level IP 20
Dimensions
Diameter mm 680
Height mm 260
Weight kg 10
Surface treatment powder coating
Sanitization
UV-C Lamps W 2 x 36W
Lamp lifetime h ≤ 9000
adiated power W 21,6
adiation Emission Category (UNI EN 12198-1/2009) 2
2.2 Intended use*
ELITU BO UV-LIGHT® is intended to be installed in any closed environment, where air sanitization
and mixing are needed.
Examples of application:
industrial and commercial premises
medical premises
offices
warehouses
dressing rooms
meeting rooms, canteens
churches, libraries, museums, exhibition booths, etc.
*It is recommended to have the risk assessment carried out by your security manager
2. Improper use
IT IS ST ICTLY FO BIDDEN TO USE THE APPLIANCE FO DIFFE ENT PU POSES THAN THE SPECIFIED
ONES (par. 2.2)
IT IS ST ICTLY FO BIDDEN TO INSTALL THE APPLIANCE IN EXPLOSION HAZA DOUS A EAS AND/O
OOMS WITH VAPOU S CONTAINING HIGH CONCENT ATIONS OF HALOGENS.
IT IS ST ICTLY FO BIDDEN TO HANG O PLACE ADDITIONAL WEIGHTS ON THE APPLIANCE.

8
IST STP101.147 GB-23-12-20
EN
- Installation
.1 General instructions for the installation
Before the installation, the qualified and trained personnel must read this
manual and wear personal protective equipment (PPE) such as safety
glasses (scale number 2, 2C or according EN166), gloves, etc…
Before proceeding with the installation, make sure that all the components are unpacked and not
damaged.
Installation and commissioning must be carried out by qualified and trained personnel only and in
observance for the local laws.
.2 Positioning of the appliance
ELIT RBO V-LIGHT
®
must be installed at minimum height of 2,5
meters from the floor. In presence of accessible mezzanine, check that
the appliance is positioned at a safety distance not lower than 2,5 m from the
mezzanine floor.
UV radiation may cause severe damages to eye and skin, even in low doses.
Before positioning the appliance, identify the point of its installation and check that it does not
interfere with any system / device or mean used for lifting loads in normal work operations (lifters,
jib cranes, lamps, etc.).
It is recommended to hang the appliance from the ceiling, or from a beam, and to perform a structural
analysis of the identified installation support, in order to avoid any risk of falling of the appliance.
Hang from the ceiling by means of steel chain with wire diameter not less than 3,5 mm or by means
of adequately sized steel cords.
As general rule,
supporting devices must be capable of withstanding a mass equivalent to 5 times the mass of the
appliance distributed over the attachment points (see chapter 2 – Product specifications)
Make sure that the appliance is installed perfectly horizontal.

9
IST STP101.147 GB-23-12-20
EN
. Connection to power supply network
The connection to power supply network must be carried out by qualified and
trained personnel, after reading this Installation, Use and Maintenance Manual.
Before carrying out the power supply and/or control connections it always
necessary to check that the power supply is disconnected.
The connections to the power supply network must be carried out by qualified personnel, duly
informed.
The electrical system must be carried out in compliance with the local current regulations.
Check the efficiency of the grounding system!
Expected power supply:
-220-240 V - Single-phase - 50/60 Hz (See chapter 2 – Product specifications)
Connect the appliance by installing, before the appliance, an omnipolar switch having a minimum
distance between contacts of at least 3 mm per each pole, positioned in a place that can be easily
reached by the user.
The connection to the plug onboard the appliance is the responsibility of the installer (see image
above).
THE
P
LUG ONBOARD THE APPLIANCE

10
IST STP101.147 GB-23-12-20
EN
.4 Operation checks
Before switching-on the appliance, make sure that all the staff involved have
been properly informed about risks and dangers of the appliance itself, as
reported in the present manual.
Before switching-on the appliance, check that all the supporting elements
(chains, cables, etc.) are firmly fixed, that the appliance is perfectly
horizontal, that the power supply cables do not interfere with any object and
that the appliance is properly powered.
Immediately disconnect the power supply if any anomaly occurs.
Before switching-on the appliance, make sure that all the staff involved have
been properly informed about risks and dangers related to the presence of
ultra-violet lamps inside the appliance, pointing out the harmfulness due to
exposure to their radiation without the correct personal protective
equipment (PPE)
UV-C radiations may cause severe damages to eye and skin, even in low doses.
Turn the appliance on and check that:
-there are no vibrations or abnormal movements of the supporting elements: if this is the case,
immediately disconnect the power supply and check the correct fastening of the anchoring
devices;
-the appliance does not produce abnormal noises: if this is the case, immediately disconnect the
power supply and find out the causes (check the correct fastening of the top cover and the correct
installation/fastening of the internal components);
-both UV lamps are working properly, without any malfunction: if this is the case, immediately
disconnect the power supply and check the correct installation of the UV lamps
In case of any other anomaly / malfunction, immediately disconnect the power supply and stop the
appliance.
In the event of continuation of anomalies or malfunctions, immediately contact the Manufacturer’s
Technical Dept.

11
IST STP101.147 GB-23-12-20
EN
4 - Residual risks
The possible residual risks of the appliance are listed below. All the staff involved must be properly
informed about risks and dangers related to the appliance.
ATTENTION : UV-C Lamps installed inside the appliance.
Do not approach and do not stand near the appliance if it is in
operation. Exposure to UV radiation is potentially dangerous.
Any activity in close proximity of the appliance must necessarily take
place with the appliance switched-off.
For any maintenance activity (e.g. cleaning or works near the
appliance) lamps must be switched-off and the personnel must wear
the appropriate PPE, such as safety glasses (scale number 2, 2C or
according EN166), gloves, etc…
ATTENTION : Before carrying out any operation on the appliance or
in close proximity of it, disconnect the power supply.
It is absolutely forbidden to remove the top cover with the appliance
on.
ATTENTION : Do not use liquid cleaners to clean the appliance.
5 – Emergency situations
In case of emergency:
-immediately switch-off the appliance and disconnect the power supply by opening the electric
circuit of the omnipolar-switch
-identify and eliminate the problem by analyzing the causes that originated it
-if the problem persists, contact the IMP ESIND’s Technical Dept.
-IT IS ABSOLUTELY FO BIDDEN TO USE WATE TO EXTINGUISH FI ES

12
IST STP101.147 GB-23-12-20
EN
6 - Use
6.1 Switching on / Switching off
Switch on and off of the appliance is carried out by using the appropriate devices set up during the
installation phase: eg. omnipolar switch and/or timer.
6.2 Recommendations to Users
In order to better counteract the natural proliferation of microorganisms, EITU BO UV-LIGHT® must
work continuously.
If correctly installed (see chapter 3 – Installation) the appliance requires no particular
recommendations other than those relating to the safety of qualified personnel in carrying out
ordinary and extraordinary maintenance activities (see chapter 4 - esidual risks).
6. Putting the appliance “at rest”
ELITU BO UV-LIGHT® is a product that can be used in any season. If it is deemed to end its operation
due to non-use, the appliance can be placed at rest by removing the power supply through the main
circuit breaker.

13
IST STP101.147 GB-23-12-20
EN
7 - Maintenance
ATTENTION : All maintenance operations must be carried out exclusively
by qualified and informed personnel.
WARNING : before proceeding with any ordinary and extraordinary
maintenance operation, check that the appliance is not electrically
powered.
Check the proper functioning of the appliance yearly, so that it is possible to carry out any needed
maintenance and/or repair in due time. In particular, it is recommended to check:
- current absorption and safety devices of the appliance;
- the good conditions of the hanging systems;
- the good connection of the lamps and their condition (useful lifetime max. 9.000 hours)
- the cleanliness of the appliance and, in particular, the cleanliness of the protection shielding.
Use adequate cleaning products that do not affect or compromise the materials of the appliance and
the electrical cables.
In order to perform the maintenance properly, remove the upper cover by unscrewing its screws, as
illustrated in the following pictures.
Once the upper cover is removed, all the internal components become accessible (see pictures
below).
Unscrew the fixing
screws
o
n the upper
Remove the upper cover
Press the red button to remove lamp from the
lampholder
Remove the fuse holder to access the fuse
(
fuse
5x20 2A)

14
IST STP101.147 GB-23-12-20
EN
8 - Disposal
8.1 Decommissioning
Disposal of the appliance must be carried out by speciali ed personnel provided with suitable tools
and Personal Protection Equipment (PPE).
INFORMATION ABOUT END OF LIFE DISPOSAL
Attention:
This product is within the scope of Directive 2012/19 / EU concerning the management of waste electrical and electronic
equipment (WEEE).
The appliance is intended for professional use only, therefore it must not be disposed of together with household waste,
since it is made up of different materials that can be recycled at suitable facilities.
The product is not potentially dangerous to human health and the environment, as it does not contain harmful substances,
but if abandoned in the environment it has a negative impact on the ecosystem.
ead the instructions carefully before using the appliance for the first time. It is recommended not to use the product for
any purpose other than that for which it was intended, as there is a danger of electric shock if used improperly.
The crossed-out bin symbol, present on the label placed on the appliance, indicates the compliance of this
product with the legislation on waste electrical and electronic equipment (WEEE).
The abandonment of the equipment in the environment or its illegal disposal are punishable by law.

15
IST STP101.147 GB-23-12-20
EN

16
IST STP101.147 GB-23-12-20
EN
IMPRESIND SRL
Via Primo Maggio 24, 20064 Gorgonzola (Milano) ITALY
℡+39 02 9574.1932 +39 02 7396.0191 [email protected]
www.impresind.com
