User’s Manual
H20B
USA

For any problems with the InBody Dial or any clinical questions, contact:
InBody [USA]
13850 Cerritos Corporate Dr., Unit C, Cerritos, CA 90703, USA
TEL: [phone]
FAX: [phone]
Website: inbody.com
E-mail: [e-mail]
©2020 InBody Co., Ltd. All rights reserved.
Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd
under the copyright laws. This manual might have typographical errors, and its content can be changed without
prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred
by not complying with the contents of the Users Manual.
NOTECAUTION
참 조 주 의참 고
NOTECAUTION
참 조 주 의참 고
NOTECAUTION
참 조 주 의참 고
NOTECAUTION
참 조 주 의참 고
Please note the important information below before reading this manual.
Failure to comply with safety warnings and regulations can cause serious injury or death.
Failure to comply with safety cautions and regulations can cause injury or property damage.
Le non-respect des consignes de sécurité et des règlements peut causer des blessures graves ou la mort.
주 의
Le non-respect des consignes de sécurité et des règlements peut causer des blessures ou des dommages
matériels.
Warning
Caution
Avertissement
Attention
Intended Purpose
The device should be used as an adjunct for clinical decision making and is not intended to diagnose or treat any diseases.
© 2020 InBody Co., Ltd. All rights reserved. BM-USA-G5-C-210316

InBody Test Posture
Stretch out your arms.
Avoid contact with your waist.
Put your thumb on the round
electrodes.
Place your heel at the end of the heel
electrodes and allow the rest of your
foot to point forward.

Contents
Precautions
Product Components and Set-Up Instructions
A. Product Components
B. Installing InBody App
C. Pairing InBody H20B with InBody App
Weight Measurement
InBody Test
A. Precautionary Steps
B. Test Posture
C. Test Instructions
D. Understanding InBody Outputs
Troubleshooting
A. Error Message
B. Solving Simple Problems
Frequently Asked Questions (FAQ)
Others
Product Warranty
I.
II.
III.
IV.
V.
VI.
VII.
2
3
4
5
7
8
9
10
14
15
16
17
19

2 3
Please note:
1. People with medical devices including an implantable medical device or a patient
monitoring device, such as a Pacemaker, should not use the InBody. InBody
Co., Ltd. is not liable for any incidental or consequential damages that occur.
2. Place the InBody on a at and vibrationless oor. Placing it on an uneven oor, like
a carpet or a mattress can result in incorrect measurements. For long-term storage,
remove the battery pack, and place it on a at surface.
3. Keep your InBody device away from other electronics while testing. It may cause errors.
4. After an individual with any kind of contagious disease or infection tests on the InBody,
sterilize the device with a soft cloth or with ethyl alcohol wipes before use.
5. Excessively high or low temperatures, humidity, and pressure can affect the accuracy
of the InBody.
6. Keep food, beverages and other liquids away from your InBody device.
7. Do not disassemble the InBody. It can cause electric shock or damage, product
malfunction, and other errors. InBody Co., Ltd. will not be liable for any incidental
or consequential injuries or damages from the product that occurred.
8. Do not use this product for purposes other than body composition analysis or weight
measurement.
9. If you cannot maintain the correct testing posture to take the InBody Test alone,
request assistance from a helper. Help children maintain the proper posture during
the measurement.
10. Use the packing material provided with the product when moving your InBody.
Dispose of waste in compliance with the law.
11. Only trained InBody service team members can repair InBody devices. If your
device is in need of repair, please contact us at [e-mail].
I. Precautions

2 3
II. Product Components
A. Product Components
Product components: InBody H20B, User’s Manual, AA Battery (4)
Hand electrodes
Display screen
Dial
Foot electrodes
Footplate
Battery insert
Back cover
Display screen: Displays outputs on the screen.
Dial: Use to power ON/OFF, input height and check results.
Hand electrodes: User holds the device with hands and ngers.
Foot electrodes: User stands on the device, placing the back of heels on the
rear electrodes.
Footplate: Measures the weight of the user.
Battery insert: The InBody H20B takes 4 AA batteries. Open the cover to insert the batteries.
Back cover: Do not open, dismantle or attempt to repair your device yourself.

4 5
Keep the Bluetooth ON to use the InBody H20B.
II. Product Components
B. Installing InBody App
Download and install the InBody App from the iPhone App Store or Google Play
Store prior to testing. (iOS 8, or newer. Android 5.0, or newer.)
or
Scan the QR code below. For an Android phone, turn on NFC (Read/Write) and
tap the NFC mark to move to the app download page automatically.
Once the download is complete, open the InBody App and register as a new user.

4 5
II. Product Components

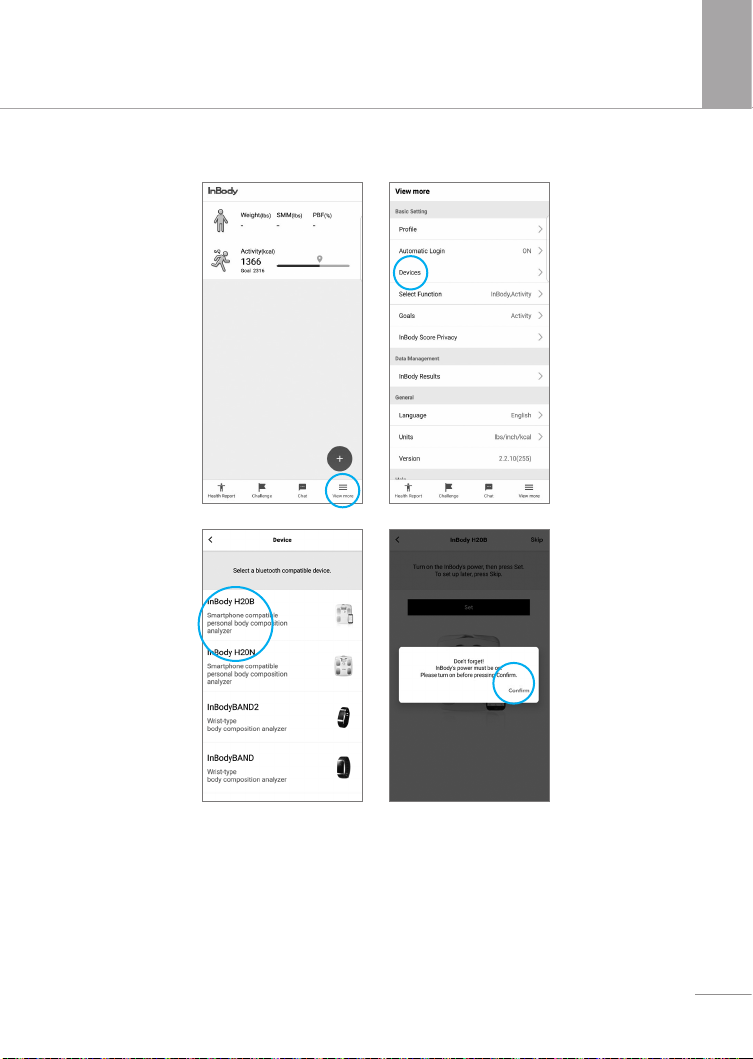

C. Pairing InBody H20B with InBody App

6 7
II. Product Components

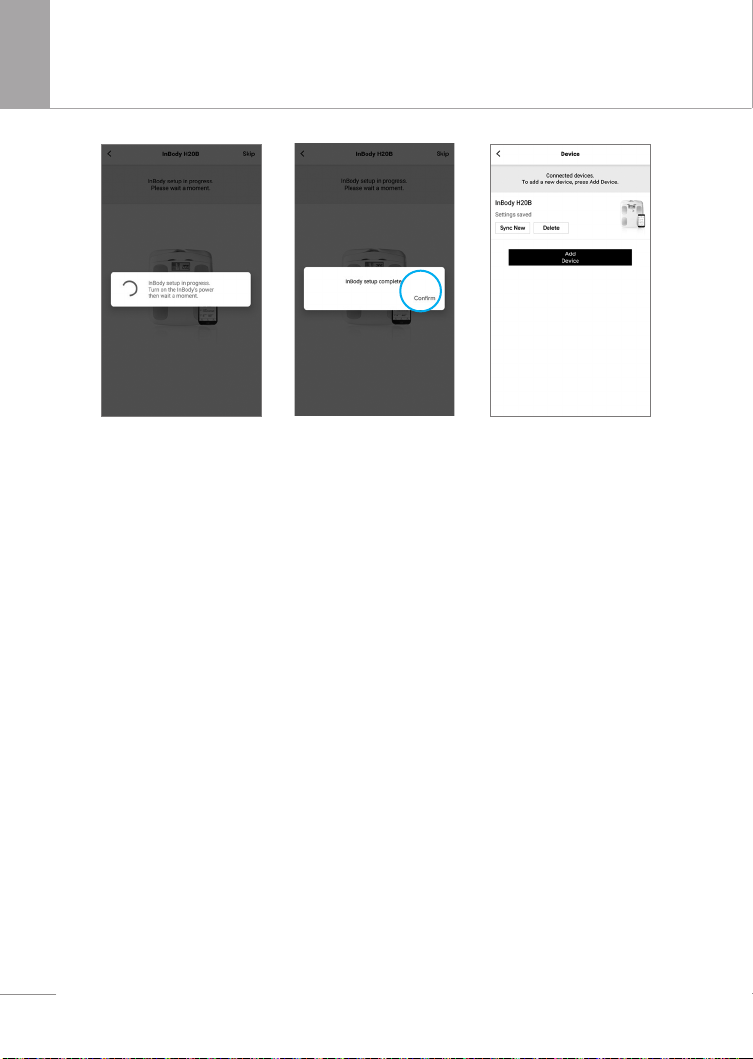

*The InBody H20B will automatically transfer data to the InBody App once
syncing is complete.

6 7

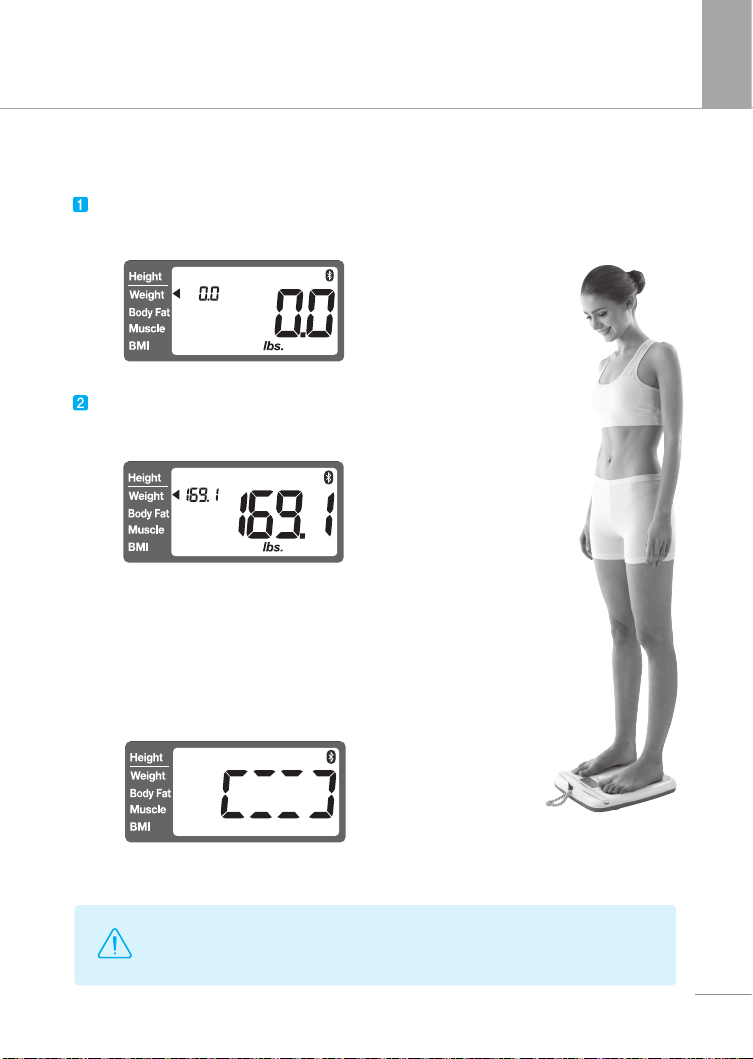

III. Weight Measurement
To measure weight only,
Tap the footplate to turn the power on, and step on the footplate
when 0.0 is displayed on the screen.
A “beepˮ will indicate when the measurement is complete.
The power turns off automatically when you step off the footplate.
*Zero-Point Adjustment
When the device is being calibrated,
a scrolling rectangle will appear on the screen.
If you want to test on the InBody H20B immediately after measuring weight, turn the
dial and input height. Then, hold the hand electrodes and stand with the correct test
posture to take the InBody Test.

8 9
IV. InBody Test
A. Precautionary Steps
Do not eat immediately before testing on the InBody.
Test in the morning, if possible.
Test after going to the bathroom.
Test prior to working out.
Test prior to taking a shower, bath or using a sauna.
Stand for about 5 minutes prior to testing.

8 9
B. Test Posture
Do not let your thighs touch each other. If your
thighs touch each other, wear shorts or pants.
Place your heels on the electrodes and step on the device
barefoot. Do not let your feet touch each other. If you are
wearing long pants, make sure the edges of the pants are
not stuck between foot electrodes and your feet.
Arms are extended
Arms are bent
Hold the hand electrodes
and extend your arms.
Arms are too high Arms are too low
Do not let your arms touch your stomach and make sure your arms are
extended from your body and wear light clothes with sleeves.
Arms and legs aren’t
touching each other
Put your thumbs on the
round electrodes and hold them.
Do not let your left hand and
right hand touch each other.
Make sure all ngers are
holding the electrodes.
IV. InBody Test

10 11
C. Test Instructions
Power ON: Press the dial to turn the power on.
Open InBody App: Initiate the InBody Test through the app.
IV. InBody Test

10 11
IV. InBody Test
Step on the InBody H20B to begin testing.

12 13
IV. InBody Test
Weight Measurement and InBody Test: Step on the footplate
barefoot and stand as shown in the gure below.
Hold the hand electrodes as previously described. After nishing the weight
measurement, it will beep twice and the InBody Test will initiate. The Test runs for
about 10 seconds and is nished when it rings. Once “End” appears on the screen,
step down from the footplate.
If a user’s palms and/or soles are dry or callused, he or she may have difculty
testing. Wipe hands and feet with an InBody Tissue for more accurate results.

12 13
IV. InBody Test
Check Test Results
Data will automatically sync between the InBody H20B and InBody App.

14 15
D. Understanding InBody Outputs
Body fat mass and muscle mass change with diet and exercise.
•
Weight : Total body mass
Weight is the total mass of the human body.
•
Percent Body Fat : Total mass of fat mass divided by total body mass
A person’s body fat percentage is the total fat mass divided by the person’s weight.
It consists of essential body fat and storage body fat. Although the weight is same,
the percentages of fat or muscle mass can be different. Therefore, body fat percentage
is an essential item for diagnosing obesity. The standard range is 10-20% for men
and 18-28% for women. The standard body fat percentage differs for children under
18 depending on their gender and height.
•
Muscle Mass : Skeletal Muscle Mass
Skeletal muscle represents the majority of muscle tissue and powers movement of
the skeleton. Skeletal muscle is innervated by the somatic nervous system and is
subject to voluntary control. This is the muscle that is influenced the most by physical
activity.
IV. InBody Test

14 15
V. Troubleshooting

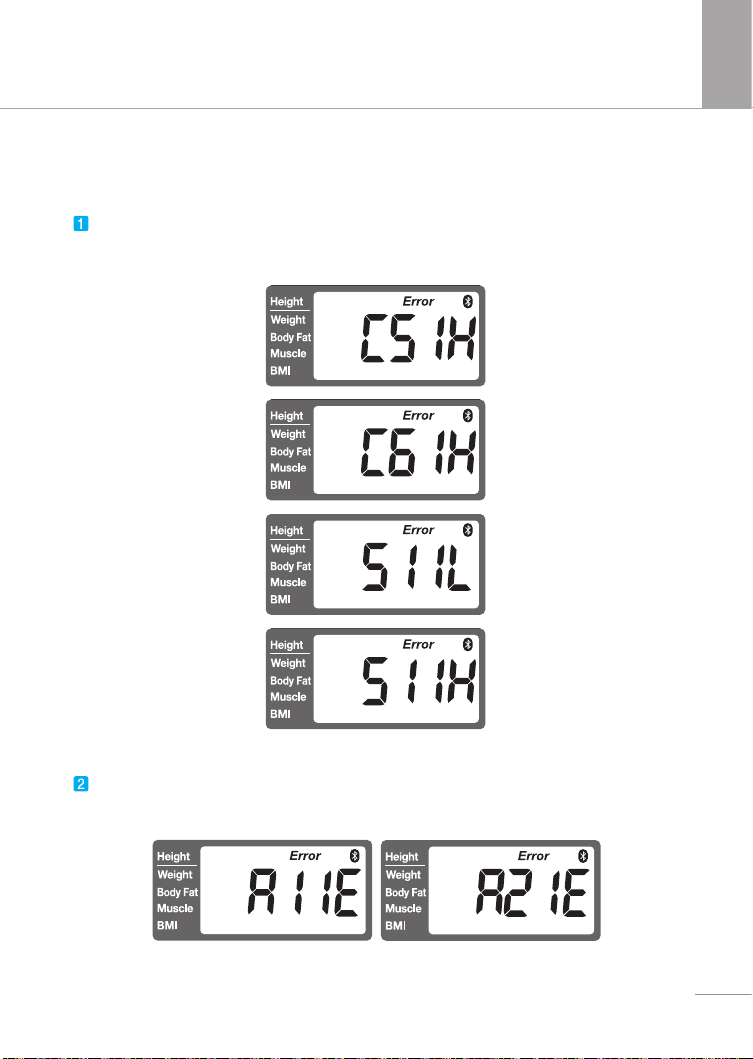

A. Error Message
The InBody displays an error message on the LCD screen if a disruption occurs.
Error messages caused by incorrect testing posture
If the following error messages appear, check your testing posture and try again.
Error messages caused by internal malfunction of the InBody H20B
If the following error messages appear, please contact us at [e-mail].

16 17
B. Solving Simple Problems
If the problem still persists, please contact us at [e-mail] for assistance.
Q1. The power does not turn on after pressing the dial.
A1. This can happen when the batteries are dead. Replace the batteries.
A2. This can happen when the batteries are not inserted correctly. Insert the batteries so
the positive (+) and the negative (-) terminals align correctly.
Q2. Weight is not measured and the screen displays a scrolling rectangle.
A1. Tap the footplate to turn on the device. Once 0.0 appears on the LCD screen
step on the footplate and measure weight.
A2. Make sure to remove any foreign object that might be touching the device.
Q3. Weight is inaccurate.
A1. Tap the footplate to turn on the device. Once 0.0 appears on the LCD screen after
2-3 seconds, try again.
A2. The weight can be inaccurate if you use the device on carpet or a mattress. Place
the device on a at, hard surface.
V. Troubleshooting
