Indeco 89000003 Operational manual

Detail "A"
A
2010-09-06
Manual Notching Tool
INDECO S.A., ul. Kac orowa 37, 03-046 Wars awa, tel. [phone], fax. [phone]
Product Name:
/
89000003
1 2
Date:
Catalogue No:
Page / Total pages:
Product Data Sheet
1 /2
Page/ Total pages
Description
The Manual Notching Tool (Cat No 89000003) is used to
make assembly holes in steel profiles:
- Montreal stiles (Cat No 0800yyxx) and Halifax stiles (Cat
No
0850yyxx)
- steel rails (Cat No 0700yyxx)
Main advantages:
- high quality and repeatability of holes cut,
- simple operation,
- can be mounted to a workbench with bolts (2 holes of
10.5mm dia),
- high durability
238
451
187
145
Template for making assembly
holes in steel rails (available to order)
Template for making assembly
holes in steel stiles (available to order)
Narrow blade for rails,
Cat No 094200
Wide blade for stiles,
Cat No 094202
Replacement components of the manual notching tool.

Dimensions of assembly holes in stiles.
Dimensions of assembly holes in rails.
Cat. No:
Product Name:
Manual Notching Tool 89000003
Technical data
Name: Manual Notching Tool
Cat No: 89000003
Application: Steel system S100, S300
Weight: 10.2 kg
Availability: Continuous
Replacement components:
Narrow blade: Cat No 094200
Wide blade: Cat No 094202
Template for rails: to order
Template for stiles: to order
51.3 22.5
1.7
98
8.3 8
1.7

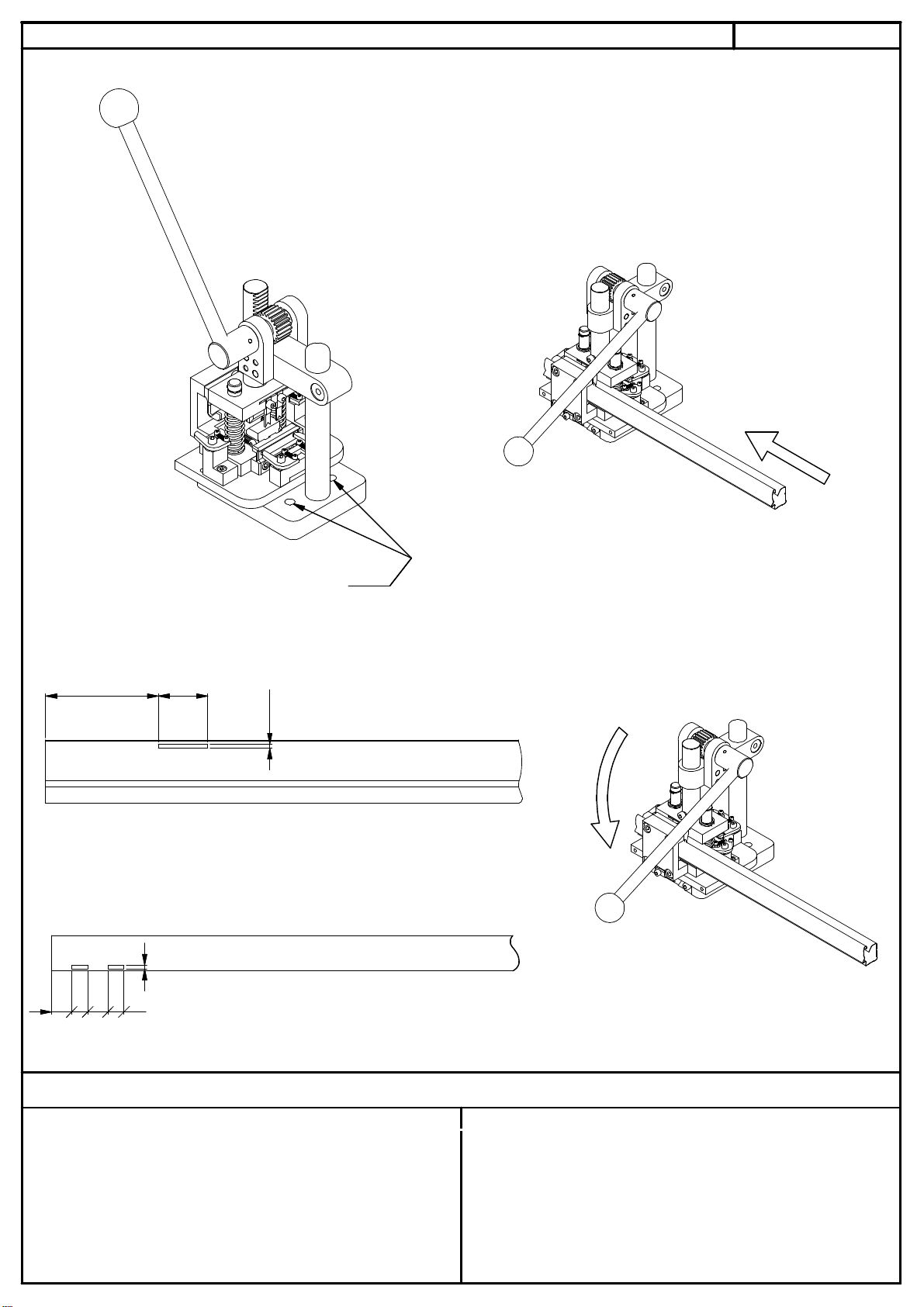

10.5mm dia holes for fastening
the tool to the workbench top
Mounting the notching tool:
To ensure operational safety, fix
the notching tool to the workbench
top through the holes in the tool base.
Making assembly holes:
1. Insert the profile into the appropriate
template of the notching tool so that it
reaches the end stop.
2. Press the lever to notch the assembly holes.
(Withdraw the profile after the operation).
