Kodiak
User Guide

Unpacking Your Kodiak
Included in the box:
A. Kodiak generator!
B. AC Charger !
Charging Your Kodiak

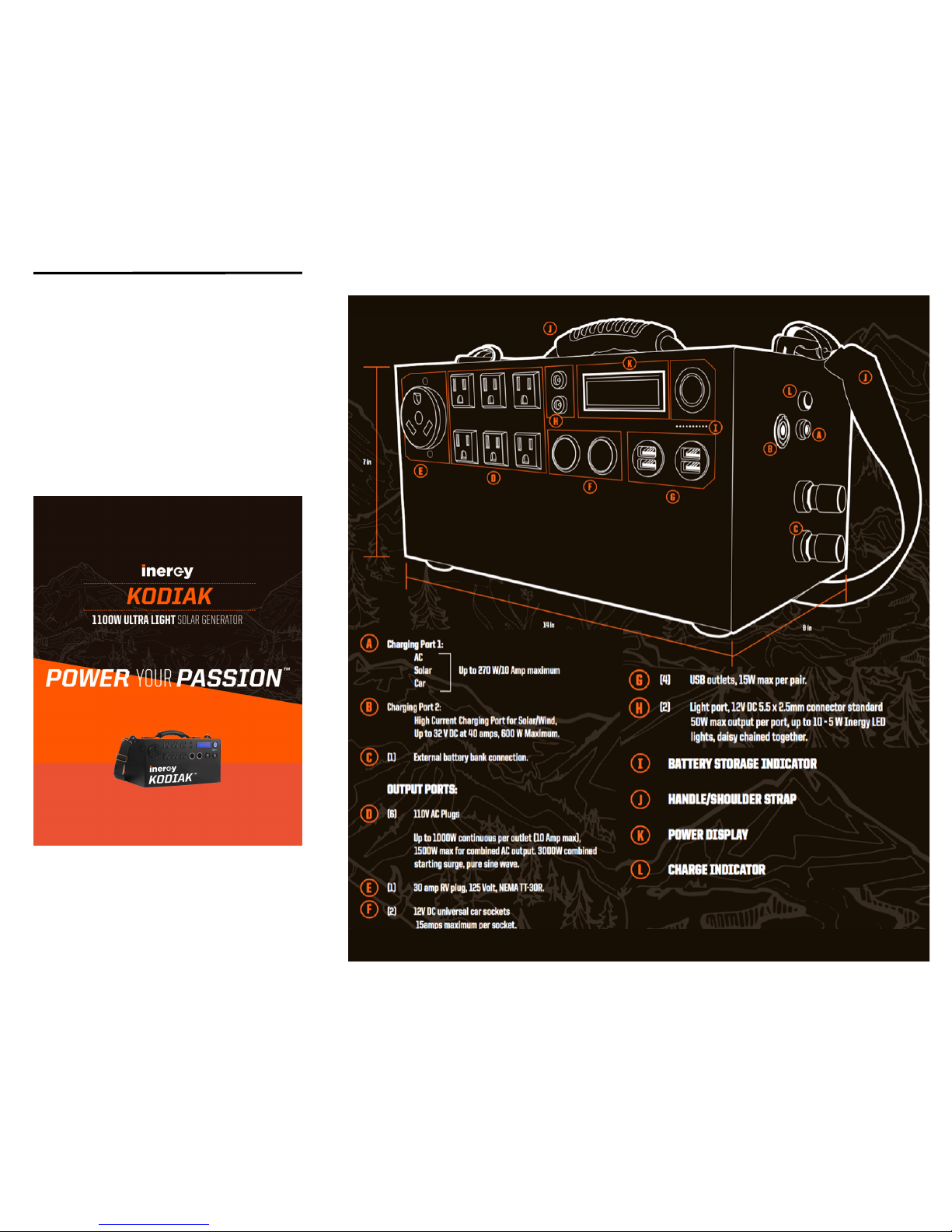

(see diagram on opposite side for port locations)!
Charging with Solar
The Kodiak provides two ports for charging using
solar panels (sold separately):!
Port 1: Charge input for use with Inergy’s foldable
and modular solar panels up to 270 Watts input
maximum (12V-18V Only) and AC Charger.!
Port 2: High current charging input for Inergy’s
larger rigid panels. Up to 600 Watts input
maximum (12V-32V Only).!
Charge times vary depending on the solar panels
used, sun conditions, and angle of panel(s).
Charging with AC (wall) Charger
The provided AC wall charger (12.6 VDC, 8
Amps) charges the Kodiak at 100W, taking
approximately 11 hours to fully recharge.
Connect wall charger to Port 1.!
Charging with Car Charger
Using a vehicle’s 12 VDC socket (20 Amps)
charges the Kodiak at 240W, taking
approximately 5 hours to fully recharge the
Kodiak. Connect Car Charger to Port 2.!
Charging with External Batteries
The Kodiak provides a set of external battery
bank connectors with both input and output
capabilities to be used with external lead acid
deep cycle batteries (sold separately). See
“Using External Battery” page for more info.!
Using Your Kodiak
Reading the Power Display
The Power Display has 4 unique readings:!
Top Left: Current (Amps) being drawn from
battery. While idle, 1.2 - 1.5 Amps is a normal
reading.!
Top Right: Battery Voltage. Fully charged is
approximately 12.3 - 12.6 Volts, completely
depleted is approximately 9.6 Volts. Individual
results may vary by 10%.!
Bottom Right: Watts being drawn from battery.
While idle, 14 - 18 Watts is a normal reading.!
Bottom Left: For advanced users. See
“Understanding the Power Meter” page for more
info.!
Powering Devices
The 12V DC Car Sockets & Basecamp LED Light
Ports are always live. Simply connect to the
corresponding port needed and power will flow.!
All USB & AC Ports are activated by the Power
Button. You may hear a cooling fan and see a
small increase on the Power Display in both
Wattage & Amps. The AC & USB Ports are now
available for use. !
The Inverter turns offat approximately 20%
remaining battery. DC power is still available, but
more battery capacity is needed to power the
inverter (AC outlets). A low voltage alarm will
sound when the battery is low. It only serves as
a notification, no damage will occur if the Kodiak
remains on.!
If the AC output limit is exceeded, the inverter
may power offand go into safe mode. If
restarting the Kodiak doesn’t restore AC power,
plug into a charge source for 10 seconds and
restart the Kodiak. AC power should be
restored.!
Reading the Battery Storage Indicator
To view current battery storage level, turn on the
Kodiak by pressing the power button. There are
10 multi-colored LEDs below the Power Display,
each represents approximately 10% of the
battery capacity.!
Maintaining the Kodiak for Storage
We recommend charging the Kodiak every 3
months for best performance and longevity. Not
recommended for outside storage or in damp
environments.

Kodiak Specifications
Output Ports:
•6 - 110VAC Plugs$
1100 watt continuous (10 Amps) maximum
output per outlet, 3000 Watt starting surge
maximum. 1500 Watt total limit for combined
AC & DC output.!
•1 - RV plug, 125 Volt, NEMA TT-30R !
•2 - 12V DC Universal Car Sockets, 15 Amps
maximum per socket !
•4 - USB Outlets 5V DC, 1 - 2.1 Amp port and 1
- 1 Amp port per set, regulated, 3.1 Amps
maximum per set.!
•2 - Basecamp LED ports, 12V DC 5.5 x 2.5mm
connector, 50 Watts maximum output per port,
up to 10 Basecamp LED lights chained
together.
Battery:
•Lithium Ion (Lithium Nickel Manganese Cobalt
Oxide, NMC) 1100 Wh, 550 Watts continuous
for 2 hours, 3000 watt peak (AC and DC
combined)!
•12.6V DC, 90AH!
•Up to 2000 charge cycles!
•Up to 10 years shelf life, charge every 3
months. Integrated charge balancer and
controller.!
•Over charge and balancing protection
General:
•Weight: 20 lbs (9 Kg)!
•Dimensions: 7” tall, 14” wide, 8” deep !
•Warranty: 12 Months Full Repair or
Replacement.
Note: Extend useful run times off-grid by
connecting the solar panel during the day and
maximizing the internal battery charge. You can
charge Inergy’s solar generators and use the
power outputs at the same time. !
Visit www.inergysolar.com for more information
about your Kodiak generator.

V, Volts (Battery Voltage)
Displays the voltage from the bat-
tery. This is a DC voltage mea-
surement in real time.
W, Watts
Displays the total power draw from
the battery. This is a DC measure-
ment in real time. Watts are cal-
culated by multiplying the current
(Amps) times the voltage.
Data
The data readout cycles between peak
Amps (Ap), minimum Voltage (Vm), Watt
hours (Wh), and Amp hours (Charging Ah):
Amps, Ap (Peak Current)
Only the current from BATTERY to LOAD
is measured. The Amp value displayed is
the average current over the last screen
update interval. Peak Amp value (Ap)
display is the maximum current drawn
from the LOAD side. Peaks lasting only a
fraction of a second can be captured.
Volts, Vm (Voltage)
The displayed value is the average voltage
over the last screen update interval. The
displayed minimum volts value (Vm) is the
Minimum voltage (or “sag”) measured on
the BATTERY side.
Watt-Hours, Wh (Power)
The displayed value is the total energy
delivered in watt-hours and it is measured
on the LOAD side.
Amp-Hours, Ah (Charge)
The displayed value is the total charge in
Amp-hours(x1000=mAh) delivered since
the startup screen and it is measured on
the LOAD side.
Watts, Wp (Power)
The displayed value is the average power
delivered in watts (=Volts x Amps) over the
last screen update interval. The displayed
peak watts value (Wp) is the maximum
power drawn on the LOAD side since the
startup screen ended. Watts are measured
on the LOAD side.
Note: The meter resets itself every time
power is cycled (turned off and on)
A ,Amps (current)
Displays the total current draw
from the battery. This is a DC cur-
rent measurement in real time.
Understanding the
Power Meter

Using Solar Panels

Using An External Battery


LIMITED WARRANTY
INERGY HOLDINGS (INERGY SOLAR) LLC warrants to the original consumer purchaser that this
INERGY SOLAR product will be free from defects in workmanship and material under normal consumer
use during the applicable warranty period identified in Paragraph 2, below, subject to the exclusions set
forth in Paragraph 6, below. This warranty statement sets forth INERGY SOLAR's total and exclusive
warranty obligation. We will not assume, nor authorize any person to assume for us, any other liability in
connection with the sales of our products.
!
WARRANTY PERIOD
The warranty period for all INERGY SOLAR products and components is one (1) year. In each case, the
warranty period is measured starting on the date of purchase by the original consumer purchaser. The
sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in
order to establish the start date of the warranty period. Registration is not required.
NO LEMON POLICY
INERGY SOLAR warrants to the original consumer purchaser that should this INERGY SOLAR product
require service (rendered only by INERGY SOLAR) on (3) three separate occasions within the above
stated one (1) year warranty period, the unit can be exchanged for a replacement product of
comparable type, quality, and functionality at the request of the original consumer purchaser.
Validation by an INERGY SOLAR technician of product failure is required prior to replacement. Your
warranty remains in force for the duration of the original one (1) year warranty period, and is in no way
terminated by replacement product under this No Lemon Policy.
!
REMEDY
INERGY SOLAR will repair or replace (at INERGY SOLAR's option and expense) any INERGY SOLAR
product that fails to operate during the applicable warranty period due to a defect in workmanship or
material.
!
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on INERGY SOLAR's products is limited to the original consumer purchaser and is not
transferable to any subsequent owner.
!
EXCLUSIONS
INERGY SOLAR's warranty does not apply to (i) any product that is misused, abused, modified,
damaged by accident, or used for anything other than normal consumer use as authorized in INERGY
SOLAR's then-current product literature, or (ii) any product purchased through an online auction house.
INERGY SOLAR's warranty does not apply to any battery cell or product containing a battery cell unless
the battery cell is fully charged by you at least once every 6 months.
!
HOW TO RECEIVE SERVICE
To obtain warranty service, you must contact our customer service team via telephone at (877)
969-2432, or via email at [e-mail]. If our customer service team determines that further
assistance is required, they will give you a Return Material Authorization ("RMA") number and return
shipping label. You must package the product in original provided product packaging, clearly marking
Page of 1 2


the RMA number on the package and including proof of your purchase date with the product. Customer
service will then provide additional shipping instructions (if required) to INERGY SOLAR at 620 Pheasant
Ridge Dr, Pocatello, Idaho, USA 83202. We will process your return and send your repaired or
replacement product to you at our expense for product being shipped to locations in North America.
!
IMPLIED WARRANTIES
THE LIMITED WARRANTY STATED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IN NO
EVENT SHALL ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, EXTEND
BEYOND THE APPLICABLE WARRANTY PERIOD IDENTIFIED IN PARAGRAPHS 2, ABOVE. Some states
do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
!
EXCLUSIVE REMEDY; LIMITATION OF LIABILITY
The foregoing provisions state INERGY SOLAR's entire liability, and your exclusive remedy, for any
breach of warranty, express or implied. IN NO EVENT WILL INERGY SOLAR BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM ANY USE OR MALFUNCTION OF ANY
INERGY SOLAR PRODUCT, OR FROM ANY BREACH OF WARRANTY, INCLUDING DAMAGE TO
OTHER DEVICES. IN NO EVENT WILL INERGY SOLAR's LIABILITY FOR ANY CLAIM, WHETHER IN
CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR UNDER ANY
OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT PAID BY YOU FOR THE INERGY SOLAR
PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
Page of 2 2


