infa-secure CS4010 User manual

KEEP THIS BOOKLET IN THE
PLACE PROVIDED ON THE
CHILD RESTRAINT
*All references to age are to an average proportioned
child. Children vary in shapes and sizes. The ages
outlined above is an approximation only.
1754:2010
Licence No. 25324
ANTI-REBOUND INCORPORATED
INTO SEAT DESIGN
IMPORTANT
*The photo displayed is indicative of the
type of restraint and may have slight
changes depending on the model.
(Rearward Facing)
Suitable for infant from
birth to approximately
6 months*
(Forward Facing)
Suitable for children
from approximately
6 months to 4
years* of age
INFANT SEAT TO CHILD SEAT
Convertible Car Seat
CS4010
CS4410
MODELS
NEWBORN
TO 4 YEARS*
SUITSSUITS
to
NEWBORN TO FOUR YEARS*
yrs. yrs.
TRAVELLING SAFELY WITH PEACE OF MIND
YEAR
S
y
yrs
EAC
E
O
F
M
I
N
4
NEWBO
yrs
T
R
AV
ELLI
NG
S
0

INFASECURE PTY LTD
P.O. Box 487, Emu Plains
NSW 2750
Customer Service
Phone No: 02 4728 8090
CHILD SEAT (Type B Forward Facing)
Then to be used in forward-facing position until their shoulders reach the upper shoulder height marker (approximately 4
years* of age).
Continue to use this child restraint until the child reaches this limit.
Do not use forward facing until child’s shoulders are above the lower shoulder height marker.
Infants are at risk of serious injury if they face forward too early.
Children are at risk of serious injury if they move to booster seats too early.
Children that have outgrown this restraint are safest in a booster seat until their shoulders reach the upper shoulder height
marker of the Booster seat.
INFANT SEAT (Type A2 Rearward Facing)
To be used only in a rearward-facing position for an infant until their shoulders reach the lower shoulder height marker
(approximately 12 months* of age).
SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
WARNING
!
PLEASE READ AND FOLLOW THESE INSTRUCTIONS EXACTLY
BEFORE INSTALLATION PLEASE READ CAREFULLY THE WHOLE OF THE
INSTRUCTIONS FOR INSTALLATION AND IF IN THE EVENT OF DOUBT ABOUT
THE METHOD OF INSTALLATION TO CONSULT INFASECURE OR A CHILD
RESTRAINT FITTING STATION AUTHORISED BY THE RELEVANT TRANSPORT
AUTHORITY. IN NEW ZEALAND, CONSULT THE AGENT FOR THE VEHICLE.
IMPORTANT
!
CS4010
CS4410
MODELS
1

Suitability of the child restraint
Contents
ANCHORAGE FITTINGS
- For cars tted with anchorage points
- For cars not tted with anchorage points
Restraint Guide
Padding - Combination Guide
- Information & Warnings
- CS4010/CS4410 Infant Restraint (Itemised List)
- Shoulder Height Marker
SET UP
- General
- Selection of Appropriate Padding Combination

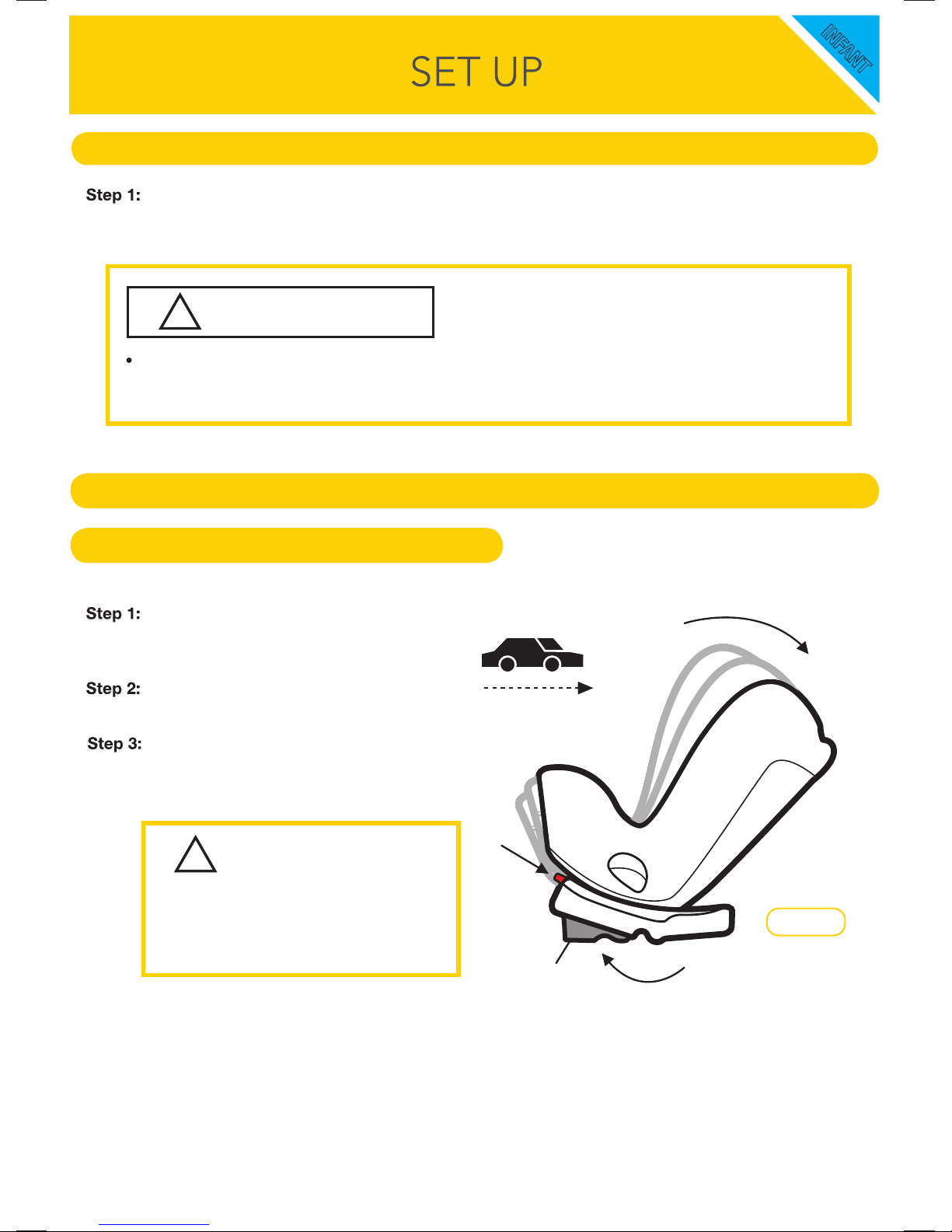

- Converting to Infant Seat
INSTALLATION
- Correct Shoulder Height
- Shoulder Slot Height
Installing in Vehicle
USE
- Using Inbuilt Harness
- Release Infant
- Information & Warnings
- CS4010/CS4410 Child Restraint (Itemised List)
- Shoulder Height Marker
SET UP
- Selection of Appropriate Padding Combination
- Converting to Child Seat
INSTALLATION
- Correct Shoulder Height
- Shoulder Slot Height
- Installing in Vehicle
USE
- Using Inbuilt Harness
- Release Child
CARE OF RESTRAINT
- To Remove Cover / To Replace Cover
- Cleaning / Care and Maintenance
EXTENSION STRAPS
ACCESSORIES
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 11-12
Page 12
Page 13
Page 14-16
Page 17
Page 18
Page 19
Page 20
Page 21-22
Page 23
Page 23
Page 24
Page 24-25
Page 25-27
Page 28
Page 28
Page 29
Page 30-32
Page 32
Page 33-34
2

Upper anchorage strap and attachment clip
must always be used
Upper Anchorage strap and attachment
clip must only be attached to the correct
anchor tting
Always ensure that the upper attachment clip
is correctly engaged to the anchor tting
This restraint is not suitable for use in a
hatchback or wagon where the anchorage
strap may fall into a split in the seat back
Straps may be damaged by unsecured cargo
in a collision. Secure or remove hazardous
cargo before using this restraint. Hatch-back
or wagon: Do not use the child restraint where
this strap may fall into a split in the seat back.
Always attach hook and remove slack.
FOR CARS FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT
LOCATE THE ANCHORAGE POINT BEHIND THE REAR SEATING POSITION
CONSULT THE CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS.
REMOVE THE THREAD PLUG FROM THE PARCEL SHELF/FLOOR/ROOF AND INSTALL THE ATTACHMENT
BOLT AS SHOWN IN FIGURE 1A & 1B.
UPPER ANCHORAGE FITTINGS
Attachment Bolt
Some vehicles may have an anchor tting already
tted by the vehicle manufacturer.
If no anchorage points can be found refer to
the vehicle manufacturer, or an authorised child
restraint tting station for the best location of an
anchorage point.
Refer to the vehicle owners handbook or child
restraint tting station for the possible use of
spacers.
Some vehicles may require the use of additional
extension straps (not supplied with this child
restraint)
If so ring InfaSecure on (Aust) [phone] for
nearest supply location.
CS111 300mm
CS112 600mm
CS113 200 - 900mm Adjustable
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.
CAUTION: DO NOT OVERTIGHTEN ATTACHMENT
BOLT. MAXIMUM TORQUE IS 20NM.
WARNING
!
3

Attachment Bolt

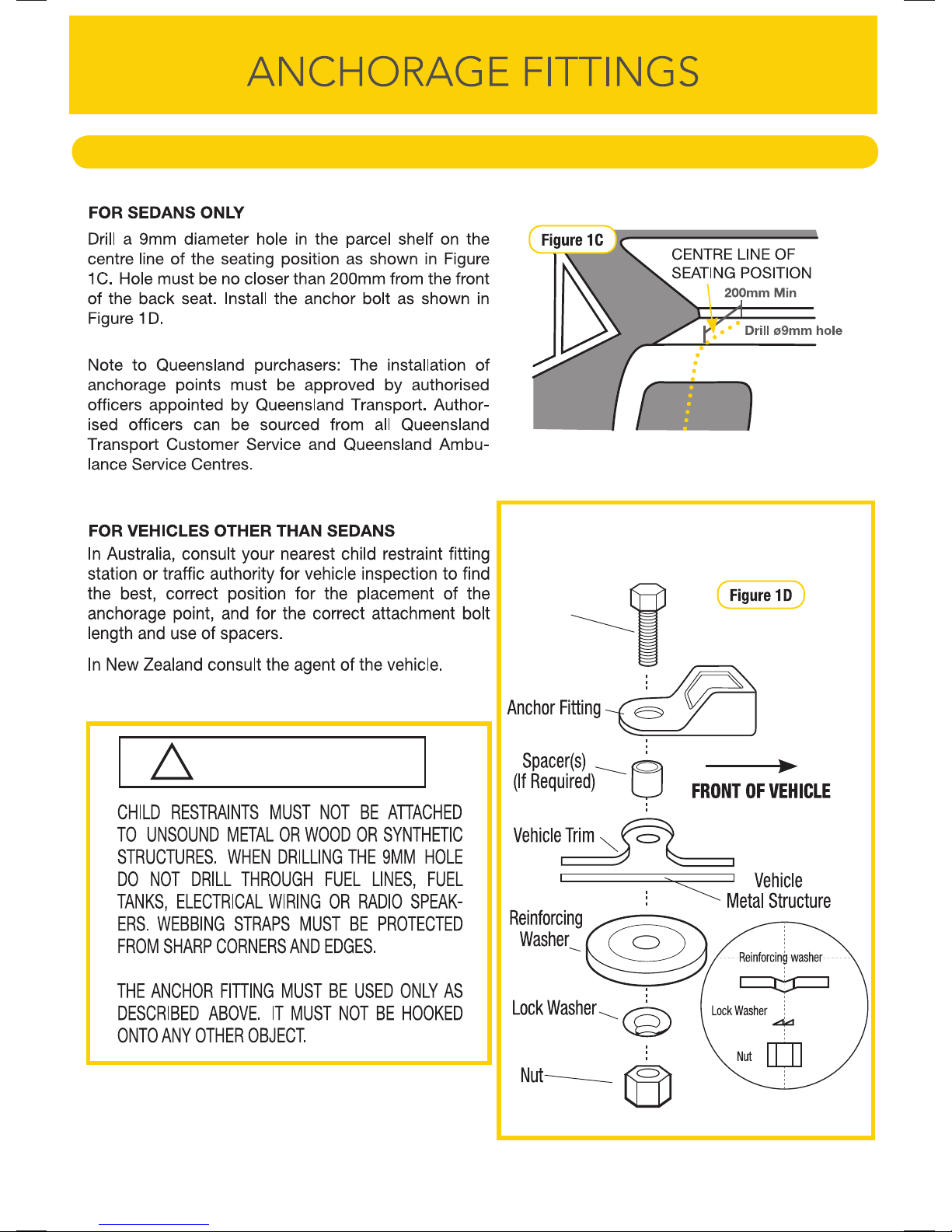

FOR CARS NOT FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT
SIDE VIEW
UPPER ANCHORAGE FITTINGS
FOR SEDANS ONLY
WARNING
!
4

BIRTH
MODE
2 4 6 8 10 12+
REARWARD-FACING
RESTRAINT (TYPE A1)
BIRTH TO APPROX
6 MONTHS
CONVERTIBLE
BOOSTER SEAT (TYPE B/E)
APPROX 6 MONTHS
TO 8 YEARS
FORWARD-FACING
RESTRAINT (TYPE B)
APPROX 6 MONTHS
TO 4 YEARS
BOOSTER SEAT (TYPE E)
FROM APPROX
4 YEARS 8 YEARS
CHILD SAFETY HARNESS (TYPE C)
FROM APPROX
4 TO 7 YEARS
FROM APPROX
7 TO 10 YEARS
SECUREFIT (ACCESSORY)
SAFETY RETAINING DEVICE
FROM APPROX
4 TO 7 YEARS
0 to 6 (months)
Approx 0 to 4 years
FORWARD FACINGFORWARD FACINGFORWARD FACING
BOOSTER SEATBOOSTER SEATBOOSTER SEAT
REARWARD FACING
FORWARD FACING
Approx
0 to 8 years
Approx 6 months to 4 years
Approx 4 to 7 years
(with Booster seat and lap-belt only)
CHILD HARNESS
SHOULD ONLY BE USED
IF A LAP ONLY SEAT
BELT IS AVAILABLE
ONLY USE WITH
INFA SECURE
BOOSTER SEATS
Approx 7 to 10 years
(without Booster seat
and lap-belt only)
Approx 4 to 7 years
(with InfaSecure Booster seat)
*Not applicable for 2004 Standard models

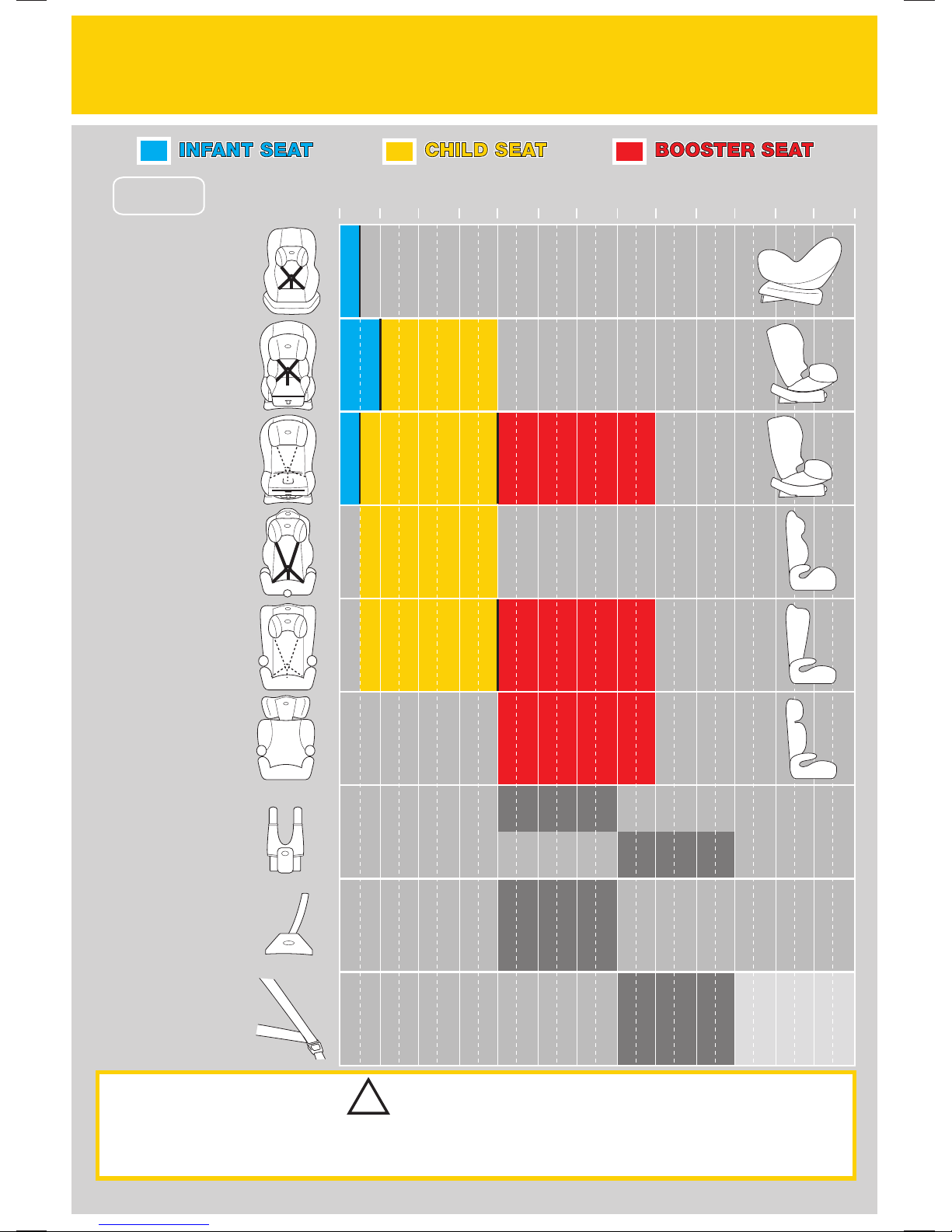

RESTRAINT GUIDE
SEAT BELT
FROM APPROX 7 YEARS
AND OVER
10 +7 +
Approx 6 months
to 8 years
Approx 4 years
to 8 years
Allowable by law More Appropriate
CONVERTIBLE
CAR SEAT
(TYPE A2/B)
BIRTH TO 4 YEARS
ZERO TO 8
CONVERTIBLE
CAR SEAT
(TYPE A1/B/E)
BIRTH TO 8 YEARS
IMPORTANT
!
Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the
risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an
accessory child safety harness should only be used if a lap-only seat belt is all that is available.
REARWARD FACING
REARWARD FACING
5

COMBINATION GUIDE
PADDING/INSERTS
*For detailed description and method of attachment for padded accessories refer to Accessories on page 31.
REARWARD FACING
INFANT SEAT
(Small Infant)
INFANT SEAT
(Large Infant)
CHILD SEAT
(Small Child)
CHILD SEAT
(Large Child)
MODE
DELUXE STANDARD
FORWARD FACING
REARWARD FACING
+
FORWARD FACING
Diagrams are indicative of type of paddings and inserts and may not resemble the actual product.
Padded inserts can vary according to model.
We reserve the right to alter this product without notice.
The Padded Insert/s (if tted) are designed to provide extra
support and comfort for small babies. Discontinue use when the
insert is a tight t or creates discomfort for larger babies/children.
6

Use the restraint exactly as shown in the instructions.
Supervision of children is needed because they may be able to undo buckles.
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
Do not alter or modify this restraint.
Repairs must only be done by the manufacturer or agent.
Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
Destroy the restraint if it has been in a severe crash, even if no damage is visible.
To ensure Baby’s back is evenly supported do not put more than one nappy on the baby and make
sure the nappy is not thickly folded at the back.
DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN FRONT OF
THE SEATING POSITION.
Fit the restraint rmly to the car seat.
Fit the harness rmly to the child.
A loose restraint or harness is dangerous.
THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL
INTO A SPLIT IN THE SEAT BACK. (EG HATCHBACK OR WAGON)
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN
THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS.
REFER TO A CHILD RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE
MOTOR CAR.
INFORMATION & WARNINGS
To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder
height marker (approximately 12 months of age).
Continue to use this infant restraint until the child reaches this limit.
Infants are at risk of serious injury if they face forward too early.
TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE FRONT/BACK OF MOST CARS
WITH FORWARD FACING SEATS.

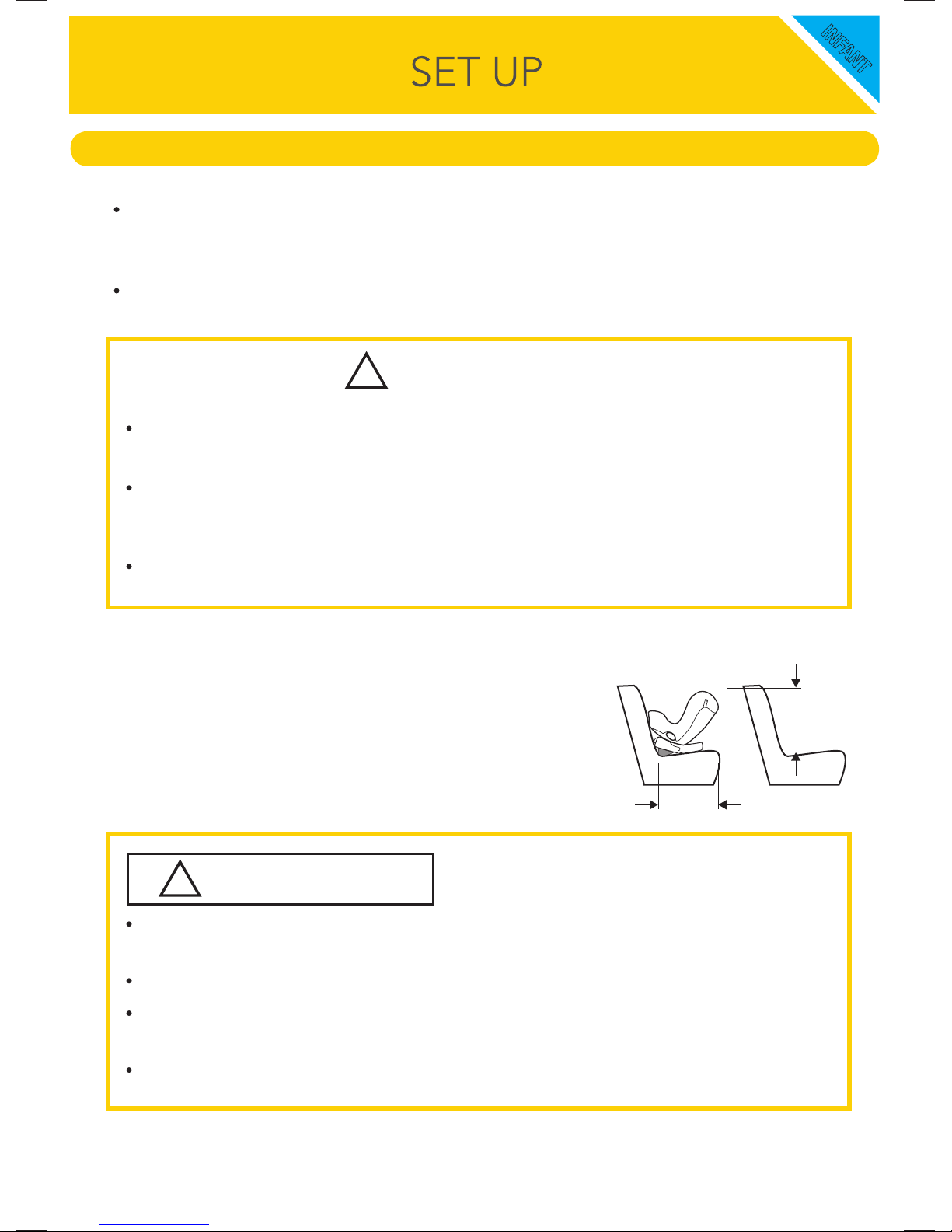

Refer to page 10 for the as-installed dimensions.
NOTE: Check measurements between the front of the seat back of the rear seat and all front seats
in the car in which the child restraint in intended to be used, to ensure that the space is sufficient.
INFANT
WITH INBUILT HARNESS
WARNING
!
(Rearward Facing)
INFANT SEATINFANT SEAT
7

8
CS4010/CS4410
UPPER ANCHORAGE STRAP ADJUSTER
UPPER ANCHORAGE STRAP
ATTACHMENT CLIP
ANCHOR FITTING + ATTACHMENT HARDWARE
SAFE GRIP RED BELT CLAMP (supplied in pocket)
VEHICLE SEAT BELT
“REARWARD-FACING SEAT BELT PATH” MARKER
(EACH SIDE OF RESTRAINT - COLOURED BLUE)
UPPER ANCHORAGE STRAP GUIDE
COMFORT COVER
A - SEAT COVER
SHOULDER HEIGHT MARKER
HARNESS SHOULDER STRAPS
BUCKLE ASSEMBLY
HARNESS ADJUSTER
HARNESS ADJUSTMENT STRAP
PILLOW (if supplied)
PADDED INSERT (if supplied)
NOTE: Padded inserts can vary according to model.
For detailed description and method of attachment
for padded accessories refer to Accessories on page 31.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
2
4
3
6
7
REARWARD FACING
VIEW A
VIEW A

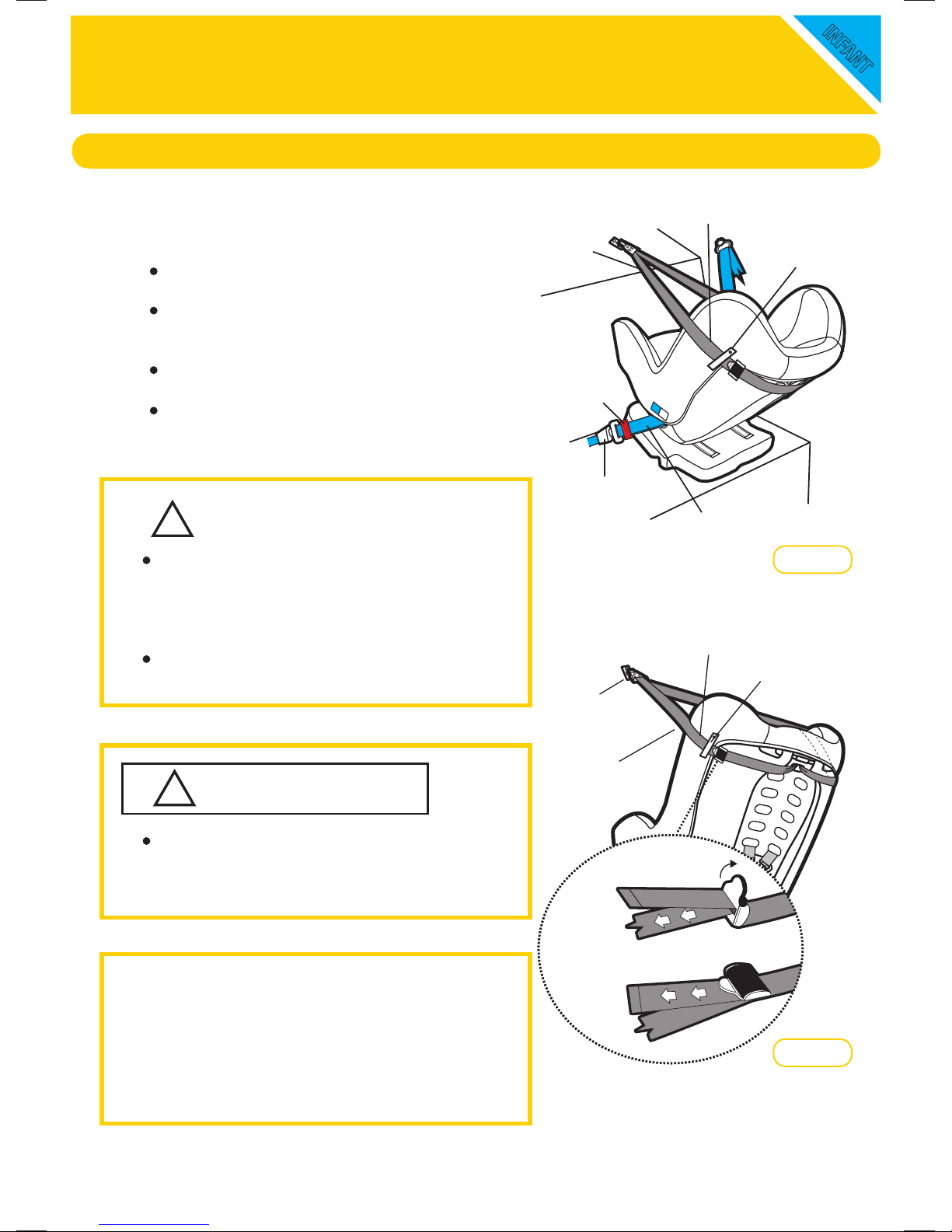

For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring [phone] for nearest supply location. (Refer page 31)
Seat belt extenders should not be used if the seat belt is not long enough to secure the child
restraint.
To achieve the necessary distribution of deceleration force during a vehicle impact, ensure the
infant is seated correctly in the child restraint and the harness is tted and adjusted as per these
instructions. Ensure the child restraint and infant are rearward facing.
Care and attention should be given to ensure that the infant has adequate ventilation and shading
when in the restraint.
IMPORTANT
!
5
9 A
10
11
12
14
13
8
Front
of Car
Shoulder height markers may
be hidden under a pillow in
the lowest position
15
16
1
INFANT
WITH INBUILT HARNESS

INFANT
WITH INBUILT HARNESS
LOWER
LABEL
(Rearward
Facing)
BABY
(Rearward Facing Mode)

(Rearward
Facing)
LOWER
LABEL
SHOULDER HEIGHT MARKER
VIEW A
LOWER LABEL (Rearward Facing)
To be used only in a rearward-facing position for an infant until their shoulders reach the Lower
shoulder height marker (approximately 12 months of age).
Infants are at risk of serious injury if they face forward too early.
If the infants shoulders are below the lower label or if the baby’s neck muscles are unable to
support their head, then the infant should remain rear facing. When the child’s shoulder reach
the lower label, the child restraint may be turned to face towards the front of the car (refer page
19 Child Seat section).
Front
of Car
VIEW A
IMPORTANT
!
Ensure that you continue to use this child restraint in rearward facing positions whilst the
infants shoulders are below this shoulder height marker (Lower label).
INFANT
SEAT
REARWARD
FACING
SHOULDERS BELOW THIS LINE
MUST BE REAR FACING WHEN
Shoulder height markers may be hidden under a pillow in the lowest position
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
Do not turn to forward facing until this child’s shoulder reach the lower label.
9

INFANT
WITH INBUILT HARNESS
GENERAL
If the baby’s neck muscles are unable to support their head, then the infant should remain rear facing.
ONLY USE RESTRAINT IN REARWARD-FACING MODE WITH “RECLINE SECTION” SWUNG
FORWARD AND RESTRAINT FULLY RECLINED.
Do not use the restraint without the upper anchorage strap correctly attached.
DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE
FRONT OF THE SEATING POSITION.
Do not use on any vehicle seat which faces sideways or rearward.
WARNING
!
The CS4010/CS4410 Child restraint has been designed and tested to meet the joint Australian/New
Zealand Standard with an inbuilt anti rebound feature and does not require additional anti rebound
bars or mechanisms to fullll these requirements.
The CS4010/CS4410 Child restraint has also been designed to be a compact restraint to enable
multiple restraints to be used in the rear of most vehicles.
The Purchaser should check the measurement between the
front of the seat back of the rear seat and all front seats in the
car in which the child restraint is intended to be used, to
ensure that the space is sufcient.
Care and attention should be given to ensure that the baby has adequate ventilation and
shading when in the restraint.
To achieve the necessary distribution of deceleration forces during a vehicle impact, ensure the
child is seated correctly in the child restraint and the harness is tted and adjusted as per these
instructions.
Ensure the child restraint and child are rearward facing.
IMPORTANT
!
590mm
570mm
10

INFANT
WITH INBUILT HARNESS
SELECTION OF APPROPRIATE PADDING COMBINATIONS
Determine whether your infant /child requires the additional padding provided with this restraint,
to ensure a safe and snug t in the restraint. Refer to page 6 for suggested padding combinations.
- Refer to the shoulder height labels
(As shown on pages 9).
- For correct shoulder strap slot
height refer to page 12.
IMPORTANT
!
CONVERTING TO INFANT SEAT
At the front of the restraint is a red
lever. Pull red lever forward and recline
the seat base as far as possible.
Ensure the recline section is swung
forward (see Figure 1).
Ensure the In-built harness “Shoulder
straps” are positioned in the lower
slots.
Figure 1
REAR
FRONT
RED
LEVER
RECLINE
SECTION
Front
of Car
To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and
make
sure the nappy is not thickly folded at the back.
WARNING
!
RECLINED POSITION
11

INFANT
WITH INBUILT HARNESS
SET UP
U
CORRECT SHOULDER HEIGHT
The correct height for the shoulder straps is very
important for the optimum performance of the
restraint.
The shoulder slots used in rearward facing position are below the lower shoulder height marker.
With the child correctly sitting in the restraint, check which set of slots (In the plastic shell of the
restraint) are level with or just above the infant’s shoulders.
If the harness straps are located in those slots, then the you can proceed with using the restraint
(see section “USE” on page 17). If not then adjust the shoulder straps. Refer to “Shoulder slot
height”.
Figure 1
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
lower than the child’s shoulders.
Front of vehicle
CONVERTING TO INFANT SEAT
Figure 2
Adjuster
location
Adjuster
Figure 3
Upper Anchorage
Strap
Upper Anchorage
Strap Guide
Step 1:
Step 2:
Upper Anchorage
Strap
The location of the Upper Anchorage
Straps ‘Adjuster’ is adjustable for ease
of installation and ease of use.
Pull adjuster and strap to extend the location of the
adjuster assembly (see Figure 2).
Continue to extend until the adjuster has reached
the desired location at the side of the restraint (see
Figure 3).
Step 3: Locate the adjuster at the side of the restraint and
secure using the Upper Anchorage Strap Guide.
EASE OF USE: It is recommended to position
the adjuster at the side of the restraint which is
towards the access door (rear passenger side).
ADJUSTER ASSEMBLY LOCATION
Rearward Facing (Type A)
12

INFANT
WITH INBUILT HARNESS
INSTALLATION
SHOULDER SLOT HEIGHT
Turn the restraint so that the back of the seat is facing you.
Remove each shoulder harness through the gates in
the spreader plate (see Figure 1 & 4).
Pull the shoulder harness straps through the
shoulder slot holes in the seat body and cover. They
are now loose in the front of the seat.
Push the ends of the shoulder harness straps
through the appropriate shoulder slot holes in the
cover and seat body for the child’s shoulder height.
The shoulder harness straps go directly from the
shoulder slot holes to the spreader plate. Thread
each shoulder harness strap back onto the metal
spreader plate through the gate (see Figure 4).
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Figure 1
Figure 2
Figure 3Figure 4
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
lower than the childs shoulders.
HARNESS
STRAPS
HARNESS
STRAPS
METAL
SPREADER
PLATE
METAL
SPREADER
PLATE
GATES
METAL
SPREADER
PLATE
GATES
PULL
13

INFANT
WITH INBUILT HARNESS
INSTALLATION

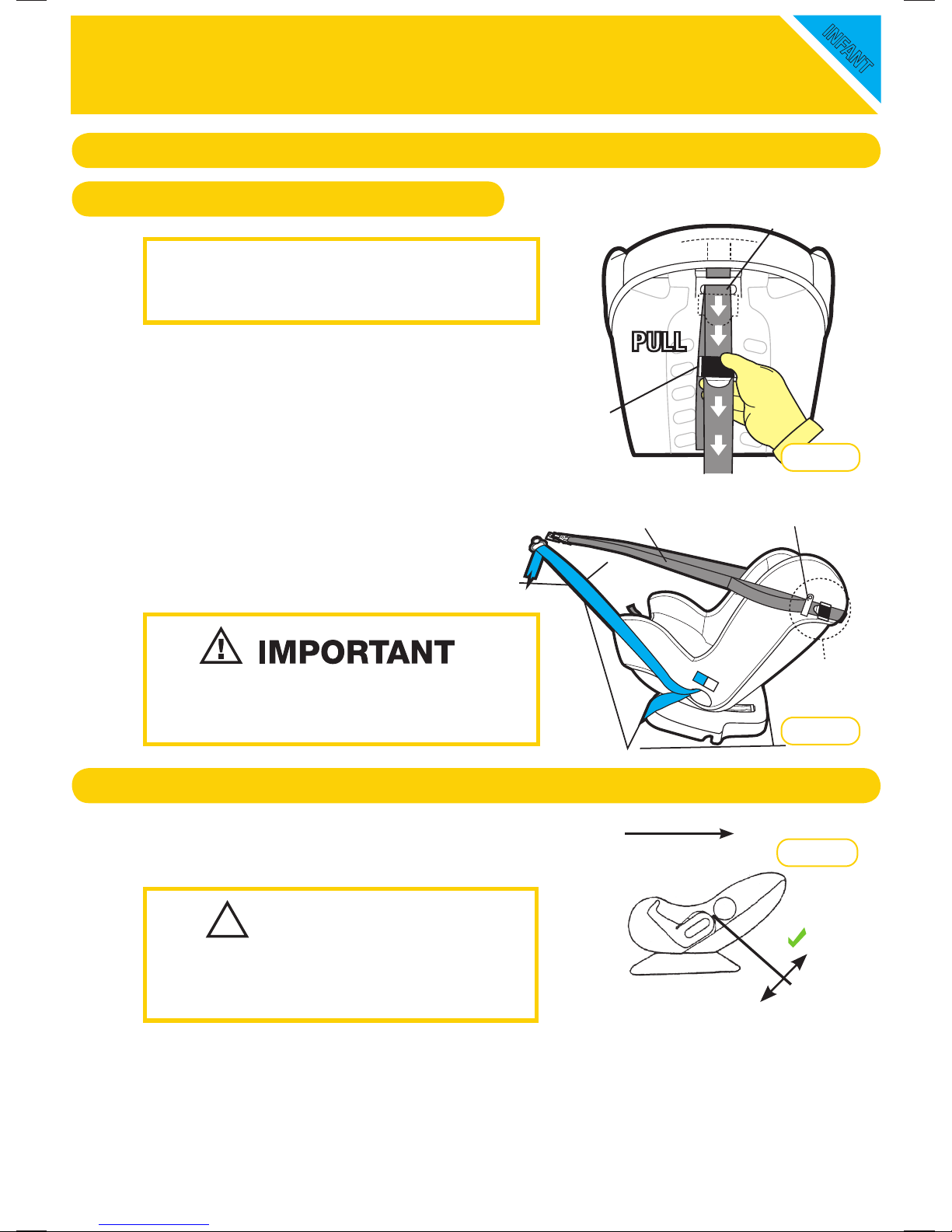

Place the child restraint on the vehicle seat. Ensure
recline section is swung forward and the restraint is
fully reclined with the restraint directly in line with
anchorage point.
Make sure upper anchorage strap is as in illustration
(Figures 1 and 2) i.e. positioned around restraint
back.
Feed adult lap or lap/sash belt through the belt path
opening, ensure the seat belt is under the cover &
between the layer of foam and the plastic seat base.
Engage the buckle and tongue assembly (listen for a
“CLICK”). Check the buckle engagement with a
gentle pull.
Step 1:
Step 2:
Step 3:
INSTALLING IN VEHICLE
DO NOT USE REAR FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN
FRONT OF THE SEATING POSITION.
Fit the restraint rmly to the car seat.
THIS TETHER STRAP MUST ALWAYS BE FITTED WHEN THE CHILD RESTRAINT IS
USED IN A VEHICLE.
Figure 2
WARNING
!
Buckle & Tongue
Assembly
Figure 1
Upper
Anchorage
Strap
Safe Grip
(red belt clamp)
Adjuster
Lap Belt
& Sash Belt
Front
of Car
Recline Section
Recline Section (Swung Forward)
& child restraint fully reclined.
Lap Belt &
Sash Belt Passes
Through Here
IMPORTANT
!
Ensure that you use the REARWARD-FACING
BELT PATH indicators, marked in “blue”.
14

INFANT
WITH INBUILT HARNESS
INSTALLATION
INSTALLING IN VEHICLE
Push down on the base of the restraint (with knee or
hand) whilst pulling the sash section of the vehicle
belt rmly up in direction of the blue arrow in Figure 4.
(This will tighten the lap belt across the seat base).
Whilst continuing to pull the sash section up, attach
the Safe Grip red belt clamp on the sash section
ONLY, as close as possible above the buckle tongue
assembly. (Refer to Figure 5 and Instruction for
installing the Safe Grip red clamp below)
Ensure the excess slack in the sash belt, is fed back
towards the seat belt.
Step 4:
Step 5:
Pass lap
and sash belt
through the seat.
Note: Ensure the
belts are under
foam padding.
Buckle & Tongue
Assembly
Lap Belt
& Sash Belt
“CLICK”
PULL
PRESS
SAFE GRIP BELT CLAMP
The Safe Grip (red belt clamp) locks the lap
belt to ensure a rm installation, and avoids
slack in the lap belt.
To install the Safe Grip (red belt clamp), open it
and clamp the “sash section” ONLY of the vehicle
seat belt by closing the barrel section of the red
belt clamp in the direction of arrow 1 in Figure 5
and then locking with the toggle section by
pushing in the direction of arrow 2 in Figure 5
when the Safe Grip (red belt clamp) is secured in
place, the lap section is now tightly holding your
child restraint in place, independent of the sash
section. The Safe Grip (red belt clamp) must be
removed when the child restraint is not installed
to allow other users to use the seat belt as a
lap/sash seat belt. Always keep the Safe Grip
(red belt clamp) in pocket provided when not in use.
Figure 3
Figure 4
TOGGLE
SECTION (2)
LAP SECTION
BARREL SECTION (1)
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)
Figure 5
15

INFANT
WITH INBUILT HARNESS
INSTALLATION
INSTALLING IN VEHICLE
IMPORTANT
!
The purchaser should check the
measurements between the front of the seat
back of the rear seat and all front seats in the
car in which the child restraint is intended to be
used, to ensure that the space is sufcient.
Care and attention should be given to
sufcient ventilation and shading of the baby.
FOLLOWING THE INSTALLATION OF THE
CHILD RESTRAINT A SMALL AMOUNT OF
MOVEMENT IS DEEMED ACCEPTABLE.
Recline Section must always be used in the
rearward facing mode (infant position) as
shown in Figure 2 (page 14).
Buckle & Tongue
Assembly
Upper
Anchorage
Strap Guide
Upper
Anchorage
Strap Guide
Upper
Anchorage
Strap
Safe Grip
(red belt clamp)
Lap Belt
& Sash Belt
Connect upper anchorage strap to anchorage tting
and adjust rmly.
Tighten till slack is removed.
In certain vehicles an extension strap may be
needed.
Do not overtighten upper anchorage strap.
Ensure upper anchorage strap is passed through
the Upper Anchorage Strap Guide.
Step 6:
Figure 6
Upper
Anchorage Strap
Anchorage
Point
Adjuster
Figure 7
WARNING
!
Adjuster
NOTE
Tilt
Pull to
Lengthen
Pull to
Tighten
16

INFANT
WITH INBUILT HARNESS
USE
USING INBUILT HARNESS
Ensure the restraint has been installed & setup as per
“SET UP” & “INSTALLATION” (refer page 10 & 12).
Lengthen the harness in excess of what is needed
before placing the baby in the car seat. To lengthen
the harness, push the harness adjuster (G) that is
located at the front of the seat (see Figure 2) whilst
grasping both shoulder harness straps and pulling
out till lengthened to the desired amount. Ensure
shoulder straps are pulled equally on each side.
Place baby/child in car seat with legs either side of
the crotch strap, place harness over the shoulders
and hips and engage the two buckle tongues (CLICK)
into buckle. CHECK IT IS PROPERLY ENGAGED.
Ensure child is placed centrally in the seat.
Pull harness adjuster strap (H) to take the slack out of
the harness until it is a rm but comfortable t (refer
Figure 3)
NOTE: If upper anchorage strap has been loosened
to allow easier placing of the baby in the restraint,
tighten the upper anchorage strap so it has no slack
in it. DO NOT TIGHTEN EXCESSIVELY.
Step 1:
Step 2:
Step 3:
Step 4:
(G) Harness
Adjuster
(Under cover)
(H) Harness
Adjuster Strap
Upper Anchorage
Strap
Figure 1
Figure 3
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
Fit the restraint rmly to the car seat.
Fit the harness rmly to the child.
A loose restraint or harness is dangerous
To ensure baby’s back is evenly supported, do not put more than one nappy on the baby and
make sure the nappy is not thickly folded at the back.
WARNING
!
WARNING
!
PULL TO
TIGHTEN(H)
Figure 2
PULL TO
LENGTHEN
PULL TO
LENGTHEN
PRESS(G)
IMPORTANT
!
A LOOSE HARNESS IS DANGEROUS.
The Padded Insert/s (if tted) are designed to provide extra support and comfort for small babies.
Discontinue use when the insert is a tight t or creates discomfort for larger babies/children.
17

INFANT
WITH INBUILT HARNESS
USE
TO RELEASE INFANT
FOR EASE OF USE
To release your child from the restraint simply press
the harness buckle and carefully remove your child
from the seat (refer Figure 1).
No need to disconnect the Upper Anchorage
Strap.
To access your baby simply;
- Loosen upper anchorage strap
(refer Figure 2).
- Lower strap out of way
(refer Figure 3).
Reverse procedure when reseating the baby.
NOTE: If upper anchorage strap has been loosened to
allow easier placing of the baby in the restraint,
tighten the upper anchorage strap so it has no slack
in it. DO NOT TIGHTEN EXCESSIVELY.
Always use the Upper Anchorage Strap
and Attachment Clip attached to the
Anchor Fitting.
Always ensure the upper anchorage strap
is positioned correctly.
Always adjust to remove the slack from
the upper Anchorage Strap.
Always use Upper Anchorage Strap Guide
Fit the restraint rmly to the car seat.
WARNING
!
Upper Anchorage
Strap
LOWER OUT OF WAY
Upper Anchorage
Strap
Upper Anchorage
Strap Guide
Figure 1
Figure 2
Figure 3
18

To be used in a forward-facing position by children whose shoulders are above the lower shoulder
height marker (approximately 6 months of age) until their shoulders reach the upper shoulder
height marker (approximately 4 years of age).
TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE FRONT/BACK OF MOST CARS
WITH FORWARD FACING SEATS.
Continue to use this child restraint until the child reaches this limit.
Do not use until child’s shoulders are above the lower shoulder height marker.
Infants are at risk of serious injury if they face forward too early.
Children are at risk of serious injury if they move to a booster seat too early.
Children that have outgrown this restraint are safest in a booster seat until their shoulders reach
the upper shoulder height marker of the booster seat.
INFORMATION & WARNINGS
Use the restraint exactly as shown in the instructions.
Supervision of children is needed because they may be able to undo buckles.
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
Do not alter or modify this restraint.
Repairs must only be done by the manufacturer or agent.
Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
Destroy the restraint if it has been in a severe crash, even if no damage is visible.
Fit the restraint rmly to the car seat.
Fit the harness rmly to the child.
A loose restraint or harness is dangerous.
THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL
INTO A SPLIT IN THE SEAT BACK. (EG HATCHBACK OR WAGON)
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN
THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS.
REFER TO A CHILD RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE
MOTOR CAR.
WARNING
!
CHILD
WITH INBUILT HARNESS
(Forward Facing)
CHILD SEATCHILD SEAT
19
