infa-secure II Series User manual

48
TO
YEARS YEARS
Instruction Manual
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED
ON THE CHILD RESTRAINT
*All references to age are approximates only and reference to children of average proportions.
Children vary in shapes and sizes. The photo displayed is indicative of the type of restraint and may
vary slightly depending on the model.
Booster Seat
FORWARD FACING CHILD CAR SEAT
MODELS: CS5413 SERIES II
FORWARD FACING
(Forward Facing) Suitable for children from approximately 4 years to 8 years* of age.
LIFETIME
WARRANTY
SEE INSIDE FOR MORE DETAILS

Contents
Information
Warnings
Restraint Guide
Information
Shoulder Height Marker
CS5413 Child Restraints (Itemised list)
Next Restraint
Set Up
- Adjusting Headrest
Installation
- Installation in Vehicle
Use
- Using Lap-sash Seatbelt
- To Release Child
Care of Restraint
- Care and Maintenance
- Cleaning
Extension Straps
Accessories
Anchorage Fittings
Insurers Information
Lifetime Warranty
1
2
3
5
6
7
9
10
11
11
13
16
17
18
18
19
20
22
26
Booster Seat
Contents
Please read carefully the whole of the instructions for installation and, in the event
of doubt about the method of installation, to consult InfaSecure or agent, or a child
restraint tter, or in New Zealand, to consult the agent for the vehicle.
1

Information
This instruction manual covers various models under the Model number CS5413 SERIES II.
This Booster Seat is designed to be used by children from approximately 4 years of age up
to approximately 8 years of age. This booster seat is installed in the rear of the car,
forward-facing using the vehicle seatbelts & top tether strap.
Air Cocoon Technology™ - A Protective Embrace
Air Cocoon Technology™ (A.C.T.) enhances protection by
dramatically reducing the impact forces during a crash. A.C.T.
utilises a layer of air held inside the entirety of the child restraint
shell, offering an increased level of protection across the entire
surface area of the restraint. Your child is quite literally cradled in
a cocoon of air, offering a true 180 degrees of protection to your
child's vital organs.
Air Cocoon Technology™ integrated child restraints start their
life as an actual pillow of air. This pillow is moulded into a child
restraint, retaining the pillow-like construction while adding
incredible strength and structural integrity. This manufacturing
process is called blow-moulding.
Air Cocoon Technology™ (A.C.T.) is an all encompassing protective
‘cocoon’ around your child.
Child Restraints
No child restraint can guarantee absolute protection from injury
in every crash. However, to ensure that your child gets all the
protection designed into the restraint please read and follow the
instructions exactly and use only InfaSecure recommended
parts and accessories.
Family Bussiness
InfaSecure is an Australian owned and operated family business,
which can trace it's roots back over 60 years, becoming the
single largest Australian owned and operated child restraint
company in the country. Today, we are still growing, continuing
to innovate and provide high quality products at an affordable
price.
AUSTRALIAN
DESIGNED &
FAMILY OWNED
2

Warnings
• Use the restraint exactly as shown in the instructions.
• Supervision of children is needed because they may be able to undo buckles.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other
chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• Always secure the loose end of the top tether strap. Do not use the child restraint where
this strap may fall into a split in the seat back or off the side of the seat.
• ALWAYS ATTACH HOOK AND REMOVE SLACK.
• DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash belt.
• The lap part of the seat belt must be firmly across the thighs and the sash belt fitted
diagonally across the chest and on the shoulder.
WARNINGS
!
3

Warnings
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY
FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE
POINT IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF
ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO
ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• Always secure the loose end of the top tether strap to prevent it hanging out of the car or
being accessible by the child.
• Do not use the child restraint where this strap may fall into a split into the seat back or off
the side of the seat.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
WARNINGS
!
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
WARNING
!
4

Restraint Guide
BIRTH
MODE
24 67810
FORWARD-FACING
RESTRAINT (TYPE B)
APPROX 6 MONTHS
TO 4 YEARS
12+
REARWARD-FACING
RESTRAINT (TYPE A1)
BIRTH TO APPROX
6 MONTHS
CONVERTIBLE
BOOSTER SEAT (TYPE B/E)
APPROX 6 MONTHS
TO 8 YEARS
BOOSTER SEAT (TYPE E)
FROM APPROX
4 YEARS TO 8 YEARS
FORWARD FACING FORWARD FACINGFORWARD FACING
BOOSTER SEATBOOSTER SEATBOOSTER SEAT
LARGER
BOOSTER SEAT
REARWARD FACING
FORWARD FACING
SEAT BELT
FROM APPROX 7 YEARS
AND OVER
FORWARD-FACING
RESTRAINT (TYPE G)
APPROX 6 MONTHS
TO 8 YEARS
FORWARD FACING
BOOSTER SEAT (TYPE F)
FROM APPROX
4 YEARS TO 10 YEARS
BOOSTER SEAT
CONVERTIBLE
CAR SEAT
(TYPE A2/B)
BIRTH TO 4 YEARS
ZERO TO 8
CONVERTIBLE
CAR SEAT
(TYPE A1/B/E)
BIRTH TO 8 YEARS
IMPORTANT: Research has shown that the likelihood of an accessory child safety harness being used incorrectly
is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure
recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available.
REARWARD FACING
REARWARD FACING
7 + 10 +
More Appropriate
Approx 4 years
to 8 years
Approx 4 years
to 10 years
Approx 0
to 4 years
Approx 6 months
to 4 years
Approx
0 to 8 years
0 to 6 (months)
Approx 6 months
to 8 years
Approx 6 months
to 8 years
REQUIRED BY LAW
REARWARD FACING
FORWARD FACING
CONVERTIBLE
CAR SEAT
(TYPE A4/B)
BIRTH TO 4 YEARS
Approx 0
to 4 years
Allowable by law
Infant
Seat Child Seat Booster Seat Seat Belt

THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN
TYPE E
To be used with a lap-sash seatbelt by a child whose shoulders are above the lower
shoulder height marker (approximately 4 years of age) until the child’s shoulders reach
the upper shoulder height marker (approximately 6 to 8 years of age).
Continue to use this booster seat until the child reaches this limit. Children are safest in a
booster seat until their shoulders reach the upper shoulder height marker of the booster
seat.
Do not use this booster seat until child’s shoulders are above the lower shoulder height
marker.
If the knees do not bend in front of the vehicle seat cushion continue to use a booster seat.
Just using a seatbelt is not recommended for children that have outgrown this seat. Use a
larger booster seat.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A
LAP-SASH SEATBELT. THIS BOOSTER SEAT IS NOT SUITABLE FOR USE WITH A CHILD
HARNESS.
The use of child restraints in the front seat may be restricted for children of specic ages by
local legislation. Please check with your local Department of Transport for the specic
seating locations of children using child restraints for their given ages.
• For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring [phone] for nearest supply location.
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to
secure the child restraint. If seatbelts are too short then advice should be sought from a
child restraint tter and their recommendation be considered before using a seatbelt
extender.
IMPORTANT
!
This child restraint is not approved for use with any connectors that connect to the low
anchorages.
IMPORTANT
!
Booster Seat (Forward Facing)
Booster Car Seat
6

Smaller Child from
approximately 4 years of age
LOWER
LABEL
Do not use this booster seat if the child’s shoulders are below the lower shoulder height marker,
(Lower label)
Front
of Car
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
IMPORTANT
!
If moving a child from forward facing child restraint with an inbuilt harness, the child’s shoulders
will need to be inline or above the lower label with the headrest in the lowest position. If the
child’s shoulders are below the lower label with the headrest in the lowest position the child
should continue to use the forward facing child restraint with an inbuilt harness
Smaller Child
Shoulder Height Markers
Booster Car Seat

LOWER
LABEL

HEADREST AT HIGHEST POSITION
SHOULDERS BELOW THIS LINE WHEN
HEADREST AT LOWEST POSITION
SHOULDERS ABOVE THIS LINE WHEN
7


Continue to use this booster seat until the child’s shoulders reach the upper shoulder height
marker, (Upper Label).
If the child’s shoulders reach the shoulder height markers, the child should move to the next type
of restraint.
UPPER
LABEL
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
Taller Child up to
approximated 8 years of age
Front
of Car
HEADREST AT HIGHEST POSITION
SHOULDERS BELOW THIS LINE WHEN
HEADREST AT LOWEST POSITION
SHOULDERS ABOVE THIS LINE WHEN
Shoulder Height Markers
Booster Car Seat
Taller Child
UPPER
LABEL



8

Model CS5413
1. Adjustable Headrest
2. Shoulder Height Markers
3. SAFE GRIP Red Belt Clamp (if supplied)
4. Vehicle Seat Belt
5. “BOOSTER SEAT BELT PATH” Marker
(each side of restraint - coloured red)
6. Comfort Cover
• Headrest
• Backrest
• Seat Base
7. Top Tether Assembly
• Tether Strap
• Adjuster
• Attachment Clip
• Anchor Fitting + Attachment Hardware
Booster Car Seat
7
1
2
3
4
5
6
5
9

Next Restraint
Booster Car Seat

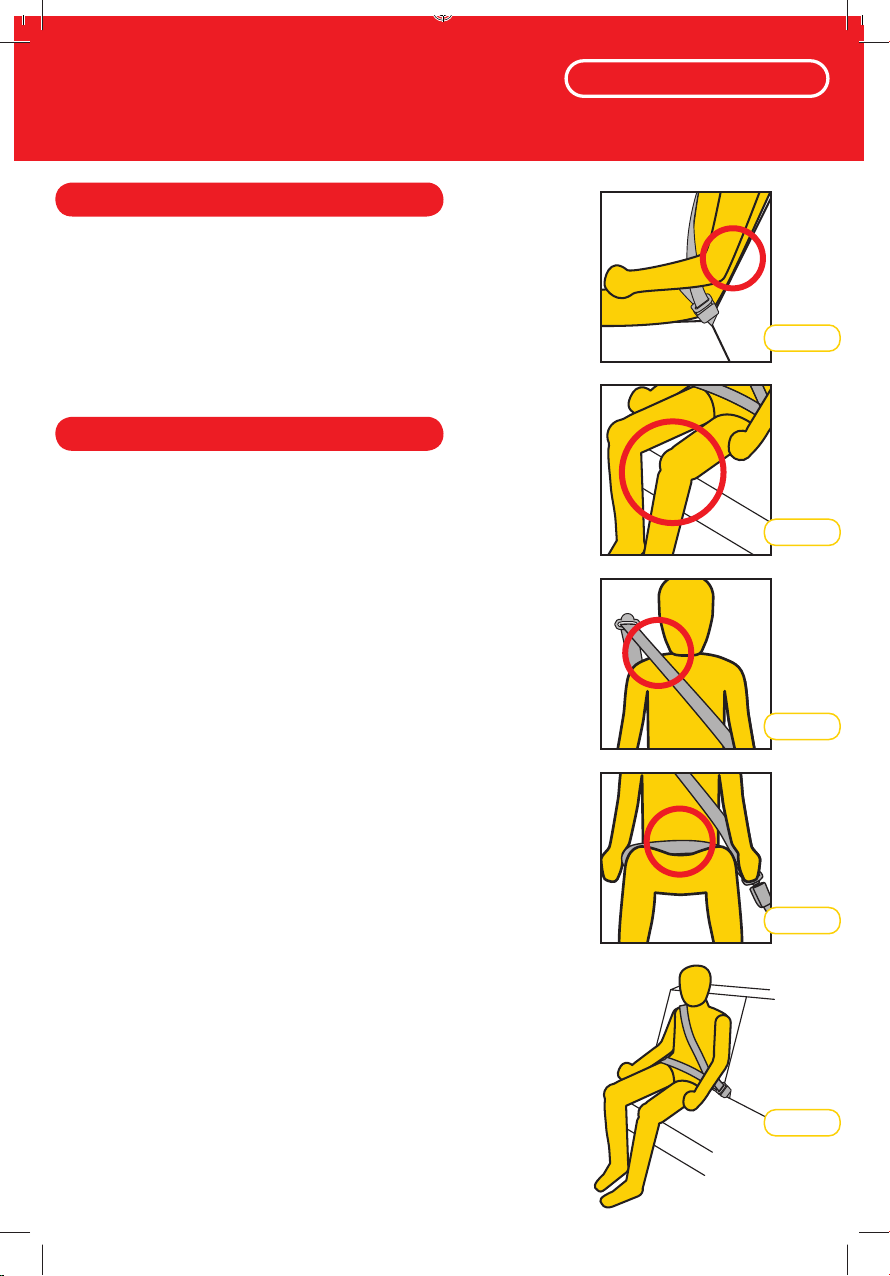

Can the child sit with their back against the vehicle
seat back? (refer Figure 1).
Do the child's knees bend in front of the edge of
the seat? (refer Figure 2).
Does the sash (shoulder) belt sit across the middle
of the shoulder, not on the neck or out near the
arm? (refer Figure 3).
Is the lap belt sitting low across the hips touching
the thighs? (refer Figure 4).
Can the child stay seated like this for the whole
trip? (refer Figure 5).
Five Step Test
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Refer to the ‘RESTRAINT GUIDE’ for the selection
for the most appropriate next restraint (refer Page
5). When the child has outgrown the booster seat,
then you can use either of
the following;
• Vehicle Seat Belt – check the “Five Step Test”
for suitability.
Next Type of Restraint
Figure 4
Figure 3
Figure 2
Figure 1
Figure 5
10

Set Up
Adjusting the Headrest
The headrest can be adjusted to different heights,
to best suit your child’s shoulder height. This can
be done with the child in the seat.
Grab the headrest, push or pull to move the headrest
either up or down.
Adjust the headrest height so that the bottom of the
sash guide is located level with or just above the
child’s shoulder.
WARNING
!
DO NOT USE WITH JUST A LAP BELT.
You must use a lap-sash seat belt.
Booster Car Seat
Installation
Installing in Vehicle
Figure 9Figure 2
Figure 9Figure 1
Place the child restraint in the car, in a forward
facing seating position (Refer the Figure 1).
Install the upper anchorage tting as shown
on page 20 & 21 of these instructions.
Hook the attachment clip to the anchor tting.
Ensure there are no twists in the upper
anchorage strap (Refer to Figure 2).
Step 1:
Step 2:
Step 3:
Step 1:
Step 2:
IMPORTANT
!
For comfort ensure the bottom edges of the
headrest are not contacting the child’s shoulders.
11

Installation
Booster Car Seat
ADJUSTER
ATTACH PULL TO
TIGHTEN
Tilt
Pull to
Lengthen
Pull to Tighten
Figure 9Figure 3
Figure 9Figure 4
WARNING
!
DO NOT USE WITH JUST A LAP BELT.
You must use a lap-sash seat belt.
Installing in Vehicle
CAUTION: CHILDREN CAN BE
INJURED OR RESTRAINTS AND
TOP TETHER STRAP DAMAGED
BY UNSECURED CARGO IN A
COLLISION. SECURE OR
REMOVE HAZARDOUS CARGO
BEFORE USING THIS CHILD
RESTRAINT.
Always secure the loose end of the top
tether strap to prevent it hanging out of
the car or being accessible by the child.
IMPORTANT
!
• Tighten till slack is removed.
• In certain vehicles an extension strap
may be needed.
• Do not overtighten Top Tether strap.
• Ensure Top Tether strap is passed
through the Top Tether Strap Guide.
•
Storage
Pocket
Pull to tighten and remove all the slack, from the
top tether strap (refer to Figure 3).
Do not overtighten as this could cause the
restraint to lift off the vehicle seat.
Roll up the excess webbing from top tether
strap and store in the pocket provided (refer
Figure 4).
Step 4:
Step 5:
Tether Storage
After correctly installing the restraint in your car,
roll up and place any excess tether strap in the
storage pocket provided (refer Figure 4).
12

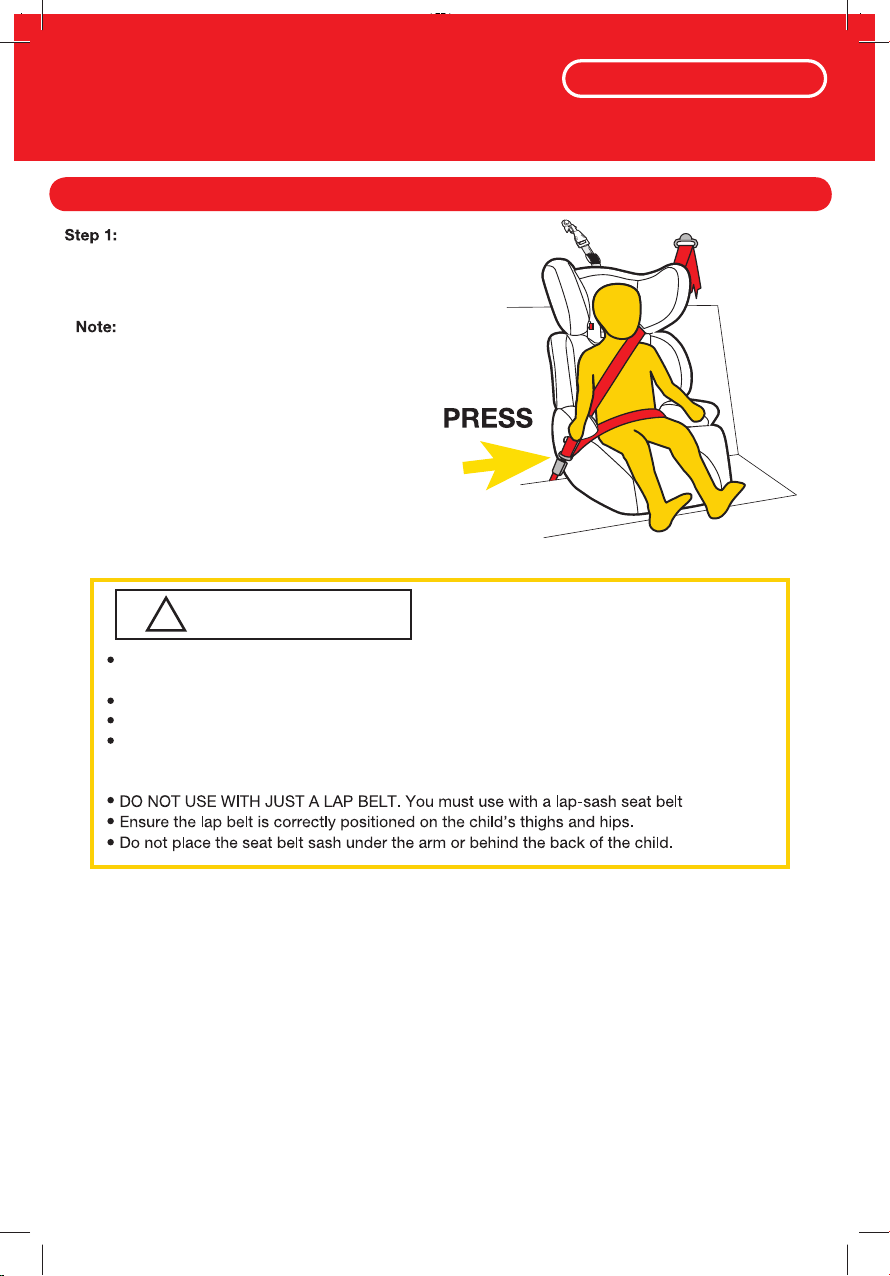

Position the lap section of the vehicle seat across the
child’s lap then insert the buckle tongue in to the belt
buckle until you hear “CLICK”. Ensuring the lap
portion is positioned under the armrests and over the
child’s thighs (refer Figure 3).
Refer to shoulder height marker (As shown on
pages 5 and 6).
IMPORTANT
!
The red “Booster Seat belt Path” labels are located
each side of the Booster seat and on the head rest.
Use
Using lap-sash seat belt
Booster Car Seat
IMPORTANT
!
Ensure that you use the
BOOSTER
SEATBELT
PATH
identied by the following label.
BOOSTER BELT PATH
Figure 1
Figure 2
Figure 3
Sit your child in the restraint with their back against
the backrest adjust the headrest as described in setup
to best suit your child (refer Figure 2).
Ensure the restraint has been installed as per
“INSTALLING IN VEHICLE” (refer Figure 1)
Check the position of the headrest and adjust
if needed (refer Page 9).
Thread the sash belt through the sash guide on
the bottom of the headrest.
“CLICK”
13

Figure 5

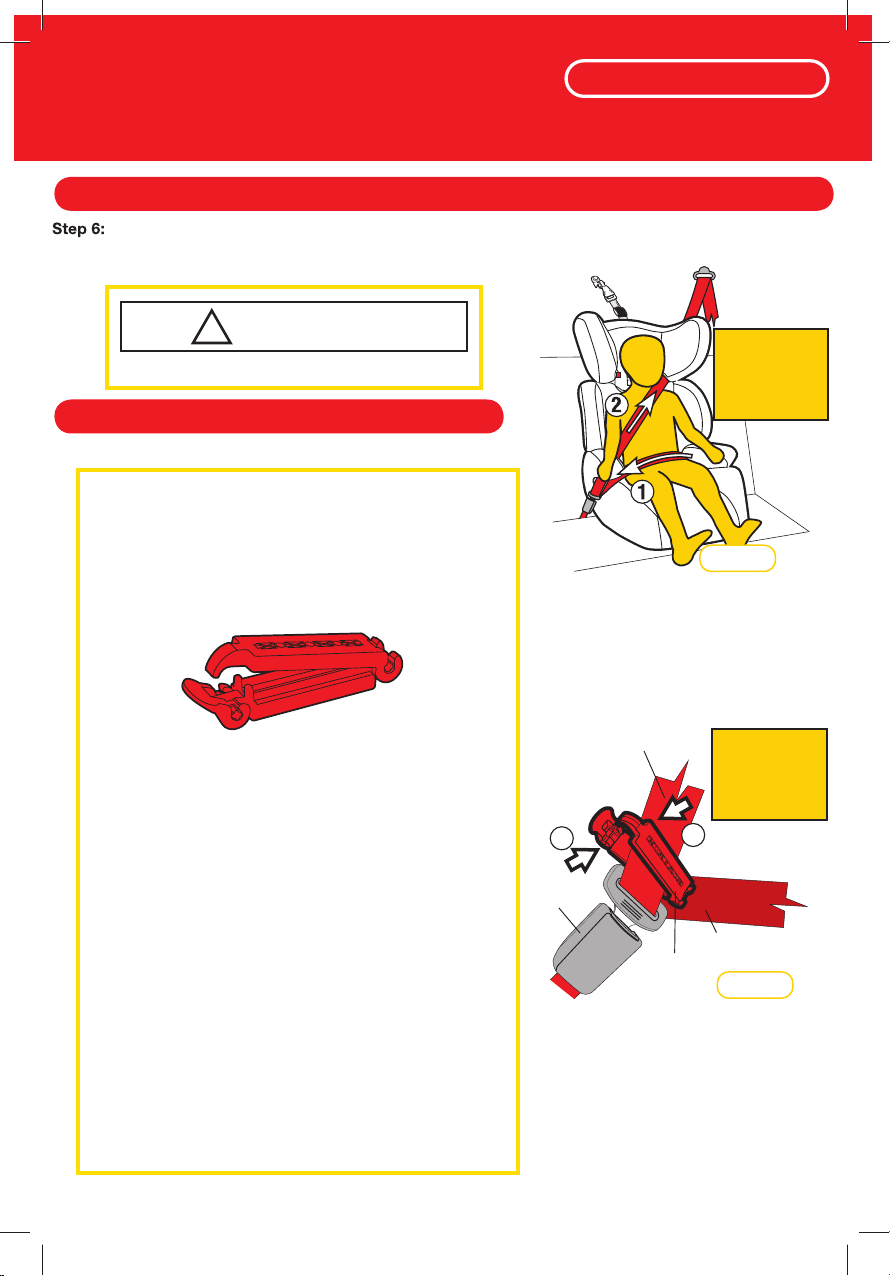

SAFE GRIP BELT CLAMP
It is important that the lap belt must be firmly across
the thighs. The Safe Grip locks the lap belt to
ensure a rm t across the thighs, and avoids slack in
the lap belt. This t ensures that the lap belt does not
ride up into the soft abdominal region of the child,
which may cause internal injury.
To install the Safe Grip (red belt clamp);
Continue from Step 6: while holding the belts tight
open the Safe Grip and clamp the “sash section” of
the vehicle seat belt by closing the barrel section of
the red belt clamp in the direction of arrow 3 (refer
Figure 6) and then locking with the toggle section
by pushing in the direction of arrow 4 (refer Figure
6) Note: Positioned as close as possible to the
buckle and tongue. When the Safe Grip (red belt
clamp) is secured in place, the lap section is now
tightly holding your child in place, independent of
the sash section.
The Safe Grip (red belt clamp) can be left located
on the sash belt when the child is removed from the
booster. It is then ready for the next use. Reposi-
tioning of the Safe Grip (red belt clamp) may be
required as the child grows. The Safe Grip (red belt
clamp) must be removed when the child restraint is
not installed to allow other users to use the seat
belt as a lap/sash seat belt. Always keep the Safe
Grip (red belt clamp) in pocket provided when not in use.
Use
Using lap-sash seat belt
Safe Grip (if supplied)
Booster Car Seat
LAP SECTION
SAFE GRIP (B)
(red belt clamp)
SASH SECTION
BUCKLE (A)
(AND TONGUE)
3
BARREL
SECTION
4
TOGGLE
SECTION
ATTACH TO
SASH SECTION
ONLY
Figure 6
Pull the lap belt tight by rst pulling on the lap belt in
the direction of arrow 1 (refer Figure 4). Pull the sash
belt tight in the direction of arrow 2.
REMOVE ALL
SLACK FROM
SEATBELT
WARNING
!
• ALWAYS USE THE SASH GUIDE
*Can be purchased separately visit http://store.infasecure.com.au/
NOTE: Do not place the Safe Grip (red
belt clamp) around both the lap and
sash sections of the belt. This could
cause the Safe Grip (red belt clamp) to
break.
14

Safety Warning
A SASH BELT UNDER THE ARM OR BEHIND THE BACK
IS DANGEROUS
WARNING
!
WARNING
!
OR
Check the position of the headrest and adjust
if needed (refer Page 9).
Thread the sash belt through the sash guide on
the bottom of the headrest.
Use
Using lap-sash seat belt
Booster Car Seat
• DO NOT LEAVE CHILDREN UNATTENDED
IN THE CAR
• ALWAYS USE THE SASH GUIDE
Sash Guide
Figure 5
15

Use
Booster Car Seat
To release your child from the restraint simply
press the belt buckle and carefully remove your
child from the seat. It is not necessary to release
the red belt clamp, to remove your child
When the restraint is not in use, the seat belt
should be fastened around it and engaged.
Always use lap-sash seat belt and upper anchorage strap to attach the child restraint to
the vehicle.
Do not use the restraint without the upper anchorage strap correctly attached and adjusted.
Do not use on any vehicle seat which faces sideways or rearwards.
IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
WARNING
!
To release child
16

Care of Restraint
Only replace the cover with a InfaSecure supplied replacement cover
with identical shoulder height markers or a replacement cover
meeting AS/NZS 8005.
VERY IMPORTANT
The child restraint cover has been manufactured to meet the Australian Standards require-
ments for ammability and toxicity to ensure your child's safety. The cover has also been
designed to provide your child with comfort and support.
1. Headrest Cover
2. Backrest Cover
3. Seatbase Cover
Regular care of the restraint will ensure safety of your child.
• Check the webbing for fraying.
• Check the upper anchorage attachment clip to ensure retainer clip is still present.
• Ensure there are no cracks in moulding or the plastic moulding.
• Check the buckles “click” when you engage tongues and is not sluggish or sticky
in operation.
•
Ensure the buckle is free of uff, liquid, or other matter that may enter the buckle
slots. Clean the buckle if it is slugglish to engage (refer Cleaning Harness Buckle
Pages 23 & 24).
• Check the harness adjuster is operating and is clamping the webbing
• If any part of the restraint is cracked or broken, seek repair immediately or replace
the child restraint.
Care and Maintenance
1
2
3
17

Use only mild soap and water to clean all parts of the CS5413 Booster Seat.
Do not use chemicals or cleaning agents
Cold water only to be used and to be rinsed well
Do not dry clean or tumble dry
Do not bleach.
IMPORTANT
!
The restraint has a ame retardant cover which is removable for cleaning. Cleaning
instructions are on the care label attached to the cover. If a uffy cover is tted, then
washing the cover prior to use will remove excess uff.
The cover has been designed to protect your child when seated in the restraint.
Care should be taken if children either eat or drink while in the restraint as some food or
drink products may cause damage or marking to the cover. Wash or clean immediately.
Do not pull sticky items from covers as the cover may be damaged - soak in water and
gently remove.
Only machine wash on gentle cycle (hand washing is recommended). When washing the
covers, ensure the hook and loop attachment strips are connected to eliminate other
materials or garments being caught. Ensure that the hook and loop attachment strips are
free of lint, this will ensure a positive engagement.
Covers
Use only mild soap and water to clean all webbing, metal and plastic parts of the restraint
using a damp cloth. Do not use chemicals or cleaning agents.
Seat
(B) Check the upper anchorage attachment clip to ensure plastic retainer clip is still present.
If required contact infasecure for nearest supply location. Extension straps may be required in vehicle
without a xed parcel shelf (not included in this package)
Products Codes
CS111 300mm Length
CS112 600mm Length
CS113 200mm - 900mm
Adjustable Length
Care of Restraint
Cleaning
Care and Maintenance
Extension Straps
18

Accessories

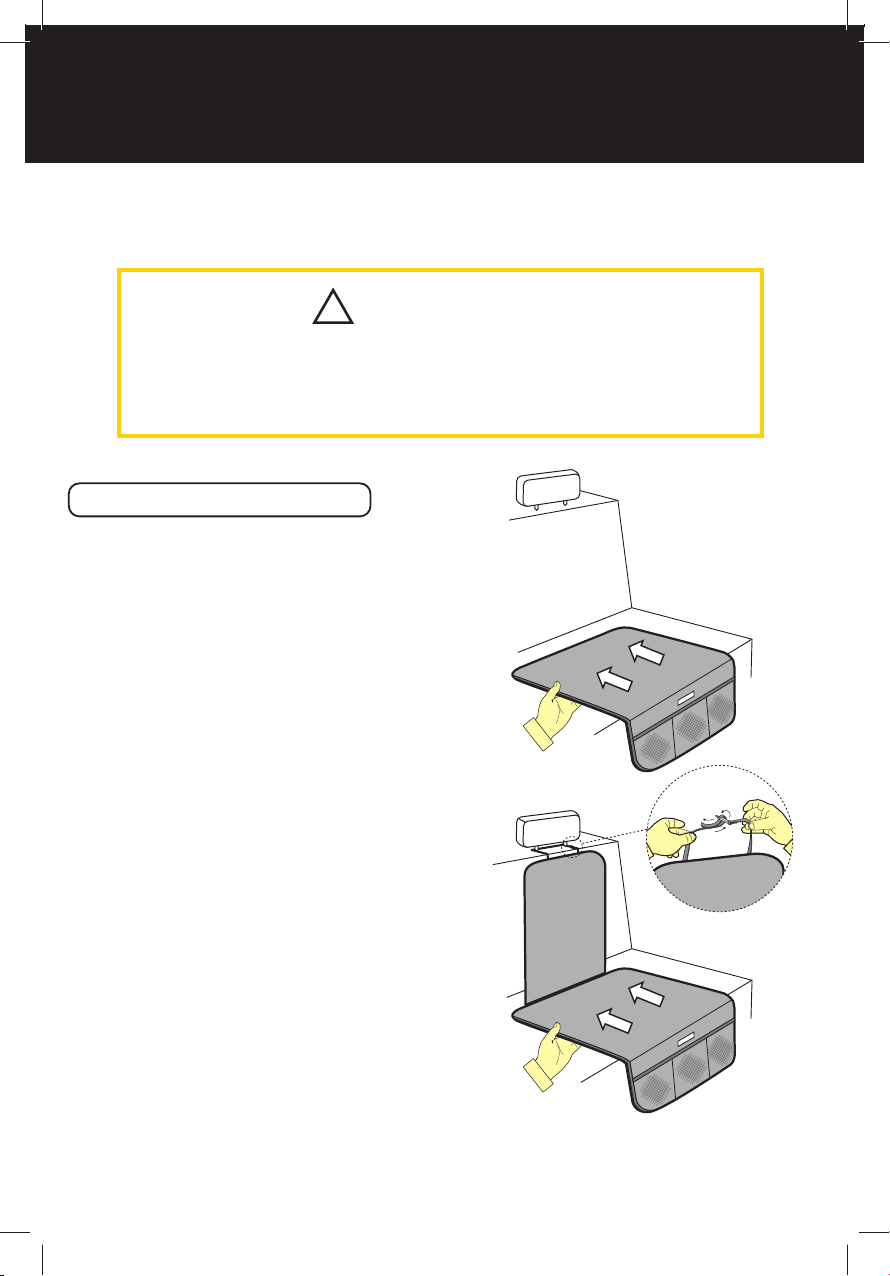

SEAT PROTECTOR
FULL LENGTH
(if tted)
The seat protector is designed to protect
your car’s seat.
STANDARD
Position the front ap with pockets, at the
front of the rear seat and position the mat
rearwards to obtain a at t.
FULL LENGTH
Position the front ap with pockets, at the
front of the rear seat and position the mat
rearwards to obtain a at t. (If required an
additional ap has been provided to tuck in
between the seat back & cushion)
Position the back section up the seat back
and use the plastic buckle & webbing strap
to attach around the vehicle seat headrest
(if the rear vehicle seat does not have a
headrest then the strap could be used to
attach around the child seats top tether
after you have installed the child seat).
Step 1:
Step 1:
Step 2:
STANDARD
Follow the instructions covering the use of accessories provided with this child
restraint or spare parts provided by InfaSecure for this restraint.
IMPORTANT
!
Use of unauthorised aftermarket accessories (i.e items not provided in this
box with the child restraint), can reduce the safety provided by the child
restraint and may cause injury or death.
19
