infa-secure CS5410 User manual

IMPORTANT
!
PLACE
Booster Seat
The photo displayed is indicative of the
type of restraint and may have slight
variations depending on the model.
*All references to age are to an average proportioned
child. Children vary in shapes and sizes. The ages
outlined above is an approximation only.
To be used with a lap-sash
seatbelt by children whose
shoulders are above the lower
shoulder height marker with the
head restraint in lowest position
(approximately 4 years of age)
until the child’s shoulders
reach the upper shoulder
height marker with the
head restraint in highest
position (approximately
6 to 8 years of age)
1754:2010
Licence No. 25324
4 YEARS
TO 8 YEARS*
SUITSSUITS
to
FOUR TO EIGHT YEARS*
yrs. yrs.
TRAVELLING SAFELY WITH PEACE OF MIND
AR
S
y
yrs.
EAC
E
O
F
M
I
ND
8
FOU
y
r
s
R
AV
ELLI
NG
S
4
CS5410
MODELS

To be used with a lap-sash seatbelt by children whose shoulders are above the lower shoulder height marker with the head
restraint in lowest position (approximately 4 years of age) until the child’s shoulders reach the upper shoulder height marker
with the head restraint in highest position (approximately 6 to 8 years of age)
Continue to use this child restraint until the child reaches this limit.
Children are safest in a booster seat until their shoulders reach the upper shoulder height marker of the booster seat.
Do not use this restraint until child’s shoulders are above the lower shoulder height marker.
Just using a seat belt is not recommended for children that have outgrown this seat. Use a larger booster seat.
THIS BOOSTER SEAT IS NOT SUITABLE FOR USE WITH A CHILD HARNESS.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD FACING SEATS
WITH A LAP-SASH SEATBELT.
The CS5410 Booster Seat is suitable for toddlers to older children as a booster seat.
SUITABILITY OF THE CHILD RESTRAINT
NOTE: THIS BOOSTER SEAT IS SUITABLE FOR USE WITH THE SECUREFIT (Safety Retaining Device) refer page 14.
CS5410 MODELS
Booster Seat
INFASECURE PTY LTD
P.O. Box 487, Emu Plains
NSW 2750
Customer Service
Phone No: 02 4728 8090
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
WARNING
!
PLEASE READ AND FOLLOW THESE INSTRUCTIONS EXACTLY
BEFORE INSTALLATION PLEASE READ CAREFULLY THE WHOLE OF THE
INSTRUCTIONS FOR INSTALLATION AND IF IN THE EVENT OF DOUBT ABOUT
THE METHOD OF INSTALLATION TO CONSULT INFASECURE OR A CHILD
RESTRAINT FITTING STATION AUTHORISED BY THE RELEVANT TRANSPORT
AUTHORITY. IN NEW ZEALAND, CONSULT THE AGENT FOR THE VEHICLE.
IMPORTANT
!
BOOSTER SEAT (Type E Forward Facing)
1

Page 1
Page 2
Page 3-4
Page 4
Page 5
Page 6
Page 7-8
Page 9
Page 9
Page 10-11
Page 11
Page 12
Page 13
Page 13
Page 14
Use the restraint exactly as shown in the instructions.
Supervision of children is needed because they may be able to undo buckles.
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
Do not alter or modify this restraint.
Repairs must only be done by the manufacturer or agent.
Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
Destroy the restraint if it has been in a severe crash, even if no damage is visible.
THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL
INTO A SPLIT IN THE SEAT BACK. (EG HATCHBACK OR WAGON)
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.
REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD
RESTRAINT FITTING STATION IF NO CAR ANCHORAGE POINTS ARE IN THE MOTOR CAR.
DO NOT USE WITH JUST A LAP BELT. You must use with a lap-sash seatbelt.
The lap part of the seatbelt must be rmly across the thighs and the sash strap tted diagonally
across the chest and on the shoulder.
DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
Straps may be damaged by unsecured cargo in a collision. Secure or remove hazardous cargo
before using this restraint. Hatch-back or wagon: do not use the child restraint where this strap
may fall into a split in the seat back. Always attach hook and remove slack.
IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT IS TO BE
FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND INSTRUCTIONS.
When used in this mode the restraint must be used in conjunction with a lap-sash seat belt.
WARNING
!
Suitability of the child restraint
Contents & Warnings
ANCHORAGE FITTINGS
- For cars tted with anchorage points
- For cars not tted with anchorage points
- Restraint Guide
- CS5410 Child Restraints (Itemised list)
- Shoulder Height Marker
SET UP
- Adjusting the head rest
INSTALLATION
- Installing in Vehicle
USE
- Using Lap-Sash Seat Belt
- To Release Child

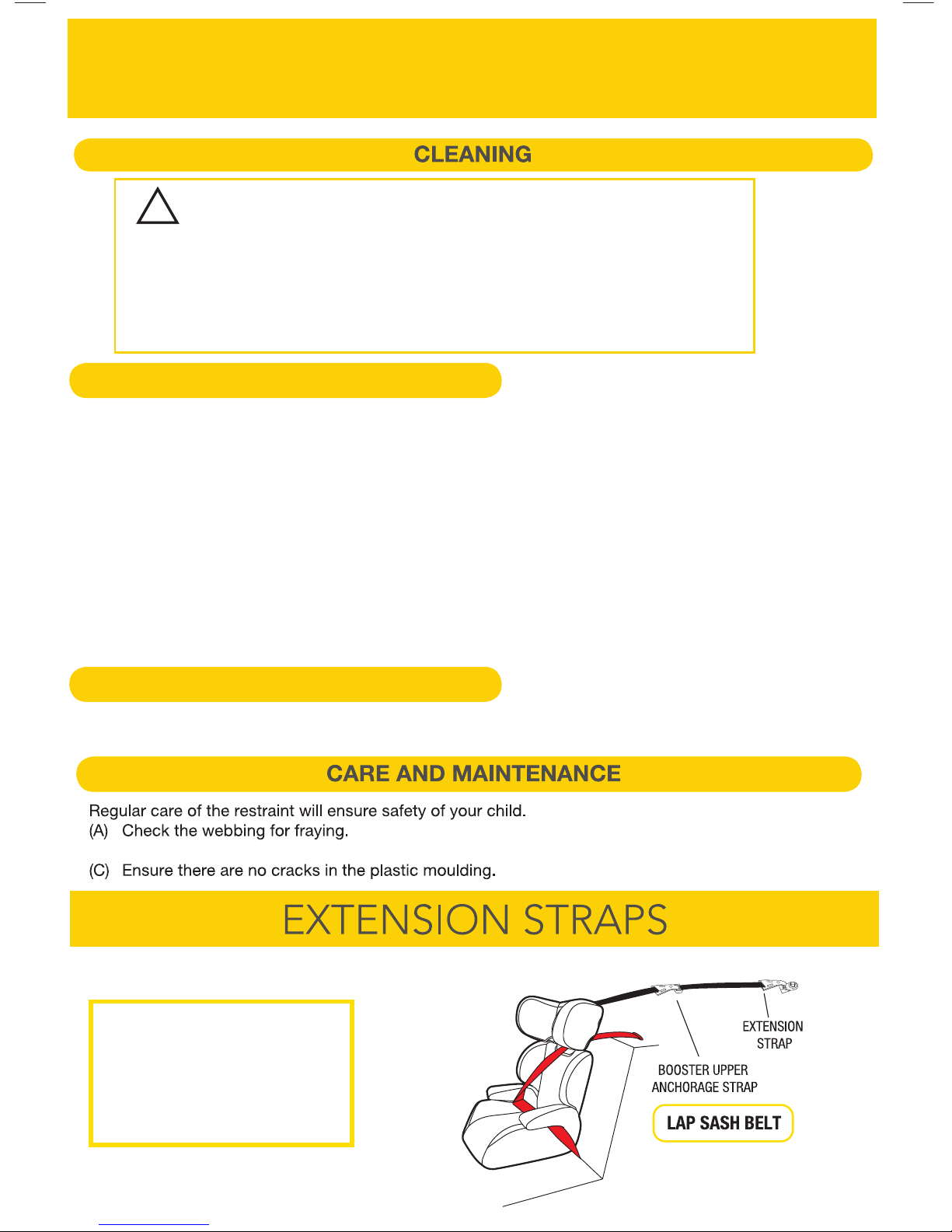

CARE OF RESTRAINT
- Cover Removal / Replacement
- Cleaning / Care and Maintenance
EXTENSION STRAPS
RELATED PRODUCTS - SECUREFIT
2

Upper anchorage strap and attachment clip
must always be used
Upper Anchorage strap and attachment
clip must only be attached to the correct
anchor tting
Always ensure that the upper attachment clip
is correctly engaged to the anchor tting
Straps may be damaged by unsecured cargo
in a collision. Secure or remove hazardous
cargo before using this strap in a Hatch-Back
or wagon
Do not use the child restraint where the
anchorage strap may fall into a split in
the seat back
Always attach hook and remove slack
Some vehicles may have an anchor tting already
tted by the vehicle manufacturer.
If no anchorage points can be found refer to
the vehicle manufacturer, or an authorised child
restraint tting station for the best location of an
anchorage point.
Refer to the vehicle owners handbook or child
restraint tting station for the possible use of
spacers.
Some vehicles may require the use of additional
extension straps (not supplied with this child
restraint)
If so ring InfaSecure on (Aust) [phone] for
nearest supply location.
ADDITIONAL EXTENSION STRAPS AVAILABLE:
CS111 300mm Extension strap
CS112 600mm Extension strap
CS113 200 - 900mm Adjustable Extension strap
FOR CARS FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT
LOCATE THE ANCHORAGE POINT BEHIND THE REAR SEATING POSITION
CONSULT THE CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS.
REMOVE THE THREAD PLUG FROM THE PARCEL SHELF/FLOOR/ROOF AND INSTALL THE ATTACHMENT
BOLT AS SHOWN IN FIGURE 1A & 1B.
UPPER ANCHORAGE FITTINGS
Attachment Bolt
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.
CAUTION: DO NOT OVERTIGHTEN ATTACHMENT
BOLT. MAXIMUM TORQUE IS 20NM.
WARNING
!
3

Attachment Bolt
FOR CARS NOT FITTED WITH A CHILD RESTRAINT ANCHORAGE POINT
SIDE VIEW
UPPER ANCHORAGE FITTINGS
FOR SEDANS ONLY
WARNING
!
4

BIRTH
MODE
2 4 6 8 10 12+
REARWARD-FACING
RESTRAINT (TYPE A1)
BIRTH TO APPROX
6 MONTHS
CONVERTIBLE
BOOSTER SEAT (TYPE B/E)
APPROX 6 MONTHS
TO 8 YEARS
FORWARD-FACING
RESTRAINT (TYPE B)
APPROX 6 MONTHS
TO 4 YEARS
BOOSTER SEAT (TYPE E)
FROM APPROX
4 YEARS 8 YEARS
CHILD SAFETY HARNESS (TYPE C)
FROM APPROX
4 TO 7 YEARS
FROM APPROX
7 TO 10 YEARS
SECUREFIT (ACCESSORY)
SAFETY RETAINING DEVICE
FROM APPROX
4 TO 7 YEARS
0 to 6 (months)
Approx 0 to 4 years
FORWARD FACINGFORWARD FACINGFORWARD FACING
BOOSTER SEATBOOSTER SEATBOOSTER SEAT
REARWARD FACING
FORWARD FACING
Approx
0 to 8 years
Approx 6 months to 4 years
Approx 4 to 7 years
(with Booster seat and lap-belt only)
CHILD HARNESS
SHOULD ONLY BE USED
IF A LAP ONLY SEAT
BELT IS AVAILABLE
ONLY USE WITH
INFA SECURE
BOOSTER SEATS
Approx 7 to 10 years
(without Booster seat
and lap-belt only)
Approx 4 to 7 years
(with InfaSecure Booster seat)
*Not applicable for 2004 Standard models
RESTRAINT GUIDE
SEAT BELT
FROM APPROX 7 YEARS
AND OVER
10 +7 +
Approx 6 months
to 8 years
Approx 4 years
to 8 years
Allowable by law More Appropriate
CONVERTIBLE
CAR SEAT
(TYPE A2/B)
BIRTH TO 4 YEARS
ZERO TO 8
CONVERTIBLE
CAR SEAT
(TYPE A1/B/E)
BIRTH TO 8 YEARS
IMPORTANT
!
Research has shown that the likelihood of an accessory child safety harness being used incorrectly is very high and the
risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure recommend that an
accessory child safety harness should only be used if a lap-only seat belt is all that is available.
REARWARD FACING
REARWARD FACING
5

6
1
2
3
4
MODEL CS5410
BOOSTER
WITH LAP-SASH SEAT BELT
For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring [phone] for nearest supply location. (Refer page 13)
Seat belt extenders should not be used if the seat belt is not long enough to secure the child
restraint.
IMPORTANT
!
UPPER ANCHORAGE STRAP ASSEMBLY
ADJUSTER
ATTACHMENT CLIP
ANCHOR FITTING + ATTACHMENT HARDWARE
HEADREST
RED BELT CLAMP (SUPPLIED WITH SEAT)
VEHICLE SEAT BELT
“BOOSTER SEAT BELT PATH” MARKER
(EACH SIDE OF RESTRAINT - COLOURED RED)
COMFORT COVER
A - SEAT BASE
B - BACKREST
ARM REST (EACH SIDE OF THE RESTRAINT)
SHOULDER HEIGHT MARKER
CUP HOLDER (IF APPLICABLE)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
7
8
8
9 A
9 B
11
5
10
12
The illustration displayed is indicative of
the type of restraint and may have slight
variations depending on the model.
6

SMALLER CHILD

LOWER
LABEL
Smaller Child from
approximately 4 years of age
LOWER
LABEL
Do not use this booster seat if the child’s shoulders are below the lower shoulder height marker,
(Lower label)

BOOSTER
WITH LAP-SASH SEAT BELT
SHOULDER HEIGHT MARKER
Front
of Car
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
IMPORTANT
!
If moving a child from forward facing child restraint with an inbuilt harness, the child’s shoulders
will need to be inline or above the lower label with the headrest in the lowest position. If the
child’s shoulders are below the lower label with the headrest in the lowest position the child
should continue to use the forward facing child restraint with an inbuilt harness
HEADREST AT HIGHEST POSITION
SHOULDERS BELOW THIS LINE WHEN
HEADREST AT LOWEST POSITION
SHOULDERS ABOVE THIS LINE WHEN
7

TALLER CHILD
Continue to use this booster seat until the child’s shoulders reach the upper shoulder height
marker, (Upper Label).
If the child’s shoulders reach the shoulder height markers, the child should move to the next type
of restraint (See page 3). Use a larger (Type F) booster seat, if available, otherwise use seat belt
assembly.
UPPER
LABEL
HEADREST AT HIGHEST POSITION
SHOULDERS BELOW THIS LINE WHEN
HEADREST AT LOWEST POSITION
SHOULDERS ABOVE THIS LINE WHEN
BOOSTER
WITH LAP-SASH SEAT BELT
SHOULDER HEIGHT MARKER
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
Taller Child up to
approximated 8 years of age


UPPER
LABEL

Front
of Car
8

Refer to shoulder height marker
(As shown on pages 5 and 6)
IMPORTANT
!
BOOSTER
WITH LAP-SASH SEAT BELT
The headrest can be adjusted to different heights,
to best suit your child’s shoulder height. This can
be done with the child in the seat.
Grab the headrest, push or pull to move the headrest
either up or down.
Adjust the headrest height so that the bottom of the
sash guide is located level with or just above the
child’s shoulder.
Pull to tighten and remove all the
slack, from the upper anchorage
strap. Do not overtighten as this
could cause the restraint to lift off
the vehicle seat (Refer to Figure 2).
WARNING
!
DO NOT USE WITH JUST A LAP BELT.
You must use a lap-sash seat belt.
ADJUSTER
ATTACH PULL TO
TIGHTEN
Tilt
Pull to
lengthen
Pull to
tighten
9

the backrest adjust the headrest as described in setup
to best suit your child (refer page 9)
Refer to shoulder height marker (As shown on pages 5 and 6)
IMPORTANT
!
“INSTALLING IN VEHICLE” (refer page 9)
The red “Booster Seat belt Path” labels are located
each side of the Booster seat and on the head rest.
Position the lap section of the vehicle seat across the
child’s lap then insert the buckle tongue in the belt
buckle (A). Ensuring the lap portion is positioned
under the armrests and over the child’s thighs.
Pull the lap belt tight by rst pulling on the lap belt in
the direction of arrow 1 (refer Figure 1). Pull the sash
belt tight in the direction of arrow 2. While holding the
belts tight, place the Safe Grip (red belt clamp) (B) on
the sash section as close as possible to the buckle
tongue (A). (Refer to Figure 2 and instruction for
installing the Safe Grip red belt clamp below).
USING LAP-SASH SEAT BELT
BOOSTER
WITH LAP-SASH SEAT BELT
USE
IMPORTANT
!
Ensure that you use the BOOSTER SEAT
BELT PATH indicators, marked in “red”.
LAP SECTION
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)
Figure 2
SAFE GRIP BELT CLAMP
It is important that the lap belt must be firmly across
the thighs. The Safe Grip locks the lap belt to
ensure a rm t across the thighs, and avoids slack in
the lap belt. This t ensures that the lap belt does not
ride up into the soft abdominal region of the child,
which may cause internal injury.
To install the Safe Grip (red belt clamp), open it and clamp the “sash section” of the vehicle
seat belt by closing the barrel section of the red belt clamp in the direction of arrow 3 (refer
Figure 2) and then locking with the toggle section by pushing in the direction of arrow 4 (refer
Figure 2) when the Safe Grip (red belt clamp) is secured in place, the lap section is now tightly
holding your child in place, independent of the sash section. The Safe Grip (red belt clamp)
can be left located on the sash belt when the child is removed from the booster. It is then ready
for the next use. Repositioning of the Safe Grip (red belt clamp) may be required as the child
grows. The Safe Grip (red belt clamp) must be removed when the child restraint is not installed
to allow other users to use the seat belt as a lap/sash seat belt. Always keep the Safe Grip (red
belt clamp) in pocket provided when not in use.
B
A
Figure 1
3
BARREL
SECTION
4
TOGGLE
SECTION
10

BOOSTER
WITH LAP-SASH SEAT BELT
SAFETY WARNING
A sash belt under the
arm or behind the back
is dangerous
WARNING
!
WARNING
!
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR
ALWAYS USE THIS SASH GUIDE
USING LAP-SASH SEAT BELT
USE
To release your child from the restraint simply
press the belt buckle and carefully remove your
child from the seat. It is not necessary to release
the red belt clamp, to remove your child
When the restraint is not in use, the seat belt
should be fastened around it and engaged.
Always use lap-sash seat belt and upper anchorage strap to attach the child restraint to
the vehicle.
Do not use the restraint without the upper anchorage strap correctly attached and adjusted.
Do not use on any vehicle seat which faces sideways or rearwards.
IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
WARNING
!
OR
Check the position of the headrest and adjust
if needed (refer Page 9).
Thread the sash belt through the sash guide on
the bottom of the headrest.
11

The CS5410 Booster Seat cover has been manufactured to meet the Australian Standards
requirements for ammability and toxicity to ensure your child's safety. The cover has also been
designed to provide your child with comfort and support.
Replace the seat cover, head rest cover and base covers in the reverse of the removal
procedure. Ensure you have correctly reattached all elastic loops, hooks and loop attachment
strips and/or press studs.
Only use this child restraint with the cover supplied or a manufacturer-
Authorised replacement cover with identical shoulder height markers
VERY IMPORTANT
!
Disconnect press studs
Remove cover
Disconnect press studs
Remove cover
Disconnect press stud
Remove cover
12

CARE OF RESTRAINT
Use only mild soap and water to clean all parts of the CS5410 Booster Seat.
Do not use chemicals or cleaning agents
Cold water only to be used and to be rinsed well
Do not dry clean or tumble dry
Do not bleach.
IMPORTANT
!
The restraint has a ame retardant cover which is removable for cleaning. Cleaning
instructions are on the care label attached to the cover. If a uffy cover is tted, then
washing the cover prior to use will remove excess uff.
The cover has been designed to protect your child when seated in the restraint.
Care should be taken if children either eat or drink while in the restraint as some food or
drink products may cause damage or marking to the cover. Wash or clean immediately.
Do not pull sticky items from covers as the cover may be damaged - soak in water and
gently remove.
Only machine wash on gentle cycle (hand washing is recommended). When washing the
covers, ensure the hook and loop attachment strips are connected to eliminate other
materials or garments being caught. Ensure that the hook and loop attachment strips are
free of lint, this will ensure a positive engagement.
COVERS
Use only mild soap and water to clean all webbing, metal and plastic parts of the restraint
using a damp cloth. Do not use chemicals or cleaning agents.
SEAT
(B) Check the upper anchorage attachment clip to ensure plastic retainer clip is still present.
If required contact infasecure for nearest supply location. Extension straps may be required in vehicle
without a xed parcel shelf (not included in this package)
Products Codes
CS111 300mm Length
CS112 600mm Length
CS113 200mm - 900mm
Adjustable Length
13

Hinder child moving
the shoulder strap
Enhances the protection
of lap-sash seatbelt
(with both shoulders
secured)
Minimises the
potential of injury
Reduces the incident
of submarining when used
in conjunction with an
Infa-Secure booster seat
Reduces the common
misuse associated with
Accessory Child Harnesses
The SecureFit is not
a child restraint.
The SecureFit is an
accessory and shall
only be used in
conjunction with an
approved InfaSecure
booster seat and
lap-sash seat belt
ONLY to be used
in conjunction
with a InfaSecure
booster seats and
lap-sash seat belt:
CS5310,
CS5410,
CS5610
The
Secu
reFi
t is
not
a child restraint.
C
R
A
S
H
T
E
S
T
E
D
U
S
I
N
G
F
R
O
N
T
A
L
T
E
S
T
I
N
G
R
E
Q
U
I
R
E
M
E
N
T
S
*
CRASH
TESTED

RELATED PRODUCTS
The serious risk of misuse of a child harness when used with a booster seat, has reduced the level of safety provided to the child.
This has been identified during a program jointly carried out by the Prince of Wales Medical Research Institute and NSW Centre for
Road Safety, titled ‘Accessory child safety harnesses - Do the risks outweigh the benefits?’.
InfaSecure’s Research and Development team has identified the need for an improved method of safely retaining children in
booster seats. Comparative crash testing carried out to the requirements of AS/NZS 1754 : 2010 in frontal mode (TNO P3 and P6
Test Dummies) has shown the ability of the Securefit to give improved safety to the benefit of your child and your piece of mind.
14

ISSUE: B_5
We reserve the right to alter this product without notice.
INFASECURE PTY LTD
ABN: 52 149 173 660
Head Office and Registered Address
110-114 Old Bathurst Rd, Emu Plains, NSW 2750
P.O. Box 487, Emu Plains, NSW 2750
Phone No: 02 4728 8080
Fax: [phone]
Customer Service
Phone No: 02 4728 8090
www.infasecure.com.au
www.infasecure.com.au
Refer to website for details
InfaSecure Warranty Details
InfaSecure Pty Ltd warrants this product for twelve months from the date of
purchase against failure due to manufacturing faults or faulty materials. Misuse,
accidental damages, normal wear and tear are not covered by this warranty.
When used for commercial use the period is limited to six months.
“Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.”
