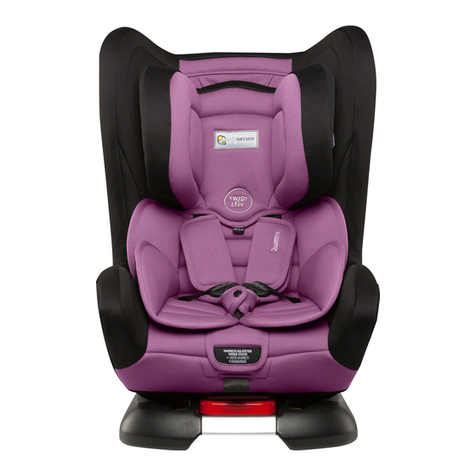

infa-secure CS8113 User manual

1
04
TO
YEARS YEARS
Instruction Manual
Convertible Car Seat
INFANT SEAT TO CHILD SEAT
CS8113
(Rearward Facing) Suitable for children from birth to approximately 30 months* of age.
(Forward Facing) Suitable for children from 12 months of age to approximately 4 years* of age.
REARWARD FACING FORWARD FACING
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED
ON THE CHILD RESTRAINT
*All references to age are approximates only and reference to children of average proportions.
Children vary in shapes and sizes. The photo displayed is indicative of the type of restraint and
may vary slightly depending on the model.

1
Contents
Information
Warnings
Restraint Guide
Padding - Combination Guide
Information
CS8113 Child Restraints (Itemised list)
Shoulder Height Marker
Set Up
- General
- Selection of Appropriate Padding Combination
- Converting to Infant Seat
- Recline Angle
- Headrest & Harness Strap Height Adjustment
- Shoulder Height
- Buckle Height Adjustment
Installation
- Installing using Vehicle seatbelt
Use
- Using Inbuilt Harness
- To Release Child
Information
Shoulder Height Marker
CS8113 Child Restraints (Itemised list)
Next Restraint
Set Up
- Selection of Appropriate Padding Combination
- Converting to Child Car Seat
- Shoulder Height
Installation
- Installing using Vehicle seatbelt
Use
- Using Inbuilt Harness
- To Release Child
Care of Restraint
- Care and Maintenance
- Cleaning
Remove & Replace Covers
Extension Straps
Accessories
Anchorage Fittings
Insurers Information
Lifetime Warranty
1
2
3
5
6
7
8
9
11
12
12
14
15
16
17
18
22
25
26
27
29
30
31
31
32
35
36
38
39
40
45
46
47
49
51
54
Infant Seat
Child Car Seat
Contents

2
Information
This instruction manual covers various models under the Model number CS8113. These child
restraints are installed in the rear of the vehicle and can be used either rearward-facing or
forward-facing. They can be installed in the vehicle using the vehicle seatbelt & the top tether
strap. This Convertible Car Seat is designed to be used by children from birth up to
approximately 4 years of age.
Air Cocoon Technology™ - A Protective Embrace
Air Cocoon Technology™ (A.C.T.) enhances protection
by dramatically reducing the impact forces during a
crash. A.C.T. utilises a layer of air held inside the
entirety of the child restraint shell, offering an
increased level of protection across the entire surface
area of the restraint. Your child is quite literally cradled
in a cocoon of air, offering a true 180 degrees of
protection to your child's vital organs.
Air Cocoon Technology™ integrated child restraints
start their life as an actual pillow of air. This pillow is
moulded into a child restraint, retaining the pillow-like
construction while adding incredible strength and
structural integrity. This manufacturing process is
called blow-moulding. Air Cocoon Technology™
(A.C.T.) is an all encompassing protective ‘cocoon’ around
your child.
Twist & Lift™
This Child restraint has also been designed with
‘TWIST & LIFT” which features deep side wings that
shield and contain your child’s head in a side impact
crash. The TWIST & LIFT system is designed to be
adjusted as your child grows which automatically
repositions the harness at the same time.
No child restraint can guarantee absolute protection
from injury in every crash. However, to ensure that
your child gets all the protection designed into the
restraint please read and follow the instructions
exactly and use only InfaSecure recommended parts
and accessories.
InfaSecure is an Australian owned and operated family
business, which can trace it's roots back over 60
years, becoming the single largest Australian owned
and operated child restraint company in the country.
Today, we are still growing, continuing to innovate and
provide high quality products at an affordable price.
AUSTRALIAN
DESIGNED &
FAMILY OWNED

3
Warnings
• Use the restraint exactly as shown in the instructions.
• Supervision of children is needed because they may be able to undo buckles.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other
chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• To ensure infant’s back is evenly supported, do not put more than one nappy on the baby
and make sure the nappy is not thickly folded at the back.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN
FRONT OF THE SEATING POSITION.
• Fit the restraint rmly to the car seat.
• Fit the harness rmly to the child.
• A loose restraint or harness is dangerous.
• Do not harness an infant wrapped in a blanket or swaddled. Any blanket or wrap must
only be placed over the harness and infant.
• Always secure the loose end of the top tether strap. Do not use the child restraint where
this strap may fall into a split in the seat back or off the side of the seat.
• ALWAYS ATTACH HOOK AND REMOVE SLACK.
WARNINGS
!
Please read carefully the whole of the instructions for installation and, in the event
of doubt about the method of installation, to consult InfaSecure or agent, or a child
restraint tter, or in New Zealand, to consult the agent for the vehicle.

4
Warnings
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY
FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.
• THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE
POINT IN THE CAR. REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF
ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO
ANCHORAGE POINTS ARE IN THE MOTOR CAR.
• Always secure the loose end of the top tether strap to prevent it hanging out of the car or
being accessible by the child. Do not use the child restraint where this strap may fall into
a split into the seat back or off the side of the seat.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
• THIS CHILD RESTRAINT IS NOT APPROVED FOR USE WITH ANY CONNECTORS THAT
CONNECT TO THE CARS ISOFIX LOW ANCHORAGES.
WARNINGS
!
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
WARNING
!
IMPORTANT
!
There is a real potential for an infant to be ejected and killed if the baby is wrapped in a
blanket or swaddled. The harness needs to t the baby rmly and any blanket or other
covering may only be placed over the harness after the harness is adjusted rmly. Please
ensure the baby’s arms and legs are not bound or wrapped together.

5
Restraint Guide
BIRTH
MODE
24 67810
FORWARD-FACING
RESTRAINT (TYPE B)
APPROX 6 MONTHS
TO 4 YEARS
12+
REARWARD-FACING
RESTRAINT (TYPE A1)
BIRTH TO APPROX
6 MONTHS
CONVERTIBLE
BOOSTER SEAT (TYPE B/E)
APPROX 6 MONTHS
TO 8 YEARS
BOOSTER SEAT (TYPE E)
FROM APPROX
4 YEARS TO 8 YEARS
FORWARD FACING FORWARD FACINGFORWARD FACING
BOOSTER SEATBOOSTER SEATBOOSTER SEAT
LARGER
BOOSTER SEAT
REARWARD FACING
FORWARD FACING
SEAT BELT
FROM APPROX 7 YEARS
AND OVER
FORWARD-FACING
RESTRAINT (TYPE G)
APPROX 6 MONTHS
TO 8 YEARS
FORWARD FACING
BOOSTER SEAT (TYPE F)
FROM APPROX
4 YEARS TO 10 YEARS
BOOSTER SEAT
CONVERTIBLE
CAR SEAT
(TYPE A2/B)
BIRTH TO 4 YEARS
ZERO TO 8
CONVERTIBLE
CAR SEAT
(TYPE A1/B/E)
BIRTH TO 8 YEARS
IMPORTANT: Research has shown that the likelihood of an accessory child safety harness being used incorrectly
is very high and the risk of injuries when incorrectly used is much higher compared to a lap-sash seat belt. InfaSecure
recommend that an accessory child safety harness should only be used if a lap-only seat belt is all that is available.
REARWARD FACING
REARWARD FACING
7 + 10 +
More Appropriate
Approx 4 years
to 8 years
Approx 4 years
to 10 years
Approx 0
to 4 years
Approx 6 months
to 4 years
Approx
0 to 8 years
0 to 6 (months)
Approx 6 months
to 8 years
Approx 6 months
to 8 years
REQUIRED BY LAW
REARWARD FACING
FORWARD FACING
CONVERTIBLE
CAR SEAT
(TYPE A4/B)
BIRTH TO 4 YEARS
Approx 0
to 4 years
Allowable by law
Infant
Seat Child Seat Booster Seat Seat Belt
REARWARD FACING
FORWARD FACING
CONVERTIBLE
CAR SEAT
(TYPE A4/G)
BIRTH TO 8 YEARS
Approx 0
to 8 years

6
Padding / Inserts
*For detailed description and method of attachment for padded accessories refer to Accessories on page 46.
REARWARD FACING
INFANT SEAT
(Small Infant)
INFANT SEAT
(Large Infant)
CHILD SEAT
MODE
FORWARD FACING
REARWARD FACING
Diagrams are indicative of type of paddings and inserts and may not resemble the actual product.
Padded inserts can vary according to model.
We reserve the right to alter this product without notice.
The Padded Insert/s (if tted) are designed to provide extra
support and comfort for small babies. Discontinue use when the
insert is a tight t or creates discomfort for larger babies/children.
Combination Guide

7
Infant Seat (Rearward Facing)
THE SUITABILITY OF THE CHILD RESTRAINT TO GROUPS OF CHILDREN
TYPE A4
To be used only in a rearward-facing position until the infant’s shoulders either reach the
lower shoulder height marker (approximately 12 months of age) or reach the middle height
marker (approx 2 to 3 years of age).
TYPE B
Then to be used in a forward-facing position until the child’s shoulders reach the upper
shoulder height marker (approximately 4 years of age).
Continue to use this child restraint until the child reaches this limit.
Do not use forward-facing until child’s shoulders are above the lower shoulder height marker.
Infants are at risk of serious injury if they face forward too early.
Children are at risk of serious injury if they move to booster seats too early.
Children who have outgrown this restraint are safest in a larger child restraint with an in-built
harness or a booster seat until their shoulders reach the upper shoulder height marker of the
restraint.
TO BE USED WITH A LAP-SASH/LAP-ONLY SEAT BELT IN THE BACK OF MOST CARS WITH
FORWARD FACING SEATS.
The use of child restraints in the front seat may be restricted for children of specic ages by
local legislation. Please check with your local Department of Transport for the specic
seating locations of children using child restraints for their given ages.
Infant Seat
IMPORTANT
!
• For a vehicle without a xed parcel shelf an extension strap(s) may be needed.
If so ring [phone] for nearest supply location (refer to Page 45).
• Seatbelt extenders are not recommended to be used if the seatbelt is not long
enough to secure the child restraint. If seatbelts are too short then advice should be
sought from a child restraint tter and their recommendation be considered before
using a seatbelt extender.
ONLY USE RESTRAINT REARWARD-FACING
Do not use the restraint without the upper anchorage strap correctly attached.
DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN
THE FRONT OF THE SEATING POSITION.
Do not use on any vehicle seat which faces sideways or rearward.
Do not use the child restraint facing forward.
Do not use excessively upright or reclined.

8
Model CS8113
1
3
4
5
6
7
8
9
Infant Seat
VIEW A
NOTE: Padded inserts can vary according to model.
For detailed description and method of attachment
for padded accessories refer to Accessories on page 46.
1. Shoulder Height Markers
2. Headrest Assembly
3. “TWIST & LIFT”
Headrest + Harness adjustment system
4. Shoulder Pads
5. Harness Straps
6. Buckle Pad
7. Padded Insert (if fitted)
8. Harness Adjuster
9. Harness Adjustment Strap
10. Comfort Cover
11. Vehicle Seat belt
12. Safe Grip Red Belt Clamp (if supplied with restraint)
13. “REARWARD-FACING SEAT BELT PATH” Marker
(each side of restraint - coloured blue)
14. Top Tether Assembly
• Tether Strap
• Adjuster
• Attachment Clip
• Anchor Fitting + Attachment Hardware
15. Top Tether Guide
2
10
14
13
12
11
VIEW A
15

9
Infants are at risk of serious injury if they face forward too early.
If the infants shoulders are below the lower label or if the baby’s neck muscles are unable
to support their head, then the infant should remain rear facing. When the child’s shoulder
reach the lower label, the child restraint may be turned to face towards the front of the car
(refer page 26 Child Seat section).
LOWER LABEL (Rearward-Facing)
IMPORTANT
!
Baby (Rearward Facing mode)
SHOULDERS BELOW THIS LINE
MUST BE REAR FACING WHEN
Front of Car
Ensure that you continue to use this child restraint in rearward facing positions whilst the
infants shoulders are below this shoulder height marker (Lower label).
VIEW A
To be used only in a rearward-facing position for an infant until their shoulders REACH the
Lower shoulder height marker (approximately 12 months of age).
Shoulder Height Markers
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to travel in this restraint.
Do not turn to forward facing until the child’s shoulder reaches the lower label.
Shoulder height markers may be hidden under a pillow in the lowest position
Infant Seat
VIEW A
LOWER
LABEL
(REARWARD
FACING)
LOWER
LABEL
(REARWARD
FACING)



10
Older Baby (Rearward Facing mode)
Front of Car
MIDDLE
LABEL
(REARWARD or
FORWARD
FACING)
VIEW A
LOWER
LABEL
(REARWARD
FACING)
Shoulder Height Markers


This restraint must remain rear facing until the child reaches the lower shoulder height marker (approx 12 months old).
Once the childs shoulders reached the lower shoulder height marker the restaint can either
• Remain REARWARD FACING until the middle shoulder height marker is reached (approx 2 to 3 years) or
• Change to FORWARD FACING until the upper shoulder height marker is reached (approx 4 years old).
Infant Seat
VIEW A
EITHER
REARWARD FACING
below this line.
FORWARD FACING
between these lines.
Either FORWARD FACING
or REARWARD FACING
between these lines.
InfaSecure recommends to use this
restsraint in REARWARD
FACING mode as long as possible.
BELOW THIS LINE
SHOULDERS MUST BE
SHOULDERS BELOW THIS LINE
MUST BE REAR FACING WHEN
SHOULDERS ABOVE THIS LINE
MUST BE FORWARD FACING WHEN

11
ONLY USE RESTRAINT IN REARWARD-FACING MODE WITH “RECLINE SECTION”
SWUNG FORWARD AND RESTRAINT FULLY RECLINED.
Do not use the restraint without the upper anchorage strap correctly attached.
DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN
THE FRONT OF THE SEATING POSITION.
Do not use on any vehicle seat which faces sideways or rearward.
WARNING
!
The CS8113 Child restraint has been designed and tested to meet the joint Australian/New
Zealand Standard with an inbuilt anti rebound feature and does not require additional anti
rebound bars or mechanisms to full these requirements.
The CS8113 Child restraint has also been designed to be a compact restraint to enable
multiple restraints to be used in the rear of most vehicles.
The Purchaser should check the measurement between the
front of the seat back of the rear seat and all front seats in the
car in which the child restraint is intended to be used, to
ensure that the space is sufcient.
Care and attention should be given to ensure that the baby has adequate ventilation
and shading when in the restraint.
To achieve the necessary distribution of deceleration forces during a vehicle impact,
ensure the child is seated correctly in the child restraint and the harness is tted and
adjusted as per these instructions.
Ensure the child restraint and child are rearward facing.
IMPORTANT
!
580mm
530mm
General
Set Up
If the baby’s neck muscles are unable to support their head,
then the infant should remain rear facing.
Infant Seat

12
Determine whether your infant/child requires the additional padding provided with this
restraint, to ensure a safe and snug t in the restraint. Refer to page 6 for suggested padding
combinations.
Converting to Infant Seat
To ensure baby’s back is evenly supported, do not put more than one nappy on the
baby and make
sure the nappy is not thickly folded at the back.
WARNING
!
Selection of Appropriate Padding Combinations
Set Up
Infant Seat
Recline Section (Swung Forward)
& child restraint fully reclined.
- Refer to the shoulder height labels (As shown
on pages 9 & 10).
- For correct shoulder strap slot height refer to
page 15 & 16.
IMPORTANT
!
At the front of the restraint is a red lever. Pull red lever
forward and recline the seat base as far as possible.
Ensure the recline section is swung forward (see
Figure 1).
Ensure the In-built harness “Shoulder straps” are
positioned in the appropriate slots.
Reclined Position
Figure 1
REAR
FRONT
RECLINE
SECTION
RED
LEVER
Front of Car
1
2

13
Step 1:
Step 2:
The position of the Adjuster (Top Tether
strap) is adjustable for ease of installation
and ease of use.
Pull adjuster and strap to extend the location of the
adjuster assembly (refer Figure 1).
Continue to extend until the adjuster has reached
the desired location at the side of the restraint (refer
Figure 2).
Step 3: Locate the adjuster at the side of the restraint and
secure using the Top Tether Strap Guide (refer
Figure 3).
EASE OF USE: It is recommended to position
the adjuster at the side of the restraint which is
towards the access door (rear passenger side).
Adjuster assembly location
Rearward Facing (Type A)
Converting to Infant Seat
Set Up
Infant Seat
Figure 1
Top Tether
Strap
Top tether
Adjuster location
Figure 3
Top Tether
Strap
Top Tether
ALWAYS KEEP ADJUSTER IN THIS REGION Strap Guide
Adjuster
Top Tether
Strap
Top Tether
Strap Guide
Figure 2

14
Set Up
Infant Seat
Recline Angle
The vehicle installation is controlled by the angle of the vehicle seat, and these angles vary
greatly between vehicles.The vehicle seat angle or the contours of the vehicle seat could place
the child restraint either too upright or too recline. A rearward facing restraint should always be
installed so that the back surface is reclined just enough to allow the infant’s head to lie back
comfortably, but not more than 45º from vertical. This measurement is taken when your infant
is laying in the child restraint and is in direct contact with this back surface, so it’s extremely
import to maintain the required angle
NOTE: An accurate method of measuring the recline angle of your infant is to use a smart
phone with a application that can measure angles but if using this method ensure the car is on
a level surface.
IMPORTANT
!
Your infant should NEVER be too upright or too recline.
TOO UPRIGHT (less than 35º from vertical) could lead to the infants head opping
forward and potentially pinching off the airway.

0º 45º

TOO RECLINED (greater than 45º from vertical) could lead to the infants body
sliding ‘up’ towards the top of the restraint. Which could promote a compressive
load on the spine and/or an extension load on the neck.

15
Setup
Infant Seat
Step 1:
Step 2:
Step 3:
Step 4:
To adjust the headrest, lift the “TWIST & LIFT” ap
on the headrest cover. Turn the red “TWIST & LIFT”
knob clockwise to unlock the headrest (refer Figure 1).
Lift up or push down the headrest so that the
shoulder strap slots are level with or slightly above
your child’s shoulders. If the headrest is just above
the shoulders then the harness level will be correct
(refer Figure 2).
Release “TWIST & LIFT” knob so that it locks into
position. Ensure that it has locked in position by
gently pushing down on the headrest.
Loosen the harness straps before adjusting the
headrest.
You do not need to remove the restraint from
the vehicle to adjust the harness or headrest
positions.
IMPORTANT
!
For comfort ensure the bottom edges of the
headrest are not contacting the child’s shoulders.
When lowering the headrest ensure the headrest
apron does not bunch up behind the childs neck.
Figure 1
Headrest & Harness strap height adjustment
Figure 2

16
Setup
Infant Seat
• IF THE CHILD’S SHOULDERS TOUCH THE BOTTOM EDGES OF THE
HEADREST SIDE WINGS, RAISE THE HEADREST TO THE NEXT HEADREST
POSITION.
• THIS CHILD RESTRAINT DOES NOT REQUIRE THE STRAPS TO BE
DISCONNECTED TO ADJUST THEIR HEIGHT, ONLY THE HEADREST NEEDS TO
BE MOVED TO ADJUST THE SHOULDER STRAP POSITIONS.
IMPORTANT
!
ENSURE THE HARNESS STRAPS ARE ALWAYS
THREADED THROUGH THE HEADREST.
IMPORTANT
!
Correct tment of the harness is very important as it
restrains the child in the restraint. The harness must
t rmly around the upper torso of the child and be
positioned to ensure the the child’s arms and legs
are free.
Headrest & harness strap height adjustment cont...
Shoulder Height
The correct height for the shoulder straps is very
important for the optimum performance of the
restraint.
With the child correctly sitting in the restraint, check which set of slots (In the plastic shell of
the restraint) are level with or just above the infant’s shoulders.
If the harness straps are located in those slots, then the you can proceed with using the
restraint (see section “USE” on page 22). If not then adjust the shoulder straps. Refer to
“Shoulder slot height”.
IMPORTANT
!
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
lower than the child’s shoulders.
U
Figure 1
Front of vehicle

17
Setup
Infant Seat
Buckle Height Adjustment
Figure 1
Figure 2
Figure 3
Figure 4
The buckle is supplied in a shortened position, if you
want to alter the buckle height the following steps are
required.
Step 1: Lift the buckle and determine the required buckle
height (refer Figure 1).
Step 2: To alter the buckle height
- Fold the ap forward and expose the
adjustment plate.
Step 3: Lift the adjustment plate
Step 4: Rethread the webbing.
-To shorten the buckle ‘Pull’ excess webbing
through the central plate.
-To lengthen the buckle ‘Push’ excess webbing
through the central 3 bar plate (refer Figure x).
Note: Do not shorten the buckle strap beyond the indicator
mark on the strap.
TO LENGTHEN
TO SHORTEN
Note: When shortening the buckle ensure the
buckle tongues have clearance above the
upper thigh (refer page 22).
Check
Buckle
Height
Check
Buckle
Height

18
Installation
Infant Seat
Place the child restraint on the vehicle seat. Ensure
recline section is swung forward and the restraint is
fully reclined with the restraint directly in line with
anchorage point.
Make sure Top Tether strap is as in illustration
(Figures 1 and 2) i.e. positioned around restraint
back.
Step 1:
Step 2:
Installing Using Vehicle Seatbelts
Feed adult lap or lap/sash belt through the belt path
opening, ensure the seat belt is under the cover &
between the layer of foam and the plastic seat base.
Engage the buckle and tongue assembly (listen for
a “CLICK”). Check the buckle engagement with a
gentle pull.
Step 3:
IMPORTANT
!
Ensure that you use the
REARWARD-FACING BELT PATH
identied by the following label.
¶
REARWARD FACING
BELT PATH
Figure 2
Buckle
Assembly
Figure 1
Top Tether
Strap
Front
of Car
Recline Section
Lap Belt &
Sash Belt Passes
Through Here
Recline Section (Swung Forward)
& child restraint fully reclined.
Adjuster

19
Push down on the base of the restraint (with knee or
hand) whilst pulling the sash section of the vehicle
belt rmly up in direction of the blue arrow in Figure 4.
(This will tighten the lap belt across the seat base).
Whilst continuing to pull the sash section up, attach
the Safe Grip red belt clamp on the sash section
ONLY, as close as possible above the buckle tongue
assembly. (Refer to Figure 5 and Instruction for
installing the Safe Grip red clamp below)
Ensure the excess slack in the sash belt, is fed back
towards the seat belt.
Step 4:
Step 5:
SAFE GRIP BELT CLAMP
The Safe Grip (red belt clamp) locks the
lap belt to ensure a rm installation, and
avoids slack in the lap belt.
To install the Safe Grip (red belt clamp),
open it and clamp the “sash section”
ONLY of the vehicle seat belt by closing
the barrel section of the red belt clamp in
the direction of arrow 1 in Figure 5 and
then locking with the toggle section by
pushing in the direction of arrow 2 in
Figure 5 when the Safe Grip (red belt
clamp) is secured in place, the lap section
is now tightly holding your child restraint in
place, independent of the sash section.
The Safe Grip (red belt clamp) must be
removed when the child restraint is not
installed to allow other users to use the
seat belt as a lap/sash seat belt. Always
keep the Safe Grip (red belt clamp) in
pocket provided when not in use.
Installation
Infant Seat
NOTE: Do not place the Safe Grip (red belt clamp)
around both the lap and sash sections of the belt. This
could cause the Safe Grip (red belt clamp) to break.
Installing Using Vehicle Seatbelts
Pass lap
and sash belt
through the seat.
Note: Ensure the
belts are under
foam padding.
Buckle & Tongue
Assembly
Lap Belt
& Sash Belt
“CLICK”
PULL
PRESS
Figure 3
Figure 4
TOGGLE
SECTION (2)
LAP SECTION
BARREL
SECTION (1)
SAFE GRIP (B)
(red belt clamp)
ATTACH TO
SASH SECTION
ONLY
ATTACH TO
SASH SECTION
ONLY
SASH SECTION
BUCKLE (A)
(AND TONGUE)
Figure 5
REMOVE ALL
SLACK FROM
SEATBELT
Safe Grip (if supplied)
*Can be purchased separately visit
http://store.infasecure.com.au/
