Infineon XDPL8219 User manual

User Manual Please read the Important Notice and Warnings at the end of this document V 1.0
www.infineon.com/ref-xdpl8219-u40w 2020-08-12
UM_2007_PL21_2008_165321
Getting started with the XDPL8219 reference
board using .dp Vision software
XDPTM digital power
Ordering code: REF-XDPL8219-U40W
About this document
Scope and purpose
The purpose of this document is to give a quick guide to operation of the XDPL8219 reference board for all
power classes of LED lighting applications, and how to use the .dp Vision software to program the operating
parameters of the XDPL8219 digital controller.
Intended audience
This document is intended for anyone who wants to evaluate the XDPL8219 reference design for LED lighting
and become familiar with the XDP™ platform.
Table of contents
About this document....................................................................................................................... 1
Table of contents............................................................................................................................ 1
1Tools ............................................................................................................................ 2
1.1 Required hardware and software tools..................................................................................................2
2Getting started.............................................................................................................. 3
2.1 Hardware connection..............................................................................................................................3
2.2 Parameter configuration.........................................................................................................................5
Revision history............................................................................................................................................................9

User Manual 2 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Tools
1Tools
1.1 Required hardware and software tools
The required hardware and software tools are listed in Table 1. Please order all the hardware tools and
download and install all the software tools.
Table 1 Required hardware and software tools for getting started
Name
Order link
Description
Order content
Please order all the hardware tools. Click on the links below:
XDPL8219 reference board
Click on the link:
40 W reference board
XDPL8219 reference
board for LED lighting
XDPL8219 reference
board
Driver for LED lighting
Programming cable
To connect the
XDPL8219 reference
board with the .dp
Interface Gen2
.dp Interface Gen2
Click on the link:
IF-BOARD.DP-GEN2
Interface board to
control XDPL8219 from
PC/notebook
.dp Interface Gen2
Interface for
programming the
XDPL8219 digital
controller
USB cable
To connect the .dp
Interface Gen2 with a
PC
Please download and install all the software tools. Click on the links below:
Graphical user interface (GUI)
for read and write access to the
parameters in the OTP
Click on the link and
follow the instruction in
the right-hand column:
.dp Vision
Accept the mentioned
terms and conditions
Click “Run”
Install .dp Vision
.dp Vision installer
(*.msi)
dpVision_folder_set-up copies
auxiliary files including the
parameter .csv file to the
respective directory structure
Click on the link and
follow the instruction in
the next column:
REF-XDPL8219-U40W
On the website of the
respective product,
choose the section
“Tools & Software”
Click on “Development
Tools”
Choose and open the .zip
file
“REF-XDPL8219-U40W_
dpvision_folder_set-
up.zip”
Double-click the
unpacked .msi file to
install
XDP™ digital power –
.dp Vision setup with
the following
documents:
XDPL8219 parameters
.csv file
XDPL8219 images file
XDPL8219
documentation files
.dp Interface Gen2
firmware

User Manual 3 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
2Getting started
Attention: The instructions in this manual work without V AC connection.
Attention: Before you connect the reference board to the mains, pay careful attention to the safety hints in
the recent “REF-XDPL8219-U40W engineering report”. Incorrect use of the reference board could
be dangerous, and even life-threatening!
2.1 Hardware connection
Connect the .dp Interface Gen2 to a notebook/PC with the USB cable.

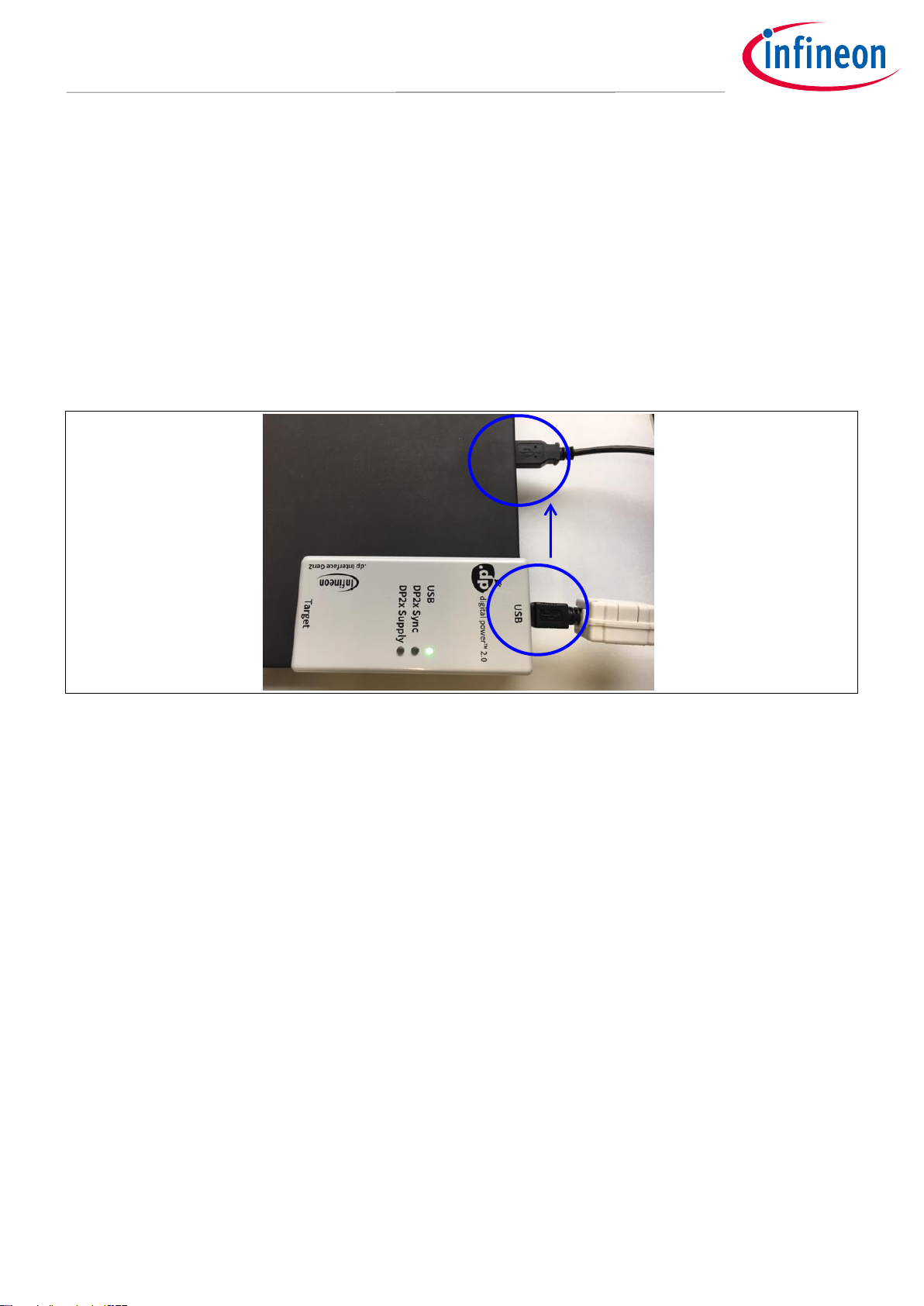

Figure 1 Connection between .dp Interface Gen2 and notebook
Note: Sometimes the detection of the .dp Interface Gen2 fails on USB3.0 ports. Therefore, the use of a
USB2.0 port might be necessary (which can be provided by an external USB2.0 hub if the machine
only offers USB3.0 ports).
USB
cable to
notebook

User Manual 4 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
Connect the .dp Interface Gen2 to the XDPL8219 reference board with the programming cable.

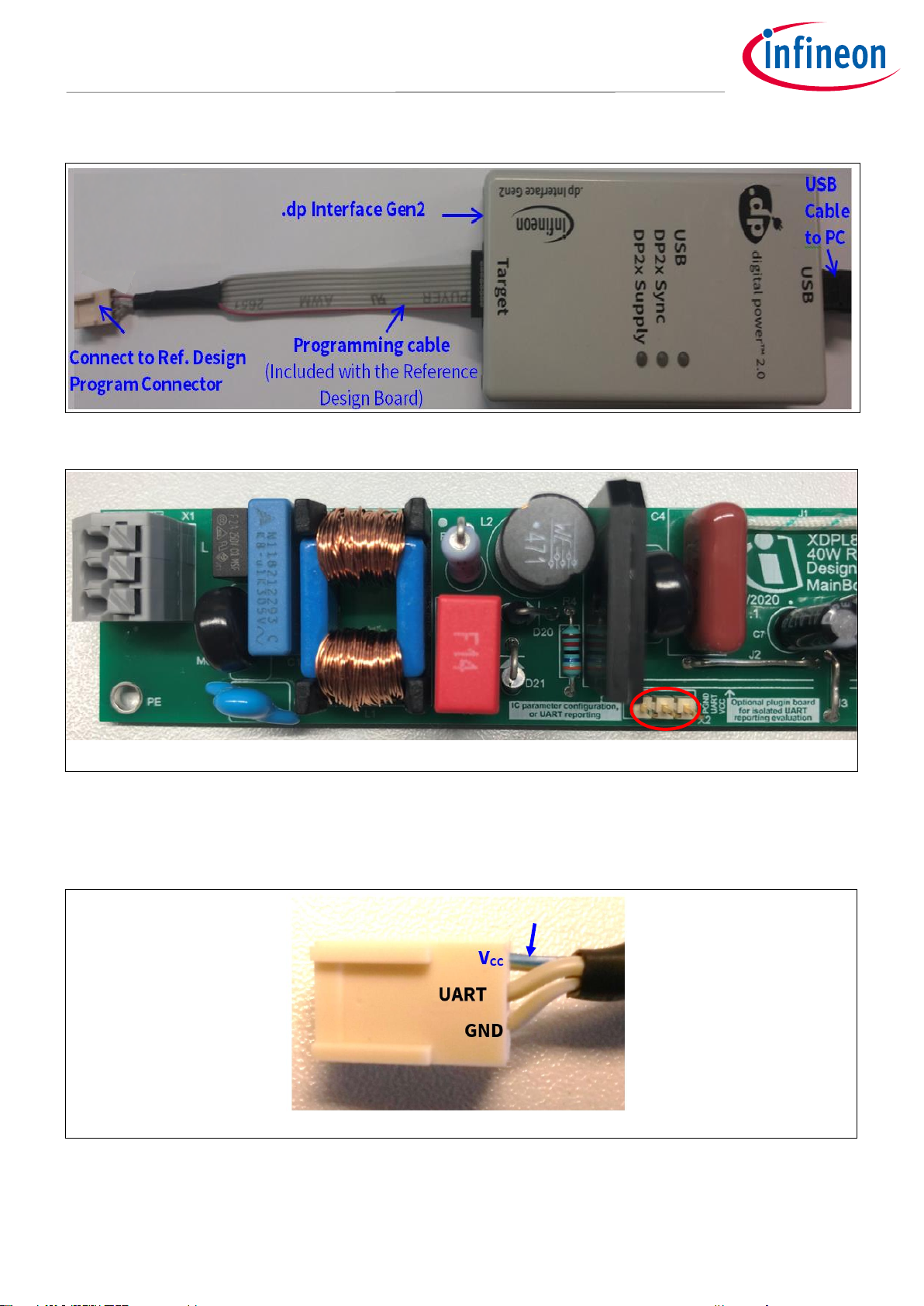

Figure 2 .dp Interface Gen2 connection
Figure 3 Connection between the .dp Interface Gen2 and the XDPL8219 reference board
Note: Please ensure that the connector of the programming cable is plugged in correctly: The colored wire
indicates pin 1 and should be connected to the VCC pin on the XDPL8219 reference board.
Figure 4 Program connector
Programming
interface
GND + VCC
UART
Colored wire indicates Pin 1, to be connected with the VCC pin

User Manual 5 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
2.2 Parameter configuration
Start the .dp Vision program by clicking the “.dp Vision” shortcut on the desktop. The screen shown in Figure 5
will appear.

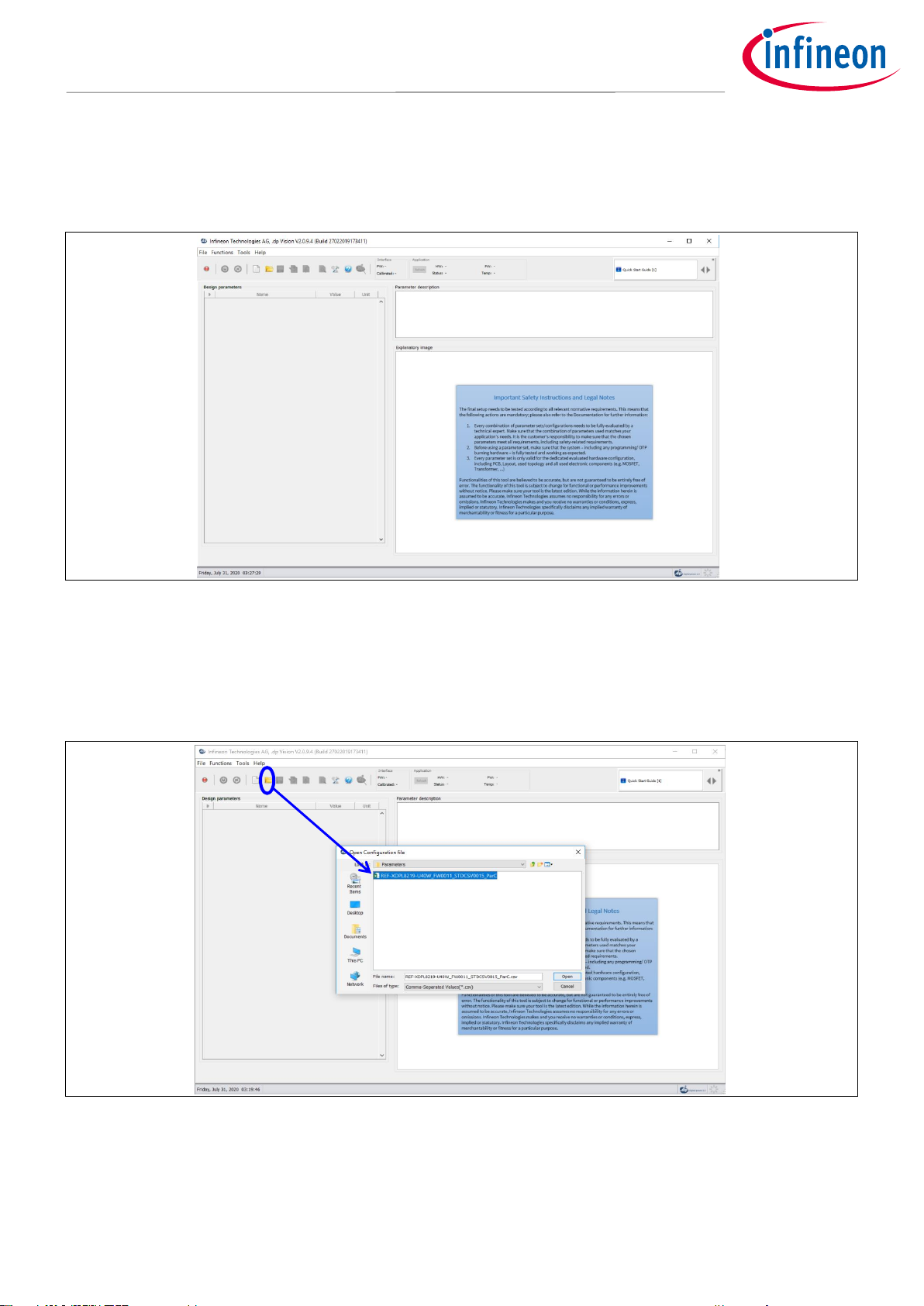

Figure 5 Starting .dp Vision
Load the XDPL8219 parameters configuration file (*.csv) in the folder (HOME)\Infineon Technologies AG\.dp
vision\Parameters as shown in Figure 6.Please select the corresponding file (e.g., for a 40 W board choose the
“REF-XDPL8219-U40W_FW…” file).
Figure 6 Load the .csv file
After loading the parameters .csv file, a list of XDPL8219 configurable parameters will show (see the box on the
left in Figure 7). These values can be modified by users and will turn blue.
Select the appropriate .csv file to open

User Manual 6 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
Figure 7 Parameters file loaded in .dp Vision
Note: The message bar shown in Figure 7 provides detailed information. For further information, please
refer to the “dpvision User manual”.
Figure 8 Message description
Click on the message bar for
detailed information
List of configurable
parameters

User Manual 7 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
There are two options available to configure the IC based on the parameter values in .dp Vision:
1) Non-permanent for testing
2) Permanent for regular operation
1) Test configuration
This function will download the parameter values from .dp Vision into the XDPL8219 RAM memory space, and it
will then be followed by an automatic IC start-up for application testing with the new configuration. As long as
the board is activated, the VCC is supplied.
Parameter configuration with this option is not permanent, because the loaded RAM content gets lost once the
IC supply voltage is turned off or the IC restarts due to certain protections. For detailed information, please
refer to the “dpvision User manual” in the “Documents” folder.
Table 2 shows the procedures for using the test configuration function in .dp Vision to load the new parameter
values in the RAM and test the application with the new configuration.

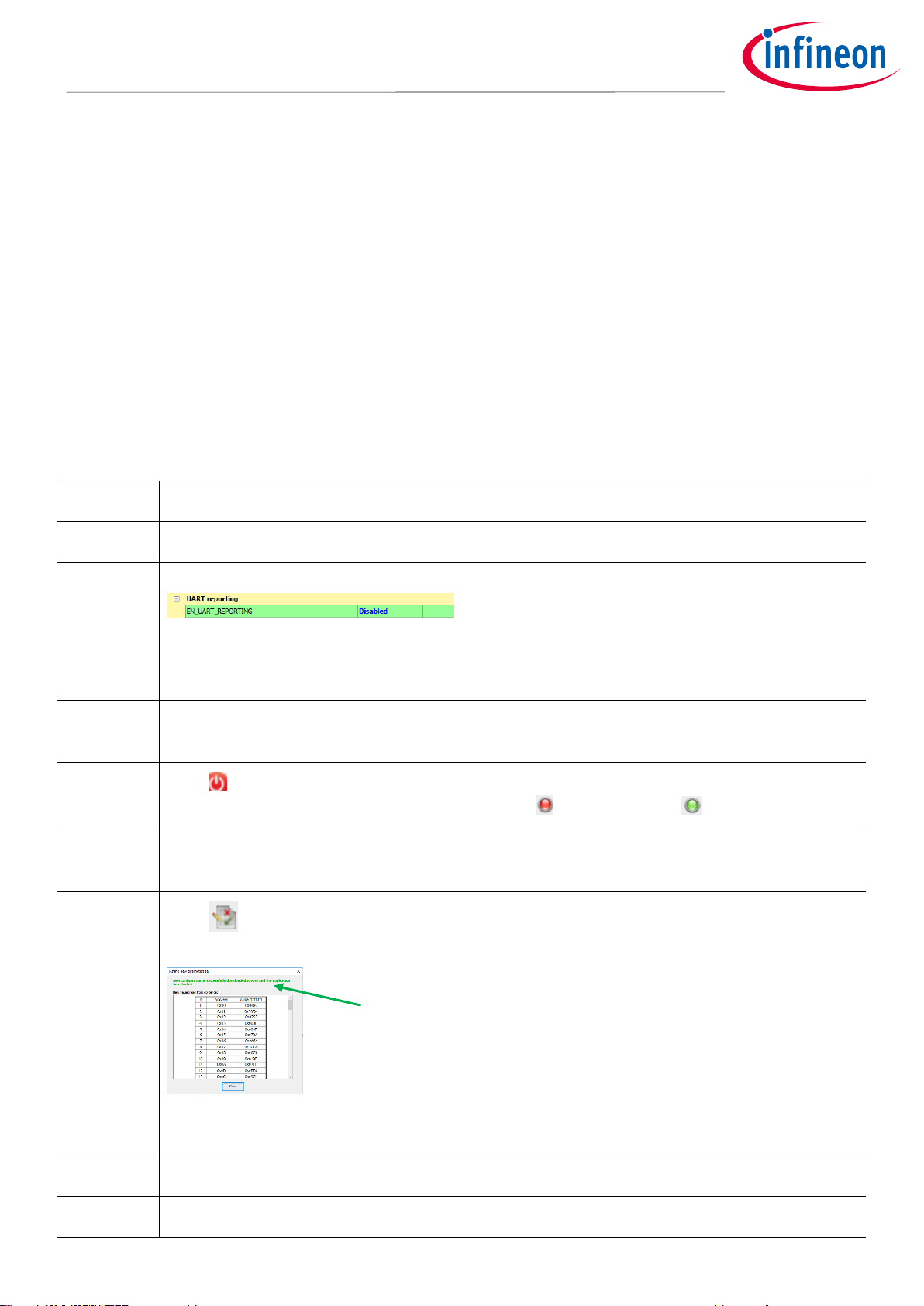

Table 2 Test configuration procedures
Step
Instruction
1
Open configuration file (see example in Figure 7).
2
Ensure ENUART,REPORTING parameter is disabled and change the desired parameter value.
Note: If the ENUART,REPORTING parameter is enabled, the success of the test configuration cannot be
guaranteed, because .dp Vision will show an error due to being unable to get the status from
XDPL8219 with UART reporting, after the automatic IC start-up with the new configuration in RAM.
3
Ensure that the primary supply voltage (AC input) to the board is not active and the hardware
connection for configuration is OK based on Figure 2 and Figure 3.
4
Press to supply power and establish a connection to the target XDPL8219. After this, XDPL8219
will be in configuration mode and the device status should change to .
5 (optional)
Ensure that the LED output is connected to a load, and switch on AC input (e.g. 230 V AC).
After this, the board will not start because XDPL8219 is still in configuration mode.
6
Press to test the configuration with target XDPL8219. After this, the IC will automatically start
normal operation with the new configuration and the window below will pop up:
Note: If the parameter configuration is equivalent to the pre-existing parameters, the XDPL8219
will not download them to RAM.
7
Press “Close” on the pop-up window.
8
To test another configuration, repeat these steps.
New configuration is successfully downloaded to
RAM and the application has started

User Manual 8 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
Note: If there is any error between steps 1 and 7, refer to the message bar of .dp Vision for the error
message. For further information, please refer to the “dpvision User manual”.
2) Burn configuration
As the XDPL8219 chip on the 40 W reference design PCB has a first full set of parameters in its one-time
programmable (OTP) memory space, only changed parameters are written in the OTP memory. For detailed
information, please refer to the “dpvision User manual” in the “Documents” folder.
Table 3 shows the procedures to burn a parameter update in .dp Vision into the OTP memory.
Table 3 Burn configuration procedures
Step
Instruction
1
Load configuration file (see example in Figure 7).
2
Modify the parameter value needed, then press [File] >> [Save] or [File] >> [Save as], to save
the configuration file. Otherwise, proceed to step 3.
3 (optional)
Disconnect or turn off AC input voltage and check the hardware connection for configuration –
see Figure 2 and Figure 3.
4
Press to supply power and establish connection to the target XDPL8219. After this, XDPL8219
will enter configuration mode and the device status should change to .
5
Press to burn configuration into target XDPL8219.
After this step, a window pops up, like one of these below.
Note: If the parameter configuration is equivalent to the pre-existing parameters, the XDPL8219
will not burn them in the OTP memory.
6
Press “Proceed” or “Yes” to burn the configuration. After this, a window pops up indicating
success.
7
Press “OK” on the pop-up window then disconnect the programming cable from the board
connector and test the application, if needed.

User Manual 9 V 1.0
2020-08-12
Getting started with the XDPL8219 reference board using .dp Vision
software
Getting started
Revision history
Document
version
Date of release
Description of changes
V 1.0
12-08-2020
First release

Published by
Infineon Technologies AG
81726 Munich, Germany
© 2020 Infineon Technologies AG.
All Rights Reserved.
Do you have a question about this
document?
Email: [e-mail]
Document reference
IMPORTANT NOTICE
The information contained in this application note
is given as a hint for the implementation of the
product only and shall in no event be regarded as a
description or warranty of a certain functionality,
condition or quality of the product. Before
implementation of the product, the recipient of this
application note must verify any function and other
technical information given herein in the real
application. Infineon Technologies hereby
disclaims any and all warranties and liabilities of
any kind (including without limitation warranties of
non-infringement of intellectual property rights of
any third party) with respect to any and all
information given in this application note.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer’s technical departments
to evaluate the suitability of the product for the
intended application and the completeness of the
product information given in this document with
respect to such application.
For further information on the product, technology,
delivery terms and conditions and prices please
contact your nearest Infineon Technologies office
(www.infineon.com).
WARNINGS
Due to technical requirements products may
contain dangerous substances. For information on
the types in question please contact your nearest
Infineon Technologies office.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon
Technologies, Infineon Technologies’ products may
not be used in any applications where a failure of
the product or any consequences of the use thereof
can reasonably be expected to result in personal
injury.
Other Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
UM_2007_PL21_2008_165321owners.
Edition 2020-08-12
UM_2007_PL21_2008_165321
