iNFinuvo CleanMate QQ3 Series User manual

CleanMate QQ3 Model
Quick Start Guide
If you have question or issue on the product, do not return it to store.
Please contact technical support first with live chat at:
http://cleanmate.metapo.com
You can register your product for one year warranty service at:
http://cleanmate.metapo.com

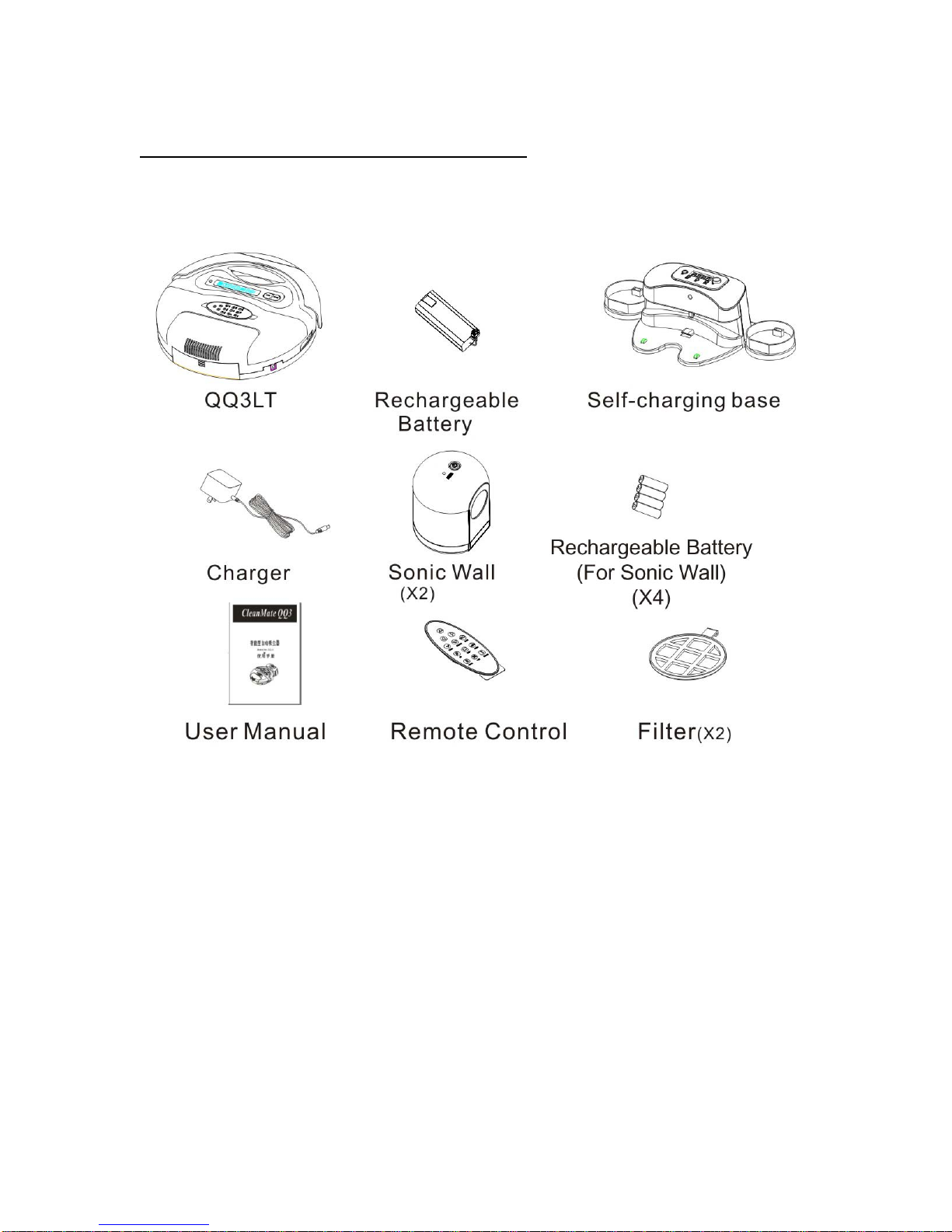

Step 1: Check QQ3 Unit and Accessories in the Package
Please check and make sure the following items are inside your package.
For QQ3T model without Sonic Walls

For QQ3LT model with two Sonic Walls*
* Note:
Two Sonic Walls are optional based on the model configuration.
Please check your invoice if Sonic Walls are included or not.
If Sonic Walls are not included, then the Self-charging base is shown on the previous
page.

Step 2: Install the Battery
Remove both bumper protection foam pads before first use of the CleanMate unit.
Remove the insulation sheet under battery before using the remote control for the 1st time.
Battery installation – open battery cover, connect the battery wire connector to the
connector on QQ3 unit, put battery securely in battery compartment, and close the battery
cover.

Step 3: Charge the Battery
A. Charge the battery on self-charging base
Make sure battery charger connector is plugged to the power socket on charging base first,
and then plug the other end of charger to wall outlet.
Position charging base securely against the wall and leave enough clearance space on
both sides. Also make sure there is open space in front of the charging base for QQ3 to
dock onto the base. To test QQ3 self-charging base, put QQ3 unit about 2.5 ft (or less) in
front of charging base, and press “HOME” button on remote control to let QQ3
automatically dock to charging base and charge the battery. Make necessary adjustment
to the self-charging base if QQ3 cannot dock on the self-charging base properly.
At end of cleaning cycle or low battery condition, QQ3 unit will search for self-charging
base to recharge battery.
QQ3T model blue LED light will be blinking to indicate that battery is being charged.
QQ3LT model battery icon on LCD display will be blinking. It normally takes about 3
hours to have the battery fully charged. It is recommended to charge the CleanMate
battery overnight before first time usage.

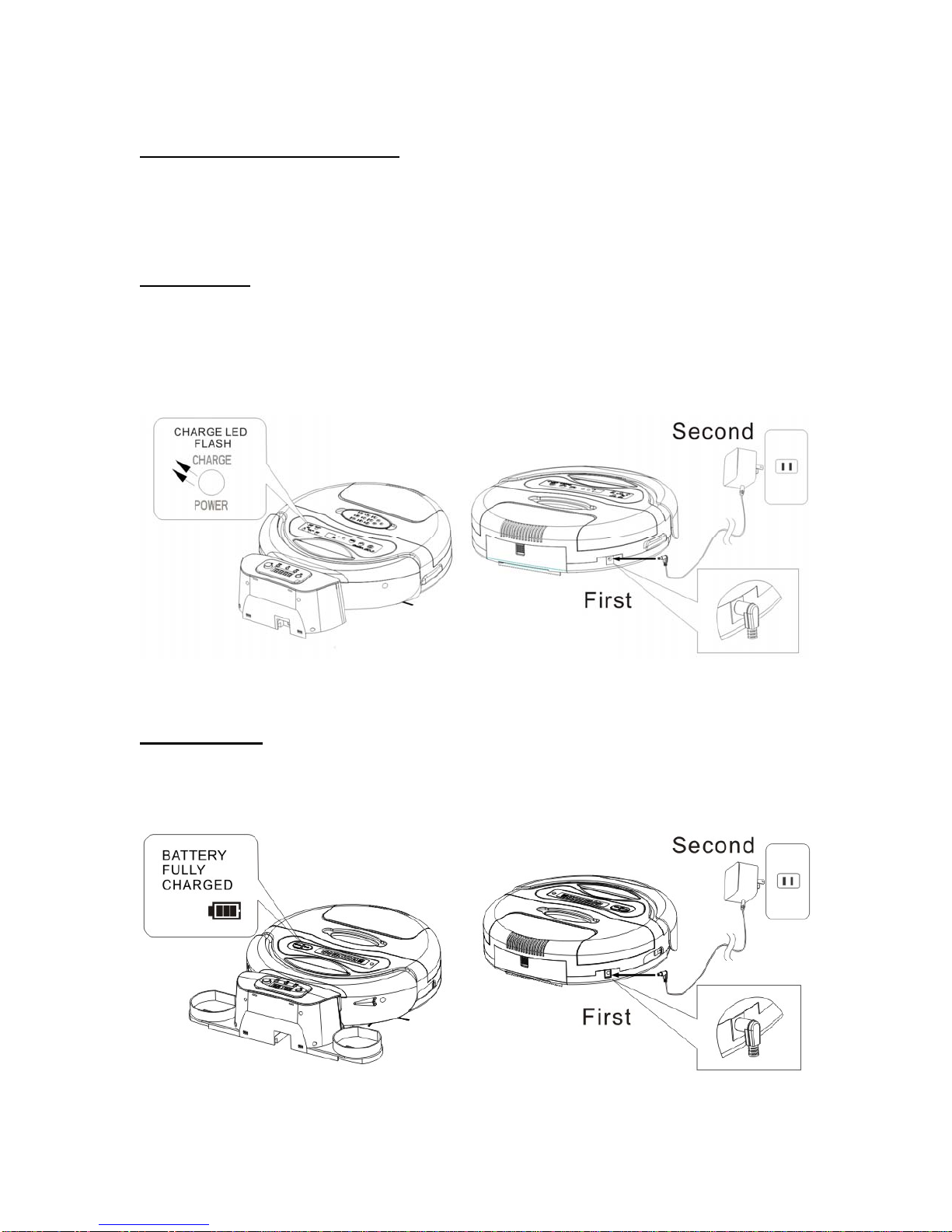

B. Charge battery manually
To charge the battery manually without using self-charging base, just plug battery
charger connector to the charging socket on QQ3 unit first, and then plug the other end of
charger to wall outlet.
QQ3T model:
Blue LED light on QQ3T unit will be blinking to indicate that battery is being charged. It
normally takes about 3 hours to have the battery fully charged. It is recommended to
charge the CleanMate battery overnight before first time usage.
QQ3LT model:
Battery icon on QQ3LT LCD display will be blinking to indicate that battery is being
charged. When battery is fully charged, battery icon will be steady as shown.

Step 4:

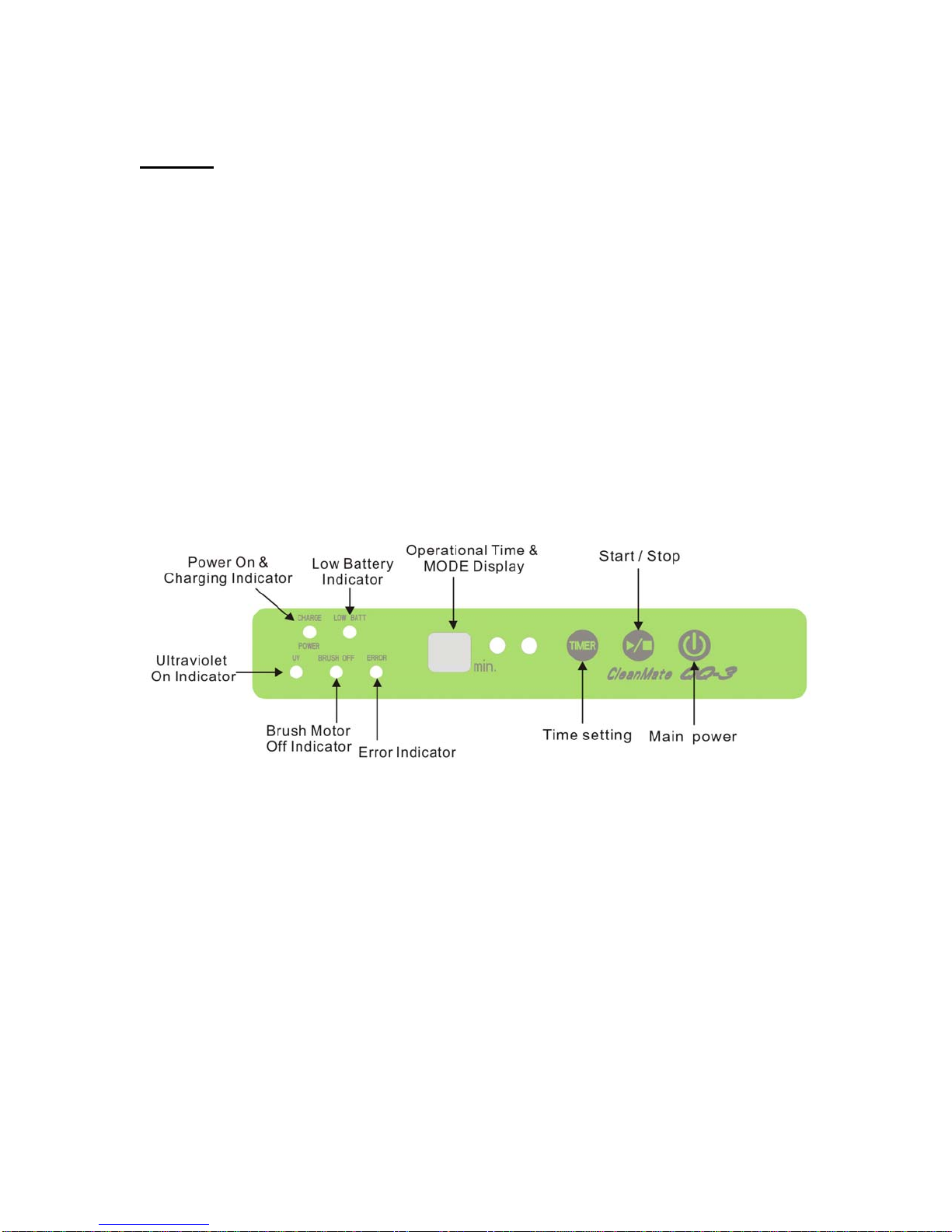

Start / Stop Cleaning for QQ3T model
1. Press “POWER” button on QQ3 to turn it on. The power LED (solid blue) will light up.
2. Press “Start/Stop” button once on QQ3 unit to start the cleaning. Press this button
again to stop cleaning.
3. Press “TIMER” button on QQ3 unit to set the operation running time. The numerical panel on
QQ3 will display the running time & cleaning mode. When QQ3 is powered on for the 1st time,
default running time is set to 40 minutes. User can change running time from 10 to 90 minutes in
10-minute intervals by pressing the TIMER button.
4. Set CleanMate running time based on the size of cleaning area. Regularly remove the debris
and hairs around brushes and wheels to conserve battery power and increase battery life time.
5. When the battery power is low, the LOW BATT light on QQ3 will blink in red.
6. In the following situations, ERROR light will light up: battery over charging, motor
overloading, and wheel traction losing (lifted off ground, etc) for more than 3 seconds.

LED and Audible Alert Indicators
Audible indicator
Status Description
Times up (when the cleaning timer was set)
Long Beep once followed by one Short Beep Battery Low, cleaning function off
Long Beep once Error
Short Beep three times Fully charged
Short Beep three times and One long Beep Fully charged and start vacuuming again
(when the docking station is set that after fully
charged, QQ3 will go out to vacuum again)
LED indicator
Color of LED Lights Description
Green Steady – Brush Motor Off
Blinking – Battery Low
Red Steady - Error
Steady – Fully Charged / Power On
Blue Blinking - Charging
Yellow UV On

Start / Stop Cleaning for QQ3LT model

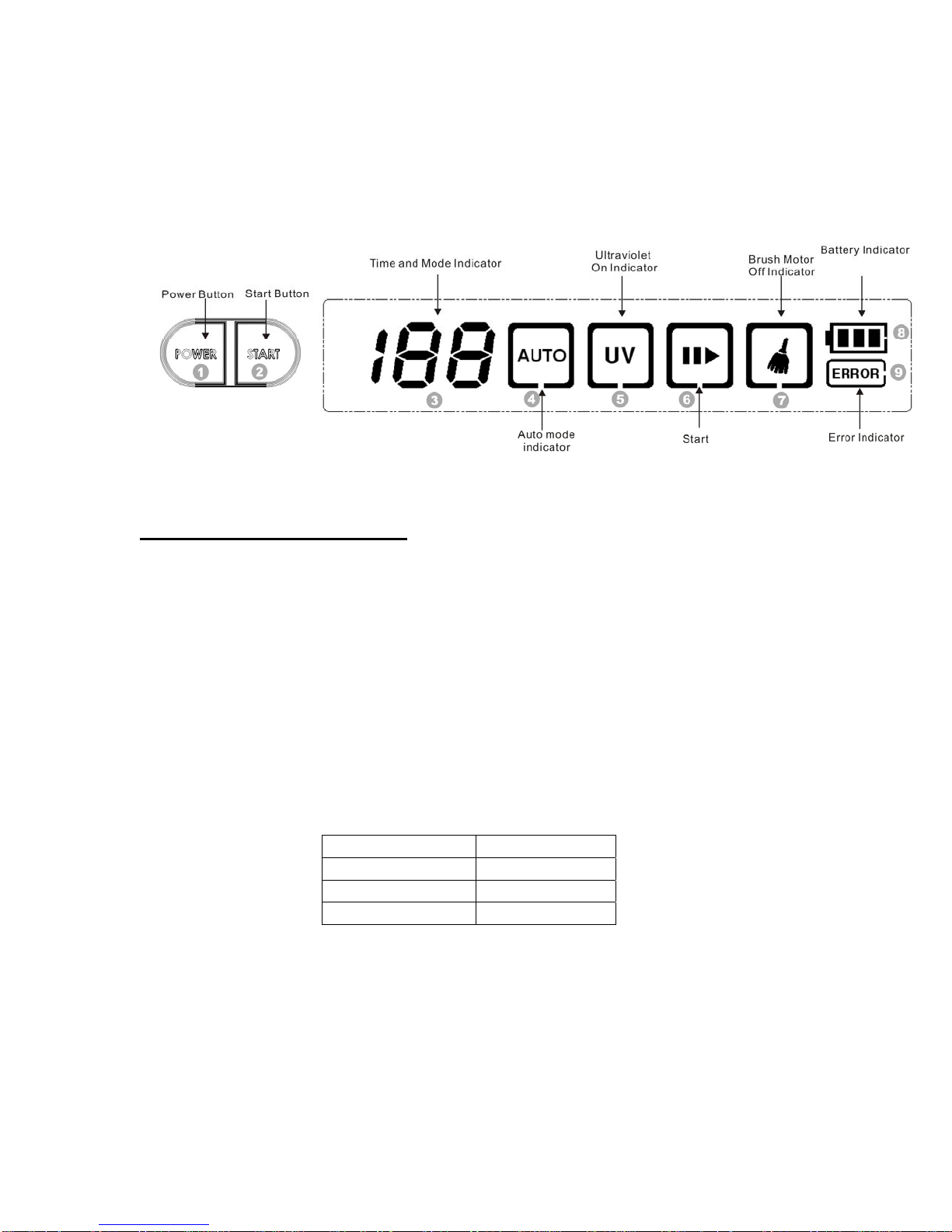

LCD Control Panel and Functions
1. Power Button: To turn on QQ3LT
2. Start Button: To start QQ3LT
3. Time and Mode Indicator: The numerical panel on QQ3LT will display the running time &
cleaning mode. When QQ3LT is powered on for the 1st time, default running time is set to 40
minutes. User can change running time from 10 to 90 minutes in 10-minute intervals by pressing
the TIMER button on remote control unit.
4. Auto: Light up when the cleaning patterns are repeated automatically
5. UV: Light up when QQ3LT UV light is activated via remote control unit.
6. Start: Light up when QQ3LT started working
7. Sweep: Light up when the brush motor is turned on by starting QQ3LT; light off when
brush motor is turned off via remote control unit.
8. Battery indicator:
Battery indicator Battery Status
Three Cells Fully Charged
One Cell Battery Low
Blinking Charging
9. Error: Light up when battery over charging, motor overloading, and wheel traction losing
(lifted off ground, etc) for more than 3 seconds

Remote Control Operation
Make sure to remove the insulation plastic sheet under remote battery before using the
remote for the first time.
Remote Functions:
1. START button: Press START to begin the automatic cleaning of your room.
2. STOP button: Press STOP to stop the operation of QQ3. You will hear a long beep
sound.
3. TIMER button: Press TIMER to change the cleaning time.
4. Direction buttons: FORWARD: when you press this button, QQ3 will move forward
until user press FORWARD again, or when it hits an obstacle. RIGHT, LEFT and
BACKWARD buttons: press these buttons to manually drive the QQ3 unit to go to right,
left or backward directions.
5. MODE button: Press this button to select 1 of the 5 available cleaning mode patterns.
The default operation mode is Automatic mode. In this normal mode, CleanMate will go
though all 5 pre-programmed cleaning patterns automatically to achieve the best cleaning
effects. Presses MODE button one more time to select another cleaning pattern.

a) Press “MODE”button once (1st time) to choose “Spiral”mode. The timer on QQ3
will display “1”for one minute and then show the cleaning time setting. When QQ3
hits an object while running in this mode, it will stop the movement and wait for further
instruction.
b) Press “MODE”button again (2nd time) to choose “Special Bounce”mode. The Timer
on QQ3 will display “2”for one minute.
c) Press “MODE”button again (3rd time) to choose “Along Wall”mode. The Timer on QQ3
will display “3”for one minute.
d) Press the “MODE”button again (4th time) to choose S Shape”mode. The timer on
QQ3 will display “4”for one minute.
e) Press the “MODE”button again (5th time) to choose “Polygonal Spiral”mode.
The Timer display on QQ3 will show “5”for one minute.
f) Press the “MODE”button again (6th time), and the QQ3 will go back to the default
Automatic cleaning mode. The Timer display on QQ3 will show “A”for one minute.
6. UV button: Turn the UV light ON or OFF on QQ3.
7. SWEEP button: Press this button to turn brush motor ON or OFF.
8. HOME button: Press this button to direct the QQ3 to return to home charging base.
9. OFF button: Press this button to turn OFF the QQ3.
Step 5: How to the Empty Dust Bin

Step 6: How to Clean the Roller Brush
Step 7: How to Set Up Sonic Walls (if it is available)

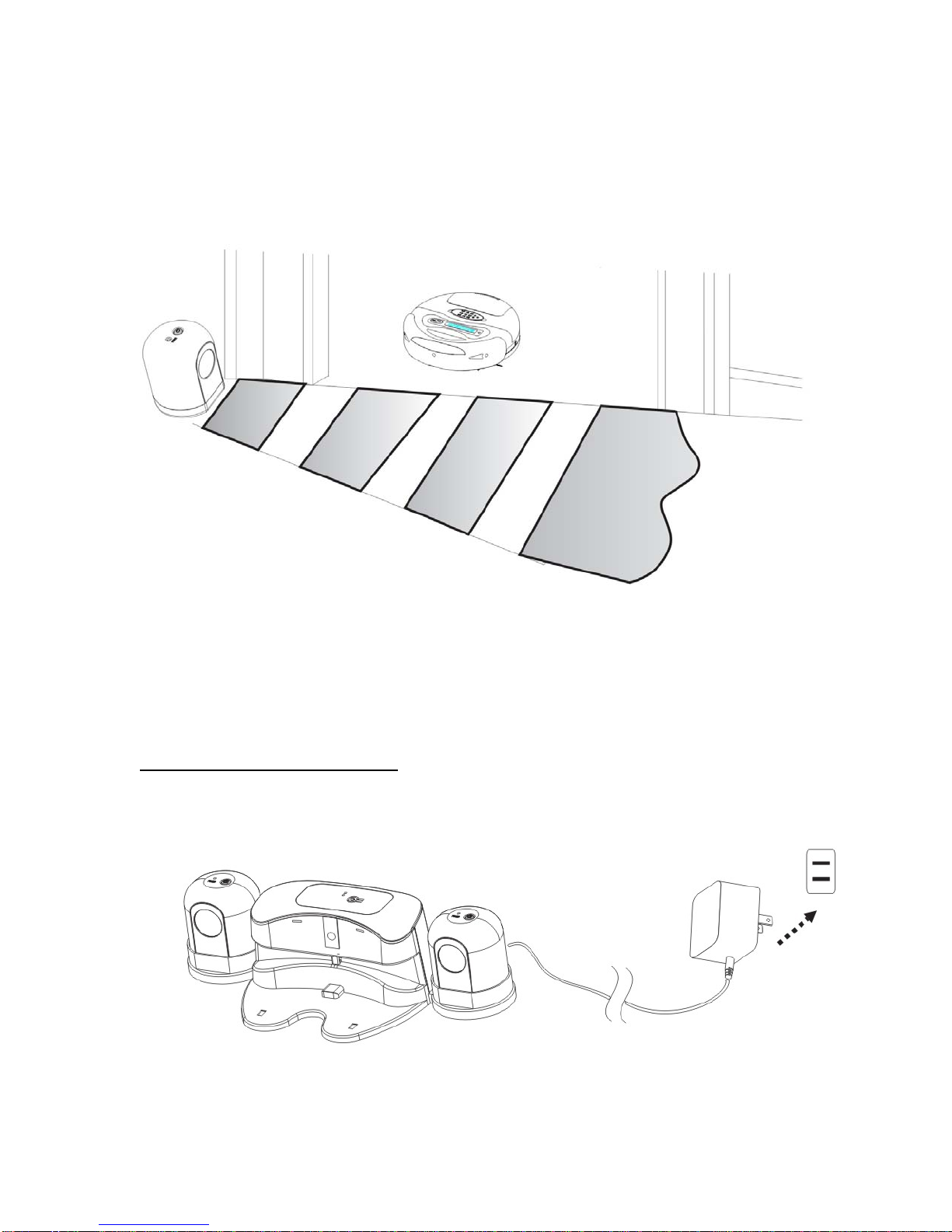

The CleanMate Sonic Walls create an invisible barrier that QQ3LT will not cross.
Sonic Wall

Push down the power switch, “POWER” green LED is on and Sonic Wall works. Push
power switch again will power off.
Sonic Walls can be set to block an area 1.5M (5ft.) long.
Sonic Wall beam is keyhole shaped. A larger cone-shaped section blocks off areas of
your home where you don’t want QQ3 to go.
If “POWER” green LED blinks, Sonic Wall battery needs to be recharged.
TIP: Use the Sonic Wall to block doorway or keep QQ3 away from cords. Confining
QQ3 to a single room will accelerate cleaning.
TIP: For best performance place the Sonic Wall on outside of the doorway you wish to
block.
Charging Sonic Walls battery
Charging Base has built in USB ports, you can dock the Sonic Walls into Charging Base
to charge battery inside Sonic Walls.

Step 7: How to Set Up QQ3 Scheduler
With the help of scheduler on QQ3, user has the freedom to set up the cleaning time
according to pre-programmed schedule. On the preset cleaning time, QQ3 will leave the
charging base and start the cleaning session automatically. You can program it to start
cleaning job at the same time on every day, or on any day of week you choose.
The scheduler LCD panel is located on the top of the QQ3 self-charging base unit. User
needs to plug the AC adapter into QQ3 self-charging base to set up the clock and
cleaning times.

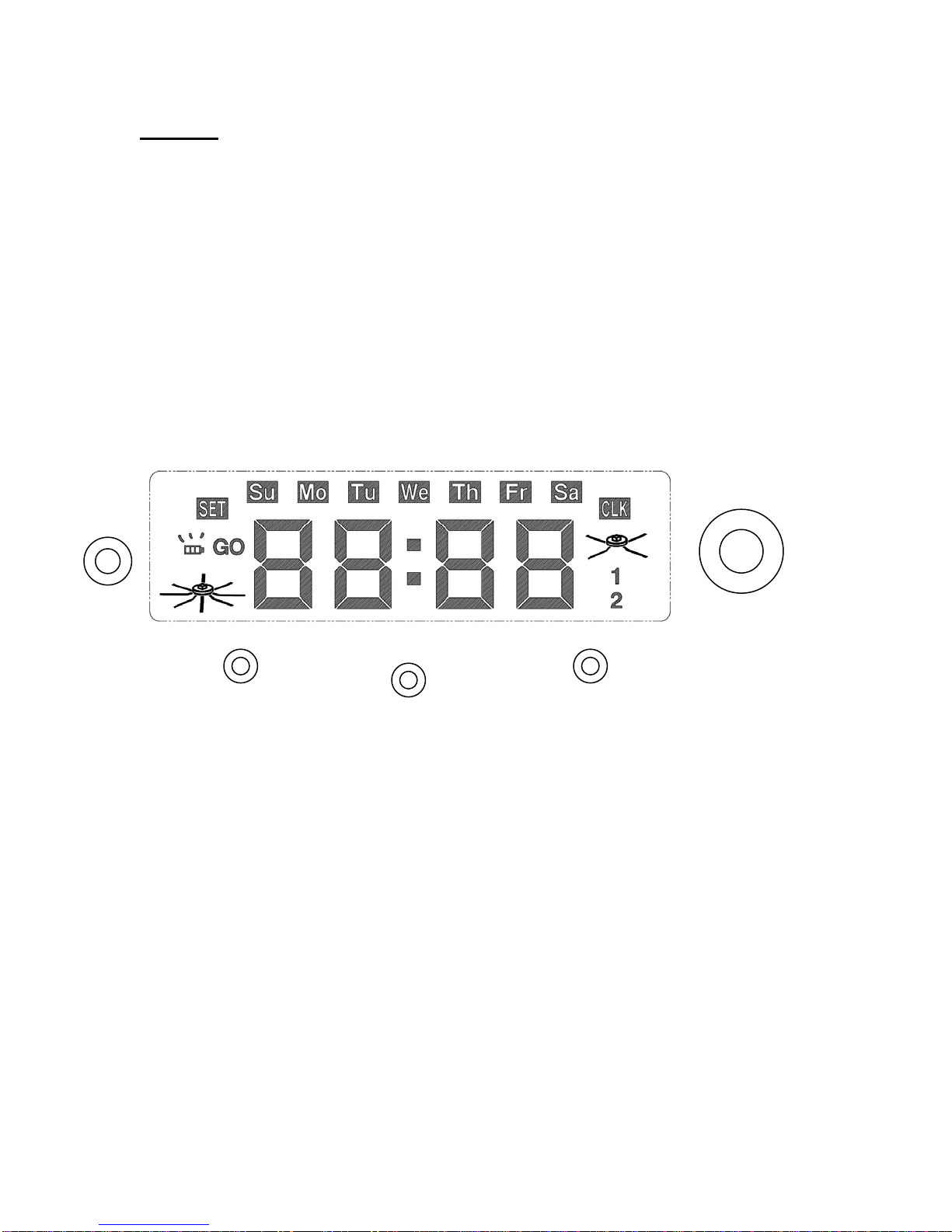

1. Illustration of QQ3 Scheduler LCD Panel
SET
GO
WEEK
H
OUR
MIN
SET (on left side of LCD panel) sign is displayed when you set clock or cleaning
schedule
Week display (top of LCD panel): Each week day display will be shown as “Su”,
“Mo”, “Tu”, “We”, “Th”, “Fr” and “Sa”.
CLK(Right side of LCD panel) is displayed in Clock-setting mode
GO (Left side of LCD panel), Battery and Brush icon on the left panel show that
the cleaning will start once the battery is fully charged.
Brush Icon on the right side of LCD panel is displayed when scheduled cleaning
time has been set up and it is ready to start cleaning based on preset schedule.
Clock digit display is in middle of LCD panel.

2. Scheduler Setting Operations
Setting the Clock
2.1 Once powered on, the scheduler will enter Clock Display Mode and display initial
default setting of Sunday 00:00 (in 24 hours time format)
2.2 Press “SET” to set up the clock time (enter Clock-setting mode and display SET
and CLK icon). Time and week will start blinking. Press “HOUR”, “MIN” or
“WEEK” to set the correct time and week day. The display value will increase by
“1” with each press, and the number will change rapidly if you hold the button.
The clock will be set and display will become steady (SET and CLK disappear) if
there is no key input for one minute (idling or no action).
Setting the Cleaning Schedule
User can schedule the QQ3 unit to clean on any day of the week, up to 7 days per
week (one cleaning time per day and same cleaning time on each day).
2.3 Press “SET” again to enter Scheduler Mode. Time and week will start blinking.
Press “HOUR”, “MIN” or “WEEK” to set the cleaning schedule. The display
value will increase by “1” with each press, and the number will change rapidly if
you hold the button.

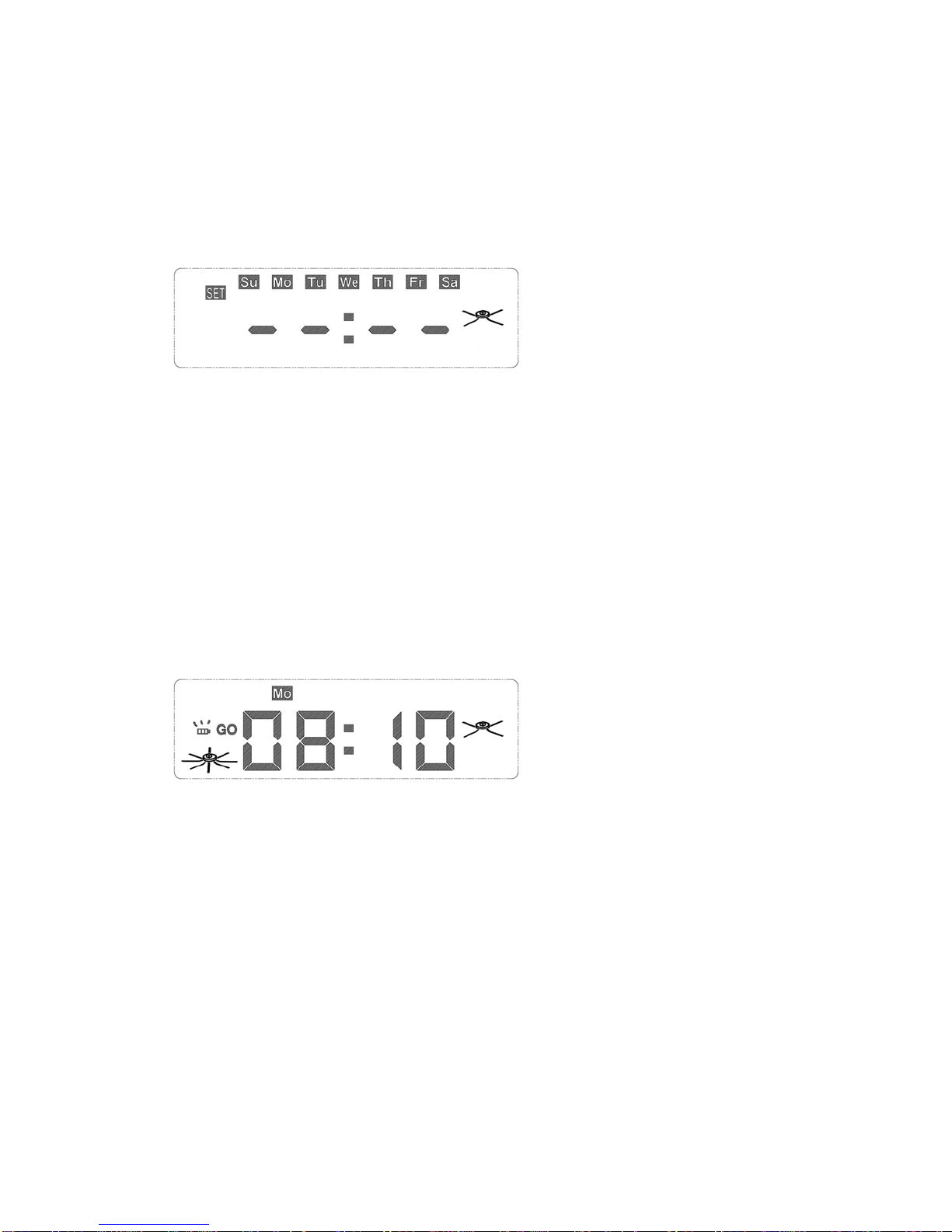

When you set hours and minutes, the cleaning time will not be scheduled if you
select the bar (“-” sign as shown below) instead of a numeric digit.

After cleaning time is set, you can choose to schedule the cleaning time on any
day in a week. The initial default setting is to clean on everyday. Press “WEEK”,
then the scheduler will highlight all 7 days of the week, which means the QQ3
will start automatic cleaning once a day, 7 days a week (at same cleaning time).
If you want to choose a particular day (or days) in a week to perform the cleaning
job, then press “WEEK” again. You will see “Su” start blinking. Press “WEEK”
one more time within 5 seconds if you want to select Sunday, and you will see
“Su” turns into steady state to confirm your setting. If you want to select a day
other than Sunday, just wait for more than 5 seconds and you will see “Mo”, or
other days of the week. To select a particular cleaning day, just press “WEEK”
within 5 seconds after you see it blinking to confirm. If you want to skip a day,
wait for more than 5 seconds (without pressing “WEEK” key), and it will start
display the next week day for you to choose.
2.4 When cleaning schedule set up is complete, press “SET” again and the scheduler
will return to the Clock display Mode.

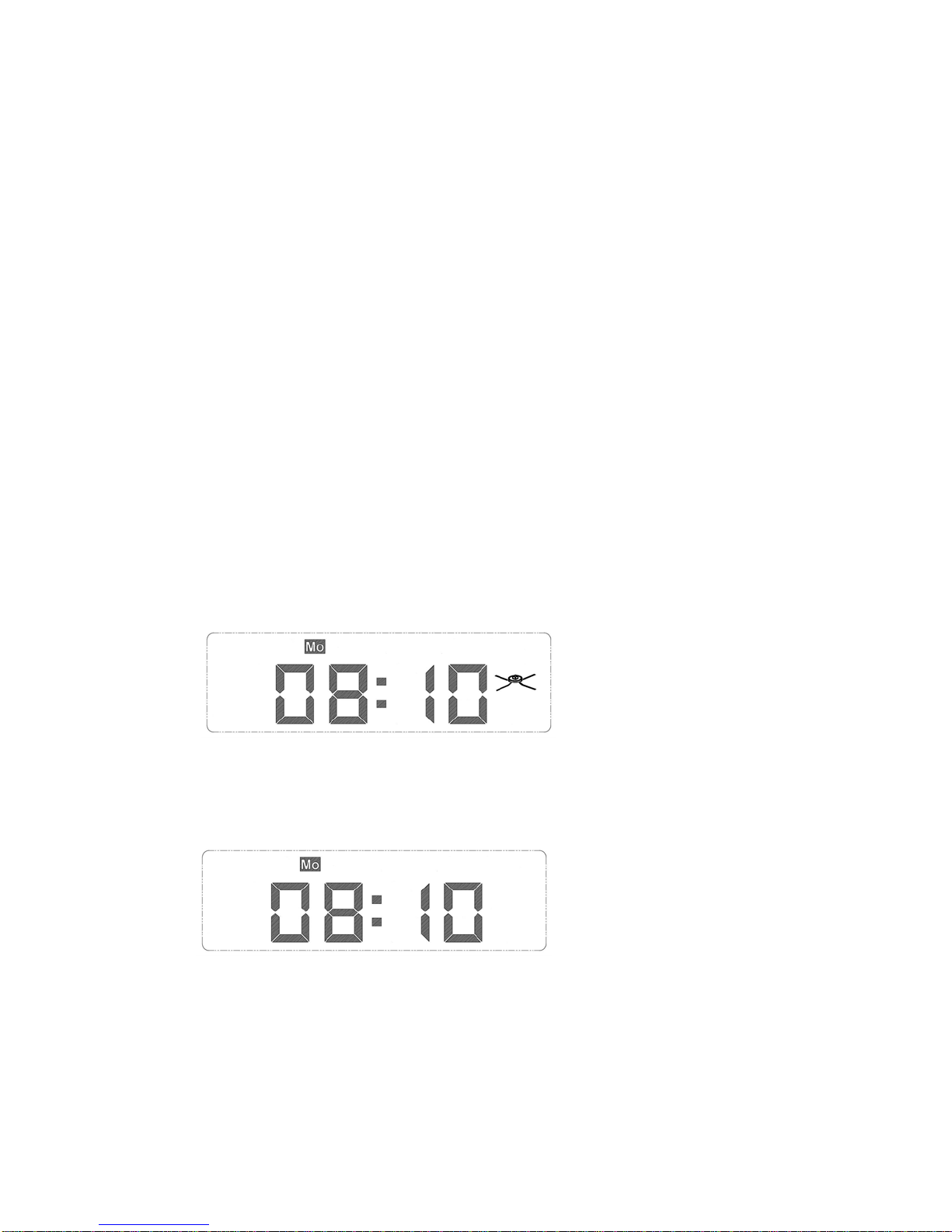

Example 1 (LCD display with brush icon) – Scheduler is set up to perform a
preset cleaning job and current time is Monday 8:10AM.
Example 2 (LCD display with no brush icon) - Scheduler has NOT been set up to
do any preset cleaning job and current time is Monday 8:10AM.

3. How to Delete a Preset Cleaning Schedule
When scheduler displays clock time (at Clock Display Mode), press “SET” once and
it will enter Clock-setting Mode. Press “SET” again, it will enter Scheduler Mode.
When you set Hours and Minutes, the cleaning will be deleted if you select the bar (“-
” sign as shown below) instead of a numeric digit.
4. How to Display a Preset Cleaning Schedule
When scheduler displays clock time (at Clock display Mode), press “SET” once it
will enter Clock-setting Mode. Press “SET” again, it enters Scheduler Mode and it
also shows preset scheduling time and day.
5. Start Cleaning Automatically Right After Battery is Fully Charged
Press “GO” (for about 1 second) on the self-charging base, and you will see Battery,
Brush and GO icons turned on (as shown below) on the left side of LCD panel. This
indicates that the QQ3 vacuum will automatically start a cleaning cycle right after the
battery is fully charged.
Press the “GO” button again to turn this function off. Note: QQ3 vacuum cleaner
will only run one cleaning cycle after “GO” button is selected.
6. How to Start Cleaning Right Away
If you hold down “GO” button for 5 seconds, the QQ3 on the self-charging base will
leave the base and begin the cleaning right away, no matter whether the battery has
been charged in full or not. This function works the same way as you push “START”
button on the remote control.
7. How to Start Cleaning with Remote Control
When the QQ3 is being charging on the self-charging base, you can direct the QQ3 to
begin cleaning when you press “START” button on your remote control.
