iNFinuvo Cleanmate QQ6 Series User manual

Q 6 SeriesQ
QQ6 Series
REV C20140410
QQ6 QQ6

Table of Content
1
1
2
2
3
4
7
8
9
10
11
13
14
15
17
19
21
22

Safety Precautions
Safety Instruction

Special Feature
2 Side brush .
1 biggest and viewable dust-bin unique design .
2 option clean method --- Non-collided and Soft-touched .
4 drop sensors to keep unit from falling off .
High efficiency and vacuum suction .
Sonic-Wall --- Virtual blocking unit .
Auto self-charging base --- Smart and efficiency . .
Spot spiral cleaning --- Select Mode 1 with remote controller.
All cleaning parts could renew from unit outside and by yourself .
Cleaning a wide variety of floor types
Optimum dimension 33*8cm(13*3.1inch) --- Enables
cleaning under beds, furniture .
Unique UV light on the bottom helps to kill germs, dust mites on the floor
This product is a revolutionary robotic vacuum
cleaner. It utilizes :
Once the QQ6 is turned on, it will follow a five step
repetitive movement cycling :
·
·
·
·
·
·
·
·
·
·
·
·
This wide variety of movement helps to ensure that QQ6 completely
cleans a room.
Spot-
Spot-
Spot-
Spot-
1.
2.
Cautions
Do not touch the UV light bulb with bare hands or sharp article.

Main Unit and Accessories
Warranty Polocy
Please fill in your warranty card completely and submit it to your local
customer service center.
CleanMate provides you, as the owner of this CleanMate product, with the
Following Limited Warranty Policy.
One year Product Warranty:
CleanMate warrants to the original purchaser of this CleanMate product that the
Product is free from defects in original materials and workmanship for a
Period of up to one year from the date of initial purchase .This warranty is
Only valid if the product has been properly installed and is used in the way
For which it is intended, and has received only factory-authorized repairs.
servicing or alterations.
Under-warranty products that meet these conditions and that function
Improperly will be repaired or replaced, at the discretion of CleanMate.
Six months Battery Warranty:
CleanMate warrants to the original purchaser of this CleanMate product that
The original batteries contained within this product will function for a
Period of six months , This warranty is only valid if the product has been
Properly installed and is used in the way of which it is intended, and has
received only factory –authorized repairs , servicing, or alterations.
Under-warranty batteries that meet these conditions and that function
Improperly will be repaired or replaced, at the discretion of CleanMatel
These warranties contain the sole express warranty of CleanMate , which
makes no other warranties, expressed or implied, These warranties are
made in lieu of any implied warranties of merchantability or fitness for a
purpose. These warranties give you specific legal rights.You
may also have other rights, which vary from state to state.
WHENYOU RETURNACLEANMATE PRODUCT OR BATTERY
UNDER THISWARRANTY, you must first obtain an RMAnumber by
calling your local customer service center or www. CleanMate.com.tw
CleanMate reserves the right go request that you submit a letter describing
The circumstances under which the problem occurred and that you submit
invoice and any other supporting evidence and documentation.
particulars
22 3
1.Main unit
2.Charging base
3.Manual
4.Remote control
5.Sonic-wall
6.
7.
8.Box for spare parts
9.Clean brush
10.
Charger
Battery pack
Hair-clean-tool
10
10
Remove the protective strip
()Inside Main Unit
7
6
8
5
4
2

2121
Main Unit Features Specification
Power Switch
ON
OFF
Front
QQ6-TR
QQ6
Start/Stop switch
Bumper
Charger inlet
Function display
Universal-Wheel
Side-Brush
Side-Brush
Charging-Pad
Rolling-Brush
Air-outlet
UV-Light
Drop-Sensor( 6)*
Wheel set
Dust-bin button Power switch
Dust-bin unit
Suction Power Speed 1.2meters per second , 11500 rpm vacuum motor
Output:20Vdc 1000mA Input:100-240V 50-60Hz
Ni-MH 14.4V, 2.0Ah Rechargeable,2.5 hours of charging time Max.65dB at distance of 1m (3ft)
6000 hours continuously
0.5 liter 21.5~23.5 cm/sec IR with more than 10 meters controlling range, 3V button Lithium battery CR2032 5 types :Spot Spiral, Special Bounce, Along Wall, S shape, Polygonal Spiral 33cm(Diameter)x8cm(H)or 13inch(diameter)x3.15inch(H) 3.2kg
Fast adapter/charger Battery Noise Life time of UV ray Capacity of dust bin Moving speed of machine Remote control Types of movement Dimension Weight
Power Switch
ON
OFF
Universal-Wheel
Side-Brush
Side-Brush
Charging-Pad
Suction inlet
Air-outlet
UV-Light
Drop-Sensor( 6)*
Wheel set
Dust-bin unit
4

5
Main Unit Features
：
：
：
Start/Stop : Push button then blue symbol light-up, QQ6 is power on.
TIP: During cleaning, if symbol is light-blinking in Red color, means Battery-
Low.
During charging, if symbol is light-up in Blue, means Charged-Fully.
TIP: During charging, if symbol is light-blinking in Blue, means "Charging".
TIP:
Start / Stop button : When the QQ6 is power on, Press the button QQ6
start working.
Push button and blue symbol light off, QQ6 stop
working.
Timer/ Movement Mode / Error, display :
1. Timer : Yon can use remote-controll setting clean time, 60 50 40
repeat.
2. Movement Mode : When QQ6 start working, it is set "Automatic
Mode".
You can use remote-control to choice 6 kinds movement
pattern : 1 Spiral", "2 Special-Bounce", "3Along wall",
, "5 Polygonal Spiral",
and return to "AAutomatic".
The display will show "1" 5", and "A".
TIP: When you push "Battery" button of Remote-control.
The display will show "H", it means go "Home" to charge battery.
QQ6 will search "Charging base" then charging.
3. Error message: When QQ6 was unreasonable stop working.
The display will show "Error number" as
You can see the message on the Label of QQ6 bottom side.
80 70
(When next time turns on . Timer will be followed
your last time setting)
"4 S shape"
"E1 E9".
→→
→→→
→→
→
"
～"
30 20 10 80
～

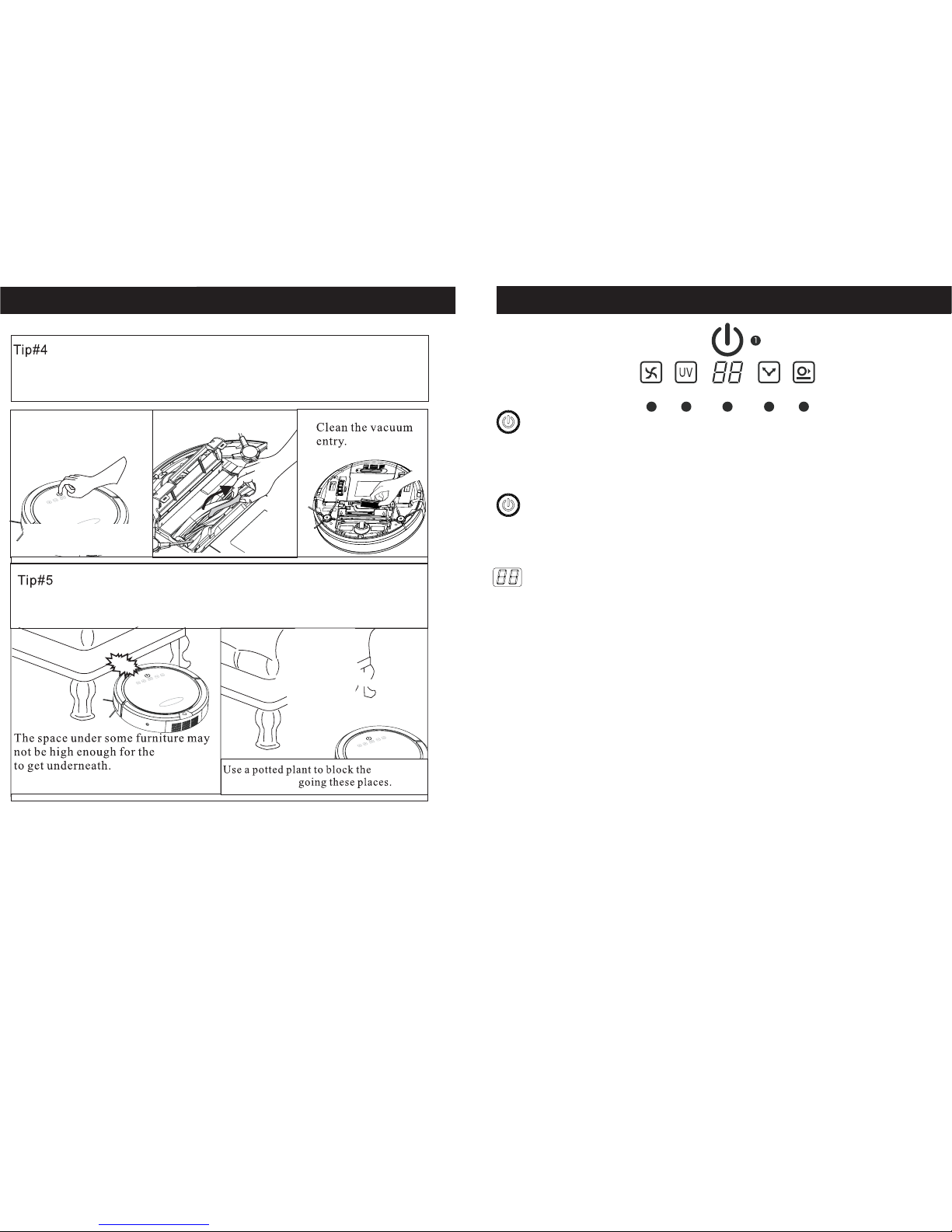

Useful Tips
QQ6 QQ6
VAC UV TIME COLLIDED
23 4 5 6
20
Power-off the unit
and prevent it
Q 6 will make a beeping
sound when jammed.
Q
: Fixing jams: If some object gets caught with roller brush or
side brush, turn the QQ6's power off immediately. Remove anything
that caused the jam before using the cleaner again.
Turn it upside down,
and remover the objects.
Block off certain areas with Sonic wall(or other objects)to
get better cleaning result.

619

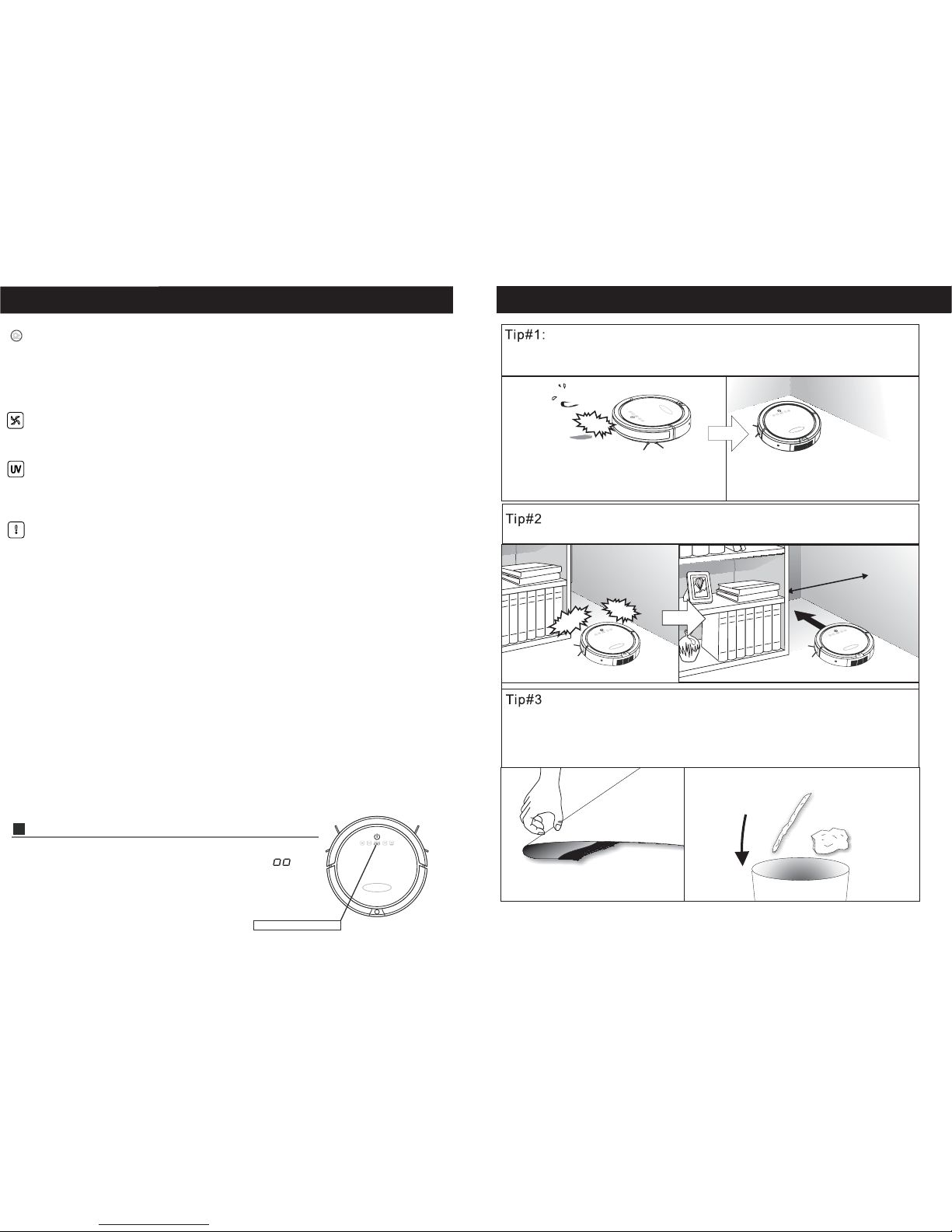

Main Unit Features
：
：
：
：
Non-collided: If the blue symbol light-on, the QQ6 will avoid
collision.
You can push "collided"button or used the remote-control, to ON-
OFF the function.
When Non-collided off, the bumper sensor will help
QQ6 cleaning.
""
Suction Fan : The blue symbol light-up, the Suction-fan is activated.
You can push "Fan" button or used the remote-control,
to ON-OFF it.
UV Light :The blue symbol light-up, the UV-Light is activated.
You can push "UV" button or used the remote-control, to ON-OFF it.
(When QQ6 start working, the UV Light is followed
your last time setting)
Error : If QQ6 got error, the Red symbol will be light-up.
TIP: Same time,you can see what kind error message "E1 E9" on
"Timer" display.
～
Main Unit Features Useful Tips
38cm
E1: Drop sensor over time/
E2:
E3: Bumper touch over time
E4:
E5: Left wheel is overload
E6: Right wheel is overload
E7: Side brush is overload
E8: Rolling brush is overload
E9: Vacuum motor is overload
Cleaner lift up
Charging error
Battery over heating
Prepare the cleaning area and remover large debris, loose
cables, wires, and items that can be easily tangles with brush or
knocked over.
:Leave enough clearance space(15"or more)for CleanMate
to operate.
:Do not let loose edges of rugs, drapes, table cloths, etc to
get caught by Q 6 brushes. Roll the loose edges of rugs
underneath. Q
Fold the rug edges that have
loose ends under it.
Remove vases, glasses, or small
lamps, etc.
Remove small items that might
obstruct CleanMate operation
for faster and better cleaning
Remove plastic bags and long string
or loose wires from floor.
Dust full automatic reminded fuction
When the unit is charging and display
please clean up the dust box to a better
cleaning
,
Dust box full reminder

Start/Stop
Forward
Left
Right
Mode
Power ON/OFF
Vacuum Moror ON/OFF
Reverse
Timer
Collided UVlight
Home
18
ON/OFF:After power on main unit (by switch on the Main power switch), you
can press ON/OFF keypad to control QQ6.
START/STOP:Press the Button to begin the automatic cleaning of the room.
Or to stop the activity of the unit, and it will emit a long sound.
Timer: Use this button to set the cleaning time of the QQ6.
UV: Control the UV light turn on or off.
VAC: Control vacuum motor on or off.
COLLIDED: Control cleaner used soft-touched bumper mode or
non-collided.
Home: Use this button to make 6 go back to the charging base.QQ
MODE: Movement pattern selected, press the keypad once to make the unit clean
in :"1" Spot Spiral ( From small spiral to bigger, then bigger spiral to
small, cycling ) "2" Special Bounce, "3"Along wall, "4" S sharp,
"5" Polygonal Spiral, "A"Automatic.
LEFT/RIGHT/REVERSE:Use these buttons to ma ually drive the unit to the
right, left and backwardn
FORWARD: When press Forward, QQ6 go forward and the suction fan is working,
until user release the keypad. If touched obstacle, QQ6 will return.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Function of each Button:
Remote Control Function
Note:
If the two symbol are all light up (before you start setting), please
clear previousID of Main unit. You can follow the step of instruction e.
c) Let the sonic wall start to study:
If the two symbol are all light up，
please clear previous
ID of Main unit；
If the any oneof three symbol is not light up,
please follow below steps.
Step 1: Power on sonic wall the power LED light up ;
Step 2: Use one of toothpick to inset the hole at the back of the sonic wall and
press down, when it emit’’BI’’ sounds ，
one of the three symbol
(must light off before) will light up, it means the sonic wall
complete the study .
Note: If there are more sonic walls need to study, please operate above steps
again, and at most you can play three sonic walls at the same time.
d) Let the main unit exit study mode:
Push the power button to exit the study mode ,and the main
unit complete the study.
e) Clear previous informationof Main unit:
Setting ID with Main unit
Let unit into study model (see step a), press button, all the time ,
until heard “DI-DI” sounds. and all of 4 indicator lamps symbol
are light off, it means cleared previous ID of main unit already, and
you must reset all of ID for charging station, Sonic-wall, Remote
control.

8
Battery Installation and Removal
1.Please follow below drawing, step by step to install battery.
Step 1: Push down button, same time, pull out dust-bin.
Step 2: Let QQ6 flip over. Follow theArrow direction of battery, and
take battery into slot.
Step 3: Let plastic hook lock battery ready.
Step 4: Put back dust-bin into QQ6.
Push down “Button", same
time Pull out "Dust-bin"
Step 1
Step 1
Step 2
Step 2
Step 3 Step 4
2.Please follow below drawing, step by step to remove battery.
Step 1: Pull 2 hooks in the same time, battery will be popup itself.
Step 2: Take out battery.
17
Setting ID with Main unit
Purpose：
Status of main unit indicator lamps when
studying
Charging station 1 Charging station2 Sonic wall 1 Sonic wall 2
Light up ------- Means the ID has been used already
Light off ------ Means the ID has not been used yet
Tip: Each one main unit at most can be equipped with two
charging stations and 2 sonic walls at the same time.
Step:
Push the start button on the main unit, Then pressthe uv button all
until heard‘DI-DI’sounds，and the display panel show【Cd】，
it means the main unit into study mode already.
a) Let the main unit into study mode:
the time,
b) Let the charging station start to study:
There are two and display symbols to locate two charging station.
does not light up, you can follow the steps to set up ID.
Any one of symbols
Step 1: Power on the charging station.
Step 2: Press the time setting button all the time, until heard DI-DI’’
’’
sounds, and one of the two buttons symbol will light up (the symbol must
light off before)
，it means the charging station complete the study.
If lost or buy new one of charging base, sonic wall,
You need setting ID into new unit for communication with .
How to set up ID: QQ6

Sonic Wall Setup
The Sonic wall create an invisible barrier that QQ6 will not cross.
Sonic receiver
Sonic receiver Battery cover
Power switch
Charging inlet
Power indicator LED
Instructions:
This CleanMate Sonic Wall is Powered by 2AAbatteries. Make sure to install the
includedAArechargeable batteries in correct polarity.
To turn on the Sonic Wall, slide the power switch to position ON.
When power on, the blue LED light up still 70 sec., then will light off into waiting
mode.After QQ6 start working in 6 sec., will wake up Sonic Wall and blue LED light
up.If QQ6 stop working, after 10 sec., Sonic Wall will into waiting mode for power
saving.
The best effective distance of SonicWall barrier is about 3M(10 ft).
When LED is blinking, it means battery low.
1.
2.
3.
4.
5.
When QQ6 cleaning, the Sonic Wall position must be away from charging base at
least 1m(3 ft), and avoid face to charging base.
When QQ6 complete cleaning , you can power off the Sonic wall by slided the power
switch to "OFF" position.
Charging base-DC inlet
DC Plug
Slide switch Sonic-Wall
You can charge battery by charging base, please see above drawing.
Step 1: The power switch of SonicWall, must set "ON" position.
Step 2: Press and Slide out the "Slide switch" from charging base.
Step 3: Plug the DC plug into DC inlet.
Step 4: Blue LED is blinking. When charging is complete, LED will light steady.
6.
7.
QQ6 detects the invisible barrier,
it will turn around and head to another direction.
9
16

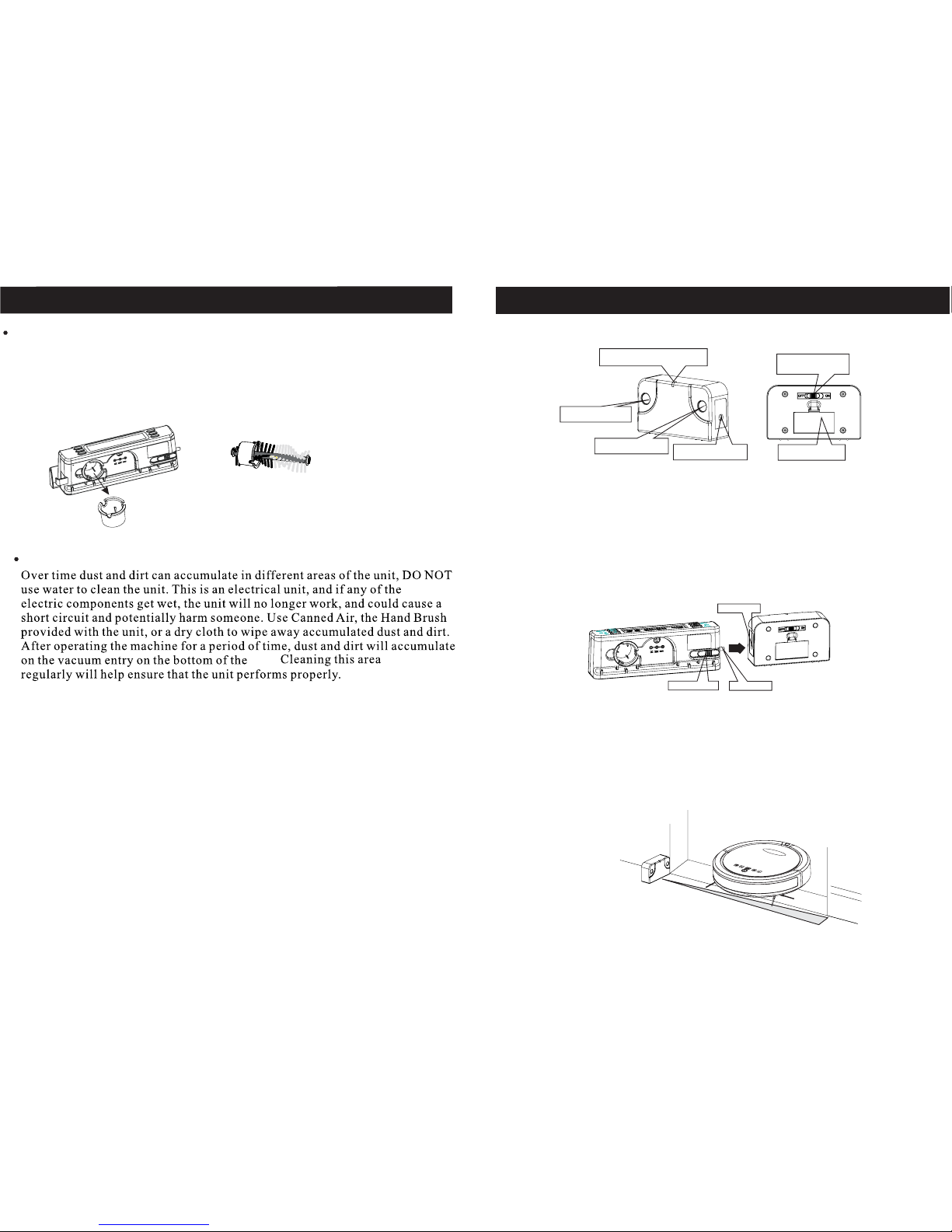

Cleaning and Maintenance
Cleaning the roller brush.
Cleaning the QQ6
Follow Fig.1 take out the Hair-clean-tool from charging base.
Follow Fig.2 moved the tool to clean hairs in roller brush.
Fig 1 Fig 2
QQ6

Auto Home Base
1.
1.
1.
2.
2.
2.
3.
Preparations
Find a proper place(we recommend a hard surface floor)to put the Self-Charging
Home Base in the room. Leave about 60cm (2ft) clearance around the Home Base.
Connect the battery charger to the power input socket on the back of home base first.
Then, place home base against the wall. Don’t leave loose wire around the wall.
Finally, plug battery charger toAC power outlet on the wall.
Make sure the LCD display on the Home Base is on. This means that the Home Base
has been powered on, and it is ready to charge the QQ6.
Wire slot
charger socket
Please settle down
the cable of charger
into the back side
slot of base.
Testing the Home Base
Battery Charging Methods
Auto Charging:
Auto Charging:
Clean Mate QQ6 can automatically return to the Charging base to
charge itself when battery runs low .User can also press HOME
on remote control to let it return to the base at any time.“”
Users can always plug the battery charger to side Charging
socket on Clean Mate QQ6 to charge it manually. See below.
Put the QQ6 on the floor close to the Home Base and turn it on, Now press the
"Home" key on remote control. The QQ6 should return to the Home Base
automatically for self-charging.
Make necessary adjustment to the Home Base if the QQ6 can not dock on the Home
Base properly.
back and bottom of the unit.
Cleaning Dust Bin and Air Filter
Washing Dust Bin and Air Filter
Please follow Fig.1 to Fig.6 to clean it.
(In Fig.2, you can see Open-button at side of dust bin)
Please follow Fig.11 to separate Dust Bin and suction motor unit.
Follow Fig.12 , to wash it.
Follow Fig.14, 15 to install it.
、13
Cleaning and Maintenance
Cleaning and Maintenance
3. on the
QQ6
Slot
Fig 14 Fig 15
Fig 11 Fig 12 Fig 13
15
10
Charger plug-in socket
10
Remove the insulation sheet
Pull uto
Fig1 Fig2 Fig3 Fig4
Fig9Fig8Fig7Fig6
Fig5
Fig10
Power Switch
ON
OFF
Make sure the
power switch is
in position of “ ”

Scheduler Operations
Time setting
Scheduler
Week Mo Tu We Th Fr Sa Su
Full Auto cleaning
The scheduling function of QQ6 is built in Charging-base.
User has the freedom to set up the cleaning time according to pre-programmed
schedule.
On this preset cleaning time, QQ6 will leave charging-base and start the cleaning
session automatically.
User can program it to start cleaning job at the same time on every day, or on any day of
week user choose.
The scheduler LCD display is located on the top of "charging-base" unit.
Before setting local time and cleaning time, user needs to plug in "Charger", to power
up the "Charging-base".
Button switch:
Local time setting button : Push the button, the ":" pattern of LCD will stop
blinking.
User can push the "Week", "Hour", "Min." button to
update local time.
:
:
For example: Push "week" button, will show "Monday", push again will show
next day of week.
Choose the true day, then push " " button again.
The ":" pattern will regain blinking, the Day setting is completion.
The "Hour" and " Min." are same operation.
TIP: If user operating local time setting, the LCD display will show
setting"."Time
Scheduling cleaning time button :
Step 1 : Push the button, the ":" pattern of LCD will stop blinking. and the LCD
will show "Scheduler".
Step 2 : Push "Week" button, LCD will show "Mo" and blinking.
You can push "Week" button again during in period 8 sec. to set “Mo" is
cleaning day.
If you did not push "Week" button over 8 sec., “Mo" will jump to "Tu"
automatically.
You can choose some days in one week. after finished setting, will show
on LCD.
Step 3 : Push "Hour" button to schedule hour setting, you can see "Hour" number
on LCD, Choose the right Hour number of cleaning time.

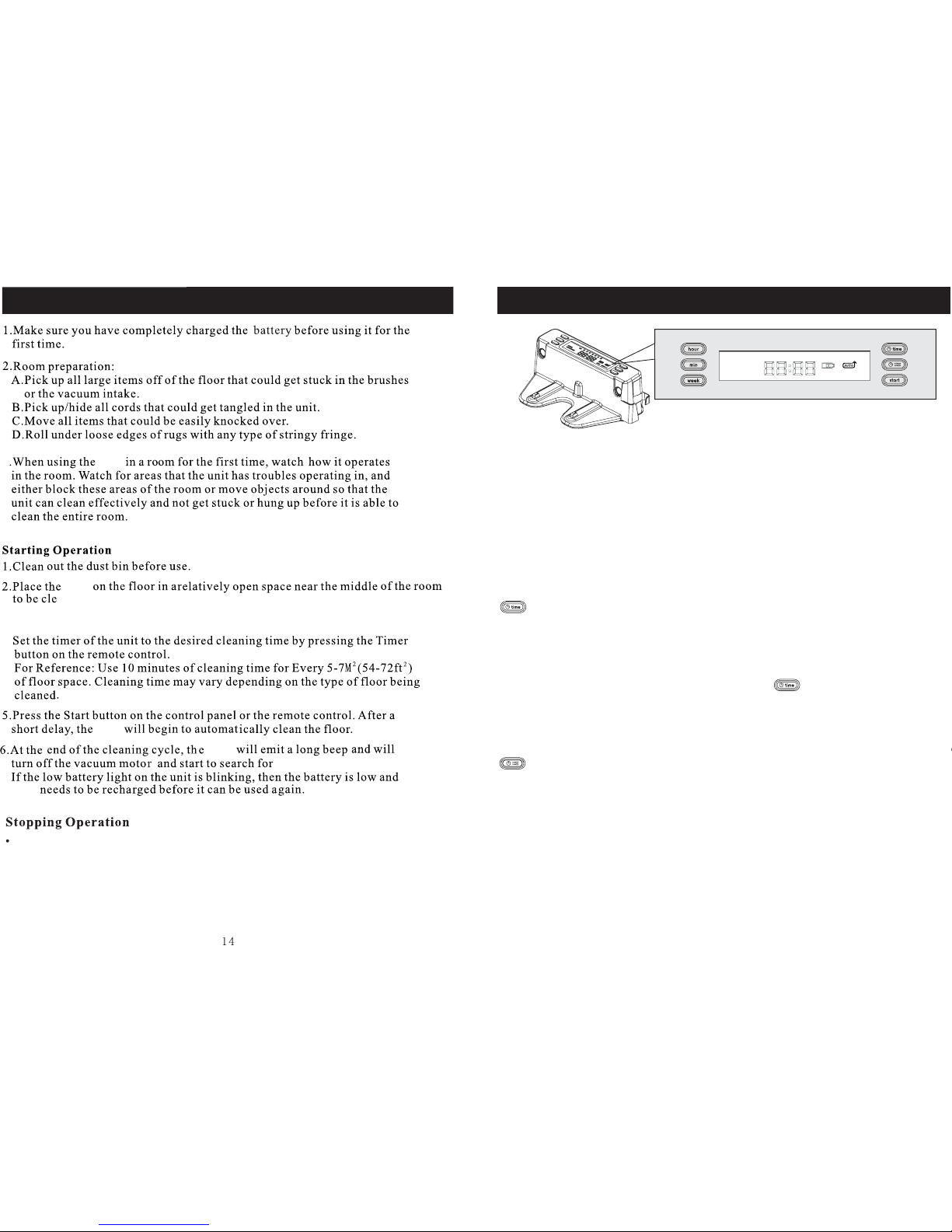

General Operation
3QQ6
QQ6
QQ6
QQ6
QQ6
charging base.
11
aned.
3.Press the power switch on the main unit to turn it on
4.
Press the start/stop button on the control panel of the unit or
Press the Stop button on the remote control

Step 4 : Push "Min." button, same as above, setting "minutes" of cleaning time.
Step 5 : Push " " again, when you completed the cleaning time setting.
The ":" pattern of LCD will regain blinking.
Scheduler Operations
:
:
:
:
TIP: The scheduler function must have "Day of week" setting.
TIP:You can push "Hour" button to "---:---" pattern of LCD, to stop scheduler
function.
TIP: If the "scheduling clean time" was not complete setting and over 60 sec.
The LCD will regain "Local time" display.
Anytime Go cleaning button :
1. Push button ( Just one shoot ) :
When is charging fully, it will leave charging-base to cleaning
automatically.
2. Push button (Over 3 sec).
If seated on charging-base, it will leave base and cleaning immediately.
QQ6
QQ6
Day of week button : Setting the day of week timing.
Hour button : Setting the hour of day timing.
Minute button : Setting what minutes of hour timing.
:
:
Display Pattern of LCD :
When you push "Start" button (just one shoot), the" will show on LCD."
During charged fully," Full will show on LCD.QQ6 " " "

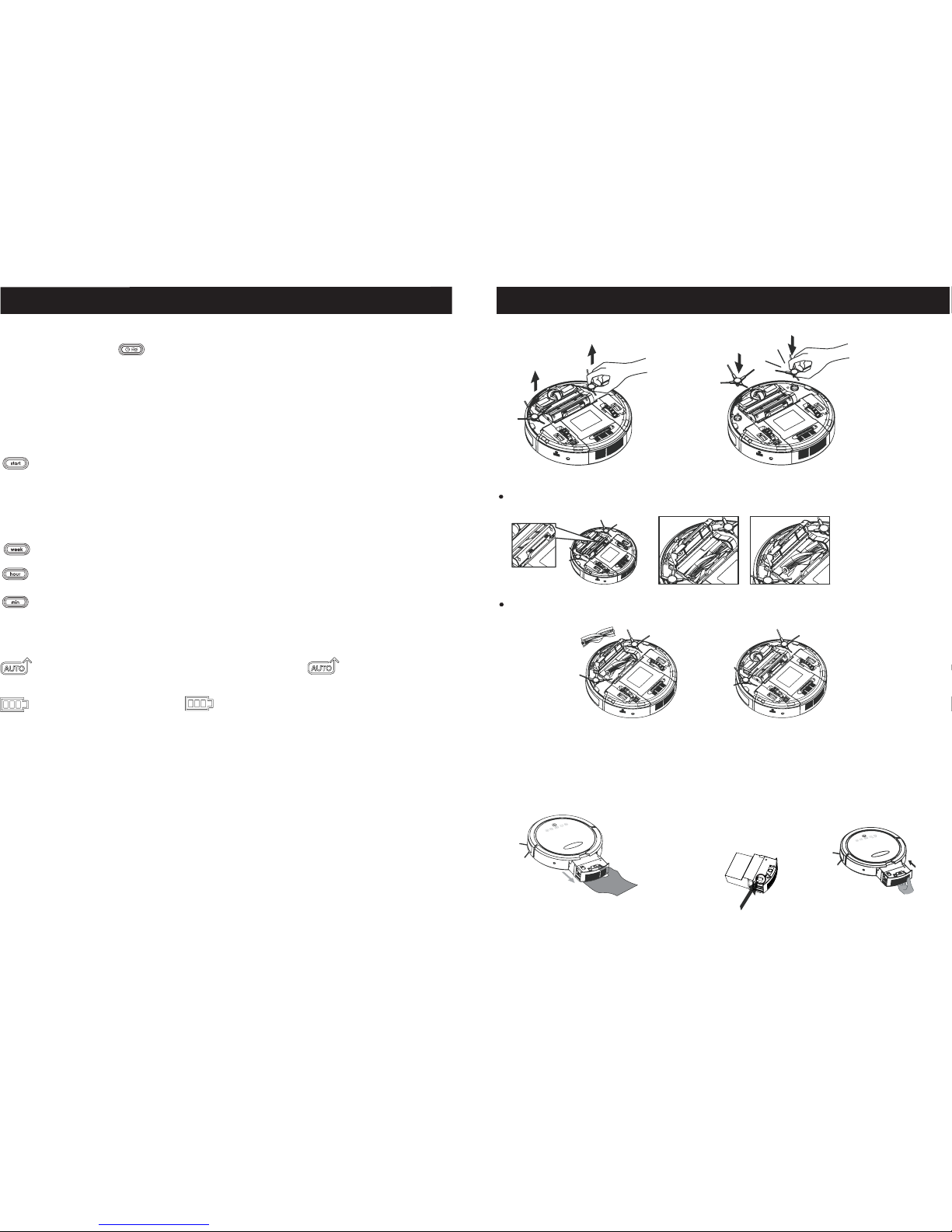

Installing Accessories
Roller Brush Installation and Removal
Use Pull” button(open), then take out roller-brush.“
Insert roller-brush, then press the Push-button close the cover .
Fragrance Installation and Removal
The QQ6 has a compartment built into it for adding fragrance to the air as the unit
cleans.Any solid scent packet, insert, or dryer sheet can be used.
DO NOT use any type of Liquid or Oil Fragrance with this unit.
Step 1 Step 2 Step 3
Side-brush Installation and Removal
12 13
