InFocus LPTM425z User manual

i
TABLE OF CONTENTS
Safety Instructions iii
Introduction 1
Image Resolution 1
Compatibility 2
Unpacking the Projector 2
Usage Guidelines 5
If You Need Assistance 5
Warranty 6
Setting up the Projector 7
Connecting the CableWizard™3 to the Projector 8
Preparing to Connect Your Equipment to the Projector 9

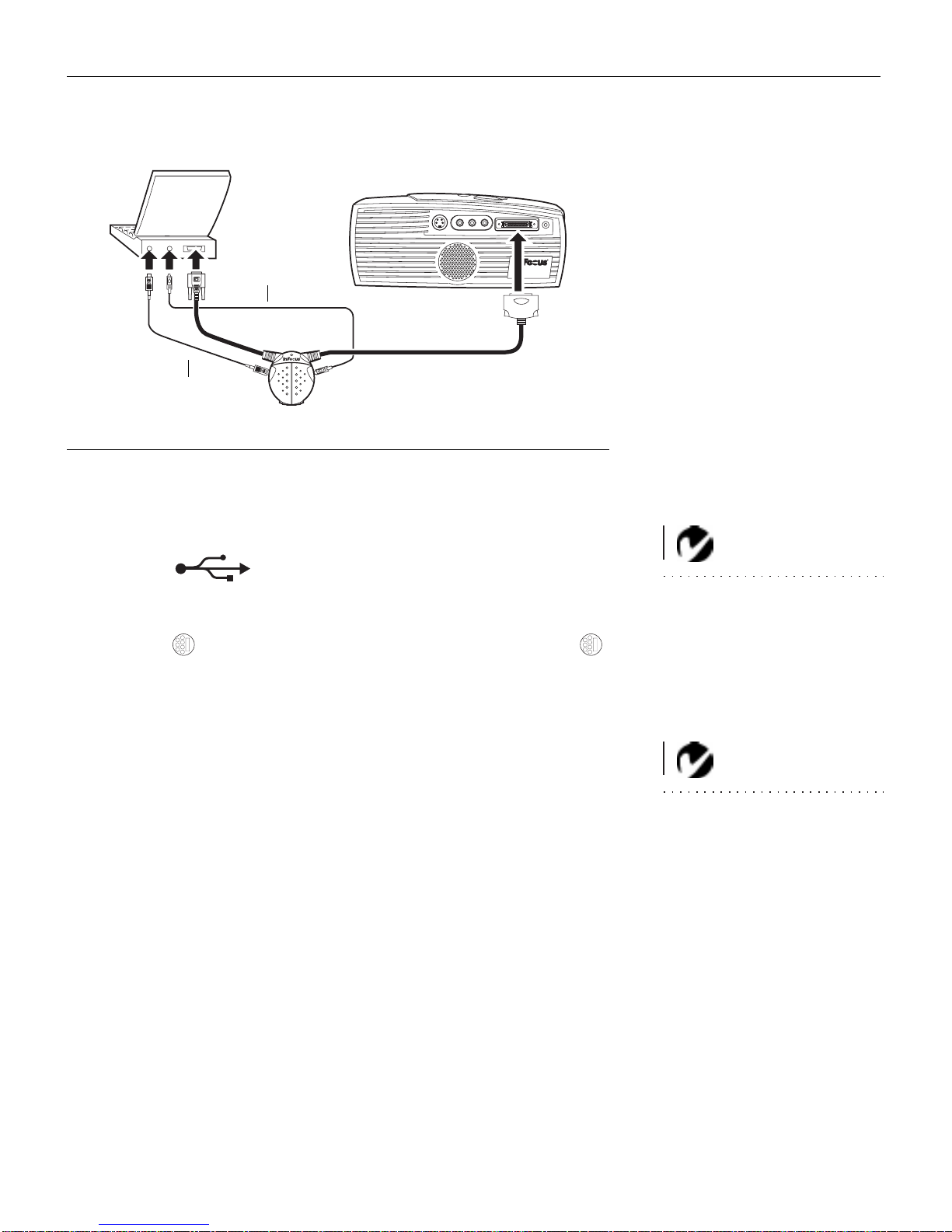

Connecting a Laptop Computer 10
Connecting a Desktop Computer 12
Connecting a Video Player 14
Powering up the Projector and Adjusting the Image 16
Turning Off the Projector 17
Using the Projector 19
Basic Image Adjustment 19
Using the Remote Control 19
Adjusting the Projector 21
Using the Keypad and Remote Buttons 22
Using the On-Screen Menus 24
Display Menu 25
Audio Menu 27
Image Menu 28
Controls Menu 30
Language Menu 32
Status Menu 33
Maintenance & Troubleshooting 35
Cleaning the Lens 35
Replacing the Projection Lamp 35
Replacing the Batteries in the Remote Control 38
Using the Kensington Lock 39
Troubleshooting 40

ii
Table of Contents
Appendix 45
Specifications 45
Accessories 47
Portable and Laptop Activation Chart 49
Using Video Mirroring with a PowerBook Computer 54
Projected Image Size 55
Index 57

iii
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc-
tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.
Safety Definitions:
•Warning: Statements identify conditions or practices that
could result in permanent personal injury.
•Caution:Statements identify conditions or practices that could
result in damage to your equipment.
Safety Symbols:
Attention:For information about usage of a feature, please
refer to the User’s Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.
Safety Terms:
•Warning: Don’t look directly into the lens when the projector is
turned on.
•Warning: Don’t block ventilation openings.
•Warning: To replace the lamp, turn the power off and
unplug the power cord. To avoid burns, wait 30 minutes
before opening the lamp door. Follow all instructions provided
in this User’s Guide.
•Warning: Please use the power cord provided. Connect
the power cord to a receptacle with a protective safety
(earth) ground terminal.
•Warning: Refer all service to qualified service personnel. Ser-
vicing your own projector will void the warranty. See the fol-
lowing page for the customer service contact information.

iv
Safety Instructions
•
Caution: Don’t set liquids on the projector. Spilled liquids may
damage your projector.
•Caution:Don’t place the projector on a hot surface or in direct
sunlight.
•Caution: Do not drop the projector. Transport the projector in
an InFocus-approved case; see page 48 for a list of cases.
•Caution: For ceiling mount installations, please use the ceiling
mount recommended in this User’s Guide on page 48 and fol-
low all instructions provided with it.
Customer Service
If you need assistance, call InFocus Customer Service directly at
1-800-799-9911. Support is free between 6 a.m. and 6 p.m. PST,
Monday through Friday. Support is available in North America
after hours and weekends for a fee at 1-888-592-6800.
Or, send us an e-mail at tech[email protected]
In Europe, call InFocus in The Netherlands at (31) 35-6474010
between 8 a.m. and 6 p.m. Central European Time.
In Asia, call (65) 332-0659 between 9:30 a.m. and 5:30 p.m.

1
INTRODUCTION
The InFocus®LP™425z and LP435z lightweight multimedia pro-
jectors are specifically designed for the mobile presenter. They
generate crisp, clear images using Digital Light Processing™
(DLP) technology. The projectors are easy to connect, easy to use,
and easy to maintain. The soft carry case makes it easy to trans-
port the 7.4 pound projectors. The 425z has SVGA 800x600 graph-
ics, the 435z has XGA 1024x768 graphics. The user interfaces of
the two products are identical; information in this User’s Guide
applies to both products.
NOTE: The 425z automatically
expands 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 28.
Image Resolution
LP425z
The SVGA resolution of the 425z’s projected image is 800x600.
Screen resolutions between 800x600 and 1024x768 are com-
pressed to 800x600. The 425z cannot compress screen resolutions
above 1024x768. If your computer’s screen resolution is higher
than 1024x768, reset it to a lower resolution before you connect
the projector.
LP435z
NOTE: The 435z automatically
expands 640x480 and 800x600
images to 1024x768. You can dis-
play these images at their original
resolutions by turning off the Auto
Resize feature. See “Auto Resize”
on page 28.
The XGA resolution of the 435z’s projected image is 1024x768.
The 435z cannot compress screen resolutions above 1024x768. If
your computer’s screen resolution is higher than 1024x768, reset
it to a lower resolution before you connect the projector.

2
Introduction
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
•IBM-compatible computers, including laptops, up to 1024x768
resolution at 75 Hz
•Apple Macintosh and PowerBook computers up to 1024x768
resolution at 75 Hz.
•Most standard VCRs, DVD players, camcorders and laser disc
players.
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your InFocus dealer imme-
diately if anything is missing.
If you are experienced in setting up presentation systems, use the
Quick Start card that was included in the shipping box. For com-
plete details on connecting and operating the projector, refer to
this User’s Guide. User’s Guides are also available for download
from our website at www.infocus.com.
NOTE: The contents of your
shipping box may vary depending
on the projector configuration
you’ve ordered.

3
FIGURE 1
Shipping box contents
1. LP425z or 435z projector
and lens cap 6. RCA audio/video (A/V) cable
2. Soft carry case 7. CableWizard3
3. LP425z/435z User’s Guide,
quick start card, and Online
User Guide CD
8. CableWizard USB mouse cable
4. Power cord 9. CableWizard PS/2 mouse cable
5. Remote 10. CableWizard audio cable
1
2
3
4
5
6
7
8
9
10

4
Introduction
F
IGURE 2
Side view of projector
FIGURE 3
Front view of projector
connector panel
speaker
focus ring
elevator button
power
cord
connector
keypad
power switch
focus ring
zoom ring

5
Usage Guidelines
•Do not look directly into the projection lens when the projector
is turned on. The bright light may harm your eyes.
•Do not block the grills on the projector. Restricting the air flow
can cause it to overheat and turn off. If this happens, you must
wait a minute before attempting to turn it back on.
•Handle the projector as you would any product with glass
components. Be especially careful not to drop it.
•Avoid leaving the projector in direct sunlight or extreme cold
for extended periods of time. If this happens, allow it to reach
room temperature before use.
•This projector is not intended for use in mainframe computer
rooms as defined in the Standard for the Protection of Elec-
tronic Computer/Data Processing Equipment, ANSI/NFPA 75.
•Transport the projector in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 48.
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 40. Or, check the
Service and Support section of our website at
http://www.infocus.com/service.
If those sources don’t answer your question, call your InFocus
dealer. You can also call InFocus Customer Service directly at
1-800-799-9911. Call between 6 a.m. and 6 p.m. PST, Monday
through Friday. Service is available in North America after hours
and on weekends for a fee at 1-888-592-6800.
In Europe, call InFocus in The Netherlands at
(31) 35-6474010 between 8 a.m. and 6 p.m. Central European
Time.
In Asia, call (65) 332-0659 between 9:30 a.m. and 5:30 p.m.
Or, send us an e-mail at [e-mail]
Our World Wide Web address is http://www.infocus.com.

6
Introduction
Warranty
This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your InFocus
dealer. Refer to page 48 for the part number.

7
SETTING UP THE PROJECTOR
1Place the projector on a flat surface.
•The projector must be within 10 feet (3 m) of your power
source and within 8 feet (2.4 m) of your computer.
•If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 31 to reverse the image.
•If you are installing the projector on the ceiling, refer to the
Ceiling Mount Installation Guide that comes with the Ceiling
Mount Kit for more information. To turn the image upside
down, see “Ceiling Projection” on page 30. The Ceiling
Mount Kit is sold separately; see page 48.
2Position the projector the desired distance from the screen.
•The distance from the lens of the projector to the screen and
the zoom setting determine the size of the projected image.
Figure 4 shows three projected image sizes. For information
about image sizes at minimum and maximum zoom set-
tings, see “Projected Image Size” on page 55.
3Make sure the projector and your computer are turned off.
FIGURE 4
Projected image size for LP425z at minimum focusing distance
3.0ft.
12.6ft.
7.6ft.
5 ft.12 ft. 20 ft.

8
Setting up the Projector
Connecting the CableWizard™3to the Projector
CAUTION: Turn off the
computer, monitor and projector
whenever you connect or
disconnect cables.
The CableWizard3(referred to as “CableWizard” in this manual
for brevity) simplifies the connection process by providing a cen-
tral hub for all the connections between the projector and your
computer. The connectors on the CableWizard are labeled with
icons. The CableWizard also has an LED that lights solid green
when the projector is on and CableWizard is functioning prop-
erly. A slowly blinking LED indicates CableWizard is waiting to
initialize with the projector; a rapidly blinking LED indicates a
problem with CableWizard.
Connect the end of the CableWizard cable to the
connector on the projector’s connector panel (Figure 5).
NOTE: The projectors are
optimized for use with newer
CableWizards (2 and 3). If you
have a CableWizard 1from older
models of InFocus projectors, we
do not recommend using it as
image quality is reduced. The label
on the bottom reads CableWizard
or CableWizard II or
CableWizard3.

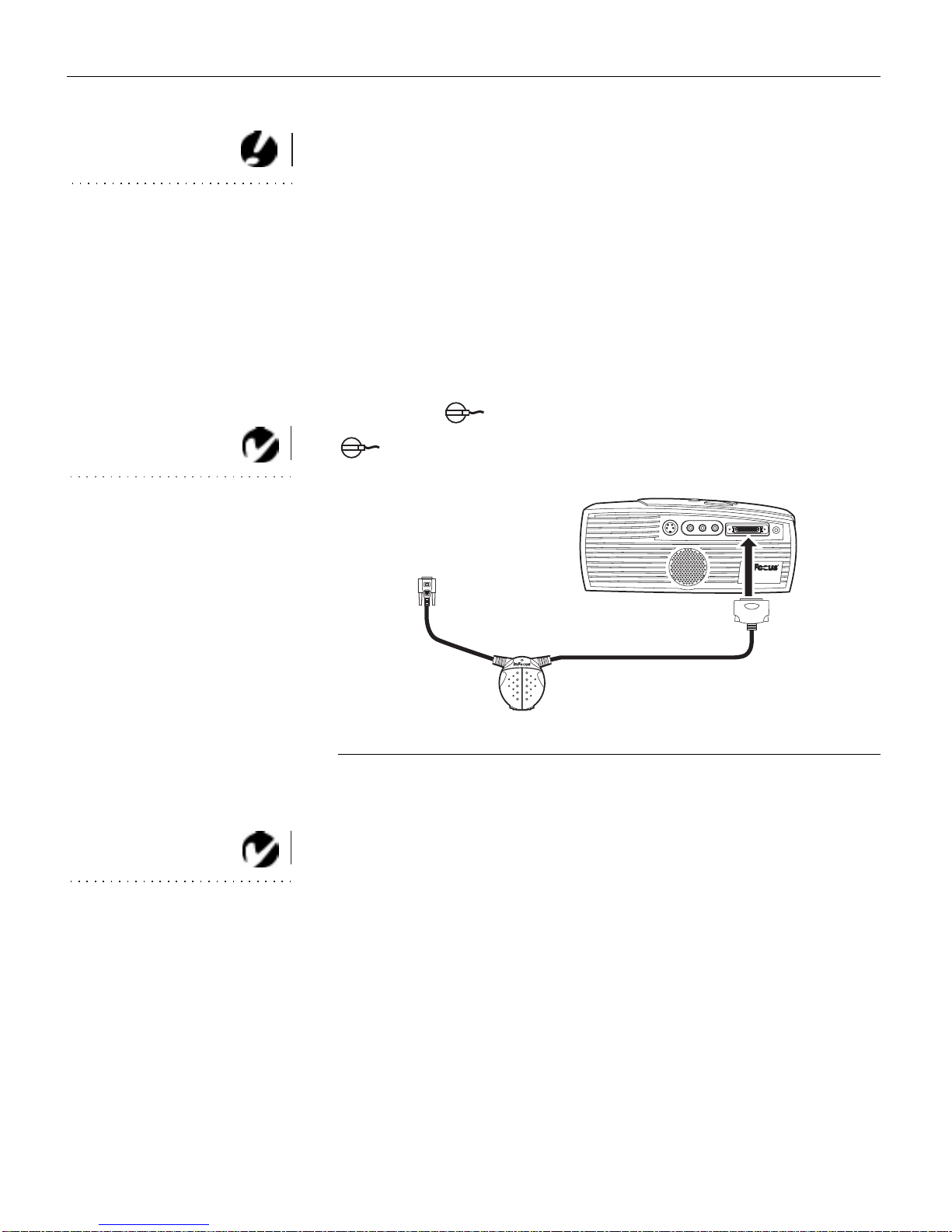

FIGURE 5
Connecting the CableWizard to the projector
NOTE: In some older computers,
the monitor connector does not
have a hole for Pin 9. If you have
trouble connecting the
CableWizard cable to your
computer, contact InFocus
Technical Support.

9

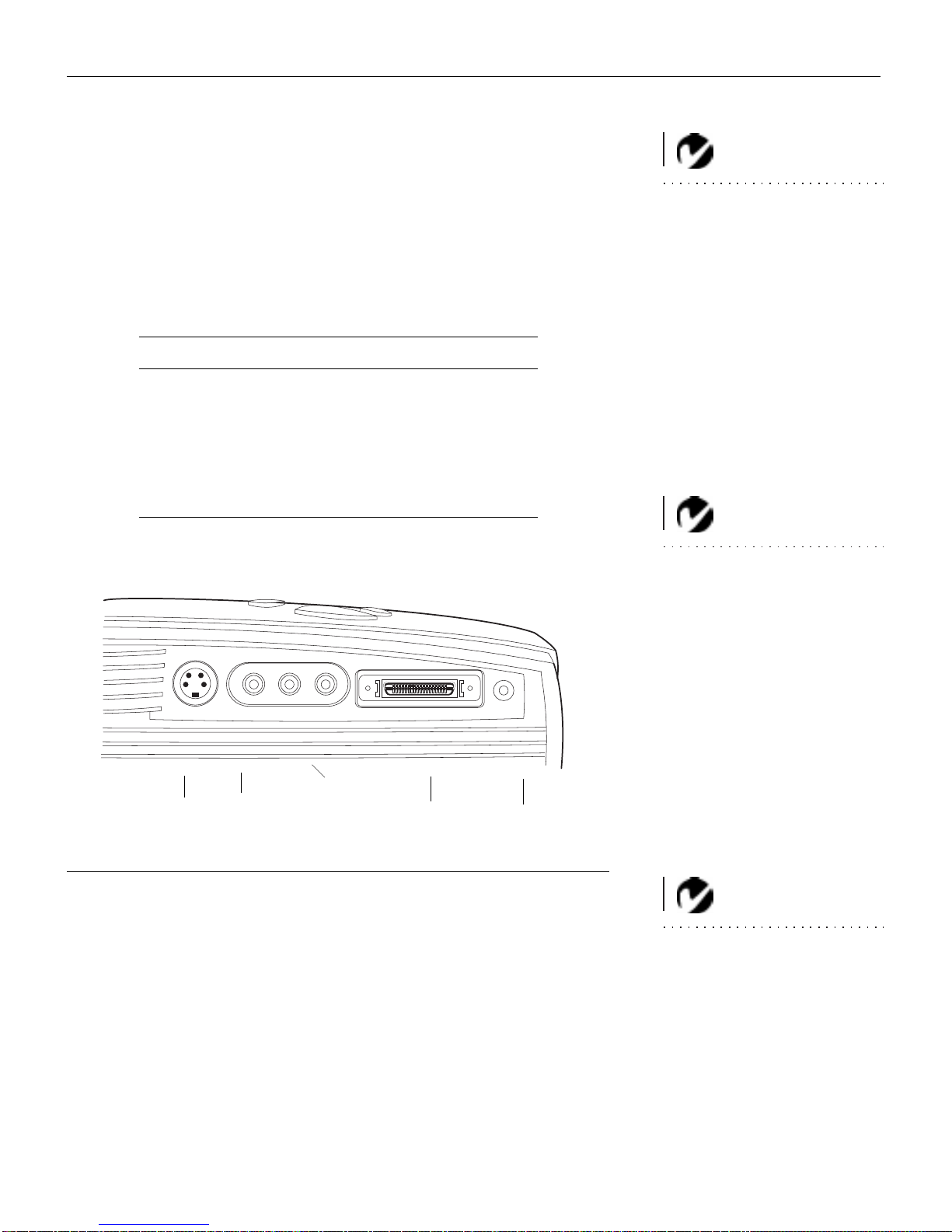

Preparing to Connect Your Equipment to the Projector
NOTE: Before you continue,
make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure
the distance between it and the
projector is 10 feet or less.
Now you’re ready to connect your equipment. Computers are
connected to the CableWizard. Video players are connected
directly to the projector.
Steps for connecting the different types of equipment are given
on the pages listed below.
NOTE: The computer audio in
connector on the connector panel
is only used with the optional
CableWizard Lite cable. If you are
using CableWizard, the audio
cable should be connected to the
CableWizard, not directly to the
projector.
FIGURE 6
Connector panel
NOTE: If you are connecting an
older Macintosh computer that
does not have a 15-pin connector,
you must use a Mac adaptor
between the computer and the
CableWizard. See “Optional
Accessories” on page 48.
Equipment you want to connect Page
Laptop computer with CableWizard page 10
Desktop computer with CableWizard page 12
USB or PS/2 mouse pages 10-11,
page 13
Video player page 14
CableWizard
s-video composite
video
L/R audio in
audio in
computer
(for video source)

10
Setting up the Projector
Connecting a Laptop Computer
NOTE: Many laptop computers
do not automatically turn on their
external video port when a
secondary display device such as a
projector is connected. Refer to
your computer manual for the
command that activates the
external video port. Activation
commands for some laptop
computers are listed in the
Appendix.
1Plug the end of the CableWizard cable into the video con-
nector on your laptop.
FIGURE 7
Connecting the CableWizard to a laptop computer
Do you want to play your computer’s audio on the projector?
NOTE: If you don’t want audio or
mouse control, you can use a
simplified cable called
CableWizard Lite, ordered
separately.
1Plug either end of the CableWizard audio cable into the audio
connector on your computer.
2Plug the other end of the audio cable into the connector
on the CableWizard.
Do you want to control the computer’s mouse from the projector’s
remote or keypad?
If your computer has a PS/2 connector, use the PS/2 mouse cable
NOTE: If you are connecting an
older Macintosh computer that
does not have a 15-pin connector,
you must use a Mac adaptor
between the computer and the
CableWizard. See “Optional
Accessories” on page 48.
1Plug the end of the CableWizard mouse cable into the
mouse connector on your computer.
2Plug the end of the CableWizard mouse cable into the
connector on the CableWizard.

11
FIGURE 8
Connecting the CableWizard audio and mouse cables to a laptop computer
If your computer has a USB connector and is running Windows 98,
use the USB mouse cable
NOTE: The USB mouse is sup-
ported for use with Windows 98
only.
1Plug the end of the CableWizard mouse cable into
the mouse connector on your computer.
2Plug the end of the CableWizard mouse cable into the
connector on the CableWizard.
You must have the appropriate USB drivers installed on your
computer to use the USB feature. Windows 98 ships with the
appropriate drivers.
NOTE: A USB mouse is hot-plug-
gable, meaning you do not need to
re-boot your computer after con-
necting the mouse to use it. A PS-2
mouse is not hot-pluggable.
Now you’re ready to power up the projector and your laptop.
Skip to “Powering up the Projector and Adjusting the Image” on
page 16.
audio cable
mouse cable

12
Setting up the Projector
Connecting a Desktop Computer
1Locate the cable that connects your monitor to your computer.
Unplug it from the computer.
NOTE: If you are connecting an
older Macintosh computer that
does not have a 15-pin connector,
you must use the Mac adaptor
between the computer and the
CableWizard. See “Optional
Accessories” on page 48.
2Plug the end of the CableWizard cable into the monitor
connector on your computer.
FIGURE 9
Connecting the CableWizard cable to a desktop computer
Do you want to display the image on your computer’s monitor as
well as on the projection screen?
NOTE: The projector must be
turned on to display the image on
your monitor.
1Plug your monitor’s cable into the connector on the
CableWizard.
Do you want to play your computer’s audio on the projector?
1Unplug the audio cable, if present, from your computer.
2Plug either end of the CableWizard audio cable into the audio
connector on your computer.
3Plug the other end of the audio cable into the connector
on the CableWizard.

13
Do you want to control your computer’s mouse from the projector’s
remote or keypad?
If your computer has a PS/2 connector, use the PS/2 mouse cable
1Unplug the mouse cable from your computer.
NOTE: A USB mouse is hot-plug-
gable, meaning you do not need to
re-boot your computer after con-
necting the mouse to use it. A PS-2
mouse is not hot-pluggable.
2Plug the end of the CableWizard mouse cable into the
mouse connector on your computer.
3Plug the end of the CableWizard mouse cable into the
connector on the CableWizard.
FIGURE 10
Connecting the CableWizard monitor, audio and mouse cables to a desktop computer
If your computer has a USB connector and is running Windows 98,
use the USB mouse cable
NOTE: The USB mouse is sup-
ported for use with Windows 98
only.
1Plug the end of the CableWizard mouse cable into
the mouse connector on your computer.
2Plug the end of the CableWizard mouse cable into the
connector on the CableWizard.
You must have the appropriate USB drivers installed on you
computer to use the USB feature. Windows 98 ships with the
appropriate drivers.
Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on
page 16.
audio cable
mouse cable
monitor cable

14
Setting up the Projector
Connecting a Video Player
1If your video player uses a round, one-prong composite video
connector, you’ll need only the A/V cable that shipped with
the projector.
•If your video player uses a round, four-prong S-video con-
nector, you’ll need an S-video cable in addition to the A/V
cable. The S-video cable is sold separately. (See “Optional
Accessories” on page 48.)
2Plug the A/V cable’s yellow connector into the “video-out”
port on your video player (Figure 11). This port may be
labeled “To Monitor.”
•If you’re using an S-video cable, connect it to the “s-video
out” connector on the video player (Figure 12).
3Plug the other yellow connector into the composite connector
on the back of the projector.
•If you’re using S-video, plug the other end of the cable into
the “s-video” connector on the projector (Figure 12).
FIGURE 11
Connectingtheprojector toavideoplayerusingthestandardA/Vcable(withcomposite
video connector)
audio/video cable

15
FIGURE 12
Connecting the projector to a video player using an S-video cable and the audio con-
nectors on the standard A/V cable
4Plug the A/V cable’s white connector into the left “audio out”
port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 11 and
Figure 12).
CAUTION: Your video player
may also have a “Video Out” port
for a coaxial cable connection.
DO NOT use this to connect to the
projector.
•If you’re using an S-video cable, the yellow connectors on
the A/V cable remain unused (Figure 12).
5Plug the A/V cable’s other white and red connectors to the
left and right “audio in” ports on the projector.
The projector is compatible with these major broadcast video
standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM.
It automatically adjusts to optimize its performance for the
incoming video. The input signals for SECAM, PAL-M, and
PAL-N video are similar to other video signals and cannot be
automatically detected, therefore they must be chosen manually.
See “Video Standard” on page 30 for details.
A/V cable
S-video cable

16
Setting up the Projector
Powering up the Projector and Adjusting the Image
NOTE: Always use the power cord
that shipped with the projector.
1Remove the lens cap.
2Plug the power cord into the side of the projector, then plug it
into your electrical outlet. A surge-protected power strip is
recommended.
3Turn on the projector by pressing the “I” side of the power
switch (see Figure 2 on page 4).
•The InFocus startup screen displays and the Power LED on
top of the projector lights up (Figure 16 on page 22).
4If you connected a video player, turn it on.
•The video image should display on the projection screen. If
a computer source is active, press the source button on the
keypad (page 22) or the video button on the remote to dis-
play your video image. You can select a default source to
determine which source the projector examines first during
power-up for active video; see “Default Source” on page 31.
•Use the volume buttons to adjust the volume.
5Turn on your computer.
•The computer image should display on the projection
screen. (If a video source is active, press the source button
on the keypad (page 22) or the computer button on the
remote to display your computer’s image.)
NOTE: With some computers,
the order in which you power up
the equipment is very important.
Most computers should be turned
on last, after all other peripherals
have been turned on. Refer to your
computer’s documentation to
determine the correct order.
•If necessary, make adjustments to the image from the pro-
jector’s on-screen menus. To open the menus, press the
menu button on the keypad or remote, then select the Dis-
play or Image sub-menu. For more information about the
menus, see page 24.
