Ingco RH150028 User manual

Rotary Hammer
Rotary Hammer
EN
RH150028 RH150028-6 URH1500281
RH150028S RH150028-8 URH1500281-9
ingcoglobal
INGCO GLOBAL

The symbols in instruction manual and the label on the tool
Double insulated for additional protection.
Read the instruction manual before using.
CE conformity.
Wear safety glasses, hearing protection and dust mask.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
Safety alert.
Please only use the accessories supported by the manufacture.
2|English

3|English
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and all instructions.Failure to
follow the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tools in a damp location is unavoidable, use

4|English
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing or j ewellery. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure th ese are connected and pr operly
used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not forc e the power tool. Us e the corr ect power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous

5|English
and must be repaired.
c) Disconnect the plug from the po wer source and/or the battery
pack from the po wer tool be fore making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the po wer tool or these instructions to
operate the po wer tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or bindin g of
moving parts, breakage of parts and an y other condition that may
affect the power tools operation. If da maged, have the power tool
repaired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the pow er tool, accessories and tool bits etc. in accor dance
with these instructions, taking into acc ountthe working
conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous
situation.
5) Service
a) Ha
Hammer safety warnings
– Wear ear protectors. Exposure to noise can cause hearing loss.
– Use auxiliary handle(s), if supplied with the tool. Loss of control can cause
personal injury.
–
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord.
Cutting accessory contacting a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an electric shock.
ve your power tool serviced by a qualified repair person using
only identical.

This will ensure that the safety of the power tool is
maintained.
Additional Safety Warnings

6|English
Residual risks
Even when the po wer tool is used as prescribed it is not possible to
eliminate all residual risk factors. The follo wing hazards may arise in
connection with the power tool’s construction and design:
a) Health defects resulting from vibration emission if the power tool is being
used over longer period of time or not adequately managed and properly
maintained.
b) Injuries and damage to property to due to broken accessories that are
suddenly dashed.
Warning! This power tool produces an electromagnetic field during
operation. This field may under some circumstances interfere with active or
passive medical implants. To reduce the risk of serious or fatal injury, we
recommend persons with medical implants to consult their physician and the
medical implant manufacturer before operating this power tool.
SPECIFICATIONS
Degree of protection /
Voltage:
Frequency:
Power input:
No-load speed:
Impact rate:
Drilling
capacity:
Concrete:
Steel:
Wood:
220-240V~
50/60Hz
1500W
850/min
4400/min
32mm
13mm
40mm
110-120V~ 127V~
50/60Hz
1500W
850/min
4400/min
1-
Model No.: RH150028 URH1500281-9
220-240V~
50/60Hz
1500W
850/min
4400/min
32mm
13mm
40mm
RH150028S
(SAA PLUG)
220-240V~
50/60Hz
1500W
850/min
4400/min
32mm
13mm
40mm
RH150028-8
(BS PLUG)
220-240V~
50/60H 60Hz
1500W
850/min
4400/min
32mm
13mm
40mm
1500W
850/min
4400/min
32mm
13mm
40mm
RH150028-6
(ISRAEL PLUG) (INMENTRO Plug)
URH1500281

7|English
5
4
1a
1
3
2
6
B
AROTARY HAMMER
The rotary hammer
1pcs rotary hammer
1pcs INGCO handle
3pcs drill bits (see fig.B)
1pcs flat chisel (see fig.B)
1pcs pointed chisel (see fig.B)
1pcs carrying case
1pcs grease tube
1set carbon brushes
1pcs dust cap
1pcs operating manual

8|English
6
4
6
6
3
1a
1
5
3 1
3 1
3 1
3 1
4
4
4

2
2
5
5
5
6
9|English

RH150028,URH1500281,RH150028S,RH150028-8,RH150028-6,URH1500281-9

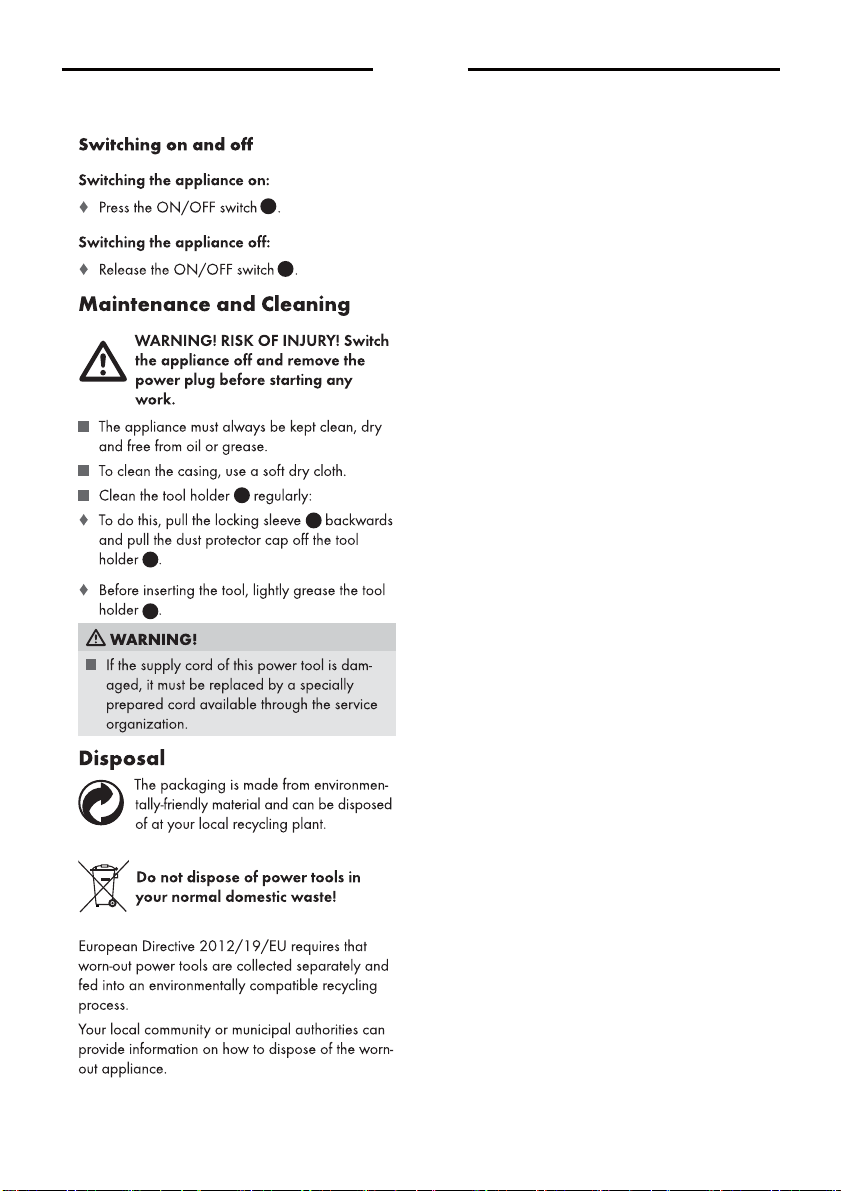

10|English

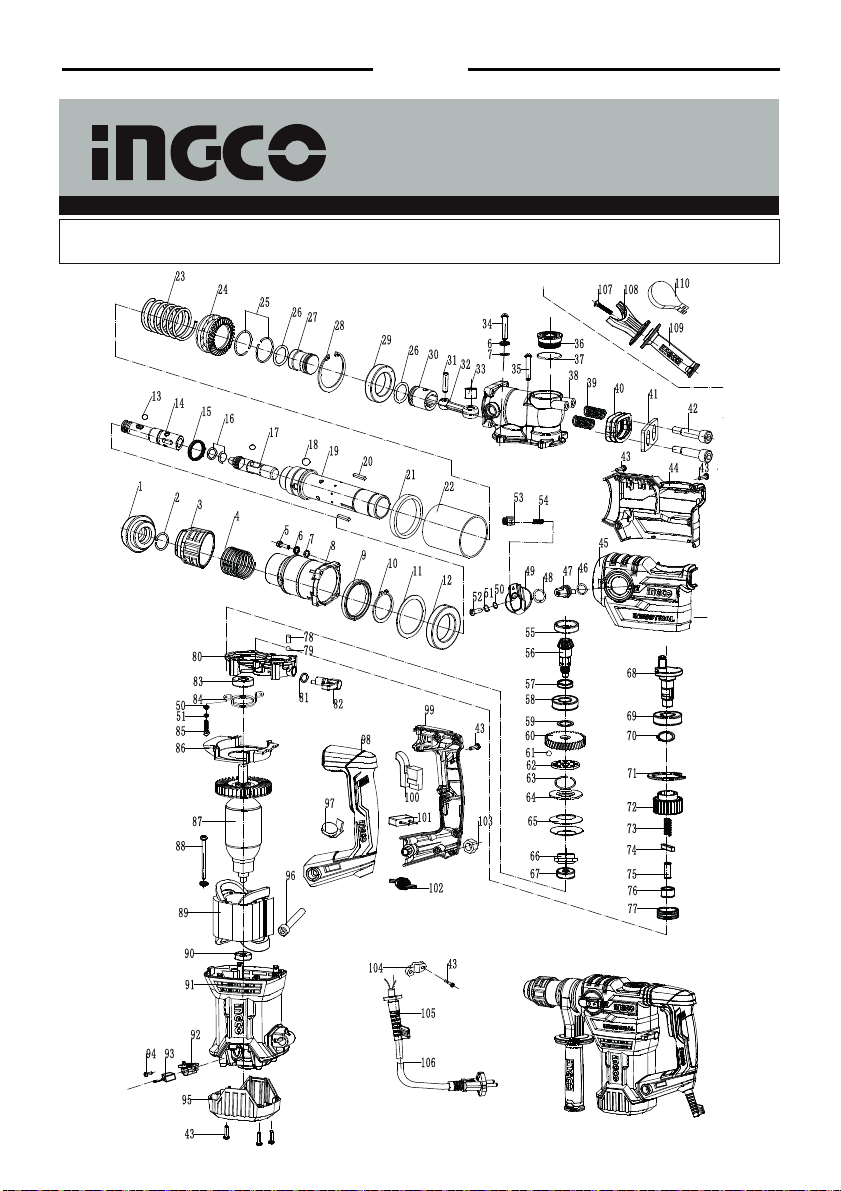

EXPLODED VIEW

11
No. Exploding view Qty
1Rubber Head 1
2 Steel Ring 17.5*2 1
3 Steel frame 1
4 Spring 30.2*1.8*76 1
5 ScrewM5*22 4
6 Washer5 8
7 Washer5 8
8Cylinder house 1
9Oil Seal 35*51*6 1
10 Washer 35 1
11 Washer 45*54.5*1 1
12 Bearing 61907 1
13 Ball 7.14 5
14 teleflex 1
15 X-ring 1
16 O-ring 11*2 3
17 Impact hammer 1
18 Ball 7.94 3
19 Cylinder 1
20 Flat key 3*2.5*18 2
21 Ring 45*55*7 1
22 Cylinder Case 50*55*47 1
23 Spring 33.5*3.5*76 1
24 Gamp gear 1
25 Washer 28*1.6 2
26 O-ring 19*3.1 2
27 Rammer 1
28 Washer 1
29 Bearing 30*47*9 1
30 Piston 1
31 Piston Pin 1
32 Connecting Rod 1
33 Gamp 1
34 Screw ST4.8*50 4
35 ScrewM5*20 2
36 Oil Cover 1
37 O-ring 31.5*2 1
No. Exploding view Qty
38 Gear Box 1
39 Spring 2
40 Anti-vibration rubber blanket 1
41 Anti-vibration Board 1
42 Screw M8X35 2
43 Screw ST3.9*16 16
44 Gear box right cover 1
45 Gear box right cover 1
46 O-ring 1
47 Knob axle 1
48 Washer 1
49 Knob assembly 1
50 Flat gasket 1
51 Spring washer 3
52 Screw M4*14
53 Lock
1
1
54 Spring 0.6*4.5*17.5 1
55 Oil Seal 19*28*4.5 1
56 Bevel gear 1
57 Washer 1
58 Bearing 1
59 Washer 1
60 Gear 1
61 Ball 8
62 Dead plate 1
63 Washer 1
64 Active plate 1
65 Spring 2
66 Screw 1
67 Bearing 627 1
68 Eccentric shaft 1
69 Bearing 6003 1
70 Washer 17 1
71 Washer 35 1
72 Gear 1
73 Spring W6.8*1.2*33 1
74 Square key 5*5*22 1
No. Exploding view Qty
75 Melt 7*19 1
76 Bearing 16*12*10 1
77 Steel Sleeve 1
78 Rubber column 1
79 Ball 14
80 Middle Cover 1
81 O-ring W12*1.8 1
82 Dial Twist 1
83 Bearing 1
84 Bearing pressing plate 1
85 Screw M4*14 2
86 Fan Guide 1
87 Rotor 1
88 Screw ST4.8*60 2
89 Stator 1
90 Bearing 608 1
91 Motor housing 1
92 Carbon brush holder 2
93 Carbon brush 2
94 Screw ST3.9*12 2
95 Back cover 1
96 Screw M8*50 1
97 Speed ccontroller(Opition) 1
98 Left handle 1
99 Right handle 1
100 Switch 1
101 Capacitor Option) 1
102 Inductance(Option) 1
103 Screw M8 1
104 Cable board 1
105 Cable sheath 1
106 Cable 1
107 Screw 1
108 Bracket 1
109 Auxiliary handle 1
110 Hoop 1
RH150028,URH1500281,RH150028S,RH150028-8,RH150028-6,URH1500281-9

RH150028 URH1500281 RH150028-6
RH150028-8 RH150028S URH1500281-9
