Ingersoll-Rand BAYHTRL User manual

SSAAFFEETTYY WWAARRNNIINNGG
Only qualified personnel should install and service the equipment The installation, starting up, and servicing of heating, ventilating, and
air-conditioning equipment can be hazardous and requires specific knowledge and training Improperly installed, adjusted or altered
equipment by an unqualified person could result in death or serious injury When working on the equipment, observe all precautions in the
literature and on the tags, stickers, and labels that are attached to the equipment
August 2017 AACCCC--SSVVNN9911GG--EENN
Electric Heaters
Split System Air Handlers, 5-25 Ton
BBAAYYHHTTRRLL: Used with TWE051,
TWE060, TWE072, TWE076,
TWE090, TWE101, TWE120,
TWE126
BBAAYYHHTTRRMM: Used with TWE126,
TWE150, TWE156, TWE180,
TWE201, TWE240, TWE251,
TWE300
Installation Guide

©2017 Ingersoll Rand ACC-SVN91G-EN
Introduction
Read this manual thoroughly before operating or
servicing this unit
Warnings, Cautions, and Notices
Safety advisories appear throughout this manual as
required Your personal safety and the proper
operation of this machine depend upon the strict
observance of these precautions
The three types of advisories are defined as follows:
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate injury. It could also be used to alert
against unsafe practices.
Indicates a situation that could result in
equipment or property-damage only
accidents.
Important Environmental Concerns
Scientific research has shown that certain man-made
chemicals can affect the earth’s naturally occurring
stratospheric ozone layer when released to the
atmosphere In particular, several of the identified
chemicals that may affect the ozone layer are
refrigerants that contain Chlorine, Fluorine and Carbon
(CFCs) and those containing Hydrogen, Chlorine,
Fluorine and Carbon (HCFCs) Not all refrigerants
containing these compounds have the same potential
impact to the environment Trane advocates the
responsible handling of all refrigerants-including
industry replacements for CFCs and HCFCs such as
saturated or unsaturated HFCs and HCFCs
Important Responsible Refrigerant
Practices
Trane believes that responsible refrigerant practices
are important to the environment, our customers, and
the air conditioning industry All technicians who
handle refrigerants must be certified according to local
rules For the USA, the Federal Clean Air Act (Section
608) sets forth the requirements for handling,
reclaiming, recovering and recycling of certain
refrigerants and the equipment that is used in these
service procedures In addition, some states or
municipalities may have additional requirements that
must also be adhered to for responsible management
of refrigerants Know the applicable laws and follow
them
WWAARRNNIINNGG
PPrrooppeerr FFiieelldd WWiirriinngg aanndd GGrroouunnddiinngg
RReeqquuiirreedd!!
FFaaiilluurree ttoo ffoollllooww ccooddee ccoouulldd rreessuulltt iinn ddeeaatthh oorr
sseerriioouuss iinnjjuurryy
AAllll ffiieelldd wwiirriinngg MMUUSSTT bbee ppeerrffoorrmmeedd bbyy qquuaalliiffiieedd
ppeerrssoonnnneell IImmpprrooppeerrllyy iinnssttaalllleedd aanndd ggrroouunnddeedd
ffiieelldd wwiirriinngg ppoosseess FFIIRREE aanndd EELLEECCTTRROOCCUUTTIIOONN
hhaazzaarrddss TToo aavvooiidd tthheessee hhaazzaarrddss,, yyoouu MMUUSSTT ffoollllooww
rreeqquuiirreemmeennttss ffoorr ffiieelldd wwiirriinngg iinnssttaallllaattiioonn aanndd
ggrroouunnddiinngg aass ddeessccrriibbeedd iinn NNEECC aanndd yyoouurr llooccaall//
ssttaattee//nnaattiioonnaall eelleeccttrriiccaall ccooddeess
WWAARRNNIINNGG
PPeerrssoonnaall PPrrootteeccttiivvee EEqquuiippmmeenntt ((PPPPEE))
RReeqquuiirreedd!!
FFaaiilluurree ttoo wweeaarr pprrooppeerr PPPPEE ffoorr tthhee jjoobb bbeeiinngg
uunnddeerrttaakkeenn ccoouulldd rreessuulltt iinn ddeeaatthh oorr sseerriioouuss iinnjjuurryy
TTeecchhnniicciiaannss,, iinn oorrddeerr ttoo pprrootteecctt tthheemmsseellvveess ffrroomm
ppootteennttiiaall eelleeccttrriiccaall,, mmeecchhaanniiccaall,, aanndd cchheemmiiccaall
hhaazzaarrddss,, MMUUSSTT ffoollllooww pprreeccaauuttiioonnss iinn tthhiiss mmaannuuaall
aanndd oonn tthhee ttaaggss,, ssttiicckkeerrss,, aanndd llaabbeellss,, aass wweellll aass tthhee
iinnssttrruuccttiioonnss bbeellooww::
•• BBeeffoorree iinnssttaalllliinngg//sseerrvviicciinngg tthhiiss uunniitt,,
tteecchhnniicciiaannss MMUUSSTT ppuutt oonn aallll PPPPEE rreeqquuiirreedd ffoorr
tthhee wwoorrkk bbeeiinngg uunnddeerrttaakkeenn ((EExxaammpplleess;; ccuutt
rreessiissttaanntt gglloovveess//sslleeeevveess,, bbuuttyyll gglloovveess,, ssaaffeettyy
ggllaasssseess,, hhaarrdd hhaatt//bbuummpp ccaapp,, ffaallll pprrootteeccttiioonn,,
eelleeccttrriiccaall PPPPEE aanndd aarrcc ffllaasshh ccllootthhiinngg))
AALLWWAAYYSS rreeffeerr ttoo aapppprroopprriiaattee MMaatteerriiaall SSaaffeettyy
DDaattaa SShheeeettss ((MMSSDDSS))//SSaaffeettyy DDaattaa SShheeeettss
((SSDDSS)) aanndd OOSSHHAA gguuiiddeelliinneess ffoorr pprrooppeerr PPPPEE
•• WWhheenn wwoorrkkiinngg wwiitthh oorr aarroouunndd hhaazzaarrddoouuss
cchheemmiiccaallss,, AALLWWAAYYSS rreeffeerr ttoo tthhee aapppprroopprriiaattee
MMSSDDSS//SSDDSS aanndd OOSSHHAA//GGHHSS ((GGlloobbaall
HHaarrmmoonniizzeedd SSyysstteemm ooff CCllaassssiiffiiccaattiioonn aanndd
LLaabbeelllliinngg ooff CChheemmiiccaallss)) gguuiiddeelliinneess ffoorr
iinnffoorrmmaattiioonn oonn aalllloowwaabbllee ppeerrssoonnaall eexxppoossuurree
lleevveellss,, pprrooppeerr rreessppiirraattoorryy pprrootteeccttiioonn aanndd
hhaannddlliinngg iinnssttrruuccttiioonnss
•• IIff tthheerree iiss aa rriisskk ooff eenneerrggiizzeedd eelleeccttrriiccaall
ccoonnttaacctt,, aarrcc,, oorr ffllaasshh,, tteecchhnniicciiaannss MMUUSSTT ppuutt
oonn aallll PPPPEE iinn aaccccoorrddaannccee wwiitthh OOSSHHAA,, NNFFPPAA
7700EE,, oorr ootthheerr ccoouunnttrryy--ssppeecciiffiicc rreeqquuiirreemmeennttss
ffoorr aarrcc ffllaasshh pprrootteeccttiioonn,, PPRRIIOORR ttoo sseerrvviicciinngg
tthhee uunniitt NNEEVVEERR PPEERRFFOORRMM AANNYY SSWWIITTCCHHIINNGG,,
DDIISSCCOONNNNEECCTTIINNGG,, OORR VVOOLLTTAAGGEE TTEESSTTIINNGG
WWIITTHHOOUUTT PPRROOPPEERR EELLEECCTTRRIICCAALL PPPPEE AANNDD
AARRCC FFLLAASSHH CCLLOOTTHHIINNGG EENNSSUURREE
EELLEECCTTRRIICCAALL MMEETTEERRSS AANNDD EEQQUUIIPPMMEENNTT AARREE
PPRROOPPEERRLLYY RRAATTEEDD FFOORR IINNTTEENNDDEEDD
VVOOLLTTAAGGEE

ACC-SVN91G-EN 3
WWAARRNNIINNGG
FFoollllooww EEHHSS PPoolliicciieess!!
FFaaiilluurree ttoo ffoollllooww iinnssttrruuccttiioonnss bbeellooww ccoouulldd rreessuulltt iinn
ddeeaatthh oorr sseerriioouuss iinnjjuurryy
•• AAllll IInnggeerrssoollll RRaanndd ppeerrssoonnnneell mmuusstt ffoollllooww
IInnggeerrssoollll RRaanndd EEnnvviirroonnmmeennttaall,, HHeeaalltthh aanndd
SSaaffeettyy ((EEHHSS)) ppoolliicciieess wwhheenn ppeerrffoorrmmiinngg wwoorrkk
ssuucchh aass hhoott wwoorrkk,, eelleeccttrriiccaall,, ffaallll pprrootteeccttiioonn,,
lloocckkoouutt//ttaaggoouutt,, rreeffrriiggeerraanntt hhaannddlliinngg,, eettcc AAllll
ppoolliicciieess ccaann bbee ffoouunndd oonn tthhee BBOOSS ssiittee WWhheerree
llooccaall rreegguullaattiioonnss aarree mmoorree ssttrriinnggeenntt tthhaann
tthheessee ppoolliicciieess,, tthhoossee rreegguullaattiioonnss ssuuppeerrsseeddee
tthheessee ppoolliicciieess
•• NNoonn--IInnggeerrssoollll RRaanndd ppeerrssoonnnneell sshhoouulldd aallwwaayyss
ffoollllooww llooccaall rreegguullaattiioonnss
Copyright
This document and the information in it are the
property of Trane, and may not be used or reproduced
in whole or in part without written permission Trane
reserves the right to revise this publication at any time,
and to make changes to its content without obligation
to notify any person of such revision or change
Trademar s
All trademarks referenced in this document are the
trademarks of their respective owners
Revision History
Model numbers have been updated
IInnttrroodduuccttiioonn

4ACC-SVN91G-EN
Pre-Installation 5
Inspection 5
General 5
Parts List 5
Installation 6
Low Voltage Wires (24 Volts) 6
High Voltage Wires 7

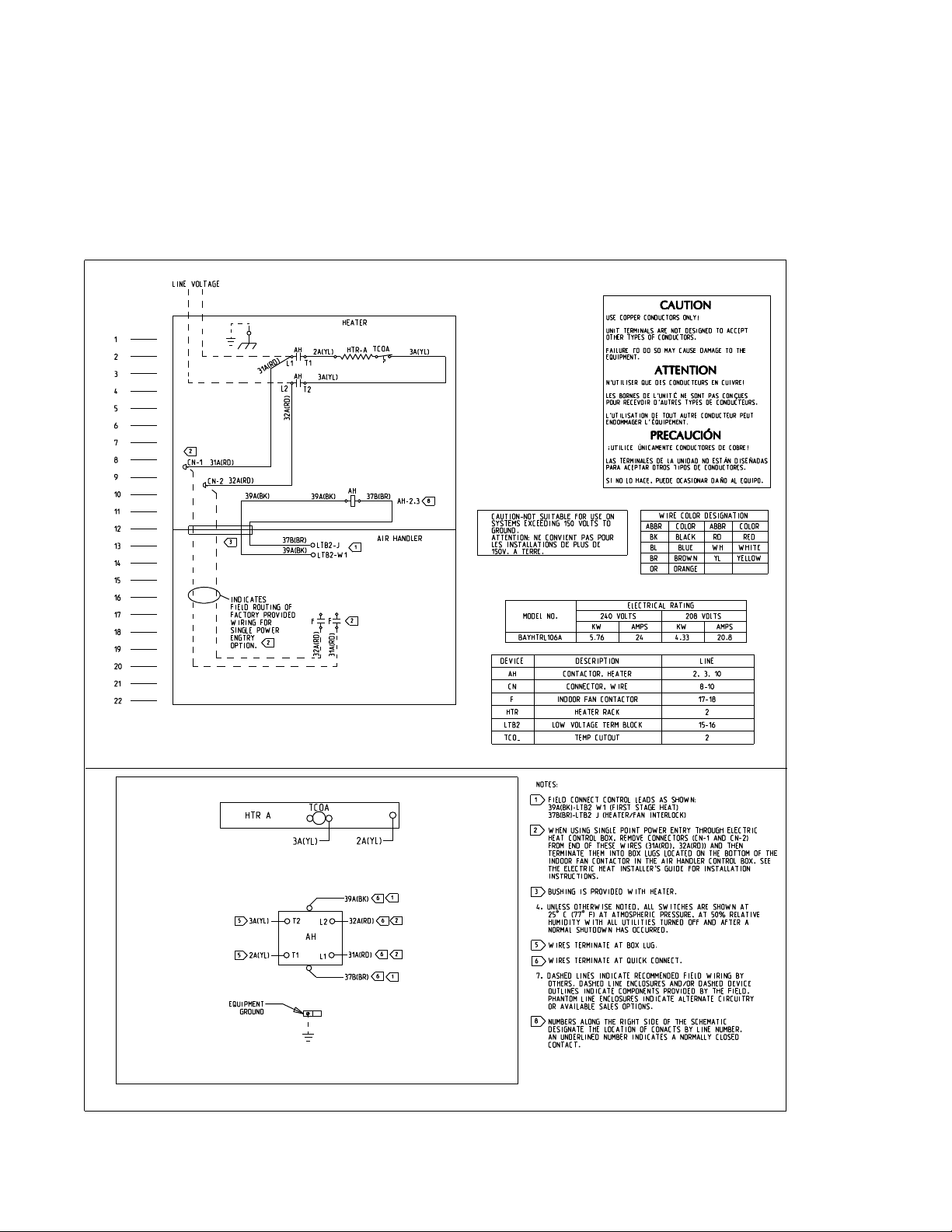

Wiring Diagrams 10
Table of Contents

ACC-SVN91G-EN 5
Pre-Installation
Inspection
Remove the contents of the kit from the shipping
package and inspect for possible damage If the
accessory has been damaged, it should be reported to
and claims made against the transportation company
immediately Any missing parts should be immediately
reported to your supplier and replaced with authorized
parts only
General
These instructions are for the installation of electric
heaters into the split system heat pump and cooling
unit air handlers Unit-to-heater match up is described
in Table 1, p 5
These air handlers and heaters are designed so that all
Class I (high voltage) wiring between the heater and
unit is accomplished by the method of hard wiring
Class II wiring (low voltage) is accomplished by push-
on type wire connectors
Find the heater model number on the heater
nameplate Check Table 1, p 5 to ensure heater
selected is approved for use with the air handler in
which it is to be installed, and that the power supply is
compatible with this heater
Parts List
• 1 - heater (with enclosure)
• 2 - cable clamps
• 2 - screws (for cable clamp)
• 2 - bullet wire ties
• 4 - regular wire ties
• 1 - plastic bushing
• 11 - screws (for the L series heaters)
• 20 - screws (for the M series heaters
• 1 - gasket
Table 1. Heater compatibility, (L) and (M) series
Unit Model Voltage(a) (b) Phase Heaters
L Series
TWE060*1 208-230 1 ph BAYHTRL106A, 112A, 117A, 123A
TWE060*3 208-230 3 ph BAYHTRL305A, 310A, 315A, 325A
TWE051, TWE060*4 380V/50Hz
460V/60Hz 3 ph BAYHTRL405A, 410A, 415A, 425A
TWE060*W 575 3 ph BAYHTRLW05A, W10A, W15A, W25A
TWE090*1 TWE120*1 208-230 1 ph BAYHTRL106A, 112A, 117A, 123A, 129A
TWE072*3, TWE090*3, TWE120*3 208-230 3 ph BAYHTRL305A, 310A, 315A, 325A, 335A
TWE072*D, TWE072*3(c) , TWE072*4,
TWE076, TWE090*3(c), TWE090*4,
TWE101, TWE120*3(c), TWE120*4,
380V/50Hz
460V/60Hz 3 ph BAYHTRL405A, 410A, 415A, 425A, 435A
TWE072*W, TWE090*W, TWE120*W 575 3 ph BAYHTRLW05A, W10A, W15A, W25A, W35A
M Series
TWE150*3, TWE180*3, TWE240*3,
TWE300*3 208-230 3 ph BAYHTRM310A, 320A, 330A, 350A
TWE126, TWE150*3(c), TWE150*4,
TWE156, TWE180*3(c), TWE180*4,
TWE201, TWE240*4, TWE251, TWE300*4
380V/50Hz
460V/60Hz 3 ph BAYHTRM410A, 420A, 430A, 450A
TWE150*W, TWE180*W, TWE240*W,
TWE300*W 575 3 ph BAYHTRMW10A, W20A, W30A,W50A
(a) Voltages indicated are for Air Handlers.
(b) For heater rated voltages, see heater nameplates.
(c) Standard Air Handler Field converted to 460/3/60.

6ACC-SVN91G-EN
Installation
WWAARRNNIINNGG
RRoottaattiinngg CCoommppoonneennttss!!
FFaaiilluurree ttoo ddiissccoonnnneecctt ppoowweerr bbeeffoorree sseerrvviicciinngg ccoouulldd
rreessuulltt iinn rroottaattiinngg ccoommppoonneennttss ccuuttttiinngg aanndd ssllaasshhiinngg
tteecchhnniicciiaann wwhhiicchh ccoouulldd rreessuulltt iinn ddeeaatthh oorr sseerriioouuss
iinnjjuurryy
DDiissccoonnnneecctt aallll eelleeccttrriicc ppoowweerr,, iinncclluuddiinngg rreemmoottee
ddiissccoonnnneeccttss bbeeffoorree sseerrvviicciinngg FFoollllooww pprrooppeerr
lloocckkoouutt//ttaaggoouutt pprroocceedduurreess ttoo eennssuurree tthhee ppoowweerr
ccaann nnoott bbee iinnaaddvveerrtteennttllyy eenneerrggiizzeedd
NNoottee:: All phases of this installation must comply with
national, state, and local codes.

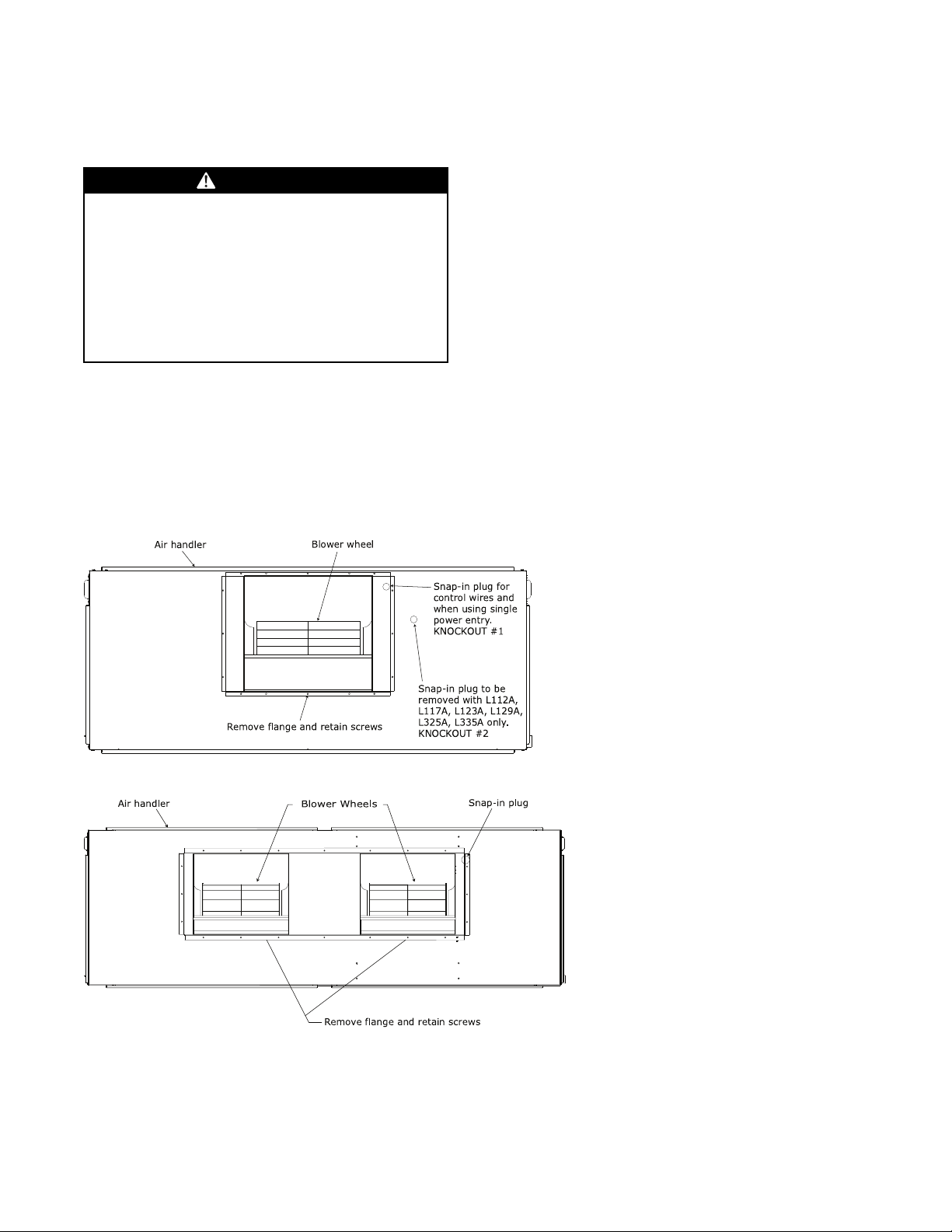

1 Remove duct flange from around air discharge on
top of the air handler Retain screws and flange for
(optional) installation on top of the heater See
Figure 1, p 6 and Figure 2, p 6
2 Remove the control wire knockout (Knockout #1)
from top of air handler and insert plastic bushing
supplied with heater This knockout will also be
used if single point power entry is utilized
IImmppoorrttaanntt:: For ventilation purposes, Heaters
L112A, L117A, L12 A, L129A, L 25A,
and L 5A require that an additional
knockout (knockout #2) be removed
(see Figure 1, p. 6). When using
BAYHTRL 25A with a TWE060* (5 ton)
air handler, the heater baffle must be
removed (see Figure , p. 7).
3 Remove air handler access panel and control box
cover
NNoottee:: Apply gasket to heater see heater gasket
installation sheet.
4 Place heater on air handler and secure in place with
the screws provided
Figure 1. Top of air handler single blower
Figure 2. Top of air handler dual blower
Low Voltage Wires (24 Volts)
1 For Heaters with single stage heat, there will be 1
brown wire and 1 black wire
2 For Heaters with two stage heat, there will be 1
brown wire, 1 black wire and 1 orange wire
3 Route the 2 or 3 low voltage wires down through
the plastic bushing in the knockout #1 to the low
voltage terminal block see Figure 4, p 8 and Figure
5, p 9 Wire according to heater wiring diagram
4 Wire ties and cable clamps supplied should be used

ACC-SVN91G-EN 7
to secure the wires from the heater to the air
handler control box in a location that will not allow
them to interfere with any moving parts
High Voltage Wires
NNOOTTIICCEE
UUssee CCooppppeerr CCoonndduuccttoorrss OOnnllyy!!
FFaaiilluurree ttoo uussee ccooppppeerr ccoonndduuccttoorrss ccoouulldd rreessuulltt iinn
eeqquuiippmmeenntt ddaammaaggee aass tthhee eeqquuiippmmeenntt wwaass nnoott
ddeessiiggnneedd oorr qquuaalliiffiieedd ttoo aacccceepptt ootthheerr ttyyppeess ooff
ccoonndduuccttoorrss
1 For single point power entry, route 2 or 3 red wires,
down through the plastic bushing in knockout #1
and into the air handler control box
2 For single phase there will be 2 red wires, and for 3
phase there will be 3 red wires
3 The 2 or 3 red wires should be hard wired to the
bottom contacts of the air handler contactor per the
wiring diagram for the standard air handlers For
the 2-speed VFD and SZVAV the wires connect to
the fuse block
IImmppoorrttaanntt:: When the dual point power entry option
is used, the high voltage wires, for
single point power entry, should remain
capped, coiled up and clamped inside
the heater control box.
4 When using dual point power entry, knockouts on
the control end of both the air handler and the
heater are to be used See Figure 4, p 8 &Figure 5,
p 9 for location of each
5 Replace air handler control box cover
6 Replace air handler access panel
7 Replace control box panel on accessory heater
8 Check blower rotation If incorrect, change
positions of any two power leads at fan contactor
(F) or fuse block After electrical hookup has been
completed, duct work can be assembled The duct
flanges removed from the air handler, can be
secured in place on top of the heater and the duct
work can be attached or the flange can be discarded
and the duct can be fashioned to fit up to the heater

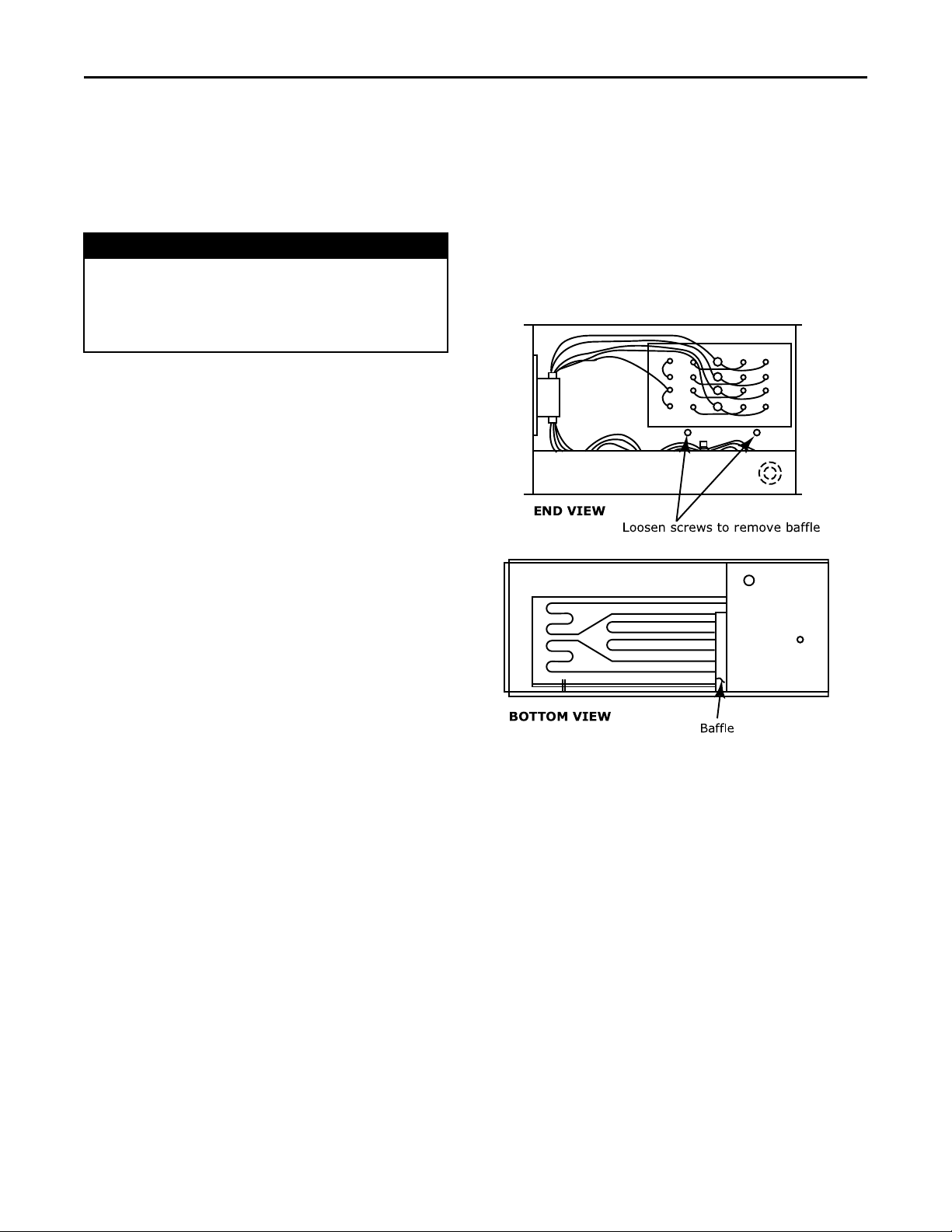

Figure 3. End view
IInnssttaallllaattiioonn

8ACC-SVN91G-EN

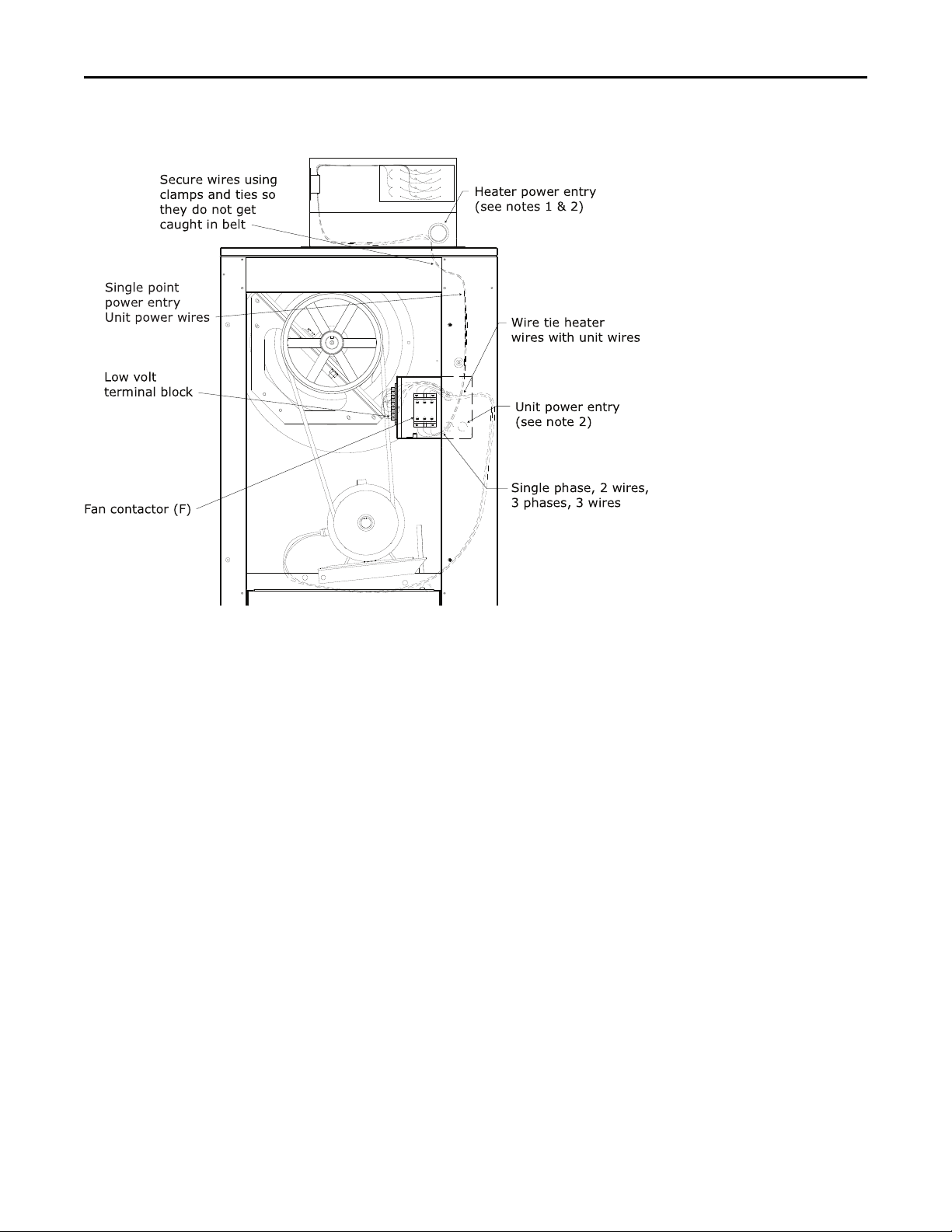

Figure 4. Heater installation hoo -up with standard air handler
NNootteess::
1. For power supply to heater only see the heater nameplate to determine “MCA” and over current protection
device values.
2. For single point power entry option (heater & blower motor) see the “heater installed” nameplate on the air
handler for “MCA” and over current protection device values.
. When electric heater accessory is used single point power entry or dual point power entry is field optional.
Single point power entry option is through electric heater only.
IInnssttaallllaattiioonn

ACC-SVN91G-EN 9

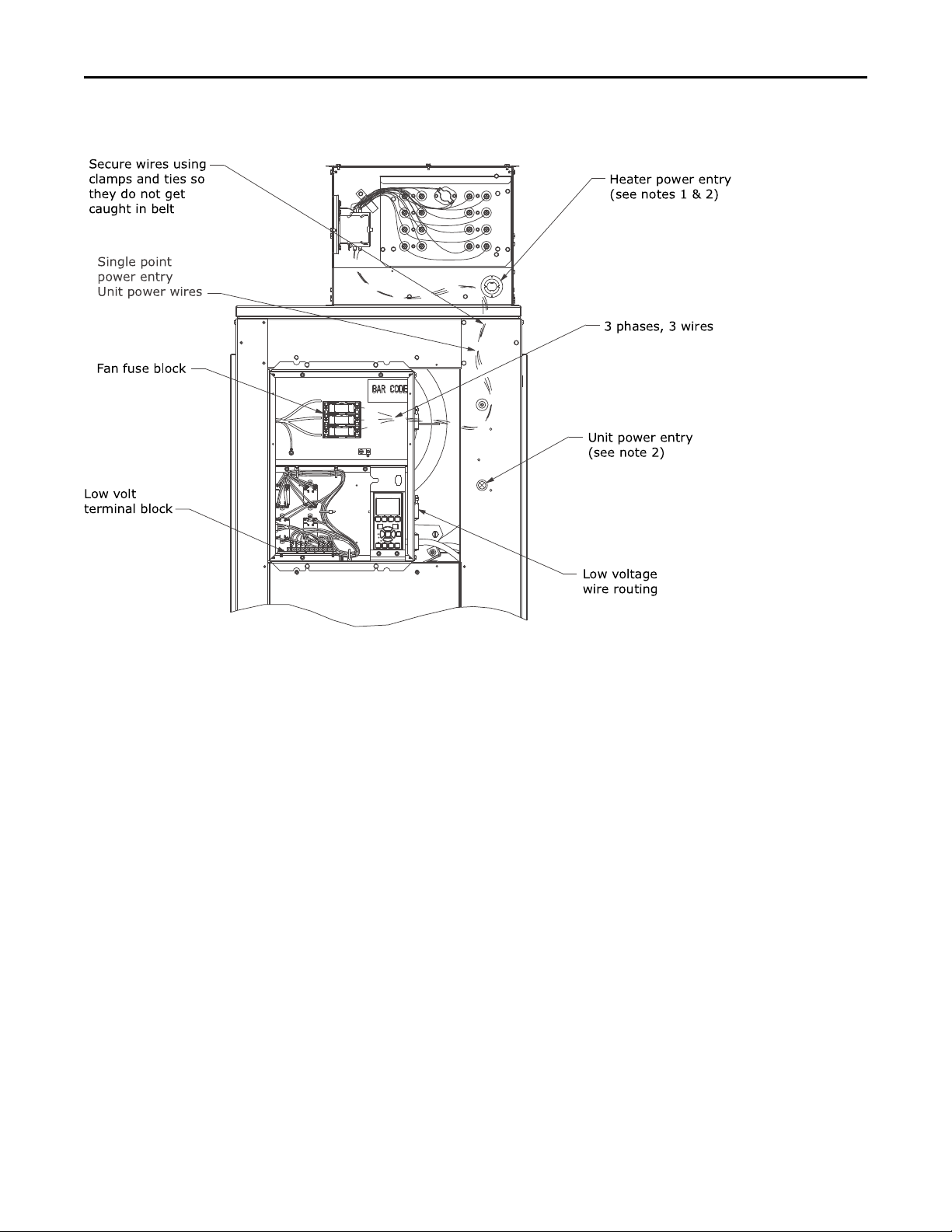

Figure 5. Heater installation hoo -up with 2-speed VFD & SZVAV
NNootteess::
1. For power supply to heater only see the heater nameplate to determine “MCA” and over current protection
device values.
2. For single point power entry option (heater & blower motor) see the “heater installed” nameplate on the air
handler for “MCA” and over current protection device values.
. When electric heater accessory is used single point power entry or dual point power entry is field optional.
Single point power entry option is through electric heater only.
IInnssttaallllaattiioonn

10 ACC-SVN91G-EN
Wiring Diagrams
The following diagrams can be accessed through e-
Library or a local sales office
Figure 6. BAYHTRL106A (4367-0380*)

ACC-SVN91G-EN 11
Figure 7. BAYHTRL112A (4367-0381*)
WWiirriinngg DDiiaaggrraammss

12 ACC-SVN91G-EN
Figure 8. BAYHTRL117A (4367-0324*)
WWiirriinngg DDiiaaggrraammss

ACC-SVN91G-EN 13
Figure 9. BAYHTRL123A (4367-0382*)
WWiirriinngg DDiiaaggrraammss

14 ACC-SVN91G-EN
Figure 10. BAYHTRL129A (4367-0383*)
WWiirriinngg DDiiaaggrraammss

ACC-SVN91G-EN 15
Figure 11. BAYHTRL305A/310A (4367-0369*)
WWiirriinngg DDiiaaggrraammss

16 ACC-SVN91G-EN
Figure 12. BAYHTRM430/W30 (4367-0386*)
WWiirriinngg DDiiaaggrraammss

ACC-SVN91G-EN 17
Figure 13. BAYHTRM450/W50 (4367-0385*)
WWiirriinngg DDiiaaggrraammss

18 ACC-SVN91G-EN
Figure 14. BAYHTRM350 (4367-0348*)
WWiirriinngg DDiiaaggrraammss

ACC-SVN91G-EN 19
Figure 15. BAYHTRM330 (4367-0384*)
WWiirriinngg DDiiaaggrraammss

Ingersoll Rand (NYSE: IR) advances the quality of life by creating comfortable, sustainable and efficient
environments Our people and our family of brands — including Club Car®, Ingersoll Rand®, Thermo King®and
Trane®—work together to enhance the quality and comfort of air in homes and buildings; transport and protect
food and perishables; and increase industrial productivity and efficiency We are a global business committed to a
world of sustainable progress and enduring results
ingersollrand com
Ingersoll Rand has a policy of continuous product and product data improvements and reserves the right to change design and specifications
without notice
We are committed to using environmentally conscious print practices
ACC-SVN91G-EN 11 Aug 2017
Supersedes ACC-SVN91F-EN (December 2015) ©2017 Ingersoll Rand
