941256_00(1) Page 1 of 4
Cover Plate
with Indicator
Dogging Indicator Kit
PARTS LIST
The dogging indicator kit provides visual feedback to the user showing whether the exit device is
dogged or undogged. The light flashes when device is undogged.
This kit is not compatible with devices produced before 9/97, which have an older dogging design.
The Cylinder Dogging (CD) version of this kit requires a standard 1-1/4” mortise cylinder. A cylinder
is not furnished with this kit and must be specified when ordering.
Standard1-1/4”
MortiseCylinder
CylinderLockNut CylinderCollar CylinderLocating
Washer
GENERAL INFORMATION
ActuatorArm CD Dogging Plug
Installation Instructions
VON DUPRIN®
941256-00(1) Copyright © 2006 Ingersoll-Rand Company Limited
941256-00
Hex Dogging Version
Cylinder Dogging (CD) Version
ActuatorArm Batteries (AAA)
A
A
A
A
A
A
A
A
A
NOTPROVIDED
Cover Plate
with Indicator
Batteries (AAA)
A
A
A
A
A
A
A
A
A
Compatible with: Device Dogging Length
98/99 Standard & XP Hex & CD 3’ and 4’

941256_00(1) Page 2 of 4
Install new actuator arm, then hex dogging shaft or cylinder dogging (CD) plug.
1Remove the end cap and dogging cover from exit device.
Doggingcover
End cap
2Remove hex dogging shaft or CD dogging plug, and old actuator arm.
3
INSTALLATION
Oldactuatorarm
CDdogging plug
OR
Hexdogging shaft RemovalofCD
doggingplug
mayrequiresmall
screwdriver as
shown.
NOTE
OR
CD dogging
plug
New actuator
arm
New actuator
arm
Hex dogging
shaft Cylinder
Dogging
Hex
Dogging

941256_00(1) Page 3 of 4
For hex dogging application, go to step 7. For cylinder dogging application, go to step 5.
Reverse mortise cylinder cam as shown (with key removed).
4
5
Mortise
cylinder
Cylinder
collar
CDcover
plate
Cylinder
locating
washer
Cylinder
lock nut
Make sure cylinder cam is
installed in correct direction as
shown with key removed
Keyremoved
6Install mortise cylinder into cover plate and verify that cam is correct direction.
Install batteries and battery retainer.
7A. Remove retainer
Key needs to be
rotated 180 degrees
for cam to clear
cylinder lock nut.
B. Install threeAAAbatteries C. Install retainer
IMPORTANT

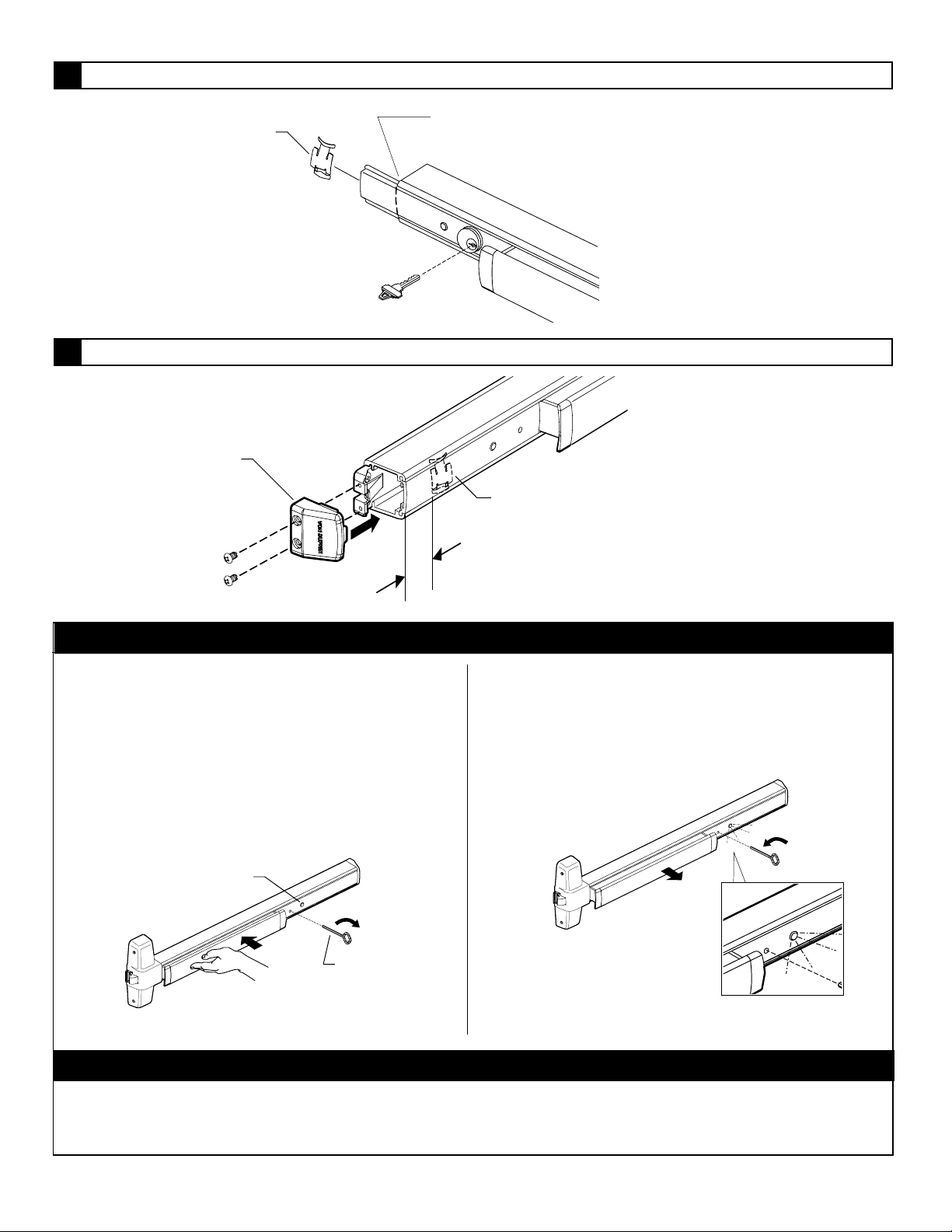

941256_00(1) Page 4 of 4
DOGGING INDICATOR FUNCTIONAL TEST
8Install new cover plate and cut to proper length (if required).
Cut flush to mechanism case
(minimum cover plate length is 8-7/8”)
9Install the end cap.
End cap
Note:Hexdoggingshownbelow.Cylinder
dogging is the same except it uses key in
cylinderratherthan hex keyinhole.
1. Depresspushbar and hold.
2. Placehex key in hole as shownandturn
clockwise. Push bar stays in down position.
3. Device is now dogged and indicator light
should not be flashing.
CW
4. Toundogdevice, place hex key inholeas
shownandturncounterclockwise releasing
pushbar.
5. With device undogged, light should flash
every 5 seconds.
Hex key
CCW
Indicator light
Remove anti-rattle clip if
necessary for cutting
Anti-rattle clip
2” minimum
When battery is low, the indicator light will double flash every 5 seconds. Then the batteries
should be changed within 3 days.
BATTERY LOW INDICATION
Key removed during
installation
DOGGED - NOT FLASHING UNDOGGED - FLASHING
