Overview
The G3213E is designed as cost effective 2MP bullet type IP camera which built with a 2 megapixel sensor to
support viewing resolution of 1920x1080 at 30 fps to capture high quality and high resolution video.
In order to adapt to constantly changing outdoor lighting condition, the G3213E is equipped with a removable
IR-cut filter as well as 30M IR illuminator for superior image quality around the clock. And the G3213E is
furnished with IP66 rated housing to protect against rain and dust.
G3213E is also furnished with multiple power sources as redundant power source to make it to fit in wide
range of projects.

–-
3
Package Contents

–-
4
Installation
Hardware Installation
1. Identify the type of network device.
2. If the network device supports PoE (Power over Ethernet) function, simply connect the camera to it
via Ethernet cable.
3. If not, both Ethernet cable and power supply (DC12V or AC24V) should connect to device.
Software Installation
Discover IP Cameras
Discovery Tool is a utility provided for not only searching and displaying the available IP cameras information
in a network but also managing the multiple networking settings such as static IP address assignment.
After completing the hardware installation, run ingrasysDiscovery.exe to search for the IP camera installed.

–-
5
Assigning IP Address to the device
The steps of applying this search tool are described as below.
1. Launch IPCAM Discovery Tool (ingrasysDiscovery.exe)
2. Assign IP address
The selection is based on a single or multiple camera devices.
[Set IP]
This is applied to one specific camera selected from the Device List.
Step1: Select one specific camera device
Step2: Input desired IP information
The default settings of account /password are Admin / Admin. If that were been changed, please
enter the set values.
[Auto Set IP]
This is applied to a group of specific cameras selected from the Device List.

–-
6
Step1: Select specific cameras
Step 2: Input Account / Password
The default account information is Admin / Admin. If the values have been re-set, please enter the
set values.
Step 3: Input IP information
Discovering devices in Windows Network
If the IP camera is installed in a network with DHCP and UPnP services, after obtaining an IP address from
DHCP server, it can then be discovered in “Windows Network” of a client PC, see figure below. The reason for
being automatically discovered is that the IP camera’s UPnP is default enabled (see Network  Network
Connectivity).

–-
7
NOTE:
The term “Windows Network” in given figure above is used in Windows Vista / 7. It can be referred to Windows XP “My
Network Places”which possesses the same capability of discovering UPnP devices.
Right-click on the device and select “Properties”, the pop-up window shows all the information related to the
device, including the web access info. Use the web address to connect to the IP camera. Or simply double-
click on the selected device, which gets immediately access to the camera webpage.
To identify the camera from the listed devices in “Network”, utilize the UPnP name and the device’s MAC
address. This MAC address can be found on the label.

–-
8
ActiveX add-on Installation
It is recommended to use Internet Explorer 8 or later as the primary browser to access the IP cameras website.
The first-time access to the camera webpage will be prompted to install the ActiveX. To allow the installation,
click “Install”on the message bar and follow the instructions to complete ActiveX installation.
When the installation is completed, IE browser can display the live video of the IP camera as the below figure.

–-
9
NOTE:
If, however, there is not any prompted message or ActiveX cannot be installed at all, it is needed to
change the IE security level and settings.
<Example>
Internet Explorer 9: Internet Options Security Custom level
Ensure the “Download signed ActiveX controls” setting is either “Enable”or “Prompt”selected.

–-
10
Accessing the camera
Viewing the live video
With the correct installation and IP settings, the camera device can be approached via network. There are
three ways to view the live video from the camera,
1. Internet Explorer
- Launch IE browser and input the IP address of the camera or
- Click on “Browse” button on the selected IP camera address from Ingrasys Discovery Tool.
OR
NOTE:
Ingrasys IP cameras also support the other web browsers for viewing the live video such as Firefox,
Google Chrome or Safari.

–-
11
2. RTSP Player
The live video of the camera can be played with RTSP players, such as VLC or QuickTime.
The camera supports two simultaneous video streaming (see Video & Audio  Video Setting). To
gain access to the camera for each video stream, the RTSP URL will be required. The default paths
for the 3 streams are “stream1”, “stream2” and “stream3”. The URL format should be input as below.
Stream1: rtsp://Camera_IP/stream1
Stream2: rtsp://Camera_IP/stream2
Stream3: rtsp://Camera_IP/stream3
The example given below is the live video displayed with QuickTime player.
3. NVR / CMS Software
Ingrasys IP cameras are ONVIF conformant products. Most of ONVIF conformant NVR / CMS
software can retrieve the video from the cameras for both live view and recording. For more details
about the support information and operation, please contact the software vendors.

–-
12
The Live view page

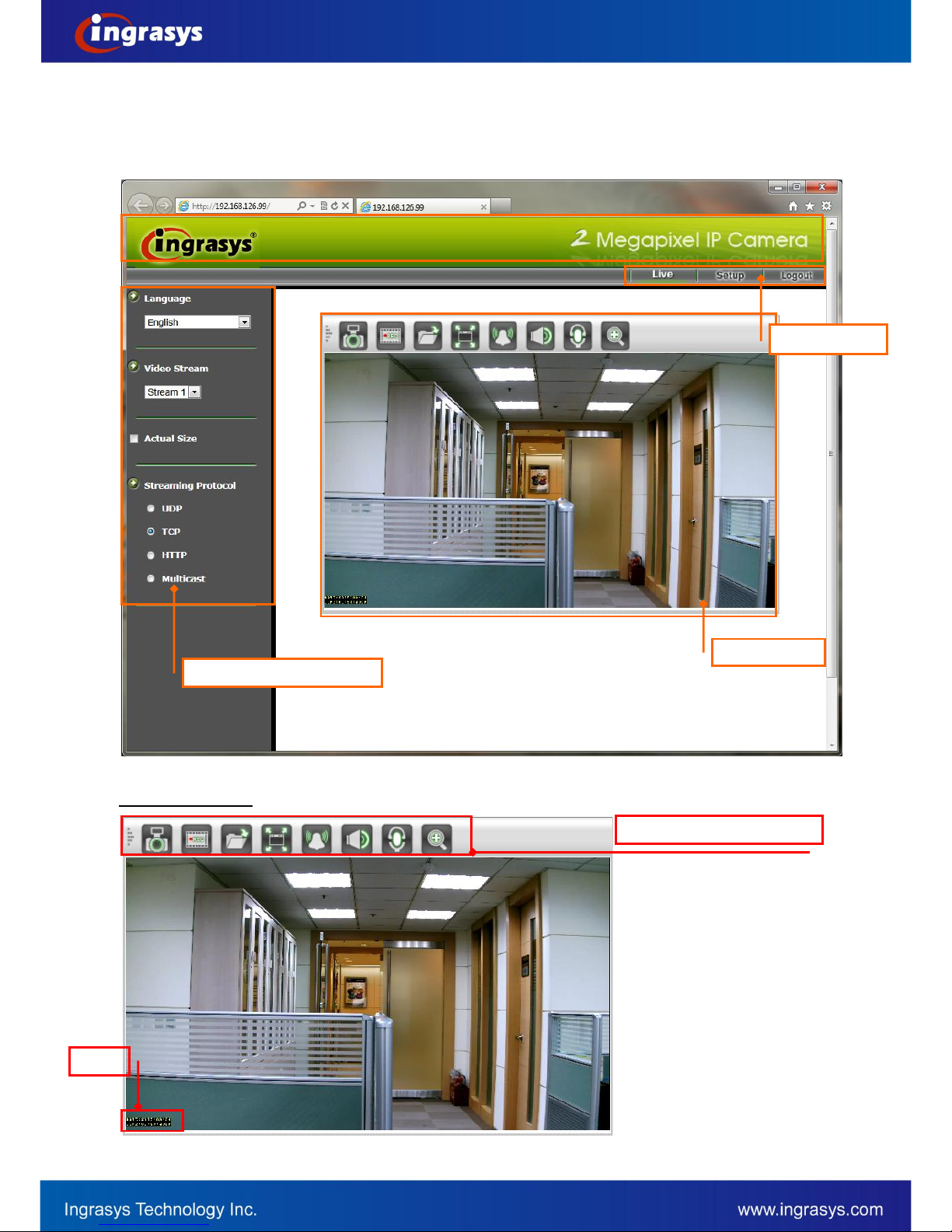

The following illustration shows you the front page of Ingrasys IP camera website.
Live Video Window
Live Window
Quick Functional Buttons
OSD
Quick Index
Video Stream Operations

–-
13
Snapshot: Press the button to capture an image photo
Record: Press the button to start recording. Press again to stop it.
Record Path: set up a file path that video clips and snapshots can be stored.
Full screen: Press the button to enter the full screen mode. Press ESC key to return.
Manual trigger: Press the button as triggering an event. See Event Management for detail.
Listen: Enable / Disable to receive video from camera
Talk: Enable / Disable to send audio to camera
Digital Zoom: toggle the digital zoom function.
Video Stream Operations
Language selection for the WEB UI
Select video stream for displaying on live video window
Display the video in actual (configured) size or digital (scaled)
size
Select the preferred streaming protocol on the client
side

–-
14
Video & Audio
This section describes how to configure the video streaming of the device and the related camera image
configurations. Users with Administrator or Operator authority (see System  User Management) are able to
do these configurations.
Click on “Setup” of Quick Index to enter the Video & Audio page shown as below.
There are 4 sub-settings under “Video & Audio”:
Camera Setting
Video Setting
ROI (Region Of Interest)
Audio Setting

–-
15
Camera Setting
Image Setting
Brightness: the luminance of image view. Default value is 8; adjustable from 0 to 16.
Contrast: the ratio of luminance of white to black. Default value is 8; adjustable from 0 to 16.
Saturation: colorfulness of a color related to its own brightness. Default value is 8, adjustable from 0
to 16.
Sharpness: refer to image acutance, which presents in the edges contrast of an image. Default value
is 8, adjustable from 0 to 16.
The 4 correlates are referring image appearance in terms of color/vision that is adjustable according
to user preferences.
Video Orientation: change the image orientation
Mirror: rotate the image horizontally
Flip: rotate the image vertically
NOTE:
These operations are usually applied when camera must be installed in an exceptional position. For
the example of ceiling installation, camera must be installed upside-down.

–-
16
Day/Night
Day/Night Mode:
Switch the video images for Day (plenty of light) or Night (Low light) scene. In default “Auto” mode,
camera will switch to Day or Night vision according to the light intensity. The Day / Night modes
contain 2 actions: switching IR Filter On / Off, and image hue Color / Mono.
In day mode, the IR filter is switched in to avoid the image sensor from receiving the infrared, thus the
true color image is provided. When camera enters night mode, IR filter is switched off to allow IR
illuminations going into the sensor, thus increasing the images light level. The image color is switched
to B/W (Mono mode).
Nightmode Enhancement
With this function enabled, the better night vision will be obtained. However, the number of FPS may
drop depends on the actual environmental illuminations.
Light Sensor Sensitivity
The value reflects to adjust the sensitivity of Light Sensor.
Night to Day Threshold
The value reflects the timing switching from night to day.
Day to Night Threshold
The value reflects the timing switching from day to night.
Switch Time
The value reflects the delay time for both ways of day and night switch.
Advanced Setting
AC Frequency: Anti-flicker setting for environment with fluorescent light sources, image sensor
needs to fit the frequency of light (power) source. For instance, the power frequency is 50Hz for most
European countries, while 60Hz is typically for US. This setting is therefore regionally different.
TV OUT: Option of NTSC or PAL.
White Balance: The selections for different lightening condition, which is refereeing to color
temperature. The default value is set to AUTO.
Flickerless Mode: Flickering can also present in various exposure level. Set “Flickerless”Mode “On”
to fix the maximum shutter speed (auto exposure control). Thus, the flickers can be eliminated.
Exposure & Gain Mode: Select auto / manual Exposure & Gain control mode. The selection defines
the controlling in a range of or fixed value, according to the following two items (Shutter Speed and
Gain Value). The configurations will be limited at selected maximum rates when AUTO mode is on.
Max. Shutter Speed: Also refer to the exposure time. Higher shutter speed is normally applied under
strong light circumstance, so the image won’t be overexposure. Lower shutter speed, on the other
hand keeps image luminance in low light environment.
Max. Gain Value: Also refer to the amplification factor for the incoming light. Increasing the gain value
provides a brighter image, but the noises may also be increased.
WDR: Enable this function for image objects under backlight circumstances.
Exposure Level: Adjust Exposure level for a target level of sensed brightness. Auto exposure
function will adjust to exposure time to make the sense image brightness close to the target.
NOTE
The “Shutter Speed”, “Gain Value” and “WDR” can be configured for daytime and nighttime. The
configurations will be applied according to the current status of “Day/Night Mode“.

–-
17
: represents the Day mode
: represents the Night mode
The setting items with the Day or Night mode symbol will be altered along with the setting of
Day/Night mode. The examples are illustrated as below.

–-
18
Video Setting
Video Stream
This tab provides detailed stream configurations. These settings can affect resolution ratio, video size,
quality. The maximum transmission performance can be expected under the condition of full network
bandwidth.
The camera supports up to 3 video streams. Each stream can be configured with following items.

–-
19
Snapshot: The value reflects the image size when you take snapshot
Video Format: H.264, MPEG4 and MJPEG are available for the selection. The demand of bandwidth
and storage requirement differs from the selection of video format. In the request of same video
quality, H.264 contributes to less bandwidth and storage requirement, which can be more efficient
than MPEG4 or MJPEG.
Resolution: The resolution here describes an image size counted in width by height, e.g. 1280x720,
referring to pixel resolution.
The available resolutions for Stream 1 to Stream 3 are listed in the following table.
Resolution
Stream 1
Stream 2
Stream 3
1920 x 1080
V
1280 x 720
V
800 x 450
V
V
V
640 x 360
V
V
V
320 x 180
V
V
V
“V”: available
“-“: not available
Resolution
Stream 1
Stream 2
Stream 3
1280 x 960
V
1024 x 768
V
800 x 600
V
V
V
640 x 480
V
V
V
“V”: available
“-“: not available
The table for Stream 1 to Stream 3 enable list.
Stream 1
Stream 2
Stream 3
1920 x 1080 @30FPS
-
-
1920 x 1080 @25FPS
800 x 450 @15FPS
-
1920 x 1080 @15FPS
800 x 450 @15FPS
800 x 450 @15FPS
1280 x 720 @30FPS
800 x 450 @15FPS
800 x 450 @15FPS
800 x 450 @30FPS
800 x 450 @30FPS
800 x 450 @30FPS
“-“: not available
Stream 1
Stream 2
Stream 3
1280 x 960 @30FPS
-
-
1280 x 960 @25FPS
800 x 600 @15FPS
-
1280 x 960 @15FPS
800 x 600 @15FPS
800 x 600 @15FPS
1024 x 768 @30FPS
800 x 600 @15FPS
800 x 600 @15FPS
800 x 600 @30FPS
800 x 600 @30FPS
800 x 600 @30FPS
“-“: not available
Enable ROI: Enable this option; you may decide the ROI of image with related stream and deliver the
stream with various video resolutions.
Frame Rate: It represents the number of frames that are displayed per second. The higher the frame
rate is the better/smoother the video stream can be obtained. However, it would be the tradeoffs for
the higher network bandwidth and storage requirement.
Intra Frame Period: This is applied only in MPEG4 / H.264 which the video stream is composed of I-
frames (full image information) and P-frames (motion-compensated difference information).
This setting configures the time period between 2 I-frames. The shorter period means the higher
frequency of I-frame. Video can then be well handled whereas the bit rate may increase.
16:9 =>
4:3 =>
16:9 =>
4:3 =>
