1. INTRODUCTION
Thank you for purchasing the Injoy STREET RACING STARS SDX2-1 “@Motion
System” developed by Injoy that are well distributed in many markets and territories. This
manual will guide you through the set-up and operation of Injoy STREET RACING STARS
SDX2-1, an ultimate game motion system for arcade environments. This unit is different from
any other machines of its kind you have ever owned. A fully interactive coin- and swipe
card-operated motion simulator, Injoy STREET RACING STARS SDX2-1 creates a virtual
reality environment and provides a truly unique game experience for players. Capable of any
motion through 2.0 degrees of freedom (also known as D.O.F.) movement (pitch, roll and yaw),
this system enables realistic simulation needed for any software program. Rather than
pneumatic or hydraulic actuators that require much more maintenance and have been used to
power most motion simulators in the past, Injoy STREET RACING STARS SDX2-1 is
powered by electric motors and adopts IMON’s patented design that highlights a powerful,
mini-motion based platform with physics-based motion dynamics. Players will experience
realism to an extent that they can “feel” all the exciting actions in a synchronized way as they
indulge in the game.
IMON/Injoy is devoted to offer you the most advanced cost-economical and rewarding
motion arcade system available. You are welcome to contact us for any questions you may
have or for any service we can be of.
Asia-Pacific
Address: No.6-1, Datong St., Tucheng City, Taipei County 236, Taiwan, R.O.C.
Telephone: [phone]
Fax: [phone]
E-mail: [e-mail]
Technical Support: [phone] Ext. 283
E-mail: [e-mail] or [e-mail]
Website: www.imon.com.tw, www.injoymotion.com
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
3
2. SPECIFICATIONS
An Injoy- STREET RACING STARS SDX2-1 includes a complete Motion Base.
The dimensions given below are Injoy STREET RACING STARS SDX2-1’s installed
footprint.
Injoy STREET RACING STARS SDX2-1 @Motion System Unit
US & GB: 125.99” x 86.62”
Minimum Installed Footprint Metric: 320.00cm x 220.00cm
2.1 INJOY–STREET RACING STARS SDX2-1 MOTION BASE
Injoy STREET RACING STARS SDX2-1 Motion Base Simulator (single)
No Item Specification
1 Installed Dimensions / Weight (L x
W x H)
z125.99” x 86.62”x 84.65”
z320.00 x 220.00 x 215 cm
2 Motion system z2.0 degree of freedom (D.O.F.) mini motion
base: AC-powered, motor-driven actuators
3 Control Inputs/Feedback
zSteering wheel
zGear
zFuel Pedal
zBrake Pedal
zYellow Button for Start / Turbo
zRed Button for View
zMotion Stop Switch
4 Player Weight Limit zMax 300 kgs per car
5 Center of Gravity zDirectly over 2 axis
6 Power Requirements – Plugs located
at the bottom of the motion base
behind the monitor.
zPower requirements in USA: 110 VAC
zPower requirements in Euro: 220 VAC
7 Max Watt Consumed
Rated Watt Consumed
z6820 W
z5460 W
8 Audio
z30 watts speakers x 2, 4 ohm
z1 sub-woofer
z2 super sub-woofer under seat
9 Monitor z52” LCD Monitor
z15pin DB Connection
10 Computer System zWindows Embedded Operating System
zHigh Resolution Graphics Accelerator Card.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
4
3. INSTALLATION
3.1 SERVICE KIT
The following items should be included with the shipment of your Injoy STREET
RACING STARS SDX2-1:
Service Kit
Description Qty
Injoy–STREET RACING STARS SDX2-1 Service Manual 1
Maintenance Box Key 1
Coin Box Key 1
Special Wrench 1
3.2 SET UP INSTRUCTIONS
3.2.1 PRE-INSTALL PREREQUISITES/CAUTIONS
Injoy STREET RACING STARS SDX2-1 is designed for indoor use only. To ensure
trouble-free and safe operation, the following conditions are recommended:
1. The motion system must be located out of direct exposure to sunlight, high humidity,
dust, salt mist, high heat, or extreme cold. If it is installed in an extremely hot location,
allow additional clearance between ventilation slots in the game and any structure or
object that would tend to restrict air circulation.
2. The motion system produces tremendous forces onto the motion base, which may be
moved around on the floor if not properly installed. Before placing XP360 motion
system on the ground, make sure the floor space is flat and before operating the game,
make sure the brackets are tightly installed. If you have questions regarding any
installation requirements, .contact our tech support ([phone] Ext. 283 or
E-mail: [email protected].tw) at Injoy before proceeding.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
5
3.2.2 INSTALL LCD MONITOR
Please install Center Plate by following the steps.
Step Description & Diagram
Adjust unit stands by a hex wrench to make sure STREET RACING STARS
SDX2-1 motion system is placed flat on the ground and the brackets are tightly
installed.
1
Fix the trapezoid part to the LCD Monitor.
2
Move the LCD part close to the motion base
3
4 Connect all connectors. And then close two parts.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
6
3.2.3 INSTALL SIDE STEPS
Please install the Side Step by following the steps.
Step Description & Diagram
Put three steps near the base, and then connect the lamp connector
1
Connect the lamp power connector on the right side of the base.
2
3 Push three steps close to the base, and then fix it by L type plate
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
7
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
8
3.2.4 INSTALL HEAD LAMP
Please install the Head Lamp by following the steps.
Note: When installing the Acrylic Sheet, be caution not to damage it.
Step Description & Diagram
Find the Acrylic Sheet frame on the top of the LCD screen as shown in the figures
below.
1
Plug in the Acrylic Sheet on the Light Box, and then fix it with four fixing screws.
2
3.2.5 SETCOIN ACCEPTOR
Please set up the coin acceptor by following the steps below.
Step Description & Diagram
1 Pull up the slider of the coin acceptor
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
9
Insert the coin into the coin acceptor.2
Push down the slider to fix the coin acceptor.3
4 The coin acceptor is installed then, and can take the coin you want.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
10
3.2.6 INSTALL DEBIT CARD
If STREET RACING STARS SDX2-1 needs to install a debit card or other device, Figure
4 below illustrates the connection of the debit card reader.
Steps Description & Diagram
Find the connector “Coin 1”1
2 Please install the signal connection as shown below.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
11

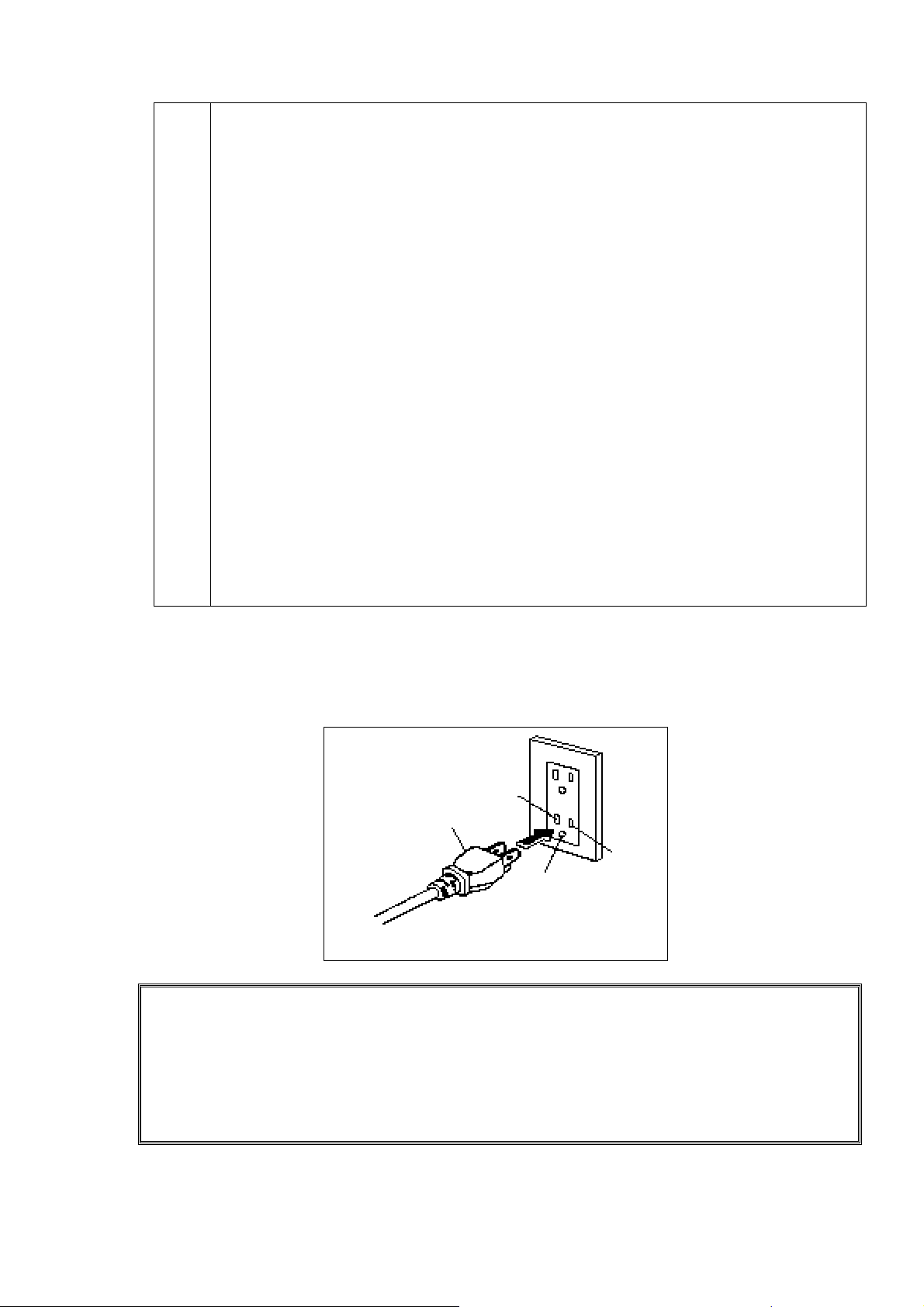

3.2.7 POWER INPUT
STREET RACING STARS SDX2-1 has a single power cord. The motion base requires
one dedicated (25-Amp) circuit for (1Φ210~230VAC) power source.
MAIN AC POWER PLUG
NEUT
GND LINE
Note: 1. The diameter of the AC power cord must be larger than 2.0 mm.
2. No other appliance or game should share this power source on
this circuit; otherwise, STREET RACING STARS SDX2-1 will
break down.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
12
4. GAME INTRODUCTIONAND SETTING
4.1 GAME SETTING (OPERATOR MENU)
To access the OPERATOR MENU, after the Power is switched ON and the screen shows
“insert coin”, find the OPERATOR SWITCH located inside the coin box door and move it
to “ON” position (Figure 4-1), and continue in the OPERATOR MENU (Figure 4-2).
Figure 4-1 Operator Switch
From the OPERATOR MENU, you have direct access to game and operator settings.
From sub-menus (listed below), you have access to general game control settings. The
definitions of the Operator Menu and its sub-menu are detailed as below:
Figure 4-2 Operator Menu
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
13
4.1.1 COIN OPTIONS
The “Coin Options” sub-menu allows you to set all coin options on your Injoy- STREET
RACING STARS SDX2-1 (Figure 4-3).
1. “Coins per Play” allows you to set how many coins it will take for a player to start a
game. The factory default setting value is 4 coins per play.
2. “Coins per Continue”allows you to charge a different price for continue-play from the
first game play. The factory default setting value is 4 coins per play.
3. “Currency Type” is not to select the currency of a country, but allows selection of the
forms of currency i.e. coins or bills you wish your Injoy- STREET RACING STARS
SDX2-1 accepts. The factory default setting is Coin (combined into one setting) and
another setting is the Bill Acceptor or Debit Cards. The coin acceptor is an industrial
standard product.
4. “Coins per Pulse (Coin Acceptor 1) (Figure 4-4)” allows you to adapt different
currency acceptors that are pulse specific to your Injoy- STREET RACING STARS
SDX2-1. The default value is 1.
5. “Coins per Pulse (Coin Acceptor 2) (Figure 4-4)” allows you to adapt different
currency acceptors that are pulse specific to your Injoy- STREET RACING STARS
SDX2-1. The default value is 1.
6. “Winner Continue” allows you to set up options for the winner when he/she wants to
continue game: inset coin to continue or free to continue. This setting is for single
player.
7. “Winner Continue (Net)” allows you to set up options for the winner when he/she
wants to continue game: inset coin to continue or free to continue. This setting is for
multiple players linked.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
14
Figure 4-3 “Coin Options”sub-menu
Figure 4-4 Coin Acceptor Number
4.1.2 GAME OPTIONS
“Game Options” sub-menu offers settings that you can adjust for each individual software
title installed on your Injoy STREET RACING STARS SDX2-1 (Figure 4-5).
1. “Continue Timer Length”adjusts the amount of time for the player to decide to
continue playing after their game has ended. This can be adjusted by using the “+” or
“-” buttons as shown in Figure 4-5.
2. “Game Show Operation” enables free game play by pressing “Switch” button.
3. “Clear High Scores”deletes all high scores and returns to the default settings. (Figure
4-6)
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
15
Figure 4-5 “Game Options” sub-menu
Figure 4-6 “Clear High Scores” Window
4.1.3 PEDAL SETTING
To calibrate the Throttle, follow the directions on the screen and go through these steps
(Figure 4-7 ~ Figure 4-10):
1. Hold the “Calibrate” button on the Panel to calibrate the pedal and brake.
2. Release the Brake and Pedal, then press “Next” button.
3. Press the Brake and Pedal to limit and then press “Next” button.
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
16
4. After finishing the calibration, press “Exit” button to exit calibrate.
Figure 4-7 Pedal Setting
Figure 4-8 Calibrate Pedal
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
17
Figure 4-9 Calibrate Pedal
Figure 4-10 Finish calibration
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
18
4.1.4 LANGUAGE SETTING
Language can be adjusted by using the “+” or “-” buttons (Figure 4-11) to change game
language. Currently, English and Chinese are available.
Figure 4-11 “Language Setting” sub-menu
4.1.5 SYSTEM TIME SETTING
Setting the system time can be accomplished by using the “switch” button to choose,
followed by the “+” or “-” buttons (Figure 4-12) to change date or time. Time is displayed
in 24 hour or military time.
Figure 4-12 “System time Setting” sub-menu
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
19
4.1.6 VOLUME SETTING
“Volume setting” can adjust the system volume (Figure 4-13).
Figure 4-13 “Volume Setting” sub-menu
4.1.7 DEVICE TEST
“Device Test” tests whether ‘CoinAcceptor’and ‘Free Play button’ can work or not
(Figure 4-14).
Figure 4-14 “Device Test”sub-menu
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200

Injoy Motion Corp.
STREET RACING STARS SDX2-1 Service Manual
20
4.1.8 SOFTWARE UPGRADE
Any software upgrades and new software game titles will be downloaded to your Injoy
STREET RACING STARS SDX2-1 through the use of USB Flash Disk provided by Injoy
or your distributor. Please follow the procedures below to upgrade software:
1. Open the maintenance door (Figure 4-15).
Figure 4-15 Open maintenance door
2. Locate the system’s PC (Industrial PC): Referring to Figure 4-16, open the maintenance
door located at the back of the LCD. You can see the PC is installed at the left corner.
Figure 4-16 Locate the system’s PC (Computer)
3. Plug in the USB Flash Disk. (Only use the USB Flash Disk provided by Injoy or your
distributor to upgrade/download the software. The USB Flash Disk from unauthorized
sources might seriously damage the system.)
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | [phone] | +1.561.391.7200
