Icegame Harpoon Lagoon Instruction Manual

OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
SERVICE: 1-716-759-0360
FAX: [phone]
E-MAIL: [email protected]
WEBSITE: www.icegame.com

2

3
Safety Warnings, AC requirements, power ratings 4
Programming 5
Error Codes 8
Access to cash box, ticket reset, meters 9
AC power connection. 10
How to open the cabinet. 11
How to release the coin mech assembly 12
Light Bulb replacement
How to remove the joystick assembly 13
How to remove the monitor 14
Power Supplies 16
I/O board connections. 17
Decal layout 19
Spares 20
Warranty 22
REV. A 2/21/2013

4
SAFETY AND WARNINGS BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE
USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAIL-
URE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OP-
ERATION, OR DAMAGE TO THE ELECTRONICS.
NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY. THIS GAME IS NOT SUITABLE
FOR INSTALLATION IN AN AREA WHERE A WATER JET COULD BE USED.
DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE
SAME REASON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD
VOID YOUR WARRANTY.
HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE
GROUND IS FUNCTIONING PROPERLY.
THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUND-
ING PLANE OF THE GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD
DISCHARGE STATIC ELECTRICITY THROUGH THE GAME CIRCUITRY, WHICH COULD
CAUSE DAMAGE.
THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLT-
AGES OTHER THAN THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE
DEPARTMENT FOR VOLTAGE CONVERSION INFORMATION.
WARNING
DO NOT remove any of the components on the main board (e.g. compact flash and eproms)
while the game is powered on. This may cause permanent damage to the parts and the main
board. Removing any main board component part while powered on will void the warranty.
ALWAYS REMOVE POWER TO THE GAME, BEFORE ATTEMPTING ANY SERVICE,
UNLESS NEEDED FOR SPECIFIC TESTING. FAILURE TO OBSERVE THIS PRECAUTION
COULD RESULT IN SERIOUS INJURY TO YOURSELF OR OTHERS.
This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance

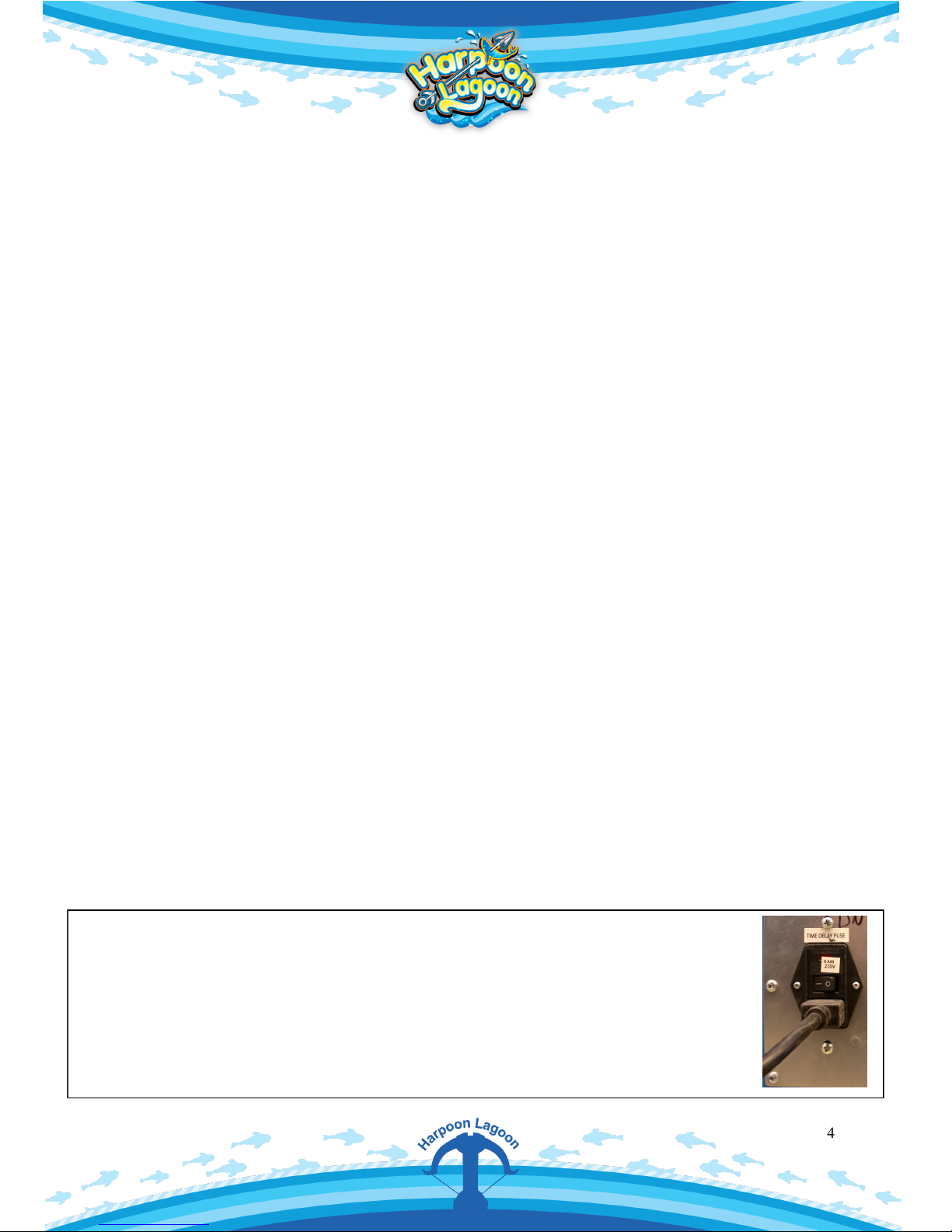

AC Power Information
The games’ main fuse is accessed through the side door of the game at the
power mod. Above the power cord is a small panel that contains the main
fuse. The value of the fuse for 120 volt users is 5 AMPS at 250Volt type “slow
blow”. The value of the fuse for 230 volt users is 2.5 AMPS at 250Volt type
“slow blow”.

5
000000
000000
000000
000000
000000
000000
000000
000000
PLAYER 1 PLAYER 2 PLAYER 3 PLAYER 4
COIN
TICKETS
PROG
RESET
COIN COIN COIN
TICKETS TICKETS TICKETS
RESET
Programming: (Change settings)
To enter programming open the Player 1 and 2 lower ticket door and press the
“PROG” button. To navigate use the joystick and then press the harpoon but-
ton to select.
The System Utility Structure

6
Programming: The System Utility Structure
Audits:
General Audits: the income record since very first day of operating day until now.
Current Term General Audits: the income record from last time income data clearance.
General Game Audits: the game record since very first day of operating until now.
Current Term Game Audits: the game record from last time game data clearance.
Daily Data: the daily income record.
SEE “Operator Adjustments” section for program details.
Reset Menu:
Reset Credits: reset credits.
Reset Tickets: reset the remain tickets.
Reset Meters: reset the meter.
Factory Reset: clear all data and settings.
Test:
Key Test: test for all buttons and switches are functional or not.
Ticket Dispenser Test: test for ticket dispenser is function or not.
Screen Test: test for the monitor display.
Sound Test: test for the sound and BGM and volume are functional.
Coin Test: test for the coin selector is functional or not.
Meter Test: test for the meter is functional or not.

7
Programming: The System Utility Structure
Operator Adjustments:
MODE: Selecting one of these will automatically setup the game with our suggested settings.
A=.20 game/.01 ticket value/payout 20%/ 5shots/token/50 bonus
B=.25 game/.01 ticket value/payout 40%/5 shots/token/250 bonus
C=.50 game/.01 ticket value/payout 40%/5 shots/token/500 bonus
D=$1 game/.01 ticket value/payout 40%/10 shots/swipe/1000 bonus
E=$1 game/.0045 ticket value/payout 25%/10 shots/swipe/1000 bonus
Coins to Play: How many coins you need to start a game.
Coin Value: How much is your coin worth.
Ticket Value: How much is your ticket worth. [ .02,.015,.01,.0075,.00625,.005,.0045,.00375,..0025
Payout Percentage: How much do you wish to give back to the player in tickets [5% - 75%]
Number of Shots: How many Harpoons you wish to give the player per credit. [1-25]
Currency Type: What type of money are you using, tokens, swipe card, US dollars, etc…
Maximum Bonus Ticket: Limit the maximum amount a player can win. [50-1000]
Mercy Ticket: Give a ticket just for playing. [0-9]
You can either use the Mode settings to configure your game or alter
them by selecting the option you wish to change and change it.
The software is designed to grey out values that will result in undesired
payout results.
Free Play: This option allows the game to be played without credits.
Payout Mode: This determines when the tickets are paid out. During play or at the end of game.
Coin Lockout: This required additional hardware to work and will prevent coins during play.
Time Limit for Shoot: The harpoon will shoot if the button is not pressed by [10sec/20sec/30sec]
Ticket Terminology: You can change what it says on the screen to either tickets or coupons.
Attract Sounds: Allows you to alter when and how the attract audio played.

8

9
How to access the Cash box, ticket reset buttons, and meters.
Open the lower ticket door on the player one and player two side of the cabinet. Located in the
center of the cabinet is a large cash box, all meters, player 1 ticket reset, and player 2 ticket reset.
For players 3 and 4, open the opposite side’s lower coin ticket door for access to the reset but-
tons.
CASH BOX
Player 1 and 2 ticket mechs
000000
000000
000000
000000
000000
000000
000000
000000
PLAYER 1 PLAYER 2 PLAYER 3 PLAYER 4
COIN
TICKETS
PROG
RESET
COIN COIN COIN
TICKETS TICKETS TICKETS
RESET
Player 1 ticket Reset Player 2 ticket Reset
RESET RESET
Player 3 ticket Reset
Player 4 ticket Reset

10
Connecting AC Power:
Located on the Player 3 and 4 side is the AC power connector. Open the Player 3and 4 ticket door
and located to the right of it is the AC power connection. Behind the AC power module is a hole to
run the AC power cord to a floor outlet.
To floor AC outlet

11
How to open the cabinet top.
Unlock and open both player one and player two control panels. Located at the leftmost and
rightmost are two spin knobs. Spin the knobs counter-clockwise until they can be removed. Put
aside. Lift the top up. Two cabinet shocks will keep the cabinet top raised for easy access to the
electronics. When finished, close the top and re-install the spin knobs. Then lock up player 1 and
2 control panels.

12
How to release the coin mech assembly.
Unlock and open the control panel you wish to remove the coin mech. Located on the right is a
release level. Push the level to the right and slide the mech holder assembly straight back and
out.
Light Bulb replacement .
To access the bulbs on either side remove the lighted sign by removing the 5 screws shown be-
low. Be sure to use the correct wattage bulb.
Ice part # E0032

13
How to remove the joystick assembly.
Open the control panel where the joystick is located that you wish to service. Remove the joystick
shaft by removing the E-Z clip located at the bottom of the joystick. Put aside the switch activator
and E-Z clip. Then remove the four keep nuts and the joystick bottom. When lifting the joystick
shaft out be careful not to loose the inner spacer.

14
How to remove the monitor.
You will need a second person to assist you in removing the monitor. Begin by following the
steps in the section “How to open the cabinet top”. Once the cabinet top is opened disconnect
the upper wire harnesses. Remove the screws shown below.
Carefully lift the upper assembly off the cabinet with two people and lay the assembly on its top
side. It is recommended to support the top by the edges. The lower wood frame will remain
along with the two metal supports.
Wood Frame w/metal supports
Support by the four corners

15
Remove the 10 keep nuts holding the monitor to the upper assembly. The monitor can be lifted
out. When replacing the monitor be sure to install a new gasket between the glass and the cabi-
net.
Gasket
Monitor

16
Ice part: IA2010
This supplies power to:
Computer
Audio
Ice part: IA2010
This supplies power to:
LED’s
Fans
Ice part: MON42/47PS
This supplies power to:
Monitor
Checking DC Voltages
Volt test with the volt meter set to DC voltage. The +12 output can be adjusted by turning
the adjustment screw of the power supply. Adjust to as close to +12 as possible. The volt-
age range can be plus or minus 5%.
Ground Probe:
Connect to GND on power supply
(Black wire to power supply)
Positive Probe:
Connect to +12V on power supply
(orange wire to power supply)
Turn to DC voltage check
Power Supplies:
There are three different power supplies used. Two are identical supplying 12 volts of DC voltage
at 10 amps each while the third powers the monitor at 24 Volts of DC power. To access these sup-
plies, follow the directions from “How to open the cabinet top.”

17
PLAYER 1
PLAYER 2
PLAYER 3
PLAYER 4

18

19

20
- SPARE PARTS -
MECHANICAL
JC1051 Hydraulic shock
HL1009-P802 Cash box
HL3010 Knob
HL3011 Corner Cover
ELECTRONICS
HH5005CC ticket dispenser
E022007 Speaker
HL2014BL Blue joystick
HL2014CL Clear Joystick
HL2014PK Pink Joystick
HL2014YW Yellow Joystick
IA2010 12 volt power supply
MON47EST 47” monitor
CG2027 110v AC power cord
E00418EMDX white 36 LED tape strip
E00724HLX 24 RGB LED strip
EV2009 Audio power amplifier
MS2764X Fan assembly
E02258 5 Amp 250V Slow Blow fuse
E0032 Curly bulb
DECALS
HL7000 Cabinet front left
HL7001 Ticket door
HL7002 Cabinet front right
HL7003 Cabinet End
HL7004 Cabinet end logo
HL7005 Button
HL7007 Front lower strip
HL7009 website end
HL7010 Podium left
HL7011 Podium right
HL7012 Control panel
HL7016 Player 1
HL7017 Player 2
HL7018 Player 3
HL7019 Player 4
