Kriss Sport Superpunch BOXER User manual

REDEMPTION
MULTIPLAYER
VIDEO
CLASSIC
Made in Europe by
King of Boxers
User Guide

Thank you for choosing our product!
Our machines are fully computerized coin-operated strength-testers used for amusement and
entertainment. You can use them in bars, pubs, amusement parks and other places of entertainment.
We made sure that all the components used for production as well as the machine itself are made of
best quality components and are safe for use.
Your machine is designed so that you can start using it right away.
WELCOME
1

BE SURE TO READ THE FOLLOWING
Warning: Always turn OFF power an unplug the game before opening or replacing any parts.
Warning: Always when unplugging the machine from electrical outlet, grasp the plug, not the cord.
Warning: Always connect the machine to grounded electrical outlet.
Caution: The wiring system is under voltage that is safe in normal use but may be harmful while
improper use.
Caution: Always use digital multimeter, logic tester or oscilloscope for testing integrated circuits.
Caution: Do not connect or disconnect any of the integrated circuits while the machine is ON.
Caution: Do not any fuse that does not meet the specified rating.
Caution: Do not subject the machine to extreme temperature variations.
SAFETY PRECAUTIONS
2

What’s in the package
Machine is supplied with a full range of accessories to help you get started right away.
• Key set for service door, prize door, and money door.
• Preinstalled CF card.
• Preinstalled rubber stands.
Notice: If you can’t find some parts, check inside prize exit door.
MACHINE DESCRIPTION AND TECHNICAL SPECIFICATION
3

General information
Game type: power / strength and precision tester
Allocation: indoor and outdoor (depends on version)
Notice: Before placing machine outdoor, make sure that your machine version is outdoor-ready.
Construction and mechanism: steel
Ball release mechanism: servo-mechanism
Color: red
Machine dimensions and weight
Height: 206cm / 81 inches
Width: 74cm / 29 inches
Depth: 155cm / 61 inches
Weight: 290kg / 640 lbs
Prize bar location diagram
Bars 1, 2, 3 and 4 are for big prizes.
Bars 5, 6, 7, 8, 9 and 10 are for small prizes.
Big prize maximum dimensions
Height: 25 cm / 10 inches
Width: 20 cm / 8 inches
Small prize maximum dimensions
Max height: 15 cm / 6 inches
Max width: 10 cm / 4 inches
4
LCD screen
Score, credit and record display
12
34
10
9
8
7
6
5

Electrical and operating requirements
Power: 90V - 250V
Current frequency: 50Hz - 60Hz
Idle power consumption: 95W
Average power consumption: 100W
Max power consumption: 105W
Currency
Working with all kinds of bills, coins and tokens.
Possibility of installing both coin and bill acceptors.
Optional extensions
•WiFi camera monitoring.
•WiFi access point with 3G modem.
•Ticket dispenser.
•SMS acceptor.
•Ticket printer.
Casing and glass
Casing: full metal casing, 1,5 mm thick, powder coated.
Prize cabinet: tempered glass, 6 mm / ¼inch thick or optional toughened polycarbonate, 6 mm / ¼
inch thick.
Upper illuminated parts: polycarbonate, 2 mm thick.
Displays
Main display: 22-inch LCD, 16,7 millions of colors, FullHD support.
Segment display: red score, credit and best score display with 64 flashing points.
5

Software regulated features
•Volume.
•Credit settings.
•Free-play mode.
•Ticket dispenser settings.
•Power correction.
•Game level.
•Best score limit.
•Best score drop-down delay, drop-down value and drop-down range.
•Clear active credits.
Notice: See full description of software regulated features in the Settings section.
Operation modes
1. OFF
2. Booting
3. Normal operation mode
a. Standby
b. Game
c. Prize give out
4. Settings
5. Error
6

The machine is designed so that you can set it up quickly and start using it right away.
Installation
1. Place the machine at the desired location.
Warning: If your machine version is not outdoor-ready, do not install the machine outdoors or in areas
with high humidity, direct water contact, high heat or extreme cold.
Warning: Do not install the machine in areas that would present an obstacle in case of an emergency.
Caution: To move the machine for transport, use a forklift and take care not to hit the package. Do not
stack heavy objects on top of the machine, as this may cause damage.
Notice: To move the machine for placement, use machine wheels that are ready for transport when
the rubber stands are screwed all the way up.
INSTALLATION AND MAINTENANCE
7

2. Use preinstalled rubber stands to make sure that the machine is standing secure on the ground.
3. Remove the package wrapping from the machine.
4. Adjust rubber stands to make sure that the machine is level.
5. If the machine is cold, open machines back door and wait about 30 minutes for the electronics to
warm up.
6. Connect the power cord to power outlet and check if machine is working.
Volume adjustment
1. Turn ON the machine and wait for normal operation mode.
2. Open back door and locate main board.
3. Insert credits or set the machine to Free Play Mode (described in Settings section).
4. Use S2 and S3 buttons on the main board to adjust volume.
Fitting prizes on the prize bars
1. Make sure that the machine is OFF.
2. Open prize door.
3. Remove prize locking pin.
Notice: In order to remove the prize locking pin, you have to unscrew it clockwise.
4. Load the prize bar with prizes.
Notice: Make sure that the hanging ties are attached securely. Remember to leave 3-finger gap in the
hanging tie.
Caution: Make sure that prizes are not bigger than described in Machine description and technical
specification section. Bigger prizes could block the machine.
Notice: Make sure that prizes are placed apart on the bar.
5. Reinsert the locking pin.
Caution: Make sure that the locking pin is placed above hanging ties.
6. Close the door
8

7. Turn on the machine.
Notice: After loading bars with prizes, you can erase daily prize counter in the machines settings
menu. That procedure is described in Settings section.
Cleaning
Use paper towels and window cleaner to clean the machine.
Do not apply window cleaner or any other liquid directly on the machine. Instead apply it on the paper
towel.
Caution: Machine works under high voltage. Always turn machine OFF before cleaning.
9

1. Insert coin or bill.
2. Press START button and wait for the ball to be released.
3. Punch the ball.
4. Watch your score on the LCD display.
5. In order to win prize, your score has to be exactly 100, 200, 300, 400, 500, 600, 700, 800, 900
points or best score.
6. When your score meet the prize criteria, you can choose your prize from the prize bars. Use
SELECT button to do that.
a. Only scores 700 and 900 qualify for big prize.
b. Only scores 100, 200, 300, 400, 500, 600 and 800 qualify for small prize.
HOW TO PLAY
10

c. Only best score qualify for one free credit.
Notice: You can choose 10 free credits instead of big prize or 5 free credits instead of small prize.
7. Confirm selected prize by pressing START button.
8. Wait for the prize to be dispensed and slide down to the prize exit box and take it out.
9. If selected prize bar was empty or the prize was too far from the edge to fall, you’ll automatically go
back to choosing your prize.
Notice: Machine is not dispensing prizes in free-play mode. Read more in Settings section.
11

How to access and browse through settings menu
1. Turn ON the machine and wait for normal operation mode.
Notice: Find out more about machine operation modes in Machine description and technical
specification section.
2. Open back door and locate main board.
Caution: Machine works under high voltage.
3. Press S1 button on the main board.
4. Close the back door.
5. Confirm that the machine is in settings menu by checking display message.
6. Use SELECT or S1 button to browse menu and START, S2 or S3 button to change values.
SETTINGS
12

Settings description
1. FrE - Free-play mode.
2. rdd - Best score auto drop-down delay in minutes.
3. rdV - Best score auto drop-down value in points.
4. rdL - Best score auto drop-down limit in points.
5. tFG - Tickets for game.
6. Cr1 - Power correction multiplier.
7. - 13. PL1 - PL7 - Credit setting for coin and bill acceptor channels.
14. - 20. Cn1 - Cn7 - Money counter setting for coin and bill acceptor channels
21. Money counter (erasable)
22. Money counter (total, non-erasable)
23. Game counter (erasable)
24. Game counter (total, non-erasable)
25. Free-play game counter (erasable)
26. Free-play game counter (total, non-erasable)
27. Big prize counter (erasable)
28. Big prize counter (total, non-erasable)
29. Small prize counter (erasable)
30. Small prize counter (total, non-erasable)
31.CLr - Clear active credits.
32.JP1 - Small prize limit.
33.JP2 - Big prize limit.
34.dFL - Default settings.
13

How to exit settings and apply changes
All values are stored immediately after making any changes. You don’t have to reboot the machine in
order to apply changes.
Browse through the menu using SELECT button (or press and hold SELECT button) to exit the menu.
Fast-scrolling in settings menu
When changing values in settings menu, you can use fast-scrolling feature that will help you set high
values much faster. Simply press and hold START, S2 or S3 button and after 1 second delay you will
see that the values are now fast-scrolling.
Best score drop-down
Machine is using auto drop-down function by default. This function will decrease the best score value
according to rdd, rdV and rdL settings. This function takes action only in standby mode and will not
work if machine is set to free-play.
Notice: If you don’t want to use auto drop-down function, set rdd to 999 and rdV to 001. This setting
means that every 999 minutes (approximately 16 and a half hours) auto drop-down function will
decrease best score by 1 point.
How to erase best score
1. While in setting menu, use SELECT button and navigate to rdd (position no. 2 in settings menu).
2. Press both S2 and S3 buttons on the main board at the same time.
Notice: After erasing best score, new best score will be 000. You can make the first punch to set
current best score to a higher value.
Power correction multiplier
When players are getting too low scores, increase the Cr1 value.
When it’s too easy for players to reach high scores, decrease Cr1 value.
Prize limits
When JP1 and JP2 are set to 0, machine does not affect scores and prizes. Software is full skill.
JP1 represents how many punches the machine will not allow to win small prize. JP2 represents how
many hundreds of punches the machine will not allow to win big prize.
14

How to read counters
Counters can display large numbers (up to 6 digits) and are using both score and best score displays.
For example: when reading total game counter (position no. 24 in setting menu), you’ll see:
•002 on the score display
•24 on the credit display
•491 on the best score display
It means that the machine received 2.491 worth of coins or bills in your currency. Number 24 on the
credit display is just an order number of this settings menu position and it’s not relevant to the counter
value.
How to erase counters
1. While in settings menu, use SELECT button and navigate to desired erasable counter.
2. Press both S2 and S3 buttons on the main board at the same time.
15

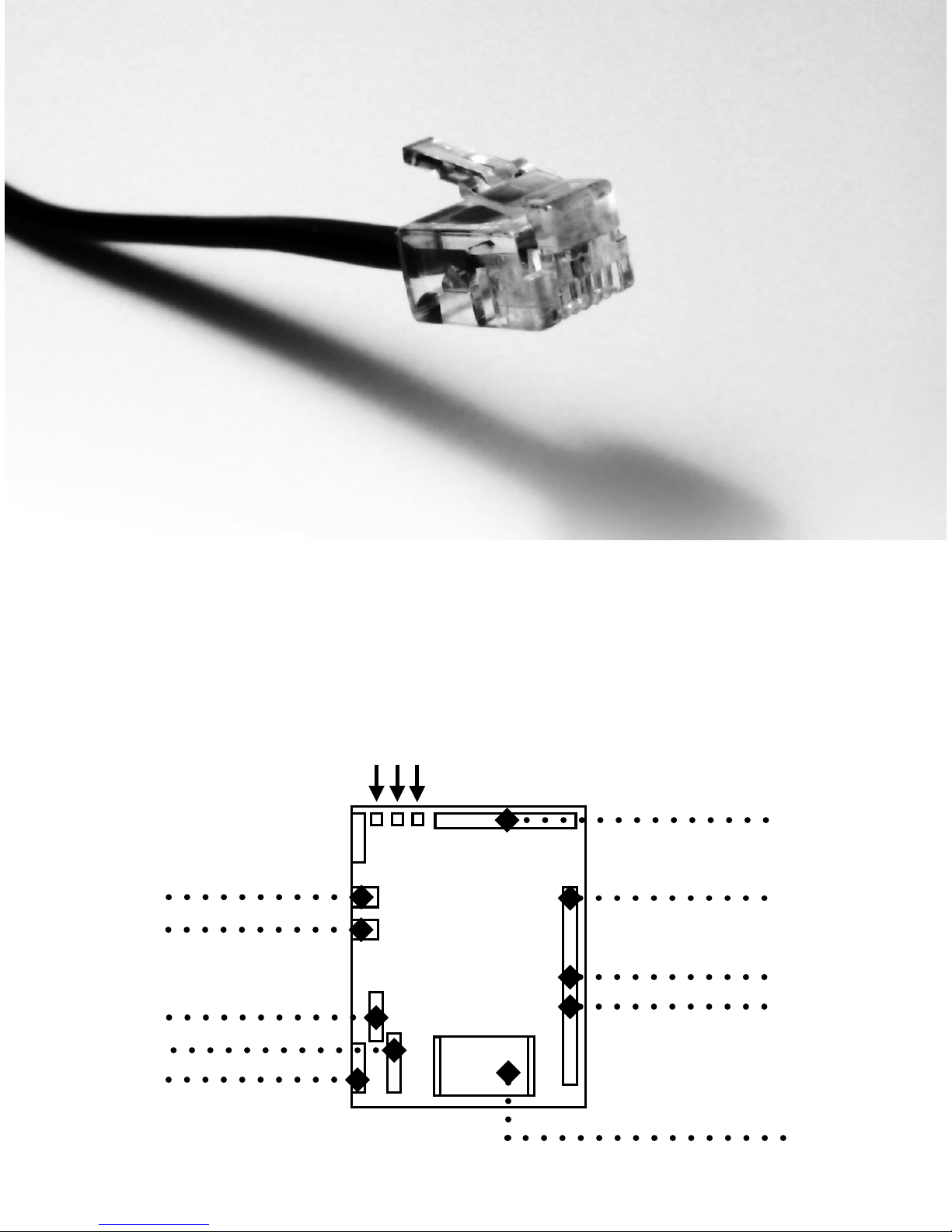

Main board
Select button
Graphic card
Coin acceptor
Bill acceptor
Start button and ball sensor
Segment display
Power
Ticket dispenser
Servo
S2
S3 S1
extension
board
Prize redemption board
ELECTRONICS DESCRIPTION
16

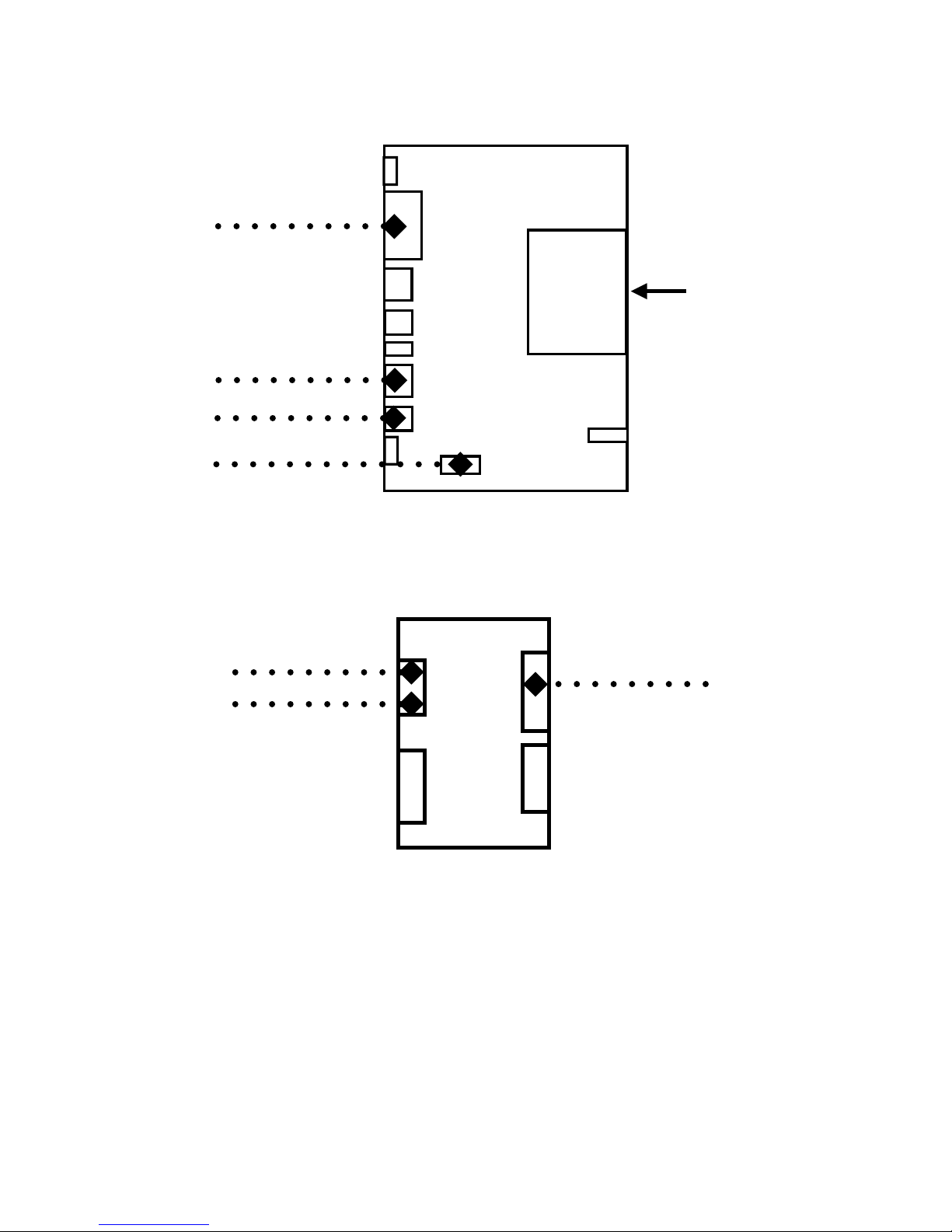

Graphic card
LCD screen
Main board
Power
Speakers
CF card
Prize redemption board
Power, and communication
Prize sensor
Prize bars
WiFi camera monitoring
WiFi access point
17

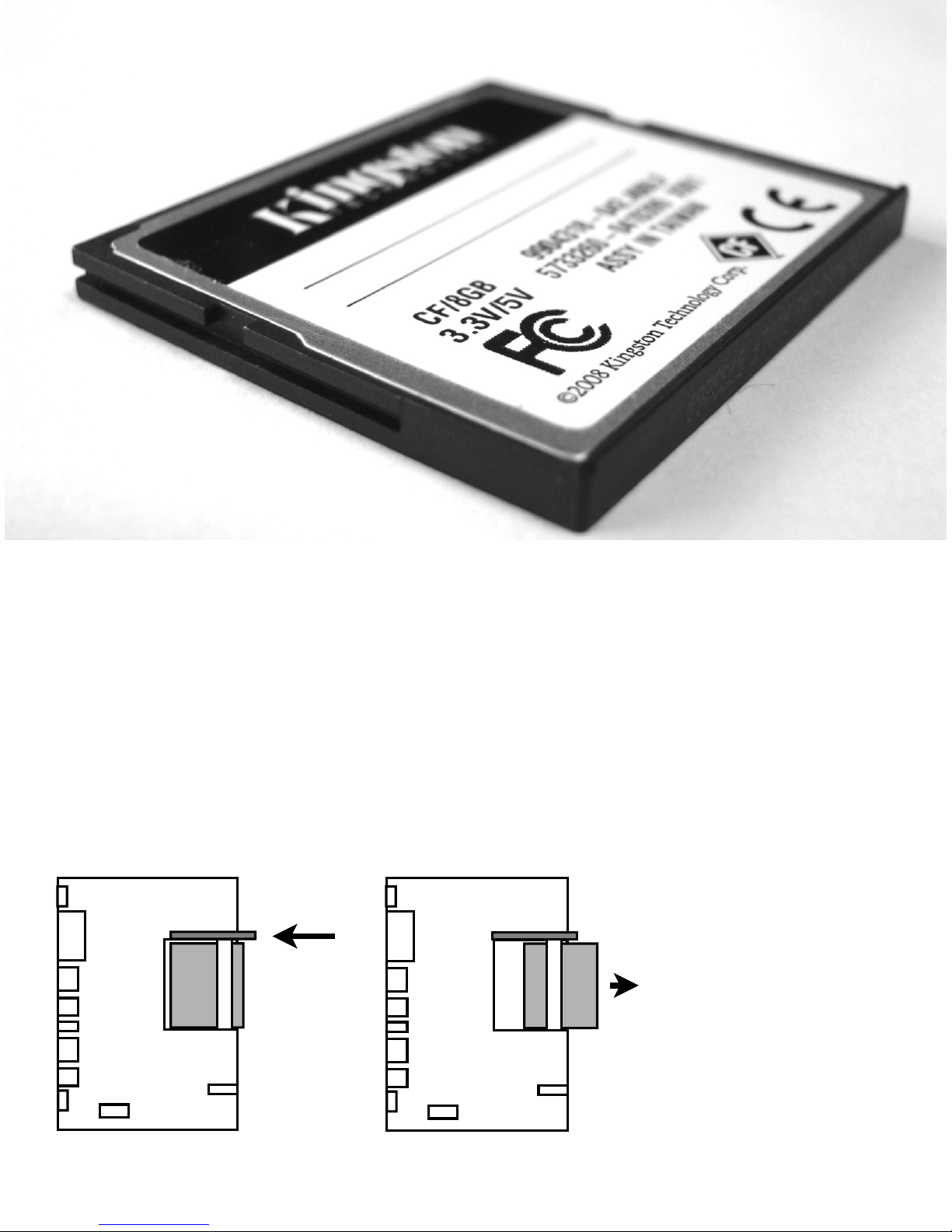

Card replacement
1. Turn OFF the machine, open back door and locate CF card.
2. Press the eject stick next to the card and remove the card.
CF
CF
CF CARD REPLACEMENT AND MEDIA UPDATE
18

3. Insert new card securely.
4. Close the back door and turn on the machine.
CF card media update
1. Follow steps 1 and 2 from the Card replacement description.
2. Place the CF Card in card reader and connect it to your Mac or PC.
Notice: Make sure that your card reader is high quality and the USB cable can power the reader.
Some low-quality card readers need additional power supply to work correctly.
3. Go to the card directory and copy MEDIA folder with all files that it contains. Paste it to safe location
on your computer.
Notice: In case of problem you will need those files to restore your card.
4. In second window go to directory with update files, copy all new files.
5. Go back to the card directory, open MEDIA folder and paste update files. Allow to over-write files.
6. Remove card from card-reader using you operating system hardware removal tool.
a. Mac OS X: Right-click on the card icon, Eject.
b. Windows XP / Vista / 7 / 8: Use Safely remove hardware tool included in your operating system.
Notice: Removing card from the reader without the hardware removal tool might make the card
invisible to the machine.
7. Follow steps 3 and 4 from the Card replacement description.
Custom new files settings
Depending on the editing software that you’re using there are several properties required. Below you
can find all the info that should be enough to start suitable new project and perform media export.
Width: 720 pixels"
Height: 576 pixels"
Pixels Aspect Ratio: Square (1:1)"
Image Proportion: 5:4"
Fields order: No Fields (Progressive Scan)
Frames per Second: 25fps timecode"
TV Standard: PAL"
19
