Innova Solar 410C User manual

1
1. Table of Specifi cations Page 1
2. Technical Description 1
3. Infl ation Instructions 2
4. Using the Boat 2
5. Storage of the Boat 3
6. Treatment and Storage 3
7. Guarantee Conditions 3
8. Boat Repairs 3
9. Product Disposal Method 3
10. Packaging Disposal Method 3

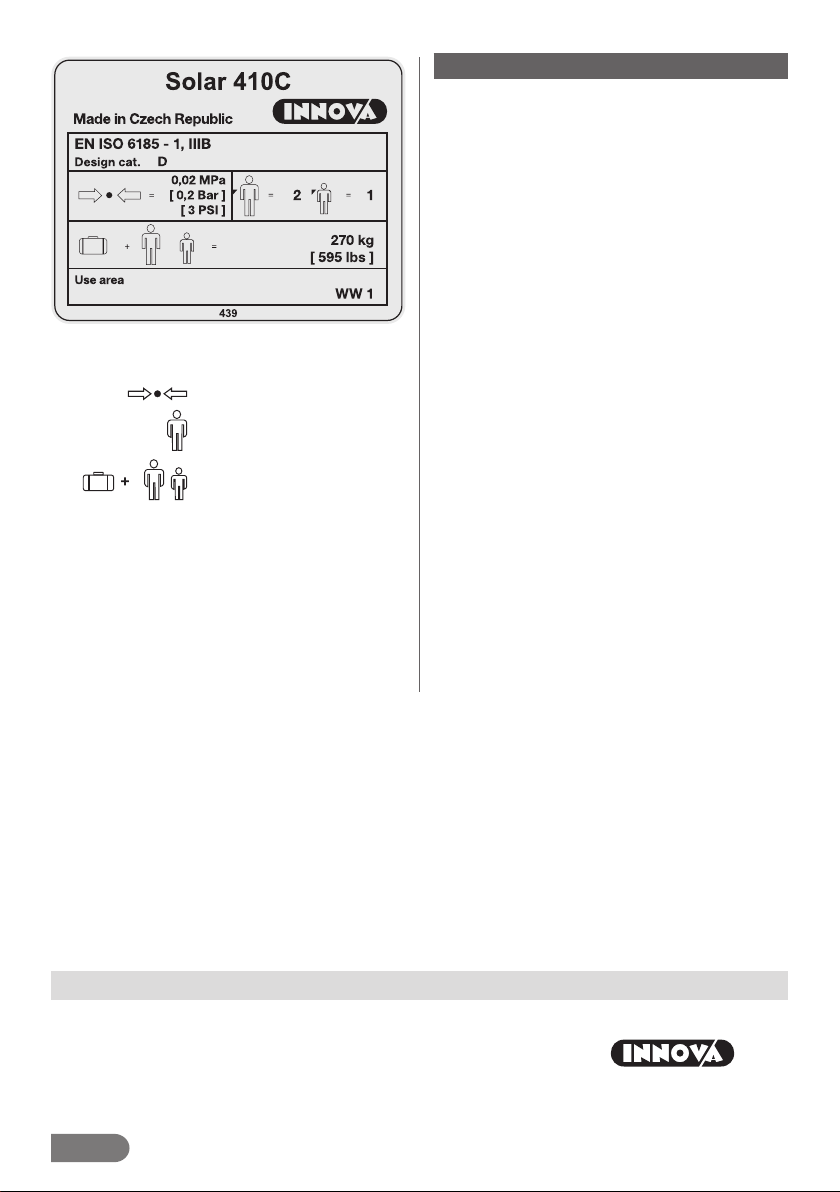

11. Manufacturer’s Label
– legend of symbols used 3
12. Safety Caution 4
• A recreational vessel designed for use on internal waterways with an expected wind strength reaching
Grade 4 on the Beaufort Scale inclusive and a determining wave height of up to 0.3 metres inclusive, with
occasional waves up to 0.5 metres of height caused e.g. by vessels passing by.
• The boat has been manufactured in compliance with the EN ISO 6185-1 Standard, Category IIIB.
• Related standards: EN ISO 10087, EN ISO 10240, EN ISO 14945.
Table of Contents:
Dear Customer,
This manual will help you to easily and safely master your vessel.
It contains a detailed description of the vessel, the supplied or built-in
equipment, its sets as well as information about its control and mainte-
nance. Please read it carefully, thereby getting to know the boat before
actually using it.
If this is your first vessel or you have changed the type of vessel and
do not know this type well, please get acquainted with its maintenan-
ce and control prior to your first individual use of the vessel so that it
is safe and comfortable. Your dealer or the National Yacht Federation
or club will recommend you appropriate training courses or qualified
instructors.
Do not pull offuntil the expected sailing conditions (wind strength and
wave height) are appropriate for the construction category of your ve-
ssel and you and your crew are able to control it in these conditions.
Please store this manual in a safe place and hand it over to the
new owner should you sell the vessel.
User’s Manual SOLAR 410C
1. Table of Specifications
(Dimensions When Infl ated)
SOLAR 410C
Length (cm) [ft./in.] 410 [13–5 ]
Width (cm) [ft./in.] 80 [2–7]
Number of fair chambers 3 + 2 + 2
Approximate dimensions-packed in carry bag (cm) [in.] 54 × 39 × 24 [21 × 15 × 9]
Dimensions-packed in cardboard (cm) [in.] 70 × 43 × 26 [28 × 17 × 10]
Maximum operational pressure (MPa) [Bar/PSI] 0,02 MPa [0,2 Bar/3 PSI]
Weight (kg) [Ibs.] 17 [37]
Maximum load (kg) [Ibs.] 270 [595]
Maximum number of people 2 + 1 child
Draught (cm) [in.] 15 [6]
Highest part of boat above waterline (cm) [in.] 28 [11]
USA
VERSION 10/2016
2. Technical Description – See Picture 1
1. Sidewall cylinder
2. Bottom
3. PUSH/PUSH valve – for infl ating/defl ating the kayak,
regulating pressure and measuring pressure using a ma-
nometer
4. Front seat
5. Rear seat
6. Front foot-rest
7. Rear foot-rest
8. Rotational valve for minor chambers (seats, foot-rests,
etc.)
9. Deck
10. Handle
11. Safety rope
12. Manufacturer’s Label
13. Yellow “CAUTION” label
14. Flexible mesh for baggage
15. Rudder blade fi xture
16. Seat and foot-rest fastening strap
17. Seat fastening strap for single-seat confi guration
18. Rear seat fastening strap
19. Front foot-rest fastening strap
20. Seat fi xation D-ring
21. D-ring for fastening objects by means of a snap-hook
22. Backrest fi xation straps
23. Seat plastic clip
24. Rear plastic clip
25. Safety relief valve

2
of the air chambers. However, do not forget to continu-
ously check air pressure in the chambers afterwards,
too.
ATTENTION
When using the boat, always seal the valves with their
valve caps. This will keep dirt out of the valves. Dirt can-
cause leaky valve seals.
4. Using the Boat
The Solar 410C kayak is designed for recreational use and
water tourism.
Whenever the kayak is used on waterways, Waterway Tra-
ffi c Rules should be observed. Operation of the Solar 410C
a infl atable canoe does not require any licence provided the
people who operate the canoe know the techniques of small
boat operation within the scope necessary for its operation,
as well as the valid navigation rules of the particular country.
The Solar 410C kayak can be used on still or gently fl owing
waters up to Diffi culty Grade WW 1. Use double-bladed kayak
paddles with a length of approx. 210 cm. People travelling in
the kayak should sit in their seats and wear fl otation life-jac-
kets.
ATTENTION
Prior to every use of the boat, check whether it is nece-
ssary to observe any special regulations, restrictions or
rules connected with the river, surface of water or area in
which you aim to operate.
The boat is not designed to be towed behind motorbo-
ats, nor may it be otherwise towed, dragged or in any
way subject to unusual stress. Sharp edged and pointed
items carried in the boat must be safely wrapped.
Place all valuables into a waterproof container and fas-
ten it to the boat.
Over time, sunlight adversely aff ects the rubber coating
of the boat; therefore, it is advisable to store the boat in
shade each time after use.
CAUTION:
• On large surfaces of water (seas, lakes) pay attenti-
on to water currents and off -shore breezes. Currents
and breezes may make it impossible to return to
shore.
• The Solar 410C kayak should not be used in poor
conditions, such as In reduced visibility (night, fog,
rain).
Characteristics of Difficulty Grade WW 1 – Easy:
• Regular water flow and low and regular wave formation,
small rapids, easy obstacles and frequent meanders with
quick water flows.
Subjective assumptions for riding wild waters graded
WW 1:
• Knowledge of all basic strokes, both forwards and bac-
kwards, and steering and control of the boat. The ability
to realistically evaluate the difficulty posed and the actual
state of the river’s waters. Knowledge of elementary life-sa-
ving techniques. Physical fitness and swimming skills are
necessary on long trips.
ACCESSORIES SUPPLIED WITH THE KAYAK:
Transportation bag, compression belt for folded kayak, User’s
Manual with Warranty Certifi cate, foam sponge in a mesh bag,
gluing set containing glue, patches and valve adapter.
3. Inflation Instructions
Lay out the kayak. If you want to use the rudder blade, insert
it into the fi xture in the bottom (15). Infl ate both seats and foot-
-rests prior to their assembly. The use of valve (8) is described
in Picture 2. Attach the rear seat (5) to the bottom strap (18).
Lace the fastening straps (22) on the seat’s back rest through
the D-rings (20) on the sidewall cylinders. Lace the ends of the
fastening straps through the plastic buckle (23) – see Detail A.
Fix the front seat in the fi xture (16) with the plastic buckle (23)
in the same fashion. You can fi x the foot-rest (7) for the rear
paddler to the same fi xture, but using the rear plastic buckle
(24). Fasten the front foot-rest (6) to the fi xture (19). Lace the
foot-rest’s fastening strap through the plastic buckle on the
bottom and tighten it. Fastening straps properly laced through
the buckle are shown in Detail A.
Infl ate the air chambers in the following order: sidewall cylin-
ders (1) and the bottom (2).
A foot pump or piston pump with a valve adapter is the best
way of infl ating the craft (the valve adapter is included in the
gluing set) – see Picture 2b. Prior to infl ating the canoe, check
the valves. Set the valves to the closed position. For how to
use the valves – see Picture 2.
Infl ate the air chambers to the required operational pressure.
Use a pressure gauge with a corresponding adaptor (optional
equipment) for measuring the correct operating pressure - re-
fer to Fig. 2a. The spanner for assembling the valves is an
optional accessory – see Picture 2c.
The SOLAR 410C kayak is designed for use in a single–seat
confi guration as well – see Picture 1.
The single-seat confi guration can be assembled in a similar
way to the 2-seat confi guration. Attach only one seat in the
central position to fi xture (17). Lace the back rest’s fastening
straps (22) through the D-rings (20). Lace the ends of the fas-
tening straps (22) through the plastic buckle (23) – see Detail
B. The oval-shaped fi xture (16) has several positions for fi xing
the foot-rest (7). The positions are numbered and correspond
to diff erent heights of paddlers. Position No. 1 corresponds to
a body height of (150-160) cm, Position No. 2 corresponds to
a body height of (160-170) cm, Position No. 3 corresponds to
a body height of (170-180) cm and Position No. 4 corresponds
to a body height exceeding 180 cm.
Lace the foot-rest’s fastening strap (7) through the holes in the
foot-rest fi xture (16) on the bottom. Proceed from the chosen
position number through all the holes up to the plastic buckle
(24) on the end of the fi xture; lace the end of the fastening
strap through the buckle and tighten it – see Detail B.
To convert the two-seater kayak into a three-seat arrange-
ment, move the rear seat backward by one attachment on the
bottom (18) and by one row of D-rings on the tubes (20).
Use rope to tie the central seat to the D-ring at the manufac-
turer’s label (12).
ATTENTION
The maximum operational pressure in air chambers is
0.02 MPa. If the ambient temperature increases (e.g.
owing to sunlight), the pressure in the air chambers of
the canoe can rise rapidly. We recommend releasing
some air from all air chambers of the canoe after pulling
it out of the water. This will prevent possible destruction

3
ATTENTION
Pay extra attention to your choice of fl otation life-jacket.
The fl otation life-jacket should have a tag bearing de-
tails of its fl otation capabilities and safety certifi cation.
5. Storage of the Boat – See Picture 3
Open the valves and release the air from all the chambers.
Defl ate the seats and the front foot-rest. Open the valves and
release the air from the main chambers.
The kayak can be defl ated more quickly by rolling it in the di-
rection of the valves. No sharp objects should remain in the
kayak. When defl ated, lay out the kayak in such manner that
the bottom lies on the ground and the sidewall cylinders are
folded inwards. Fold the kayak in half lengthwise and then
fold it towards the valves to enable you to insert the folded
kayak into the transportation bag. Insert the folder kayak into
the transportation bag. Expel the air from the bag, roll up the
insertion end and fasten it with clips.
6. Treatment and Storage
The rubber surface coating of the boat is sensitive to oils, gas-
oline, toluene, acetone, kerosene and similar thinning agents.
Prior to storing a dirty boat, wash it down with warm soapy
water. Rinse the boat with fresh water after using the boat in
seawater. It is recommended to check the state of the infl ation
valves and the safety relief valves. If a valve is not airtight, it is
possible to unscrew the valve body from the boat with the use
of a special valve-key and clean its membrane with a strong jet
of water or compressed air. Prior to storage, it is recommen-
ded to rub the surface of the canoe with an agent intended for
the treatment of such surfaces, which has cleaning properties,
and which impregnates the material to prevent further dirtying,
or which is capable of forming a protective UV-fi lter. Never use
agents containing silicon when treating your boat. Store the
cleaned and dried boat in a dark, dry place at temperatures of
between 10–25 °C. During longterm storage, it is recommen-
ded to infl ate the boat for 24 hours from time to time to avoid
fatiguing the fold lines. It is also recommended to have the
boat serviced by the manufacturer’s authorized service station
at least once every two or three years.
Proper care and treatment of the boat will increase its service
life.
7. Guarantee Conditions
The guarantee period is 24 months and is calculated from the
date of sale.
The producer provides cost-free repairs or replacement of
Technical equipment for WW 1:
• All types of open boats; flotation life-jackets with a mini-
mum displacement of 7.5 kg.
Gluing:
• mark out the damaged area on the boat and choose an
appropriately sized patch;
• the surfaces of both patch and place to be glued must be
clean, dry and without traces of old glue;
• we recommend degreasing both surfaces with acetone in
order to achieve a perfect bond;
• spread a thin layer of glue on both surfaces to be glued and
repeat this step once the fi rst layer has dried;
• after the second layer has dried, press the patch fi rmly on
the damaged place, weigh down or use a rolling pin on
a fl at surface.
For minor repairs (punctures), it is possible to re-infl ate the
boat and continue using it after waiting for approx. 30 minutes;
after more serious repairs, you should wait for 24 hours before
using the repaired boat. Complicated repairs should be per-
formed by the manufacturer or at authorized service stations.
Guarantee repairs and post-guarantee repairs are provi-
ded by the manufacturer:
GUMOTEX, a. s.
Mládežnická 3062/3a
690 75 Břeclav
Czech Republic
Or in North America by INNOVA:
Innova Kayaks by Gumotex
11781A Watertank Road
Burlington WA 98233
USA
Tel.: [phone]
E-mail: [email protected]
9. Product Disposal Method
The product should be disposed of at municipal waste dispo-
sal sites.
10. Packaging Disposal Method
Cardboard – recycle as the indicated symbol directs. PE-LD
plastic wrap (low-density branched polyethylene) - recycle as
the indicated symbol directs.
11. Manufacturer’s Label – legend of
symbols used
Each boat is provided with its own Type Parameters Tag which
displays the most important technical parameters. Please
follow these values. Above all, do not overload the boat and
maintain the recommended maximum pressures in the air
chambers.
faulty components for material faults or production faults.
The warranty does not cover damage to air chambers due
to higher pressure than the required operational pressu-
re!!!
8. Boat Repairs
You can easily repair a damaged boat yourselves by means of
the accompanying gluing set.

4
maximum operational pressure
maximum number of people
maximum load
Explanation of the symbols used:
12. Safety Caution
Boating sports can be very dangerous and physically deman-
ding. The user of this product must realise that boating sports
activities can cause serious injuries or even death. When
using this product, follow the safety standards specifi ed below:
• Learn how to use this type of boat.
• Undergo certifi ed fi rst-aid training, obtain a fi rst-aid kit and
always carry rescue/safety equipment with you.
• Always use certifi ed fl otation life-jackets.
• Always wear an appropriate helmet if the specifi c conditi-
ons require it; wear proper clothes according to the specifi c
weather conditions; cold water and/or cold weather can
cause hypothermia.
• Prior to every use, check your equipment to make sure it is
not damaged.
• Never use the boat on water alone.
• Never use the boat on rivers with apparently high water
level.
• Pay attention to inspecting the water level, dangerous cu-
rrents and weather changes; when on the sea, pay attenti-
on to changes in the incoming/outgoing tide.
• Inspect all unknown sections of rivers on which you want
to use the boat; carry the boat over all places where it is
necessary.
• Do not overestimate your abilities when on the water; be
careful.
• Prior to setting off on the water, consult your state of health
with your doctor.
• Follow the manufacturer’s recommendations concerning
the use of this product.
• Prior to using this product, never drink any alcohol or use
any drugs.
• If other boat accessories are available, use only the materi-
als approved by the manufacturer.
• Prior to using this product, read the User’s Manual.
The user of this product must master basic boating skills and
be aware of the risks related to this kind of sport.
The Guarantee Certifi cate is attached to this manual.
Innova Kayaks by Gumotex
European Inflatable Touring Kayaks
11781A Watertank Road, Burlington WA 98233, USA
Tel.: [phone], E-mail: [e-mail]
www.innovakayak.com
