Innova Full Touch User manual

USER MANUAL / MANUAL DE USUARIO / MANUAL DE USUÁRIO / MANUEL DE
L'UTILISATEUR / MANUALE DELL'UTENTE / BENUTZERHANDBUCH / GEBRUIKRER-
SHANDLEIDING - SW/R9FT

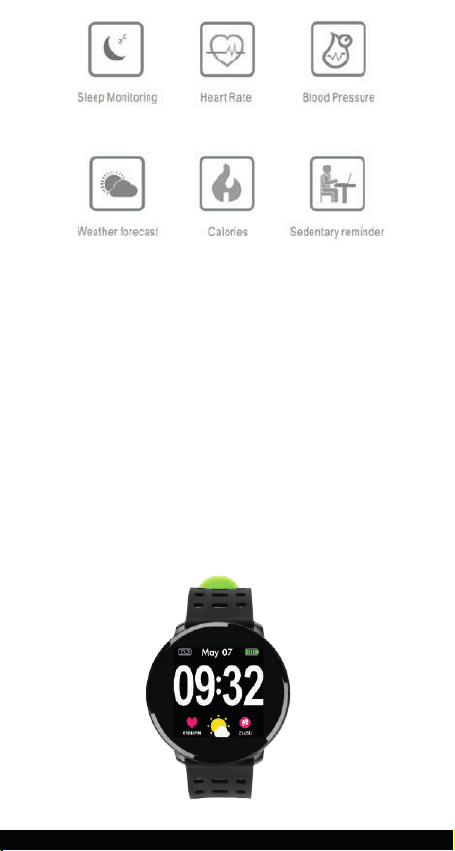

Sport Watch Spherical
Full Touch
O2

AndroidiOS
Thank you for using our smart watch INNOVA.
Important! The data provided by the smart
watch, such as heart rate, blood oxygen and
blood pressure, are merely indicative, it is not an
exact medical measuring device.
Even if you are well, go to all the appointments
that your doctor will schedule.
Pairing
Please do not pair the watch directly to your pho-
ne’s Bluetooth. If you have already performed this
operation, please remove it from the list of paired
devices as it will prevent the connection to the
APP.
1.Download and install the Da Fit application.
2. Update your personal details (gender, birth year,
etc.) and press the check mark. Once done, grant
all permissions requested by the APP.

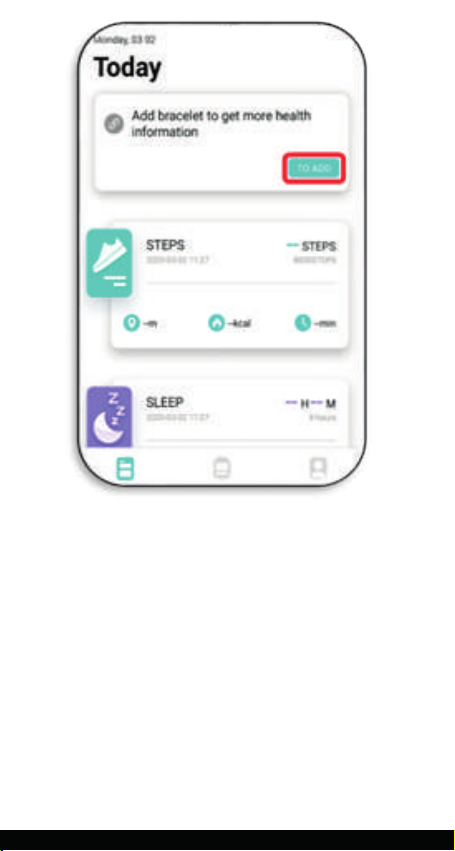

3. To link the watch to your phone press “To Add”.
English User manual

English User manual
4. The phone will search, and display, SW/R9FT.
Select it to pair the watch to your phone.
Once synchronization is complete your watch will
display local date and time.
5. When you press the watch icon (bottom middle)
you will see the following screen:

English User manual
6. The last icon, on
the lower right, will
show “My” screen.
Here you can com-
plete the details of
your profile and es-
tablish your
objectives.
Here you can set
up notifications,
alarms and the
background image
(can be personali-
zed).
In “Others” you can
establish time for-
mat (12/24 hours),
reminders, etc.

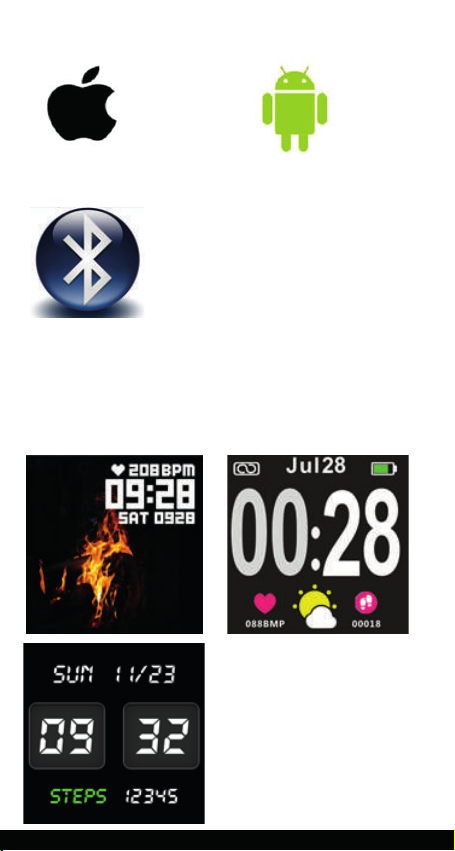

Equipment requirements：
IOS8.0 or above Android4.4 or higher
Bluetooth 4.0
Function introduction：
1.1 Time interface
Icon 1-1
English User manual

English User manual
1.2 main interface
Icon 1-2

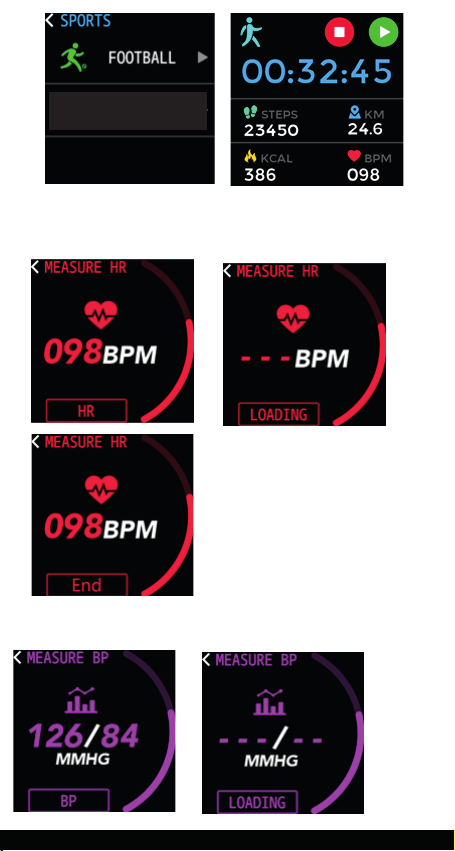

1.3 exercise

Icon 1-3
1.4 Heart rate measurement
1.5 blood pressure measurement
Icon 1-4
English User manual

Icon 1-5
1.6 Blood oxygen measurement
Icon 1-6
1.7 notification
Icon 1-7
English User manual

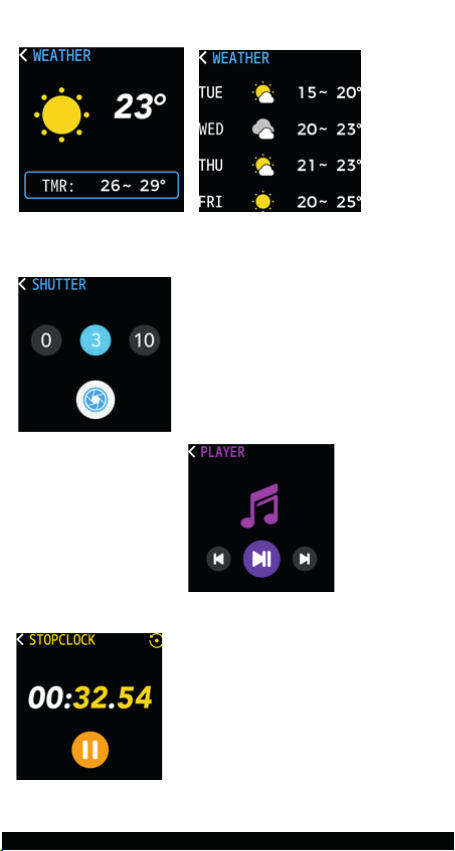

1.8 the weather
Icon 1-8
1.9 Photo control
Icon 1-9
2.0 Music control
Icon 2-0
2.1 Stopwatch
Icon 2-1
English User manual

2.2 Setting
Icon 2-2
2.3 Shut down
Icon 2-3
Main function description
English User manual

- Chip: NRF52832 + Touch IC
- Bluetooth:4.0
- Screen size: 1.22 inches
- Screen pixels: 240*240
- Compatible system: Android4.4 or above, ios
8.0 or above
- Standby time: 15 days for regular standby, 5-7
days for use
Handle brief operation
touch function
English User manual

Full touch screen
Select different screen surface in the APP, you
may a personal background by using edit.
Charging
- Charge the watch with the charger.
- When the watch is charging, the battery level
icon will be displayed. The battery symbol on the
screen is full when the battery is full
Health data
Watch must be in contact with your wrist when
measuring data exercise mode, which is divided
into walking, running, cycling, mountain climbing,
football, basketball and badminton mode; health
interface, touch key to enter heart rate, blood
pressure, blood oxygen mode.
In heart rate modethe sensor is turned on. In the
blood pressure mode, the bracelet light is long,
as well as the blood pressure test.
Data will automatically sync to the mobile phone
in real time.
Bluetooth connection Da Fit download
Search Da Fit to download through the application
market:
Android: application treasure, pea pod and other
application market.
IOS side: App Store
Bluetooth auto reconnection:
- There is no indicator to advice you are beyond
English User manual

the Bluetooth connection range. When the
watch is within the Bluetooth connection range,
the APK will automatically reconnect.
the Bluetooth connection range, the APK will be
automatically reconnected when the Bluetooth is
connected.
Other functions
The following functions can be implemented only
after successfully logging in to the apk and the
Bluetooth connection is successful.
Alerts
Notifications include: calls, sms, whatsapp,
facebook.....
Turn on call notification in the setting,
when the mobile phone receives an incoming call,
the wristband vibrates and the screen prompts,
the interface will display the caller icon, click the
touch button Stop reminding.
Do not disturb mode
When the Do Not Disturb mode is turned on, all
notification alerts that are turned on in the settings
except the alarm clock will no longer have an
automatic bright screen vibration reminder on
the wristband end.
Alarm reminder
Use the APK alarm reminder setting to add the
alarm time. When the alarm time arrives, the bra-
celet end vibrates and the screen prompts
English User manual

English User manual
and displays the alarm icon.
Reminder mode
- Vibration: When the mobile phone APK sets the
the push message, only the vibration reminder
appears on the watch;
- Bright screen + vibration: When the mobile pho-
ne APK side sets the alarm time to arrive or rece-
ives the push message, the watch displays
bright screen + vibration reminder;
Gesture Intelligence
Select the wearing method (left hand / right hand)
and wear the watch on the selected hand (left
hand / right hand);
- Raise the hand to brighten the screen: Turn on
the hand to brighten the screen, raise the hand
so that the bracelet is tilted inward toward the
front of the hand, and the wristband end displays
a bright screen;
- Quick view:Turn your the wrist and to activate
brighten the screen. The 90 degree flip makes
the wristband tilt inward toward the front of the
wrist, and the wristband displays a bright screen.
Turn this option on/off within the APP.
Unbinding the device
Open Da Fit, in the “More” interface, click “Con-
nect Device” will pop up “Current Device” “Dis-
connected from Current Device”, click, it will
appear whether to disconnect Bluetooth, select

“OK” to unbind.
Precautions
1. Android4.4 or iOS 8.0 and above devices that
support Bluetooth 4.0;
2. When using for the first time, please connect
the charger to activate the bracelet;
3, Bluetooth connection:
A Please make sure that the Bluetooth of the mo-
bile phone is turned on and the wristband is tur-
ned on.
B When searching for Bluetooth, please make
sure that the watch is not bound by other
device; When searching for Bluetooth, the
watch and the mobile phone should be as close
as possible.
4. If the watch does not receive the push me-
ssage, please confirm that Dafit is running in the
background, and the message notification is on.
5. If the exercise, sleep, and heart rate data are
not synced to the APK, try disconnecting the Blue-
tooth and reconnecting.
6. Before binding the bracelet to another device,
you need to unbind it with the current account.
7. If the bracelet cannot be illuminated, connect
the bracelet to the charger.
8. Long press the dial to enter version information
The product instruction manual contains product
functions, usage methods and operation procedu-
English User manual

res. Please read carefully to achieve the best re-
sults and prevent unnecessary damage. Please
do not arbitrarily change the accessories of the
product and disassemble it yourself, this will void
the warranty. The box contains 1 smart wrist
watch, 1 charger, and 1 product manual.
Note: Do not expose the smart watch at
extreme temperatures, it could explode.
Declaration of conformity
Through this INNOVA CELLULAR, it declares
that the SMART WATCH SPHERICAL FULL
TOUCH SW/R9FT (CF68) complies with the
essential requirements and any other applicable
or enforceable provisions of Directives 2014/30/
UE and RoHS 2011/65/EU, of the European Par-
liament and of the Council, transposed to Spanish
legislation through Royal Decree 188/2016, of
May 6, 2016. To see the complete declaration of
conformity, please visit following link:
http://www.innovacelular.com/images/web/
descargas/descargas/declaracion/
declaracion_sw-r9ft.pdf
Customer Service
Only in English or Spanish
Servicio de atención al cliente / Customer Service:
[phone] / [phone]
English User manual

English User manual
Horario de atención al cliente : De lun. a Jue. de
08:00 a 14:00 y de 15:30 a 17:30 y los Vier. de 09:00 a 14:00
Working hour
s : Mon to Thu from 08:00 to 14:00
and from 15:30 to 17:30 and Fri. from 09:00 to 14:00
[e-mail]
Guarantee:
GUARANTEE
DEVICE
ITEM: ___________________________________
Serial number: ________________________________
ESTABLISHMENT
Purchase date: ___________________________
[phone]
[phone]
INNOVA CELULAR SL
C/ Severo Ochoa Nº 9 nave 8B
28521 Rivas-Vaciamadrid
Madrid
Establishment signature

Español Manual de usuario
AndroidiOS
Gracias por usar nuestro smart watch INNOVA.
Importante! Los datos proporcionados por
el smart watch, tales como la frecuencia cardiaca,
el oxígeno en sangre y la presión arterial, son
meramente orientativos, no se trata de un aparato
médico de medición exacta.
Aunque se encuentre bien acuda a todas las citas
que su medico le programe.
Emparejamiento
Por favor no enlace el brazalete al Bluetooth de
su teléfono. Si ya ha realizado esta operación,
elimínelo del listado de dispositivos vinculados al
Bluetooth ya que esto impedirá la conexión a
través de la aplicación.
1. Descargue la aplicación Da Fit e instálela.
2.Autorice todos los permisos que solicita la
aplicación.

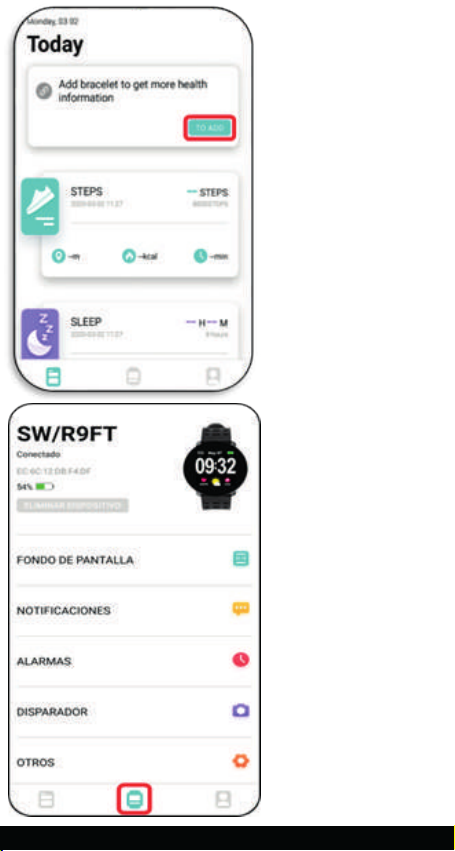

3. Pulse “Agregar” para agregar el dispositivo. Le
aparecerá SW/R9FT. Selecciónelo y el reloj
quedará vinculado a su teléfono.

Español Manual de usuario
Una vez vinculado el
reloj mostrará la
fecha y hora local.
4. Pulsando el icono
central, en la parte
inferior, accederá a
la siguiente pantalla:
Aquí puede cambiar
los ajustes de las
notificaciones, alar-
mas y el fondo de
pantalla. Una de las
opciones de “Fondo
de Pantalla” le per-
mite poner una

Equipos requeridos
IOS8.0 o super. Android4.4 o super.
Español Manual de usuario
imagen personalizada de su móvil.
En la opción “Otros” podrá ajustar el formato de
hora, recordatorios, etc.
5.El último icono de la parte inferior le llevará a
“Yo”, donde podrá completar su perfil y establecer
su propio objetivo.
