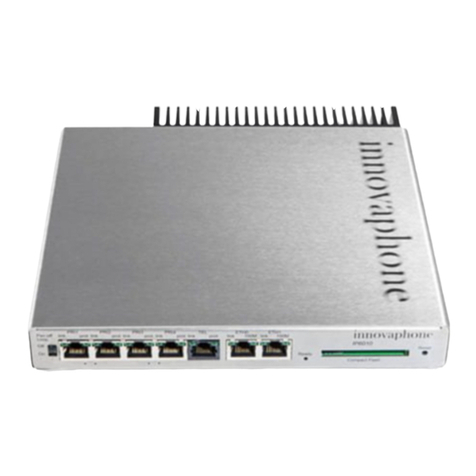

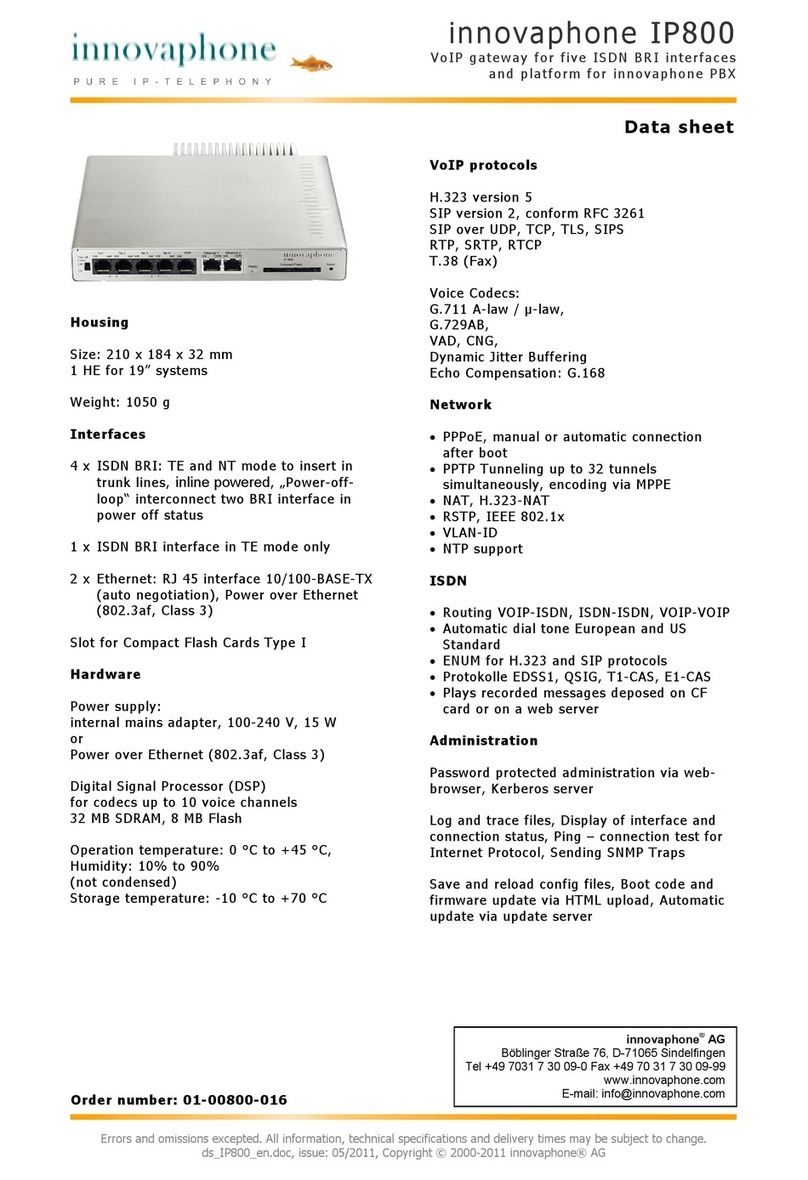

innovaphone IP800
VoIP gateway for five ISDN BRI interfaces
and platform for innovaphone PBX
Data sheet
Order number: 01-00800-016
Housing
Size: 210 x 184 x 32 mm
1 HE for 19” systems
Weight: 1050 g
Interfaces
4 x ISDN BRI: TE and NT mode to insert in
trunk lines, inline powered, „Power-off-
loop“ interconnect two BRI interface in
power off status
1 x ISDN BRI interface in TE mode only
2 x Ethernet: RJ 45 interface 10/100-BASE-TX
(auto negotiation), Power over Ethernet
(802.3af, Class 3)
Slot for Compact Flash Cards Type I

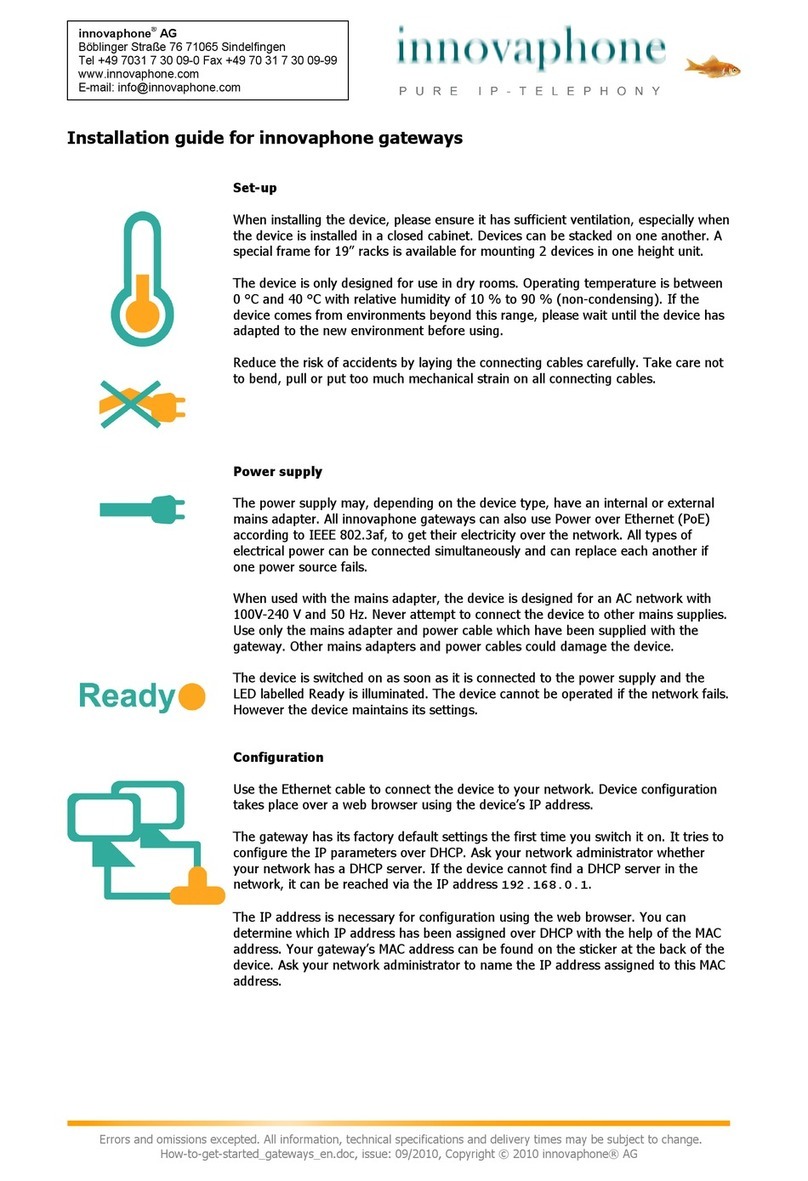

Hardware
Power supply:
Power over Ethernet (802.3af, Class 3)
or
internal mains adapter
primary: 100-240 V, 50 Hz, 200 mA
secondary: 40 V DC, 12 W
Power consumption: see wiki-article
„HowTo:Power Consumption“
Digital Signal Processor (DSP)
for codecs up to 10 voice channels
32 MB SDRAM, 8 MB Flash
Operation temperature: 0 °C to +45 °C,
Humidity: 10% to 90%
(not condensed)
Storage temperature: -10 °C to +70 °C
innovaphone PBX
Platform for up to 200 registrations
VoIP protocols
H.323 version 5
SIP version 2, conform RFC 3261
SIP over UDP, TCP, TLS, SIPS
RTP, SRTP, RTCP
T.38 (Fax)
Voice Codecs
G.711 A-law / µ-law,
G.729AB,
VAD, CNG,
Dynamic Jitter Buffering
Echo Compensation: G.168
Network
•PPPoE, manual or automatic connection
after boot
•PPTP Tunneling up to 32 tunnels
simultaneously, encoding via MPPE
•NAT, H.323-NAT
•RSTP, IEEE 802.1x
•VLAN-ID (DHCP and LLDP/MED support)
•NTP support
ISDN
•Routing VOIP-ISDN, ISDN-ISDN, VOIP-VOIP
•Automatic dial tone European and US
Standard
•ENUM for H.323 and SIP protocols
•Protokolle EDSS1, QSIG
•Plays recorded messages deposed on CF
card or on a web server
Administration
Password protected administration via web-
browser, Kerberos server
Log and trace files, Display of interface and
connection status, Ping – connection test for
Internet Protocol, Sending SNMP Traps
Save and reload config files, Boot code and
firmware update via HTML upload, Automatic
update via update server
