INNOVATEST FALCON500 User manual

1

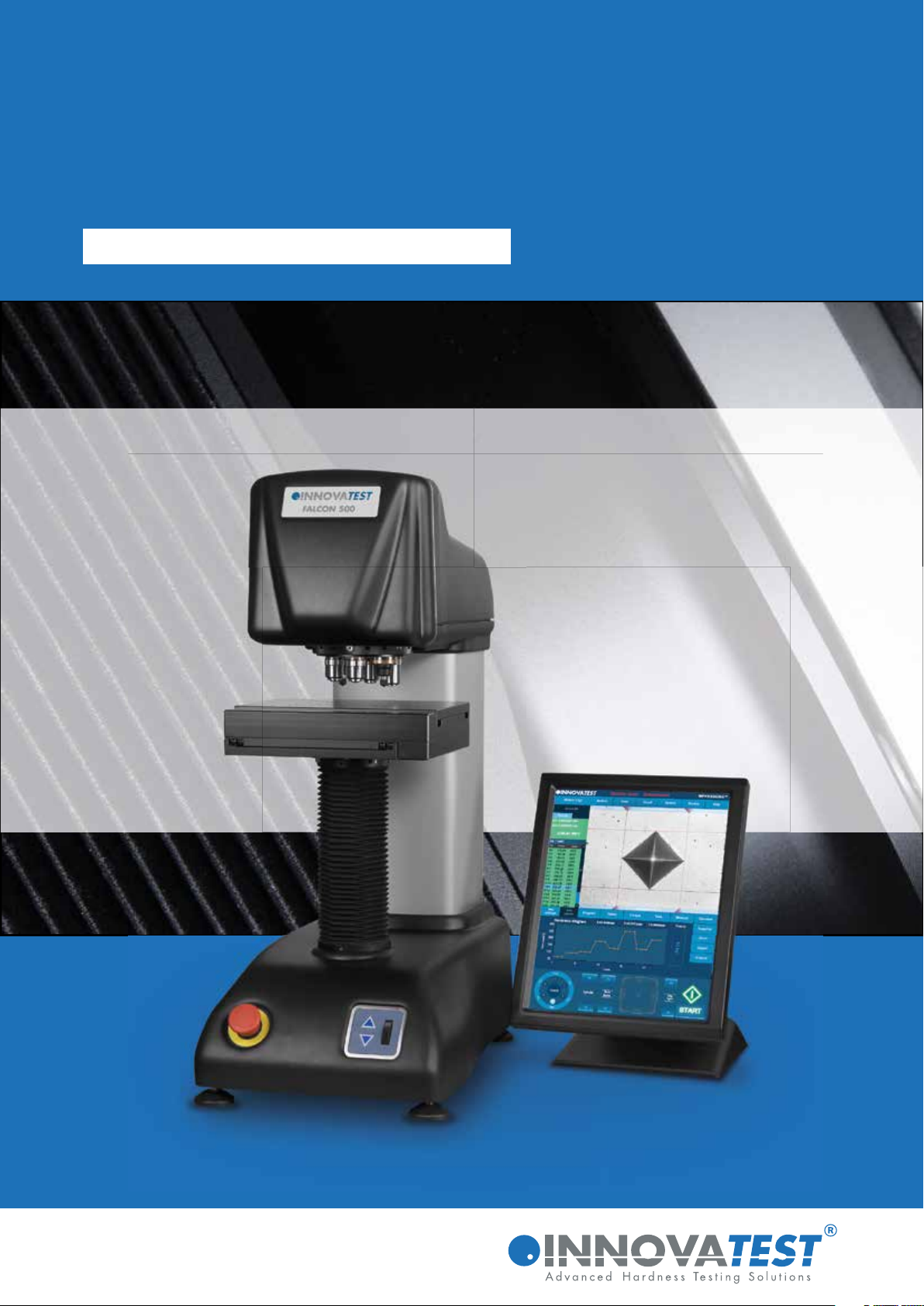

FALCON 500
Micro Hardness Tester | Vickers, Knoop, Brinell
MANUAL / SEMI - FULLY AUTOMATED

2 3
Unparalleled conguration freedom…
The FALCON 500 oers a leading technology base for manual, automatic or fully automated testing of Micro and
Macro Vickers, Knoop or Brinell assignments.
With a wide choices of test force congurations, answering any possible imagination, the FALCON 500 can be
completed with fully integrated hardware options to assure a match with the particular testing tasks of your
industry. Coming from a leading edge of mechanical design, the load cell, closed loop system of the base unit
can be completed with manual or digital micrometers or for more testing comfort, with motorized CNC stages.
The unique motorized ball bearing Z-axis provides accurate height movement and high speed autofocus. The
user interface, provides manual & automatic measurement and a wide selection of standard and optional testing
applications, supporting a high resolution (HD) camera and a second (optional) full work stage overview camera.
FALCON 500
HARDNESS SCALES
VICKERS 1gf - 50kgf *
KNOOP 1gf - 5kgf *
BRINELL 1kgf - 62.5kgf *

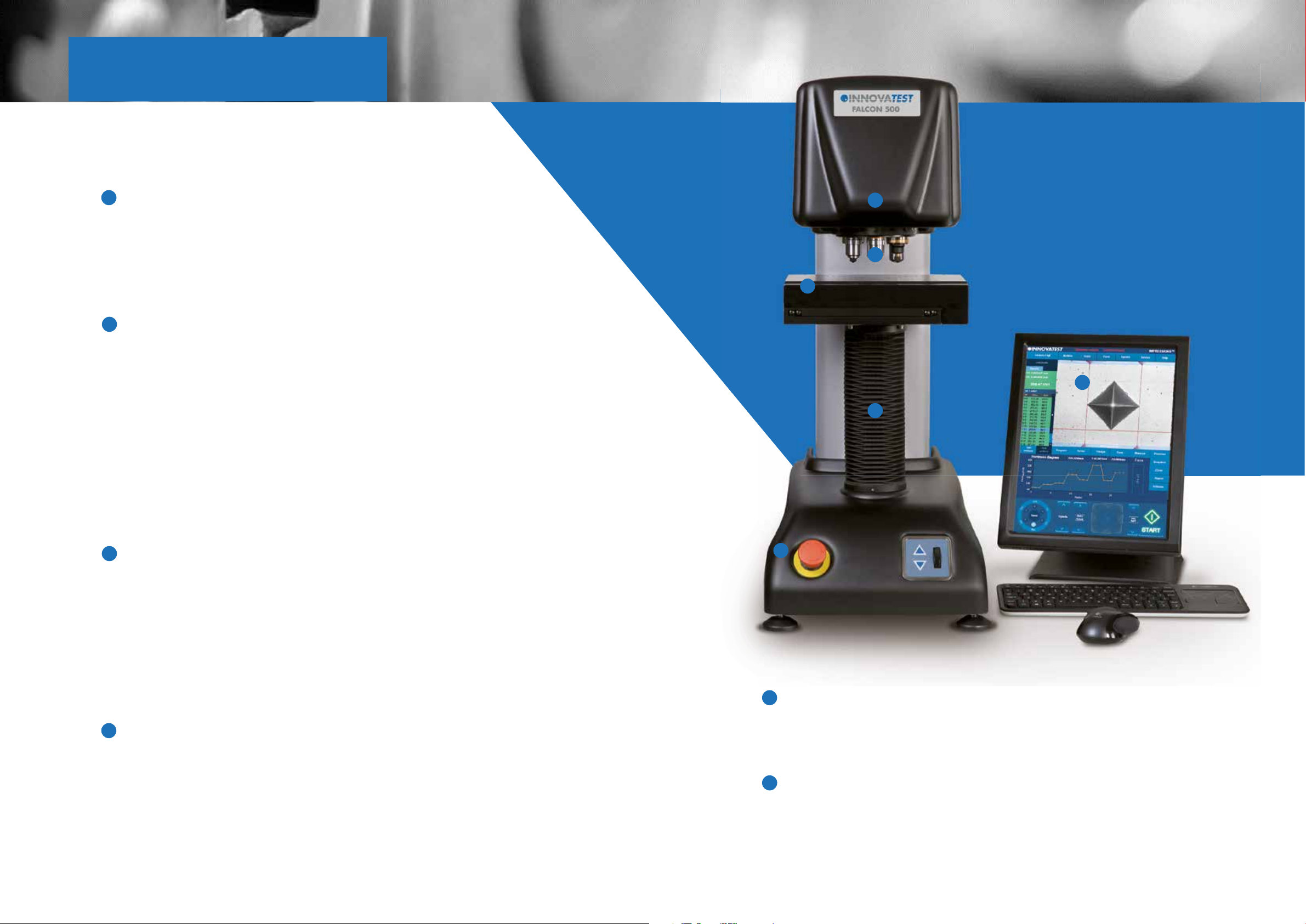

* All scales HIGHLIGHTS
Multi Load Cell, Closed Loop force application system, error <0,25%
6 position turret, 2 indenter positions (optional), 2 LWD objectives installed (included)
Turret collision detection and workpiece retraction safety system
5 Megapixels, Full HD+, integrated TTL camera system
HD full color stage overview camera with optical zoom system
TTL power LED with color lter, Dual bank power LED stage illumination
Z-axis with ball bearing spindle (standard)
Integrated system controller, i7 processor, mSSD Raid system storage
Industrial 15” touch screen, option for second screen 15’’to 55’’ or projector
Top-class replaceable body parts, shock proof ABS covers
A FORCE RANGE THAT SETS NEW STANDARDS!
1gf 3gf 2kgf FALCON 501 62.5kgf
1gf 10gf 10kgf FALCON 503 62.5kgf
1gf 200gf 31.25kgf FALCON 505 62.5kgf
1gf 10gf 31.25kgf FALCON 507 62.5kgf
1gf 31.25kgf FALCON 508 62.5kgf
1gf 200gf FALCON 509 62.5kgf
1gf 10gf 200g FALCON 510 62.5kgf
1gf FALCON 511 62.5kgf
1
2
3
4
5
6
7
8
9
10
FALCON 600
0.1gf - 50kgf *
1gf - 2kgf *
1kgf – 62.5kgf *
VICKERS
KNOOP
BRINELL
HARDNESS SCALES
Multi Load Cell, Closed Loop force application system, error <0,25%
18 Mega Pixel, 4K, full color integrated camera system
Full X-Y stage overview camera, optical zoom system, variabele eld of view
TTL power LED with color lter, Dual bank power LED stage illumination
Large CNC X-Y stage 300 x 225mm, Z-axis with ball bearing spindle (standard)
Integrated system controller, i7 processor, Dual MSSD Raid system storage
Industrial 15"touch screen, option for second screen 15'', to 55'' or projector
Top-class replaceable body parts, shock proof ABS covers
1
3
4
5
6
7
8
9
HIGHLIGHTS
6 position turret, 2 indenter positions, 4 LWD objectives installed (included)
Our vision, your future...
Turret collision detection and workpiece retraction safety system
2
10
0.1gf 603 10 kgf
1gf 611 62.5 kgf
A FORCE RANGE, THAT SETS NEW STANDARDS!
* Extended range
0.1gf 603 10 kgf
0.1gf 62.5kgf
10gf 10kgf FALCON 603
31.25kgf FALCON 608
FALCON 611
1gf
1gf
* All scales
d
Dead weight systems
Electronically controlled
Force application
Load cell, closed loop,
force feedback system
FORCE
TIME
TECHNOLOGY OF TODAY
2 3
d
Dead weight systems
Electronically controlled
Force application
Load cell, closed loop,
force feedback system
FORCE
TIME
TECHNOLOGY OF TODAYTECHNOLOGY OF TODAY

4 5
BOUNDLESS
INNOVATION
4
5
Observe, Think, Try, Change...
Rigidity and perpendicular indenter positioning are crucial to obtain Vickers indents with a
perfect geometry. Re-invented, adjustable indenter actuators provide maintenance free, smooth
force application, easy to access and easy to replace indenters. Standard integrated
XY-stage overview camera with optical zoom reduces application set up time dramatically.
Z-AXIS BALL SCREW
Precision movement
Multi loadcell,
ball bearing,
force actuator
Optical zoom, auto focus,
stage overview camera
OPTIONAL
4 5

6 7
The 6 position turret is supplied as a standard feature on all 500 models and allows
to install indenters for Vickers, Knoop and Brinell (balls 1mm 2.5mm & 5mm)
testing. Factory installed, the FALCON 500 has four objectives. Depending on the
conguration, choose from 2.5X, 5X, 10X, 20X, 50X, 100X that, in combination
with the HD camera, with digital zoom, provide crisp images.
6 POSITION PRECISION TURRET & OPTICAL SYSTEM
1
Create magnied sample overview with the standard on-board, autofocus, optical
& digital zoom overview camera. The eld of view of this sophisticated full color
camera system does not limit you to one eld of view, but gives a ZOOM range
of 45 x 35mm up to 155 x 125mm without the need to use time consuming scan
and stitch functions.
Once the viewing area needs to be larger than the zoom range, scanning and
stitching can be selected to create full stage overview. Click and go is one of
the standard testing features of the overview camera. Just click randomly on
designated area’s and push ‘’start’’. All tests run automatically. The pattern video
overlay function eases positioning of multiple test rows or patterns across the
specimen. The pattern video overlay scales automatically with every magnication,
stepless, while the zoom camera decreases or enlarges the overview.
STAGE OVERVIEW CAMERA (OPTIONAL)
A high end ball bearing Z-axis spindle is one of the very unique functions. Z-axis
displacement at an accuracy of micron’s supports ultra-fast auto focus. Z-axis
controls are nearly limitless; CNC as a result from a test program, by touch screen
indicators, by the scroll wheel of the mouse, by fast up and down buttons or from
a scroll wheel on the front of the machine. Speed control related to your own
movement; (0.01 up to 20 mm/s). To avoid any collision between the work piece
and the turret, the Z-axis is controlled by a awless collision detection and Z-axis
retraction system. So neither the tester nor the workpiece are exposed to any
damage.
DYNAMIC Z-AXIS CONTROL & COLLISION DETECTION
3
2
Save time and improve efficiency with one of the high speed, highly accurate
motorized XY-stages. Available in variable sizes from standard, to large and
extra-large. Enable automated sequencing of multiple samples. The ultra-high
accuracy and repeatability guarantee precise positioning of indents and allow
re-evaluation of any measurement points in batch or single view. Repeatability
within 3 micron.
HIGH SPEED CNC MOTORIZED XY-STAGE (OPTIONAL)
4
5
15” HD TOUCH SCREEN OPERATOR INTERFACE
6
Changing the game...
TECHNOLOGY
All machine control and process workow can easily be operated from the 15“ industrial
capacitive touch screen. At choice a second 15”or larger screen can be connected.
The tester is tted with a high-end external shell structure. The shock proof and
damage resistant ABS machine covers can withstand the harshest environment.
SHOCK RESISTANT ABS MACHINE COVERS
The system has bi-directional in and output channels.
Tester control can be conducted remotely and supports
for instance, but not limited to robotic systems. Test values
can be exported as single values or as string of data to be
handled by 3rd party quality evaluation software.
Q-DAS certied. (Optional)
CONNECTIVITY, CONTROL & QUALITY ASSURANCE
1
2
3
4
6
5

8 9
FEATURED BY

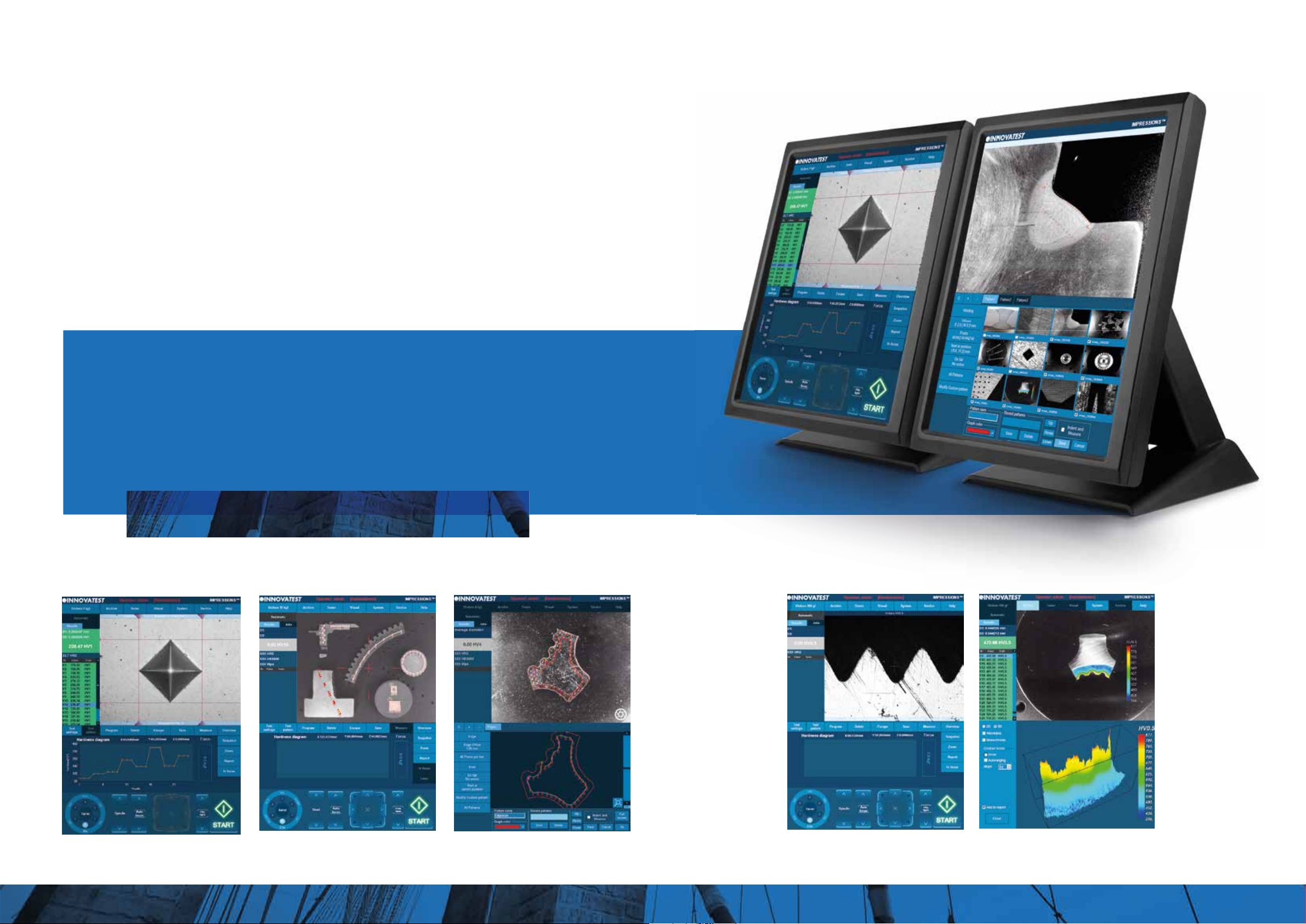

ADVANCED SOFTWARE APPLICATIONS
-
IMPRESSIONS v2
Science ction?...
No, just reality ahead of schedule
The Graphical User interface (GUI), contains industry preferred applications, and oers easy to
learn, advanced workow control. A simple test can be set up and conducted in about 3 seconds…
IMPRESSIONS
TM
layout & functions will match not only your particular application requirements, but
also meet the needs and preferences of your operators. A user level management system maximizes
their comfort and efficiency.
The unique in the industry, 15’’ portrait mode, capacitive touch screen, gives room to all possible
applications. Dual screen: For demanding users, a second vertical 15’’or 24’’landscape screen can be
connected. For educational purposes, schools, universities, a full HD projector can be connected to
the HDMI supported outlet. With this many options in Hardware and Software conguration, yearly
updates and on demand upgrades, IMPRESSIONS
TM
is truly the leading software in the industry.
8 9

10 11
1
6
1
The IMPRESSIONS
TM
pattern editor allows
the user to create any number of test
patterns with a large number of variable
settings. Create test patterns with great
precision and freedom. Verify the settings
in the preview mode. Drag & drop patterns
from one test sample to another sample.
Live vision technique over zoom overview
camera, no image stitching required.
Combine dierent patterns and even
dierent test forces in one program, and run
them fully automatically. All test points can
be identied individually or to customer
specications. The label is shown in the test
result list and in the test results overview
and print out. An important function for
later sample analyses.
VIDEO OVERLAY GRAPHIC
PATTERN EDITOR
1
For the performance of test series for CHD/
SHD/NHD data of specimens according
to standard. The test can be started
directly from the surface view or from
the overview. Additional core points of
hardness can be dened separately for
NHD measurements. The distances of test
points are automatically set to a minimum
distance, following the standard, to assure
correct testing is conducted. Time saving
test mode“complete all indentations – then
evaluate” and “auto-stop” to complete test
series as soon as the lower hardness limit
has been reached.
CHD, SHD, NHD
2
This especially developed tool enables
you to conduct hardness testing on
welded parts or segments according
to ISO standard. Setting up the pattern
according to the requirements becomes
‘’easy-to-do’’, due to pre-set test points
in the dierent zones of the weld
and automatic correlation between
test points. The system will run a fully
automatic test procedure and display and
record the results accordingly.
WELD INSPECTION (ISO 9015)
3
A specialized software tool of IMPRESSIONS
TM
allows you to
set up and conduct fully automatic testing as per ISO 898-1
for screw thread measurement of (de)-carbonized part.
Technology that automatically or at a mouse click recognizes
the edge of your sample. This helps to determine and x the
desired starting position for CHD or other pattern testing jobs.
This application scans the entire outline (or partial) area of a
sample. The function can be used with an objective or, ultra
fast, by using the overview zoom camera. The system scans
the entire outline dened and stores all relevant data in the
test program. Subsequently, a chosen number of test points
can be programmed into the particular program, or be
conducted at selected distances, relative to the edge. This
advanced feature enables the hardness testing procedure
to be performed completely automatic. An excellent feature
to combine with 2D or 3D hardness mapping, also known as
‘’plane hardness chart’’.
AUTOMATIC EDGE DETECTION
AUTOMATIC CONTOUR SCANNING
HARDNESS OF SCREW THREAD
DECARBONIZED ZONE (ISO-898-1)
4
5
6
Easy to operate, time reducing solutions...

12 13
1
6
The IMPRESSIONS pattern editor allows the user to create any number of test patterns with a large
number of variable settings. Create test patterns with great precision and freedom. Verify the settings
in the preview mode. Drag & drop patterns from one test sample to the other test sample. Live vision
test results overview and print out. An important function for later sample analyses.
1
he
IMPRESSIONS
p
a
t
t
e
r
n
edi
t
or
all
o
w
s
the
number
of
v
a
r
iable
setting
s
.
C
r
e
a
t
e
t
est
p
a
t
the
p
r
eview
mod
e
.
D
r
ag
&
d
r
op
p
a
t
t
e
r
ns
est
r
esults
o
v
e
r
view and p
r
i
n
t ou
t
.
A
n impo
For those requiring more in depth knowledge on materials
behavior, and wish to study on fracture and fatigue, crack
growth can be predicted (and measured) by using the Kic
application. The software supports Kic crack detection
under load. At choice, one of both methods, Palmqvist or
Median / Radial fracture toughness can be selected.
The optional application “Plane hardness chart“, also
referred to as Color Mapping is the perfect tool for securing
the detail of the hardness distribution over the total cross
section, especially of heat treated samples. An important
feature in material exploration, weld testing or in damage
analysis.
Besides the option to display a 2D graphic diagram,
the system can generate a 3D visual.
2D and 3D hardness chart are one application.
For repeating jobs, IMPRESSIONS
TM
utilizes
the option of setting up and storing custom
test programs. For each task, a ‘’job’’ can be
created. All application specic parameters,
like hardness scale, force, dwell-time, pattern,
conversion and the report template are
stored in the same program.
The report generator oers to design
customized testing reports, including
your company’s details and logo and
include testing results, graphics and
pictures of indentations in an easy to
edit environment. The le can be printed
straight to a connected laser printer for
further distribution. Alternatively the le
can be exported as a CSV le, to be used
in MS Office applications or 3rd party
quality assurance software.
This handy function in IMPRESSIONS
TM
allows you to make screen captures of
the viewing area. It gives the opportunity
to store such images with comments or
to paste them into the report generator
for further processing.
Kic CRACK MEASUREMENT
2D HARDNESS CHART
3D HARDNESS CHART REPORT GENERATOR
USER DEFINED PROGRAMS
SNAPSHOT FUNCTION
7
8
9
10
11
12
Yes, we can...
12 13

14 15
EVALUATION
AUTOMATIC IMAGE
3
4
Too bright OK Too dark
Irregular surface Regular surface Poor surface
Fast & precise, observe how IMPRESSIONS
TM
nds
focus from a large distance, as far as the travel of
the Z-axis allows. Algorithms used for close distance
autofocusing set new standards in AF speed.
AUTO FOCUS
Manual positioning of lar lines is no longer
required. IMPRESSIONS
TM
rened measurement
algorithms detect indents even on very poor or
scratched surfaces and measure the relevant indent
dimensions according to standards. Stay in control
by switching to manual measure mode and have the
option of adjusting measurements by touching the
screen or using the mouse. Filar lines can be colored
to give the best contrast against the specimen’s
surface. To assure that measurements meet relevant
standards on symmetry, enable the automatic
indent check. All hardness values can be converted
to other scales according to ISO 18265, ISO 50150,
ASTM E140.
AUTOMATIC MEASUREMENT
ILLUMINATION SETTINGS
IMPRESSIONS
TM
software automatic illumination system adapts to the correct illumination regardless
of the sample surface quality, wherever on the sample, independent from material (steel, carbide,
coated or ceramic). Contrast, Brightness and program, can be set automatically for each measurement
or controlled manually. Sharpness can be stored with the pre-determined test
Complex, rened algorithms ensure reproducible measurements on
dierent materials and even on scratched and damaged surfaces.
1
2
3
4
Evaluate whatever you want, --
because what gets measured, gets produced... REFINED IMAGE DETECTION
1
2

16 17
POSSIBILITIES
This application is developed in
close cooperation with special
manufacturers of ammunition shells
and casings. It allows single and
multiple shell/casing testing according
to the requirements in the industry.
The fully automatic test procedure
generates a detailed report, providing
single readings and statistics with
Go/No indication. This further in-
cludes s
ophisticated settings for re-
measurement .
For particular details please contact our
sales department.
AMMUNITION TESTING PATTERN
CONFIGURATOR & REPORTING
The FALCON 500 is designed in such a way for the large selection of xtures and specimen
holders to be used on the CNC XY-stage. The frame size allows a large workspace accomodation.
Regardless of the shape of a particular workpiece, the accessories list and corresponding software
applications enable to test almost any component and part.

18 19
4
x 5 x 10 x 20 x 50 x 100
x 2.5
B
D
A
C
EF
Fixtures & vices
5
BA
Stages
3
13
Bench stand(s)
7
A
B
C
2Indenters
1Objectives
9Projector 10 Printer
8Vibration isolation stage
Fixtures & vices
5Embedded sample holders
6
Anvils
4
12 Keyboard & mouse
CD
E
F
AB
25 mm
30 mm
40 mm
Universal sample
7
holder
Additional screen
11
15” 55”
ACCESSORIES FALCON 500
Schematic overview of the conguration options, standard and optional accessories
Not all accessories are displayed on this page. Full details can be found on the Order details page.
With our rigid designed Bench stands
UN-STAND/960 71 x 75 x 80 cm
UN-STAND/965 150 x 75 x 80 cm
• Rock solid bench stands
• 100% retractable drawer, bearing guidance,
max 100kg load. Rubber anti slip bottom
• Lockable cabinet, 300mm high
• Adjustable feet, (+/- 50mm height adjustable to
reach ergonomic working position)
•
Made of corrosion resistant zinc plated steel with
RAL powder coating
• Carrying capacity of 400kg
•
Top surface made of 50mm Plywood with
1.5mm chemical resistant plastic plating,
edges made of shock resistant 3mm ABS side liner
• Industrial quality, for workshop or laboratory
Designed for hardness testing instruments,
painted in INNOVATEST® RAL colors matching
our testers.
SUPPORT
YOUR
BEST TESTING
RESULTS
18

20 21
FEATURED BY
ADVANCED SOFTWARE APPLICATIONS
-
IMPRESSIONS v2
Objectives 2.5 x Objective FOV 2000 µm ASSUN-OBJ2.5X
5 x Objective FOV 1000 µm BM-05-0001
10 x Objective FOV 500 µm BM-05-0002
20 x Objective FOV 250 µm. Standard : 505, 509. BM-05-0003
50 x Objective FOV 125 µm. Standard : 501, 503, 507, 508, 510, 511 BM-05-0004
100 x Objective FOV 75 µm BM-05-0005
Stage overview camera, high resolution, HD, full color UN-OVCAM2C
Second indenter position. Factory installed FALCON/IP2
Indenters Vickers Indenter ISO/ASTM certied IN/8105
Knoop Indenter ISO/ASTM certied IN/8205
Brinell Indenter 1 mm ISO/ASTM certied IN/7001
Brinell Indenter 2.5 mm ISO/ASTM certied IN/7006
Brinell Indenter 5 mm ISO/ASTM certied IN/7011
Stages Motorized CNC X-Y stage, 250x205mm Displacement: 120x100mm,
Motorized CNC X-Y stage, 300x225mm, Displacement: 170x120mm,
Motorized CNC X-Y stage, 350x225mm, Displacement: 220x120mm.
Repeatibility +/-0.003mm requires: cable set, UN-XY2CABLENBS,
no extra xture required
UN-XY571210
UN-XY571712
UN-XY572212
Cable set for connecting CNC stage UN-XY2CABLENBS
Manual X-Y stage with analogue metric micrometers, 100x100mm,
Displacement: 25x25mm, scale 0.01mm, max load 100kg,
Requires: AS500XL-450-02 Mounting plate
UN-XYSTAGE/120
Digital micrometer head, Displacement: 25mm, res. 0.001mm IMP-DIGMIC
Anvils Small V-anvil 3-20 mm, requires base plate UN-ANVILSV/105
Large V-anvil 20-75 mm, requires base plate UN-ANVILLV/106
Base plate for V-anvils UN-ANVILLV-105/106 UN-VANVILBASEPL
FALCON 501 Micro hardness tester, 3gf - 2kgf FALCON 501
FALCON 503 Micro hardness tester, 10gf - 10kgf FALCON 503
FALCON 505 Micro hardness tester, 200gf - 31.25kgf FALCON 505
FALCON 507 Micro hardness tester, 10gf - 31.25kgf FALCON 507
FALCON 508 Micro hardness tester, 1gf - 31.25kgf FALCON 508
FALCON 509 Micro hardness tester, 200gf - 62.5kgf FALCON 509
FALCON 510 Micro hardness tester, 10gf - 62.5kgf FALCON 510
FALCON 511 Micro hardness tester, 1gf - 62.5kgf FALCON 511
1
2
3
4

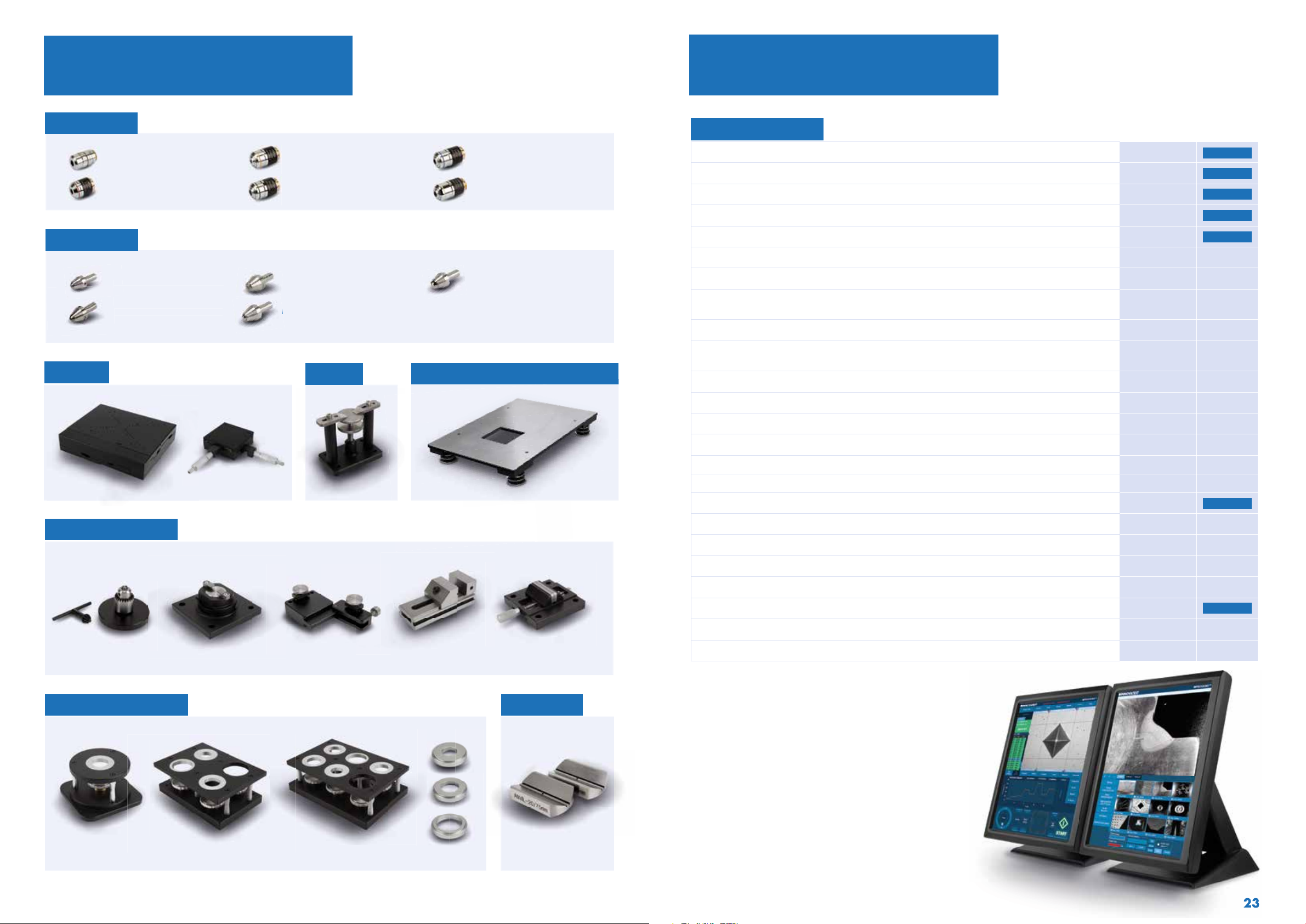

FALCON 500
ACCESSORIES
A
B
C
B
A
STANDARD
STANDARD
STANDARD
Embedded
sample holders
Sample holder for 1 sample, 50mm/2'' UN-ESH1
Sample holder for 4 samples, 50mm/2'' UN-ESH4
Sample holder for 6 samples, 50mm/2'' UN-ESH6
Insert 25mm, for sample holders UN-ESHI25
Insert 30mm, for sample holders UN-ESHI30
Insert 40mm, for sample holders UN-ESHI40
Sample holder Universal clamp and levelling device UN-CLAMP/105
Vibration
isolation stage
Passive vibration isolation stage, clamping of vibration for low force
testing.
UN-AVS-150
Projector On request, any brand of your choice UN-PROJECTOR
Printer Laser printer UN-PRINT
LCD screen Portrait mode 15“ capacitive touch screen UN-SCREEN1
Keyboard and
mouse
Logitech keyboard and mouse UN-SKBSET
Bench stands Cabinet test table with drawer 71x75x80cm UN-STAND/960
Cabinet test table with drawer 150x75x80cm UN-STAND/965
Pre installation, calibration, handling and standard packing
(for sea and airworthy transportation)
SEAPACK/032
A
B
C
D
11
13
12
6
7
8
9
10
STANDARD
STANDARD
Fixtures and
vices
V Groove clamp for small round parts dia. 0.8-5 mm UN-VGROOVECLAMP
Axle chuck UN-AXLECHUCK
Small parts vice jaw; width 55mm; open 50 mm; self-centering UN-VICE/115
Thin metal clamp UN-CLAMP/115
Polished precision vice lock down system ; jaw 25 mm, depth 20 mm UN-VICE/210
Polished precision vice lock down system ; jaw 36 mm, depth 42 mm UN-VICE/215
Polished precision vice lock down system ; jaw 48 mm, depth 75 mm UN-VICE/220
Polished precision vice lock down system ; jaw 75 mm, depth 100 mm UN-VICE/230
Wire testing xture UN-WIRE/105
5
A
B
F
F
E
E
C
D

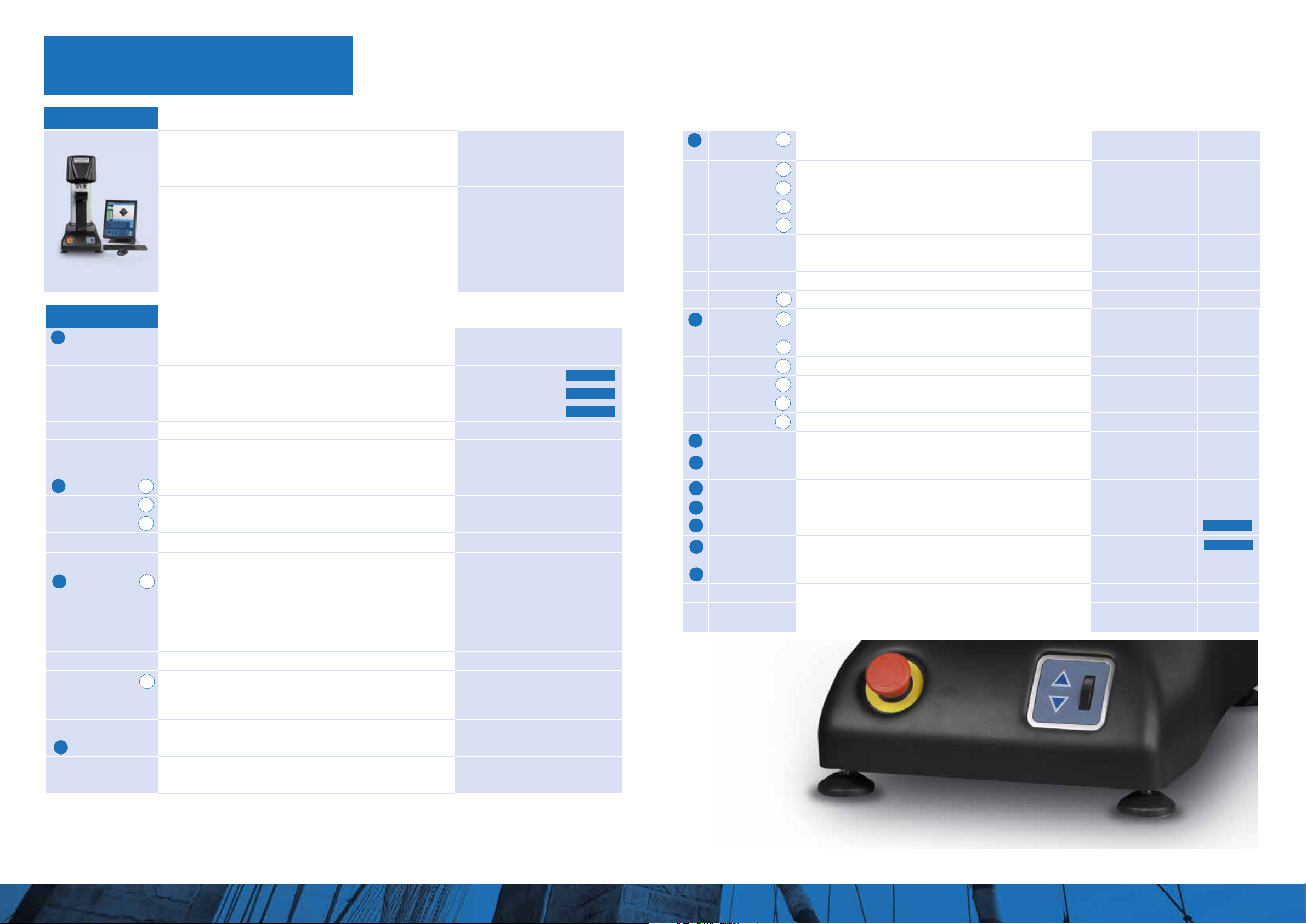

ORDER DETAILS
20 21

22 23
Manual on-screen measurement UN-MANM
Automatic measurement UN-AUTOM
Automatic focussing UN-AUTOFOC
Report congurator UN-REPORTA
User level management UN-LEVMAN
Overview / Full view zoom camera + software functionality, eld of view 45x35mm up to 155x125mm UN-OVCAM2C
CHD, SHD, NHD congurator & graphic interface. Requires: indent pattern congurator (TESTPAT01) UN-PATCHD
CHD, SHD, NHD congurator & graphic interface for analogue and digital micro meter stage only
(not including full pattern editor) (supports manual & digital micrometer stages ONLY).
UN-MCHD
Video overlay graphic pattern editor UN-TESTPAT01
Advanced 3 axis coordinate & free style indent pattern congurator, includes CHD, SHD, NHD
and EDGE DETECTION (supports manual & digital micrometer stages ONLY).
UN-TESTPAT02
Weld inspection (ISO 9015) UN-WELDPAT
Ammunition testing pattern congurator & reporting UN-SHELLCONF
Hardness of screw thread decarbonized zone ISO 898-1 UN-ISO898/1
Automatic edge detection UN-EDGEDTC
Automatic contour scanning UN-CSCAN
Drawing & measuring application UN-DRMEAS
Snapshot function UN-SNAPSH
Full stage view scanning UN-STAGESC
KIc crack measurement under load. Palmqvist & Median / Radial fracture toughness UN-CRKPAR
2D / 3D hardness chart (scanning/mapping, includes automatic contour scanning)
UN-CSCAN2D3D
DualView Technology, 2 viewing screens software ; screen, cables, European and US power cables included*
UN-DVTECHSET
Virtual joystick, on-screen
Advanced 3-axis communication protocol for robotic systems UN-REMC
Q-DAS Certied connectivity protocol UN-QDAS
23
SOFTWARE
STANDARD
STANDARD
STANDARD
STANDARD
STANDARD
ORDER DETAILS
STANDARD
FIXTURES & VICES
VIBRATION ISOLATION STAGE
SAMPLE HOLDERS
ACCESSORIES
Vickers indenter ISO-ASTM certified
2.5x Long Working Distance objective
20x Long Working Distance objective5x Long Working Distance objective
10x Long Working Distance objective 50x Long Working Distance objective
100x Long Working Distance objective
Knoop indenter ISO-ASTM certified Brinell indenter 2,5mm ISO/ASTM certified
Brinell indenter 5mm ISO/ASTM certified
ACCESSORIES
INDENTERS
OBJECTIVES
Brinell indenter 1mm ISO/ASTM certified
STAGES
Knoop indenter ISO-ASTM certified
Brinell indenter 2,5mm ISO/ASTM certified
V-ANVILS
CLAMP
STANDARD

24 25
VICKERS
ISO 6507
ASTM E384, E92
JIS B 7725
HV0.001 | HV0.002 | HV0.003 | HV0.004 | HV0.005 | HV0.006 | HV0.007 | HV0.008 | HV0.009
HV0.010 | HV0.015 | HV0.020 | HV0.025 | HV0.050 | HV0.1 | HV0.2 | HV0.3 | HV0.5 | HV1 | HV2
HV2.5 | HV3 | HV4 | HV5 | HV10 | HV20 | HV25 | HV30 | HV40 | HV50
Kic Fracture toughness
All Vickers forces & scales
KNOOP
ISO 4545
ASTM E92
JIS Z 2251
HK0.001 | HK0.003 | HK0.005 | HK0.015 | HK0.01 | HK0.02 | HK0.025 | HK0.05 | HK0.1 | HK0.2
HK0.3 | HK0.5 | HK1 | HK2 | HK5
BRINELL
ISO 6506,
ASTM E10
JIS Z 2243
HBW1/1 | HBW1/1.25 | HBW1/2.5 | HBW1/5 | HB1/10 | HBW1/30 | HBW2.5/6.25
HBW2.5/7.8125 | HBW2.5/15.625 | HBW2.5/31.25 | HBW2.5/62.5 | HBW5/25 | HBW5/62.5
CONVERSIONS
Conversion to other hardness scales according to ASTM E140, ISO 18265, GB/T 1172
Force application Multi-load cell, closed loop, force feedback system
Test forces 0.001kgf – 62.5kgf
Force range per model
FALCON 501 3gf– 2kgf
FALCON 503 10gf - 10kgf
FALCON 505 200gf - 31.25kgf
FALCON 507 10gf - 31.25kgf
FALCON 508 1gf - 31.25kgf
FALCON 509 200gf - 62.5kgf
FALCON 510 10gf - 62.5kgf
FALCON 511 1gf - 62.5kgf
Test force tolerance < 0.25% for test force 100gf to 62.5kgf
< 0.5% for test force below 100gf
Dwell time settings Default 10 seconds, user dened. Up to 250 seconds
Motorized turret Ultra-fast, 6 position turret, 2 indenter positions, 4 objective positions
Objectives Long working distance 2.5x, 5x, 10x, 20x, 50x, 100x
Indenters Certied indenters (ISO/ASTM) available at choice
Camera 1 (objective) 5 Megapixels, HD, Machine vision system
Camera 2 (overview) Full HD, Optical zoom system, variable FOV 45 x 35mm - 155 x 125mm
Electronic system
H igh performance embedded controller, i7, mSSD 120 GBxx,
MS Windows® 10 operated
CNC support
5 Axis CNC controller (for motorized stages) or stage accessories
Screen(s)
1 5” portrait mode capacitive touch screen, second screen option
Display resolution 0.01 HV, HK, HB
Statistics Total test, max, min, average, range, standard deviation, All in real time after each test
Hardness conversion Rockwell, Rockwell Supercial, Vickers, Brinell, Knoop, Leeb & Tensile
Software IMPRESSIONS™ V2, work ow system & tester control
Data storage capacity Internal and external mSSD, SSD or HDD
Data output
XML, CSV, Certied for Q-DAS (Optional)
Connectivity
5 USB ports, RJ45 Ethernet LAN, W-LAN, RS-232, Blue Tooth, 5 Axis CNC & motorized X-Y stage
connector, Dual HDMI screen connectors
Printer A4, A3 full color laser printer (optional)
Machine dimension 773 mm x 350 mm x 506 mm
Machine weight 78 kg
Power supply 100VAC to 240VAC, 50/60Hz, single phase
Operating temperature
10°C to 35°C, non-condensing
Power consumption 100W
Humidity 10% to 90%, non-condensing
HARDNESS SCALES
TEST FORCE
GENERAL
SPECIFICATIONS
SYSTEM
TURRET

26 27
FEATURED BY
ADVANCED SOFTWARE APPLICATIONS
-
IMPRESSIONS v2
TECHNICAL DRAWINGS
All dimensions in these drawings are in
mm, approximate. Working heights and or
workpiece accommodation varies depending
on the stages and stage accessories used.
Please contact our sales department for more
details.
773
525
170
345
Max. 200
773
525
170
345
Max. 200
OTHER MODELS IN THE
FALCON RANGE
www.innovatest-europe.com
OTHER MODELS IN THE
FALCON RANGE
FALCON 400 FALCON 450
FALCON 5000 FALCON 5003XL
Load Cell, closed loop
Micro/Macro Vickers, Knoop
& Brinell Hardness testers
With ne adjustable Z-axis
side handwheel
See brochure B18F400/XX
Load Cell, closed loop
Macro/Micro Vickers, Knoop
& Brinell Hardness tester
With Z-axis handwheel
See brochure B18F450/XX
Multi Load Cell, Closed loop
Fully automatic, 8 position
turret, laser postioning.
Micro/Macro Vickers, Knoop
& Brinell Hardness testers.
Descending test head, xed
work piece position
See brochure B18F5000/XX
Multi Load Cell, Closed loop
Fully automatic, 8 position
turret, laser postioning.
Micro/Macro Vickers, Knoop
& Brinell Hardness testers
Descending test head,
xed work piece position
See brochure B18F5000/XX
FALCON 600
Multi Load Cell, Closed loop
Fully automatic, free to
congure Micro/Macro Vickers,
Knoop & Brinell Hardness
testers. With ball bearing
motorized Z-axis
See brochure B18F600/XX
Changes in products and/
or product specications
can emerge due to new
technologies and continuous
development.
We reserve the right to change
or modify specications of
the products without prior
notice. We recommend you
to contact our sales office for
up-to-date information.
Brochure B18F500/08/EN
©All rights reserved, 2018
26
320

28
INNOVATEST Europe BV
Manufacturing, Distribution & Service
Borgharenweg 140
6222 AA MAASTRICHT
The Netherlands
Phone: [phone]
Fax: [phone]
[e-mail]
www.innovatest-europe.com
CORPORATE HEAD OFFICE
Distributor :
INNOVATEST Shanghai Co,. Ltd.
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-shanghai.com
INNOVATEST Japan Co., Ltd.
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-japan.com
INNOVATEST South East Asia
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-singapore.com
INNOVATEST Polska sp. z.o.o
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-polska.pl
INNOVATEST USA Company
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-usa.com
INNOVATEST Deutschland GmbH
Sales & Service
Phone: [phone]
[e-mail]
www.innovatest-deutschland.com
