Inova-bg GPRS TauL User manual

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Inova-bg Ltd.
GPRS TauL

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 2 of 10
Table of contents:
1. Main features........................................................................................................................................3
2. Start working with GPRS TauL............................................................................................................4
3. Programming software: Programmer GPRS TauL...............................................................................5
3.1. General Settings................................................................................................................................ 5
3.2. GPRS Settings................................................................................................................................... 6
3.3. SMS Settings..................................................................................................................................... 6
3.4. Servers Settings................................................................................................................................. 6
3.5. Settings for the digital inputs............................................................................................................ 7
3.6. Status Panel....................................................................................................................................... 7
3.7. Saving the new configuration ........................................................................................................... 7
3.8. Reading configuration from device .................................................................................................. 7
3.9. Open/Save configuration .................................................................................................................. 8
4. Hardware reset......................................................................................................................................8
5. Hardware connections ..........................................................................................................................9
6. Mounting in the security panel box....................................................................................................10

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 3 of 10
1. Main features
GPRS TauL is a communication device with the main purpose to transmit data from security
panels and/or sensors through GPRS based network. Using the advantages of these advanced
communication technologies GPRS TauL provides the most secure connection with monitoring
center..
Features:
Power supply 12VDC (8,5V to 16V)
Low power consumption
Capability to use communicator as
input –using “Ademco Contact ID”
protocol
Five digital inputs –fully compatible
with “Ademco Contact ID” Protocol –
programmable Event Code, Partition
and Zone.
Configurable working mode for each
digital input: Normal Open, Normal
Close, Check for AC voltage from 5V
to 20V, Deactivated
Capability to use one or two fully
independent servers –each with main
and backup IP/Domain Name address
Encrypted connection with the servers
Programmable connection test period
–range between 1 to 65535 seconds
Capability to enter PIN or PUK code
for the SIM card
Graphical display of the status of the
GPRS network
SMS report of the status of the
communicator and/or digital inputs to
up to 5 mobile numbers
Capability each digital input separately
to be set to transmit SMS report

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 4 of 10
2. Start working with GPRS TauL

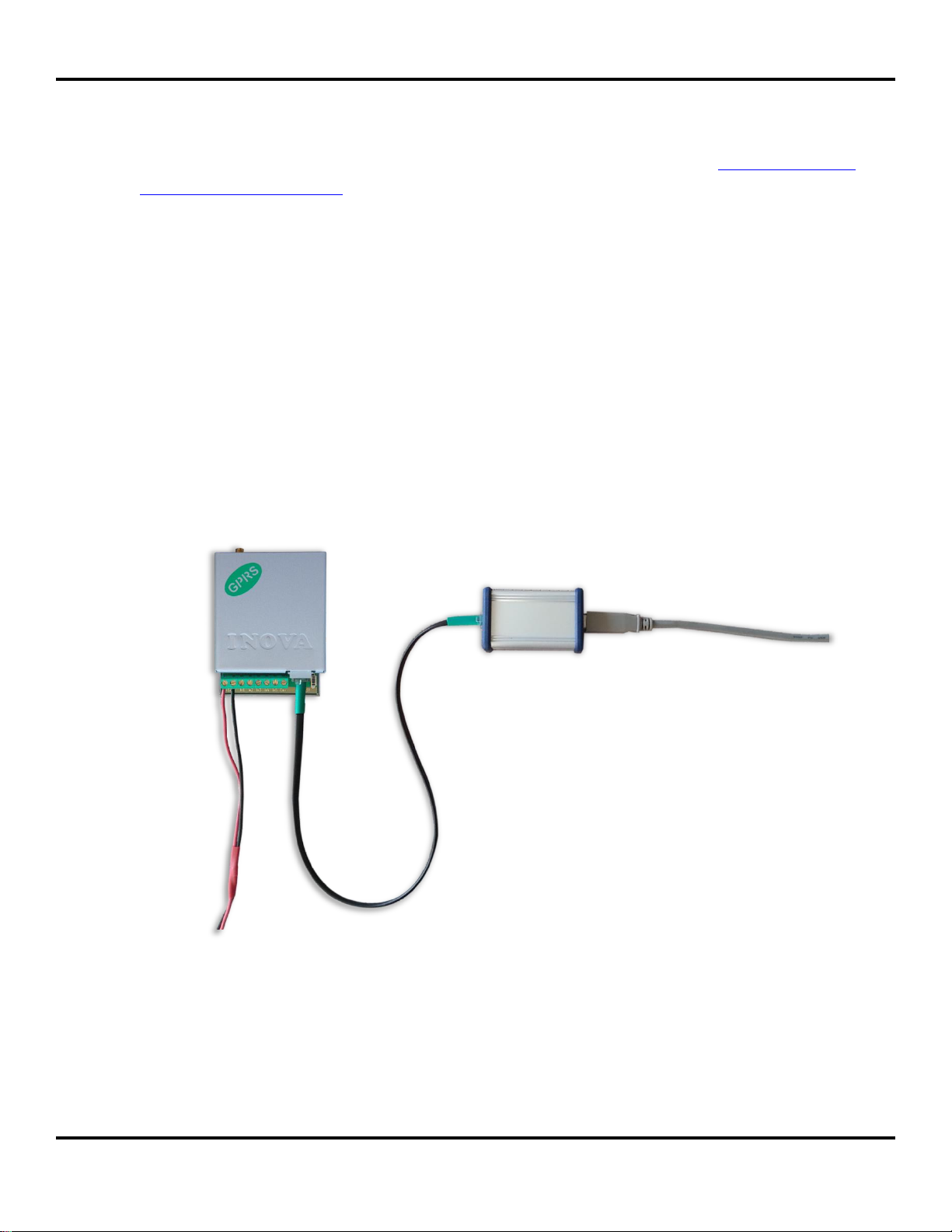

Connect the programmer Radina P3 to the USB port of your computer. If drivers are not
installed, please download them from the download section on our web site http://www.inova-
bg.com/en/downloads.html. After that start the programming software: Programmer GPRS
TauL.
USB Cable
Programming Cable
Radina P3

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 5 of 10

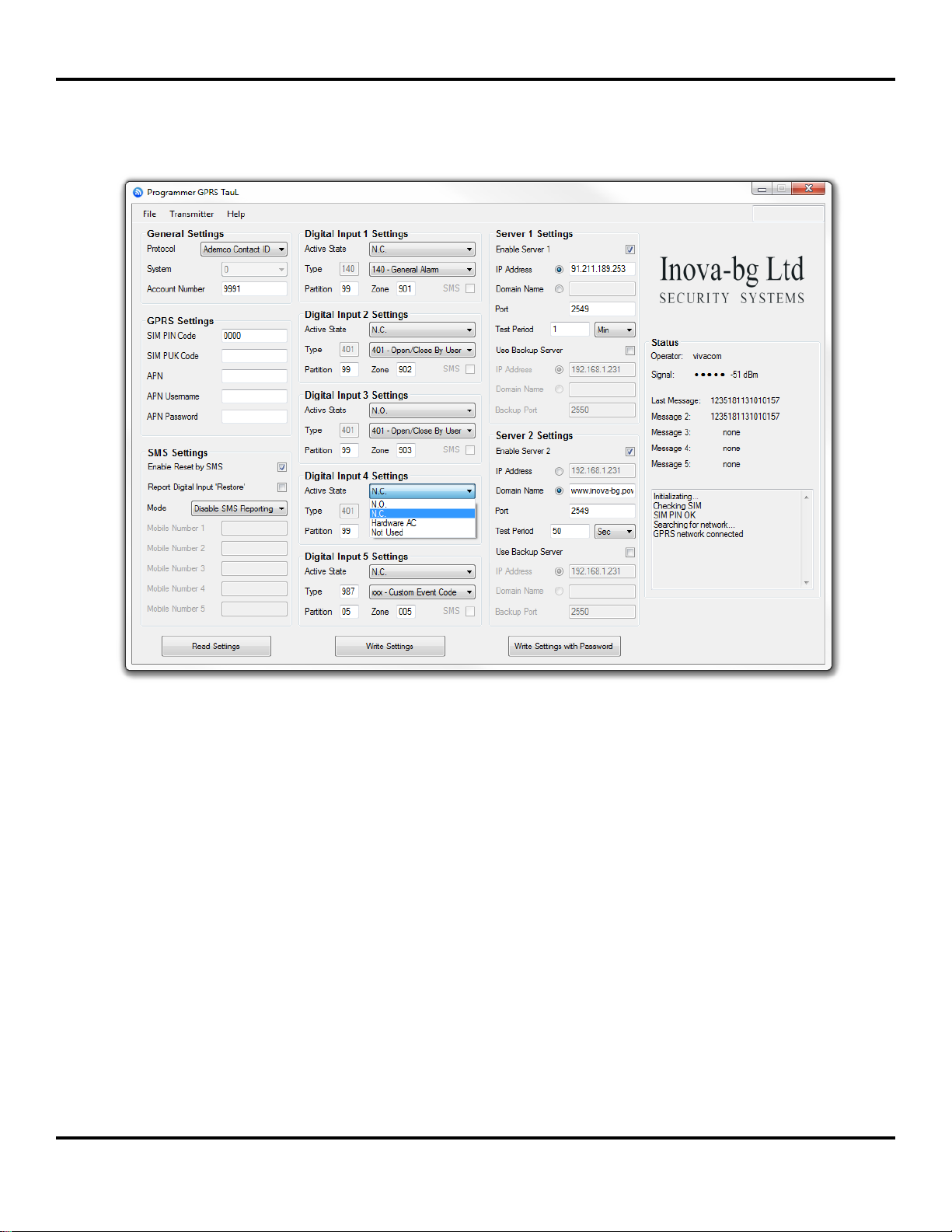

3. Programming software: Programmer GPRS TauL
3.1. General Settings
Protocol –Select Protocol –Ademco Contact ID, LARS
System –System number when working on LARS Protocol
Account Number –If working with LARS protocol - first three symbols must range 0 to 7 and
the last symbol must range 0 to 9 or A to J. In the monitoring software, the last symbol can be
set as a digit or letter ( the digits 0 to 9 correspond to the letters A to J ).
If working with Ademco Contact ID protocol –each of the four symbols must be from 0 to 9
and/or from B to F.

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 6 of 10
3.2. GPRS Settings
In the GPRS Settings, the parameters of the mobile operator must be entered.
In SIM PIN Code the PIN code must be entered. If the sim card doesn't use PIN code, this
field has no role (empty or not).
APN (Access Point Name), APN Username, APN Password are parameters of the mobile
network. The mobile operator must provide them.
3.3. SMS Settings
Enable Reset by SMS –if enabled the device can be reset remotely with SMS
Report Digital Input ‘Restore’–if enabled the GPRS TauL will send and SMS not only for
alarms, but also for restores after the alarms.
SMS report can be sent to up to 5 phone numbers.
Reporting Type sets, which of the signals to be sent as a SMS report.:
Disable SMS Reporting –Deactivates the SMS reporting function.
From Communicator –SMS report will be sent to each phone number, only when
alarm message is received from the communicator.
From Digital Inputs - SMS report will be sent to each phone number, only when alarm
message is received from digital inputs. To each digital input sms report can be
enabled/disabled separately.
From Communicator and Digital Inputs - SMS report will be sent to each phone
number, when alarm message is received from the communicator or digital inputs. To
each digital input sms report can be enabled/disabled separately.
3.4. Servers Settings
The first group is corresponding to the first monitoring server. You must set the IP address
or Domain Name and the communication UDP port. Also set the test period for sending test
messages to the server. If Use Backup Server option is enabled –a secondary IP
Address/Domain Name could be set. If the server on the primary address is not available –the
device will try to send the data to the backup address. This option is usefull if the server has
two addresses from different ISPs.
If you want to use the second server you must enable it - Enable Server 2 –and to set the
parameters in the same way as for Server1.

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 7 of 10
3.5. Settings for the digital inputs
Digital inputs can be connected to PGM outputs of security panles or to any different kind
of sensors –panic-buttons, tampers and etc. In the Active State field you can set the working
mode of each input –normal close ( N.O. ) or normal open ( N.C. ) contact, check for AC on
this input ( Hardware AC ) or you can disable the input ( Not Used ). When digital input is
connected to PGM or dry contact, for ‘0’ state is accepted value of the resistance to ground less
than 300Ω and for active ‘1’ –value more than 1,4KΩ ( or open circuit ), the hysteresis is
between 300Ω and 1,4KΩ. If digital inputs are controlled by voltage for ‘0’ state is accepted
value of the voltage to ground less than 0,7V, and for active ‘1’ –value more than 2,6V, the
hysteresis is between 0,7V and 2,6V.
Settings for each input you can set the following parameters:
Type –Choose a message which will correspond to the change of state of this input
Partition (from 0 to 15) and Zone (0 to 255) determines the corresponding parameters for the
messages generated from each digital input. SMS –if the SMS report from digital inputs is
enabled –this option enables/disables the SMS report for each digital input separately.
3.6. Status Panel
In this panel you can find main information about the device, GPRS operator, GPRS signal
strength, last 5 messages received from the communicator and GPRS connection status.
3.7. Saving the new configuration
There is two ways to save the configuration on each device - with or without a password. This is
done by the buttons - Write Settings and Write Settings with Password.
Write Settings - If this button is used the device configuration will be saved without a password.
Note: If previously a password is used, it must be entered before saving the new configuration.
Write Settings with Password –If this button is used the device configuration will be saved
with a password. After that, every attempt to read or re-write the configuration will require a
password.
Note: If previously a password is used, it must be entered before saving the new configuration.
If everything is OK, a confirmation window will be displayed.
3.8. Reading configuration from device
This can be done by pressing the button - Read Settings. If previously a password is used, it
must be entered before reading the configuration.

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 8 of 10
3.9. Open/Save configuration
In the File menu, there is buttons Open and Save.
By pressing the Save button, current configuration can be saved and to be used again very
easy.
With the Open button, a saved configuration is loaded.
4. Hardware reset
In case you changed the settings and can’t reach the device or if you forgot your password,
GPRS TauL is capable to return to its factory defaults. For this purpose you must disconnect
from power supply, push and hold the button for hardware reset and reconnect to the power
supply. Hold the button for 5 seconds until the LED is blinking. Once the LED goes off you
can release the button and connect to the device.

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 9 of 10
5. Hardware connections
Each of the digital inputs could be used as a “Hardware AC” input. In this mode it will
monitor the AC and generate a message for “AC Loss/AC Restore”.
GPRS TauL has built-in communicator/dialer receiver. It can receive data from each
security panel with communicator/dialer option. Settings for the security panel (in some models
additional settings may also need to be made):
Phone Number: 9
Protocol: Ademco Contact ID
Wait Dialtone: Disable

GPRS TauL User Manual v1.0
Inova-bg Ltd. 2015
Page 10 of 10
6. Mounting in the security panel box
The mounting screw on the top of GPRS TauL should be used for proper mounting of the
device in the box of the security panel. The pictures below shows how to use it.
