Inova-bg Radina H3322 User manual

H3322 User Manual v1.0
Inova-bg Ltd 2018
Inova-bg Ltd
Radina H3322

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 2 of 13
Table of contents:
1. Main features ............................................................................................................................3
2. Start working with Radina H3322 ............................................................................................4
3. Homepage .................................................................................................................................5
4. Configuration of the main parameters ......................................................................................6
5. Username and password configuration.....................................................................................8
6. Reboot.......................................................................................................................................9
7. Hardware reset ..........................................................................................................................9
8. Radina Tau Radio Receiver ......................................................................................................9
9. Windows 8.1/10 x64 unsigned driver installation ..................................................................12

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 3 of 13
1. Main features
Inova-bg Radina H3322 is a communication device with the main
purpose to receive data from the radio channel –using LARS, LARS II
and ElectronicsLine protocols simultaneously, decode it and sends it to
Receiving Server using IP network and/or GPRS mobile network as a
transmission channel. The device has an HTML server for easy
configuration and status check, protected with a username and a

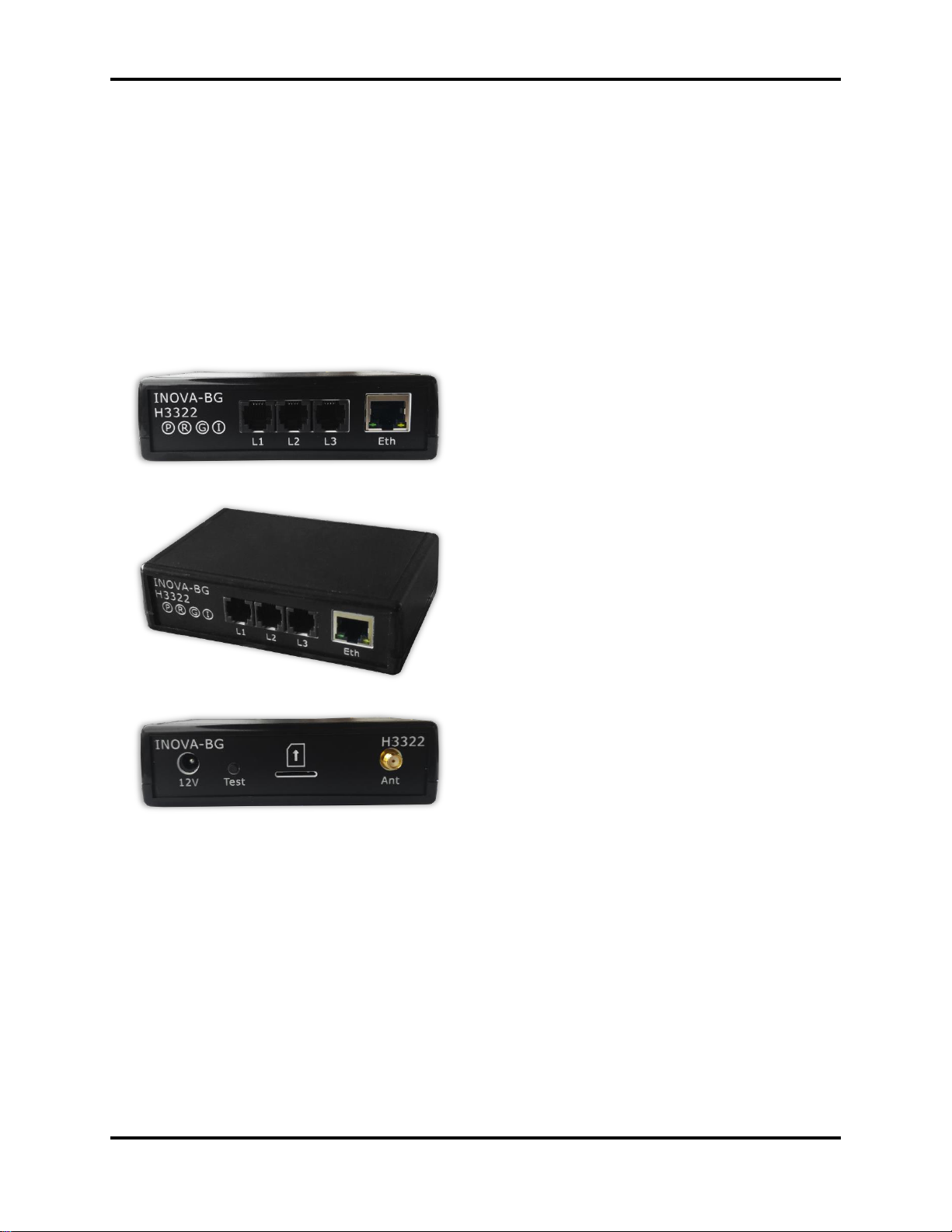

password. On the front panel there are 3 radio
inputs (to connect to radio station output),
Ethernet connector and four LED
indicators:
P –12V DC Power
R –Radio Decoder status
G –GPRS Server connection status
I –IP Server connection status
On the back are the connectors for 12V
DC power supply, test button, SIM card
push-in holder and GPRS mobile network
antenna connector.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 4 of 13
2. Start working with Radina H3322
The default IP address is 192.168.1.220. To access the web server for
configuration use Internet Explorer ( Chrome, Firefox, Opera or any other
web browser ) and enter the H3322’s address - http://192.168.1.220/ ( or
the new one if you already change it ). If the device is accessible from
that computer a connection will be established and you will be prompt to
enter username and password:
The default settings (which will be recovered after hardware reset ) are:
IP Address:
192.168.1.220
Username:
root
Password:
admin
If you enter the right credentials you will have access to the web page for
configuration.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 5 of 13
3. Homepage
On the homepage you can find main information about the device and
the current status of the connections and also the status of the GPRS
network connection and the signal strength.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 6 of 13
4. Configuration of the main parameters
To configure the main parameters of H3322 use Device Config menu.
Device Name –Enter the name of the device. This value is used only for
user convenience –to identify devices if there are more than one
connected to one network.
Device ID –Enter the ID of the device. This value is also received by the
Receiving Server –to assure right identification of an incoming signal.
Enable Filter “2of3”–This option is highly recommended! It’s an
additional filter to make sure that no false signals will be received.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 7 of 13
Obtain an IP address automatically via DHCP –IP address is received
automatically from a DHCP server in the current network. If you select
this mode but after reboot the device cannot find a DHCP server for more
than 10 seconds –H3322 will load the last saved static address. In this
case easy way to access the web-server is by entering the following
address: http://inovah3322/
Use the following IP address –IP address and network parameters are
set to static
IP Address –IP address
Gateway –Gateway address.
Subnet Mask –Subnet mask of the IP network.
IP and GPRS Servers:
IP address and TCP Port of the receiving server. This parameters could
be the same for IP and GPRS or different –depends on the receiving
server network.
In the GPRS Settings, the parameters of the mobile operator must be
entered. If only IP network is used these fields can be empty.
In SIM PIN Code the PIN code must be entered. If the SIM card doesn't
use PIN code, this field has no role (empty or not).
APN (Access Point Name), APN Username and APN Password are
parameters of the mobile network. The mobile operator must provide
them (in most cases could be empty).
When the Save Config button is clicked a validation check is performed.
If there is invalid data in one or more fields –they will be colored in red.
Additionally under the button Save Config a field will be generated –
Error List –which describes in details the errors and how to fix them. If
all the input data are correct H3322 will save the parameters and will
reboot with the new configuration.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 8 of 13
5. Username and password configuration
In Login Config menu you can change the username and password
used to access the web-server. Maximum length for both fields is 11
symbols. If you forget your credentials you can perform a hardware reset
to recover default settings:
Username: root Password: admin
When you click the Save Config button a validation check is
performed. If there is invalid data in one or more fields –they will be
colored in red. If all the input data are correct H3322 will save the
parameters and will reboot with the new configuration.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 9 of 13
6. Reboot
Clicking on the Reboot menu will cause the device to restart.
7. Hardware reset
In case you changed the settings and can’t reach the device or if you
forgot your username or password, H3322 is capable to return to its factory
defaults. For this purpose you must disconnect from power supply, push and
hold the button for hardware reset (test button) and reconnect to the power
supply. Hold the button for 5 seconds until the yellow LED (G) is blinking.
Once the LED goes constantly ON you can release the button and connect to
the device.
8. Radina Tau Radio Receiver
Radina Tau Radio Receiver is server software that receives all the data
from all of the installed receivers - H3322. It decodes, filter, checks the
integrity of the data and sends it to the correct output to monitoring software.
To add new receivers to the Receiving Server go to Settings Tab. To
make changes to the configuration a password is need.
Default Password: admin

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 10 of 13
Create new filter by clicking on “Add new filter”. Change the filter
settings corresponding to your system and click “Save”.
After a filter is created new Receivers can be added. Click “Add New
Receiver”and change the receiver settings corresponding to your system.
Note that every receiver should have a different TCP Port.
Click “Save”. The new receiver should be shown in the system treeview.
The status of the IP and GPRS connection to each receiver is shown here.
Depending on your system you can add as many filters and receivers as
needed. Each filter acts like new/separate radio system with its own receivers
as receiving points.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 11 of 13
LiveData tab displays incoming signals from all the receivers. “Show
Filtered Messages”shows only the signals that are sent to the monitoring
station. “Show All Messages”shows all the signals that are received by all of
the configured receivers.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 12 of 13
9. Windows 8.1/10 x64 unsigned driver installation
64-Bit editions of Windows 8.1 / Windows 10 require digitally
signed drivers. To disable driver signature verification use the following
steps:
Hold the shift key and press restart:
+
Once your computer has rebooted you will be able to choose the
Troubleshoot option.
Then head into Advanced options.

H3322 User Manual v1.0
Inova-bg Ltd 2018
Page 13 of 13

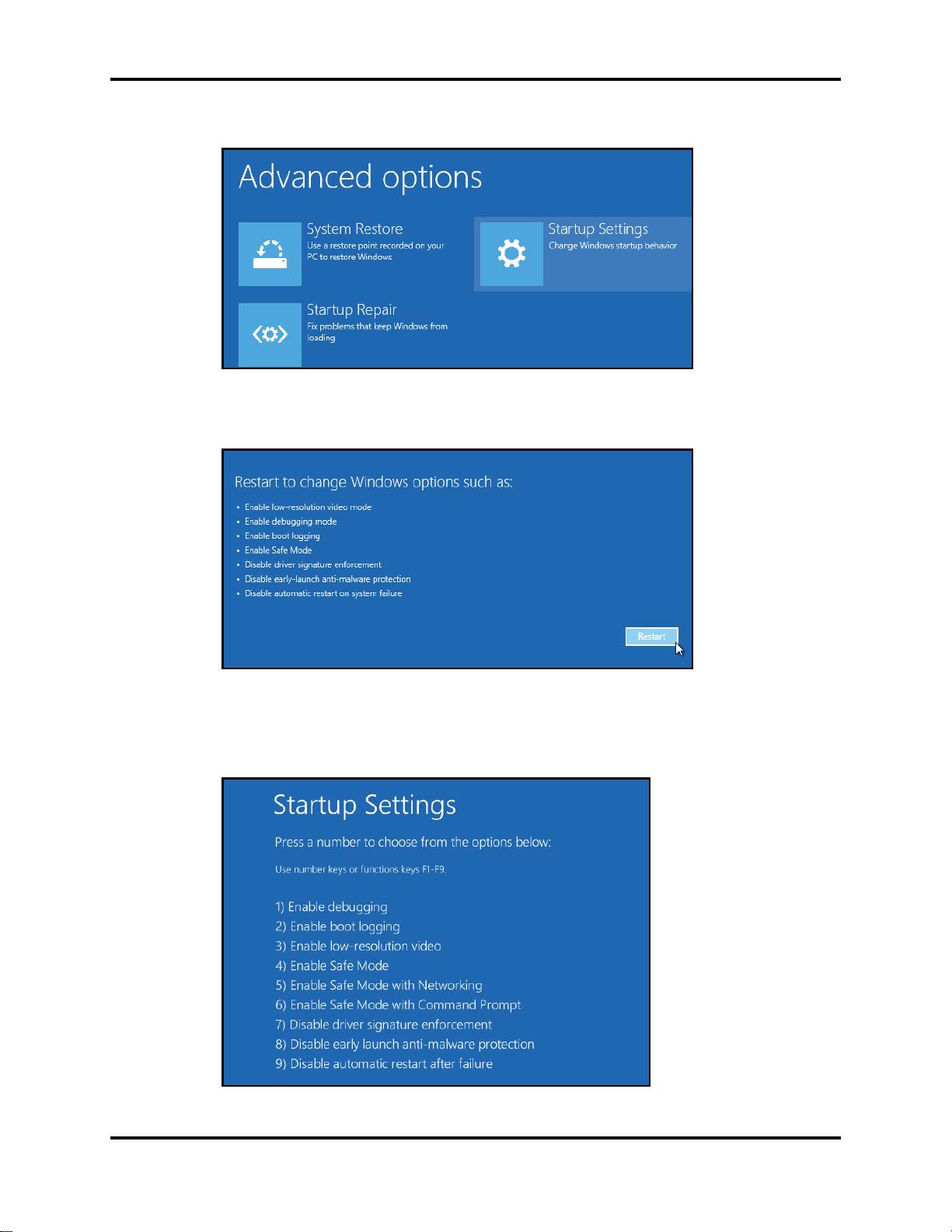

Then Startup Settings.
Since we are modifying boot time configuration settings, you will
need to restart your Computer one last time.
Finally, you will be given a list of startup settings that you can change.
The one we are looking for is “Disable driver signature enforcement”. To
choose the setting, you will need to press the F7 key.
