Thank you for purchasing the
732 Advanced Dynamic RDS/RBDS Encoder.
This quick start guide is designed to provide the basic information for
an easy install. More detailed information is available in the user manual.
MODEL 732
1.
2.
FRONT PANEL CONTROLS / INDICATORS:
REAR PANEL CONNECTIONS:
PILOT LOCK INDICATOR
SIGNAL
INPUT / OUTPUTS
TCP DATA
UDP DATA
SERIAL
PORT
COM / RS232 DATA
GPIO
INTERFACE
OLED MENU DISPLAY
NETWORK
CONNECTION
JOG WHEEL
BACK BUTTON
POWER
90-240VAC
When data is
being received,
the respective
data indicator
LED will blink

4. SET: RDS OR RBDS For Europe and all other countries, set to RDS
For North America, Canada, and USA, set to RBDS
3. DETERMINE YOUR AIRCHAIN CONFIGURATION:
FM AUDIO
PROCESSOR
& STEREO-GEN
MPX OUT
SCA/RDS IN
19kHz PILOT
AUDIO PROC
& STEREO-GEN
OR STL RCVR.
MPX OUT
AES/ANALOG
AUDIO OUT
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
TX
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
TX
FM AUDIO
PROCESSOR
& STEREO-GEN
MPX OUT
SCA/RDS IN
19kHz PILOT
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
FM
EXCITER
AES/ANALOG
AUDIO IN
SCA/RDS IN
(BNC ‘ T’)
FM
EXCITER
MPX IN
TX
FM
EXCITER
MPX IN
Option 1
Option 2
Option 3
FM
EXCITER
MPX IN
FM EXCITER
+STEREO-GEN
AES/ANALOG
AUDIO IN
SCA/RDS IN
19kHz PILOT
FM
EXCITER
MPX IN
TX
AUDIO PROC
& STEREO-GEN
OR STL RCVR.
MPX OUT
AES/ANALOG
AUDIO OUT
Option 4
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
TX
TX
FM AUDIO PROC, MONO
MODE WITH PRE-EMPH
ANALOG AUDIO
OR “MPX” OUT
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
FM AUDIO PROC, MONO
MODE WITH PRE-EMPH
AES OR ANALOG
AUDIO OUT
732 RDS
ENCODER
MPX /
PILOT
IN
RDS
OUT MPX
+RDS
OUT
Option 6 (Mono-FM)
Option 5 (Mono-FM)

6.
7.
8.
SET: NETWORK
SET: TIME ZONE
SET: RDS ENABLE & LEVEL
Connect network cable
While monitoring your station with a Modulation Monitor, adjust the RDS Level until you
see approximately 5% of 57kHz RDS Injection as indicated on your Modulation Monitor.
Select either DHCP or Static IP and other network prameters
Set appropriate Daylight Saving settings, and UTC Time Zone oset
//
5. SET: PI CODE / PTY / FLAGS
Select your PTY (format) code: e.g. NEWS / ROCK / COUNTRY / JAZZ ...
Select which Flags to use:
MS – Music or Speech
DI – Stereo or Mono
TP – If your station broadcasts Trac Reports, set to ON
CT – If your station broadcasts Clock / Time information, set to ON
Set your PI code:
For RDS – Enter your government issued 4 digit Hex ID
For RBDS – Enter your station’s call letters
*Find PI codes for translators at picodes.nrscstandards.org
When entering a translator’s HEX code, the “Call” box will
most likely show “????” This is OK.
Once a valid IP address appears here, you
may access the Model 730 web interface by
entering this address into the browser of a
computer on the same network.

RADIO TEXT:

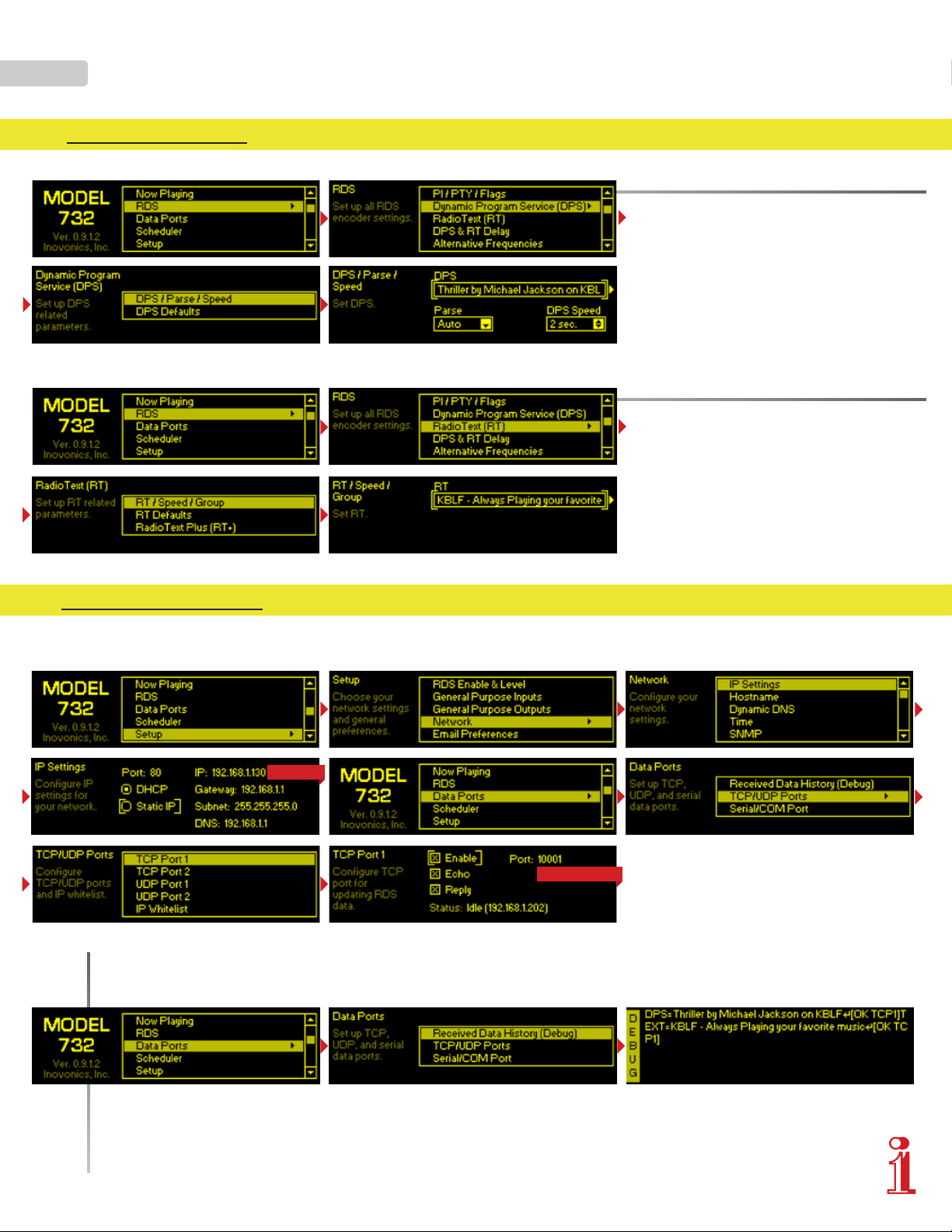

DYNAMIC PS:
RT – Enter your Radio Text data
EXAMPLES:
- www.inovonicsbroadcast.com is your favorite!
- Call the KBLF Music Hotline [phone]
- KAZU Appreciates your support KAZU.org
DYNAMIC MESSAGE
Note the IP address and Port Number of your Model 732 RDS Encoder
In your automation software, use the IP
address and Port number you’ve noted to
“tell” your automation system where to
send the data for the Model 732. (This will
be dierent for every automation system.)
To verify that valid data is being sent to the Model 732 from your automation system you can
monitor the received data on the “Debug” screen or via the web interface.
You can see from the above that DPS=Thriller by
Michael Jackson on KBLF <cr> was sent to the 732. The
732 responded with [OK TCP1] which means the data
was received with the correct syntax on TCP1.
(This can be done through the front panel display, or more easily using the web interface.)
NOTE IP
NOTE PORT
You can also see that TEXT=KBLF – Always playing your
favorite music <cr> was sent to the 732. The 732 responded
with [OK TCP1] which means the data was received with the
correct syntax on TCP1.
9. SET: PS & RT FIELDS
STATIC MESSAGE (This can be done through the front panel display, or more easily using the web interface.)
DPS – Enter your Dynamic PS data
EXAMPLES:
- Live 105 Plays your favorite music all day long
- Kitchen Country WMBI 92.5
- The B93
